• Detex EAX-3500 Series
• Detex EAX-3500 Series Parts Diagram

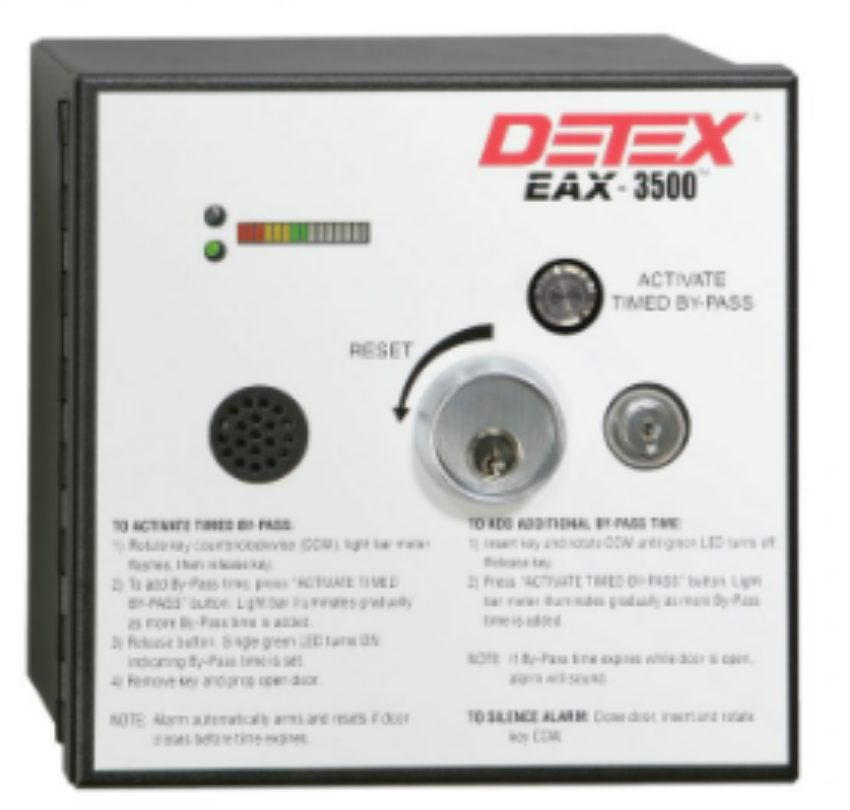

Detex EAX-3500 Series

Diagram List

Detex EAX-3500 Series Parts Diagram

Detex EAX-3500 Series

Products by Part Type

Exit Device General Parts

• Electronic & Control Boards
  • 106392 Logic Board, For EAX-3500 Series
  • 106390 Power Board For EAX-3500 Series
  • 106383 S&R EAX-3500 Board Replacement Kit
  • 103990 Switch Assembly, Reset, EAX-3500
  • 106385 Wiring Harness, Logic Board to Power Board
  • 106740 Switch Assembly, add time, For EAX-3500 Series
  • 103965 Tamper Switch Assembly, for EAX-3500 Series
• Cylinders & Lock Components
  • 102281-7 Mortise Cylinder, 5 pin
  • 103800-626 Mortise Cylinder Housing, SFIC, 7 pin
  • 103970 Bracket Cylinder, EAX-3500 Series
  • 103303 Cylinder Collar
  • 102966 EAX-3500 Series Part, Cover Lock and Key with Cam
  • CL-1 Key For 102966
• Mechanism Case & Parts
  • 102680 Cam Assembly
• Battery & Power Supplies
  • 103952-1 Battery, 6V 3.4ah
  • 103951 Plug in Power Supply, 24VAC/DC
  • 103963 Battery Strap
  • 103958 Battery Cable, for EAX-3500 Series
• Dogging Parts
  • 100783 Cylinder Hex Nut
• Screw Packs
  • 102627-15 Screw, 8-32 Truss HD
