Adams Rite 8100 Series Surface Vertical Rod Exit Device

The Adams Rite 8100 Series Surface Vertical Rod Exit Device is a life-safety exit device designed to provide two-point locking on doors using surface-mounted vertical rods. It provides an exit hardware solution for commercial door applications.

Diagram List

8100 Series Surface Vertical Rod Exit Device Parts Diagram

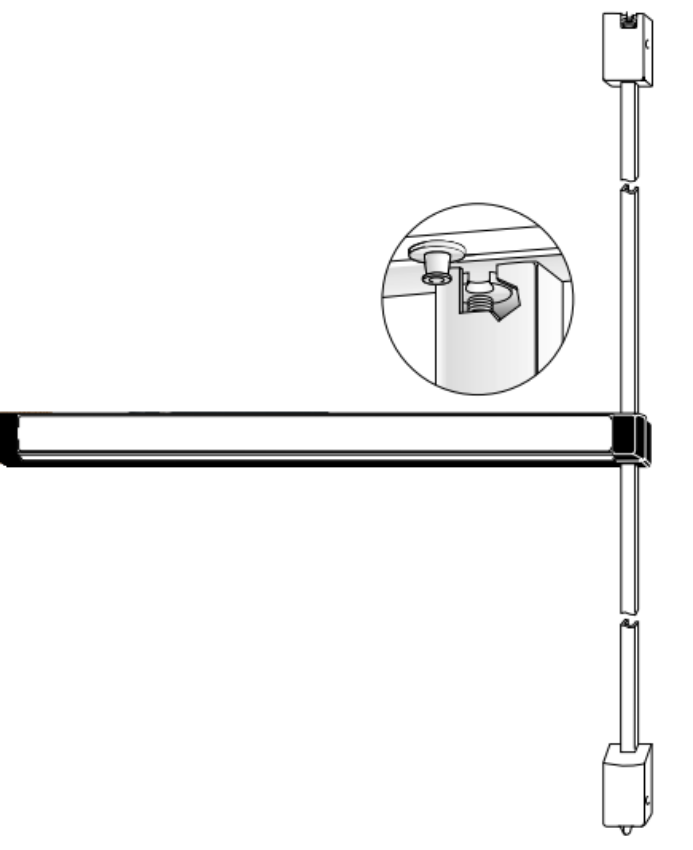

Adams Rite 8100 Series Surface Vertical Rod Exit Device

Products by Part Type

Deadlock General Parts

• Push Bar Assembly
  • 8100-PUSH-BAR-313 Push Bar Assembly for 8100
  • 8100-PUSH-BAR-335 Push Bar Assembly for 8100
  • 8100-PUSH-BAR-628 Push Bar Assembly for 8100
  • 8100-PUSH-BAR-630 Push Bar Assembly for 8100
  • 8100-PUSH-BAR-605 Push Bar Assembly for 8100
  • 8100-PUSH-BAR-606 Push Bar Assembly for 8100
  • 8100-PUSH-BAR-629 Push Bar Assembly for 8100
• Rod Assembly
  • 41-0282-01 SVR Final Assembly w/ Rods
  • 41-0333-11 SVR Final Assembly, Top Rod
  • 31-0192-02 Lower Rod Assembly
  • 31-0235-01 Upper Rod Assembly
• End Cap Assembly
  • 41-0903-119 Metal End Cap Assembly
  • 41-0902-04-IP Metal End Cap Assembly
• Strike
  • 31-0202 Strike Plate Assembly
  • 22-0214 Header Strike for 8100 Series
• Bolt & Guide Hardware
  • 25-0284-MP Bolt Guide Bushing
  • 31-0175-P Lower Bolt Guide Assembly
• Upper Cover
  • 22-0332-01-313 Upper Cover - Dark Bronze
  • 22-0332-01-335 Upper Cover - Black
  • 22-0332-01-628 Upper Cover - Aluminum
  • 22-0332-02-605 Upper Cover - Bright Brass
  • 22-0332-02-606 Upper Cover - Satin Brass
  • 22-0332-04-629 Upper Cover - Bright Stainless Steel
  • 22-0332-04-630 Upper Cover - Satin Stainless Steel
• Lower Cover
  • 22-0275-01-313 Lower Cover - Dark Bronze
  • 22-0275-01-335 Lower Cover - Black
  • 22-0275-01-628 Lower Cover - Aluminum
  • 22-0275-02-605 Lower Cover - Bright Brass
  • 22-0275-02-606 Lower Cover - Satin Brass
  • 22-0275-04-630 Lower Cover - Satin Stainless
  • 22-0275-04-629 Lower Cover - Bright Stainless
• Rod Guide Cover
  • 24-0003-01-313 Rod Guide Cover - Dark Bronze
  • 24-0003-01-335 Rod Guide Cover - Black
  • 24-0003-01-628 Rod Guide Cover - Aluminum
  • 24-0031-605 Rod Guide Cover - Bright Brass
  • 24-0031-606 Rod Guide Cover - Satin Brass
  • 24-0033-629 Rod Guide Cover - Bright Stainless Steel
  • 24-0033-630 Rod Guide Cover - Satin Stainless Steel
• Door Hardware Component & Assembly
  • 31-0265-IP Dogging Assembly (Complete)
  • 31-0201 Actuator Assembly
  • 23-0024 Lower Housing
• Fastener
  • 26-0584-652-MP Binder Post with Screws
  • 25-0008 Molding Clip
• Screw & Hardware Pack
  • 91-0831-02-630 Strike Screw Pack for 8100 Series
  • 91-0831-01-313 Screw Pack - Dark Bronze
  • 91-0831-01-335 Screw Pack - Black
  • 91-0831-01-605 Screw Pack - Bright Brass
  • 91-0831-01-606 Screw Pack - Satin Brass
  • 91-0831-01-628 Screw Pack - Satin Aluminum
  • 91-0831-01-629 Screw Pack - Bright Stainless Steel
  • 91-0831-01-630 Screw Pack - Satin Stainless Steel
• Installation Tools
  • 29-0481-MP Dogging Key
