Adams Rite 8400 Series Narrow Stile Mortise Exit Device

The Adams Rite 8400 Series is a narrow stile mortise exit device designed to provide life-safety egress and secure latching for aluminum door applications. It features a heavy-duty mortise deadlatching mechanism and push bar operation.

Diagram List

8400 Series Narrow Stile Mortise Exit Device Parts Diagram

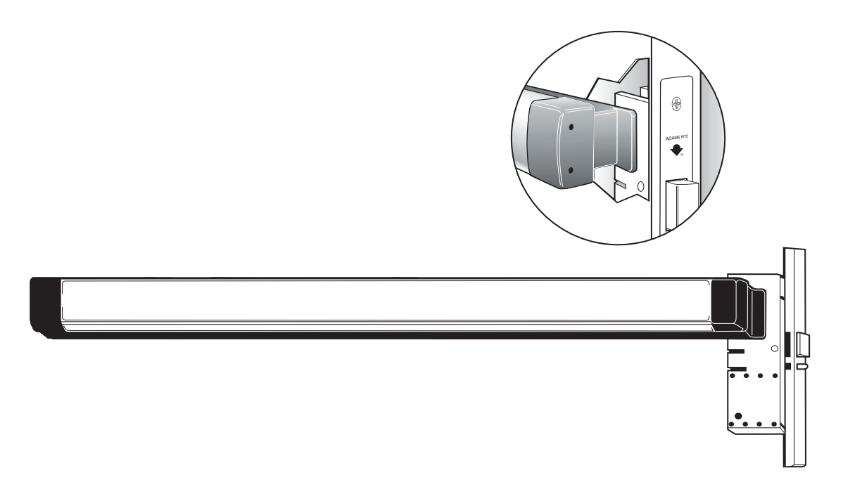

Adams Rite 8400 Series Narrow Stile Mortise Exit Device

Products by Part Type

Deadlock General Parts

• Push Bar Assembly
  • 8400-PUSH-BAR-313 Push Bar Assembly for 8400
  • 8400-PUSH-BAR-335 Push Bar Assembly for 8400
  • 8400-PUSH-BAR-628 Push Bar Assembly for 8400
  • 8400-PUSH-BAR-630 Push Bar Assembly for 8400
  • 8400-PUSH-BAR-605 Push Bar Assembly for 8400
  • 8400-PUSH-BAR-606 Push Bar Assembly for 8400
  • 8400-PUSH-BAR-629 Push Bar Assembly for 8400
• Faceplate Kit
  • 24-0137-01-313 Faceplate Kit with Screws
  • 24-0137-01-335 Faceplate Kit with Screws
  • 24-0137-01-628 Faceplate Kit with Screws
  • 24-0137-01-672 Faceplate Kit with Screws
  • 24-0137-01-702 Faceplate Kit with Screws
  • 24-0137-02-313 Radius Faceplate Kit with Screws
  • 24-0137-02-628 Radius Faceplate Kit with Screws
  • 24-0137-02-335 Radius Faceplate Kit with Screws
  • 24-0137-02-672 Radius Faceplate Kit with Screws
  • 24-0137-02-702 Radius Faceplate Kit with Screws
  • 24-0137-03-313 Radius w/ Weatherstrip Faceplate Kit
  • 24-0137-03-335 Radius w/ Weatherstrip Faceplate Kit
  • 24-0137-03-628 Radius w/ Weatherstrip Faceplate Kit
• Thick Door Kit
  • 91-0995-02-IP Thick Door Kit for 2" Door
  • 91-0995-03-IP Thick Door Kit for 2-1/4" Door
  • 91-0995-04-IP Thick Door Kit for 2-1/2" Door
  • 91-0995-05-IP Thick Door Kit for 2-3/4" Door
• Thermal Clad Kit
  • 91-0325-01 Thermal Clad Kit for 1-3/4" Door
  • 91-0325-02 Thermal Clad Kit for 1-3/4" Door
• Strike
  • 31-0561-01-IP Strike Assembly
• End Cap Assembly
  • 41-0902-05-IP Metal End Cap Assembly
  • 41-0903-119 Metal End Cap Assembly
• Door Hardware Component & Assembly
  • 31-0265-IP Dogging Assembly (Complete)
  • 22-0066 Latchbolt Retraction Cam with Screw
  • 22-0062 Retainer Clip
  • R603-31-MP Cam Retainer Ring
• Support Plate
  • 23-0110 Back-up Plate
• Screw & Hardware Pack
  • 91-0833-04 Flat Head Screw
  • 26-0217N-MP #6 Hex Head Cam Screw
  • 91-0244-335 Flat Head Screws - Black
  • 91-0244-628-P Flat Head Screws - Aluminum
  • 91-0833-03 Screw Pack for 8400 Series
• Installation Tools
  • 29-0481-MP Dogging Key
