Adams Rite 8600 Series Narrow Stile Concealed Vertical Rod

The Adams Rite 8600 Series is a concealed vertical rod exit device designed for life-safety egress and two-point locking on narrow-stile aluminum doors. It provides concealed top and bottom rod operation in a streamlined exit device design.

Diagram List

8600 Series Narrow Stile Concealed Vertical Rod Parts Diagram

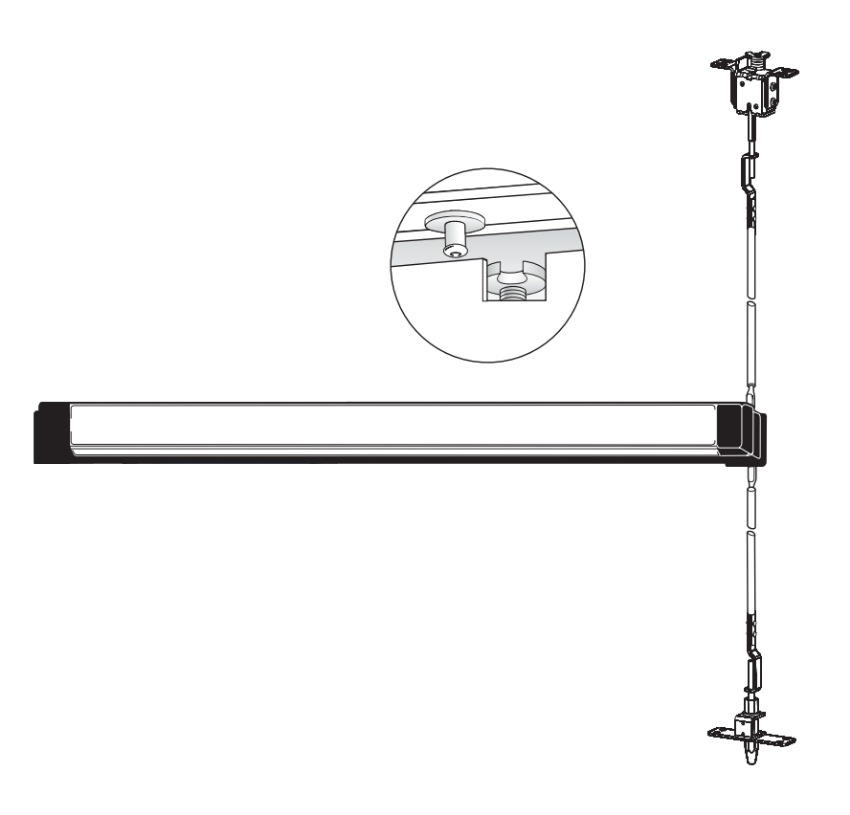

Adams Rite 8600 Series Narrow Stile Concealed Vertical Rod

Products by Part Type

Deadlock General Parts

• Push Bar Assembly
  • 8600-PUSH-BAR-313 Push Bar Assembly for 8600
  • 8600-PUSH-BAR-335 Push Bar Assembly for 8600
  • 8600-PUSH-BAR-628 Push Bar Assembly for 8600
  • 8600-PUSH-BAR-630 Push Bar Assembly for 8600
  • 8600-PUSH-BAR-629 Push Bar Assembly for 8600
  • 8600-PUSH-BAR-605 Push Bar Assembly for 8600
  • 8600-PUSH-BAR-606 Push Bar Assembly for 8600
• Rod Assembly
  • 41-0935 CVR Final Assembly - Complete with Bolts
• Strike
  • 31-0945 Strike Plate Assembly
  • 31-0945-MP Strike Plate Assembly - Mulitpack
• End Cap Assembly
  • 41-0903-119 Metal End Cap Assembly
  • 41-0902-05-IP Metal End Cap Assembly
• Bolt & Guide Hardware
  • 26-0094 Upper Bolt
  • 31-0964 Lower Bolt Guide Assembly
  • 25-0506-MP Bolt Guide Bushing
• Door Hardware Component & Assembly
  • 31-0265-IP Dogging Assembly (Complete)
  • 31-0944 Top Actuator Assembly
• Screw & Hardware Pack
  • S242A06-08-MP Cap Screw #6-32 x 1/2"
  • 91-0835-01-630 Screw Pack for 8600 Series
• Installation Tools
  • 29-0481-MP Dogging Key

Adams Rite 8600 Series narrow-stile concealed vertical rod exit device for life-safety egress and two-point locking on aluminum door applications.
