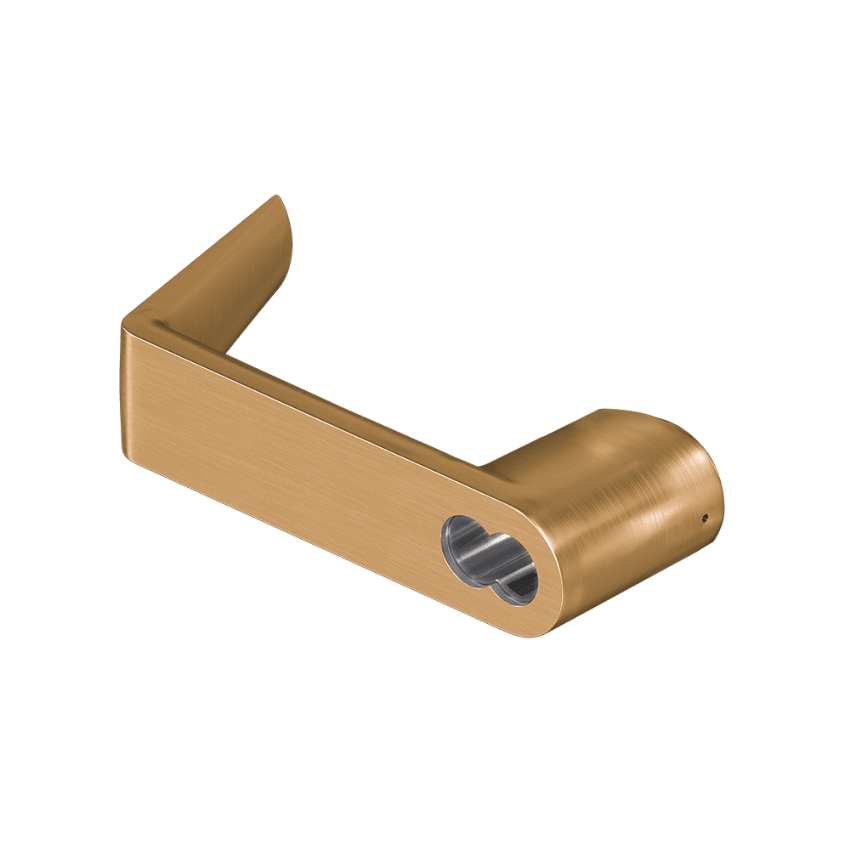

The Schlage 03-200-8RO is the OEM Rhodes Tactile SFIC Lever Less Core for the ND Series, ALX Series, CO Series, and AD Series cylindrical locks, documented in the Schlage ALX, ND, AD, and CO Series Service Manuals. It is the Rhodes lever design (8RO) with tactile surface, in an SFIC housing that ships without a core installed. Legacy part number 03-000-8RO was used before February 2017. The current part number is 03-200-8RO. Non-handed. Finish must be specified. Available (3-4 weeks).

Rhodes vs Athens: The Key Design Difference

The Schlage ND and ALX Series offer multiple lever profile designs, each with a distinct visual and physical shape. The Athens lever (ATH, 8AT) and the Rhodes lever (RHO, 8RO) are two separate designs in the catalog, not variants of the same profile. When the 03-200-8RO is specified, the installed lever will have the Rhodes physical profile with a tactile surface. When the 03-200-8AT is specified, the installed lever has the Athens physical profile with a tactile surface. The two levers cannot be mixed on the same door and maintain the intended visual consistency.

The Rhodes lever has one significant design advantage over the Athens and all other Schlage ND Series lever designs: the optional break-away feature. Per the official Schlage ALX Series Data Sheet: "Optional break-away feature available on Rhodes levers for most locking functions." The break-away feature allows the lever to fold down under excessive lateral force rather than transmitting the force to the lock chassis, protecting the internal mechanism from permanent damage during vandalism or physical attack. No other lever design in the ALX or ND catalog offers this break-away option. If the 8RO tactile lever and the break-away feature are both required, the 03-200-8RO is the only lever in the tactile category that accommodates both.

Schlage 03-200-8RO: Antimicrobial Finish and Healthcare Applications

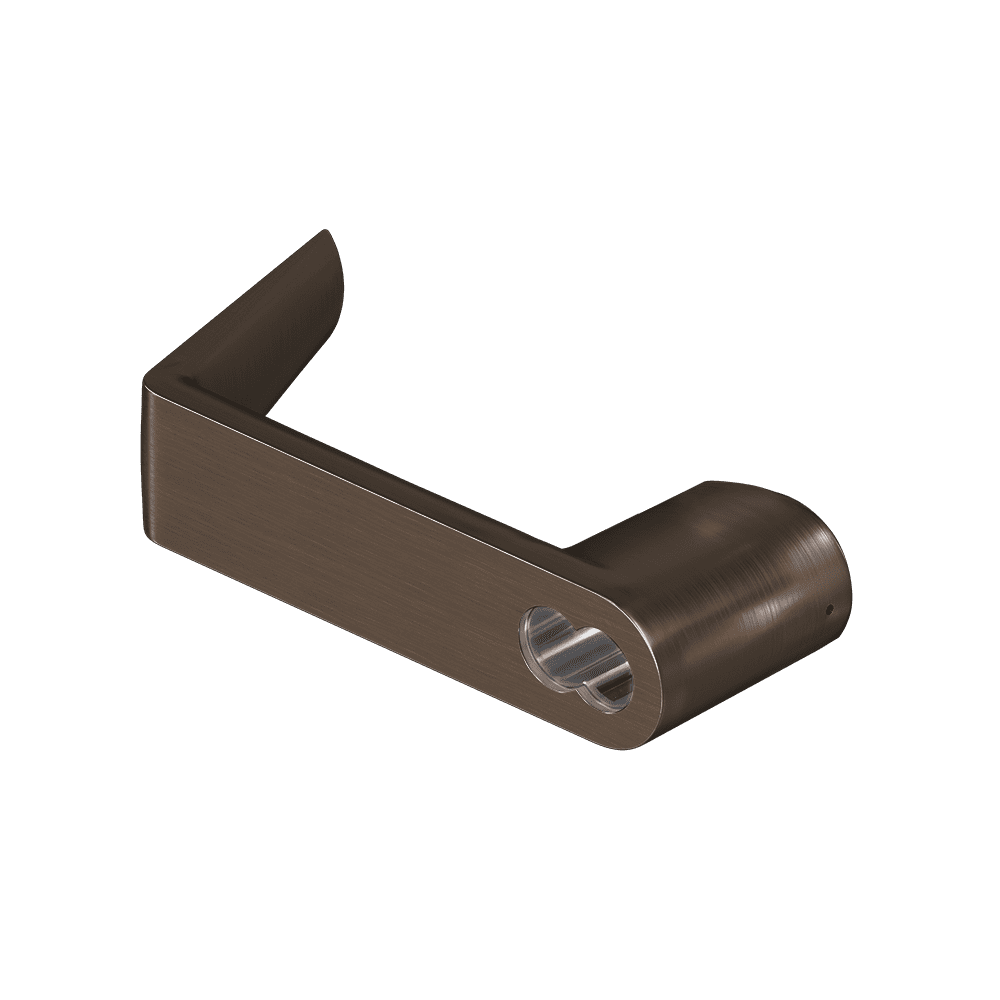

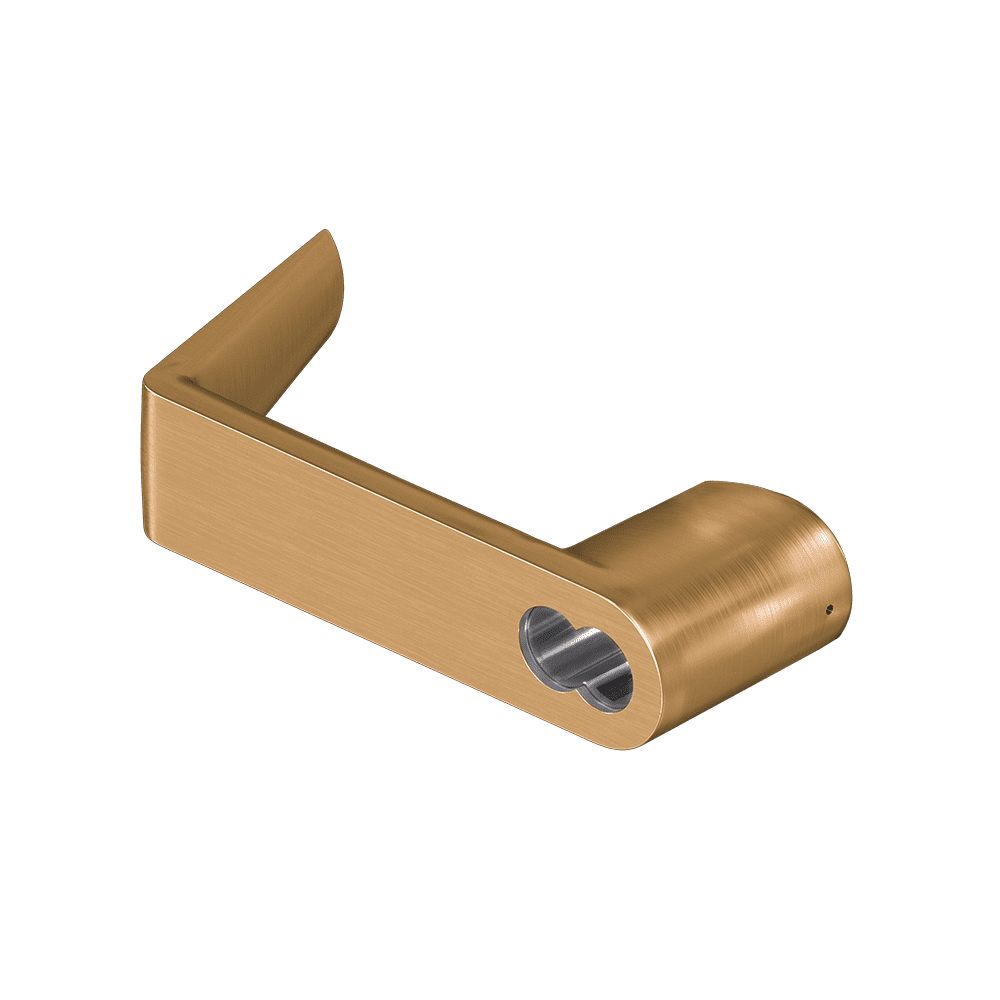

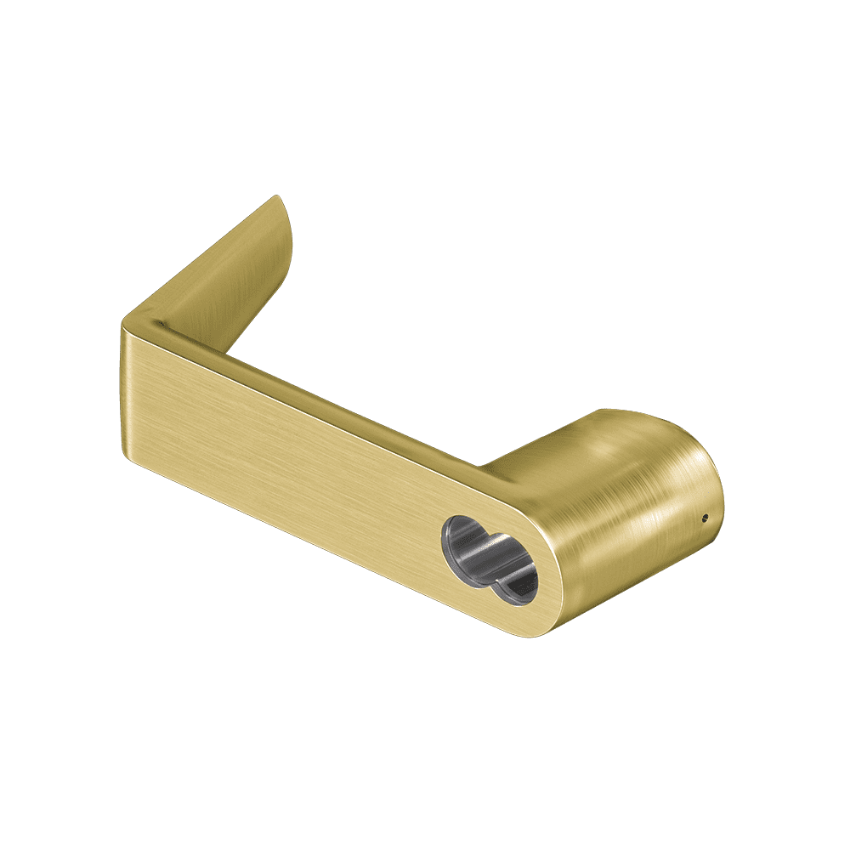

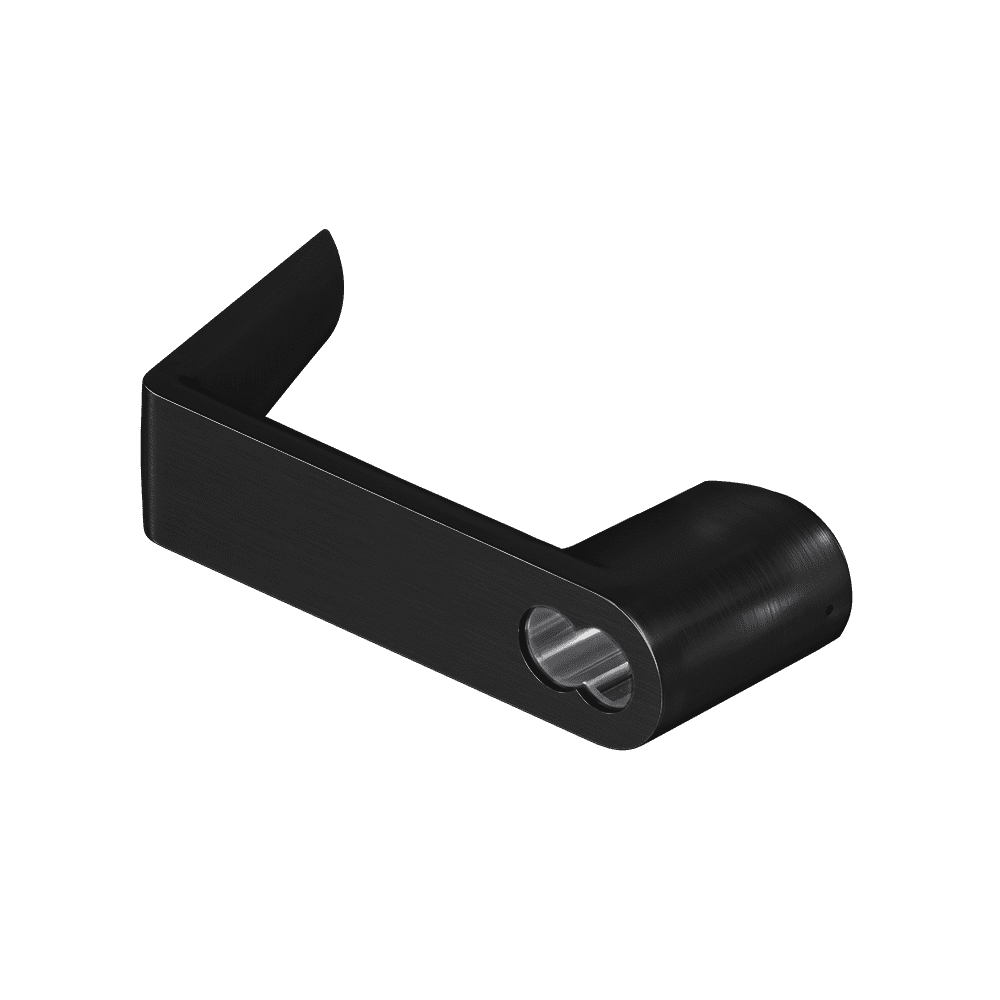

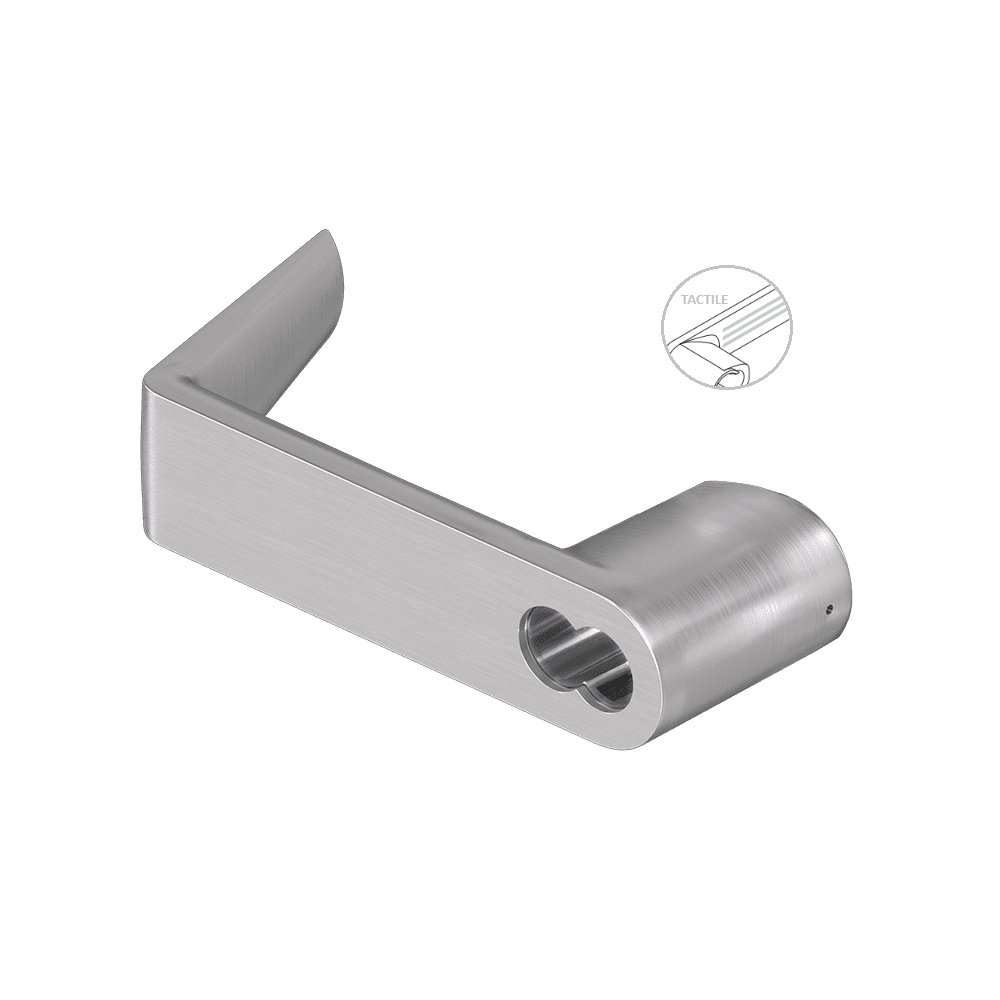

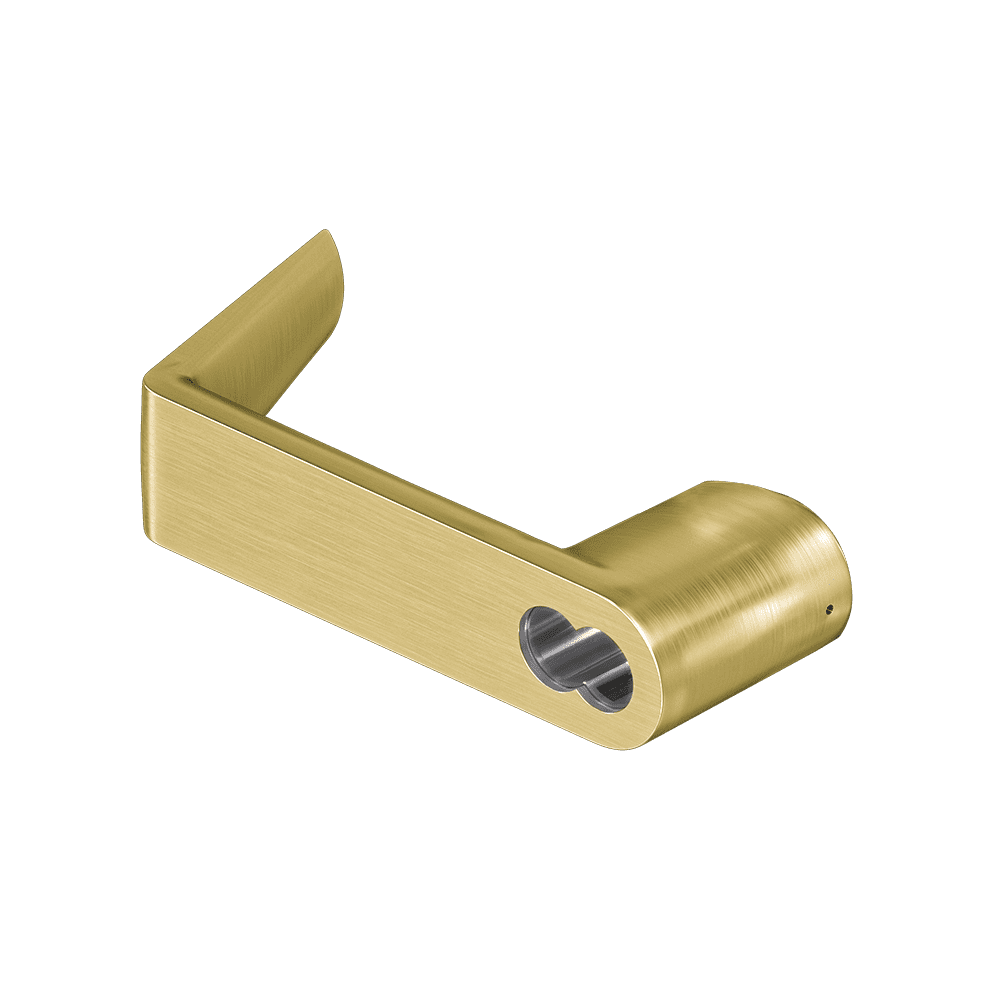

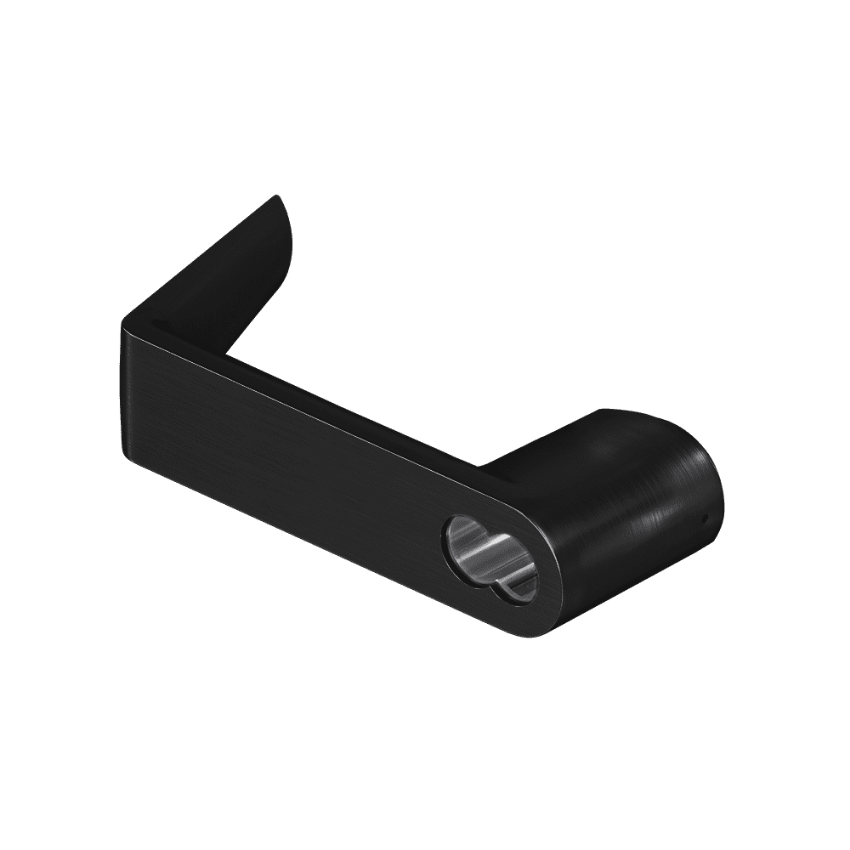

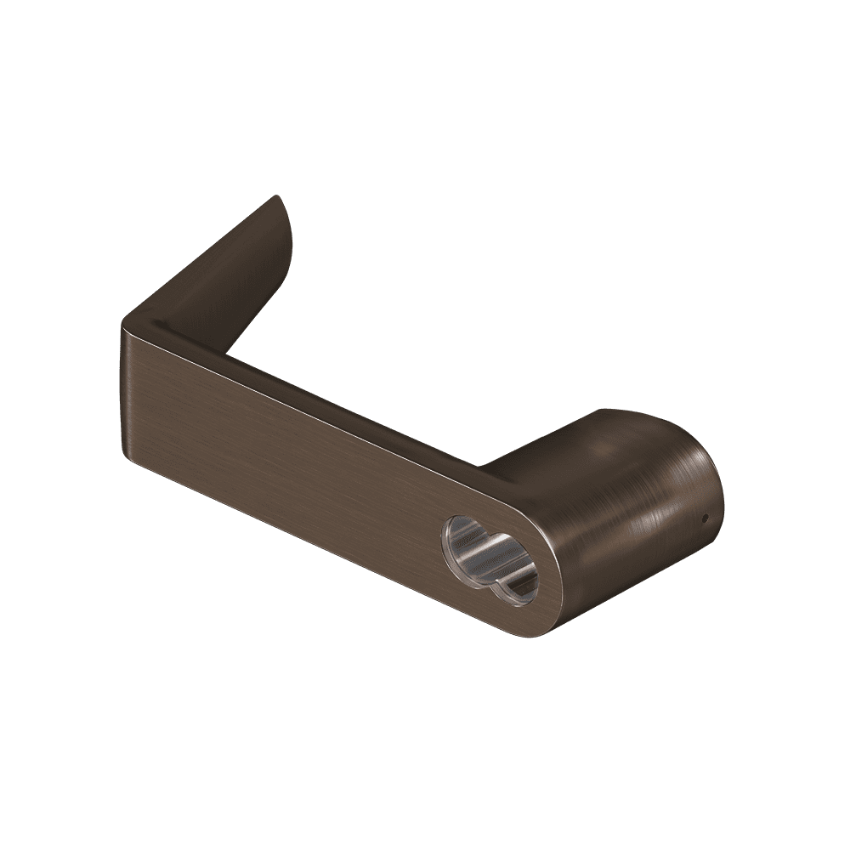

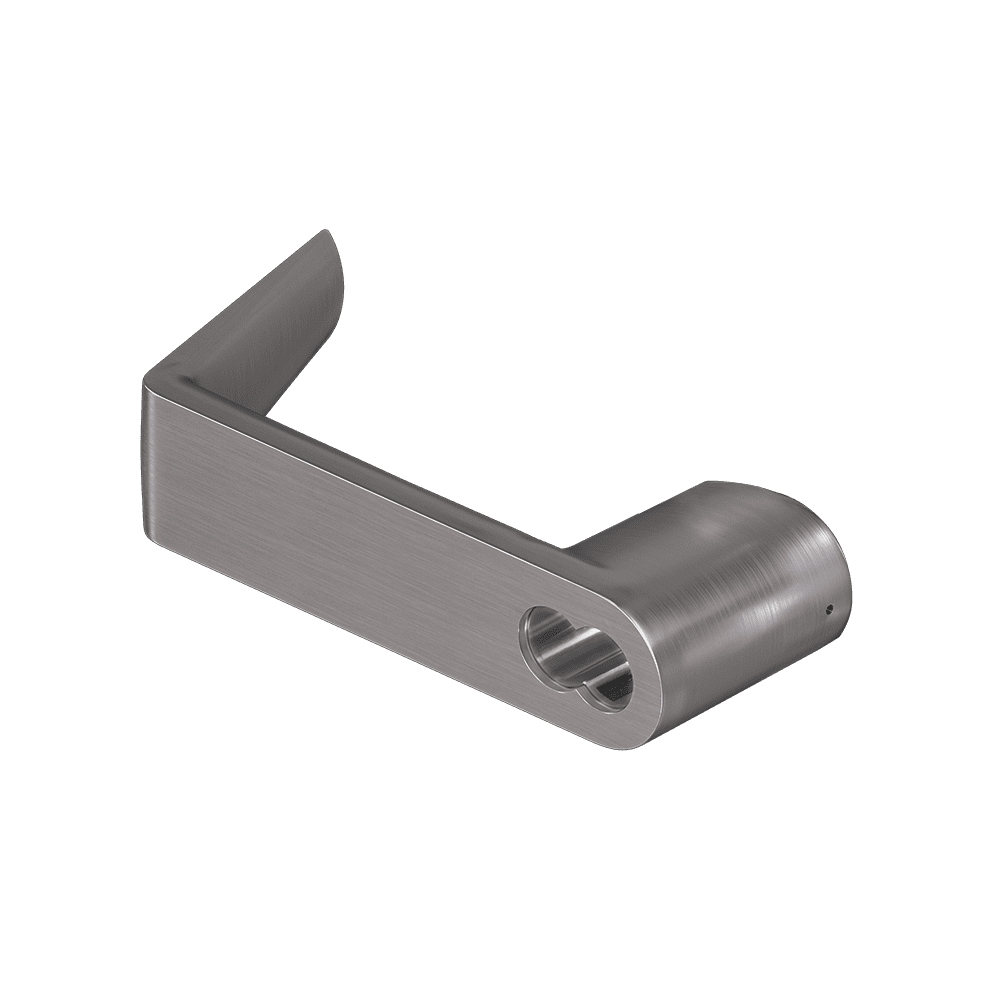

The 03-200-8RO is available in ten finishes: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). The 626AM antimicrobial finish is listed as a distinct finish option for the 03-200-8RO. Antimicrobial coatings are specified in healthcare environments where door hardware is required to reduce microbial growth on frequently touched surfaces, including hospital corridors, clinical areas, and behavioral health facilities.

The combination of tactile surface (8RO), Vandlgard anti-ligature function (ND91 through ND97), and antimicrobial finish (626AM) positions the 03-200-8RO as a complete solution for behavioral health and secure healthcare door hardware specifications requiring tactile identification, anti-ligature protection, and surface hygiene in a single lever.

Rose Pairing: 03-200-8RO and the 03-042-RHO Rhodes Rose

Each Schlage ND and ALX Series lever design pairs with its corresponding rose in the 03-042 rose family. The Rhodes lever (RHO and 8RO designs) uses the 03-042-RHO (Rhodes Rose) on both the inside and outside trim positions. The 03-042-RHO is confirmed in the official Schlage ALX Series Service Manual as the "inside/outside rose for all levers except Omega," which includes the Rhodes (RHO) and Rhodes Tactile (8RO). When ordering a complete trim assembly for the 03-200-8RO lever, the matching rose is the 03-042-RHO, not the 03-042-OME (Omega Rose). Finish for the rose must be specified separately to match the 03-200-8RO lever finish ordered.

ND Series Function Coverage and SFIC Application

The 03-200-8RO appears in the Levers diagram for ND81 (Accessible Storeroom), ND82 (Institution), ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, ND93 (Vandlgard Vestibule), ND94 (Vandlgard Classroom), ND96 (Vandlgard Storeroom), ND96EL, ND96EU, and ND97 (Vandlgard Corridor). SFIC core is ordered separately and installed by the facility's key system manager.

SecurityParts stocks OEM Schlage ND Series and ALX Series SFIC tactile lever components. Free shipping on orders over $300.
