The Schlage 03-200-8SP is the OEM Sparta Tactile SFIC Lever Less Core for the Schlage ALX Series, ND Series, CO Series, and AD Series cylindrical locks, documented in the official Schlage ALX, ND, AD, and CO Series Service Manuals. It is the Sparta lever profile (SPA) with tactile surface in an SFIC housing, shipping without a core installed. Non-handed. Legacy part number 03-000-8SP was used before February 2017. Ten finishes are available including 626AM (Satin Chrome Antimicrobial). In stock.

The Sparta Lever Profile: Distinct From Athens and Rhodes

The Schlage ND and ALX Series offer five lever profile designs for standard SFIC configurations: Athens (ATH), Omega (OME), Rhodes (RHO), Sparta (SPA), and Tubular (TLR). Each design has a distinct physical shape at the lever hub, throughout the shank, and at the handle end. The 03-200-8SP is the Sparta profile with an "8" tactile prefix, placing it in the same tactile family as the 03-200-8AT (Athens Tactile) and 03-200-8RO (Rhodes Tactile) while maintaining a completely different lever form.

The Sparta lever is a clean, contemporary horizontal lever design. It is ADA compliant and is commonly specified in educational facilities, healthcare buildings, government installations, and corporate environments where a streamlined lever profile is the architectural standard across the building. When a project's hardware specification calls for Sparta levers throughout and certain doors in the project also require the tactile warning feature, the 03-200-8SP is the correct lever to maintain visual consistency across the project while meeting the tactile requirement at the specific doors where it applies.

Unlike the Rhodes Tactile lever (03-200-8RO), the Sparta Tactile lever does not have a break-away option. The break-away feature in the Schlage ND and ALX Series is exclusive to the Rhodes lever design. If a project requires both the tactile warning feature and the break-away lever feature on the same door, the 03-200-8RO is the only lever in the tactile category that accommodates both. When the tactile feature is required but break-away is not a specification requirement, any of the four tactile designs (8AT, 8RO, 8SP, 8TR) is appropriate depending on the project's lever profile standard.

Schlage 03-200-8SP: Ten Finishes Including Antimicrobial

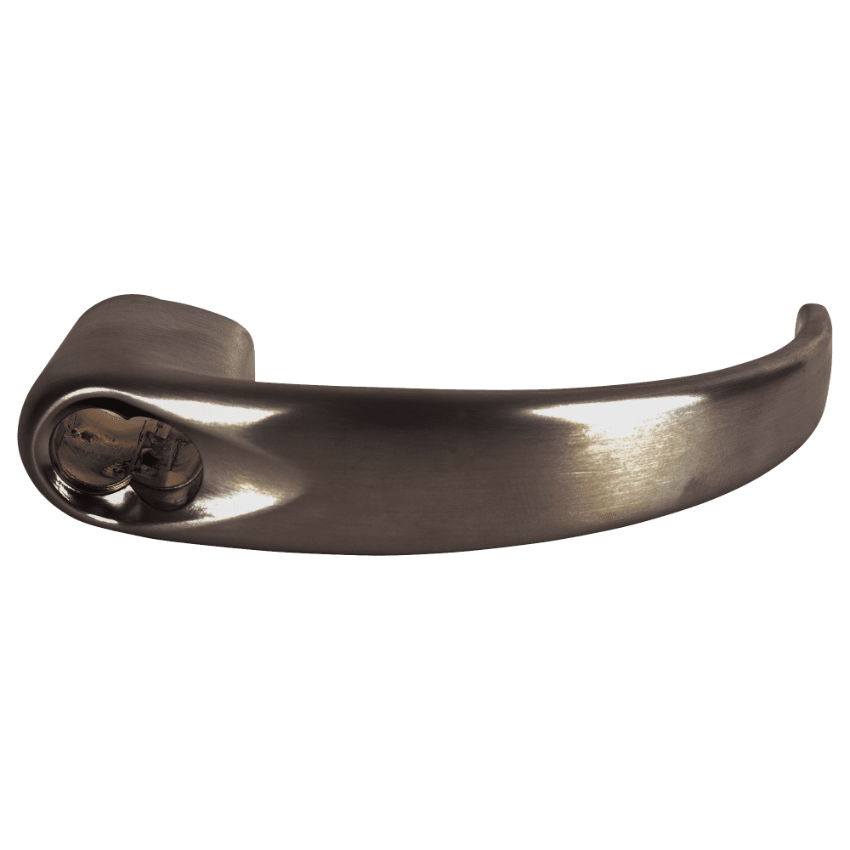

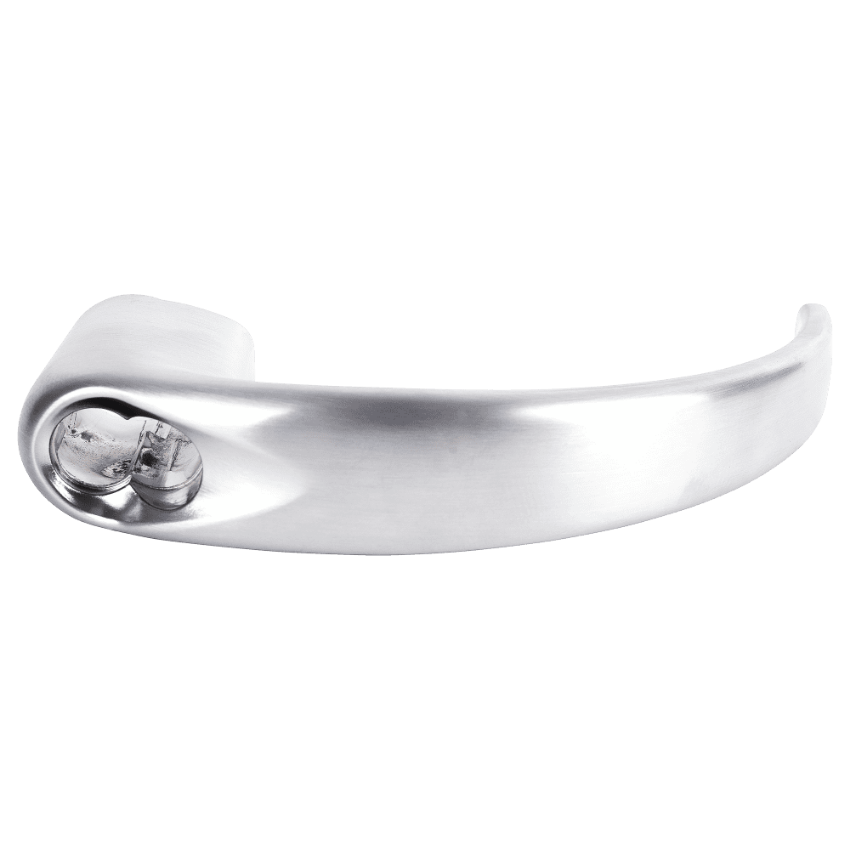

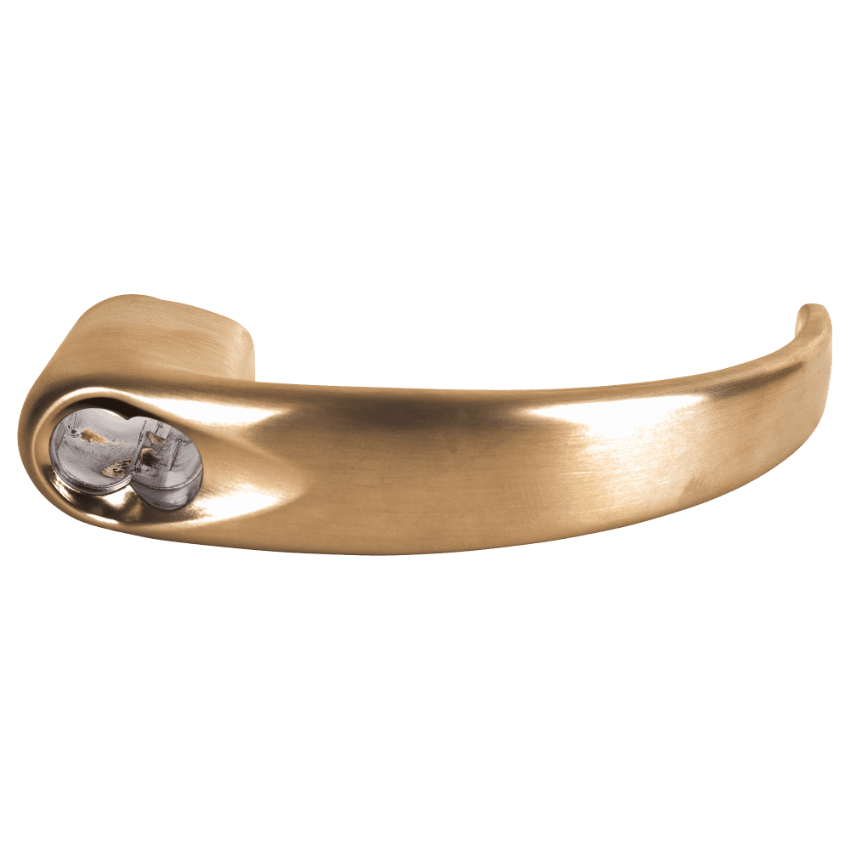

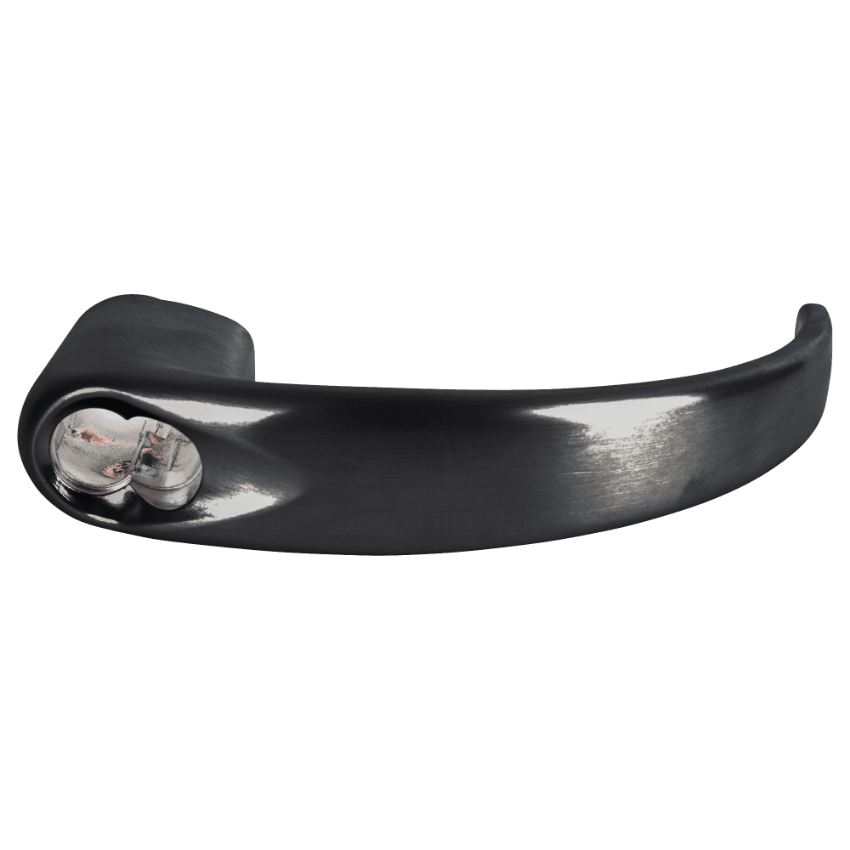

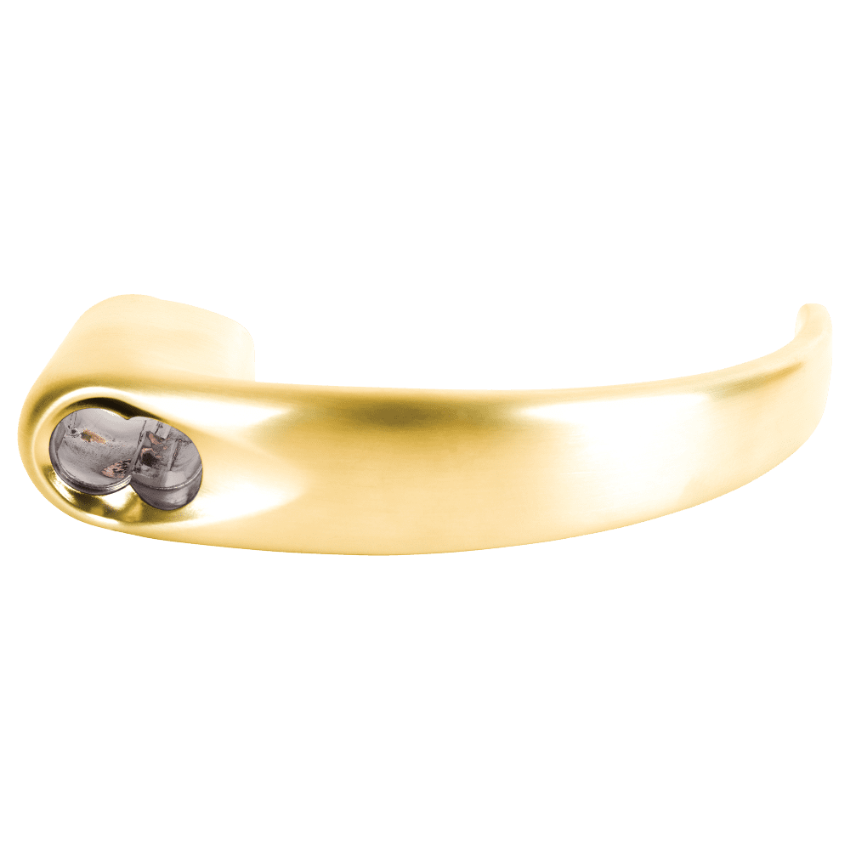

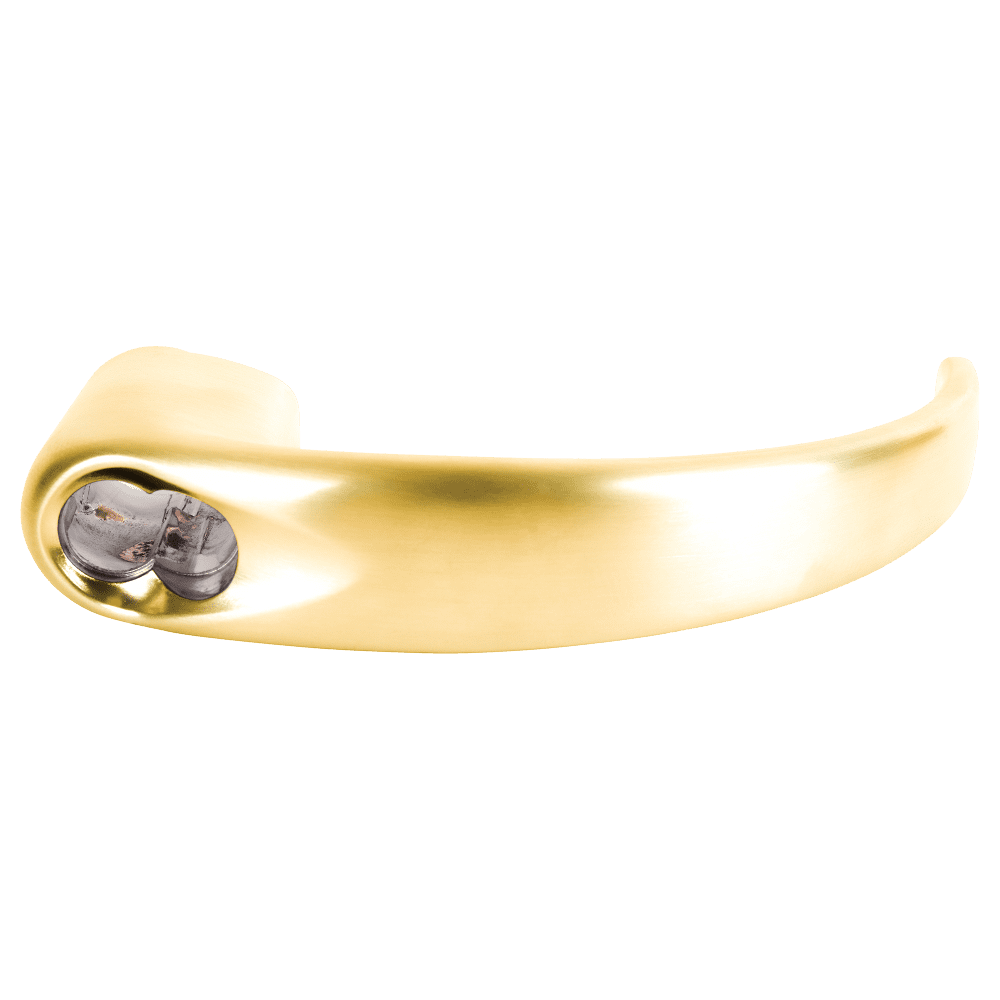

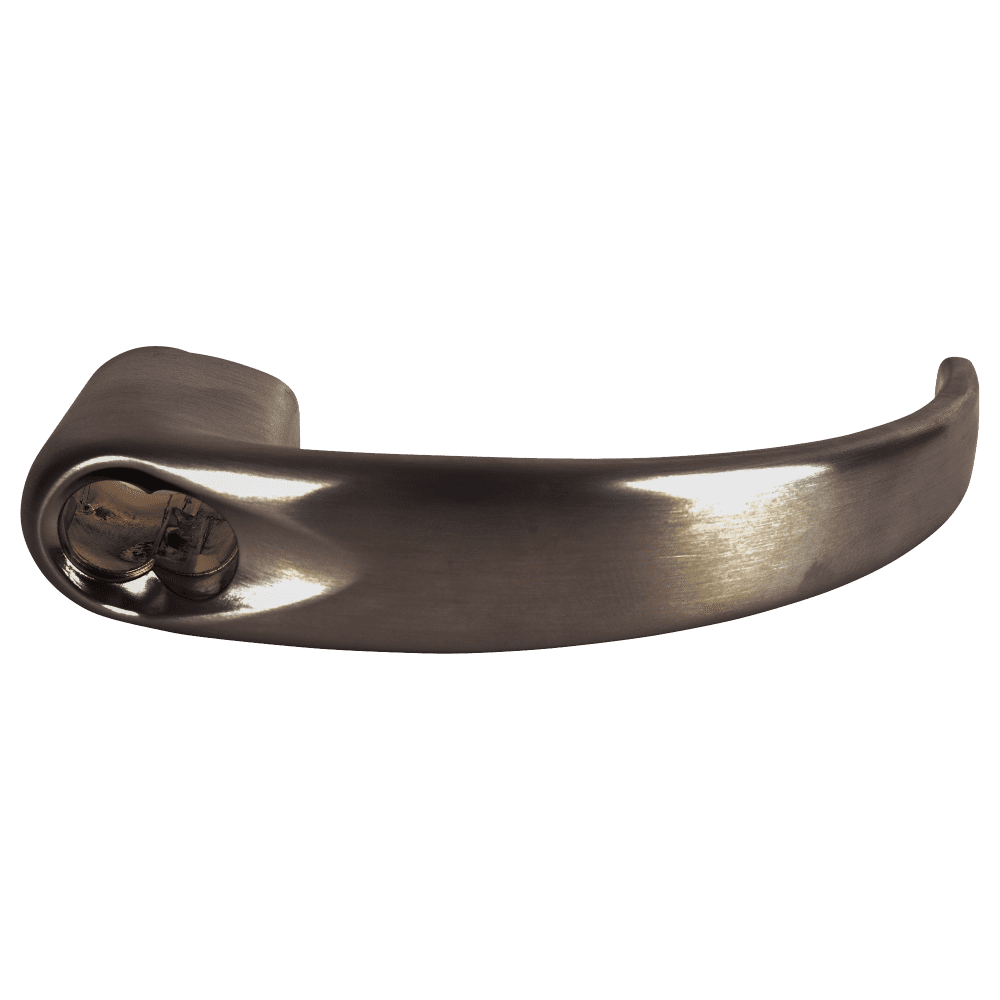

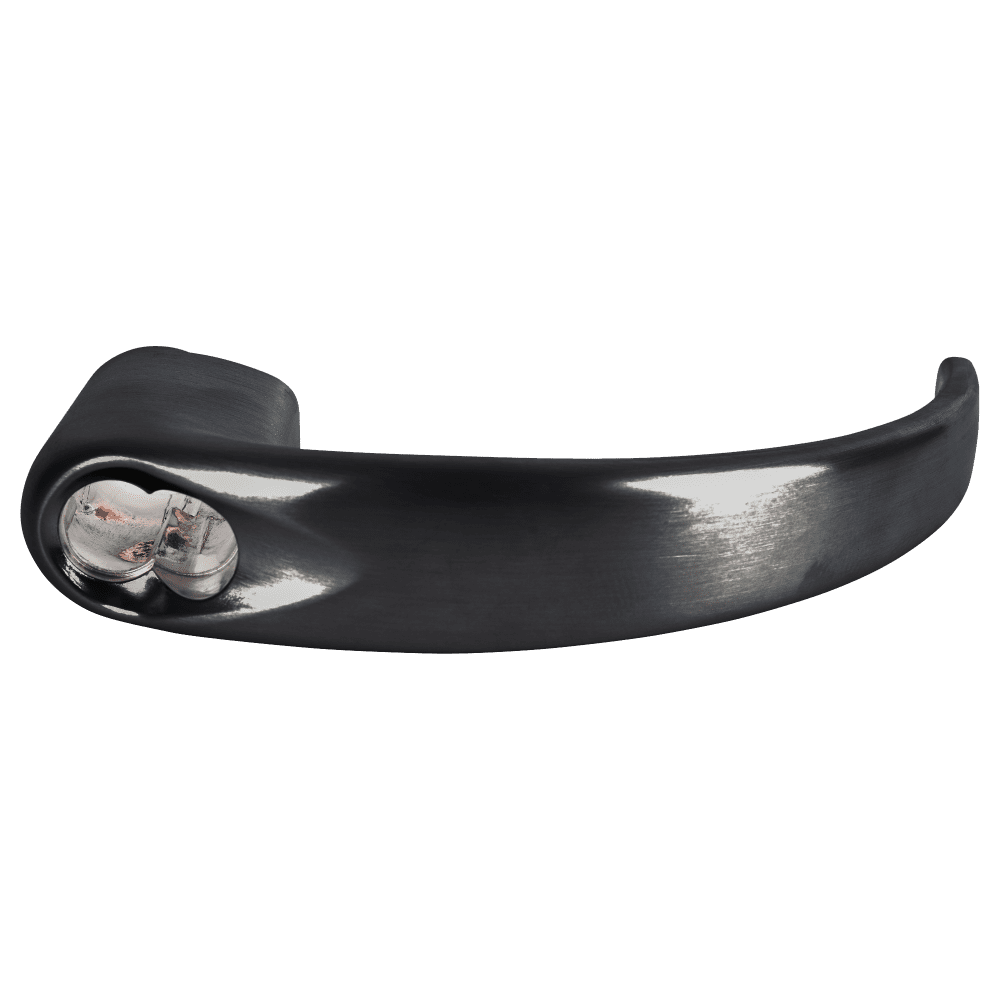

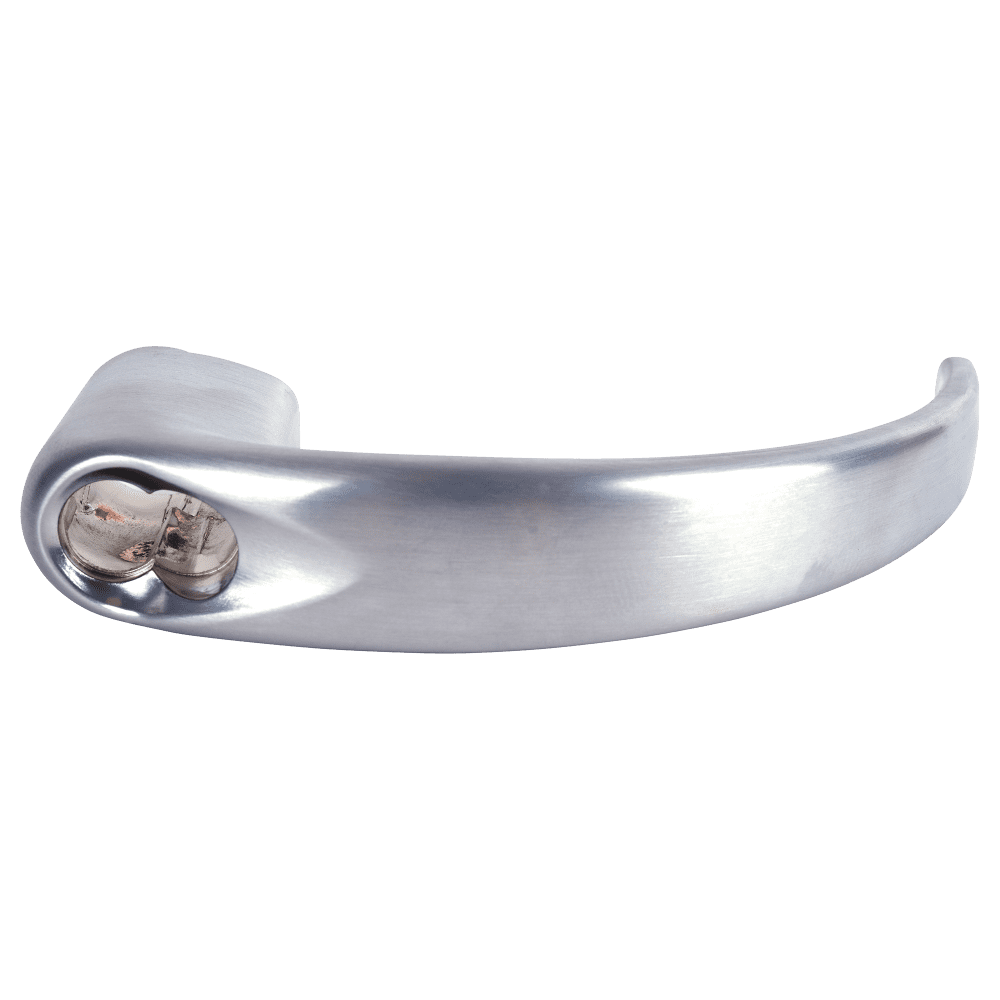

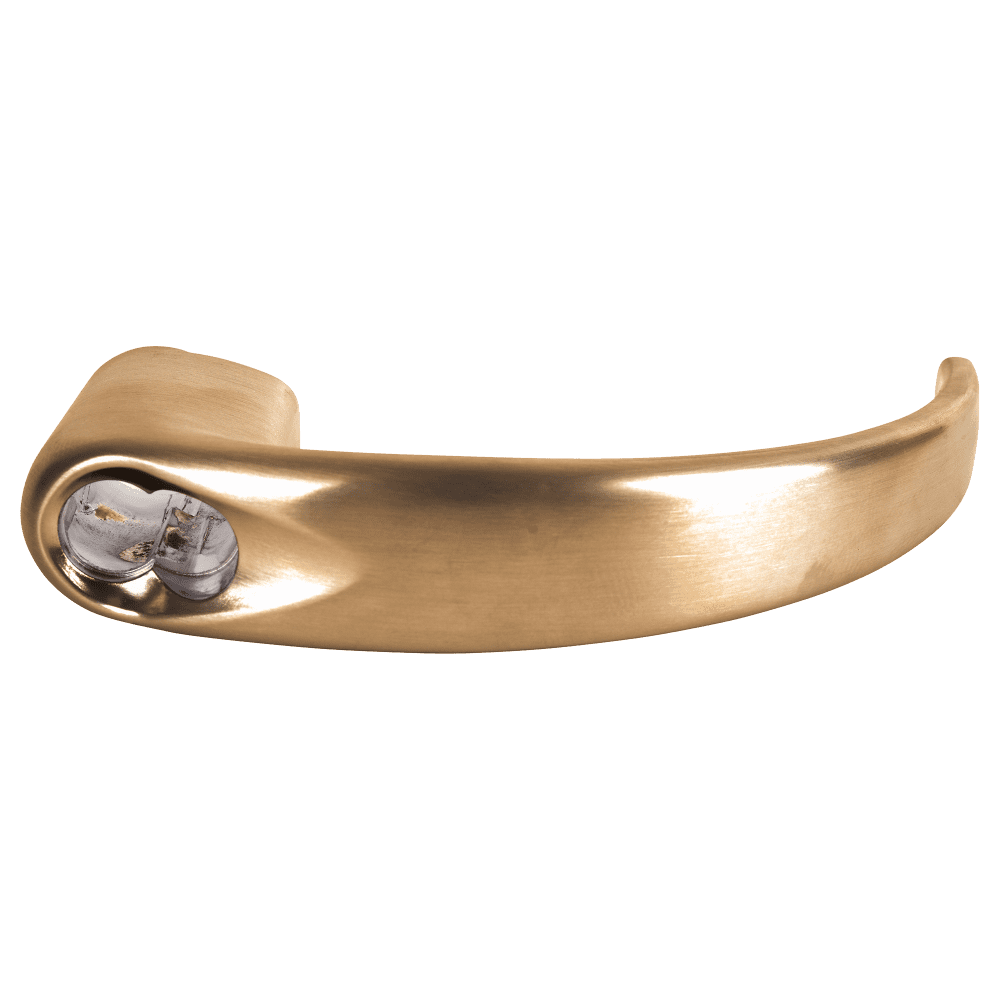

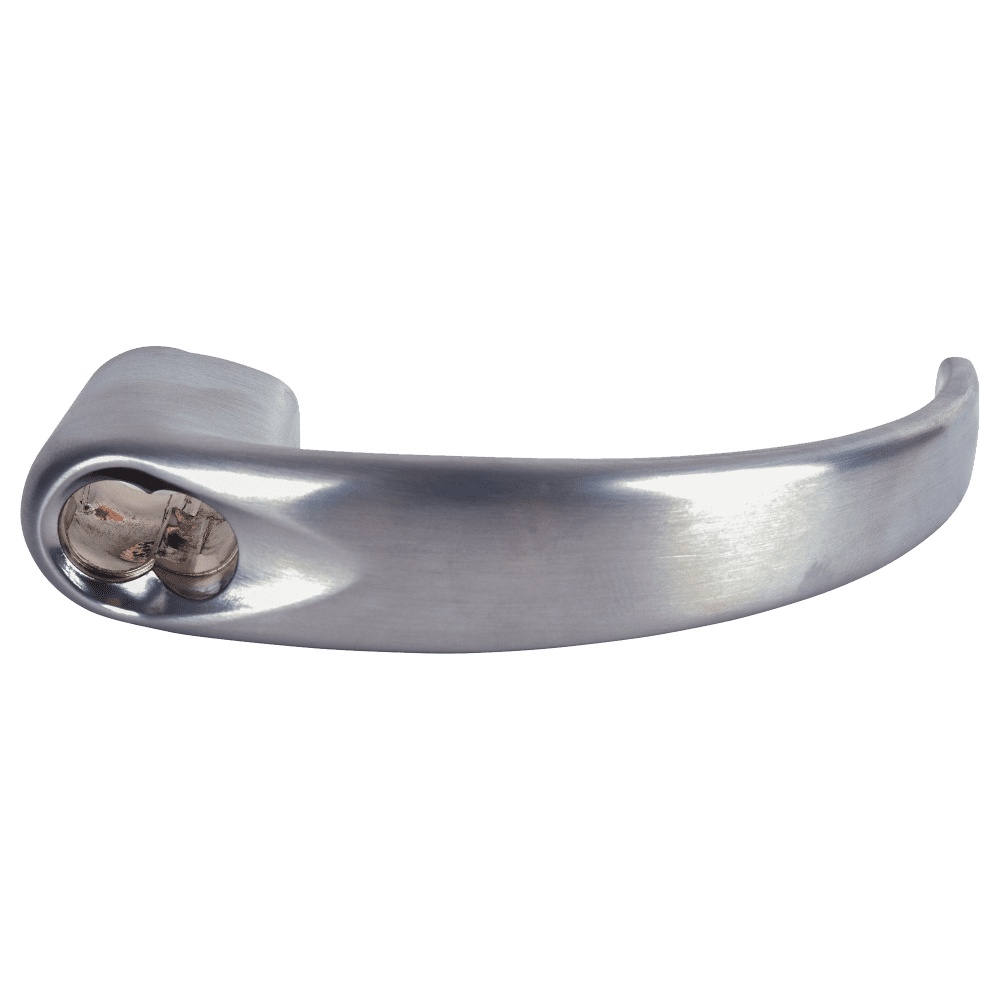

The 03-200-8SP is available in ten finishes: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). The 626AM antimicrobial finish is a listed option, making the 03-200-8SP suitable for healthcare and institutional environments requiring both tactile lever identification and antimicrobial surface treatment on frequently touched hardware.

The 626AM antimicrobial coating is applied to the 626 Satin Chrome base finish and uses an integrated antimicrobial agent that inhibits microbial growth on the lever surface. This option is specified by infection control teams in hospitals, behavioral health facilities, and long-term care environments where door lever hygiene is part of the facility's infection prevention protocol.

Rose Pairing and SFIC Core Ordering for the 03-200-8SP

The Sparta lever (SPA and 8SP) uses the 03-042-RHO (Rhodes Rose) as its inside/outside rose, confirmed in the official Schlage ALX Series Service Manual: "03-042 RHO inside/outside rose for all levers except Omega." The Sparta design is in the group of levers that use the Rhodes Rose. When ordering a complete Sparta Tactile trim assembly for the 03-200-8SP lever, the 03-042-RHO rose in the matching finish is the correct rose to order.

The 03-200-8SP ships without an SFIC core installed. The lever housing accepts a Schlage SFIC core or compatible SFIC cores from the facility's existing key system. The SFIC core is ordered separately by the facility's key system manager and installed using the control key, with no tools or lever disassembly required. This maintains key system control within the facility rather than pre-installing cores at the hardware supplier.

ND Series Vandlgard Function Coverage

The 03-200-8SP appears in the Levers diagram for the same ND Series Vandlgard and specialty functions as the other tactile SFIC levers: ND81 (Accessible Storeroom), ND82 (Institution), ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, ND93 (Vandlgard Vestibule), ND94 (Vandlgard Classroom), ND96 (Vandlgard Storeroom), ND96EL, ND96EU, and ND97 (Vandlgard Corridor). The same lever is used across the AD Series and CO Series electronic access control configurations using SFIC cylinder formats.
