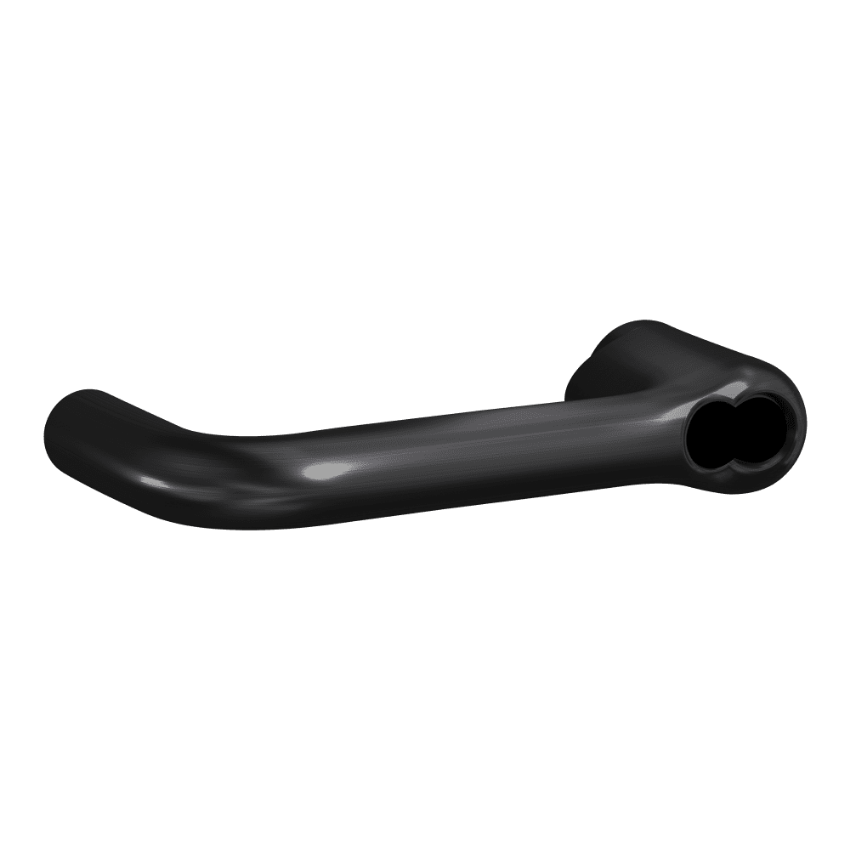

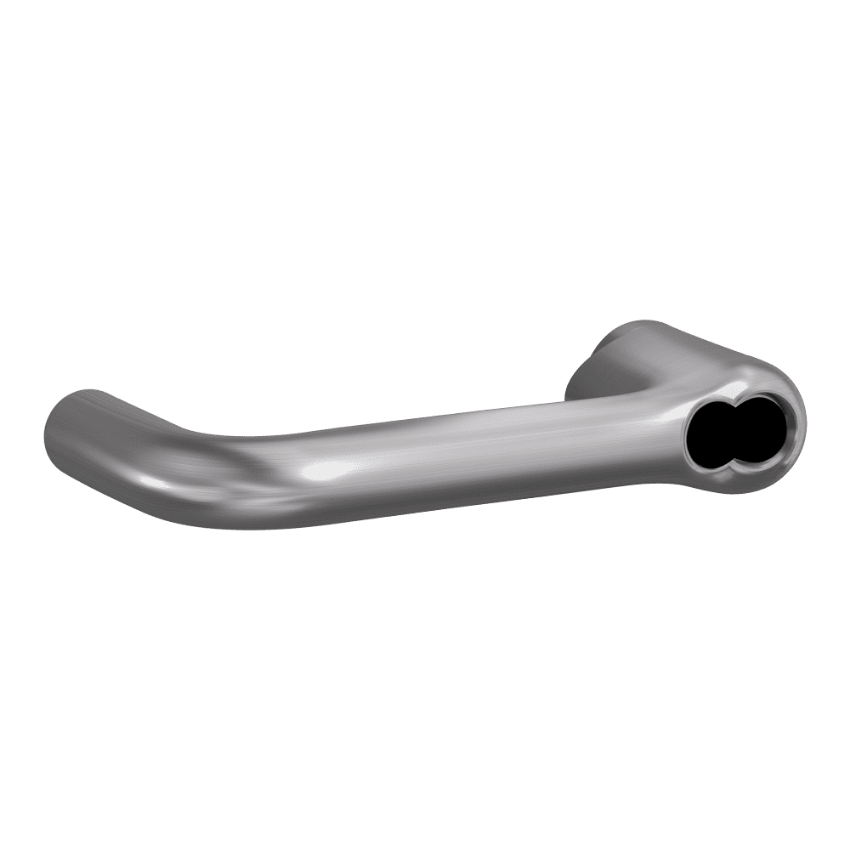

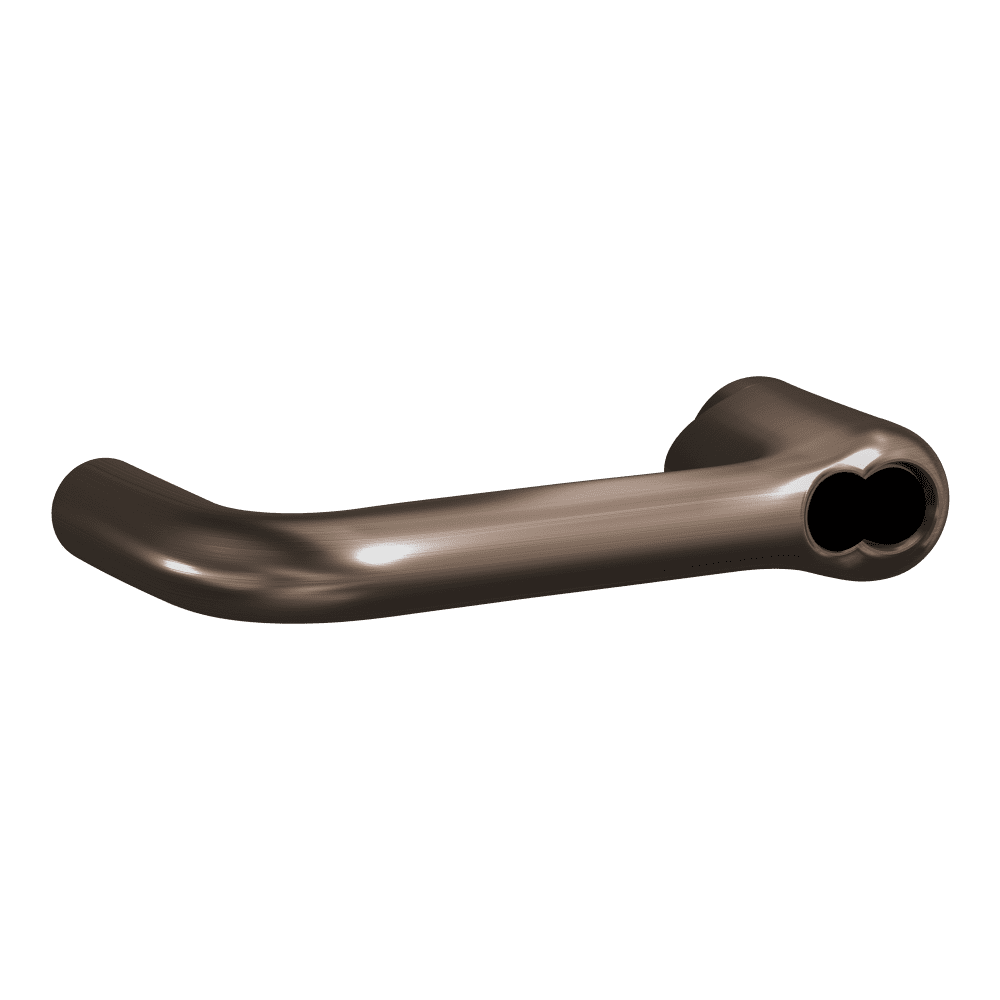

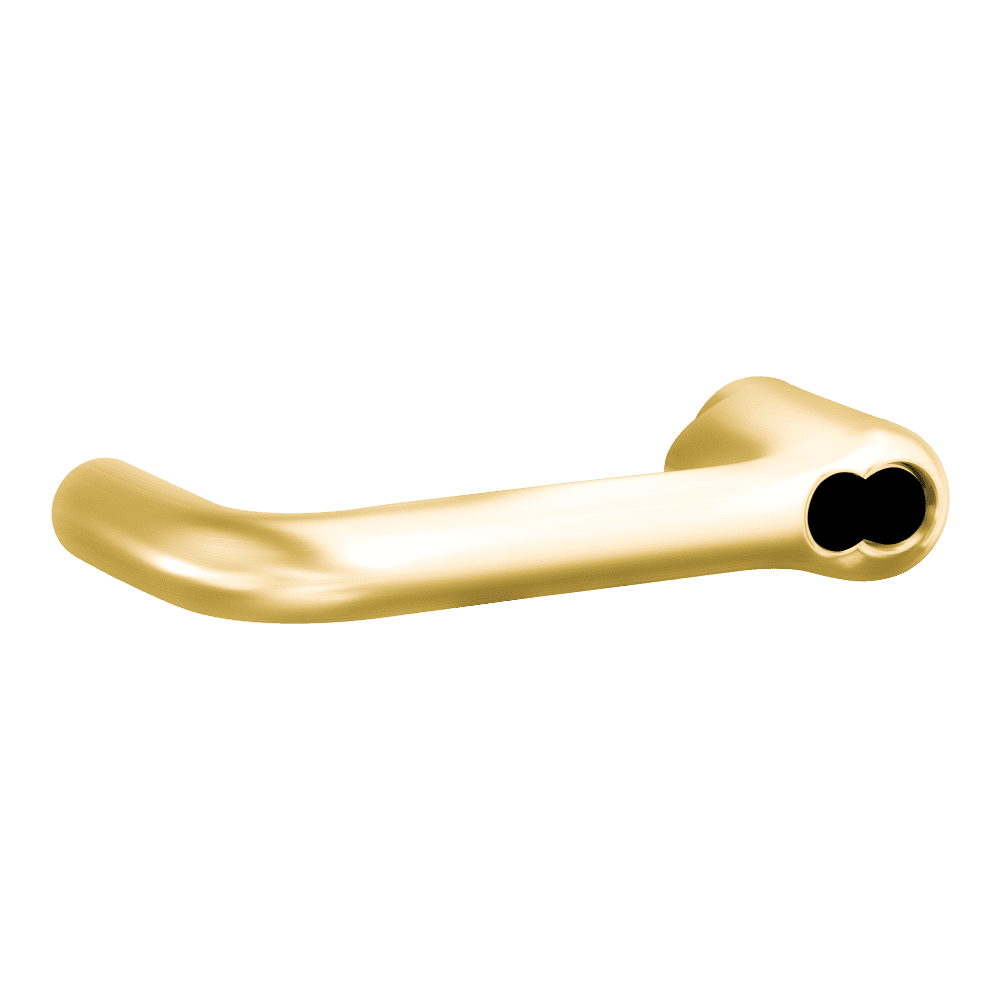

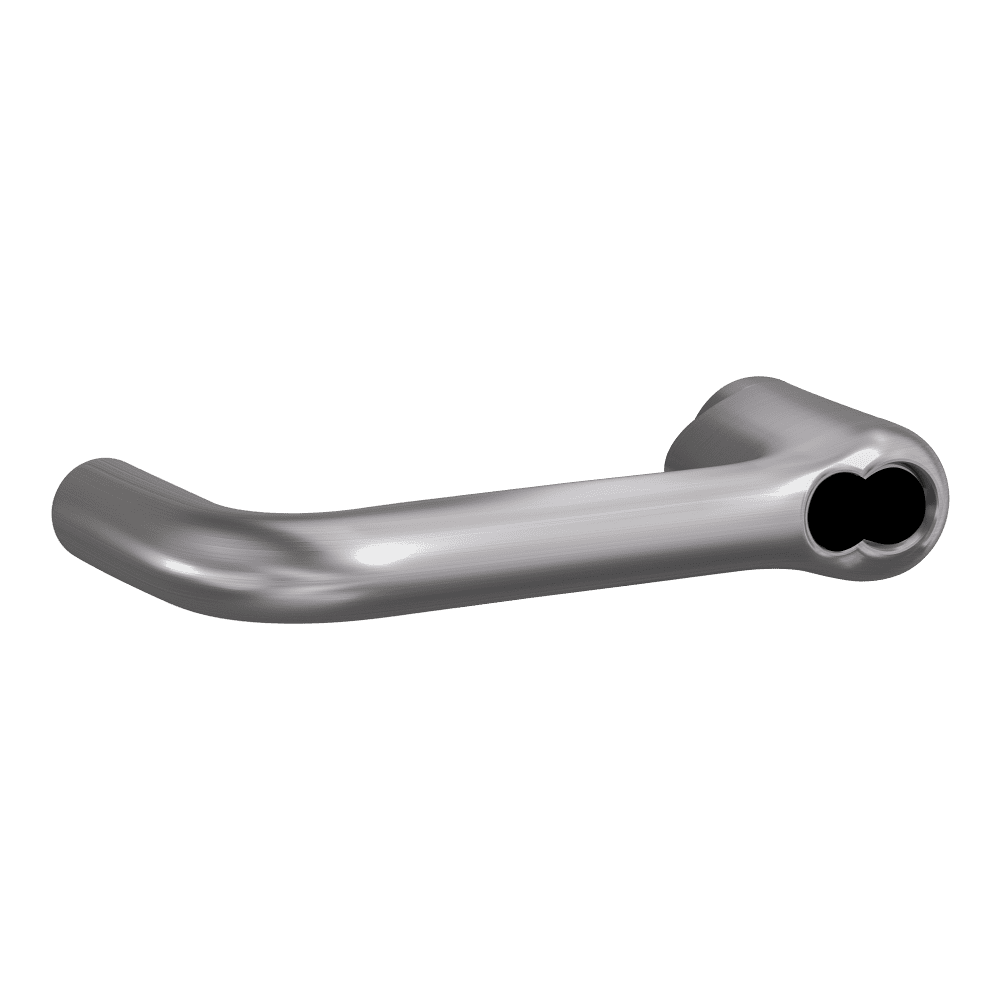

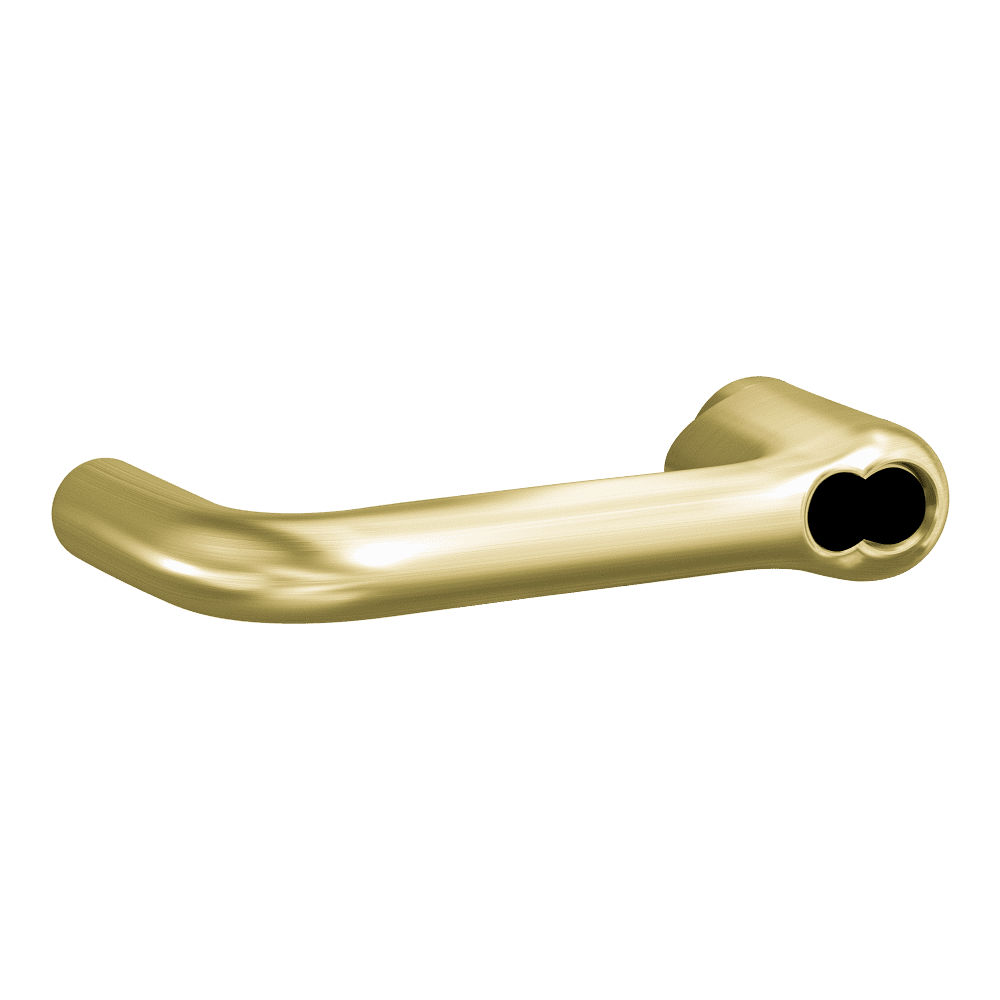

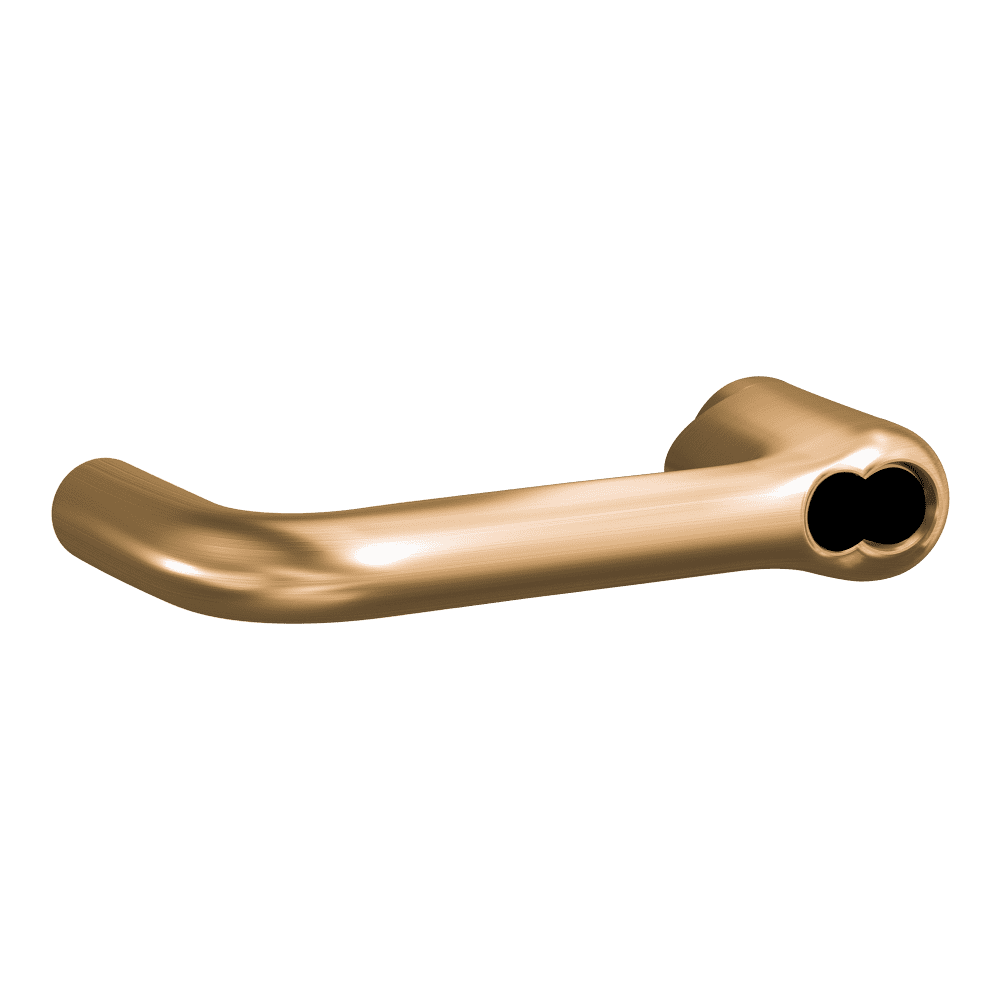

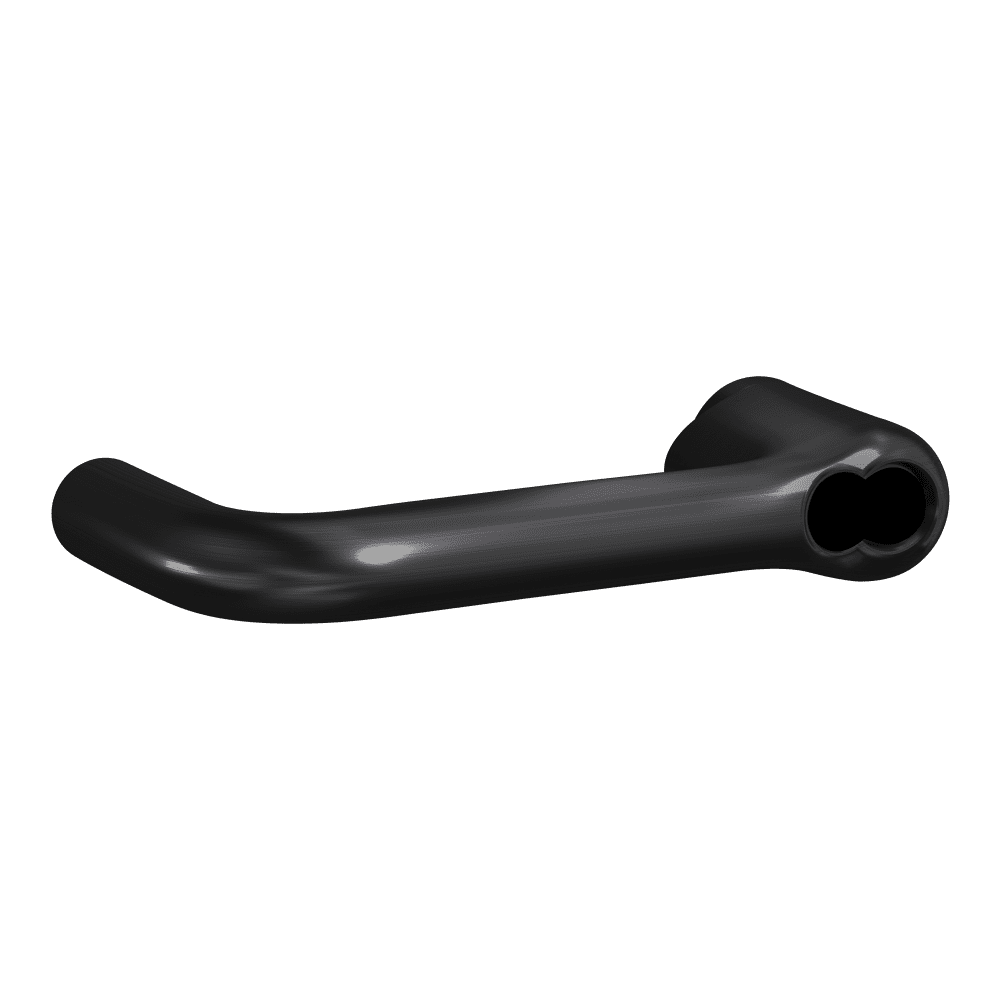

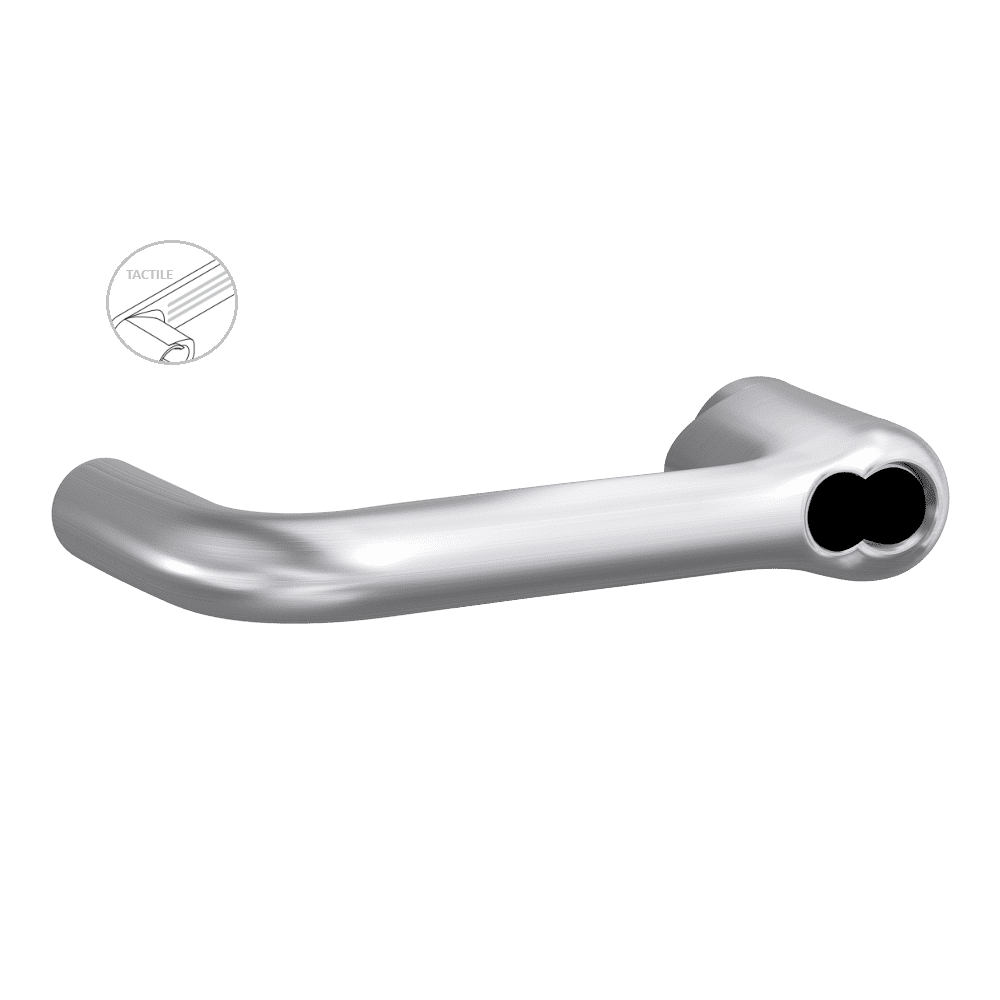

The Schlage 03-200-8TR is the OEM Tubular Tactile SFIC Lever Less Core for the Schlage ND Series, ALX Series, CO Series, and AD Series cylindrical locks, documented in the official Schlage ALX, ND, AD, and CO Series Service Manuals. It is the Tubular lever profile (TLR) with tactile surface and an "8" prefix, in an SFIC housing that ships without a core installed. Legacy part number 03-000-8TR was used before February 2017. Non-handed. Finish must be specified. Available (3-4 weeks).

What Makes the Tubular Lever Profile Distinct

The Schlage ND and ALX Series offer five standard lever profiles in the 03-200 SFIC family: Athens (ATH), Omega (OME), Rhodes (RHO), Sparta (SPA), and Tubular (TLR). The Tubular lever is the most physically distinct design in this group. All other lever designs use an elongated handle with a shaped cross-section that varies between profiles. The Tubular lever uses a round cylindrical rod handle, forming a clean horizontal bar with a uniform circular cross-section throughout the handle length. The lever is named Tubular because the handle literally resembles a tube or pipe bent into lever form.

This round profile provides several functional characteristics in commercial and institutional applications. The circular cross-section distributes grip force evenly in all directions, making the lever operable for users with limited hand strength or dexterity, consistent with ADA accessibility requirements. The uniform round surface has no sharp edges, undercuts, or irregular surfaces where debris can accumulate, simplifying cleaning in environments where surface hygiene is monitored. In high-abuse applications, the round profile has no flat pad or shaped grip area that could be deformed under lateral impact, making it more durable than paddle-shaped levers under physical stress.

Tactile Surface on a Tubular Lever: The 8TR Designation

The "8" prefix in 8TR designates the tactile surface applied to the lever handle. In the other tactile lever designs (8AT Athens, 8RO Rhodes, 8SP Sparta), the tactile texture is applied to the flat or shaped upper surface of the lever handle where a user's palm contacts the lever. On the 8TR Tubular lever, the tactile surface wraps around the circumference of the round handle, providing tactile warning that is detectable from any grip orientation, since a round handle is gripped from different angles depending on the user's approach.

The tactile warning identifies the door as serving an area that may present a hazard to persons with visual impairments, as required by the International Building Code and the Americans with Disabilities Act Accessibility Guidelines for doors to hazardous spaces. All four tactile lever designs (8AT, 8RO, 8SP, 8TR) serve this same function, with the choice between them based solely on which lever profile is specified for the building project.

Where the Tubular Tactile Lever Is Specified

The Tubular lever design is frequently specified in correctional facilities, detention centers, and secure institutional environments where the round handle profile is preferred. A round lever has no flat surface that could serve as a fulcrum point for improvised leverage, and the absence of a shaped grip area reduces the mechanical advantage available to a person attempting to force or twist the lever past its designed operating range. Industrial manufacturing facilities, warehouse environments, and utility spaces also commonly specify the Tubular lever where durability and cleanability take priority over aesthetic variety.

When a facility has established a Tubular lever specification across its door hardware catalog and certain doors require the tactile warning designation, the 03-200-8TR maintains visual consistency throughout the building while meeting the tactile requirement at the specific doors where it applies. The 8TR appearance matches the non-tactile Tubular lever (03-200-TLR) except for the tactile surface treatment on the handle.

Rose Pairing, SFIC Core, and ND Series Coverage

The Tubular lever (TLR and 8TR) uses the 03-042-RHO (Rhodes Rose) as its inside/outside rose, confirmed in the Schlage ALX Series Service Manual: "03-042 RHO inside/outside rose for all levers except Omega." The Tubular is in the group of levers that pair with the 03-042-RHO rose. The rose finish must be specified separately to match the 03-200-8TR lever finish.

The 03-200-8TR ships without an SFIC core installed. The core is ordered and installed separately by the facility's key system manager using the control key, maintaining key system control at the facility level. The 03-200-8TR appears in the Levers diagram for ND81 (Accessible Storeroom), ND82 (Institution), ND85 (Faculty Restroom), and the full Vandlgard series ND91 through ND97, including ND96EL and ND96EU electrified variants. The same lever applies to AD Series and CO Series electronic access control configurations using SFIC cylinder formats.
