The Schlage 03-200-TLR is the OEM Tubular SFIC Lever Less Core for the Schlage ND Series, ALX Series, CO Series, and AD Series cylindrical locks, documented in the official Schlage ALX, ND, AD, and CO Series Service Manuals. It is the standard Tubular lever (TLR) with a round cylindrical handle profile and an SFIC housing that ships without a core installed. Non-handed. The 03-200-TLR replaces 03-000-TLR for cylindrical and mortise applications, and 03-300-TLR for exit device applications, both used before February 2017. Finish must be specified at time of order.

The Tubular Lever Profile: What Makes It Distinct

The Schlage ND and ALX Series SFIC lever catalog offers five distinct lever profile designs: Athens (ATH), Omega (OME), Rhodes (RHO), Sparta (SPA), and Tubular (TLR). The Tubular lever is the most visually unique of the five. Every other lever design uses a shaped handle with a cross-section that varies across the shank and handle body. The Tubular lever uses a uniform cylindrical rod for the handle, forming a clean horizontal bar with a consistent circular cross-section from end to end. The profile is named for its resemblance to a tube or pipe bent into lever form.

The round handle delivers several functional advantages in commercial and institutional applications. The circular cross-section distributes grip force evenly regardless of how the user approaches the handle, making it operable for a wide range of hand strength and dexterity levels, consistent with ADA accessibility requirements. The uniform round surface has no undercuts, recesses, or irregular surfaces where debris accumulates, making it easier to clean and maintain in environments where surface hygiene is a monitored requirement. In high-traffic or high-abuse settings, the round profile has no shaped grip pad or flat surface that could be deformed under lateral impact.

03-200-TLR vs 03-200-8TR: Standard vs Tactile Tubular Lever

The Tubular lever in the Schlage ND and ALX Series SFIC family has two versions. The 03-200-TLR is the standard Tubular lever with a smooth round handle surface. The 03-200-8TR is the Tubular Tactile lever with a raised textured surface applied around the circumference of the round handle for hazardous area door identification per IBC and ADAAG requirements.

The 03-200-TLR is specified at all standard Tubular SFIC lever doors in the project. The 03-200-8TR is specified only at doors where building code or facility policy requires a tactile warning surface. Both versions use the identical Tubular round cylindrical profile and the same SFIC housing format. Finish and rose specifications are the same for both. When sourcing a replacement Tubular SFIC lever, confirm which version the installed door was specified with before ordering.

Service Manual Coverage and NDE Series Note

The 03-200-TLR is documented in four Schlage Service Manuals: ALX Series, ND Series, AD Series, and CO Series. The NDE Series Parts Manual is not among them. This applies to the standard TLR and the tactile 8TR equally. Both Tubular lever versions do not carry NDE exit device trim coverage.

This is a distinction from the Athens (03-200-ATH), Rhodes (03-200-RHO), and Sparta (03-200-SPA) standard levers, all of which are documented in five Service Manuals including the NDE Series. When specifying a replacement lever for an NDE exit device outside trim installation that was originally equipped with a Tubular lever, verify the correct current replacement through the Schlage NDE Series Service Manual before ordering the 03-200-TLR.

Rose Pairing, Finishes, and SFIC Core for the 03-200-TLR

The Tubular lever (TLR and 8TR) uses the 03-042-RHO (Rhodes Rose) as its inside/outside trim rose, confirmed in the official Schlage ALX Series Service Manual: "03-042 RHO inside/outside rose for all levers except Omega." The Tubular is in the group of lever designs that pair with the standard Rhodes Rose. When completing a full Tubular trim assembly using the 03-200-TLR, the 03-042-RHO rose in the matching finish is the correct rose to order separately.

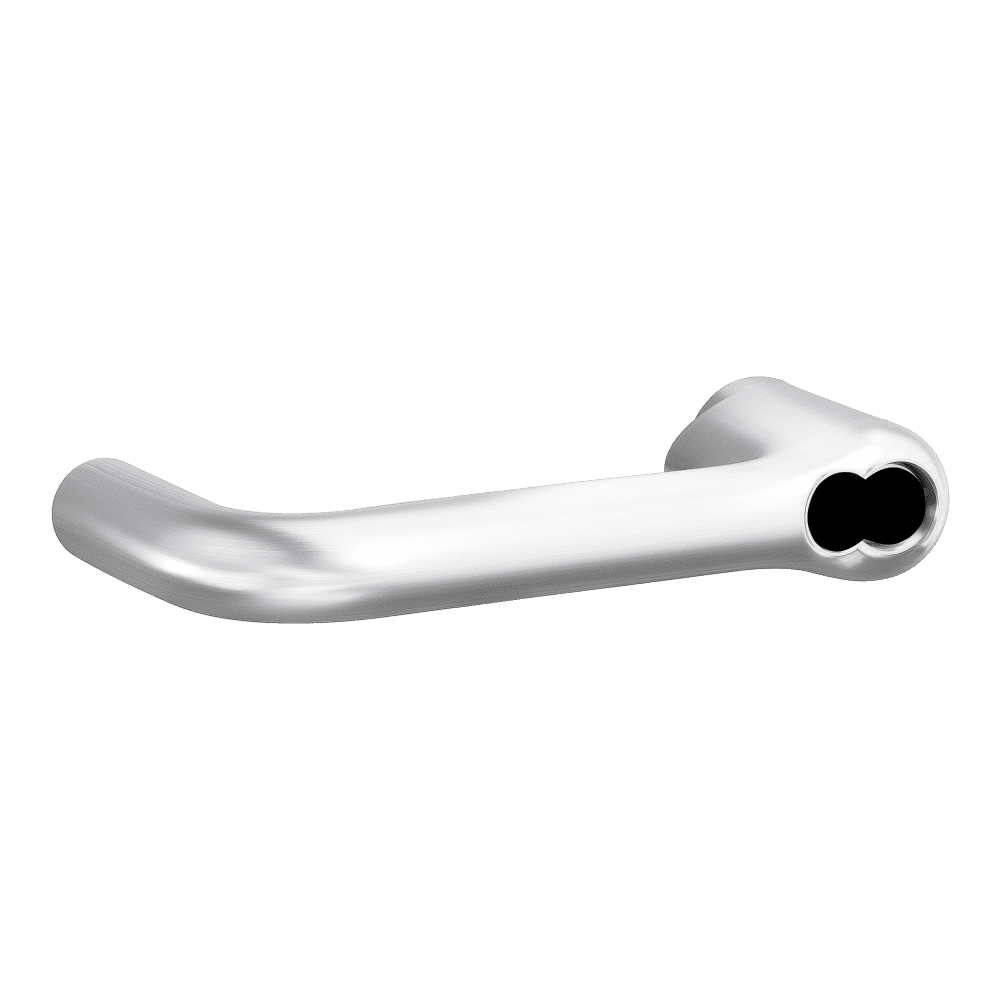

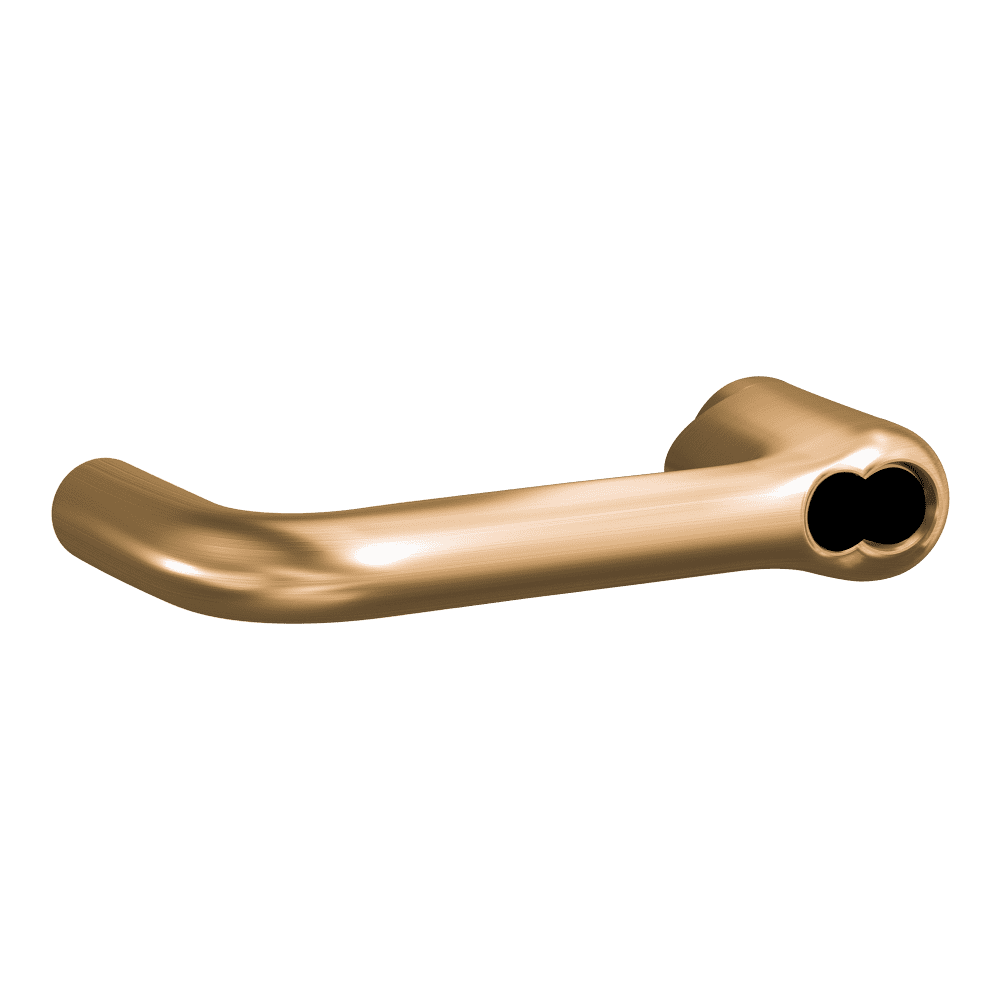

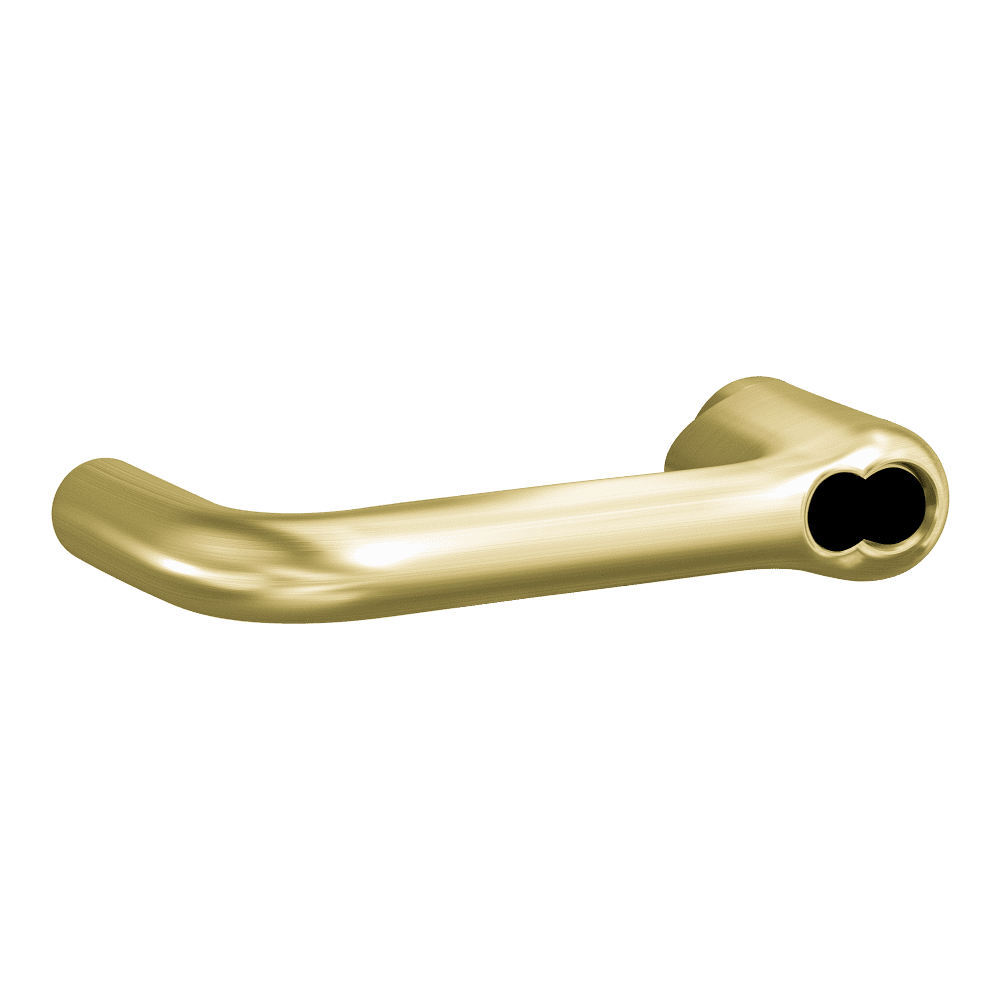

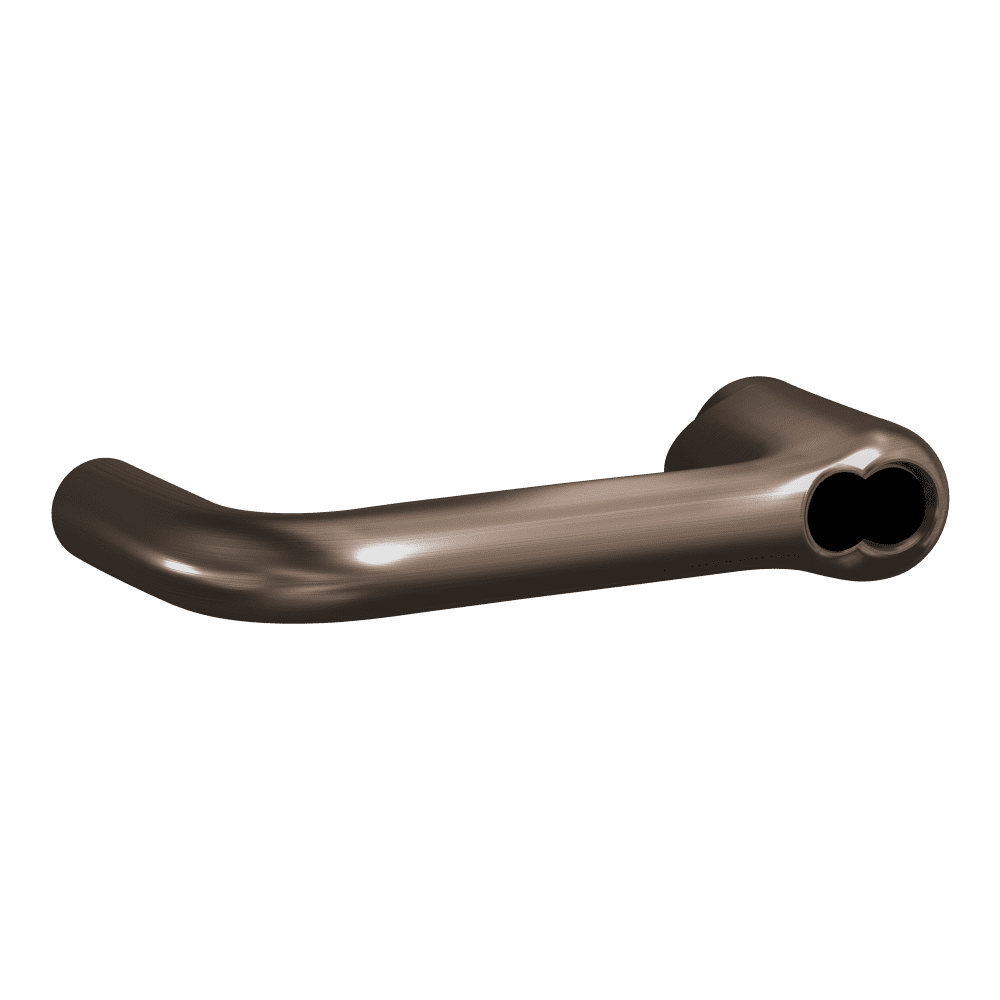

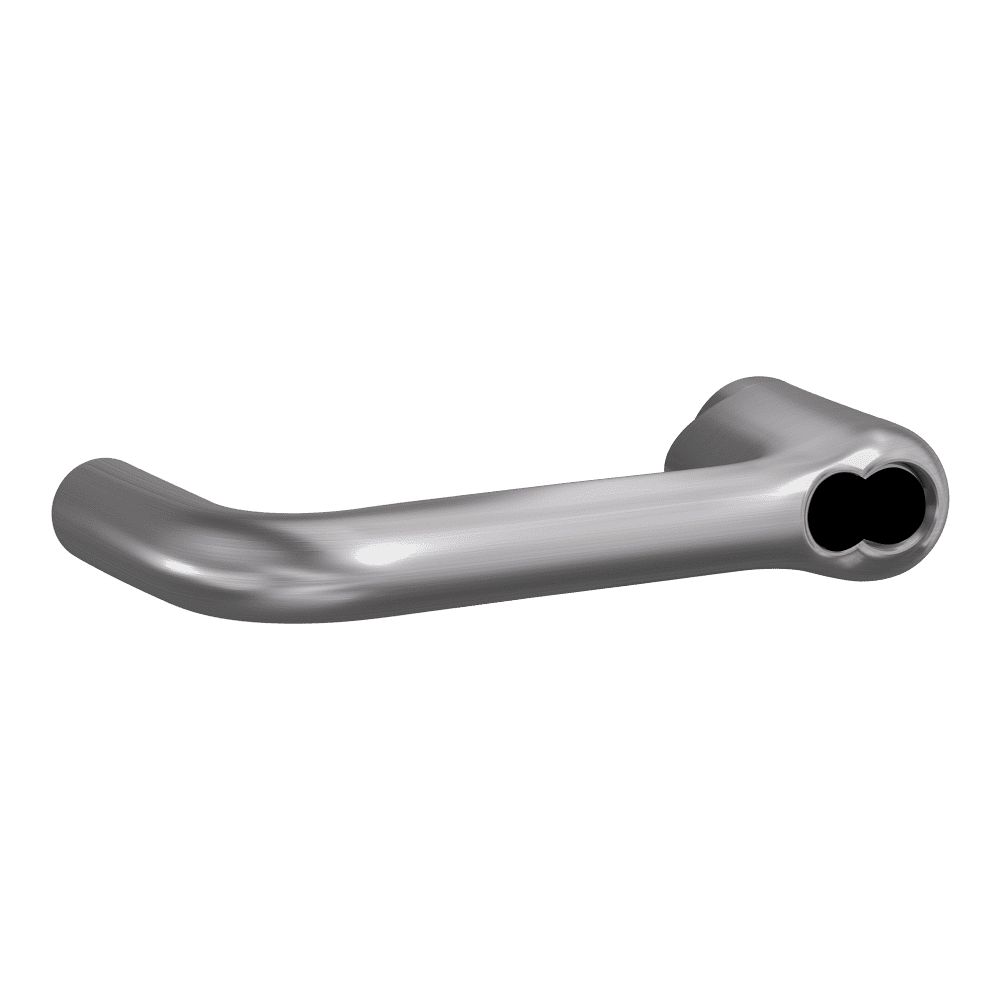

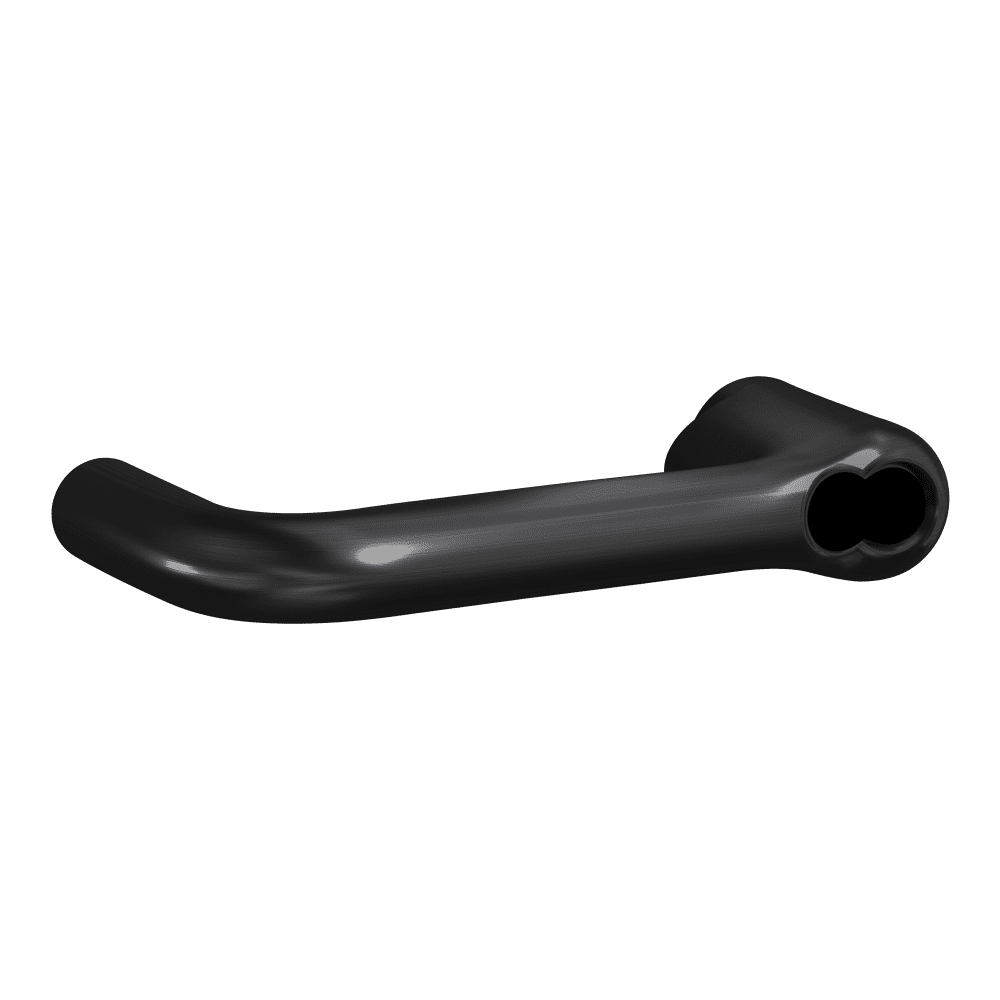

Finishes are available across the standard nine-finish range. Finish must be specified at time of order. The SFIC core is not included with the 03-200-TLR. The core is ordered separately and installed by the facility's key system manager using the control key, without any lock removal or disassembly from the door.

Schlage 03-200-TLR: ND Series Function Coverage

The 03-200-TLR appears in the Levers diagram for the same ND Series Vandlgard and specialty functions shared by all SFIC lever designs in the 03-200 family: ND81 (Accessible Storeroom), ND82 (Institution), ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, ND93 (Vandlgard Vestibule), ND94 (Vandlgard Classroom), ND96 (Vandlgard Storeroom), ND96EL, ND96EU, and ND97 (Vandlgard Corridor). The same lever applies across the AD Series electronic access control configurations and the CO Series credential-based cylindrical locks using SFIC cylinder formats.
