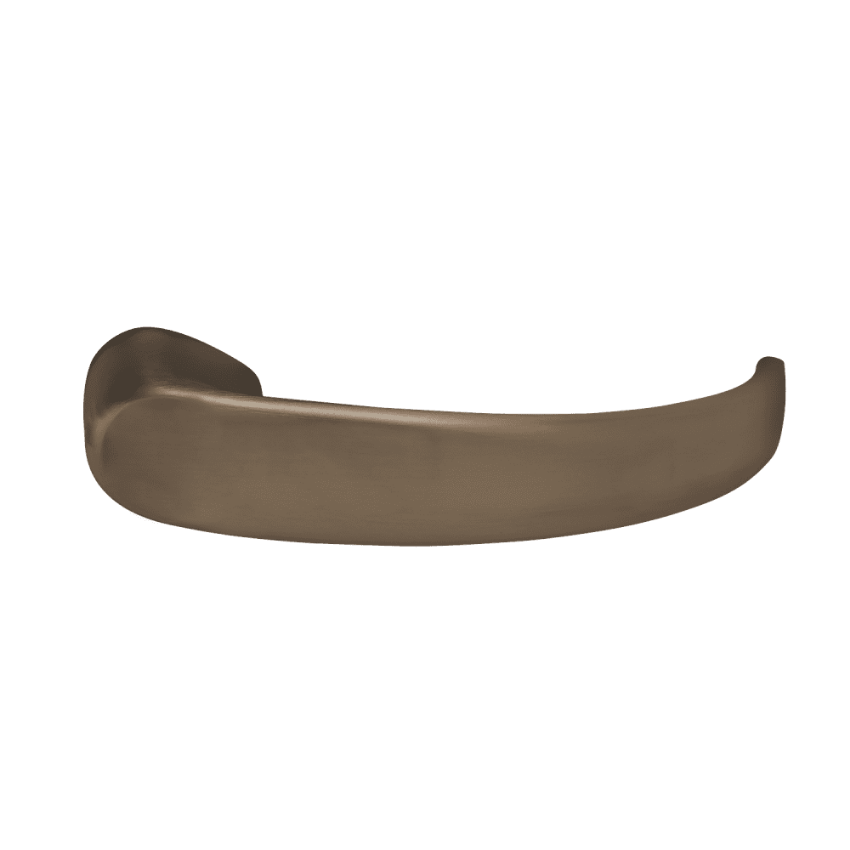

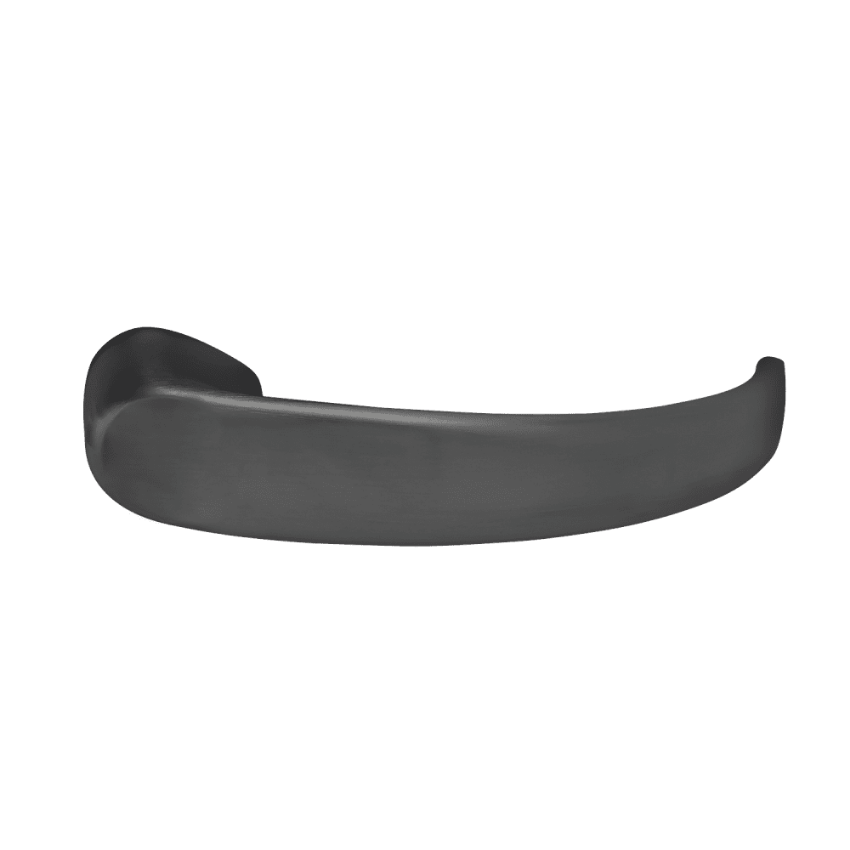

The Schlage 03-230-8SP is the OEM Sparta Tactile Closed Lever for the Schlage ALX Series, ND Series, CO Series, AD Series, and NDE Series, documented in all five official Schlage Service Manuals for these product lines. It is the Sparta lever profile with tactile surface in the closed format: the lever hub is sealed with no cylinder housing. Non-handed. Used at inside trim positions where no keyed cylinder is required. Ten finishes are available including 626AM (Satin Chrome Antimicrobial). Available (3-4 weeks).

Sparta Closed Lever: When This Profile Is Specified

The Schlage ND and ALX Series tactile closed lever catalog offers four design options in the 03-230 format: Athens (03-230-8AT), Rhodes (03-230-8RO), Sparta (03-230-8SP), and Tubular (03-230-8TR). Each has a distinct lever profile, and all four use the same closed hub format with no cylinder housing. The 03-230-8SP is the Sparta profile, a clean contemporary horizontal lever design that is commonly specified in educational facilities, healthcare buildings, government installations, and corporate environments where a streamlined lever profile is the established standard.

When a building project uses Sparta levers throughout its door hardware specification and certain doors require the tactile warning surface for hazardous area identification, the 03-230-8SP maintains the Sparta visual consistency at the inside trim position while meeting the tactile requirement. The tactile surface on the 03-230-8SP is identical in function to that of the other tactile closed lever designs: a raised texture on the lever handle that communicates hazardous area identification to persons with visual impairments, as required by IBC and ADAAG for doors to hazardous spaces.

03-230-8SP vs 03-230-8RO: No Break-Away on the Sparta Design

The most important distinction between the 03-230-8SP Sparta Tactile Closed Lever and the 03-230-8RO Rhodes Tactile Closed Lever is the break-away feature. Per the official Schlage ALX Series Data Sheet, the optional break-away feature is available on Rhodes levers for most locking functions. This feature is not available on the Sparta design. The 03-230-8SP has no break-away option regardless of the function or installation type.

When a project requires tactile closed levers at the inside trim position and break-away protection is also a project requirement for those doors, the 03-230-8RO (Rhodes Tactile Closed Lever) is the only option that satisfies both specifications simultaneously. When break-away is not required and the project's lever standard is Sparta, the 03-230-8SP is the correct inside trim lever for tactile-designated doors.

03-230-8SP as the Inside Companion to the 03-200-8SP

A complete Sparta Tactile trim assembly for a hazardous area door with SFIC cylinders requires two matched levers. The outside trim position uses the 03-200-8SP (Sparta Tactile SFIC Lever Less Core), which carries the SFIC cylinder housing at the corridor or exterior face. The inside trim position uses the 03-230-8SP (Sparta Tactile Closed Lever), which provides the same Sparta profile and tactile surface at the interior face with no cylinder housing. Both levers pair with the 03-042-RHO (Rhodes Rose) on their respective trim positions in the matching finish.

The 626AM (Satin Chrome Antimicrobial) finish makes the 03-230-8SP particularly suitable for healthcare environments where infection control requires antimicrobial surface treatment on frequently touched hardware at both the approach and interior sides of the door. The 03-200-8SP outside lever also lists 626AM as an available finish, allowing a consistent antimicrobial specification across the complete trim assembly for healthcare and behavioral health facility applications where the Sparta lever profile is specified.

NDE Series Coverage and Full Function Range

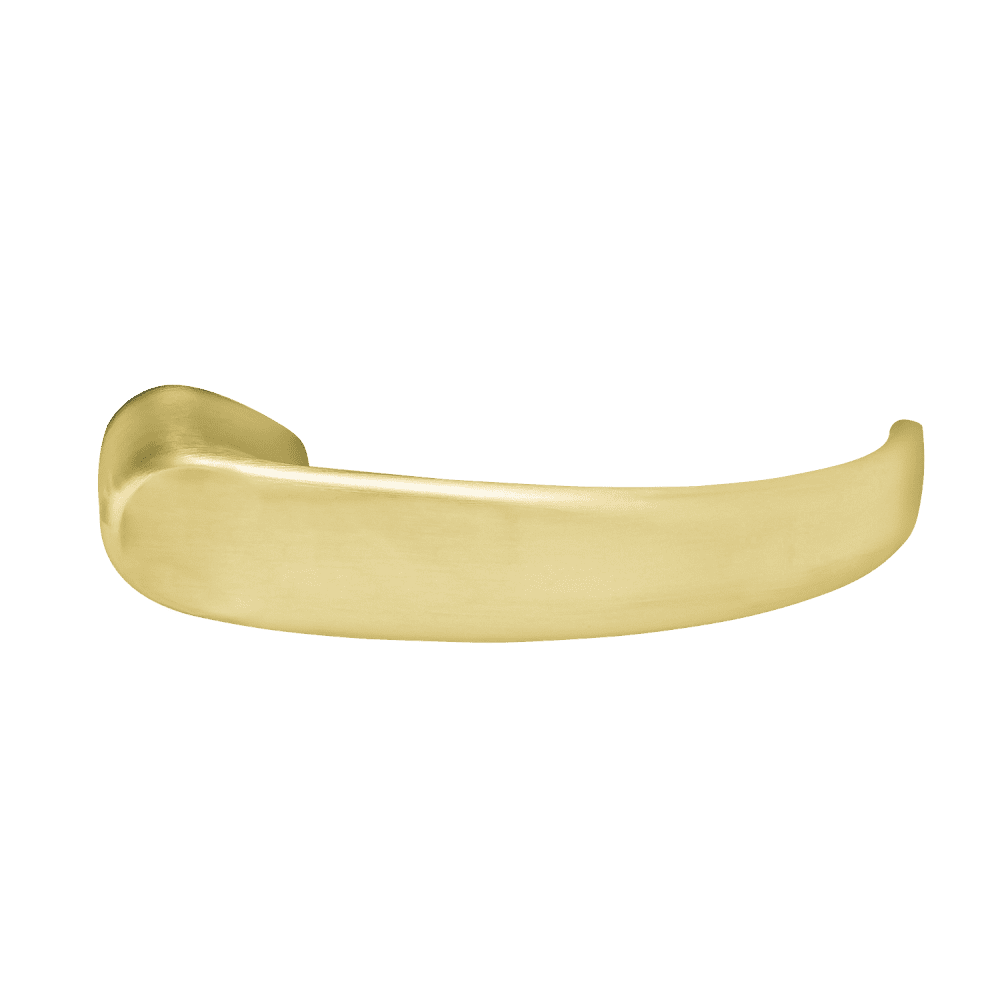

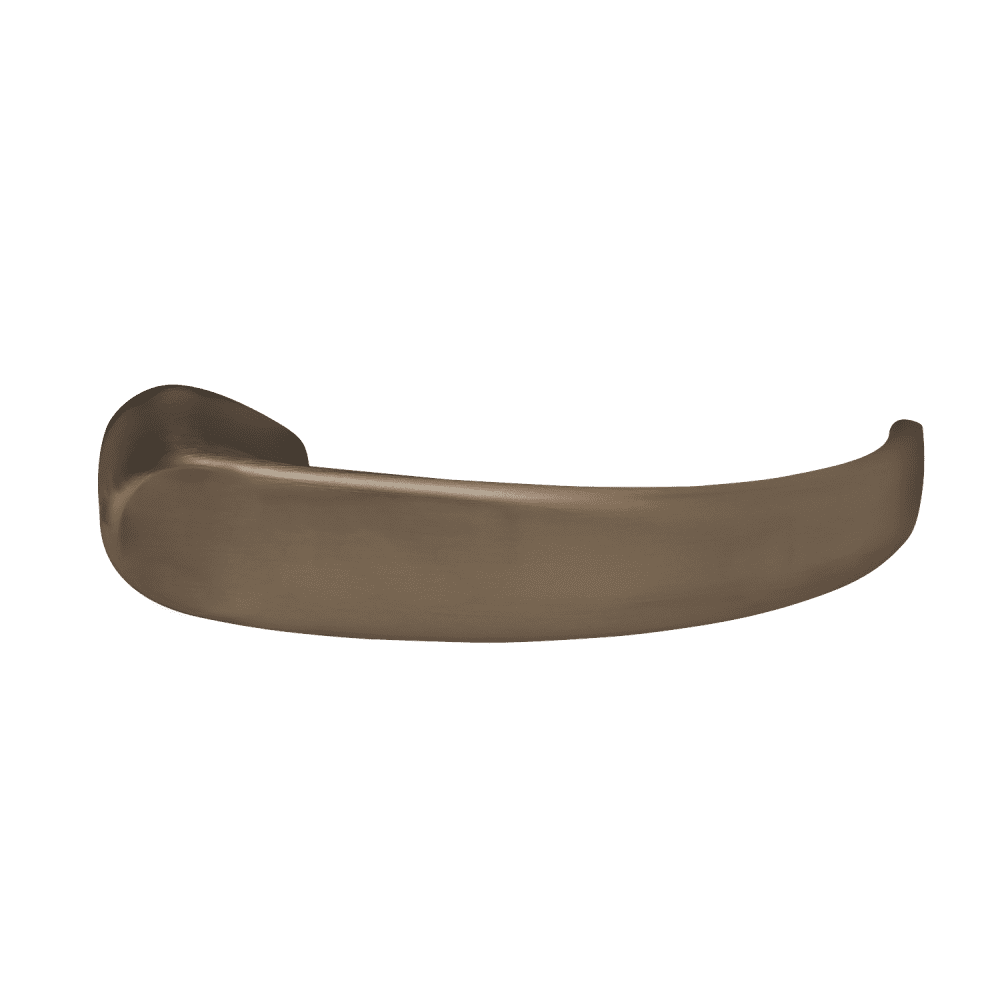

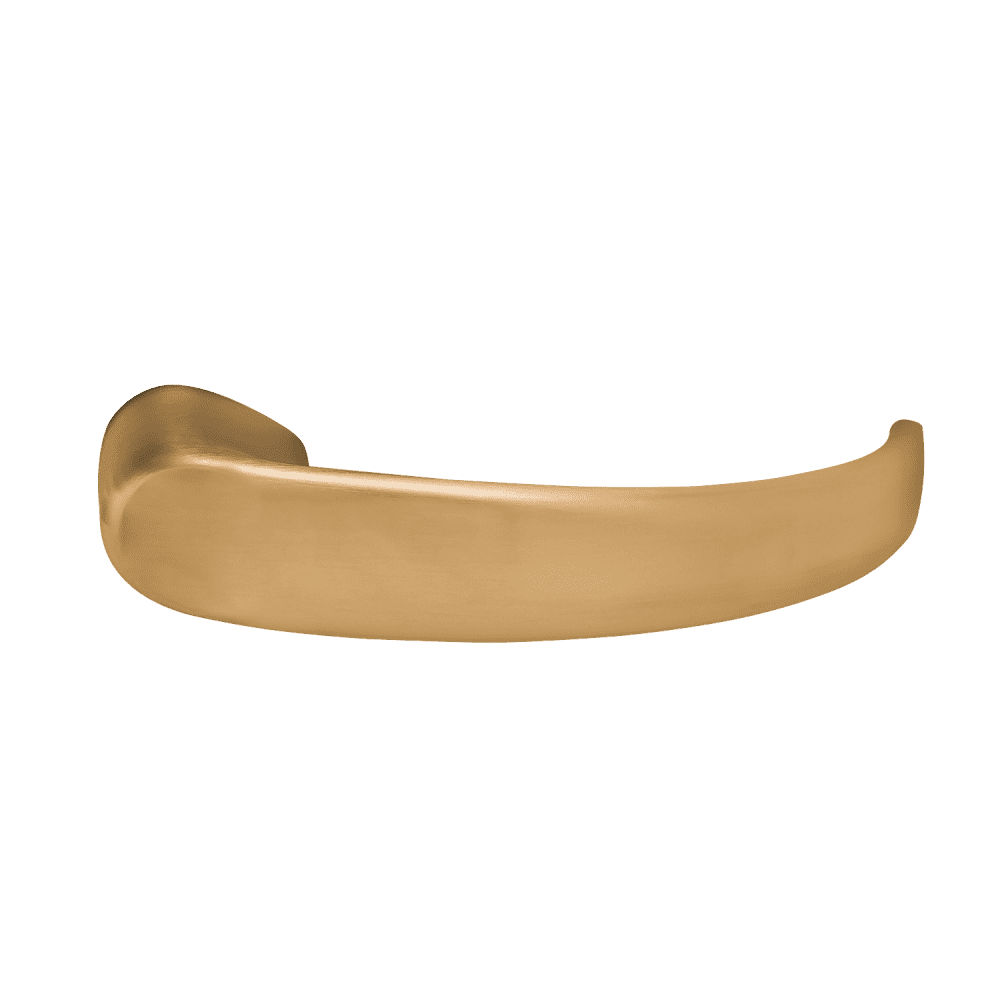

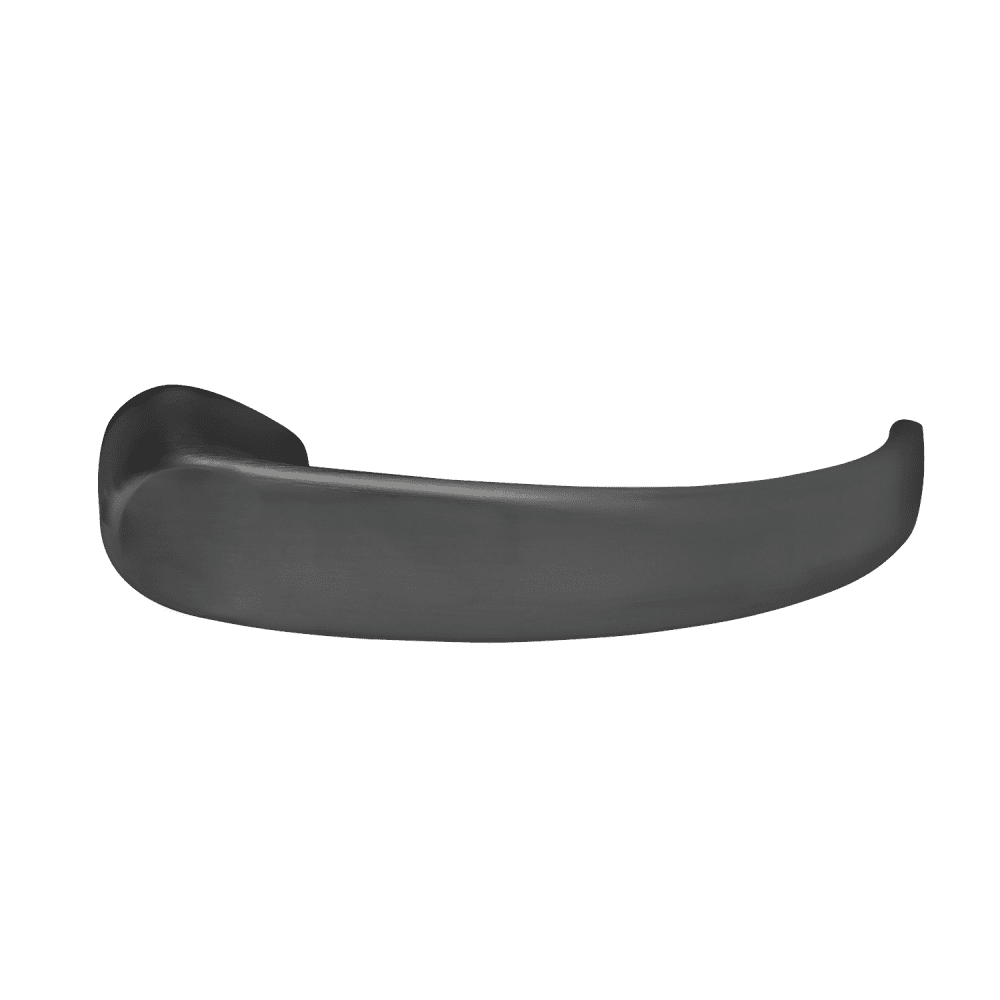

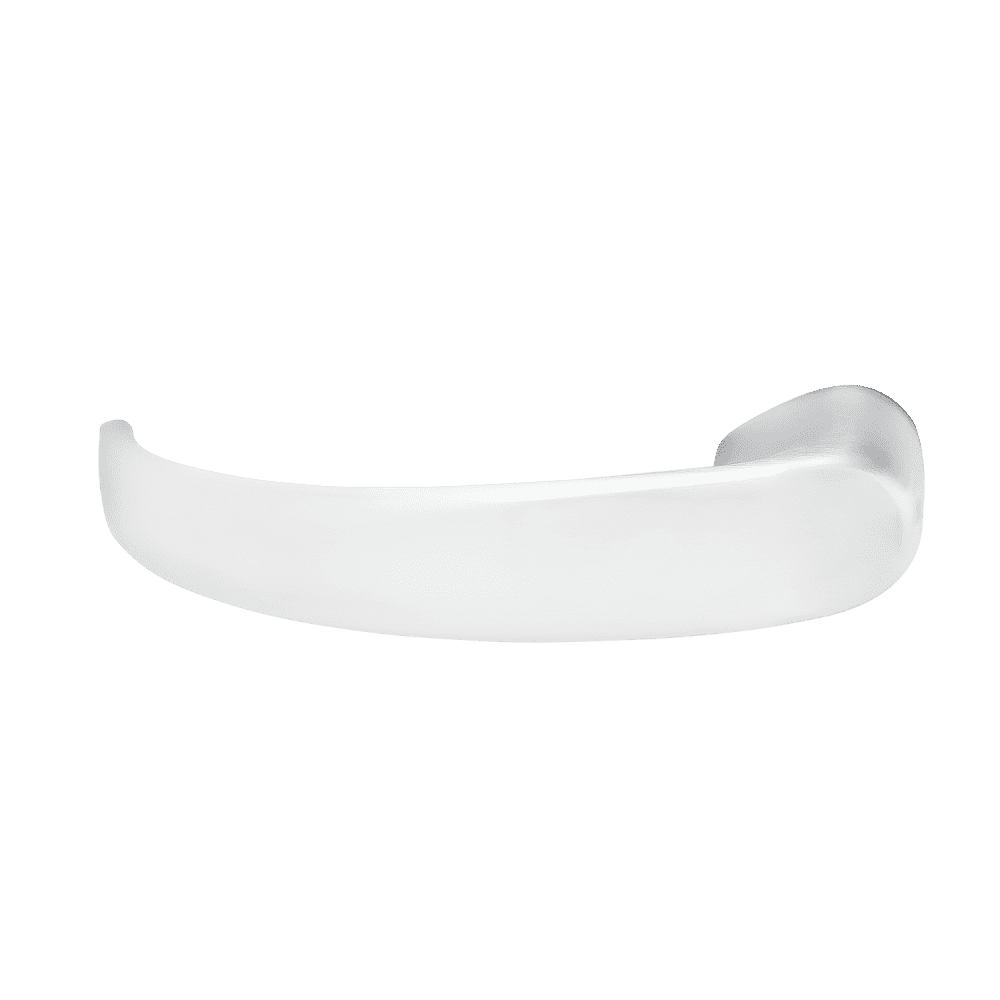

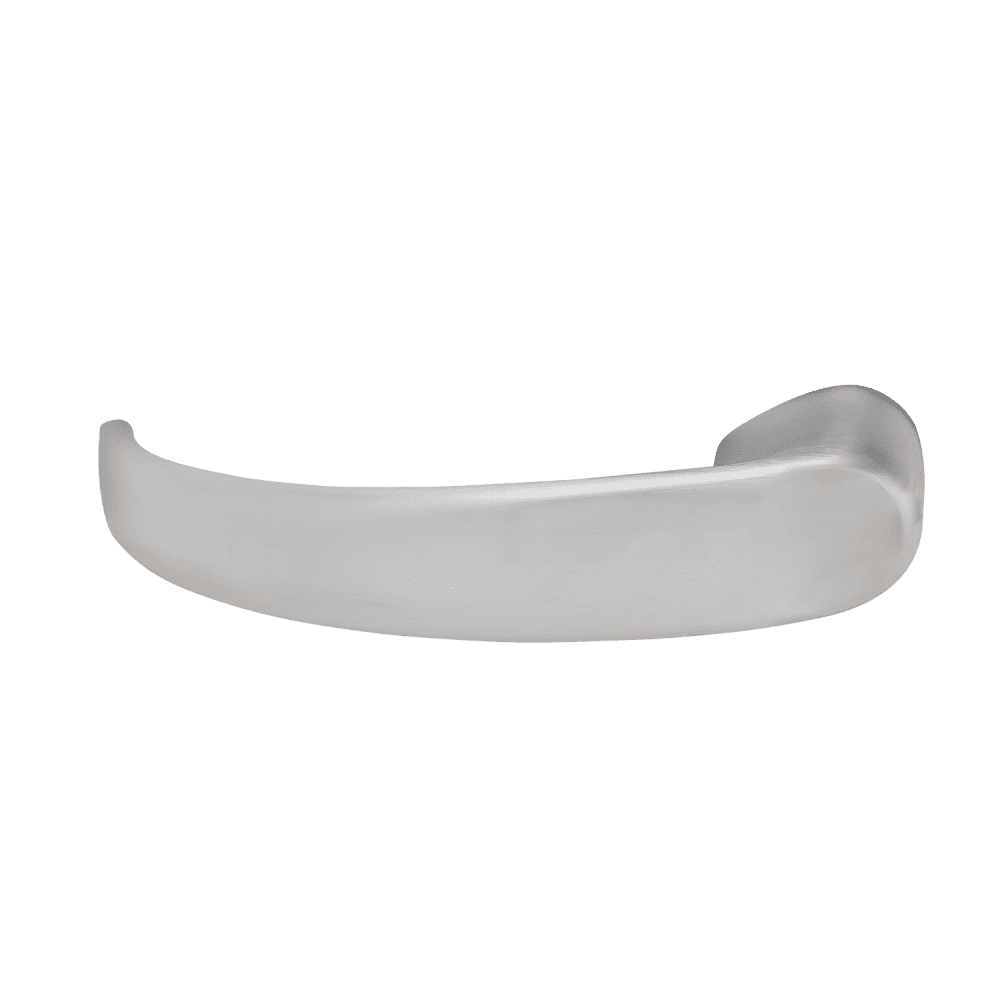

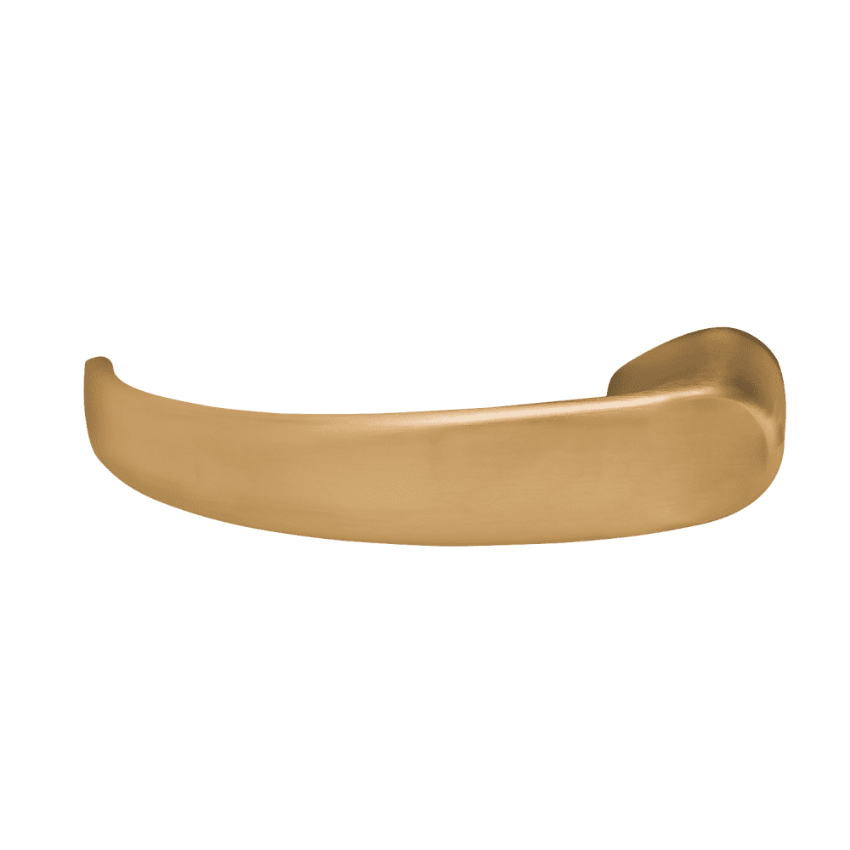

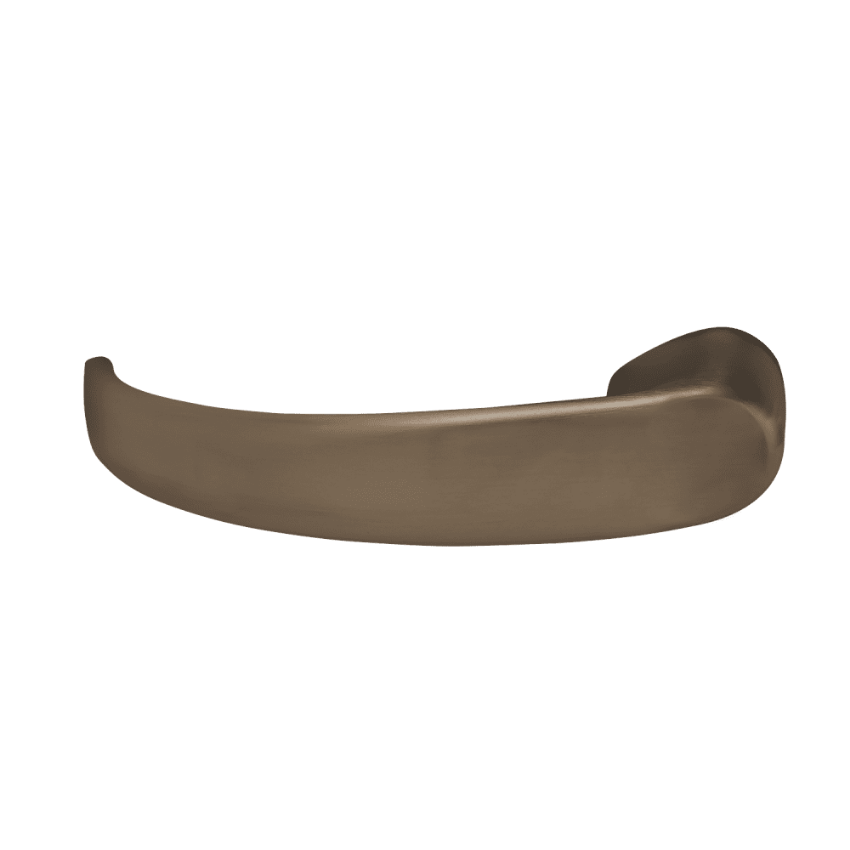

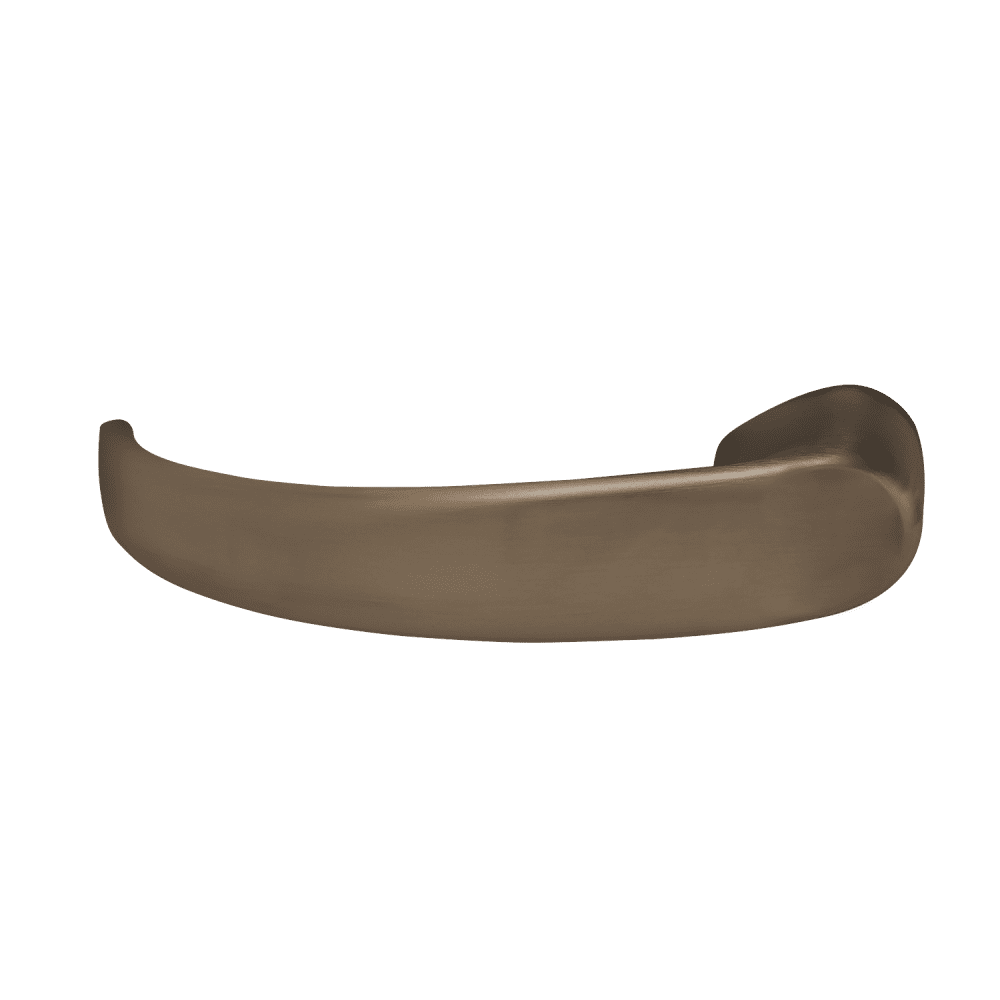

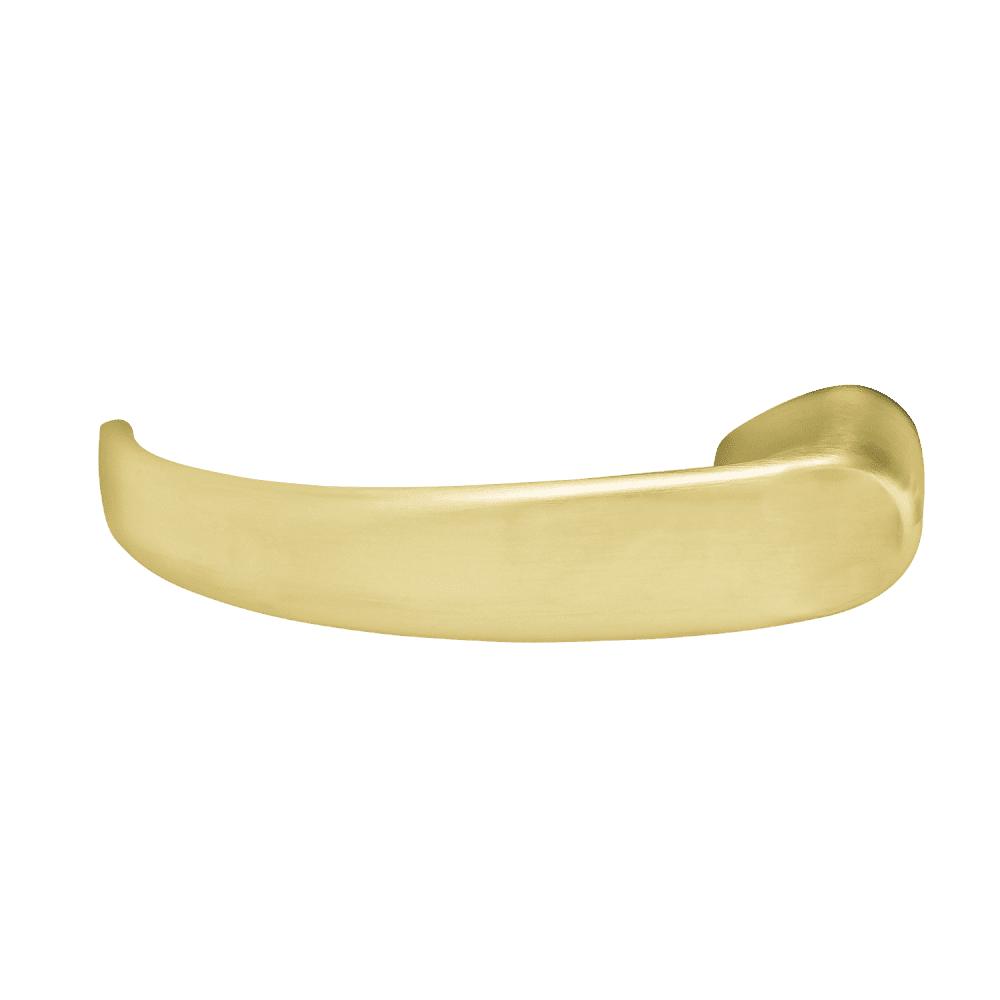

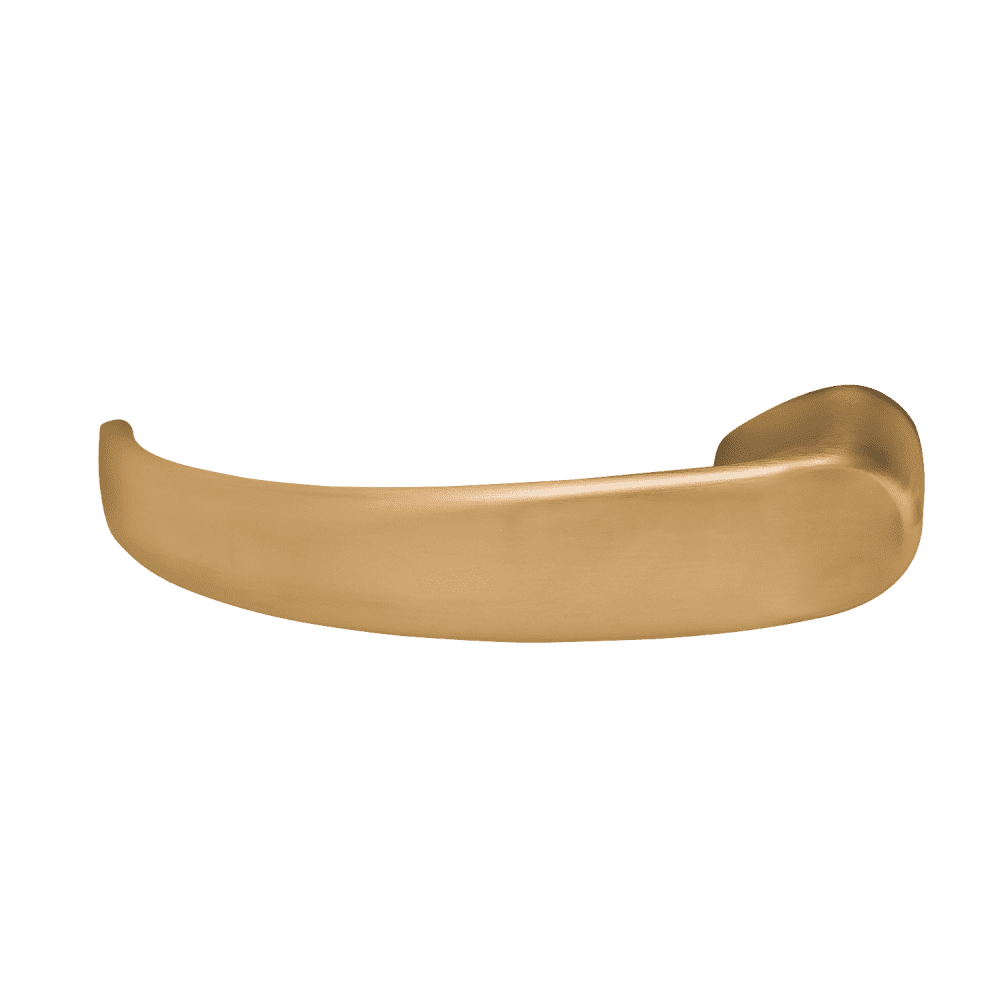

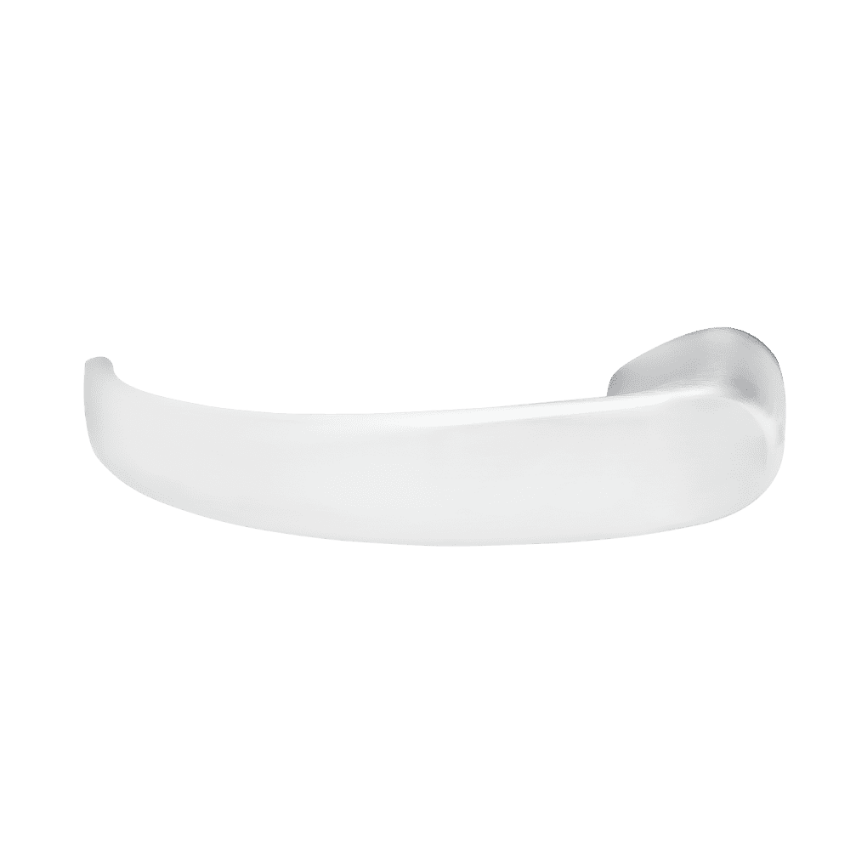

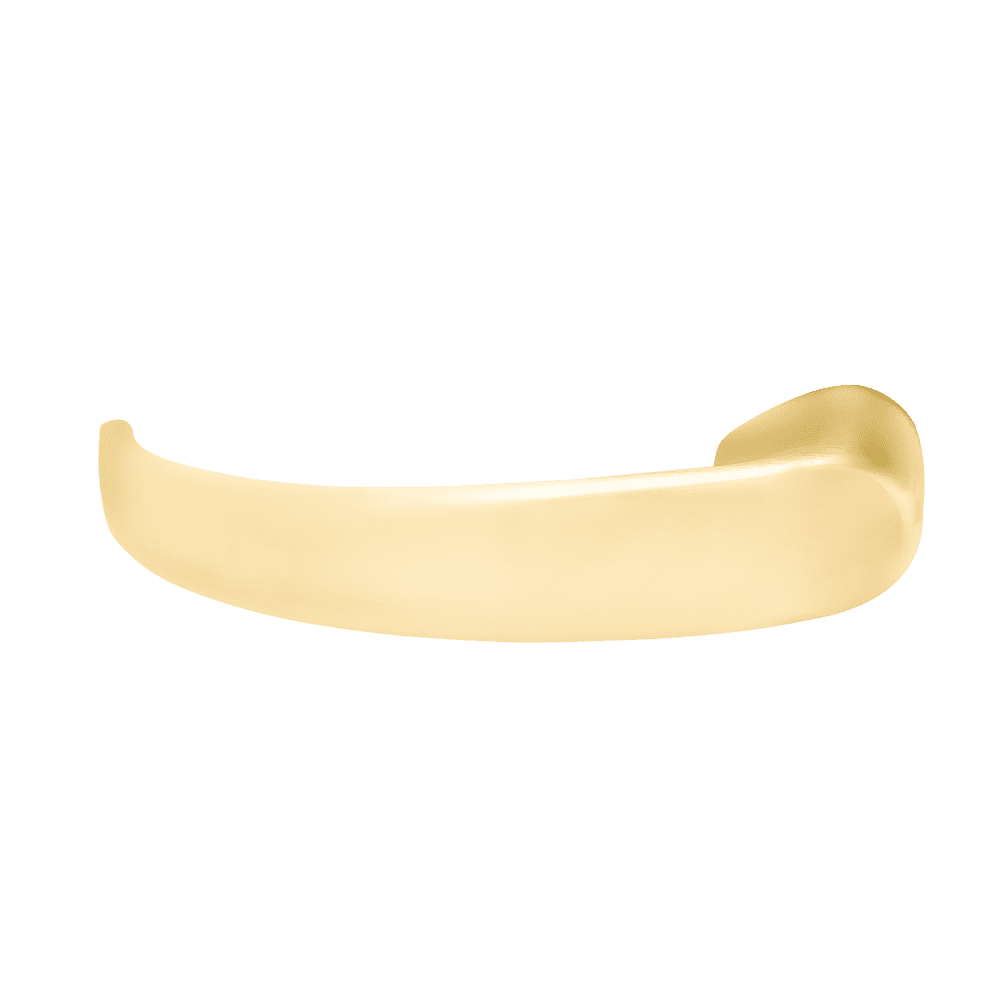

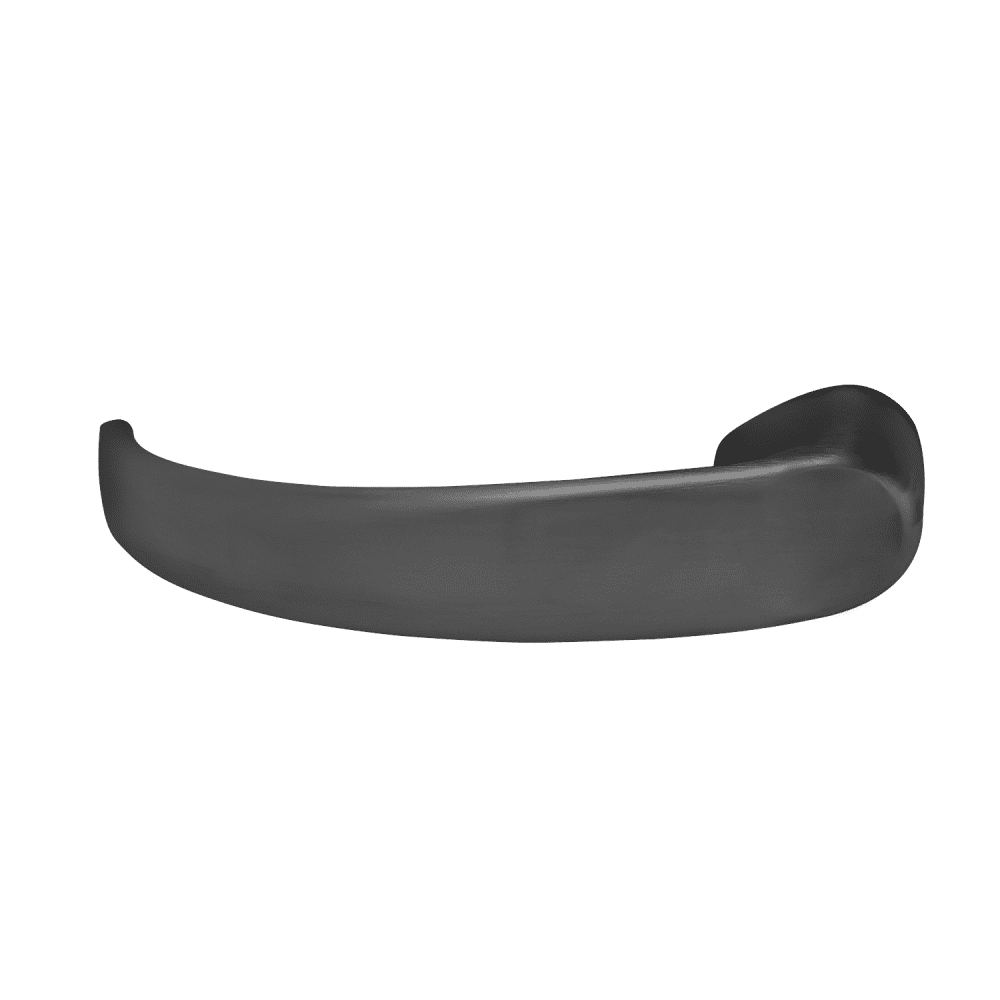

The 03-230-8SP is documented in five Schlage Service Manuals including the NDE Series Parts Manual, confirming its application in NDE exit device inside trim assemblies. ALX Series functions covered: ALX10S (Passage), ALX70 (Classroom), ALX80 (Storeroom), ALX170 (Single Dummy), and ALX172 (Double Dummy). ND Series functions covered: ND10 (Passage), ND12 (Exit), ND12EL, ND12EU, ND170, ND172, ND25 (Exit with blank plate), ND30 (Patio), ND45 (Time Out), ND60-Closed (Vestibule), ND70 (Classroom), ND80 (Storeroom), ND80EL, ND80EU, ND81 (Accessible Storeroom), ND94, ND96, ND96EL, and ND96EU. Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must match the outside lever and rose and must be specified at time of order.

SecurityParts stocks OEM Schlage ND Series and ALX Series closed lever and SFIC lever components. Free shipping on orders over $300.
