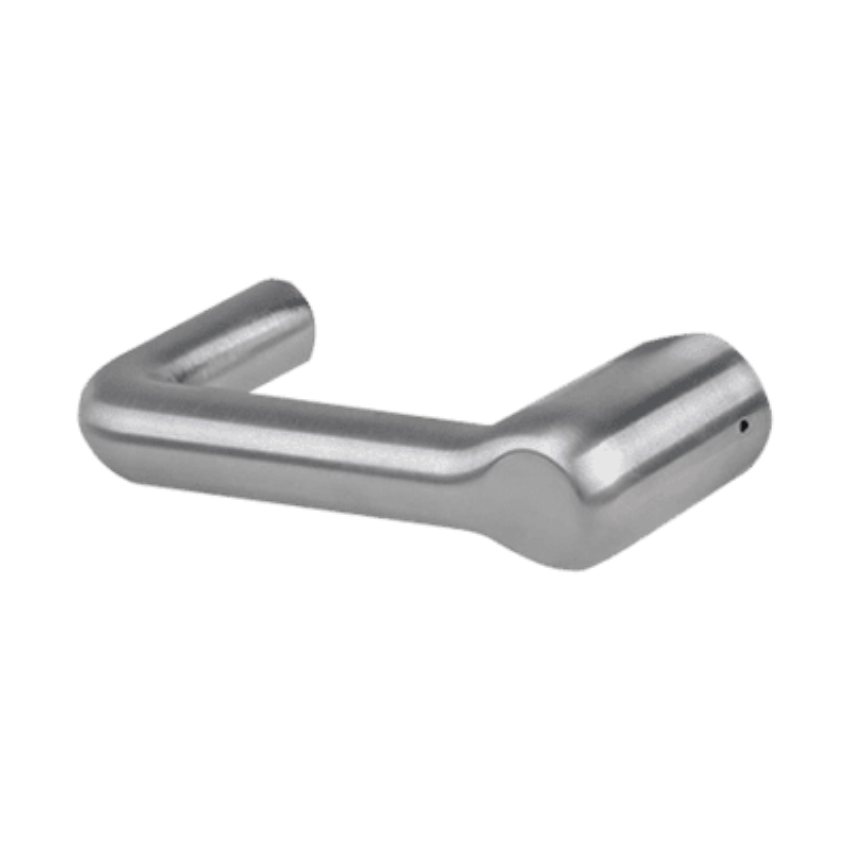

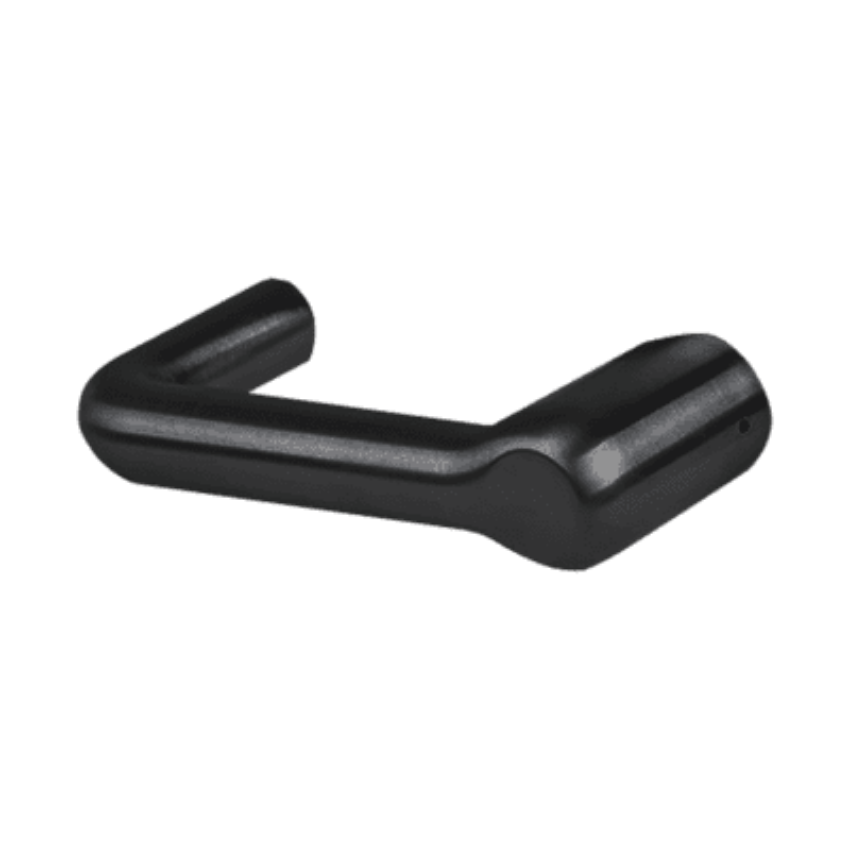

The Schlage 03-230-8TR is the OEM Tubular Tactile Closed Lever for the Schlage ND Series, ALX Series, CO Series, AD Series, and NDE Series, documented in all five official Schlage Service Manuals for these product lines. It is the Tubular lever profile with tactile surface in the closed format: the lever hub is sealed with no cylinder housing. Non-handed. Used at inside trim positions. Ten finishes are available including 626AM (Satin Chrome Antimicrobial). Available (3-4 weeks).

The Tubular Tactile Closed Lever: Round Profile at the Inside Trim Position

The 03-230-8TR is the fourth tactile closed lever in the Schlage cylindrical lock 03-230 family, alongside the Athens (03-230-8AT), Rhodes (03-230-8RO), and Sparta (03-230-8SP) tactile closed levers. It is the most visually distinct of the four. The Athens, Rhodes, and Sparta profiles each use a shaped lever handle with a cross-section that varies along the shank and handle body. The 03-230-8TR uses a uniform cylindrical rod for the handle, a consistent round cross-section from end to end that gives the lever its Tubular name.

The tactile surface on the 03-230-8TR is applied around the full circumference of the round handle rather than on a flat or shaped upper surface. Because a round handle is gripped from varying angles depending on the user's approach direction, the circumferential tactile treatment ensures the warning texture is always detectable regardless of grip orientation. This makes the 03-230-8TR particularly effective at conveying the tactile hazardous area warning to users with visual impairments in high-traffic institutional environments where people approach doors from multiple directions.

Where the Tubular Closed Lever Is Specified

The Tubular lever design is frequently specified in correctional facilities, detention centers, secure institutional environments, industrial facilities, and warehouse or utility spaces. In correctional and secure institutional applications, the round profile has no flat surface that could serve as a leverage point for improvised mechanical attack, and the absence of a shaped grip area reduces mechanical advantage for attempts to force or twist the lever past its operating range. When these environments also require tactile warning identification on specific doors, the 03-230-8TR provides the Tubular profile with the required tactile surface at the inside trim position while maintaining the same level of physical robustness associated with the Tubular lever design throughout the building.

When a project establishes Tubular levers as the standard across a facility specification and certain doors must meet IBC or ADAAG tactile requirements, the 03-230-8TR maintains visual and physical consistency at the inside trim position on those doors without introducing a different lever profile that would appear out of place relative to the rest of the hardware.

03-230-8TR as the Inside Companion to the 03-200-8TR

A complete Tubular Tactile trim assembly for a hazardous area door with SFIC cylinders requires two matched levers. The outside trim position uses the 03-200-8TR (Tubular Tactile SFIC Lever Less Core), which carries the SFIC cylinder housing at the corridor or exterior face. The inside trim position uses the 03-230-8TR, which provides the same Tubular profile and tactile surface at the interior face with no cylinder housing. Both levers pair with the 03-042-RHO (Rhodes Rose) at their respective trim positions in the matching finish, as confirmed in the official Schlage ALX Series Service Manual.

The 03-230-8TR does not carry the optional break-away feature. Per the official Schlage ALX Series Data Sheet, the break-away option is available exclusively on Rhodes levers. Among the four tactile closed levers in the 03-230 family, only the 03-230-8RO (Rhodes Tactile Closed Lever) offers break-away protection. When break-away and Tubular profile are both project requirements for the same door, those two specifications cannot be met simultaneously with a Schlage OEM closed lever in the standard catalog.

NDE Series Coverage, Function Range, and Finishes

The 03-230-8TR is documented in five Service Manuals including the Schlage NDE Series Parts Manual. Function coverage in the ALX Series: ALX10S (Passage), ALX70 (Classroom), ALX80 (Storeroom), ALX170 (Single Dummy), and ALX172 (Double Dummy). Function coverage in the ND Series: ND10 (Passage), ND12 (Exit), ND12EL, ND12EU, ND170, ND172, ND25 (Exit with blank plate), ND30 (Patio), ND45 (Time Out), ND60-Closed (Vestibule), ND70 (Classroom), ND80 (Storeroom), ND80EL, ND80EU, ND81 (Accessible Storeroom), ND94, ND96, ND96EL, and ND96EU. Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must match the outside lever and rose and must be specified at time of order.
