Schlage 03-231-SPA is a genuine OEM Sparta-style exterior lever less cylinder for compatible Schlage AD, ALX, CO, NDE and ND Series commercial locks using a Schlage Key-in-Lever (KIL) cylinder.
The Schlage 03-231-SPA is the OEM Sparta Lever Less Cylinder for the Schlage ALX Series, ND Series, NDE Series, CO Series, and AD Series cylindrical locks, documented in five official Schlage Service Manuals including the NDE Series. It is the standard non-tactile Sparta lever in the KIL (Key-in-Lever) conventional cylinder format, supplied without a cylinder installed. Non-handed. In stock.
Three Legacy Part Numbers Replaced by the 03-231-SPA
The 03-231-SPA consolidates three legacy part numbers under one current designation, as confirmed on the SecurityParts.com product page. Each legacy number covered a specific installation type before the current 03-231 prefix system was introduced.
- 03-031-SPA: Original part number for cylindrical lock outside trim positions using the Sparta KIL lever.
- 09-331-SPA: Original part number for mortise lock trim applications. The 09 prefix in the legacy Schlage system identified mortise trim levers. If a maintenance record or specification lists 09-331-SPA, the current replacement is the 03-231-SPA.
- 03-331-SPA: Original part number for exit device outside trim applications using the Sparta KIL lever. If a work order references 03-331-SPA, the current part is the 03-231-SPA.
Whether the original installation was on a cylindrical lock, mortise lock, or exit device, the 03-231-SPA is the single current OEM replacement for all three legacy Sparta KIL lever configurations.
Standard vs Tactile: 03-231-SPA vs 03-231-8SP
The 03-231-SPA is the standard Sparta KIL lever with a smooth handle surface. The 03-231-8SP is the tactile version with a raised textured handle surface for hazardous area door identification. Both use the Sparta lever profile and the KIL cylinder format. The 03-231-SPA is the correct selection for all standard Sparta KIL lever positions in a project. The 03-231-8SP applies only at doors where the tactile designation was originally specified. When sourcing a replacement lever, confirm the original specification before ordering to prevent a mismatched trim assembly.
NDE Series Coverage, Compatibility, and Finishes
The 03-231-SPA is documented in five Service Manuals including the Schlage NDE Series Parts and Diagrams Manual. NDE exit device installations that originally used a Sparta KIL outside lever, including any referencing the legacy 03-331-SPA, are serviced with the 03-231-SPA. The lever is compatible with ALX Series, ND Series, NDE Series, CO-100, CO-200, CO-200/250, AD-200/250, AD-300, AD-400, and AD-993-DT Dummy Trim Exterior.

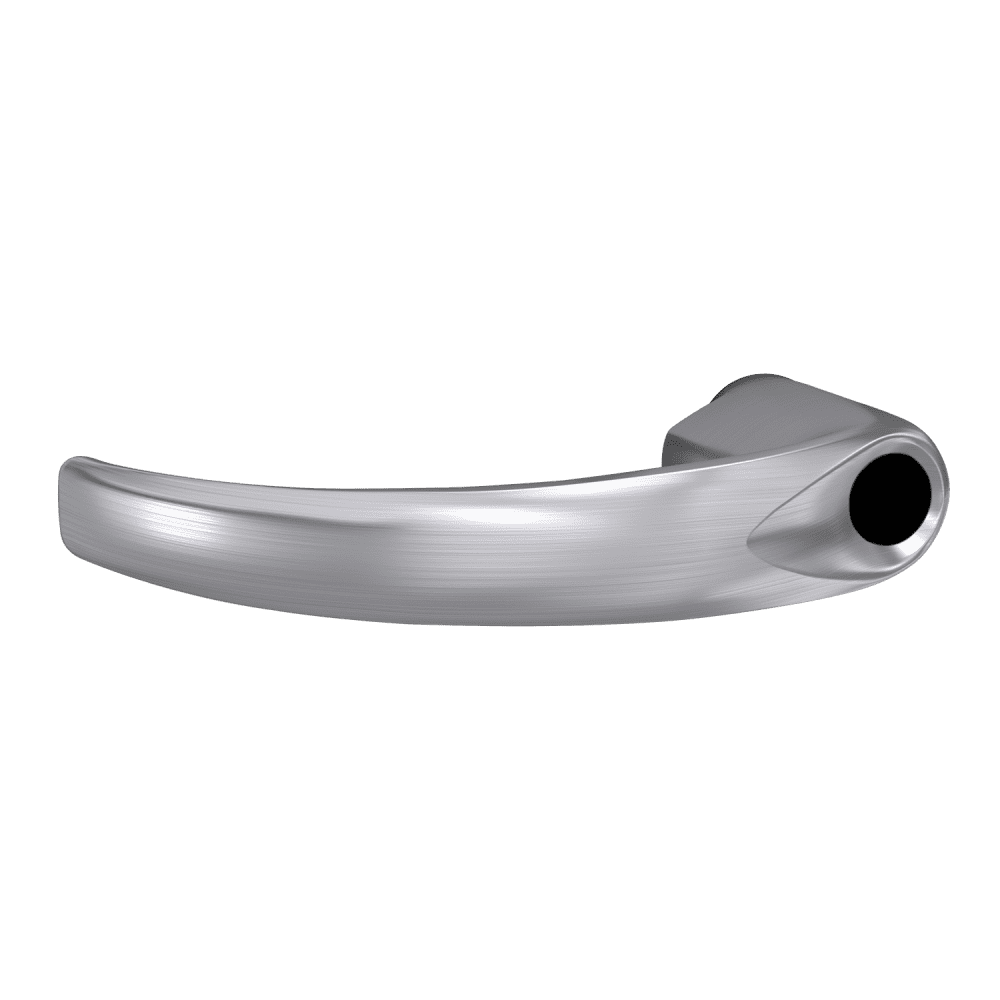

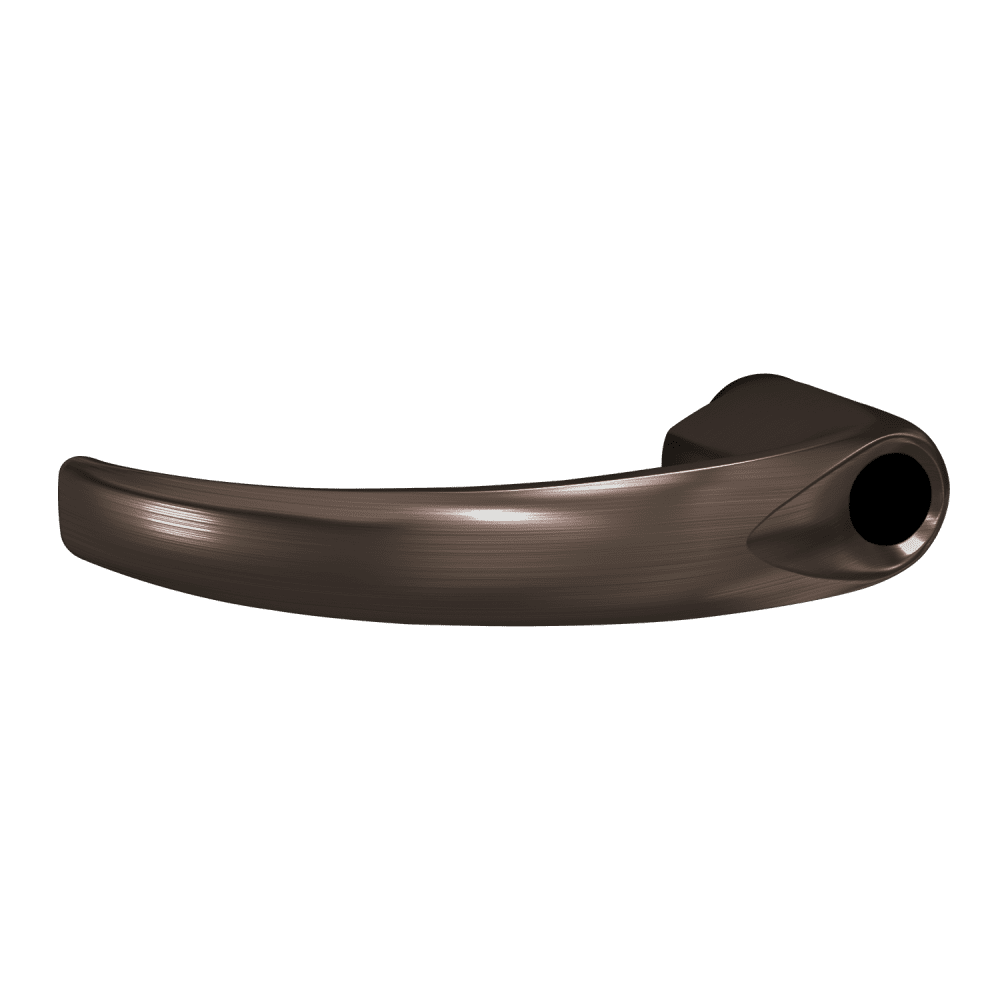

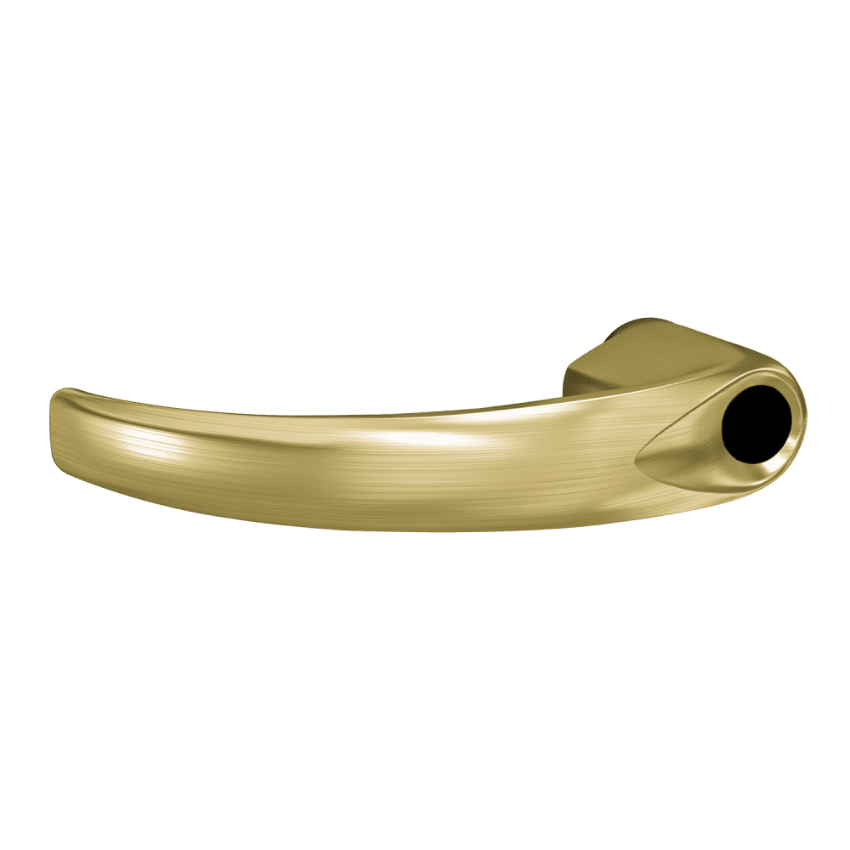

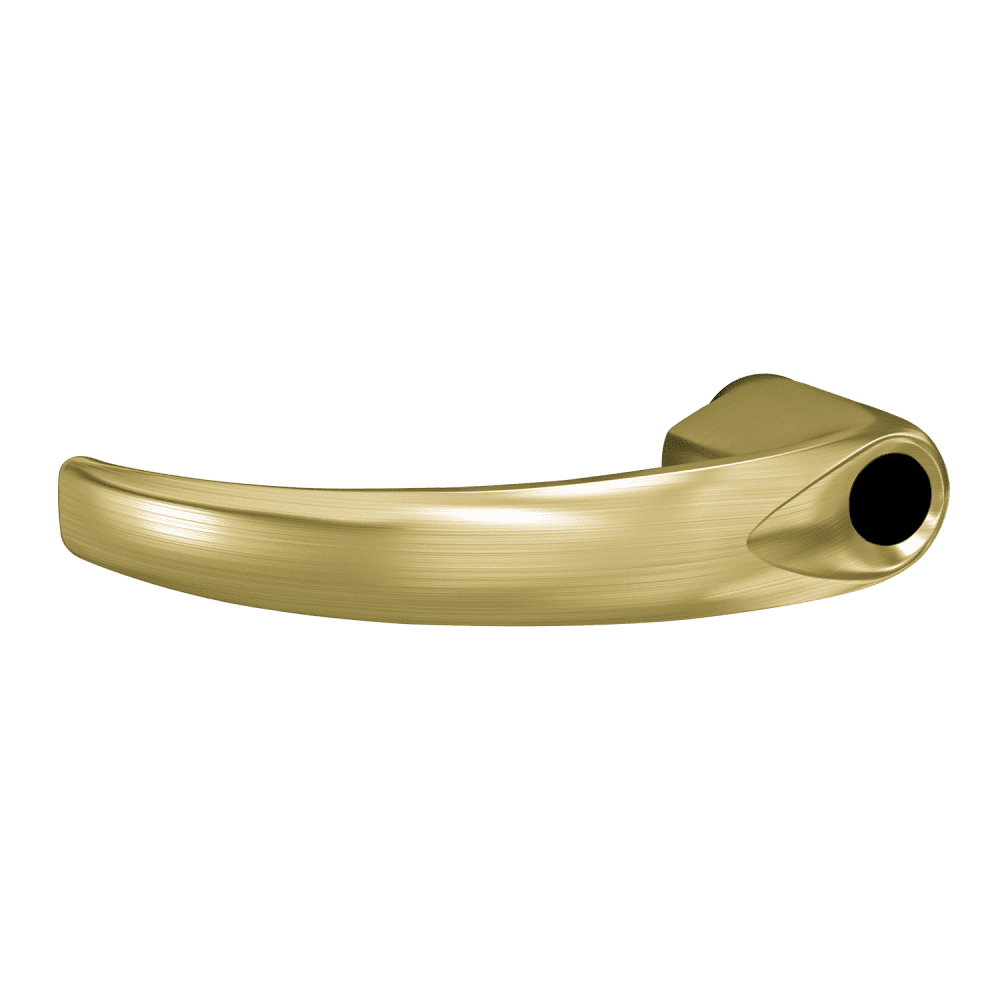

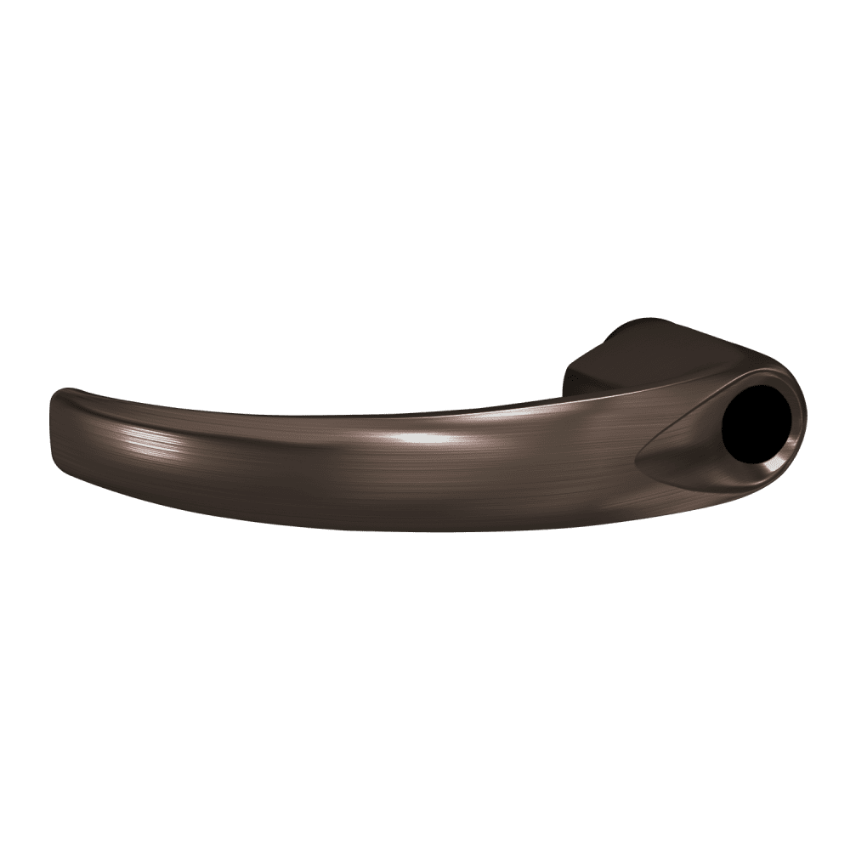

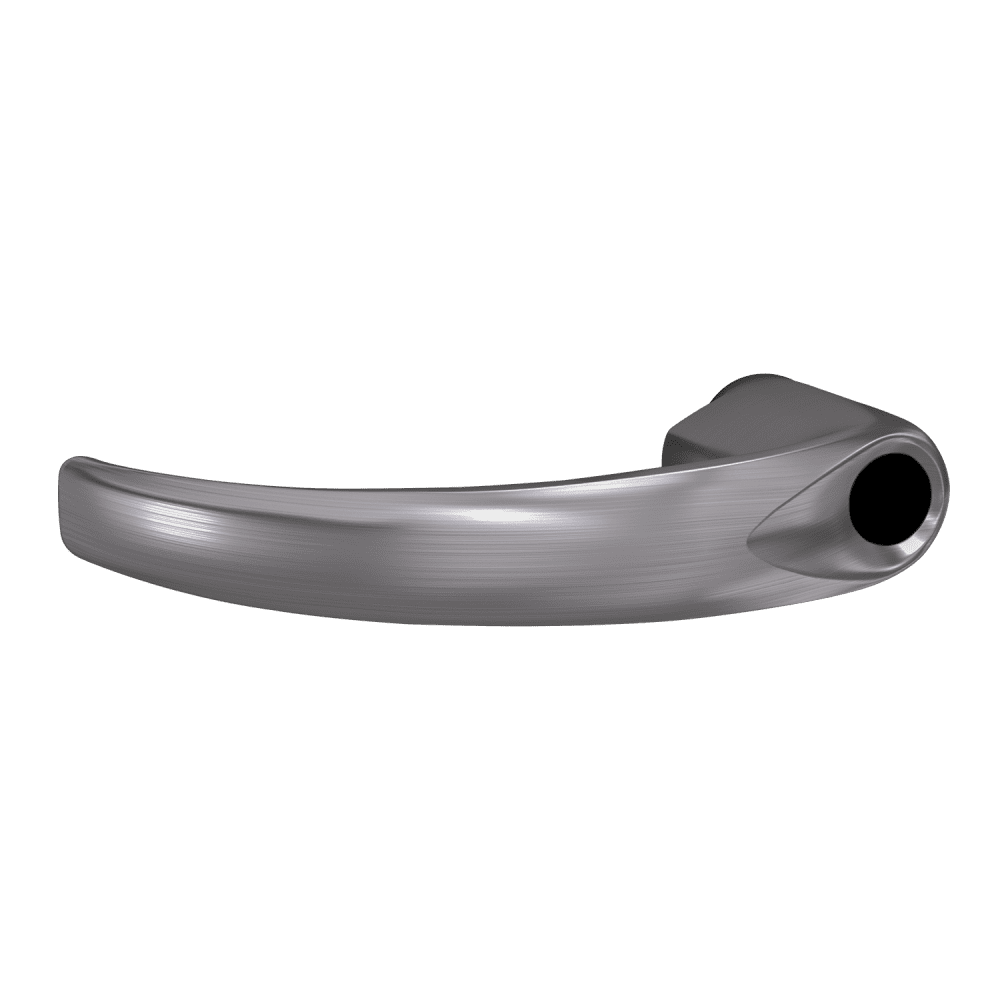

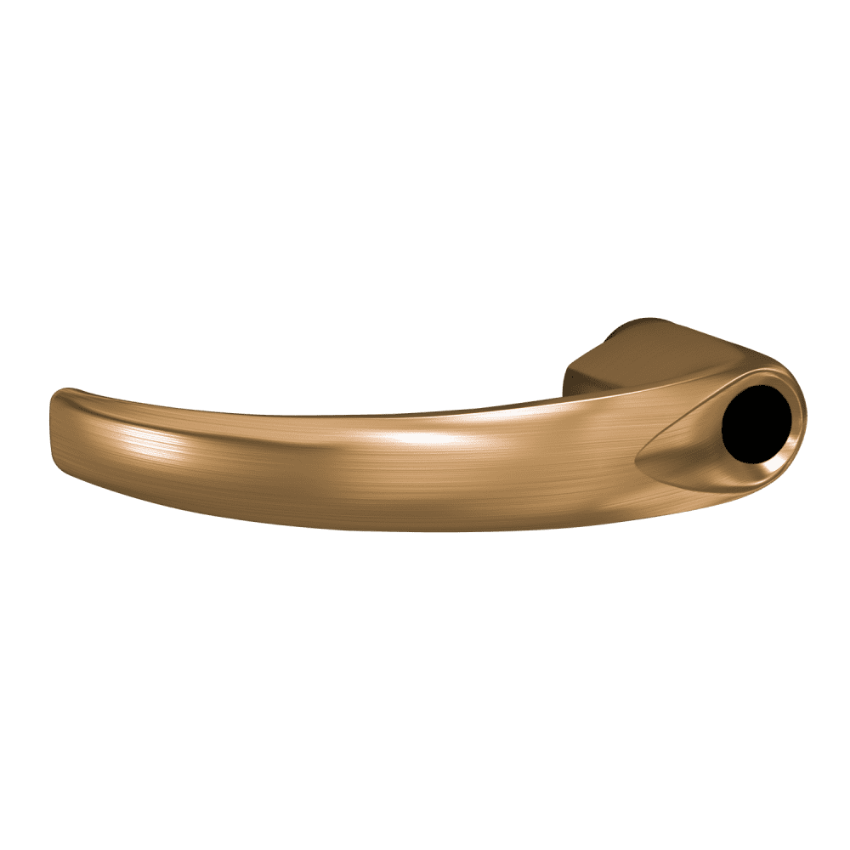

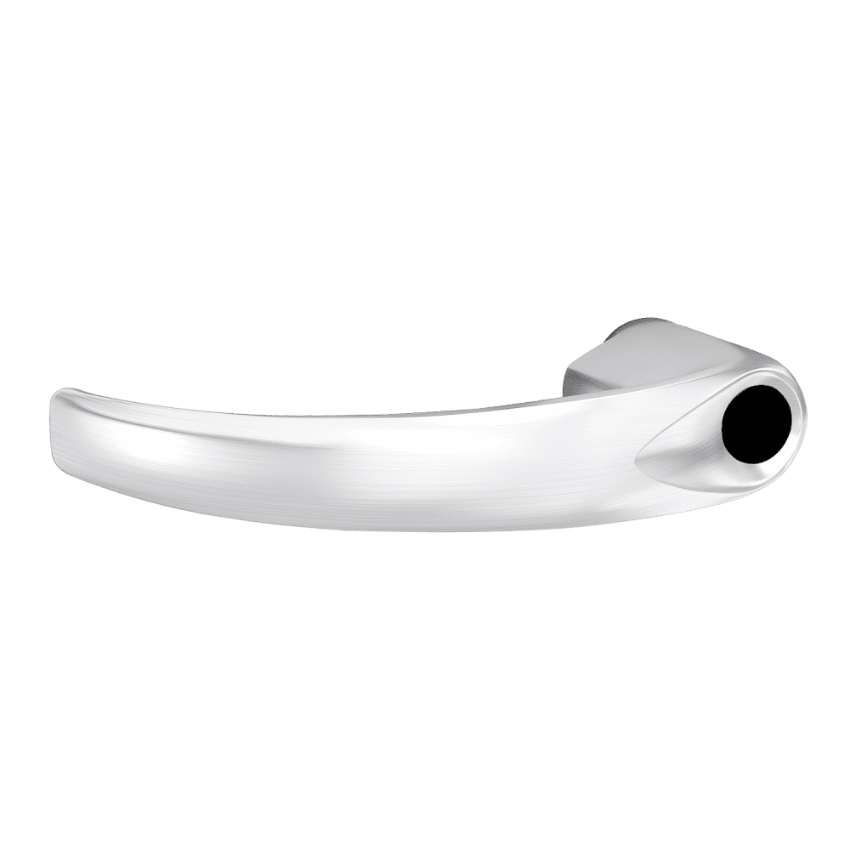

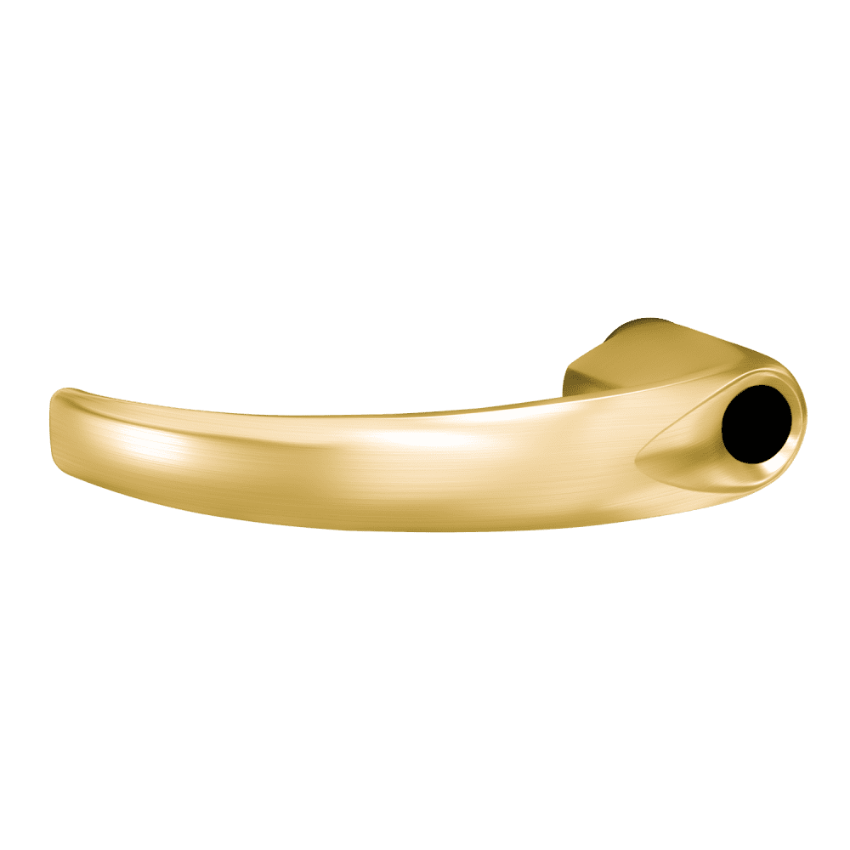

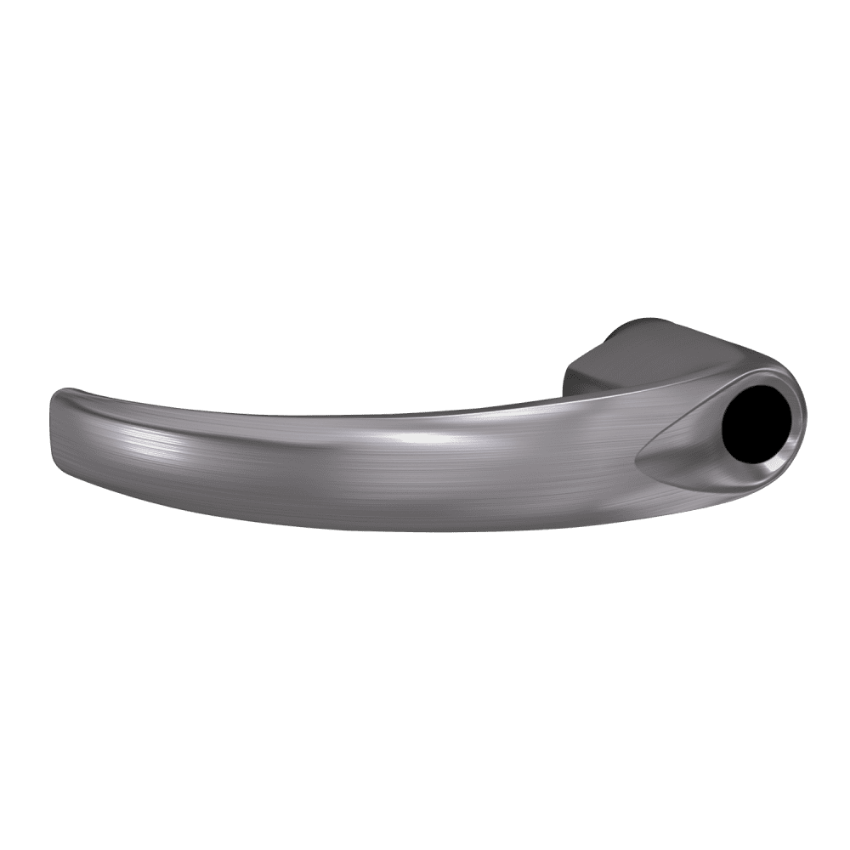

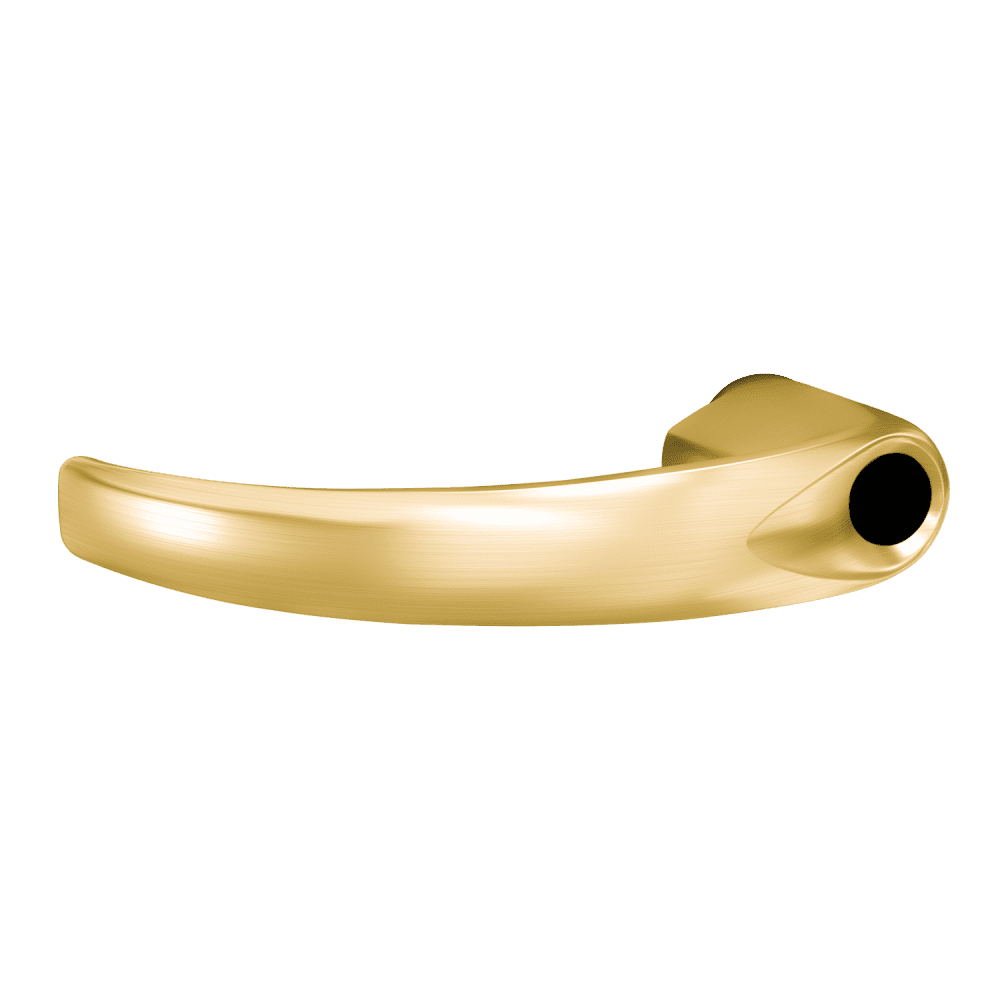

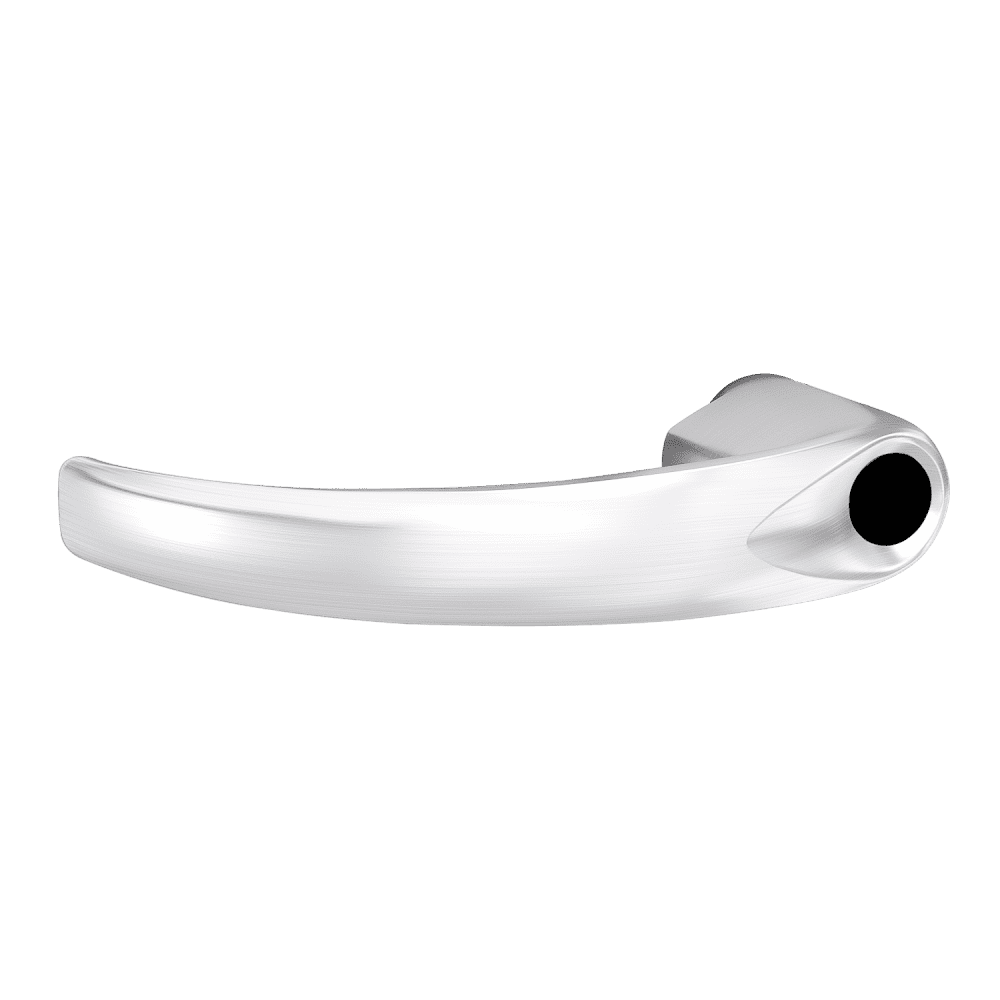

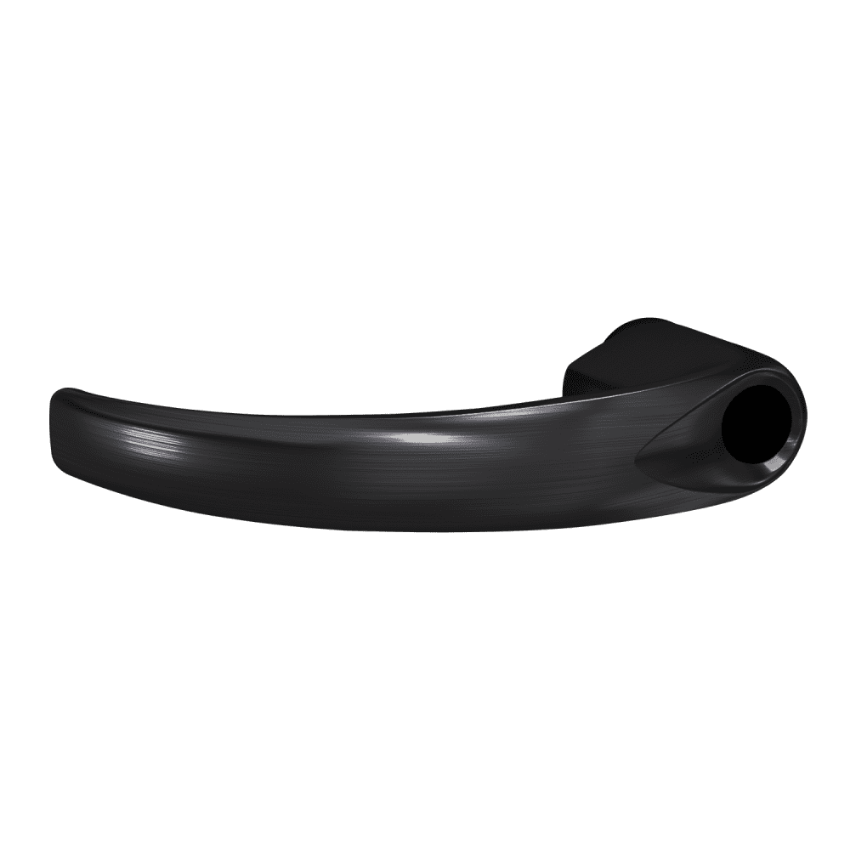

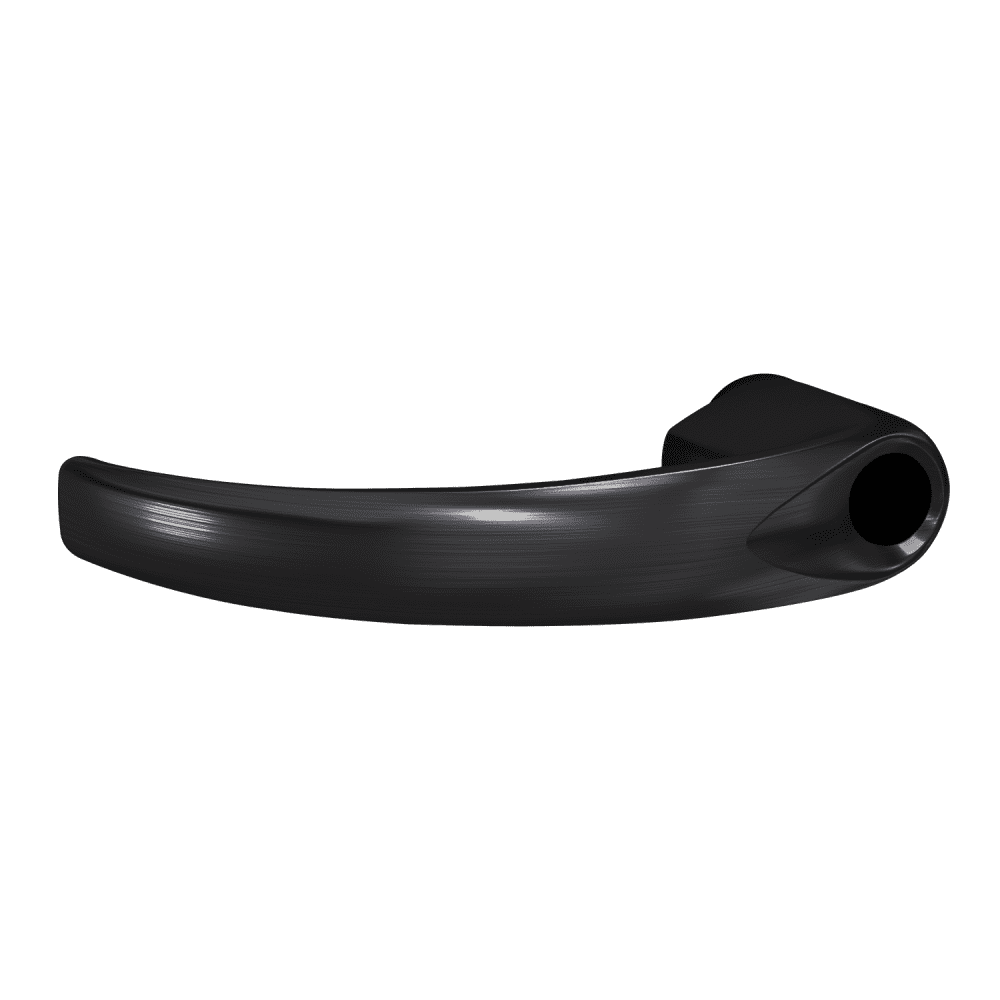

ALX Series functions include ALX40, ALX44S, ALX50, ALX53, ALX70, and ALX80. ND Series functions include ND25x70, ND25x80, ND40, ND44, ND50, ND52, ND53, ND55, ND60, ND66, ND70, ND72, ND73, ND78, ND80, ND80EL, ND80EU, ND81, ND82, ND85, and the full Vandlgard series ND91 through ND97, plus all indicator variants throughout. Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. The KIL cylinder is not included and must be ordered separately.
SecurityParts stocks OEM Schlage ND Series and ALX Series KIL lever components. Free shipping on orders over $300.
