The Schlage 03-232-OME is the OEM Omega FSIC Lever Less Core for the Schlage ALX Series, ND Series, CO Series, and AD Series cylindrical locks, documented in the official Schlage ALX, ND, AD, and CO Series Service Manuals. It is the Omega lever profile in the 03-232 Full Size Interchangeable Core (FSIC) format. The lever is supplied less core, requiring installation with a compatible Schlage FSIC cylinder. Non-handed. In stock.

Three Legacy Part Numbers Replaced by the 03-232-OME

The 03-232-OME replaces three legacy part numbers, as confirmed in the structured product data on the SecurityParts.com product page under "Original Part#."

• 03-032-OME: Original part number for cylindrical lock outside trim positions using the Omega FSIC lever.
• 09-332-OME: Original part number for mortise lock trim applications using the Omega FSIC lever. The 09 prefix in the legacy Schlage system identified mortise trim levers.
• 03-332-OME: Original part number for exit device outside trim applications using the Omega FSIC lever.

All three installation types are now served by the 03-232-OME as the single current part number. When sourcing a replacement Omega FSIC lever for any of these applications, the 03-232-OME is the correct current OEM part regardless of which legacy number the original specification used.

Omega FSIC Lever: No Tactile Variant in Any Format

The Schlage ND and ALX Series lever catalog offers tactile variants for Athens, Rhodes, Sparta, and Tubular designs across all lever format prefixes (03-230 closed, 03-231 KIL, 03-200 SFIC, and 03-232 FSIC). The Omega design has no tactile variant in any format. There is no 8OME designation in the 03-232 family or any other Schlage lever prefix family. The 03-232-OME is the only Omega FSIC lever available and it has a standard smooth handle surface. When a project uses Omega FSIC levers and certain doors require the tactile designation, a different lever design must be specified for those doors.

03-042-OME Omega Rose: Required With This Lever

The Omega lever is the only lever design in the Schlage ND and ALX Series catalog that uses a dedicated rose. The 03-042-OME (Omega Rose) is the correct inside and outside rose for the Omega lever at all trim positions. The 03-042-RHO (Rhodes Rose), which is the standard rose for every other lever design, does not fit the Omega lever hub correctly and must not be substituted. When ordering a complete Omega FSIC trim assembly using the 03-232-OME, the 03-042-OME rose must be ordered separately in the matching finish for both inside and outside positions.

Compatibility, NDE Note, and Finishes

The 03-232-OME is compatible with ALX Series, ND Series, CO-100, CO-200, CO-200/250, AD-200/250, AD-300, AD-400, and AD-993-DT Dummy Trim Exterior. The NDE Series is not included in the formal compatibility list for the 03-232-OME. This differs from the 03-232-ATH (Athens FSIC Lever), which includes the NDE Series in its five Service Manuals. The 03-232-OME is documented in four Service Manuals: ALX, ND, AD, and CO.

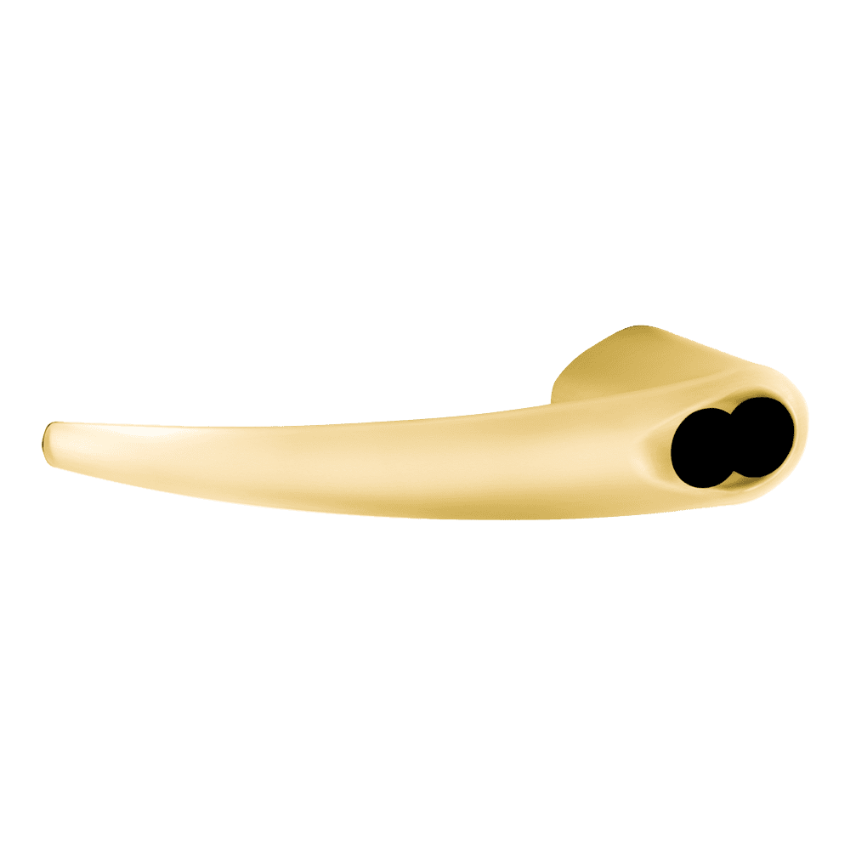

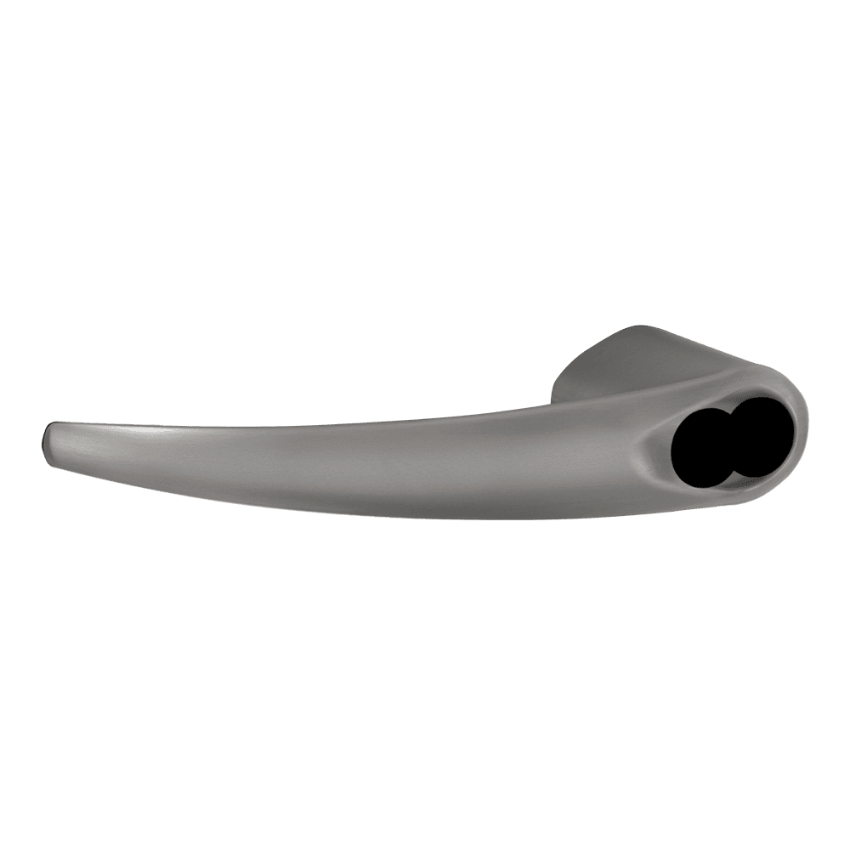

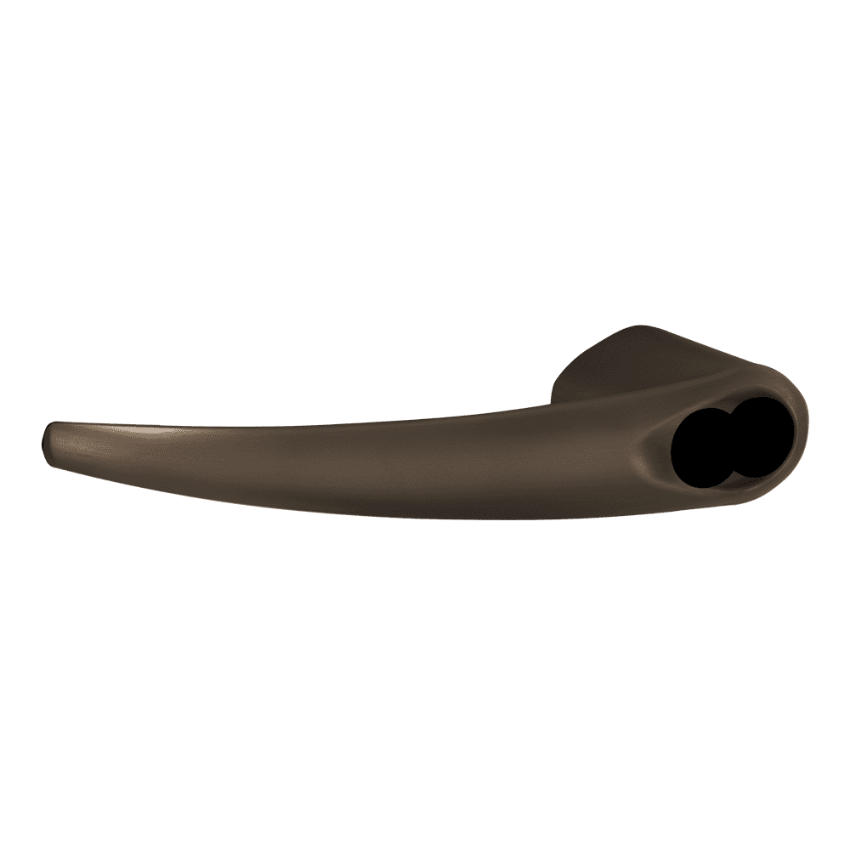

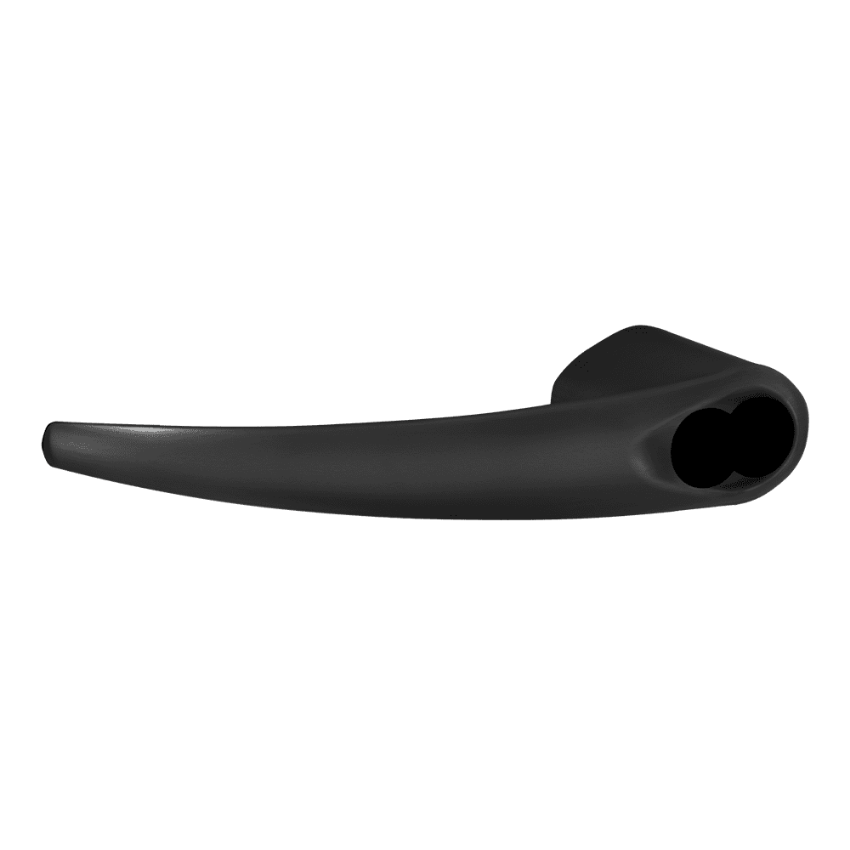

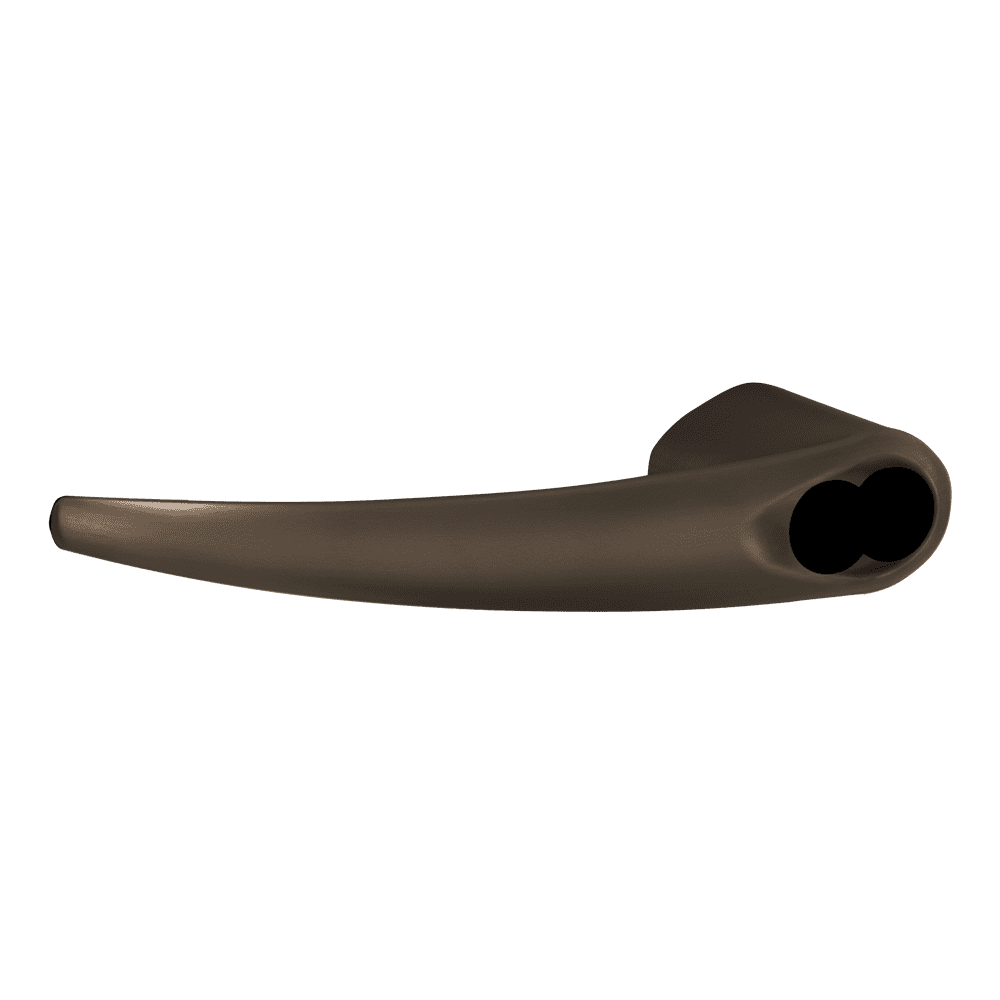

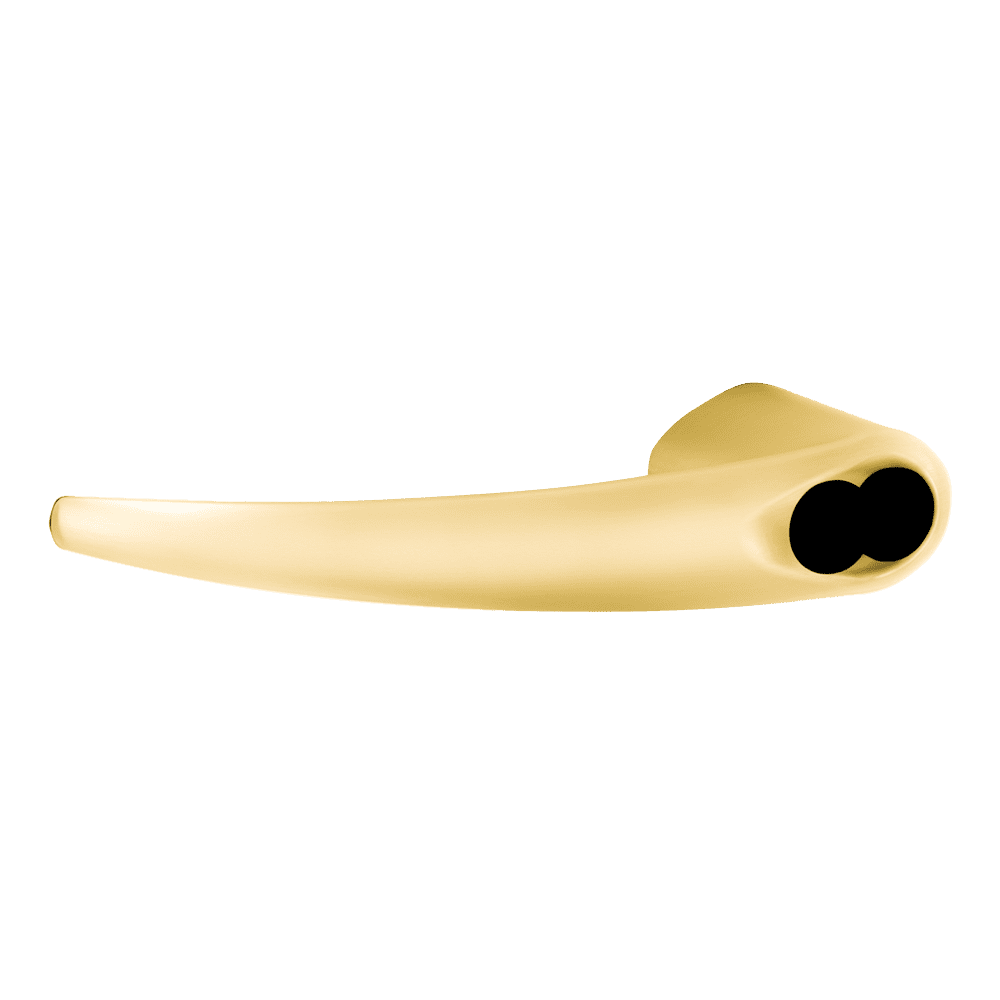

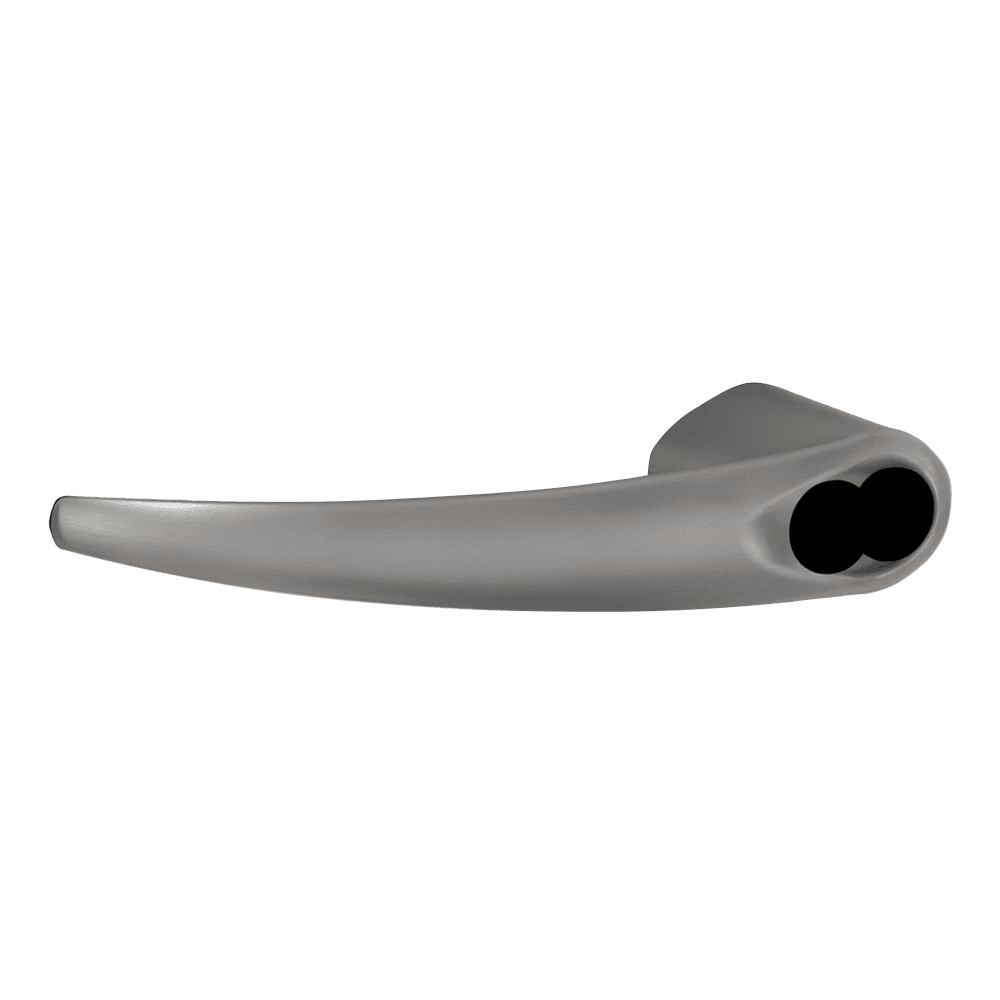

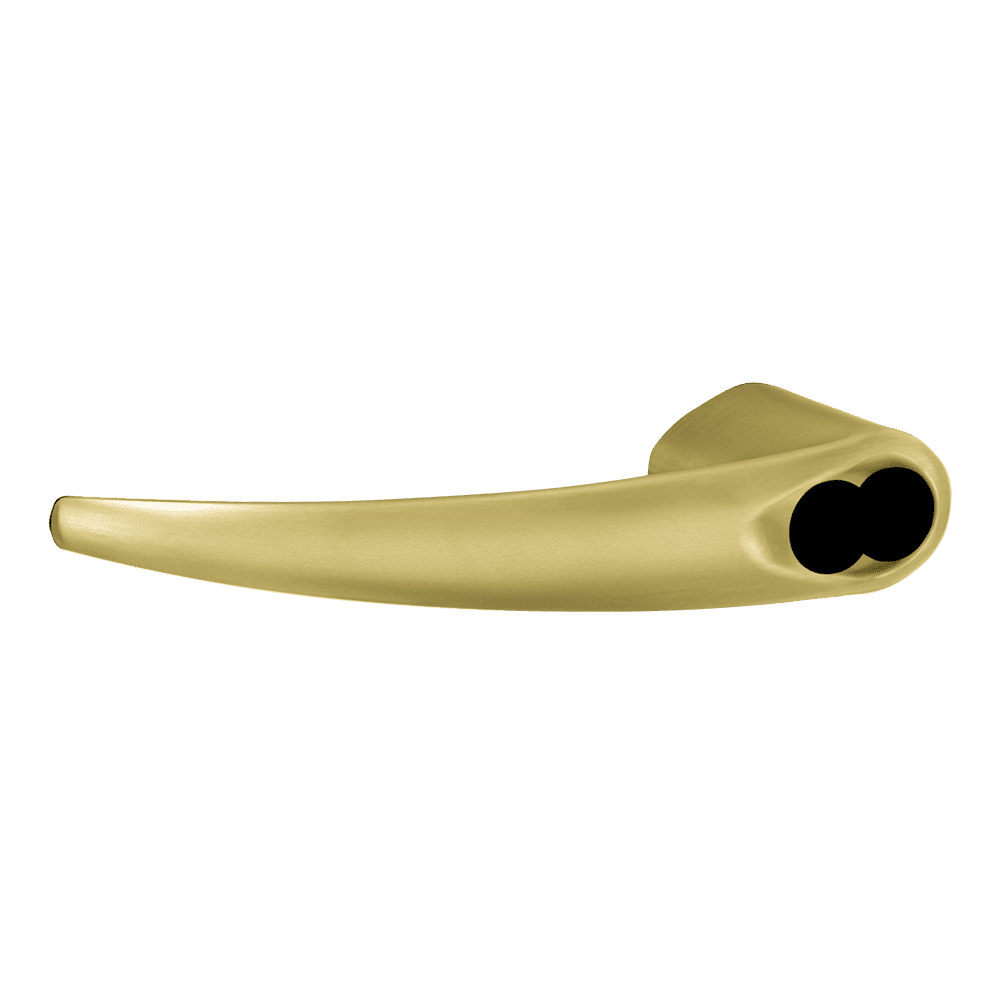

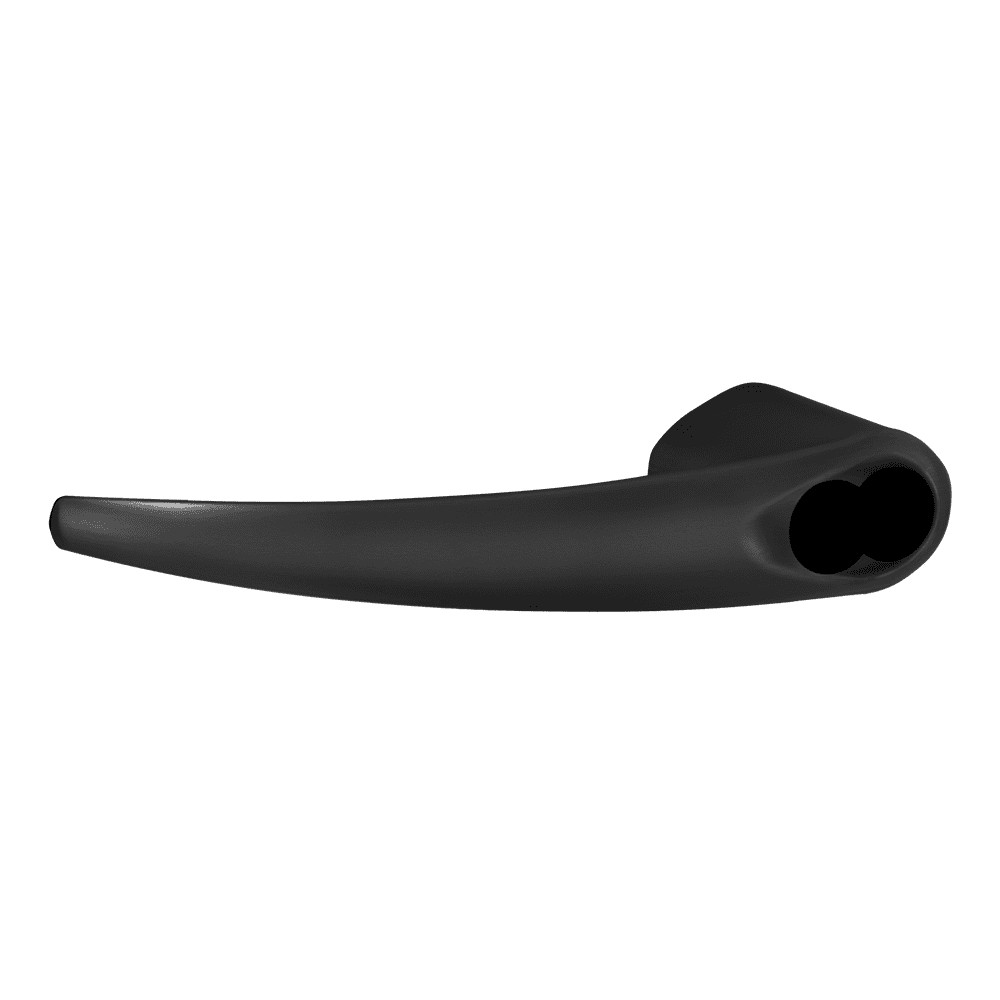

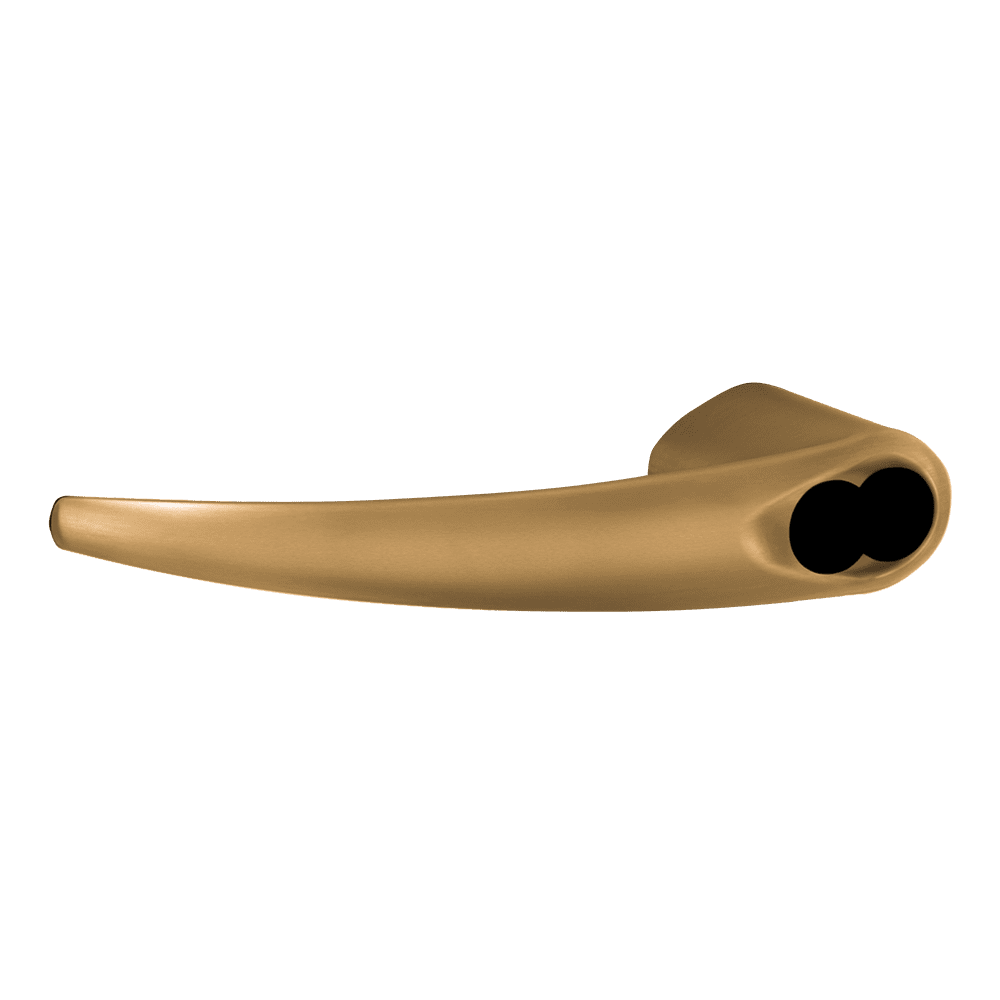

ND function coverage includes ND81 (Accessible Storeroom), ND82 (Institution), ND85 (Faculty Restroom), ND91 through ND97 Vandlgard functions, and all indicator variants. Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. The FSIC core is not included.
