The Schlage 03-232-TLR is the OEM Tubular FSIC Lever Less Core for the Schlage ALX Series, ND Series, CO Series, and AD Series cylindrical locks, documented in the official Schlage ALX, ND, AD, and CO Series Service Manuals. It is the Tubular lever profile in the 03-232 Full Size Interchangeable Core (FSIC) format. The lever is supplied less core, requiring installation with a compatible Schlage FSIC cylinder. Non-handed. In stock.

Three Legacy Part Numbers Replaced by the 03-232-TLR

The 03-232-TLR replaces three legacy part numbers, as confirmed on the SecurityParts.com product page under "Original Part#."

• 03-032-TLR: Original part number for cylindrical lock outside trim positions using the Tubular FSIC lever.
• 09-332-TLR: Original part number for mortise lock trim applications. The 09 prefix in the legacy Schlage system identified mortise trim levers. Any specification or maintenance record listing 09-332-TLR is currently serviced with the 03-232-TLR.
• 03-332-TLR: Original part number for exit device outside trim applications. Any work order referencing 03-332-TLR is currently serviced with the 03-232-TLR.

All three installation types, cylindrical lock, mortise lock, and exit device, are served by the 03-232-TLR as the single current OEM replacement part number.

Tubular FSIC Lever: Round Profile and NDE Series Note

The Tubular lever uses a uniform round cylindrical rod handle that is visually distinct from every other lever design in the Schlage ND and ALX Series catalog. Athens, Rhodes, Sparta, and Omega levers use shaped handles with cross-sections that vary along the shank. The Tubular lever maintains a consistent circular cross-section from the hub to the handle tip. Per the SecurityParts.com product page, the 03-232-TLR "accommodates Full Size Interchangeable Core (FSIC) cylinder insertion and provides manual latch retraction."

The 03-232-TLR is documented in four Service Manuals: ALX, ND, AD, and CO. The NDE Series is not included in the formal compatibility list. This is consistent with the Tubular lever pattern across the Schlage lever catalog and differs from the Athens (03-232-ATH) and Rhodes (03-232-RHO) standard FSIC levers, which are each documented in five Service Manuals including the NDE Series. For NDE exit device outside trim positions that use a Tubular FSIC lever and reference the legacy 03-332-TLR, confirm the correct current specification through the NDE Series Service Manual before ordering the 03-232-TLR.

ND Series Function Coverage and Finishes

The 03-232-TLR covers ND81 (Accessible Storeroom), ND82 (Institution), ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, ND93 (Vandlgard Vestibule), ND94 (Vandlgard Classroom), ND96 (Vandlgard Storeroom), ND96EL (Vandlgard Storeroom Fail Safe), ND96EU (Vandlgard Storeroom Fail Secure), and ND97 (Vandlgard Corridor). Compatibility covers ALX Series, ND Series, CO-100, CO-200, CO-200/250, AD-200/250, AD-300, AD-400, and AD-993-DT Dummy Trim Exterior.

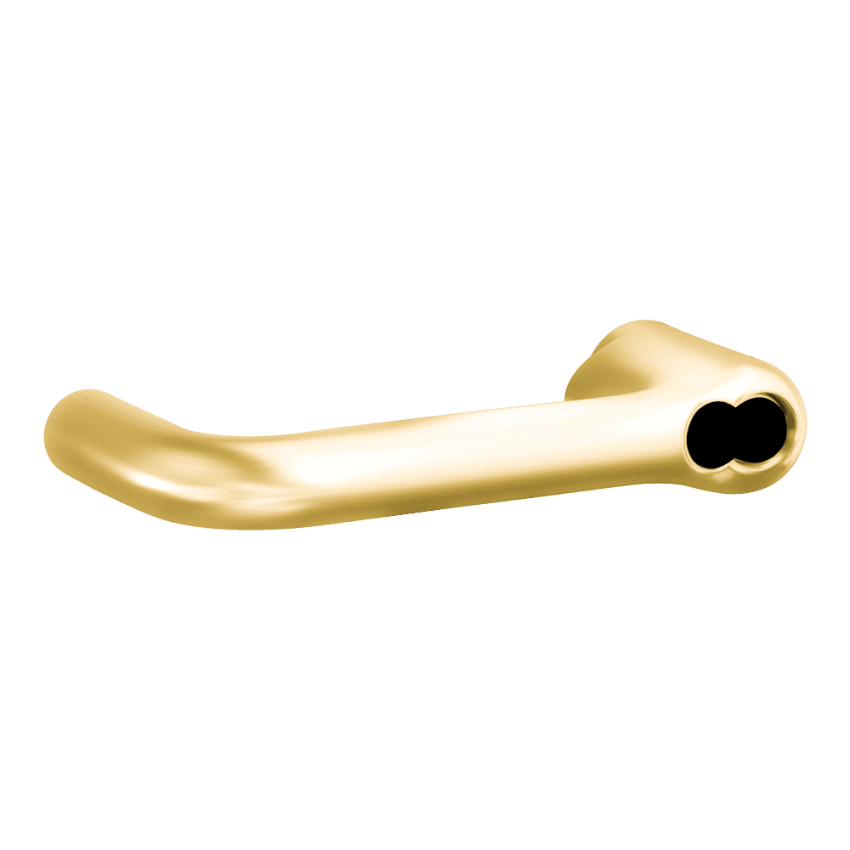

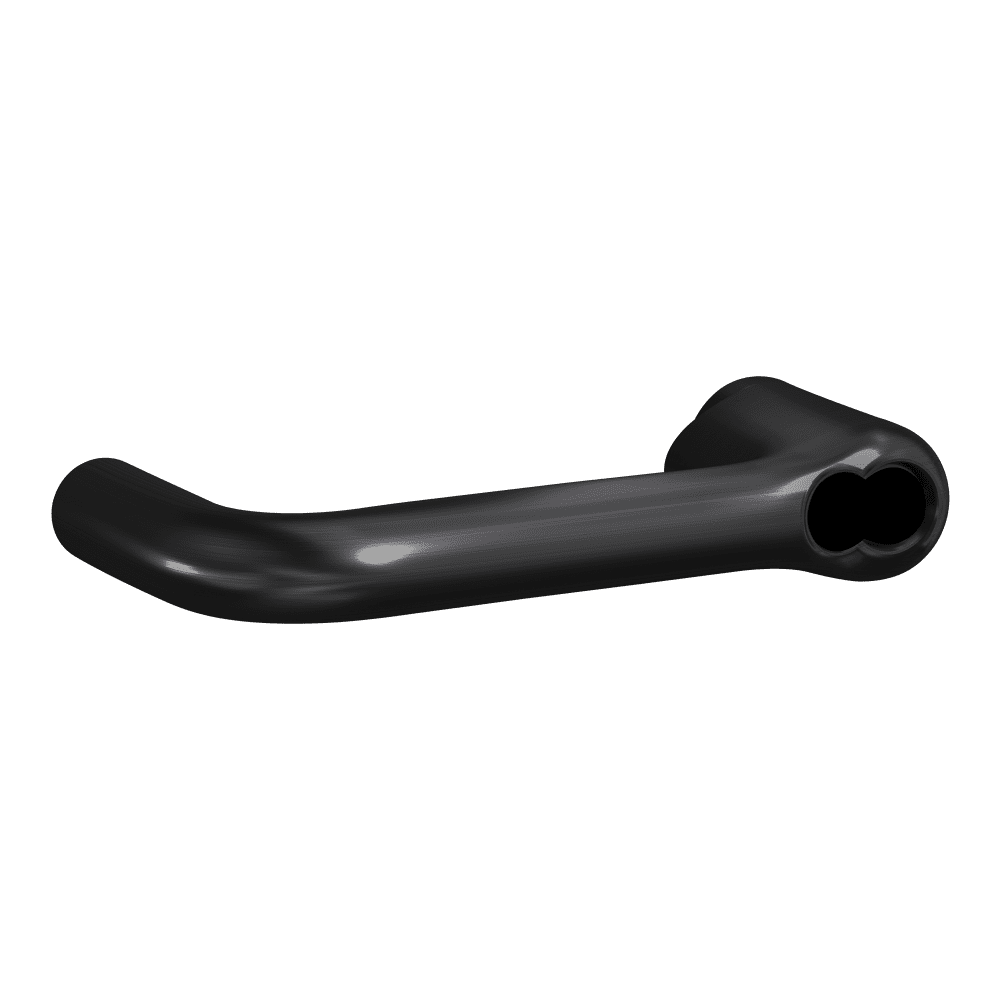

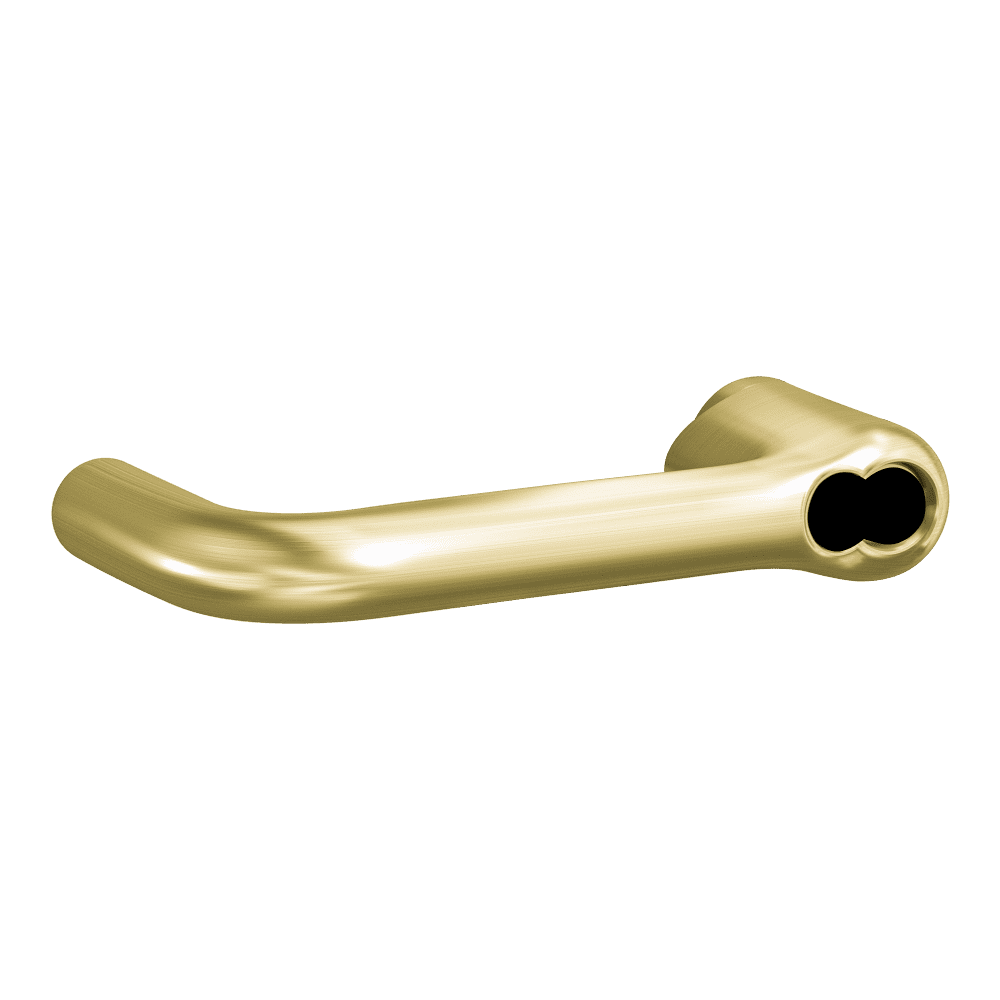

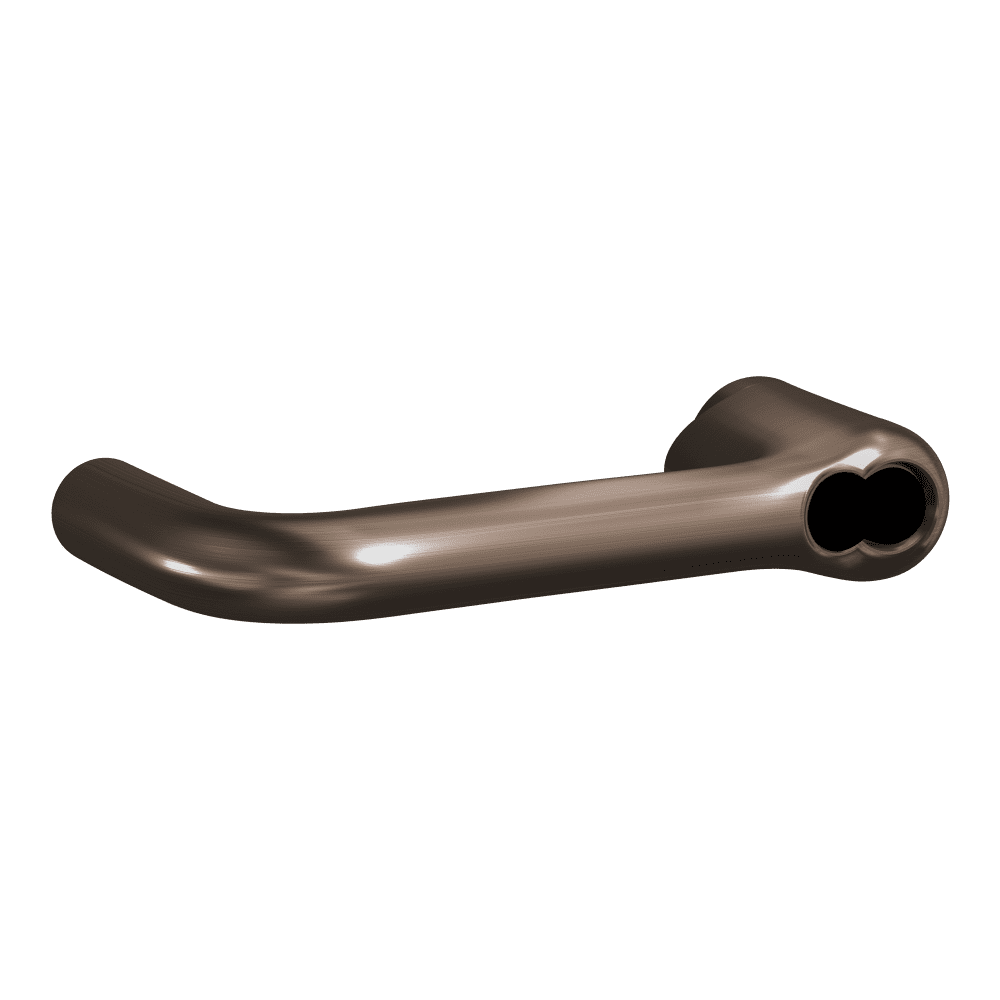

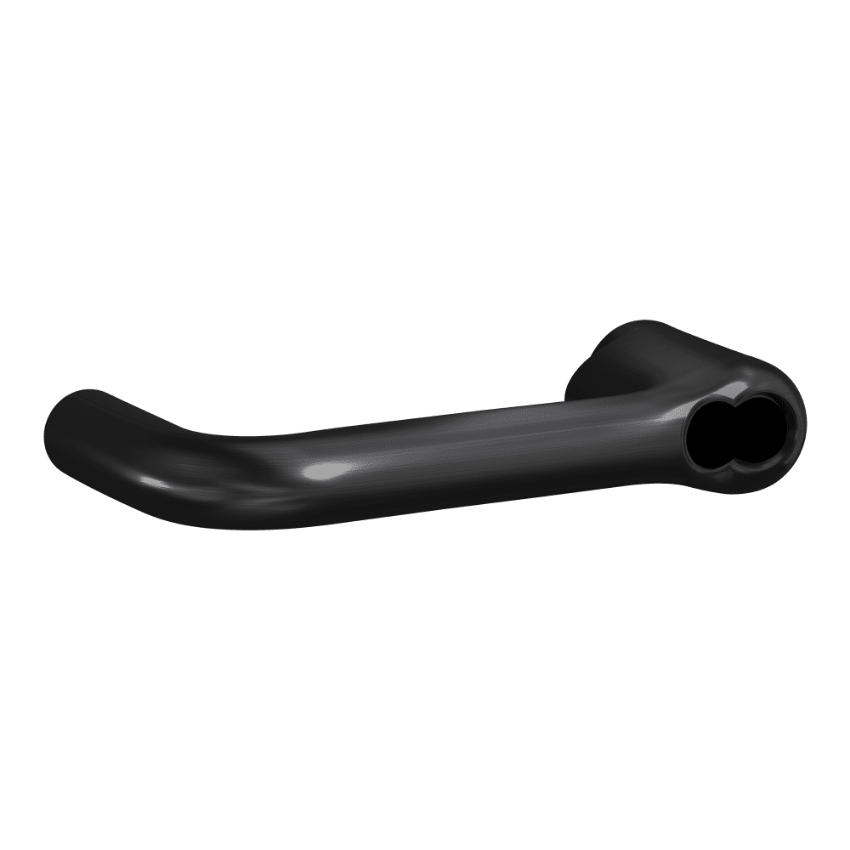

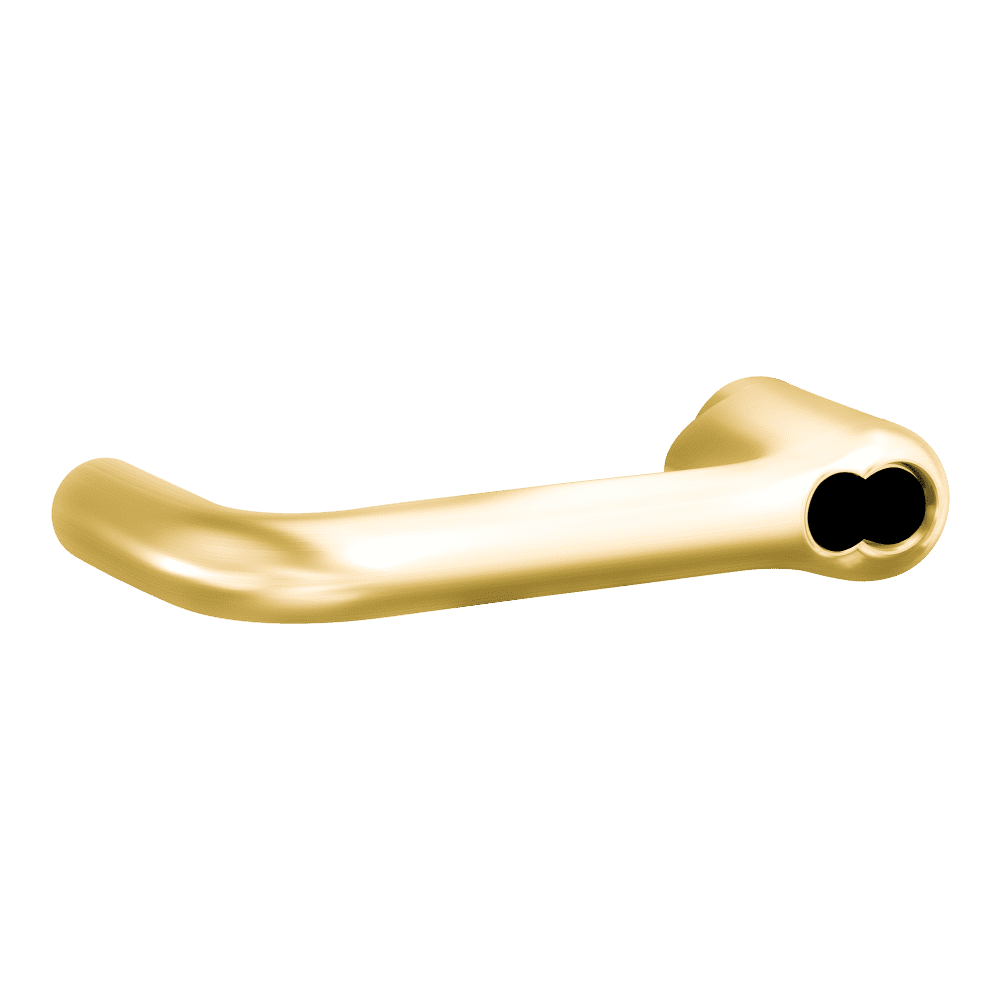

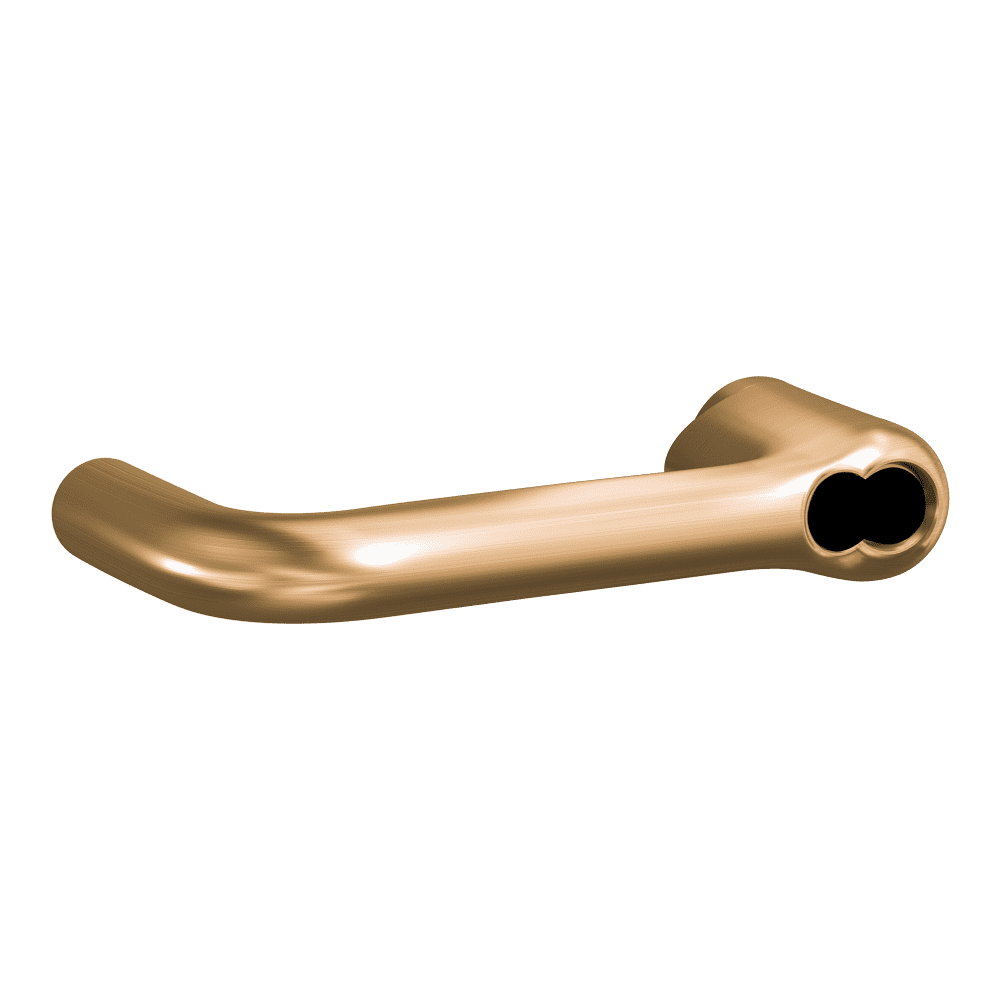

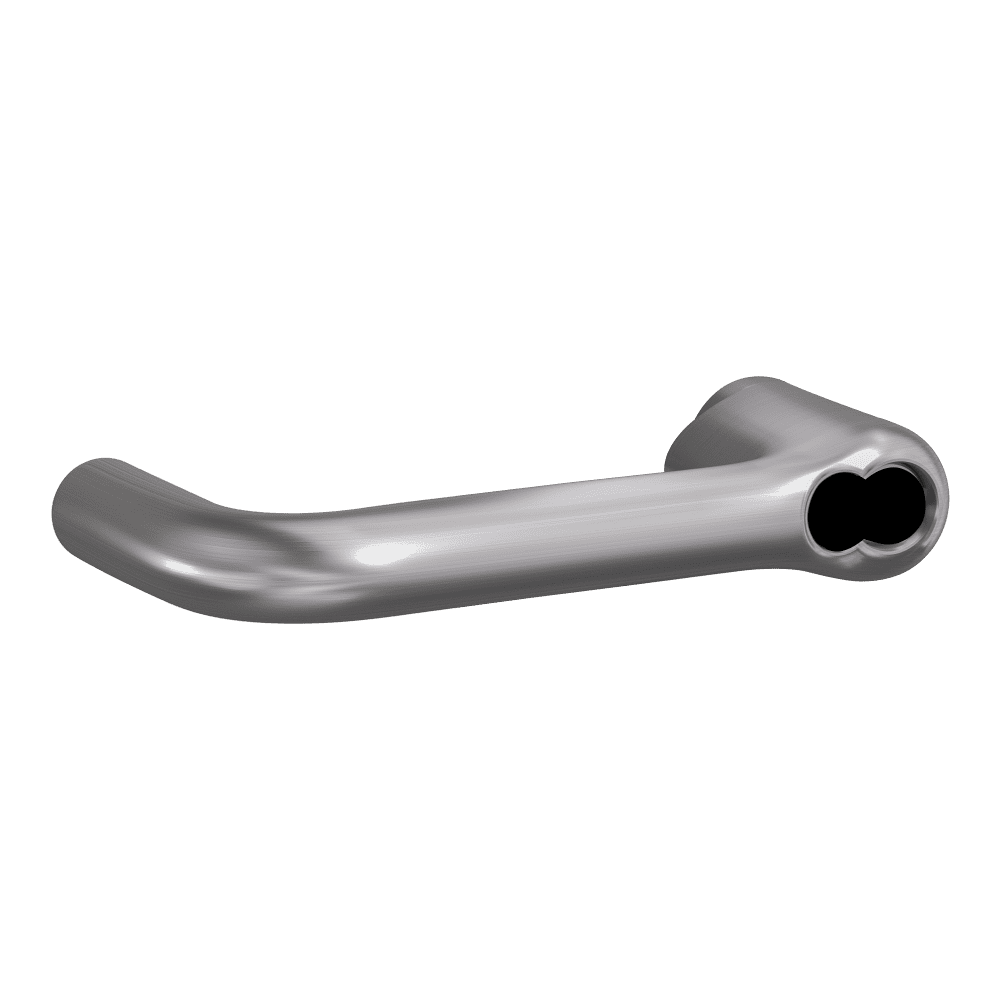

Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. The FSIC core is not included and must be ordered separately.
