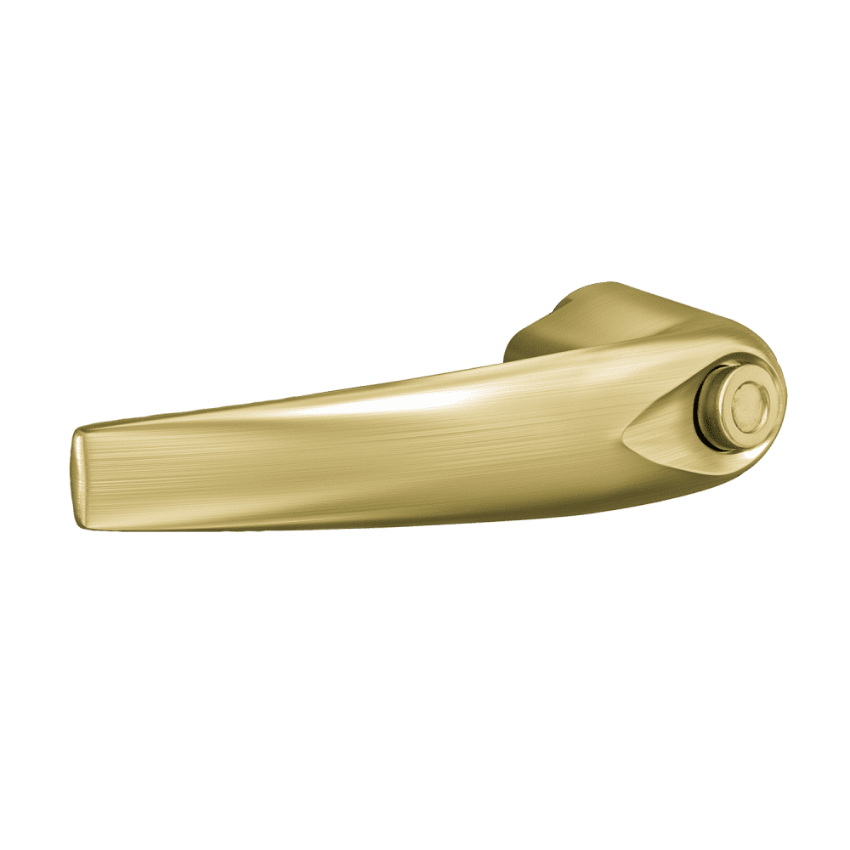

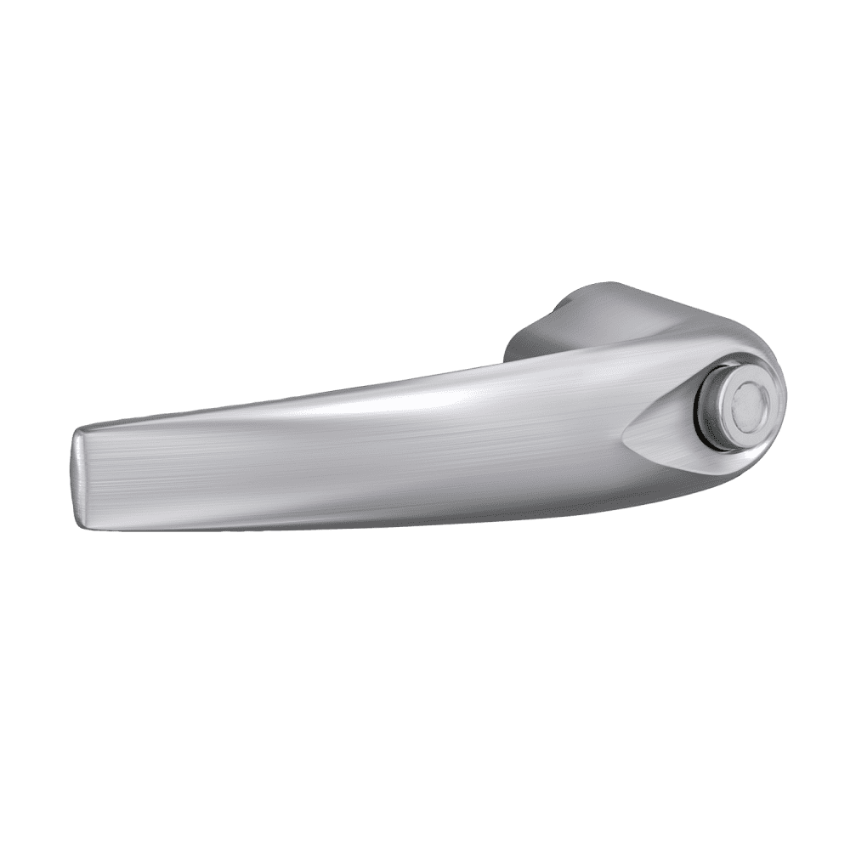

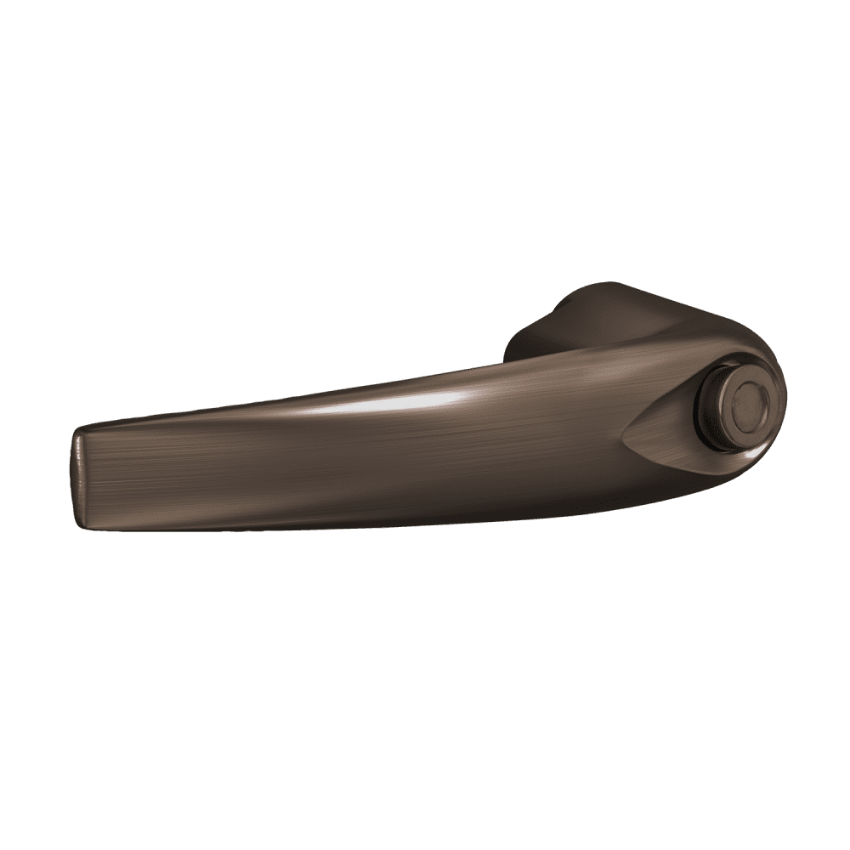

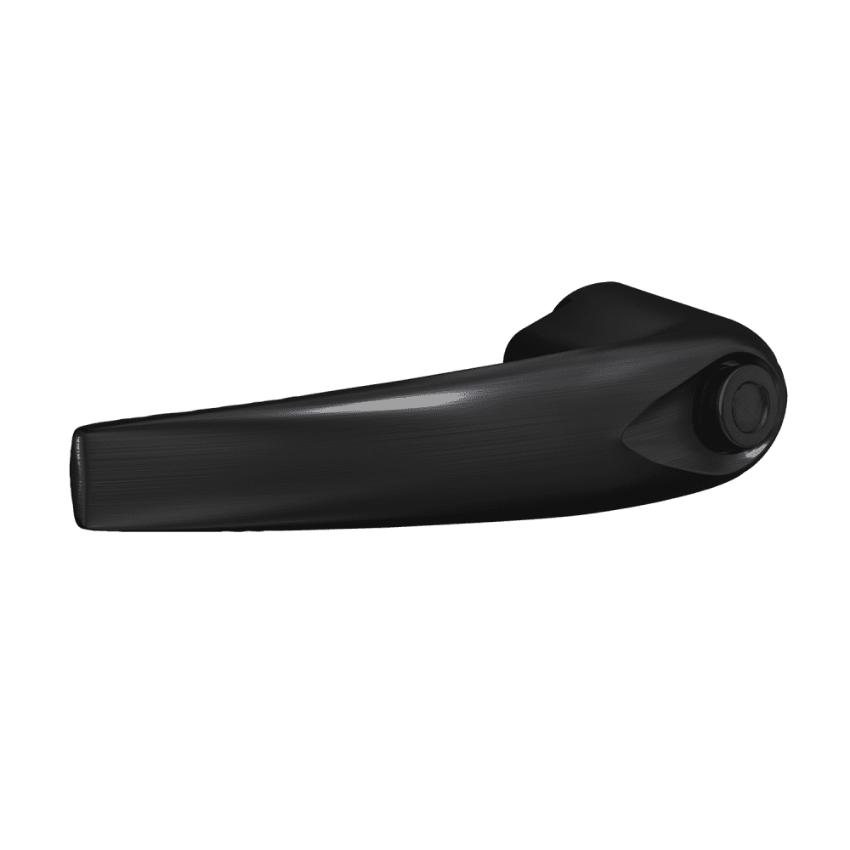

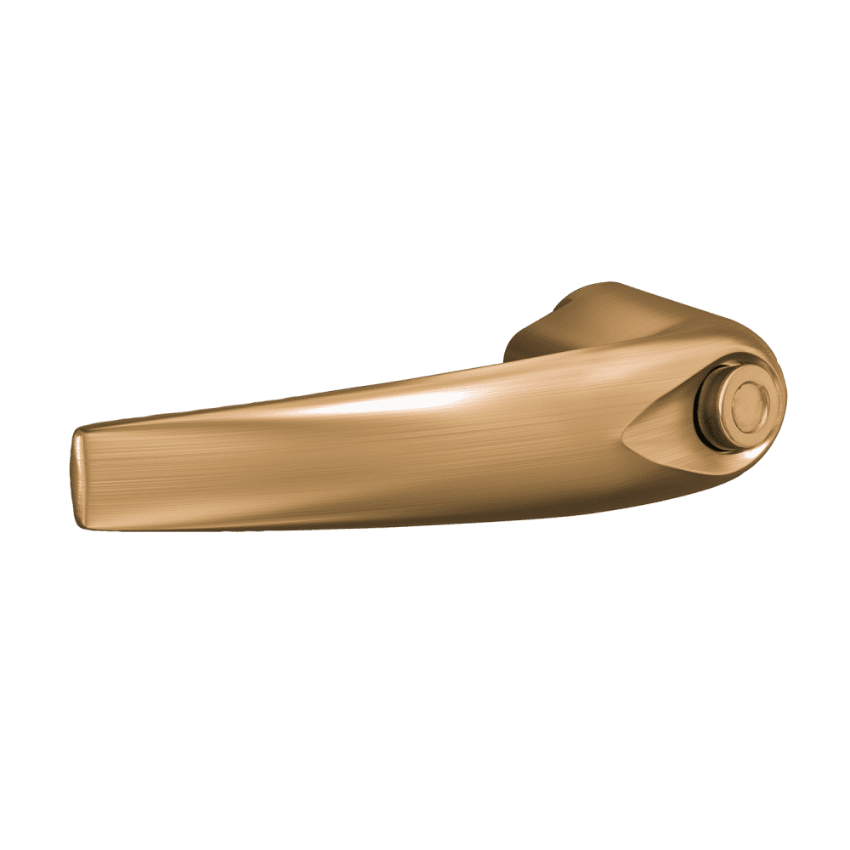

The Schlage 03-233-ATH is the OEM Athens Button Lever for the Schlage AD Series, ALX Series, CO Series, and ND Series cylindrical locks, documented in the official Schlage ALX Series and ND Series Service Manuals. It is the standard non-tactile Athens lever in the 03-233 button lever format. The lever hub has a push button opening for the inside push button mechanism. Non-handed.

Standard vs Tactile: 03-233-ATH vs 03-233-8AT

The 03-233-ATH and the 03-233-8AT (Athens Tactile Button Lever) are both Athens button levers in the same 03-233 format. Both cover the same function range and are documented in the same two Service Manuals: ALX Series and ND Series. The difference between them is the handle surface.

The 03-233-ATH has a smooth handle surface with no tactile texture. The 03-233-8AT has a raised tactile surface for hazardous area door identification at inside trim positions where both inside and outside levers are required to carry the tactile designation. The 03-233-ATH is the correct selection for all standard Athens button lever positions throughout a project. The 03-233-8AT applies only where building code or facility policy requires the tactile designation at that specific inside trim position. When replacing an installed Athens button lever, confirm whether the original was specified as standard or tactile before ordering to avoid a non-compliant installation at that door.

ND Series and ALX Series Function Coverage

The 03-233-ATH covers the same complete function range as all tactile button levers in the 03-233 family. It is confirmed in both Trim Assembly and Levers diagram sections for the following functions.

ALX Series: ALX40 (Bath/Bedroom Privacy), ALX44S (Hospital Privacy), ALX50 (Entrance/Office), and ALX53 (Entrance).

ND Series: ND30 (Patio), ND40 (Bath/Bedroom Privacy), ND40 IND OS, ND44 (Hospital Privacy), ND44 IND OS, ND45 (Time Out with Vandlgard), ND50 (Entrance/Office), ND50 IND IS, ND52 (Keyed Privacy), ND52 IND OS, ND53 (Entrance), ND53 IND IS, ND55 (Entrance with Automatic Unlocking), ND55 IND OS, ND73 (Entrance), ND73 IND OS, ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, and ND97 (Vandlgard Corridor). Compatible with AD, ALX, CO, and ND Series, as confirmed on the SecurityParts.com product page.

Rose Pairing and Finishes

The Athens lever design uses the 03-042-RHO (Rhodes Rose) as its inside and outside rose, as confirmed in the official Schlage ALX Series Service Manual. When ordering a complete Athens Button Lever inside trim assembly, the 03-042-RHO rose must be ordered separately in the matching finish.

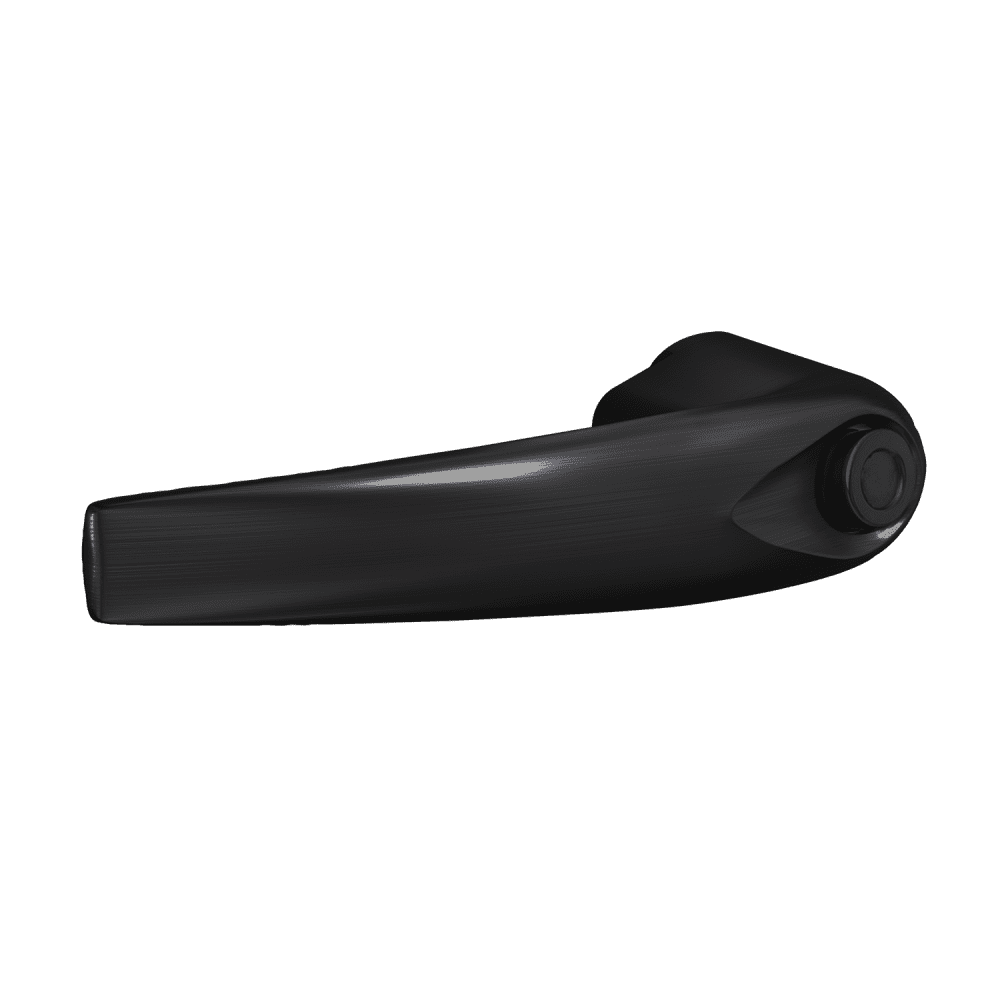

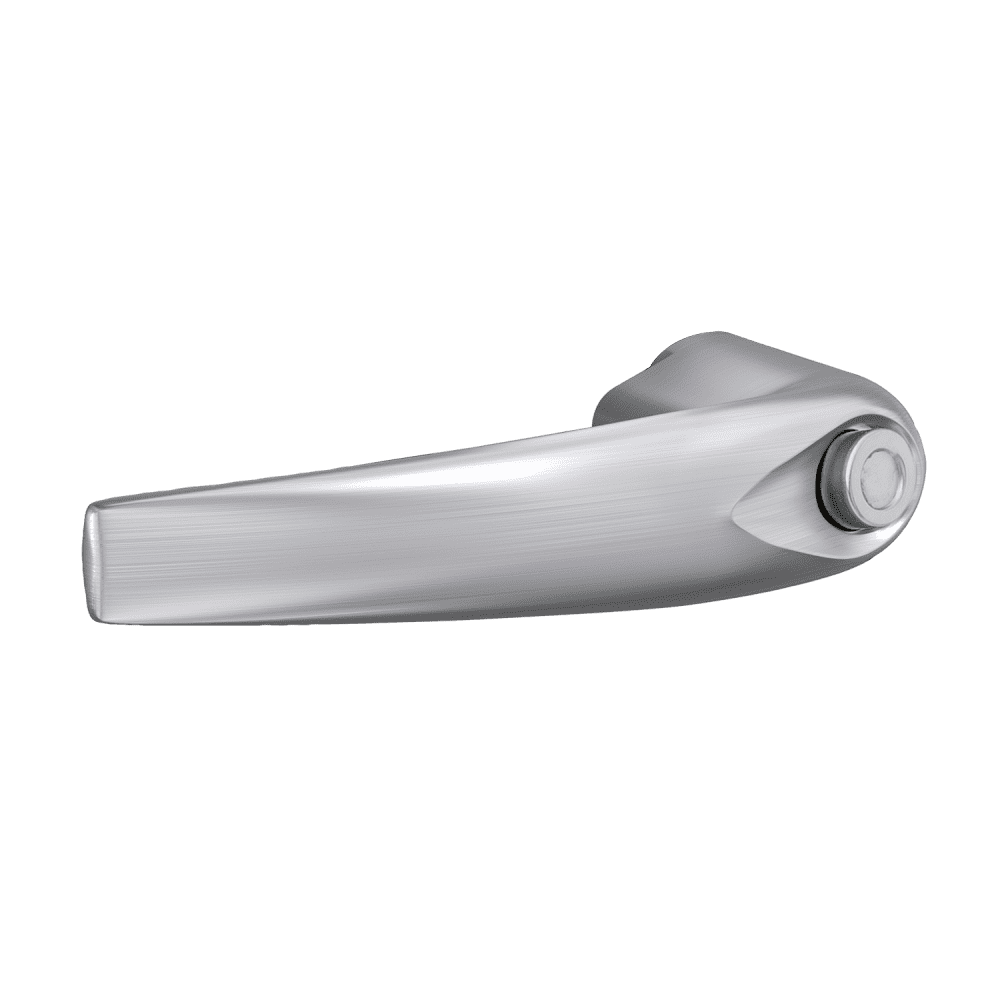

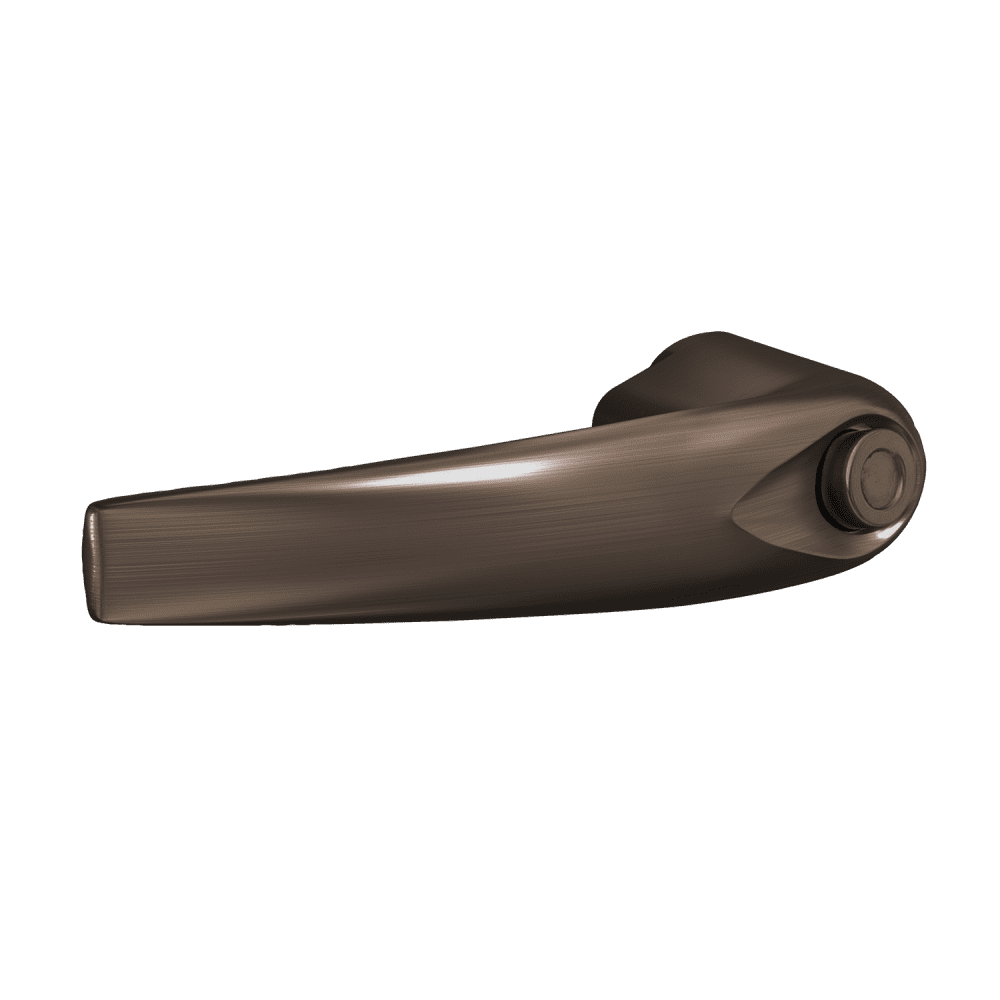

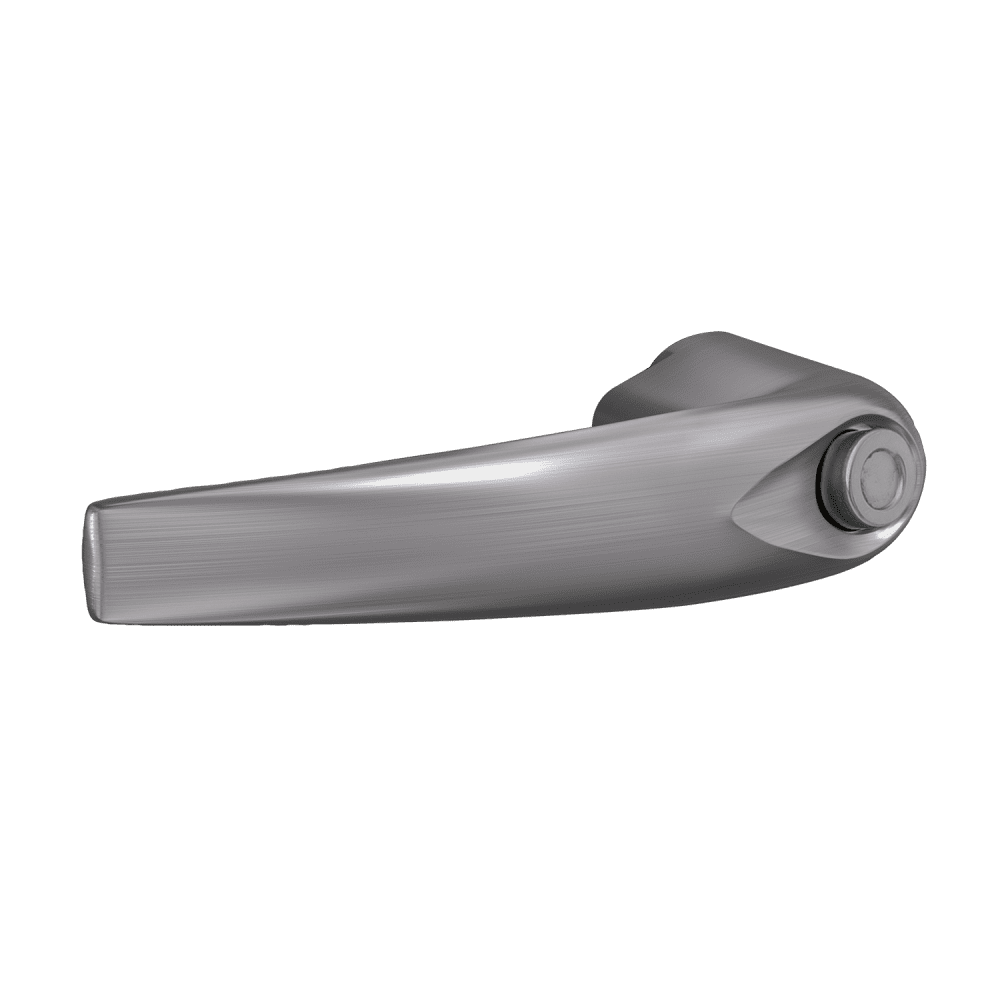

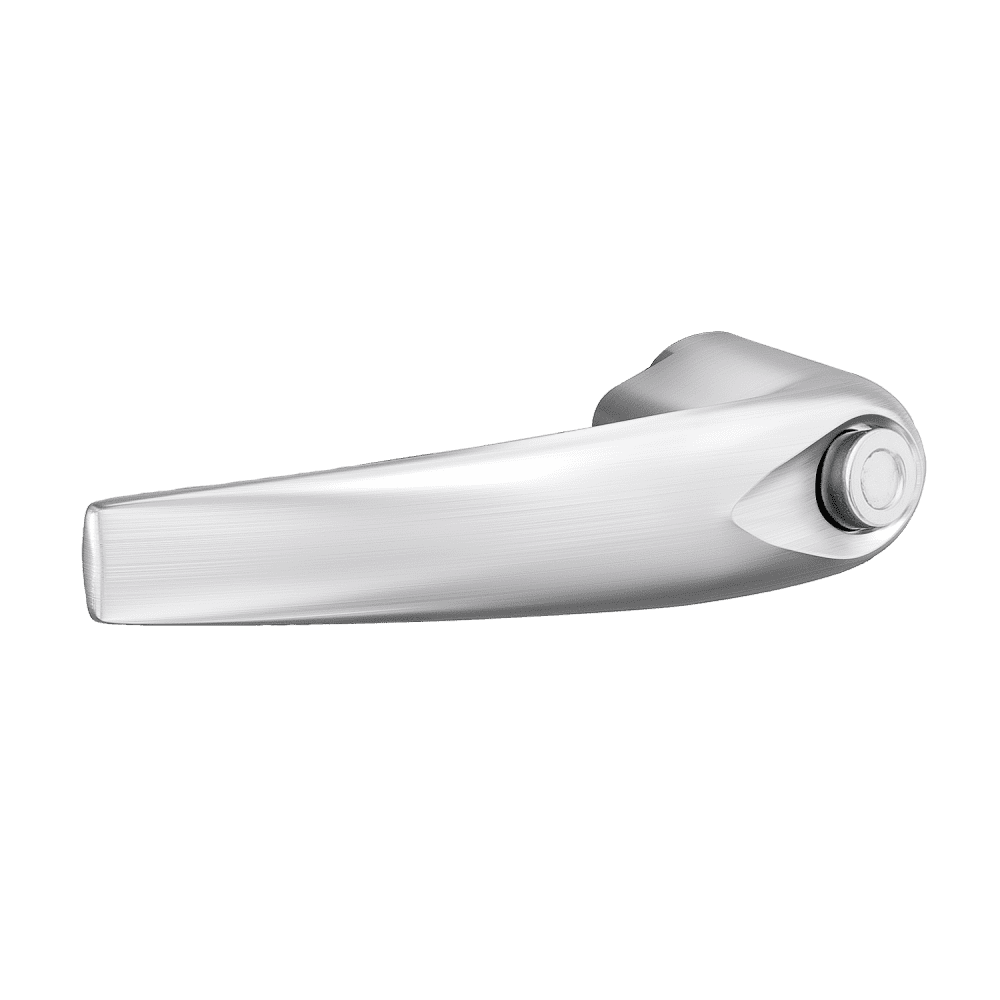

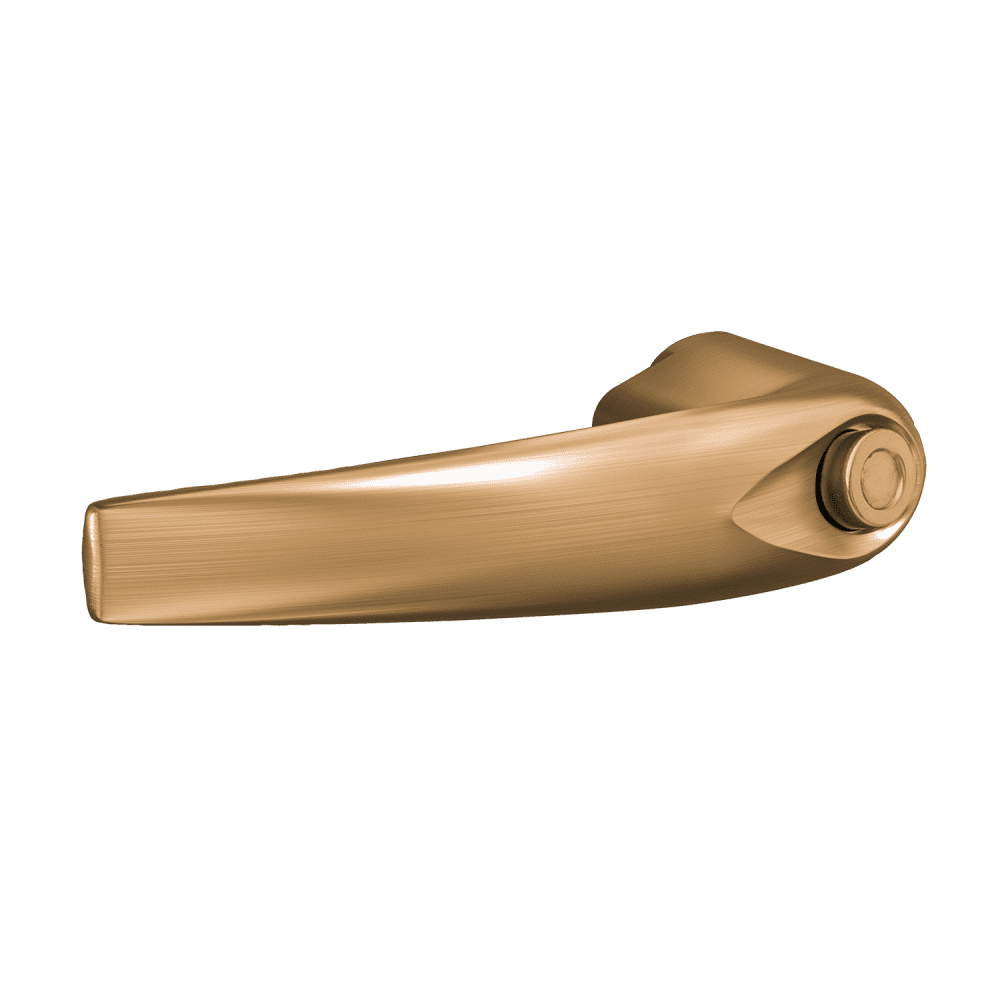

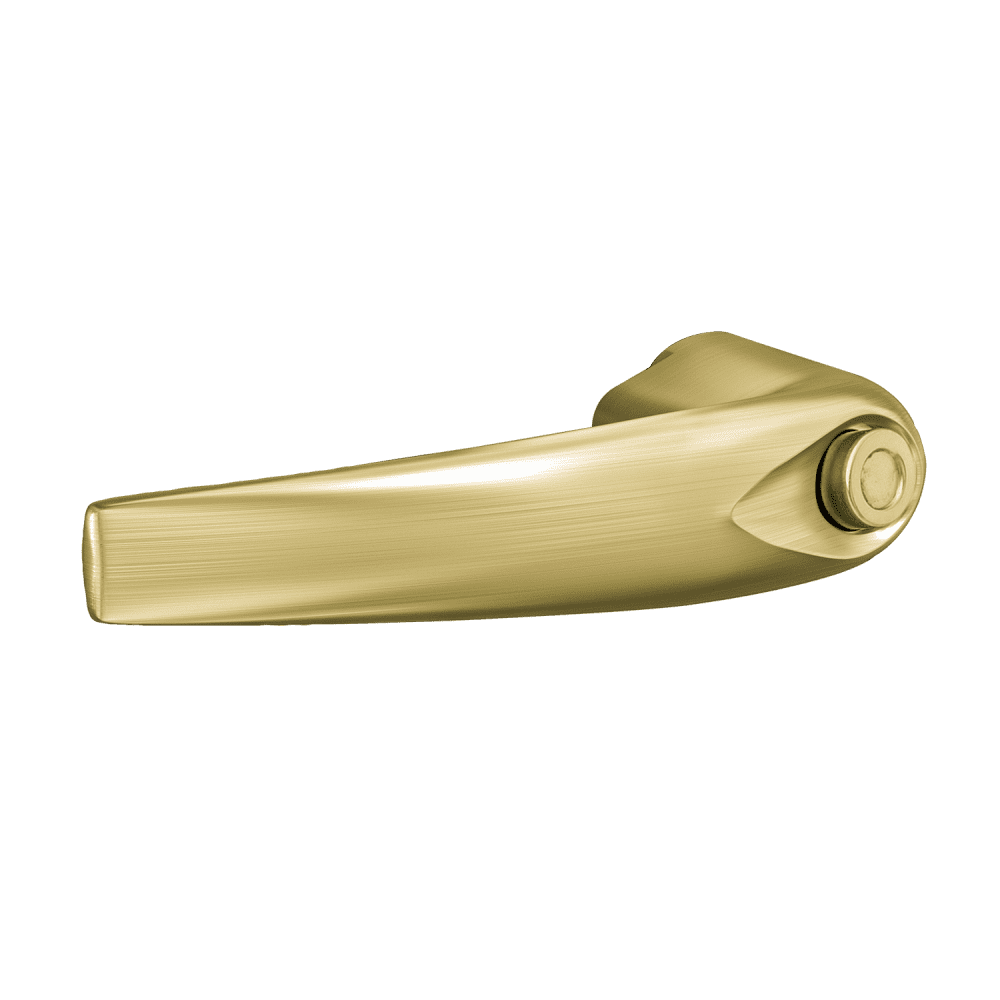

Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order.
