The Schlage 03-233-RHO is the OEM Rhodes Button Lever for the Schlage ALX Series, ND Series, CO Series, and AD Series cylindrical locks, documented in the official Schlage ALX Series and ND Series Service Manuals. It is the standard non-tactile Rhodes lever in the 03-233 button lever format. The lever hub has a push button opening for the inside push button mechanism. Non-handed.

Standard vs Tactile: 03-233-RHO vs 03-233-8RO

The 03-233-RHO and the 03-233-8RO (Rhodes Tactile Button Lever) are both Rhodes button levers in the same 03-233 format. Both cover the same complete function range and are documented in the same two Service Manuals: ALX Series and ND Series. The difference between them is the handle surface.

The 03-233-RHO has a smooth handle surface. The 03-233-8RO has a raised tactile surface for hazardous area door identification. The 03-233-RHO is the correct selection for all standard Rhodes button lever positions. The 03-233-8RO applies only where the tactile designation was originally specified at that inside button lever position. When replacing an installed Rhodes button lever, confirm whether the original was specified as standard or tactile before ordering to prevent a non-compliant installation at that position.

ND Series and ALX Series Function Coverage

The 03-233-RHO covers the same complete function range as all other button levers in the 03-233 family, confirmed in both Trim Assembly and Levers diagram sections. ALX Series: ALX40 (Bath/Bedroom Privacy), ALX44S (Hospital Privacy), ALX50 (Entrance/Office), and ALX53 (Entrance).

ND Series: ND30 (Patio), ND40 (Bath/Bedroom Privacy), ND40 IND OS, ND44 (Hospital Privacy), ND44 IND OS, ND45 (Time Out with Vandlgard), ND50 (Entrance/Office), ND50 IND IS, ND52 (Keyed Privacy), ND52 IND OS, ND53 (Entrance), ND53 IND IS, ND55 (Entrance with Automatic Unlocking), ND55 IND OS, ND73 (Entrance), ND73 IND OS, ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, and ND97 (Vandlgard Corridor).

Rose Pairing and Finishes

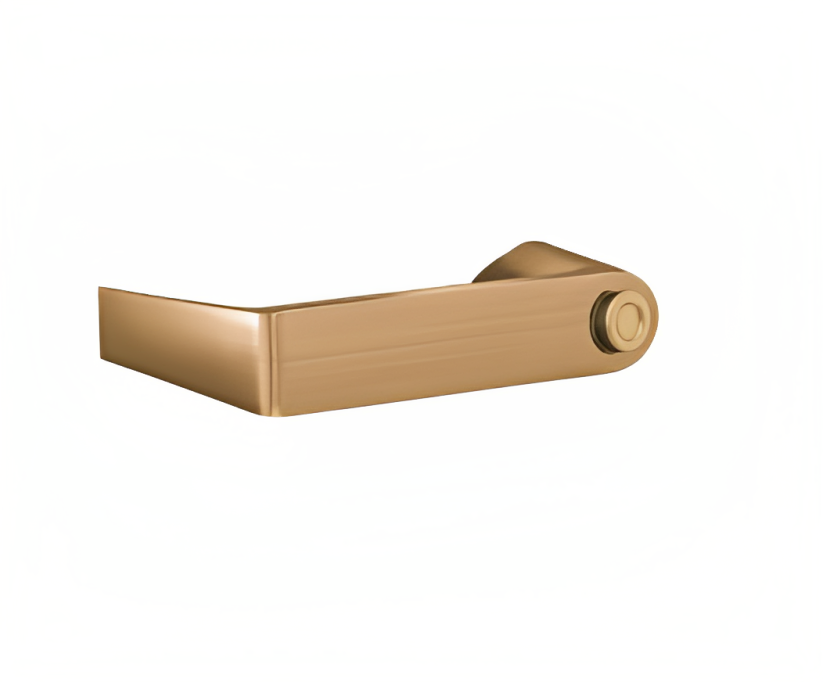

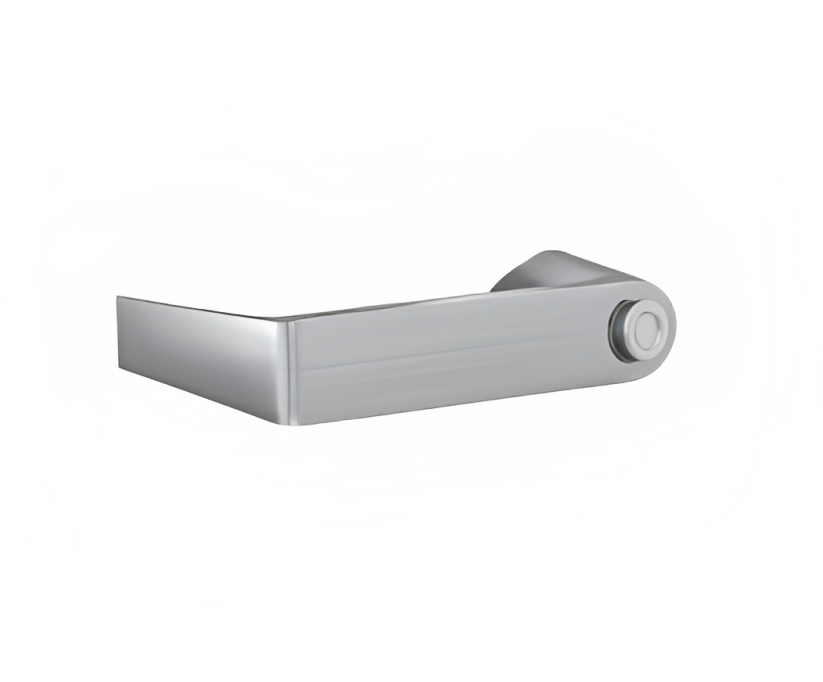

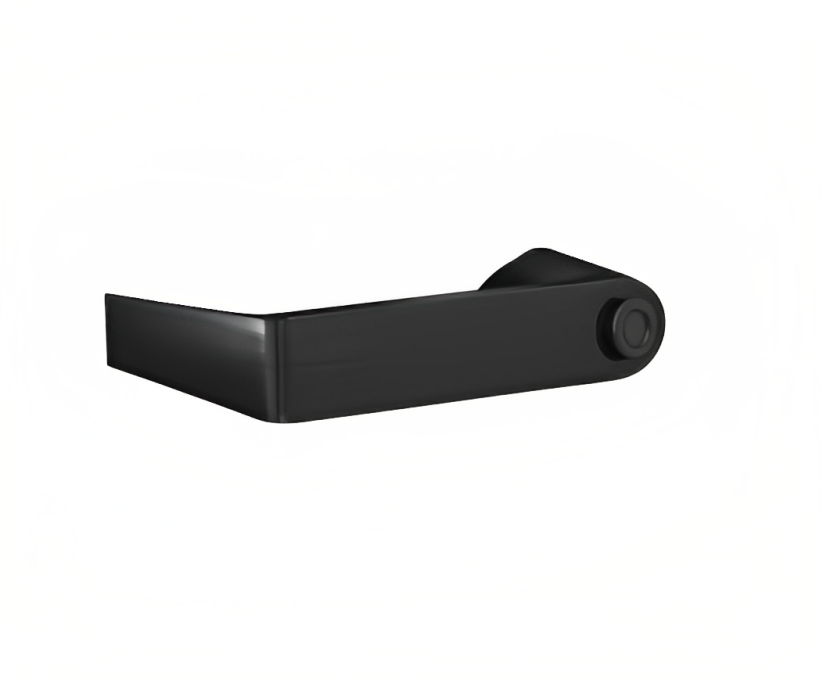

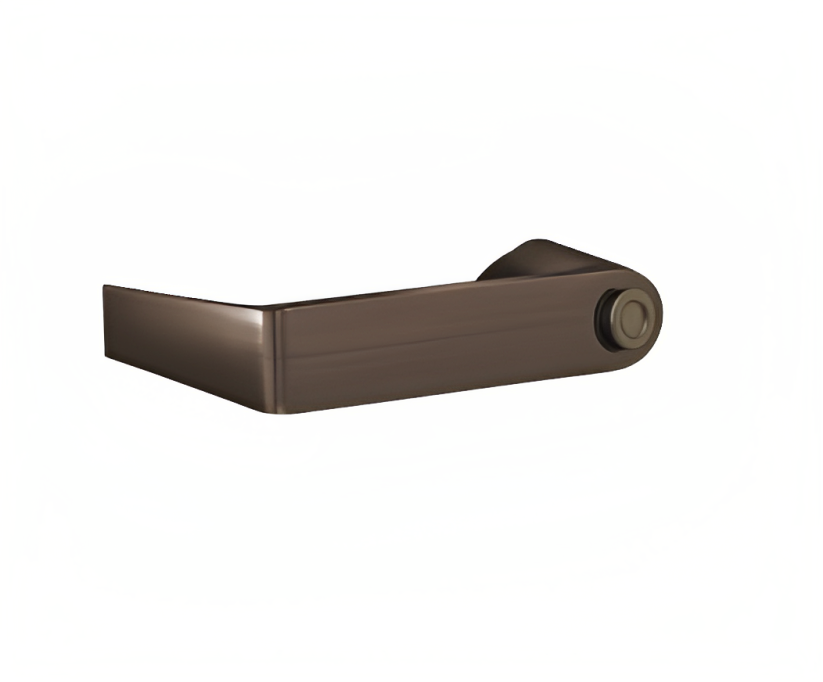

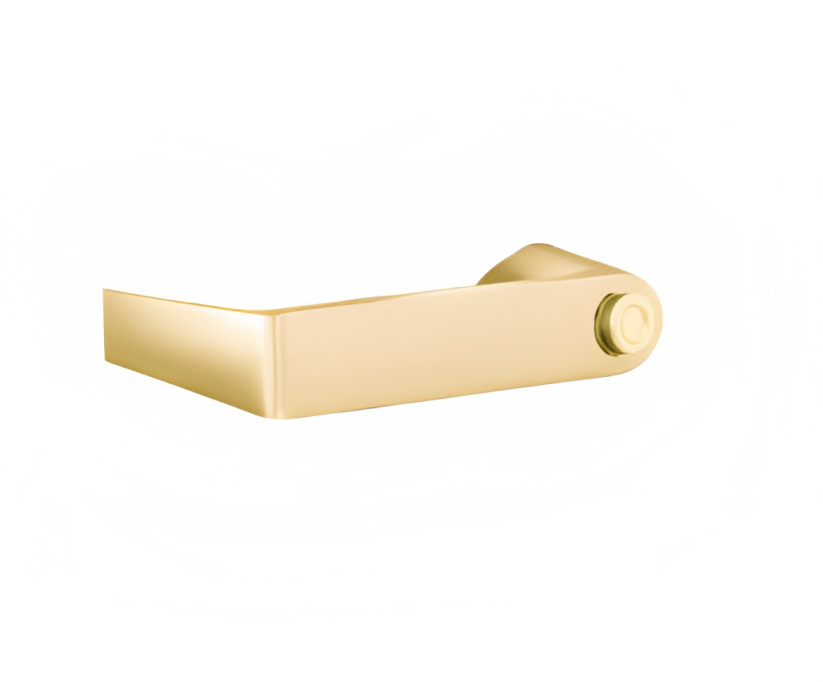

The Rhodes lever design uses the 03-042-RHO (Rhodes Rose) as its inside and outside rose, as confirmed in the official Schlage ALX Series Service Manual. The 03-042-RHO is the correct rose for all Schlage ND and ALX Series lever designs except the Omega design. When ordering a complete Rhodes Button Lever inside trim assembly, the 03-042-RHO rose must be ordered separately in the matching finish. Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order.

SecurityParts stocks OEM Schlage ND Series and ALX Series button lever components. Free shipping on orders over $300.
