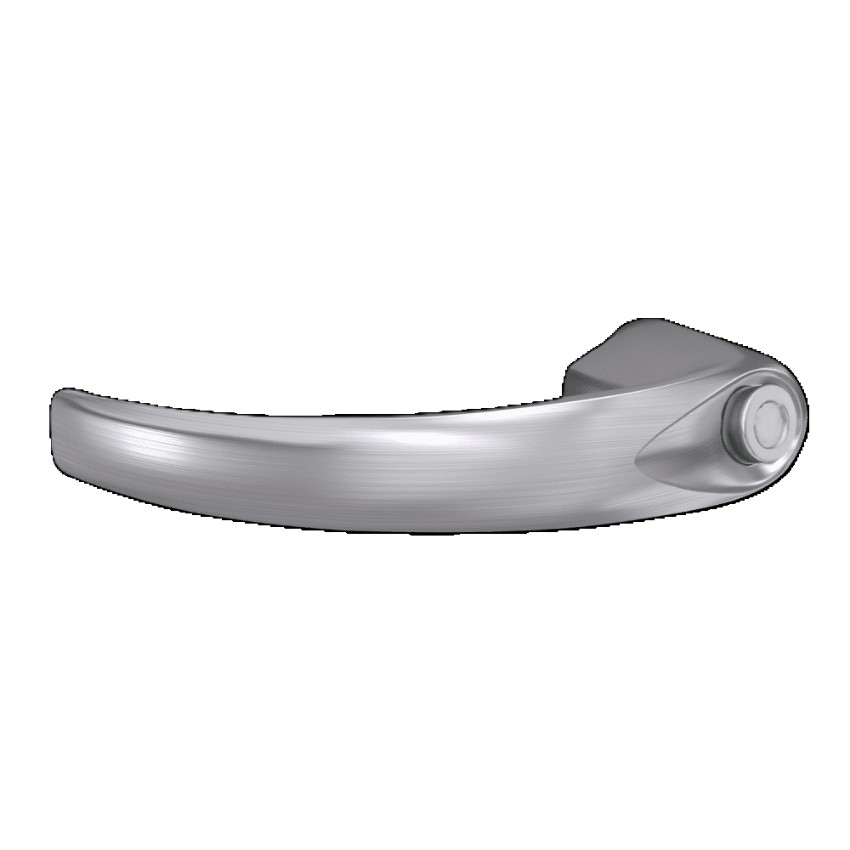

The Schlage 03-233-SPA is the OEM Sparta Button Lever for the Schlage AD Series, ALX Series, CO Series, and ND Series cylindrical locks, documented in the official Schlage ALX Series and ND Series Service Manuals. It is the standard non-tactile Sparta lever in the 03-233 button lever format. Per the SecurityParts.com product page, the lever is constructed of pressure-cast zinc, plated to BHMA standards, and is non-handed and field reversible. The lever hub has a push button opening for the inside push button mechanism used at privacy, entrance, office, and Vandlgard function inside trim positions.

Series Compatibility Confirmed on Product Page

The SecurityParts.com product page confirms four compatible series for the 03-233-SPA.

• ND Series: Grade 1 Heavy Duty Cylindrical Locks.
• ALX Series: Grade 2 Cylindrical Locks.
• AD Series: Electronic Wireless and Hardwired Locks.
• CO Series: Standalone Electronic Locks.

The lever is documented in two Service Manuals: the Schlage ALX Series Service Manual and the Schlage ND Series Service Manual.

Standard vs Tactile: 03-233-SPA vs 03-233-8SP

The 03-233-SPA and the 03-233-8SP (Sparta Tactile Button Lever) are both Sparta button levers in the same 03-233 format. Both use pressure-cast zinc construction, cover the same function range, and are documented in the same two Service Manuals. The difference is the handle surface. The 03-233-SPA has a smooth handle surface. The 03-233-8SP has a raised tactile surface for hazardous area door identification. The 03-233-SPA is the correct selection for all standard Sparta button lever positions. The 03-233-8SP applies only where the tactile designation was originally specified. Confirm which version was installed before ordering a replacement to avoid a non-compliant substitution at that inside trim position.

ND Series and ALX Series Function Coverage

The 03-233-SPA is confirmed in both Trim Assembly and Levers diagram sections for the following functions. ALX Series: ALX40 (Bath/Bedroom Privacy), ALX44S (Hospital Privacy), ALX50 (Entrance/Office), and ALX53 (Entrance).

ND Series: ND30 (Patio), ND40 (Bath/Bedroom Privacy), ND40 IND OS, ND44 (Hospital Privacy), ND44 IND OS, ND45 (Time Out with Vandlgard), ND50 (Entrance/Office), ND50 IND IS, ND52 (Keyed Privacy), ND52 IND OS, ND53 (Entrance), ND53 IND IS, ND55 (Entrance with Automatic Unlocking), ND55 IND OS, ND73 (Entrance), ND73 IND OS, ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, and ND97 (Vandlgard Corridor).

Finishes

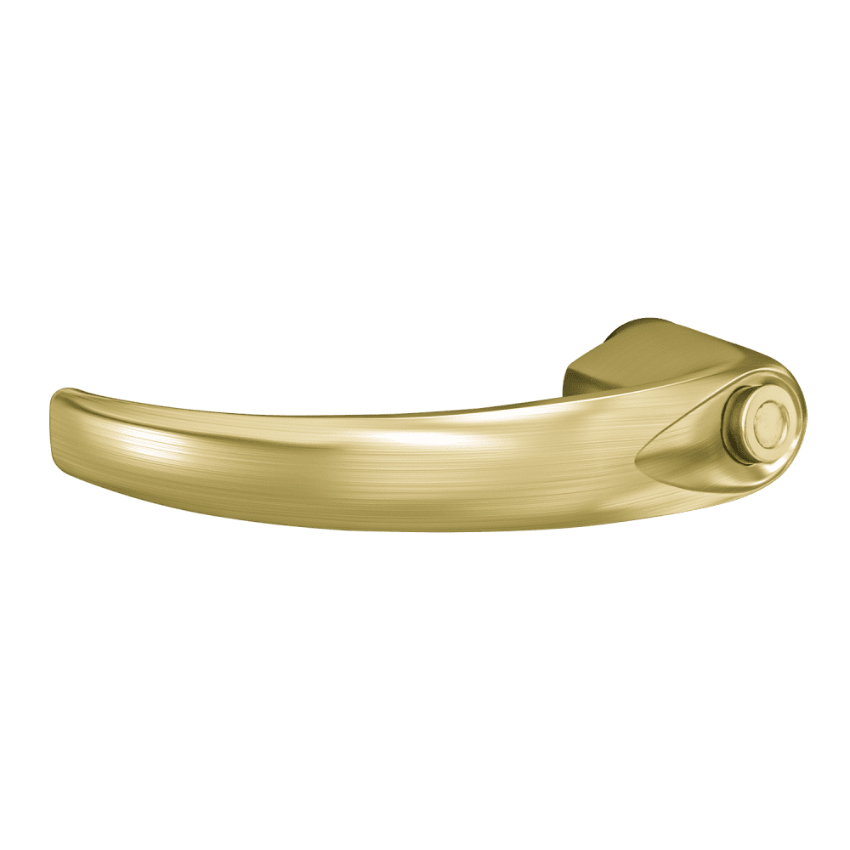

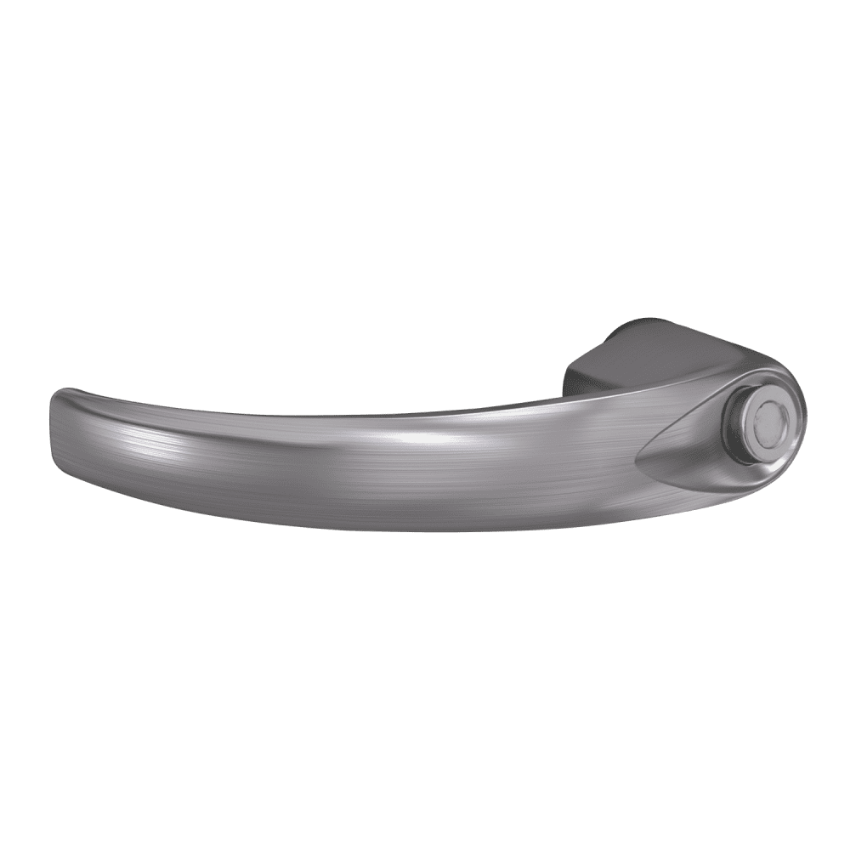

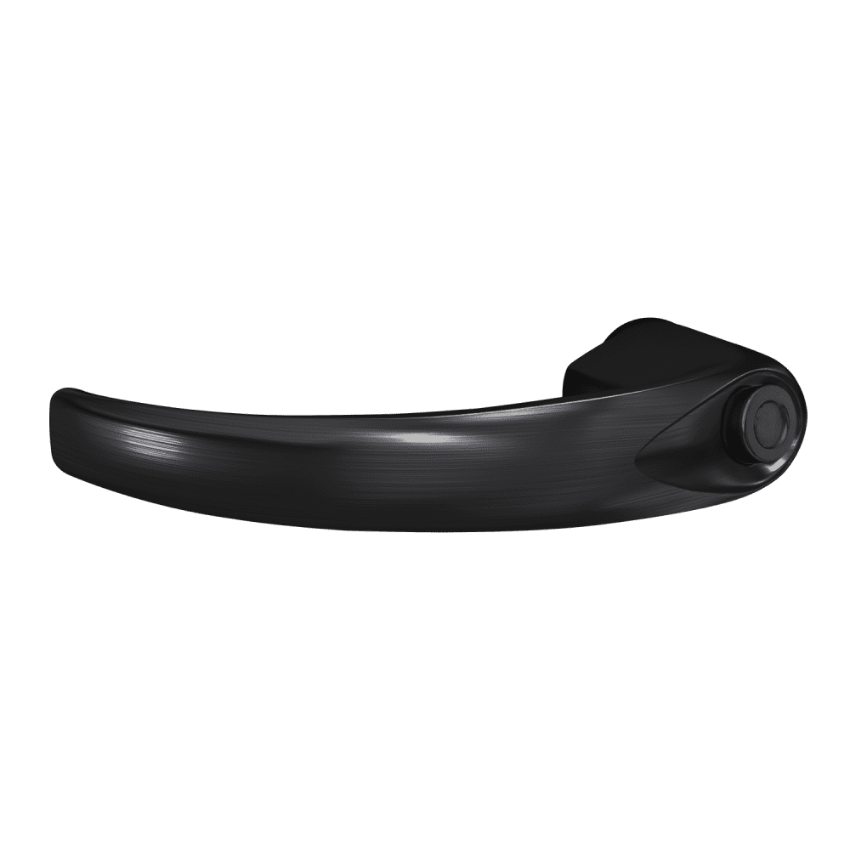

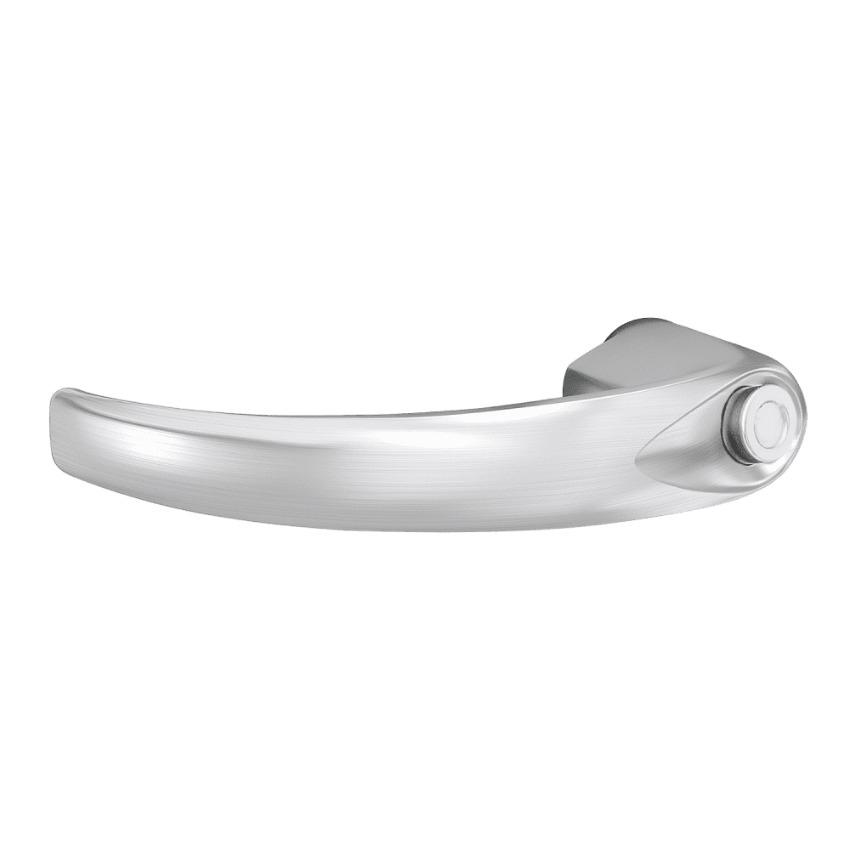

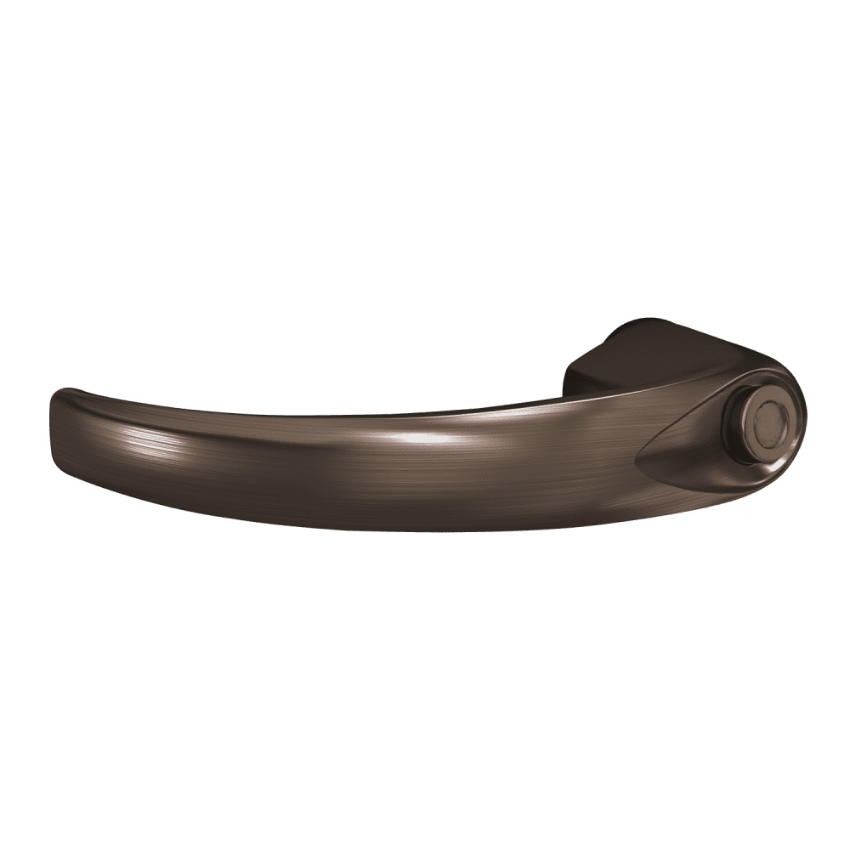

Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. The 03-042-RHO (Rhodes Rose) is the correct inside and outside rose for the Sparta lever design.
