The Schlage 03-233-TLR is the OEM Tubular Button Lever for the Schlage AD Series, ALX Series, CO Series, and ND Series cylindrical locks, documented in the official Schlage ALX Series and ND Series Service Manuals. It is the standard non-tactile Tubular lever in the 03-233 button lever format. The lever hub has a push button opening for the inside push button mechanism. Non-handed. For use with AD/ALX/CO/ND Series, as confirmed on the SecurityParts.com product page.

Tubular Button Lever: Round Profile at Inside Trim Positions

The Tubular lever uses a uniform round cylindrical rod handle that is visually distinct from every other design in the Schlage ND and ALX Series lever catalog. Athens, Rhodes, Sparta, and Omega levers all use shaped handles with profiles that vary along the shank. The Tubular lever maintains a consistent circular cross-section from the hub to the handle tip. At inside button lever positions, the Tubular profile delivers the same round handle ergonomics while accommodating the push button mechanism in the lever hub.

Within the 03-233 button lever family, the 03-233-TLR is the standard non-tactile Tubular button lever. The 03-233-8TR is the tactile version with a raised texture applied around the full circumference of the round handle for hazardous area door identification. Both cover the same function range and use the same two Service Manuals. When a facility uses Tubular levers as its established profile standard and inside button lever positions do not require the tactile designation, the 03-233-TLR is the correct selection. When both the Tubular profile and the tactile designation are required at the same inside button lever position, the 03-233-8TR is the correct part.

ND Series and ALX Series Function Coverage

The 03-233-TLR is confirmed in both Trim Assembly and Levers diagram sections for the following functions. ALX Series: ALX40 (Bath/Bedroom Privacy), ALX44S (Hospital Privacy), ALX50 (Entrance/Office), and ALX53 (Entrance).

ND Series: ND30 (Patio), ND40 (Bath/Bedroom Privacy), ND40 IND OS, ND44 (Hospital Privacy), ND44 IND OS, ND45 (Time Out with Vandlgard), ND50 (Entrance/Office), ND50 IND IS, ND52 (Keyed Privacy), ND52 IND OS, ND53 (Entrance), ND53 IND IS, ND55 (Entrance with Automatic Unlocking), ND55 IND OS, ND73 (Entrance), ND73 IND OS, ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, and ND97 (Vandlgard Corridor).

Rose Pairing and Finishes

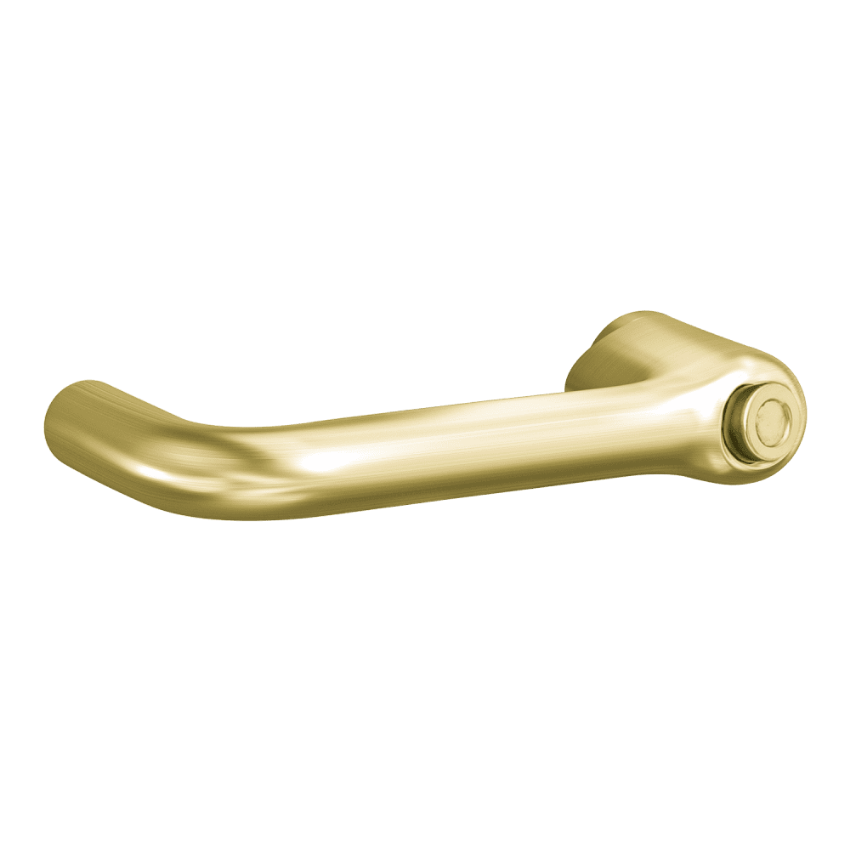

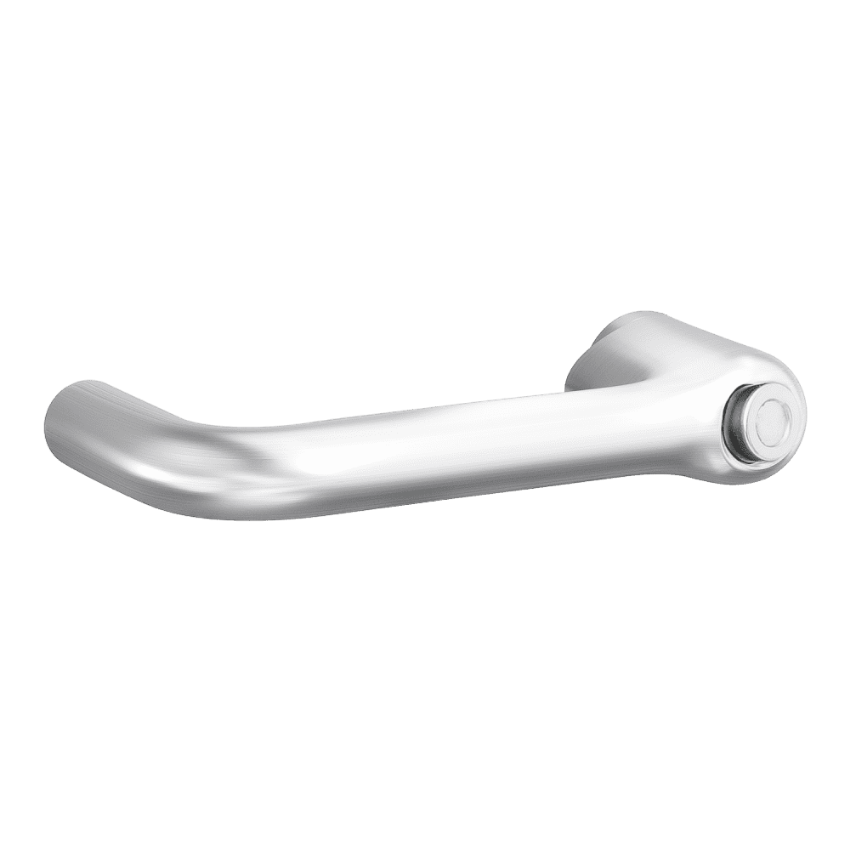

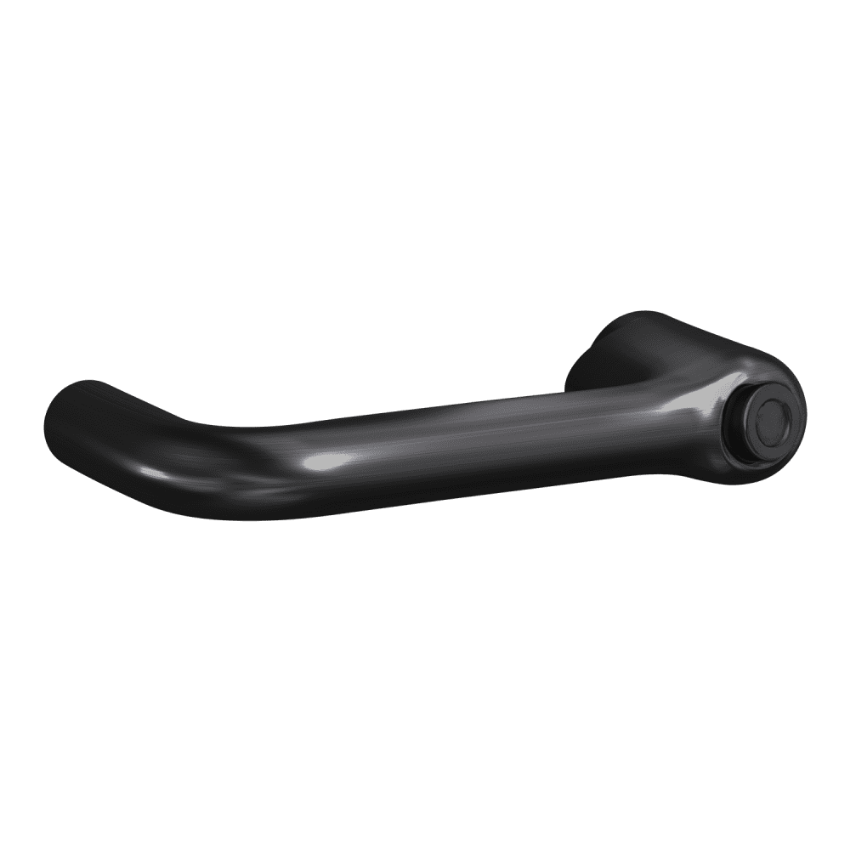

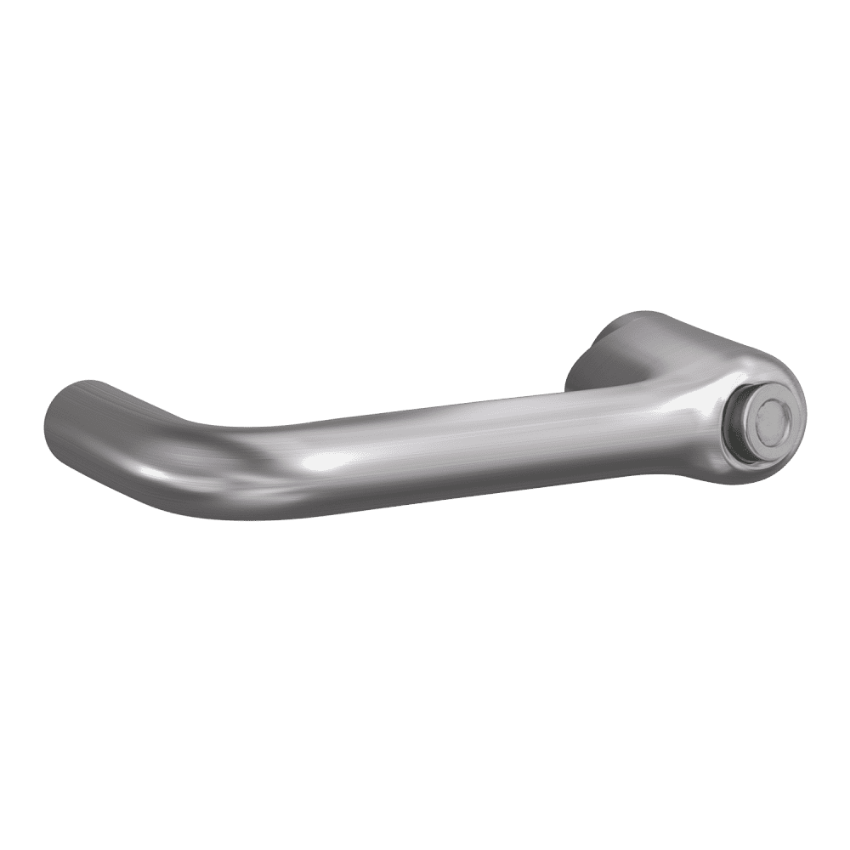

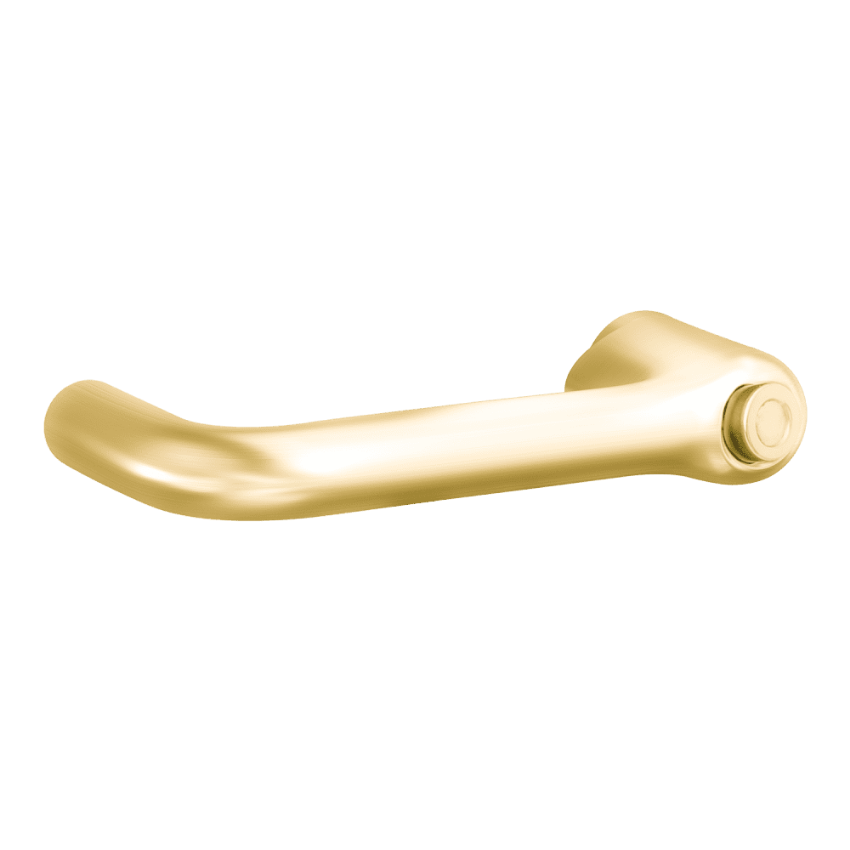

The Tubular lever design uses the 03-042-RHO (Rhodes Rose) as its inside and outside rose, as confirmed in the official Schlage ALX Series Service Manual. The 03-042-RHO is the correct rose for all Schlage ND and ALX Series lever designs except the Omega design. When ordering a complete Tubular Button Lever inside trim assembly, the 03-042-RHO rose must be ordered separately in the matching finish. Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order.

SecurityParts stocks OEM Schlage ND Series and ALX Series button lever components. Free shipping on orders over $300.
