The Schlage 03-234-SPA is the OEM Sparta Lever with factory preparation for Corbin Russwin Conventional Key-in-Lever (KIL) cylinders, for the Schlage AD Series, ALX Series, CO Series, ND Series, and NDE Series cylindrical locks, documented in five official Schlage Service Manuals: ALX, ND, AD, CO, and NDE Series. Per the SecurityParts.com product page, the 03-234-SPA "is supplied less cylinder for field installation of a compatible Corbin Russwin conventional KIL cylinder." Standard non-tactile Sparta lever. Non-handed. In stock.

Corbin Russwin 6-Pin KIL Cylinder: What the FAQ Confirms

The SecurityParts.com FAQ for the 03-234-SPA specifies that the lever is "prepared for Corbin Russwin 6-pin conventional Key-in-Lever (KIL) cylinders." The 6-pin designation confirms the cylinder pinning specification for this KIL prep configuration. A compatible Corbin Russwin 6-pin conventional KIL cylinder must be sourced separately and installed in the field. The cylinder is not included with the 03-234-SPA.

The 03-234 format is factory prepared for Corbin Russwin KIL cylinders specifically, which differs from the 03-231 format prepared for standard Schlage KIL cylinders. Installing a Schlage KIL cylinder into a 03-234-SPA bore will result in an incorrect fit. Confirm the cylinder type before ordering. If the installed lock uses a standard Schlage KIL cylinder, the 03-231-SPA (Sparta Lever Less Cylinder) is the correct part.

Standard vs Tactile: 03-234-SPA vs 03-234-8SP

The 03-234-SPA and the 03-234-8SP (Sparta Tactile Lever, Corbin KIL Prep) are both Sparta levers prepared for Corbin Russwin KIL cylinders. Three differences distinguish them. First, the handle surface: the 03-234-SPA has a smooth standard surface, the 03-234-8SP has a raised tactile surface. Second, the NDE Series coverage: the 03-234-SPA includes NDE (5 Service Manuals), while the 03-234-8SP does not (4 Service Manuals). Third, the availability: the 03-234-SPA is confirmed In Stock. When replacing a standard Sparta Corbin KIL lever, verify the original installation did not specify the tactile designation before ordering the 03-234-SPA.

Series Compatibility and Finishes

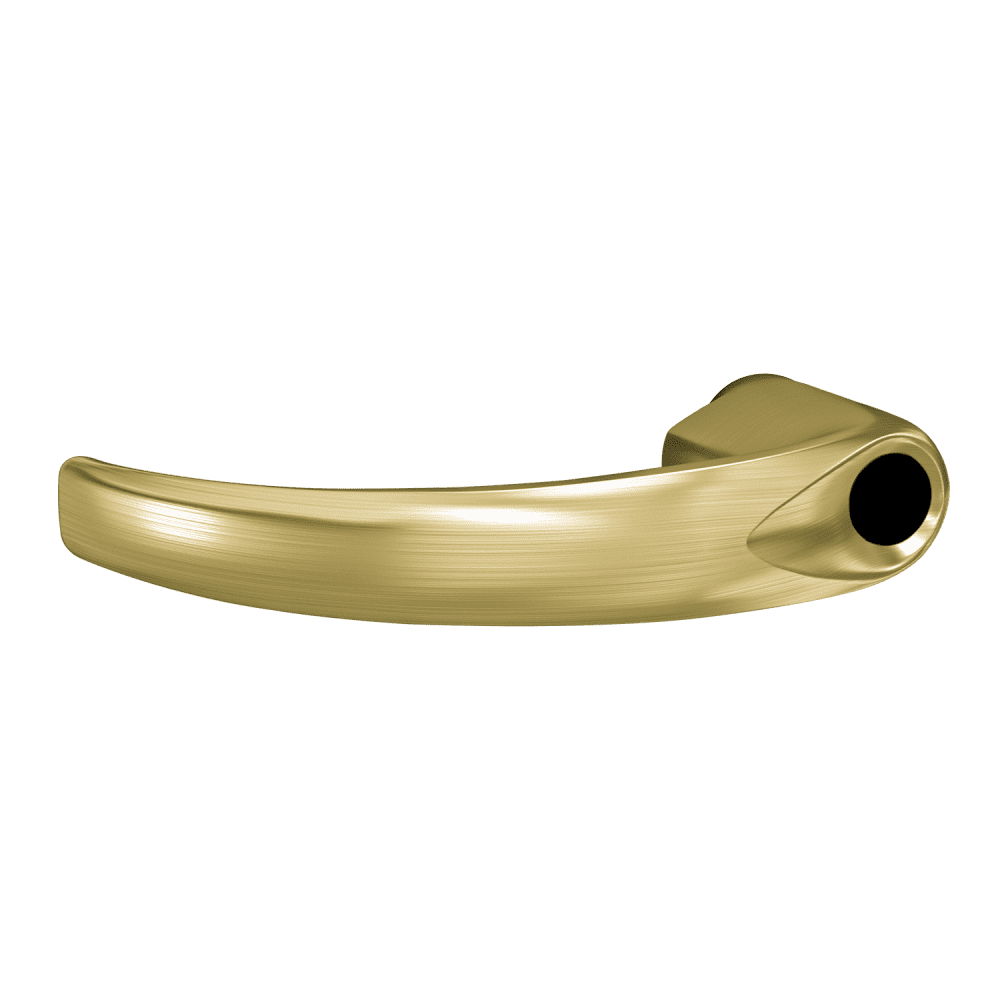

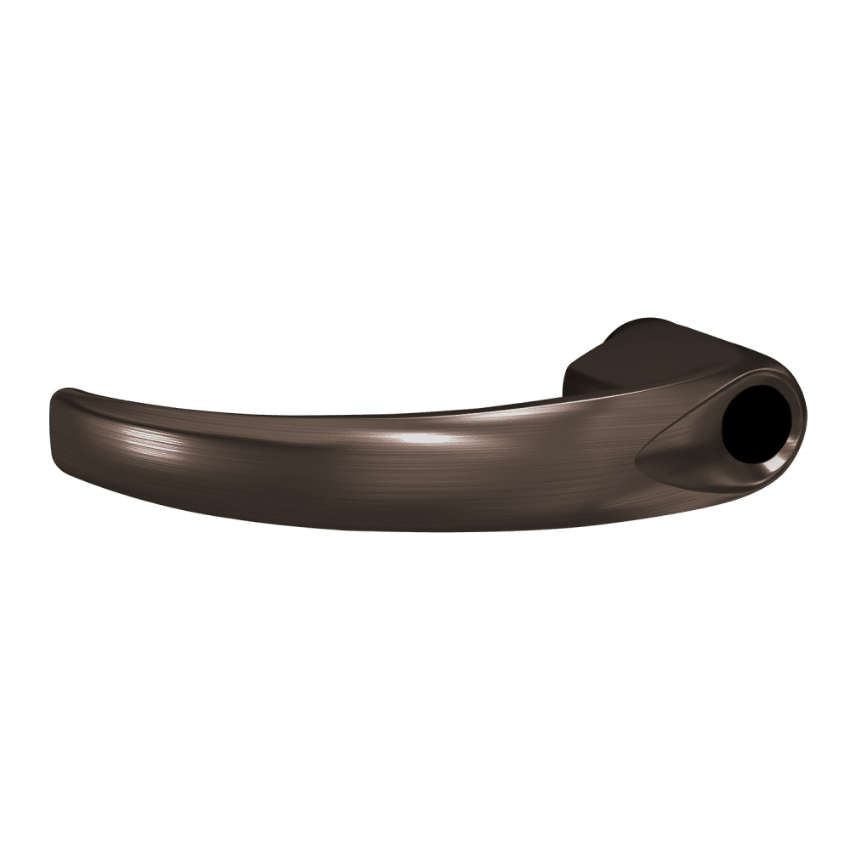

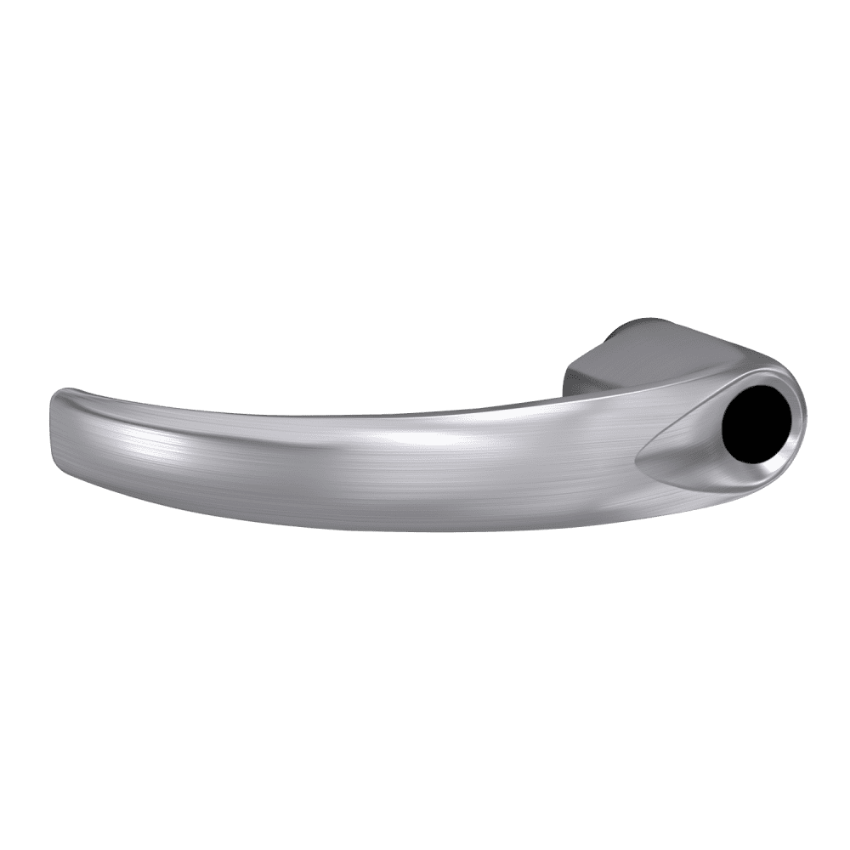

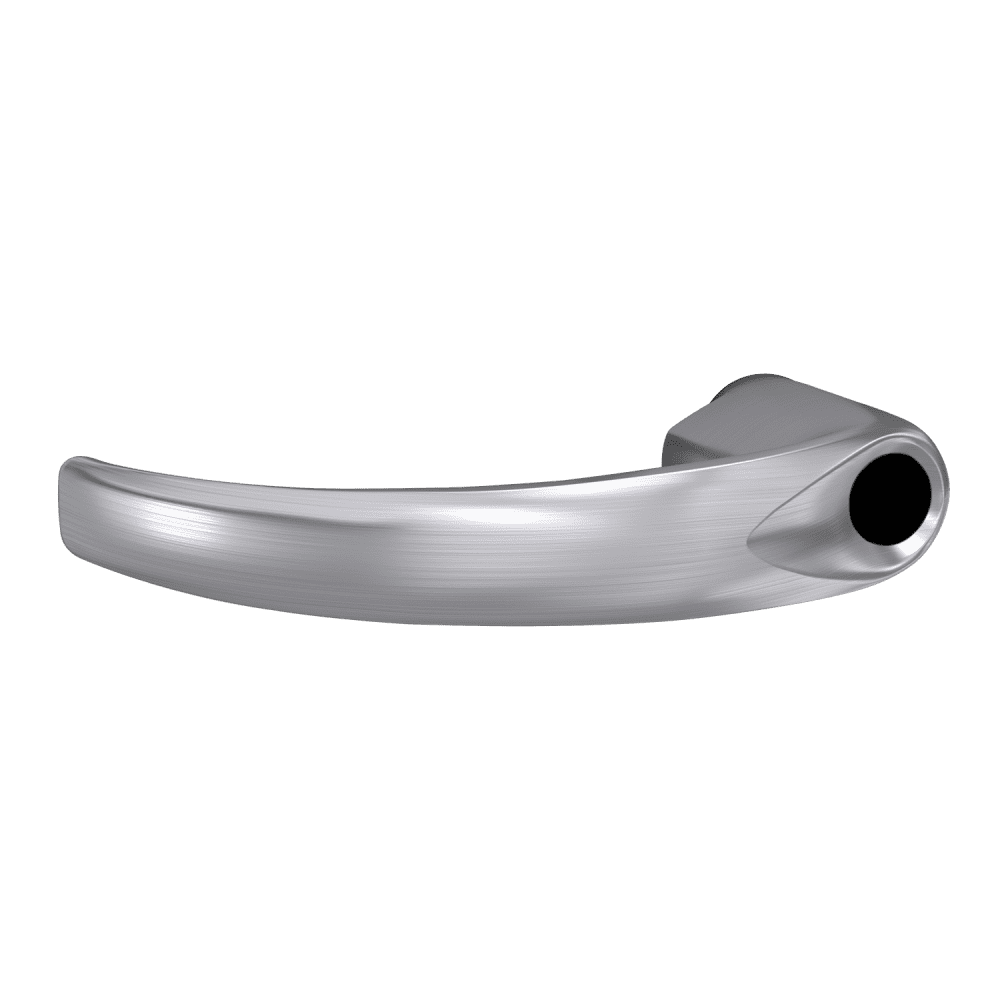

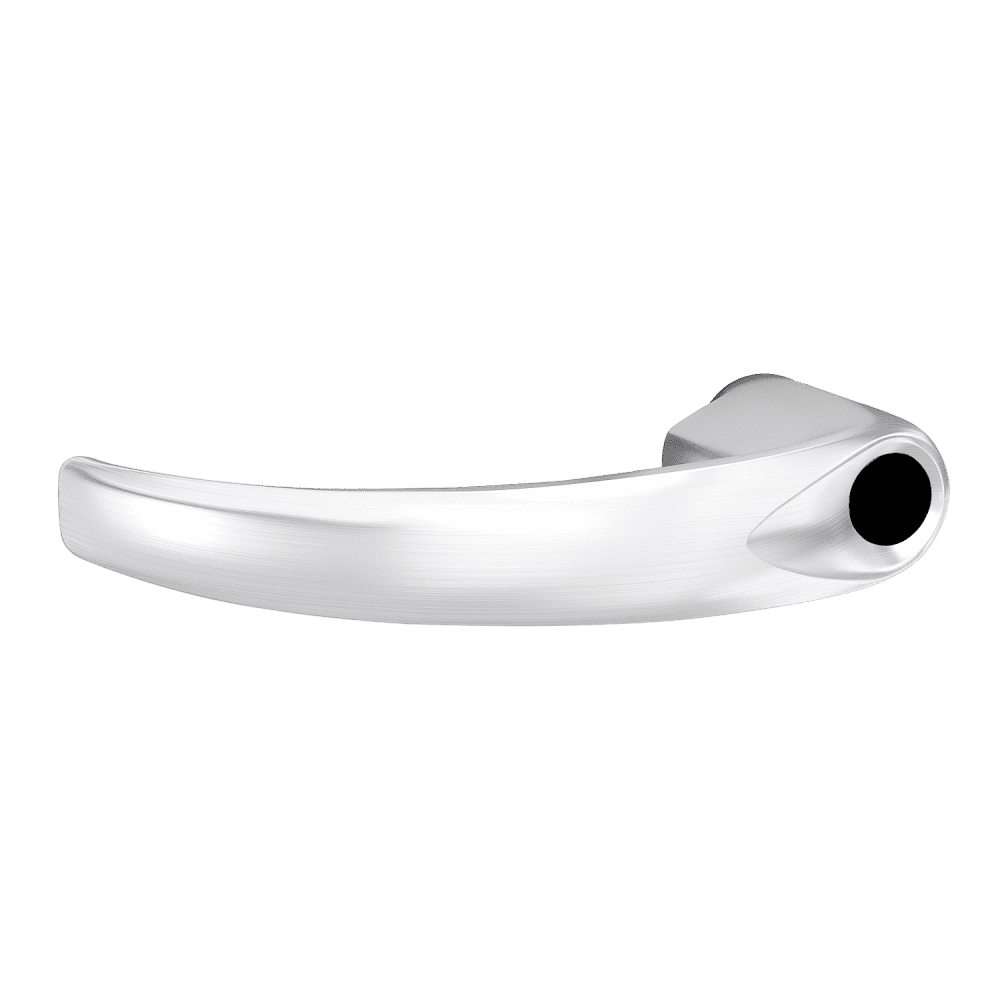

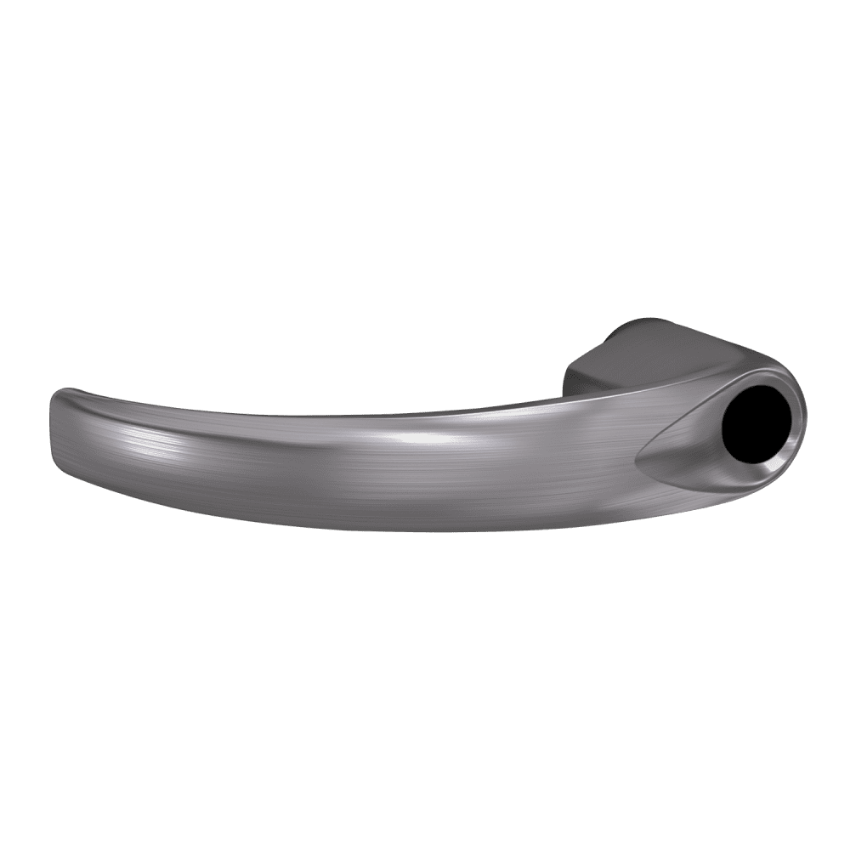

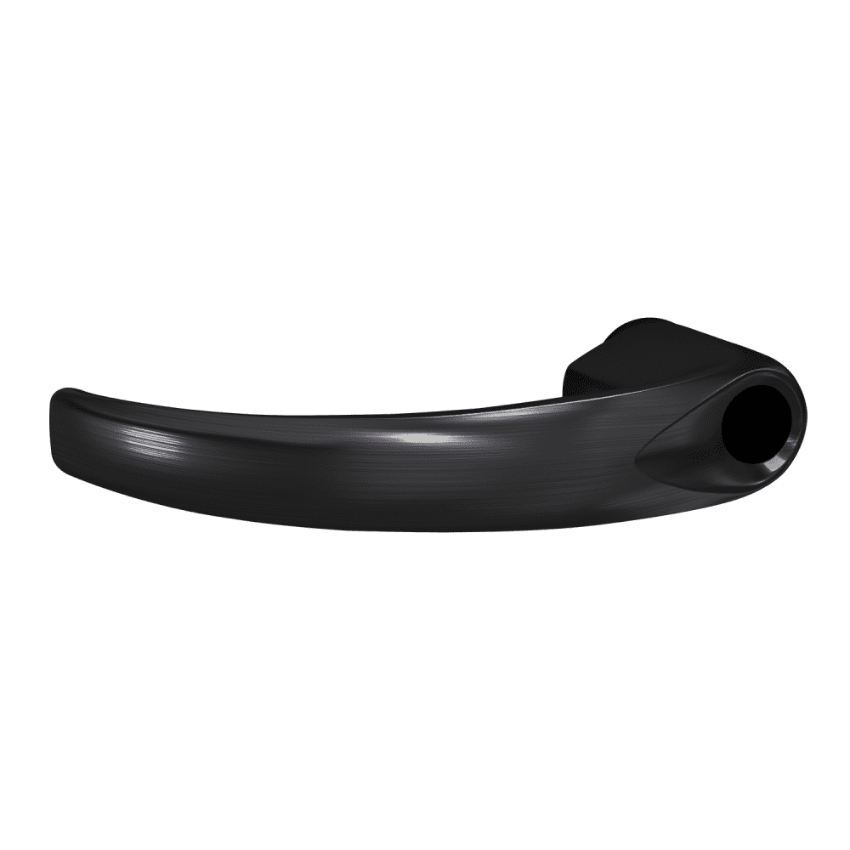

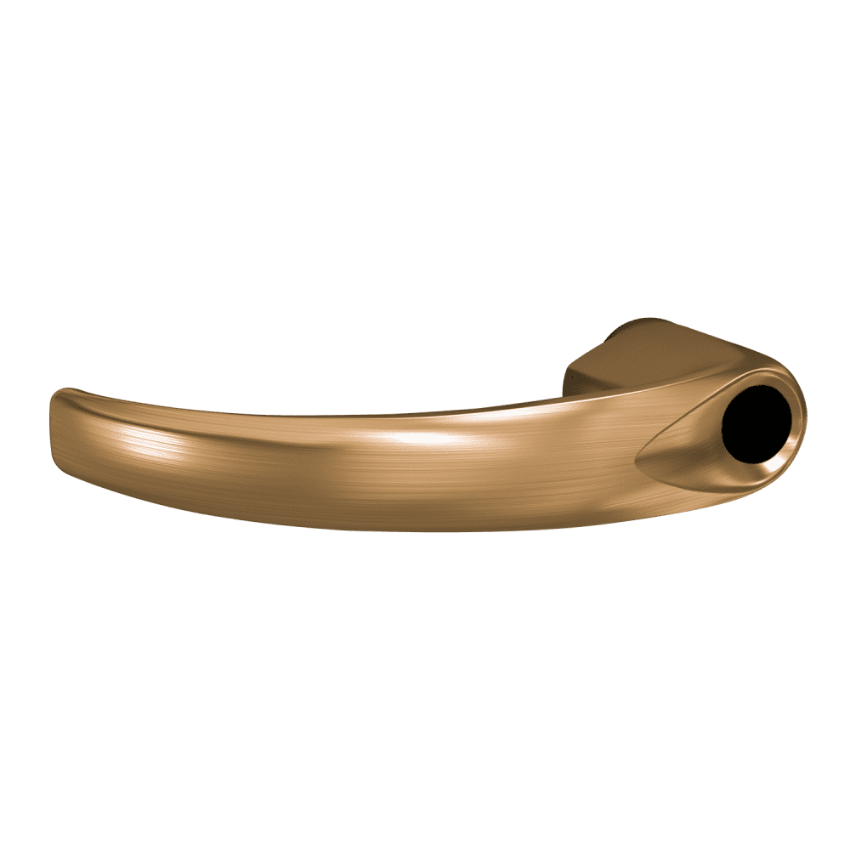

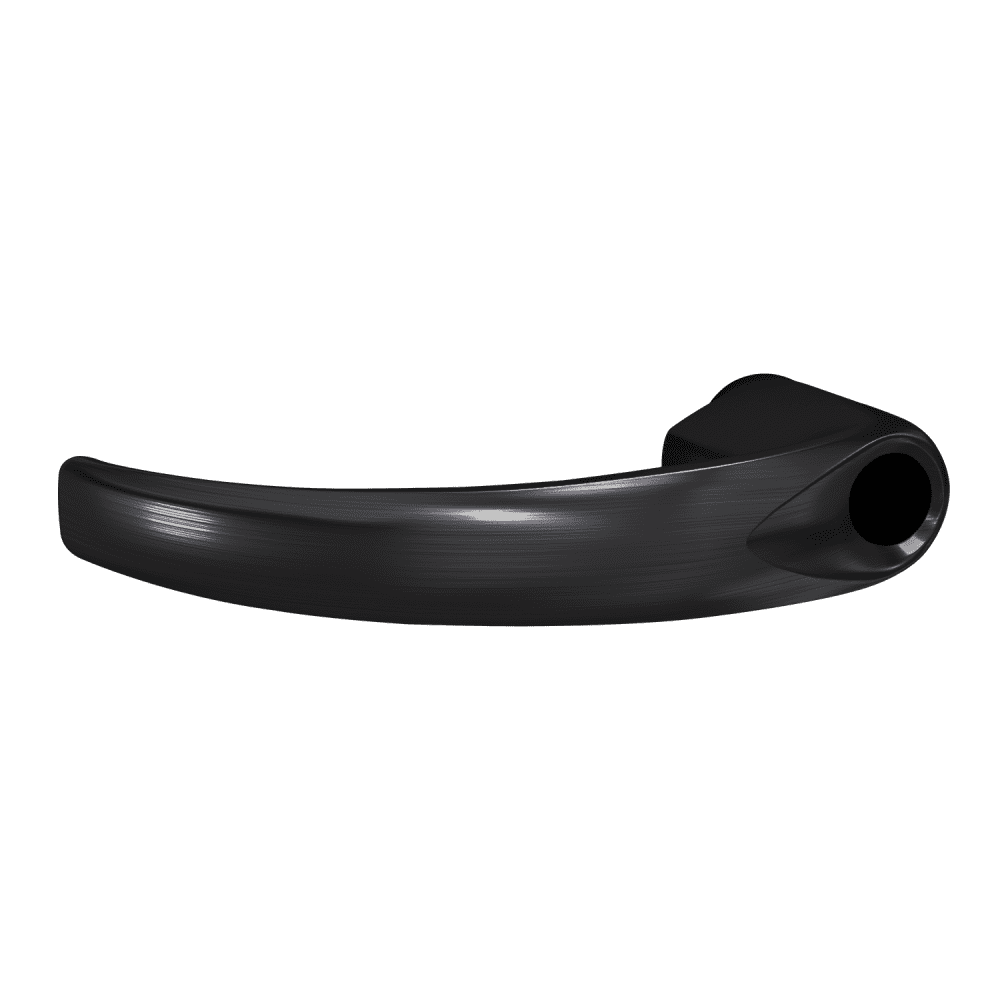

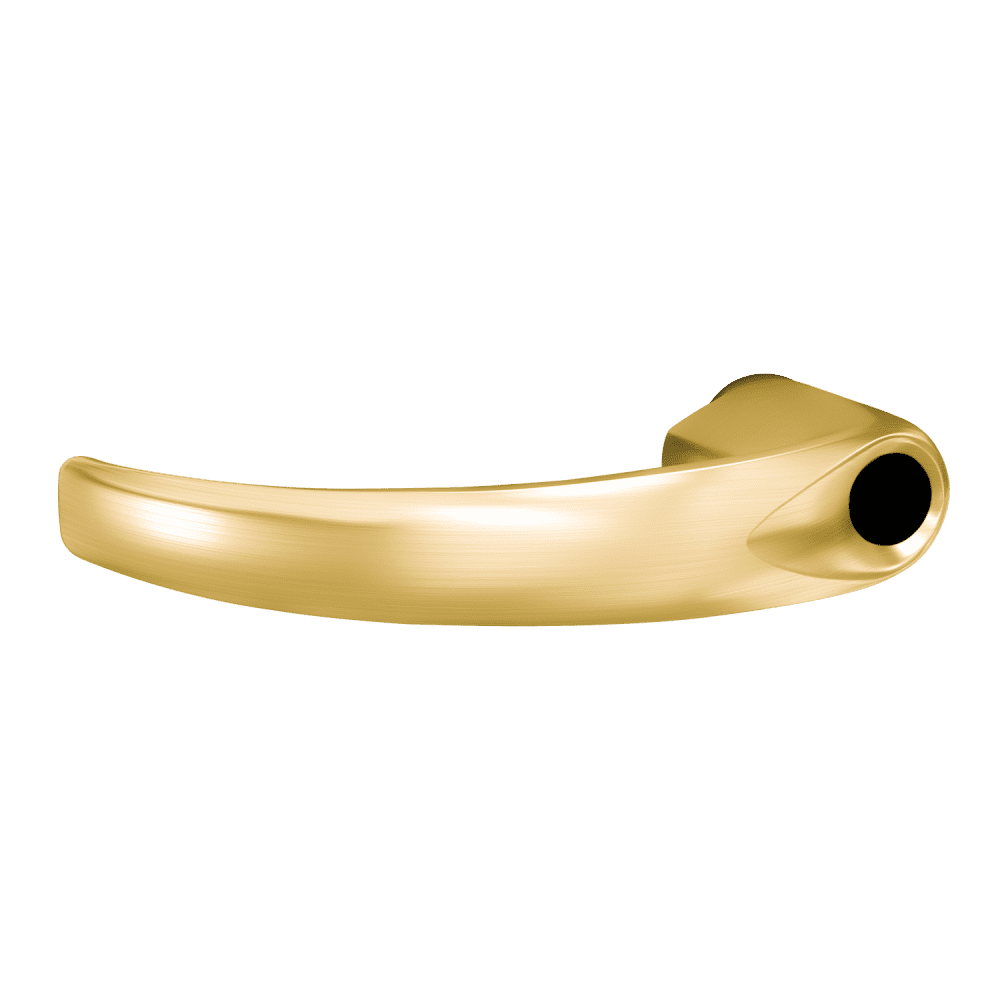

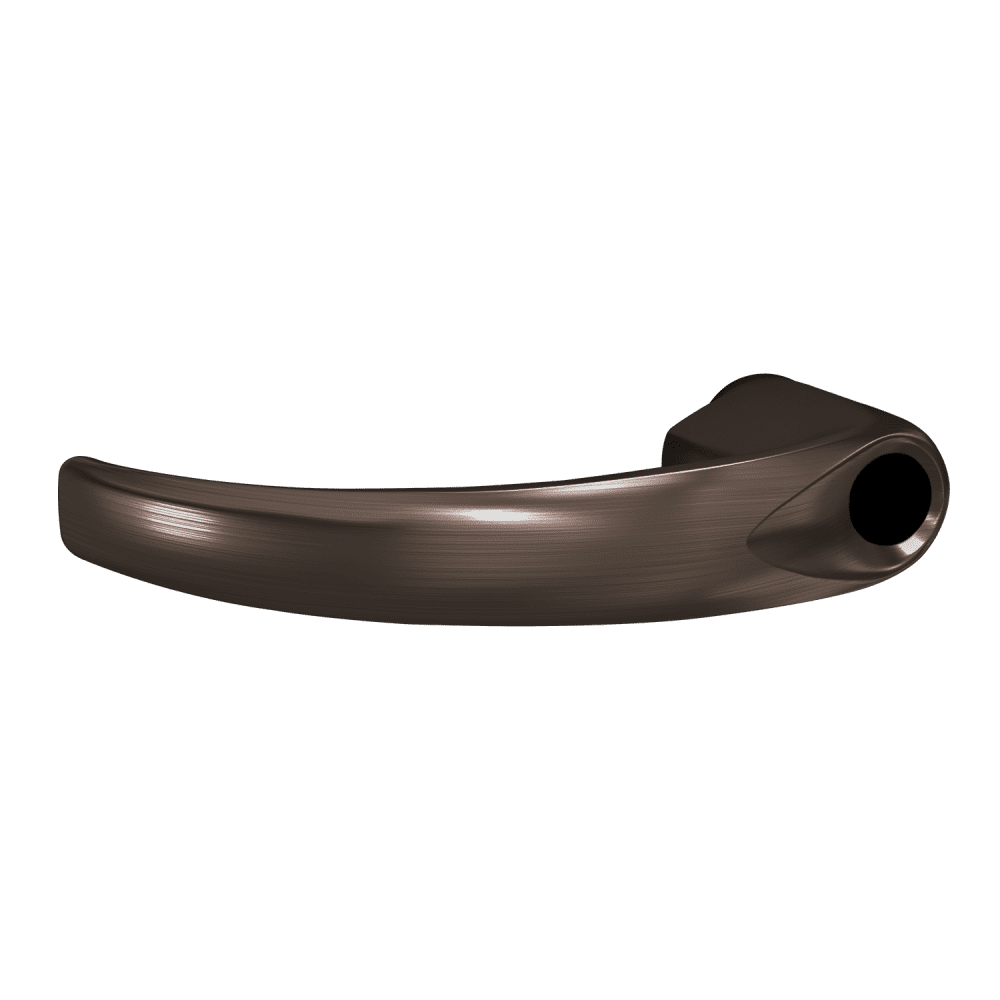

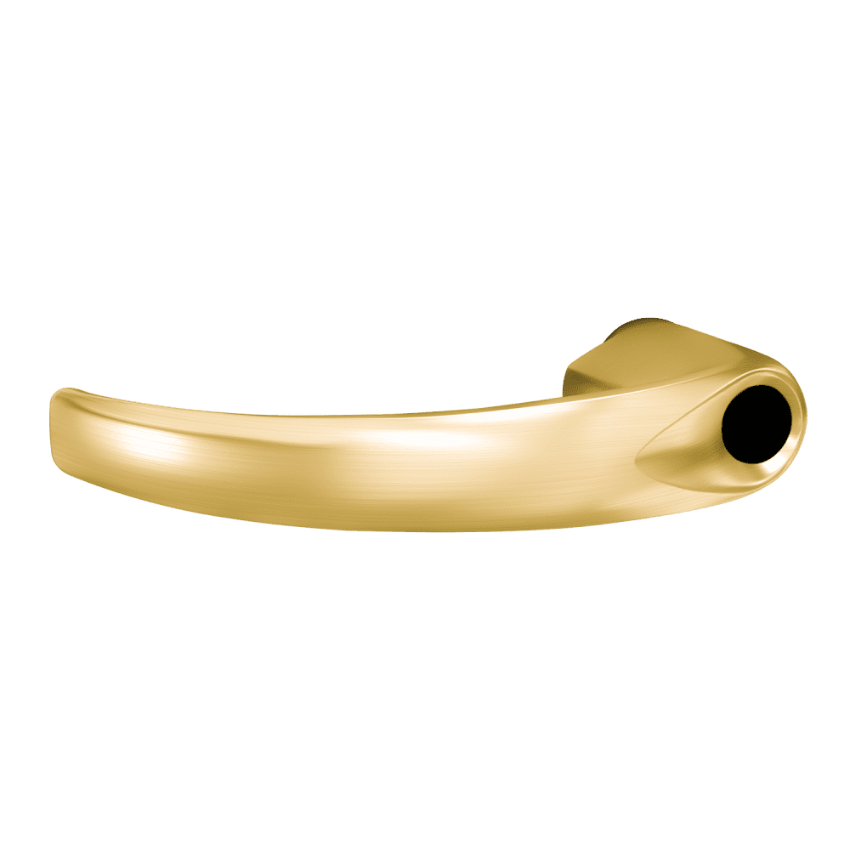

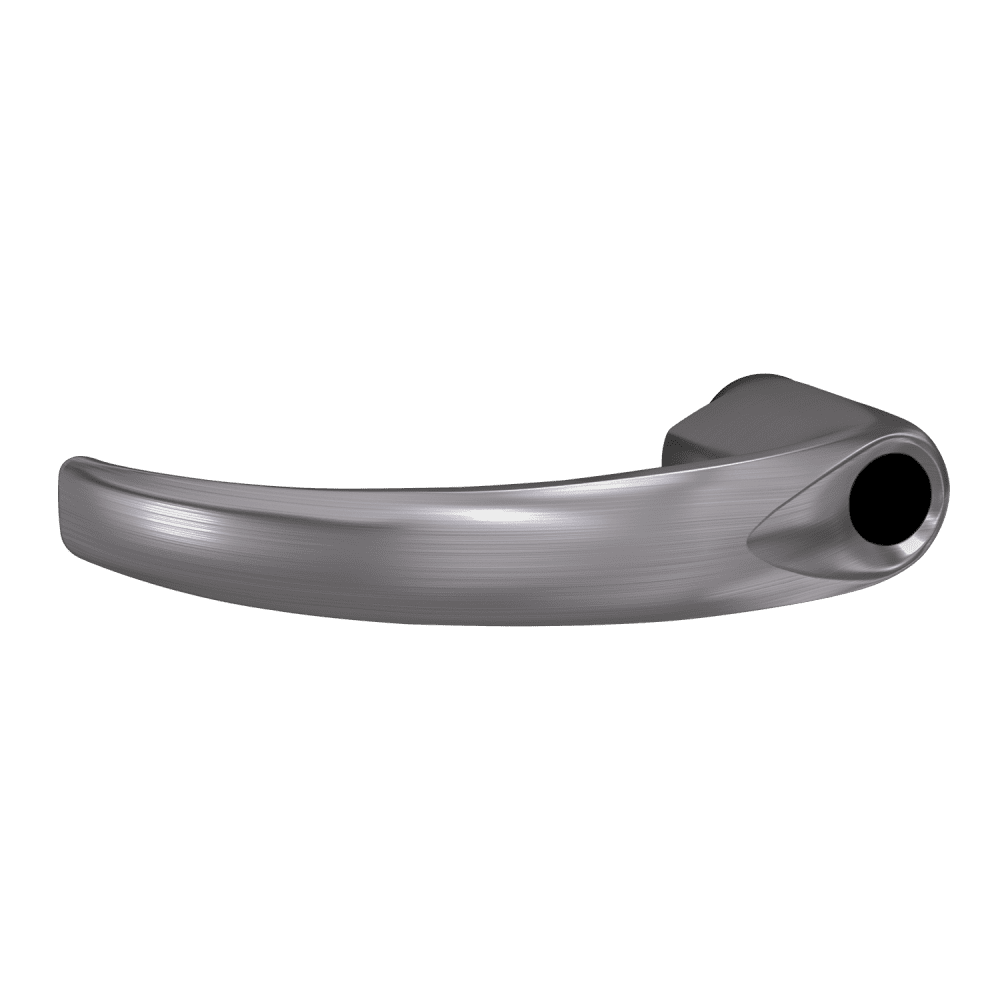

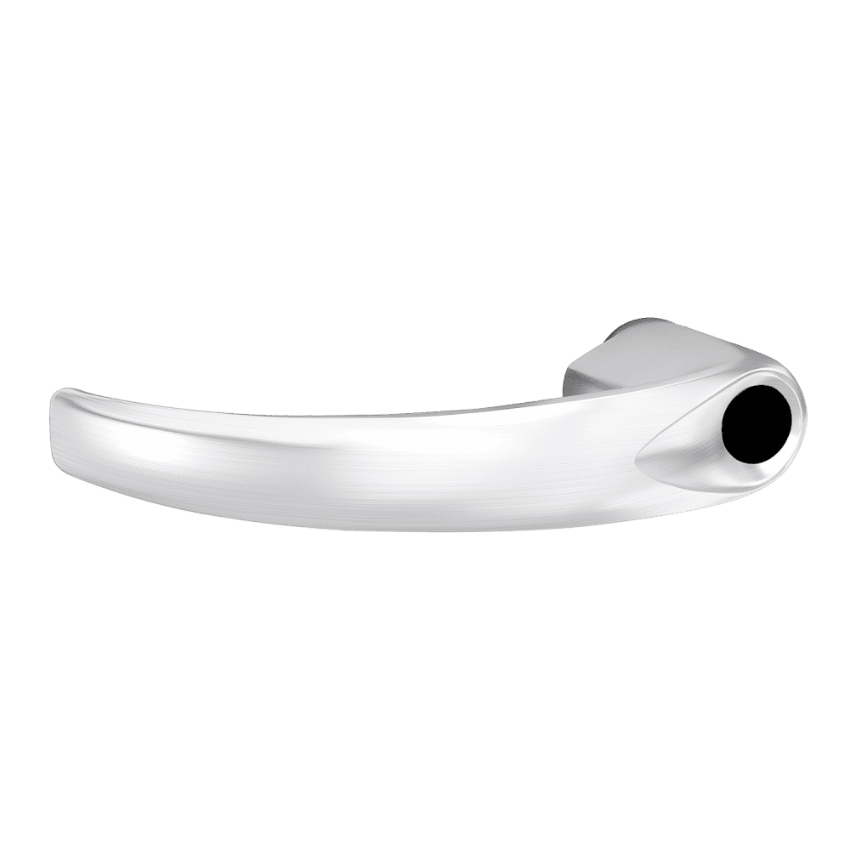

The 03-234-SPA is compatible with Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series locks configured for Corbin Russwin KIL preparation, as confirmed on the SecurityParts.com product page. Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. Contact SecurityParts.com for current finish availability.

SecurityParts stocks OEM Schlage ND Series and ALX Series lever components. Free shipping on orders over $300.
