The Schlage 03-234-TLR is the OEM Tubular Lever with factory preparation for Corbin Russwin Conventional Key-in-Lever (KIL) cylinders, for the Schlage AD Series, ALX Series, CO Series, ND Series, and NDE Series cylindrical locks, documented in five official Schlage Service Manuals: ALX, ND, AD, CO, and NDE Series. Per the SecurityParts.com product page, the 03-234-TLR "is supplied less cylinder for field installation of a compatible Corbin Russwin conventional KIL cylinder." Standard non-tactile Tubular lever. Non-handed. Available (3-4 weeks).

Tubular Corbin KIL Prep Lever: Standard vs Tactile

The 03-234-TLR is the standard non-tactile version of the Tubular Corbin KIL prep lever. The 03-234-8TR (Tubular Tactile Lever, Corbin KIL Prep) is the tactile version with a raised texture applied around the round handle circumference for hazardous area door identification. Both are prepared for Corbin Russwin conventional KIL cylinders and ship less cylinder. Key differences are the handle surface and the NDE Series coverage. The 03-234-TLR includes NDE Series (5 Service Manuals). The 03-234-8TR does not include NDE (4 Service Manuals). When replacing a standard Tubular Corbin KIL lever, verify the original was not specified with the tactile designation before ordering the 03-234-TLR.

03-234-TLR vs 03-231-TLR: Choosing the Correct Format

Both the 03-234-TLR and the 03-231-TLR (Tubular Lever Less Cylinder) are standard Tubular levers that ship less cylinder. The difference is the cylinder bore preparation. The 03-234-TLR is prepared for Corbin Russwin conventional KIL cylinders. The 03-231-TLR is prepared for standard Schlage KIL cylinders. Confirm the cylinder type installed in the lock before ordering. Installing a Schlage KIL cylinder into a 03-234-TLR bore or a Corbin Russwin cylinder into a 03-231-TLR bore will result in an incorrect fit.

NDE Series and Availability Note

The 03-234-TLR is documented in five Schlage Service Manuals including the NDE Series Parts and Diagrams Manual, as confirmed on the SecurityParts.com product page. This makes the 03-234-TLR suitable for NDE exit device outside trim applications configured for Corbin Russwin KIL cylinders. Availability is confirmed as Available (3-4 weeks) per the product page, which differs from the 03-234-RHO and 03-234-SPA standard Corbin KIL levers, both of which show In Stock.

Series Compatibility and Finishes

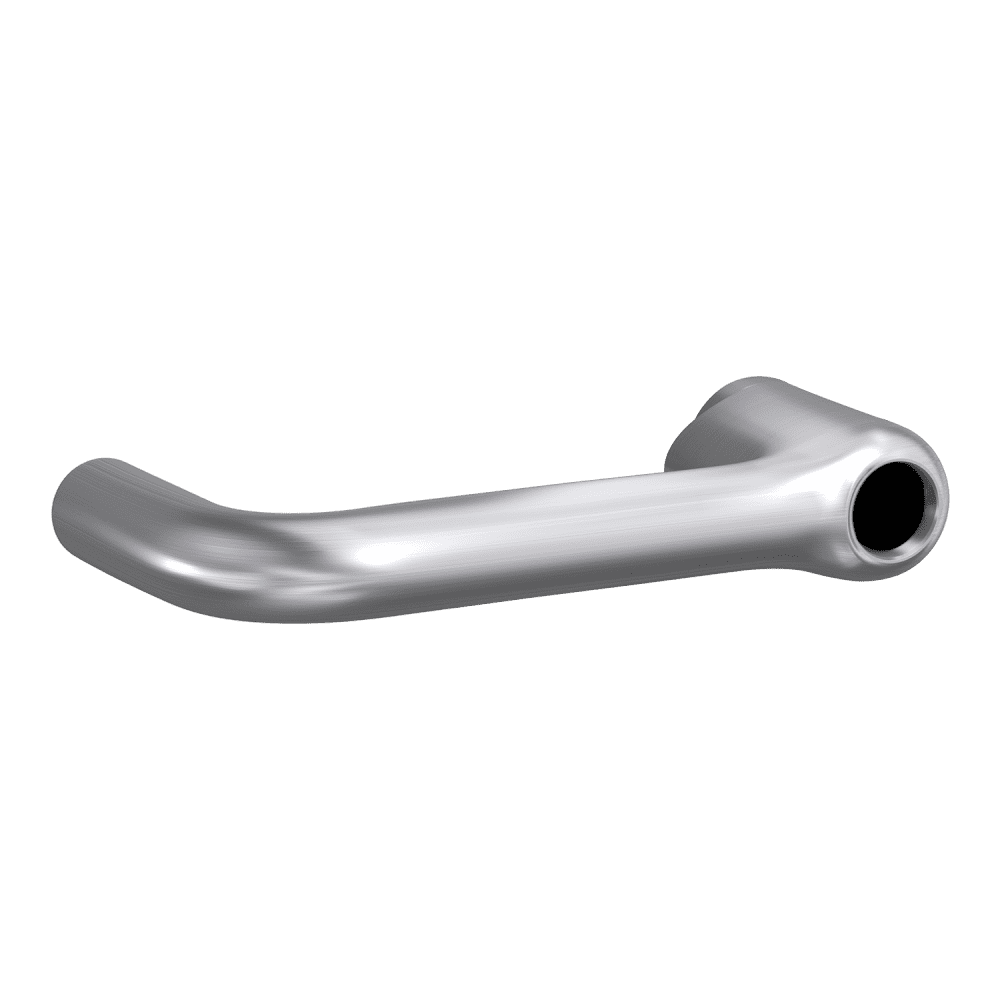

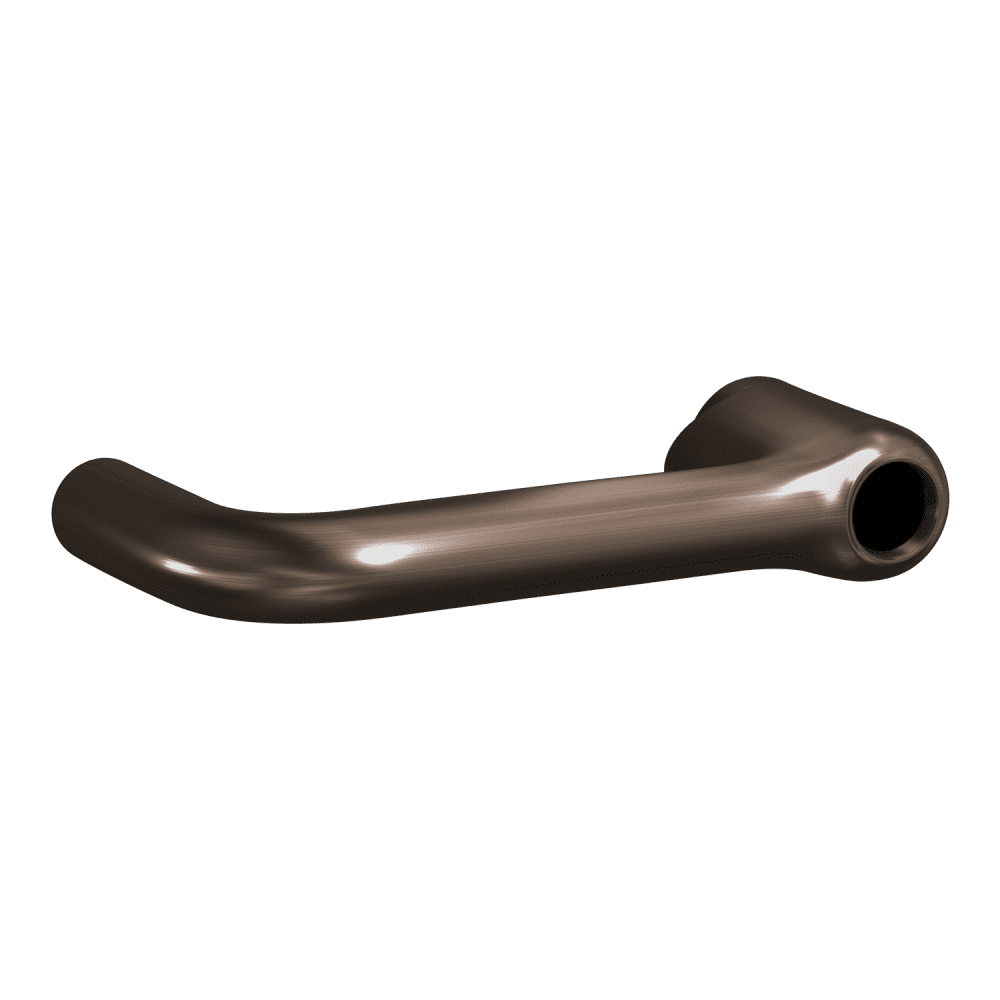

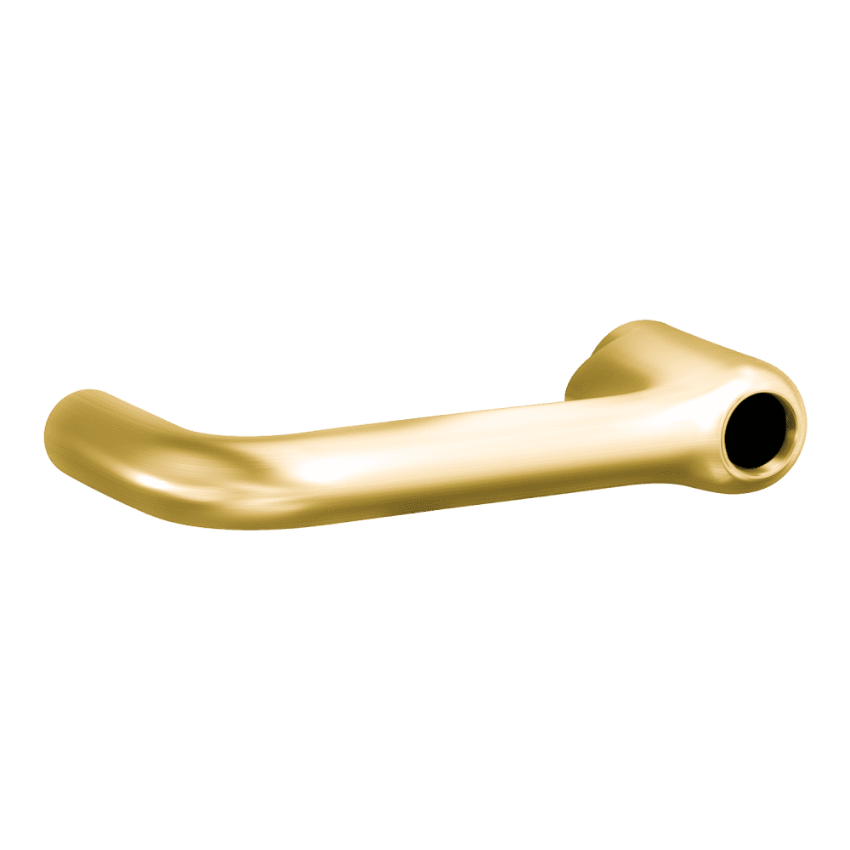

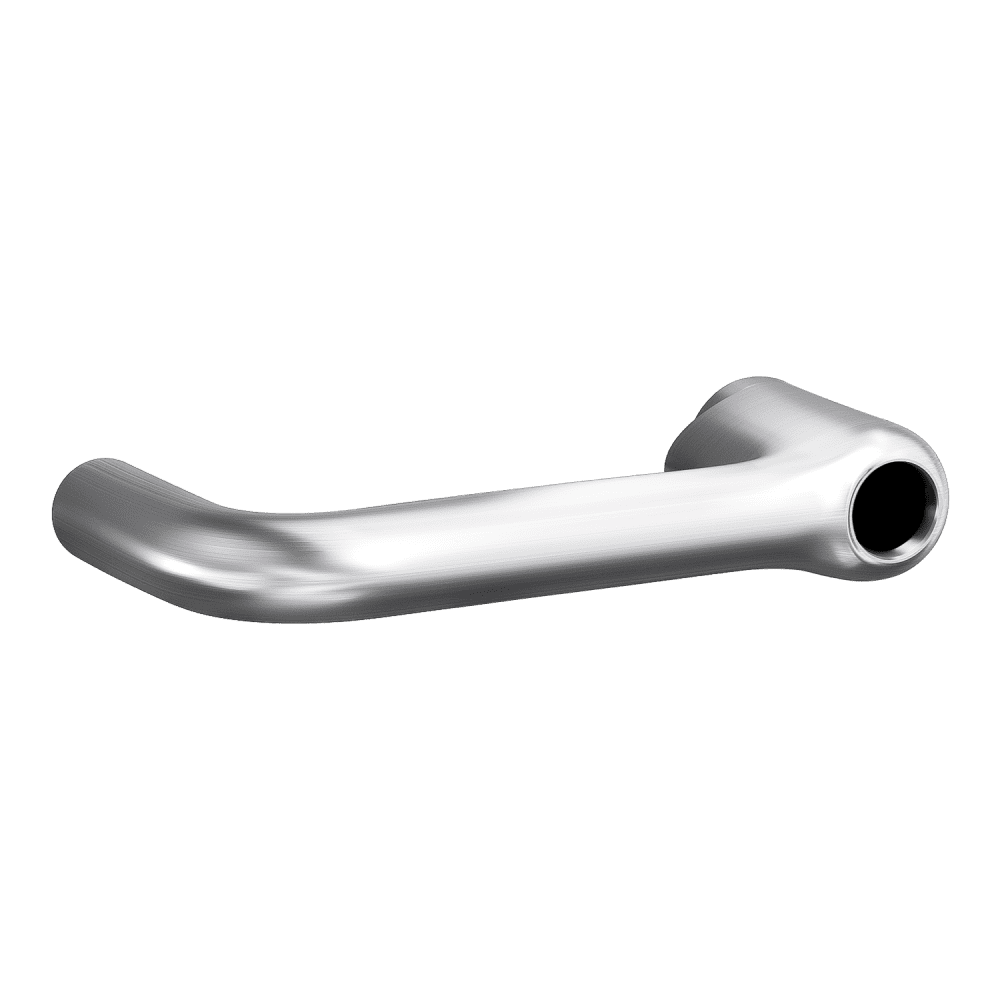

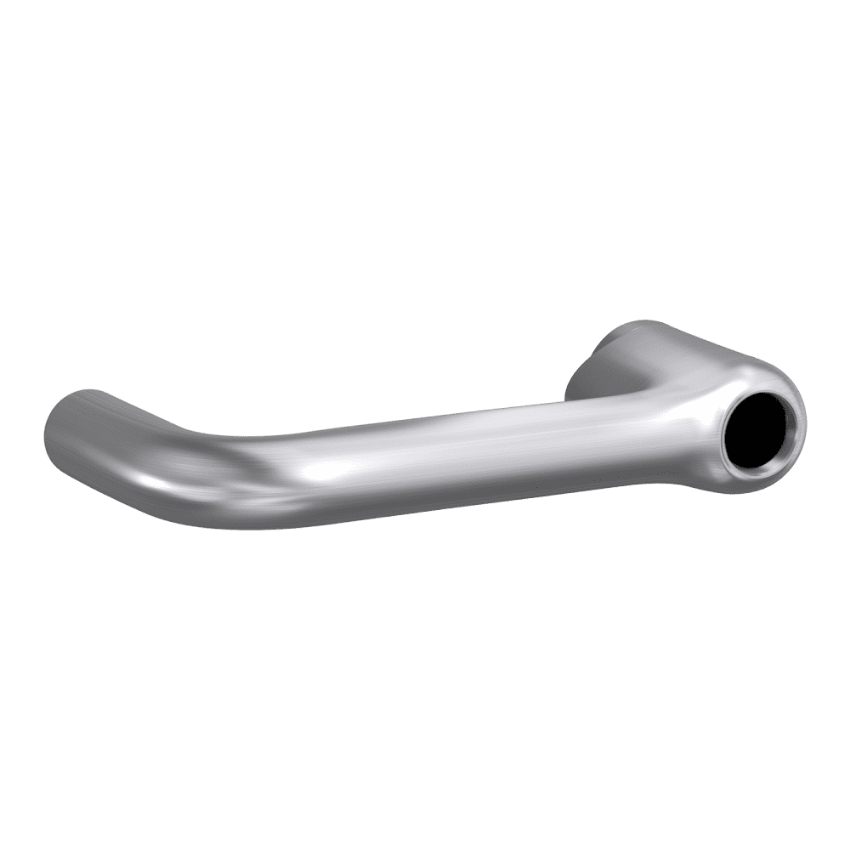

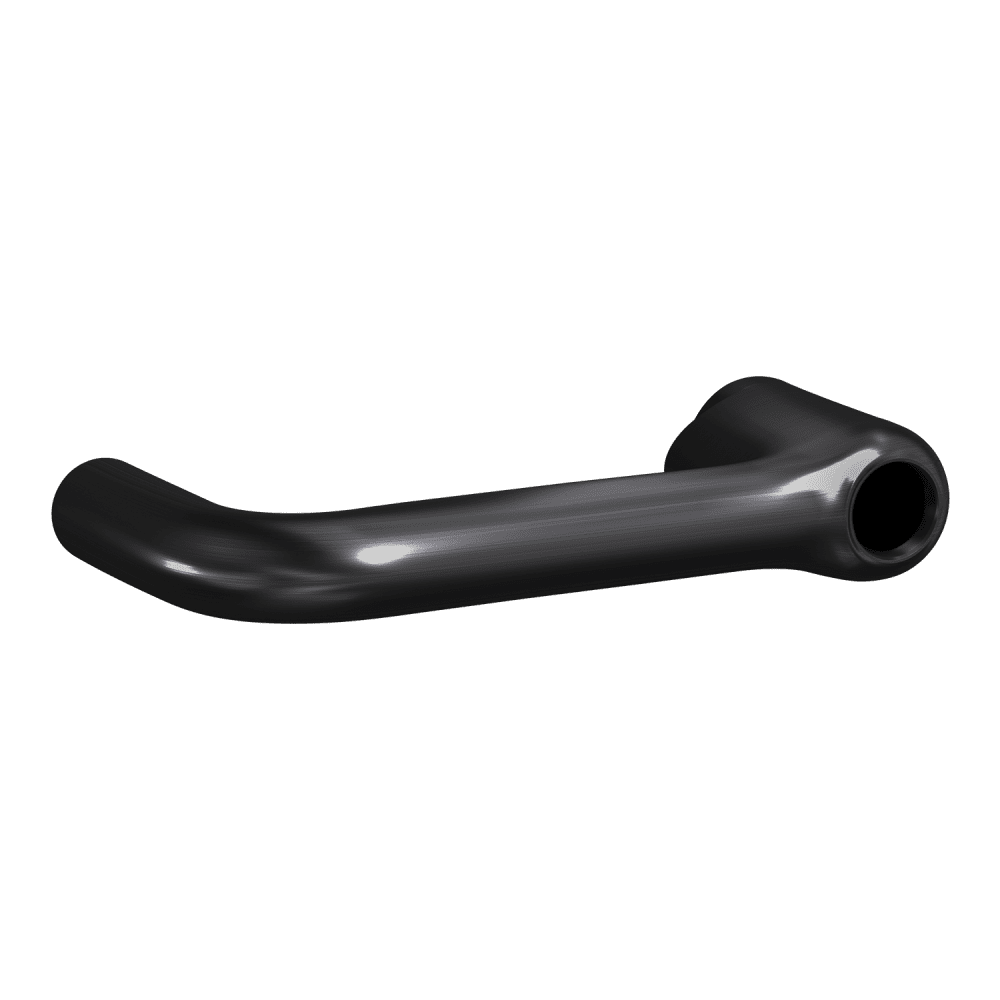

The 03-234-TLR is compatible with Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series locks configured for Corbin Russwin KIL preparation. Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. Contact SecurityParts.com for current finish availability. The Corbin Russwin conventional KIL cylinder is not included and must be ordered separately.
