The Schlage 03-235-RHO is the OEM Rhodes Lever with preparation for the Corbin Russwin Full-Size Interchangeable Core (FSIC) J-CO7 7-pin core, for the Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series cylindrical locks, documented in five official Schlage Service Manuals: ALX, ND, AD, CO, and NDE Series. Per the SecurityParts.com product page, the lever "accommodates a Corbin Russwin 7-pin FSIC (J-CO7) cylinder core insertion and transmits mechanical handle rotation to execute manual latch retraction." Standard non-tactile Rhodes lever. Supplied less core. Non-handed. In stock.

Three Legacy Part Numbers Replaced by the 03-235-RHO

The 03-235-RHO replaces three legacy part numbers, as confirmed on the SecurityParts.com product page under "Original Part#."

• 23854524: Original part number for cylindrical lock outside trim positions using the Rhodes Corbin Russwin FSIC J-CO7 lever.
• 09-366-RHO: Original part number for mortise lock trim applications. The 09 prefix in the legacy Schlage system identified mortise trim levers.
• 03-366-RHO: Original part number for exit device outside trim applications.

All three installation types are served by the 03-235-RHO as the current OEM part number. Any maintenance record or specification referencing these three legacy numbers maps to the 03-235-RHO for current ordering.

Standard vs Tactile: 03-235-RHO vs 03-235-8RO

The 03-235-RHO and the 03-235-8RO (Rhodes Tactile Lever, Corbin Russwin FSIC J-CO7) are both Rhodes levers prepared for the Corbin Russwin J-CO7 7-pin FSIC core. Both ship less core. Four differences distinguish them.

First, the handle surface. The 03-235-RHO has a smooth standard surface. The 03-235-8RO has a raised tactile surface for hazardous area door identification. Second, the NDE Series coverage. The 03-235-RHO is documented in five Service Manuals including NDE. The 03-235-8RO is documented in four Service Manuals and does not include NDE. Third, availability. The 03-235-RHO is confirmed In Stock. Fourth, the product type designation. The 03-235-RHO is "Full Size Interchangeable Core (FSIC) Lever Trim (Less Core)" while the 03-235-8RO, 03-235-8SP, and 03-235-8TR tactile levers include "FSIC/LFIC" in their product type. When replacing a standard Rhodes Corbin Russwin FSIC J-CO7 lever, confirm the original was not specified with the tactile designation before ordering.

Five-Series Coverage Including NDE and Full Finish Range

The 03-235-RHO is compatible with Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series, as confirmed on the SecurityParts.com product page. The NDE Series coverage confirms the 03-235-RHO applies to NDE exit device outside trim applications configured for Corbin Russwin J-CO7 FSIC cores. Per the FAQ on the product page: "Which cylinder type does this lever support? Corbin Russwin Full-Size Interchangeable Core (FSIC) J-CO7, 7-pin Standard."

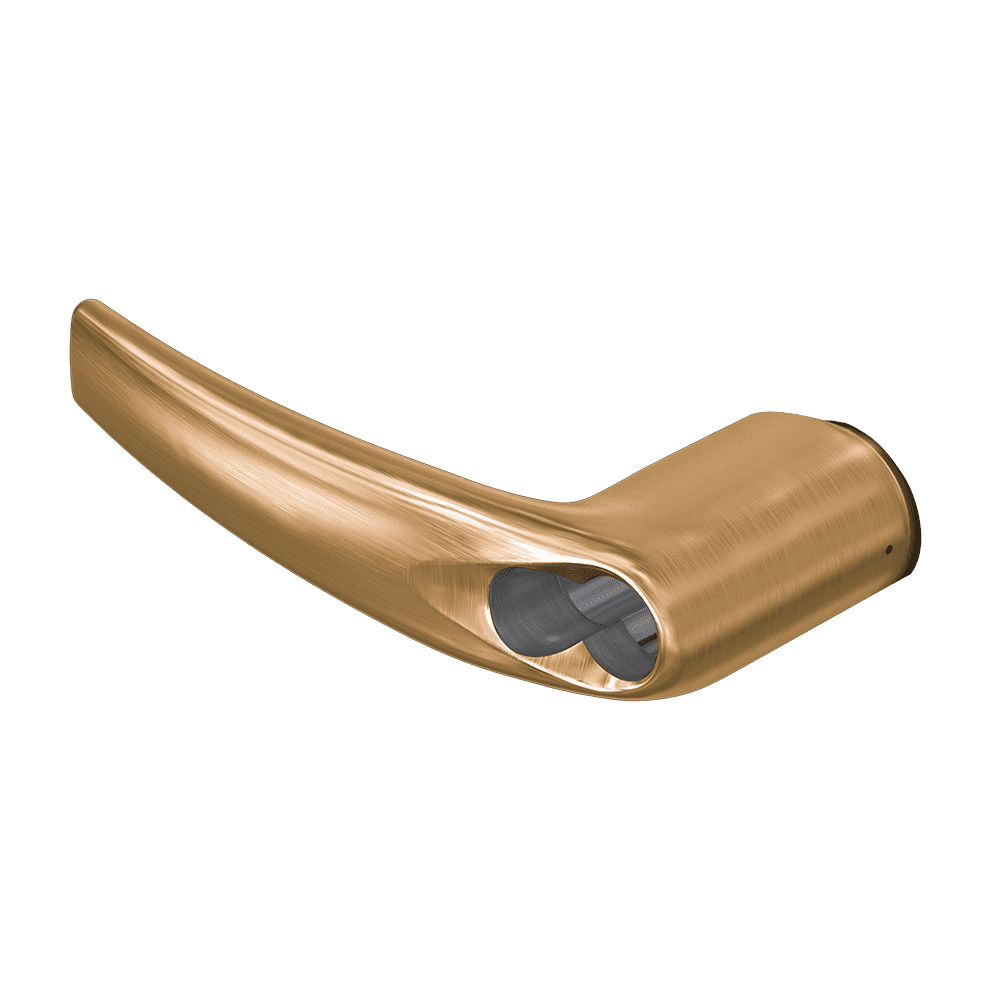

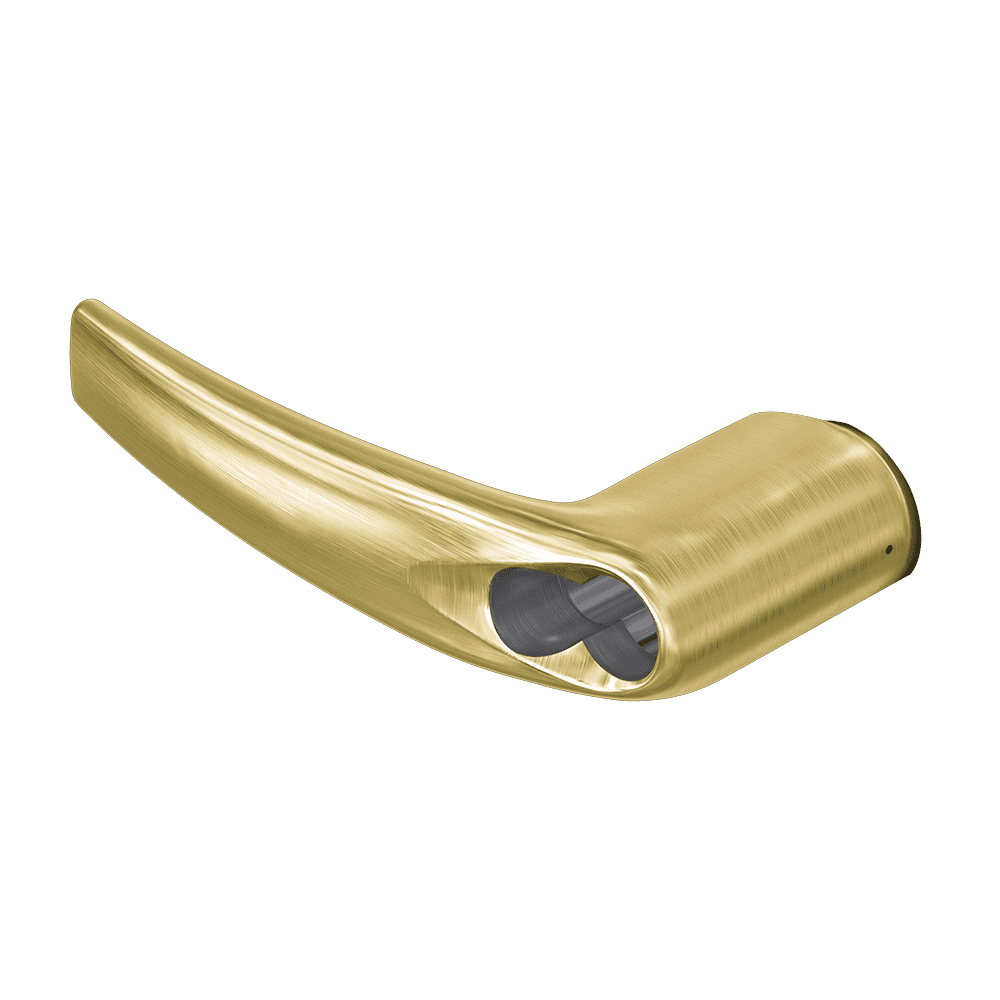

Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. Contact SecurityParts.com for current finish availability. The Corbin Russwin FSIC J-CO7 core is not included and must be ordered separately.

SecurityParts stocks OEM Schlage ND Series and ALX Series lever components. Free shipping on orders over $300.
