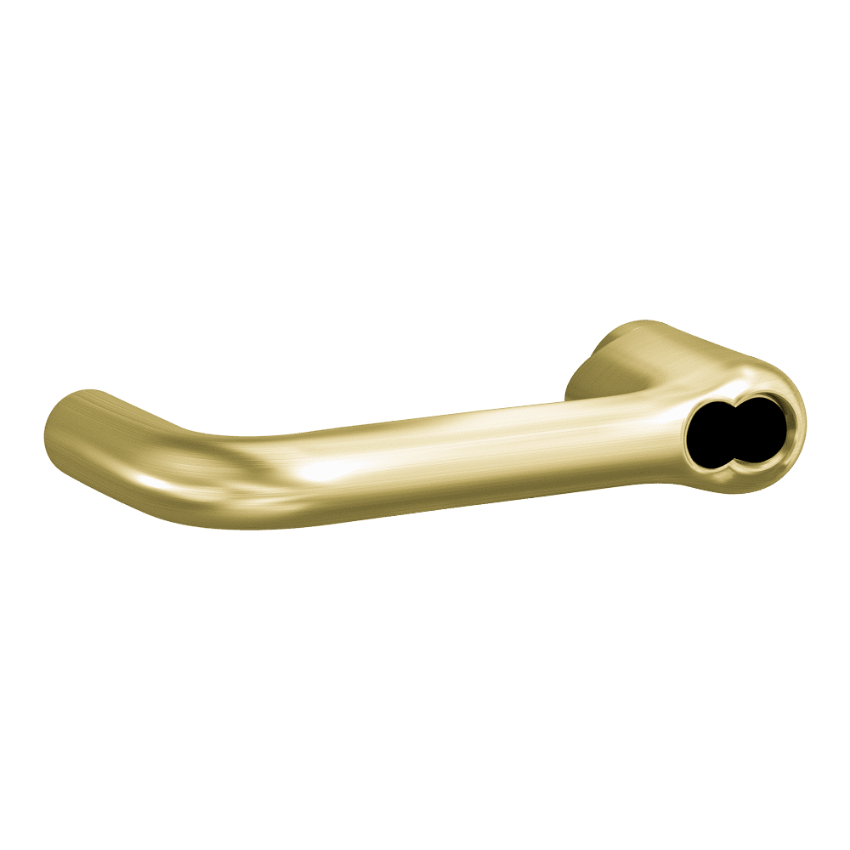

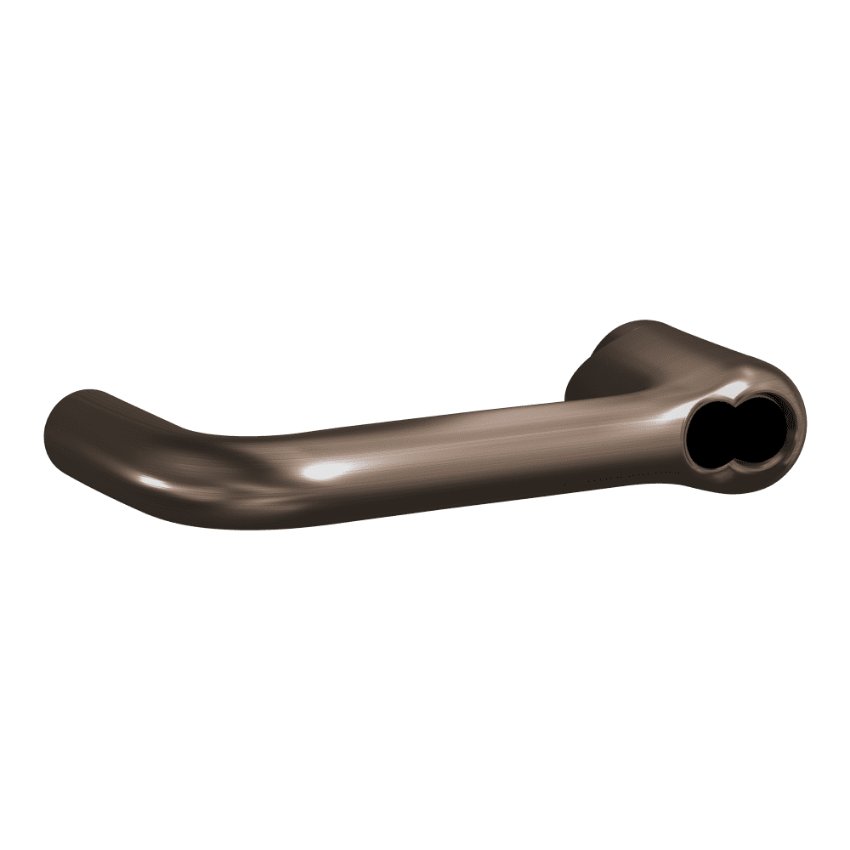

The Schlage 03-235-TLR is the OEM Tubular Lever with preparation for the Corbin Russwin Full-Size Interchangeable Core (FSIC/LFIC) J-CO7 7-pin core, for the Schlage AD Series, CO Series, ALX Series, and ND Series cylindrical locks, documented in four official Schlage Service Manuals: AD, ALX, CO, and ND Series. Per the SecurityParts.com product page, the 03-235-TLR "accommodates a Corbin Russwin 7-pin FSIC (J-CO7) cylinder core insertion and transmits mechanical handle rotation to execute manual latch retraction." Standard non-tactile Tubular lever with round cylindrical handle. Supplied less core. Non-handed. Confirmed Original Part# 23854565 for cylindrical lock applications.

Tubular Profile in the Corbin Russwin FSIC J-CO7 Format

The 03-235-TLR uses the Tubular lever profile with a round cylindrical rod handle in the 03-235 Corbin Russwin FSIC/LFIC J-CO7 format. Per the SecurityParts.com product type field: "Full Size Interchangeable Core (FSIC / LFIC) Lever Trim (Less Core)." The FSIC/LFIC designation is consistent with the 03-235-SPA (Sparta) and the tactile 03-235-8SP and 03-235-8TR within the same format family. The Tubular lever provides a uniform round cross-section from hub to handle tip, which is visually distinct from all other lever profiles in the Schlage ND and ALX Series catalog.

The lever ships less core. A compatible Corbin Russwin J-CO7 7-pin FSIC core must be sourced separately and installed in the lever housing. The Corbin Russwin FSIC J-CO7 format is distinct from the Schlage FSIC format (03-232 prefix). Confirm the core type in the installed lock before ordering to ensure the correct lever format is selected.

Standard vs Tactile: 03-235-TLR vs 03-235-8TR

The 03-235-TLR and the 03-235-8TR (Tubular Tactile Lever, Corbin Russwin FSIC J-CO7) are both Tubular levers prepared for the Corbin Russwin J-CO7 FSIC core. The 03-235-TLR has a smooth standard handle surface. The 03-235-8TR has a raised tactile surface for hazardous area door identification. Both cover AD and CO Series in their formal compatibility lists, but the 03-235-TLR additionally covers ALX and ND Series. Confirm the original specification before ordering to avoid installing a standard lever at a position that requires the tactile designation.

03-235-TLR vs 03-235-RHO: NDE Series Note

Within the standard non-tactile 03-235 levers, the 03-235-RHO (Rhodes) is documented in five Service Manuals including the NDE Series. The 03-235-TLR and 03-235-SPA (Sparta) are documented in four Service Manuals without NDE. When NDE exit device outside trim configured for Corbin Russwin J-CO7 FSIC cores requires a Tubular lever, confirm the correct specification through the NDE Series Service Manual before ordering the 03-235-TLR.

Finishes and Ordering

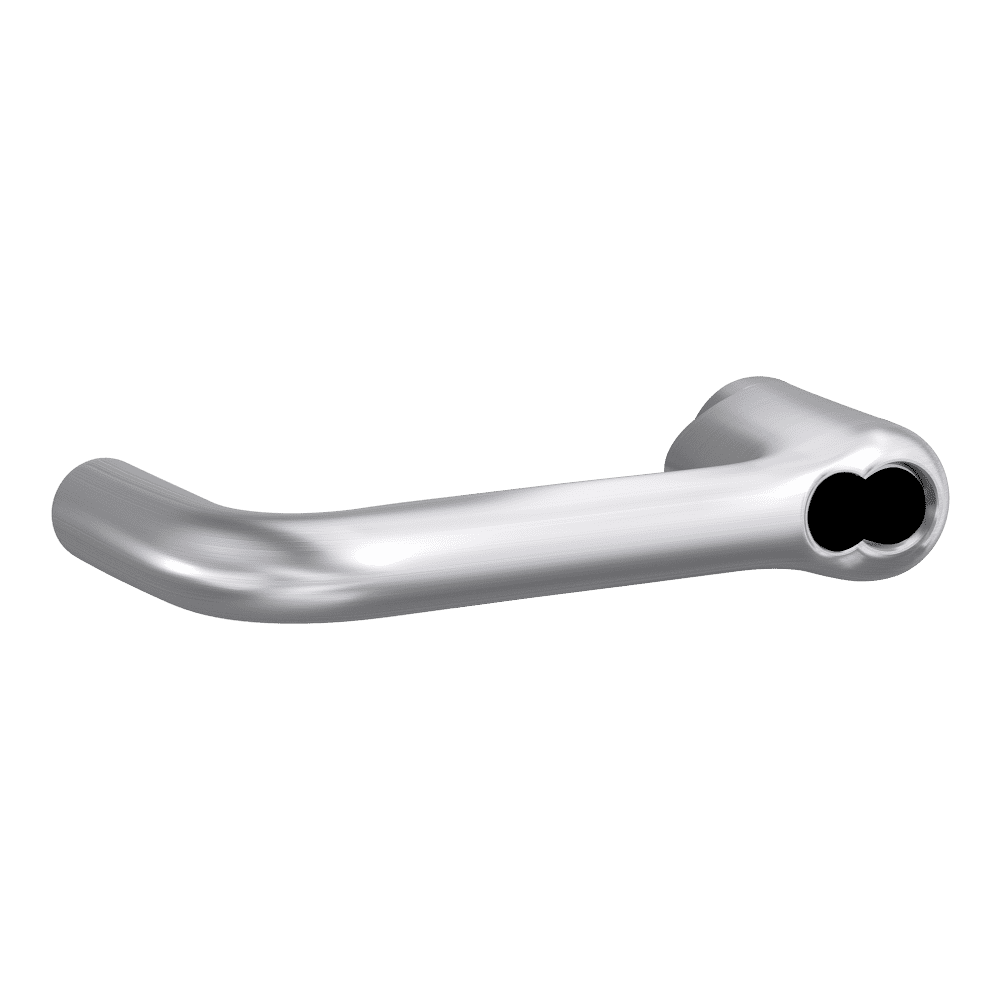

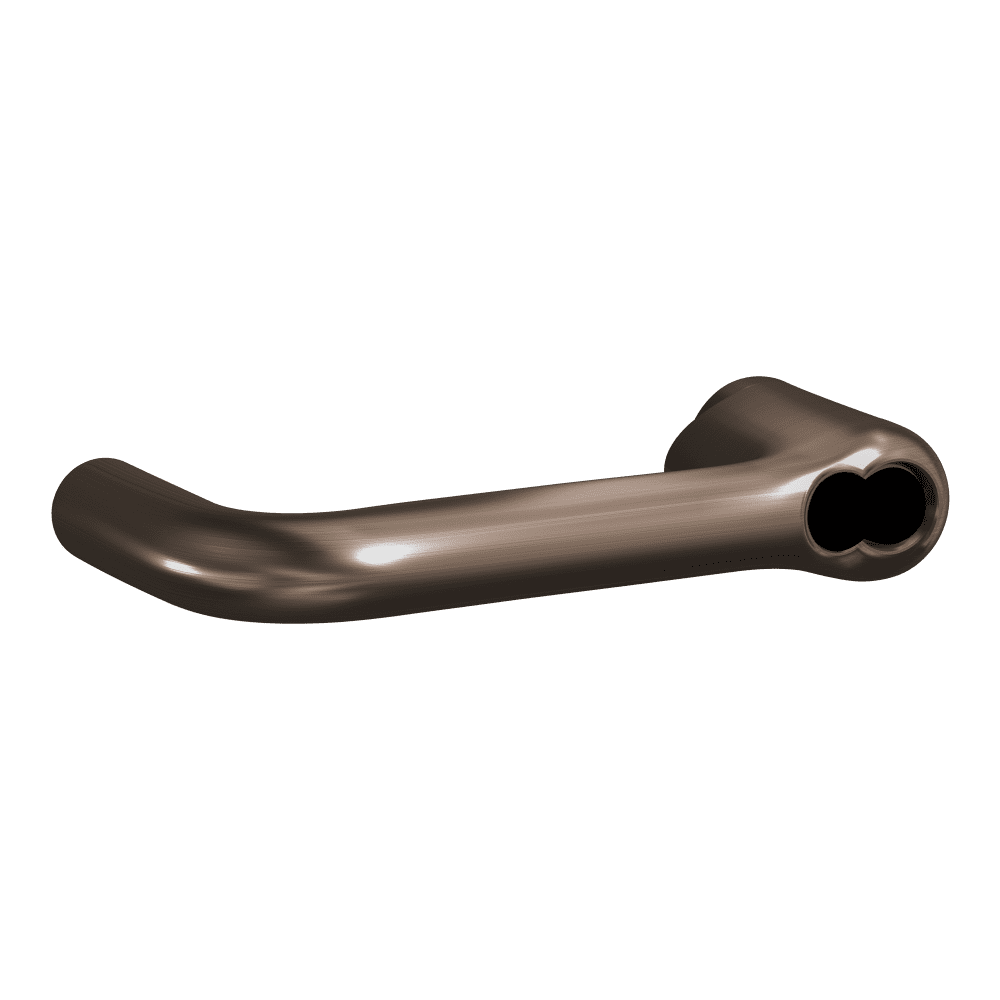

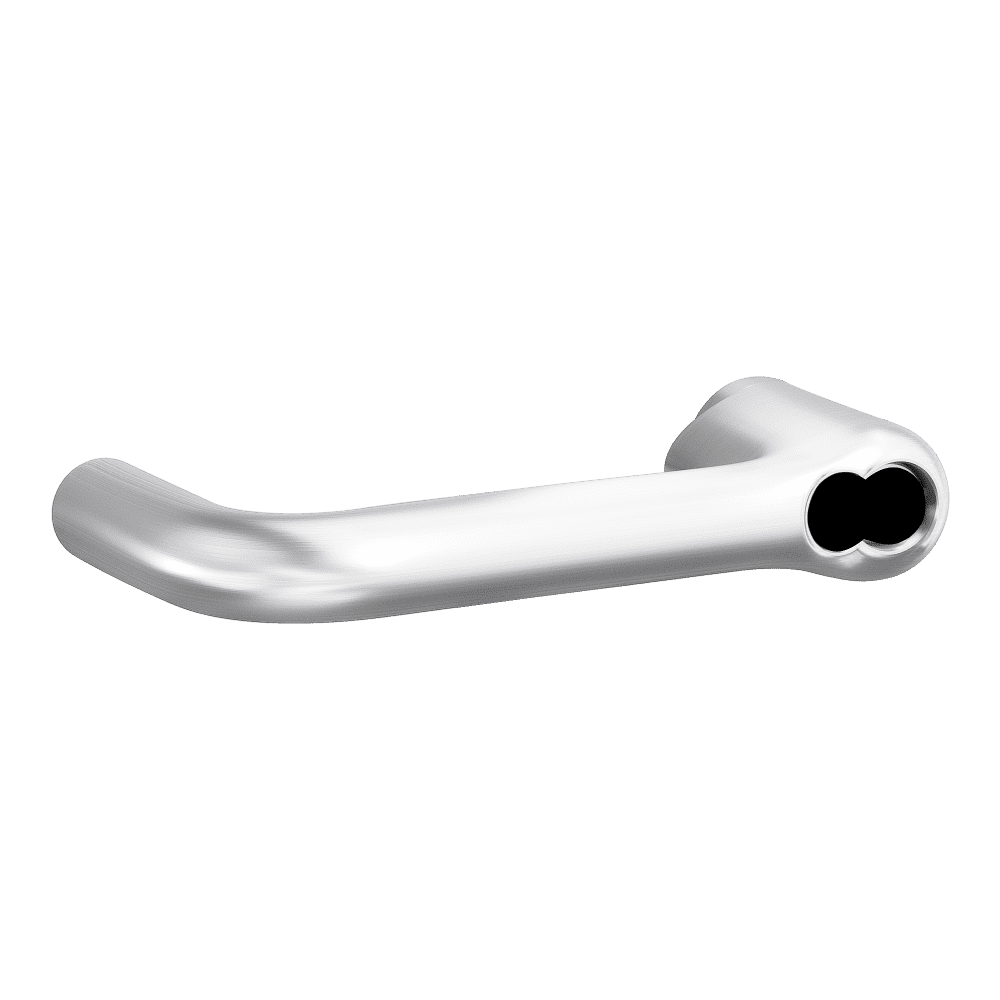

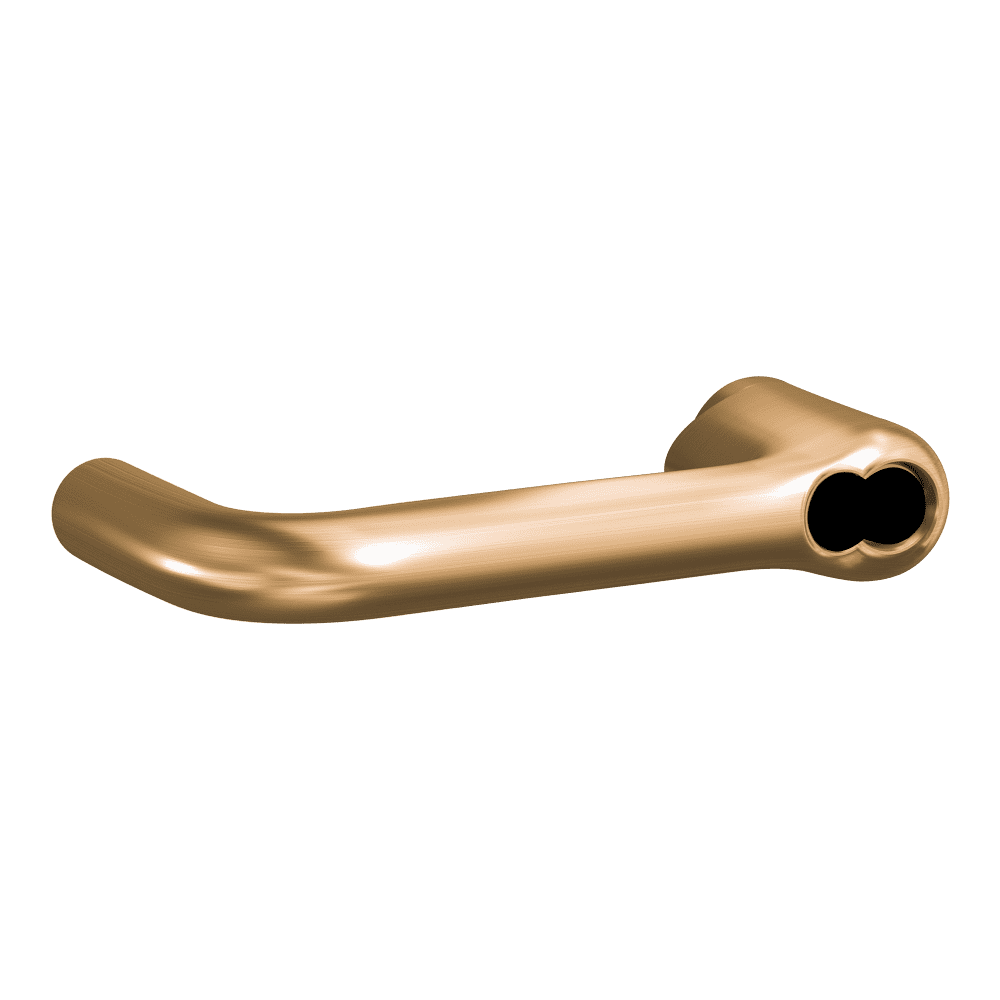

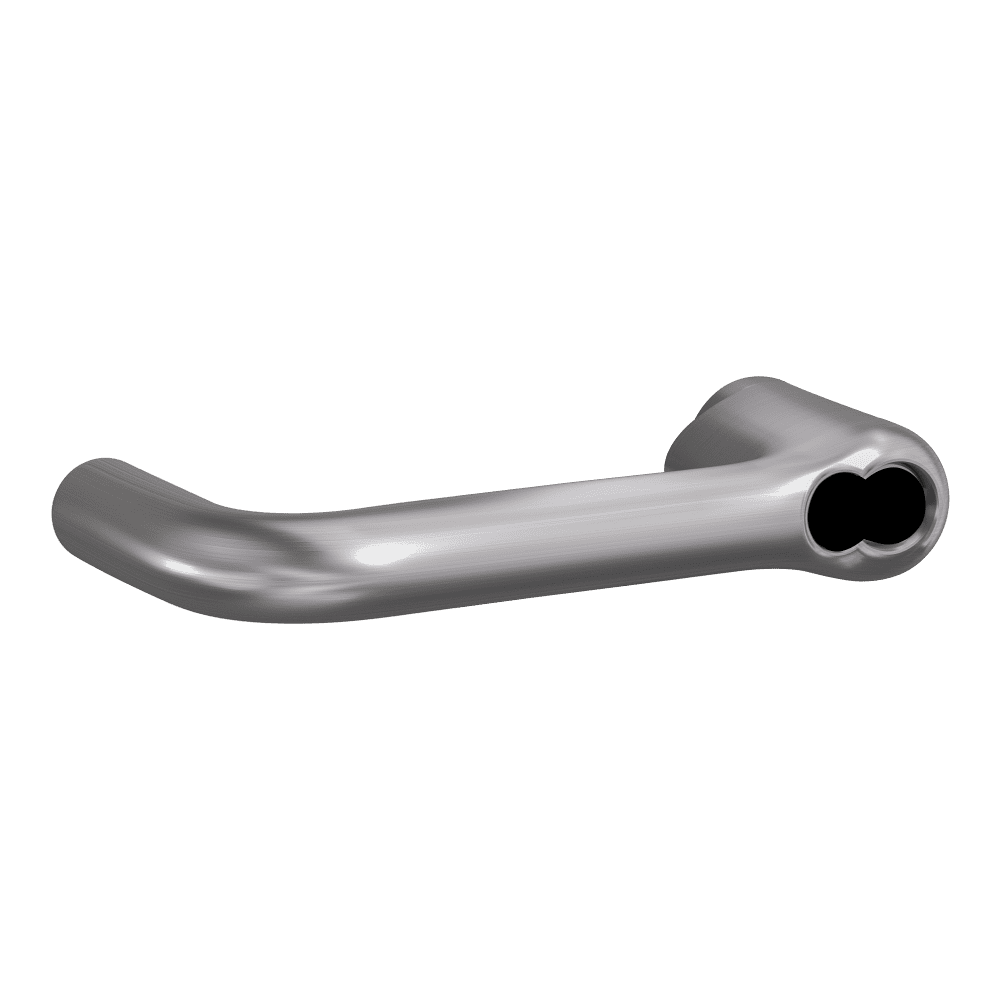

Finishes are listed on the product page. Finish must be specified at time of order. Contact SecurityParts.com for current finish availability. The Corbin Russwin FSIC J-CO7 core is not included and must be ordered separately. The confirmed cylindrical lock legacy part number is 23854565, as noted on the SecurityParts.com product page. For mortise and exit device legacy numbers in the TLR format, contact SecurityParts.com for confirmation.
