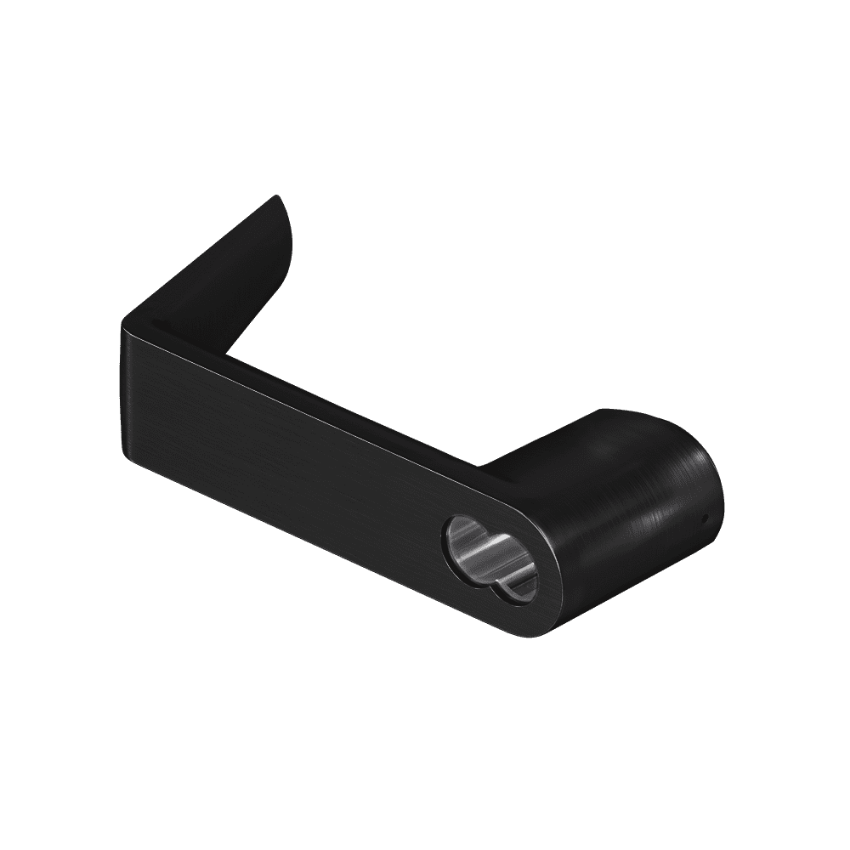

The Schlage 03-237-RHO is the OEM Rhodes Lever factory prepared for the Medeco 6-pin Large Format Interchangeable Core (LFIC / J-MED), for the Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series cylindrical locks, documented in five official Schlage Service Manuals including the NDE Series. Per the SecurityParts.com product page primary function: "Houses Medeco 6-pin LFIC cores for manual latch retraction." Supplied less cylinder. Standard non-tactile Rhodes lever. Non-handed. In stock.

Two Legacy Part Numbers Replaced by the 03-237-RHO

The 03-237-RHO replaces two legacy part numbers, as confirmed on the SecurityParts.com product page under "Original Part#."

• 09-388-RHO: Original part number covering both cylindrical lock and mortise lock outside trim applications using the Rhodes Medeco LFIC lever.
• 03-388-RHO: Original part number for exit device outside trim applications.

Any maintenance record or specification referencing 09-388-RHO (cylindrical or mortise) or 03-388-RHO (exit device) maps to the 03-237-RHO as the current OEM replacement.

03-237-RHO vs 03-237-ATH: Rhodes vs Athens in the Medeco LFIC Format

The 03-237-RHO and the 03-237-ATH (Athens Lever, Medeco LFIC Prep) are both standard non-tactile levers in the 03-237 Medeco LFIC format. Both are In Stock at the same price, both ship less cylinder, and both are documented in five Service Manuals including NDE Series. The only difference is the lever profile. The 03-237-RHO uses the Rhodes design and the 03-237-ATH uses the Athens design. When a building uses Rhodes levers as its established standard and the installed core is a Medeco LFIC, the 03-237-RHO is the correct replacement.

Medeco LFIC: Why Standard Schlage Cylinders Cannot Be Substituted

Per the SecurityParts.com FAQ: "This lever is uniquely milled to fit the distinct physical shell dimensions, depth tolerances, and locking lug paths of a Medeco LFIC cylinder casing." This confirms that the 03-237-RHO housing is not compatible with standard Schlage KIL cylinders or Schlage full-size interchangeable cores. The lever bore is machined specifically for the Medeco LFIC physical profile. A compatible Medeco 6-pin LFIC (J-MED) core must be sourced separately and installed in the field. The core is not included with the 03-237-RHO.

Five-Series Coverage and Finishes

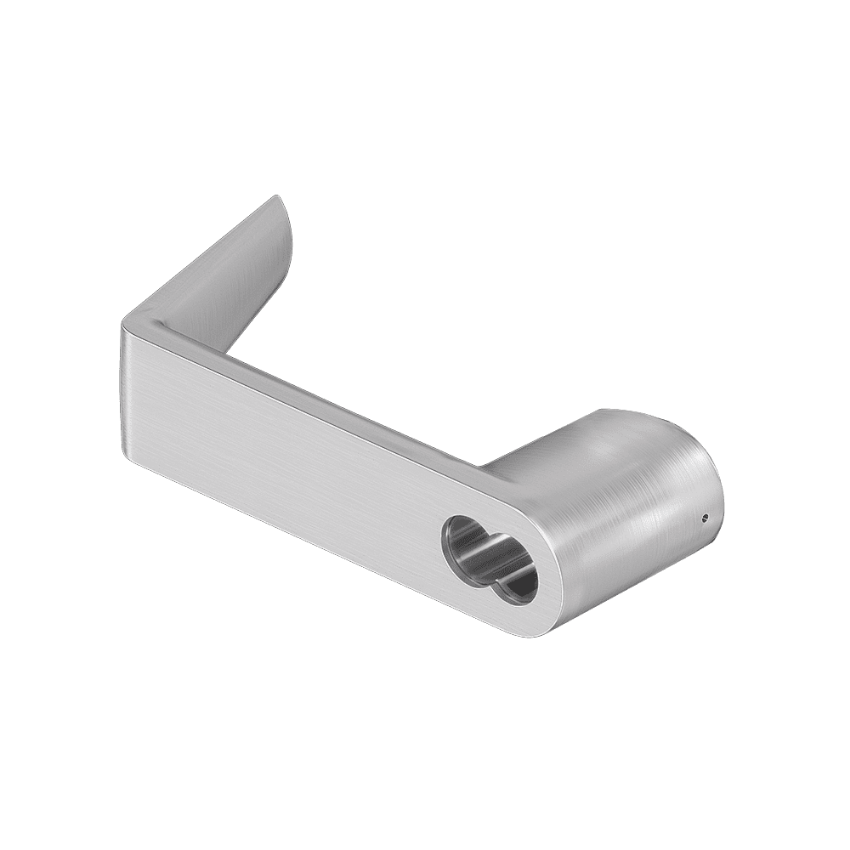

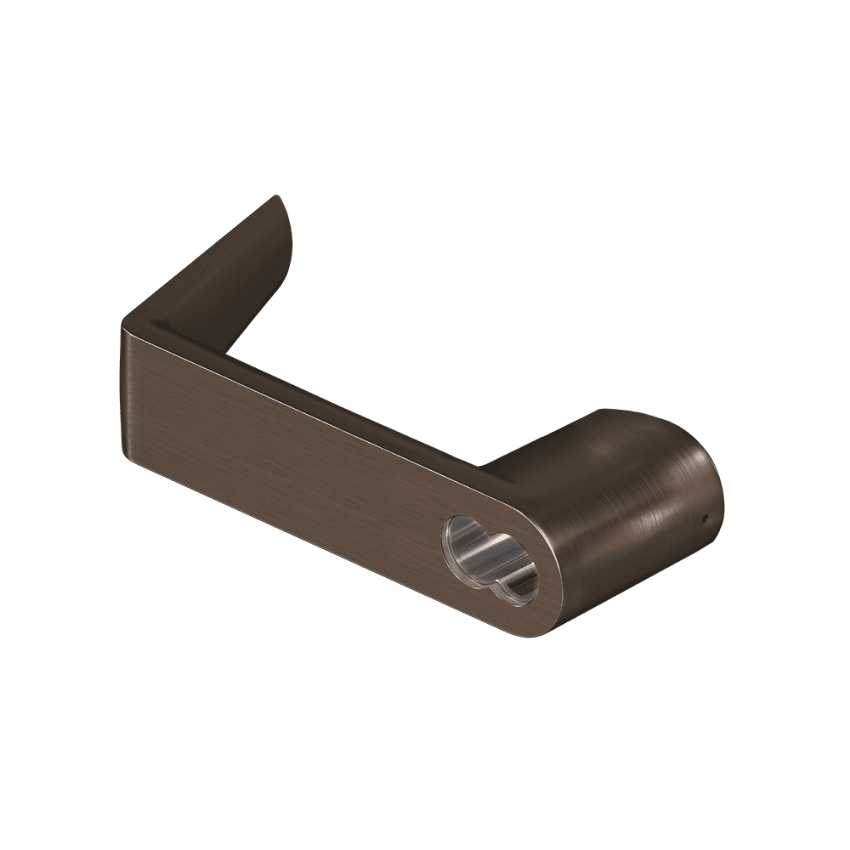

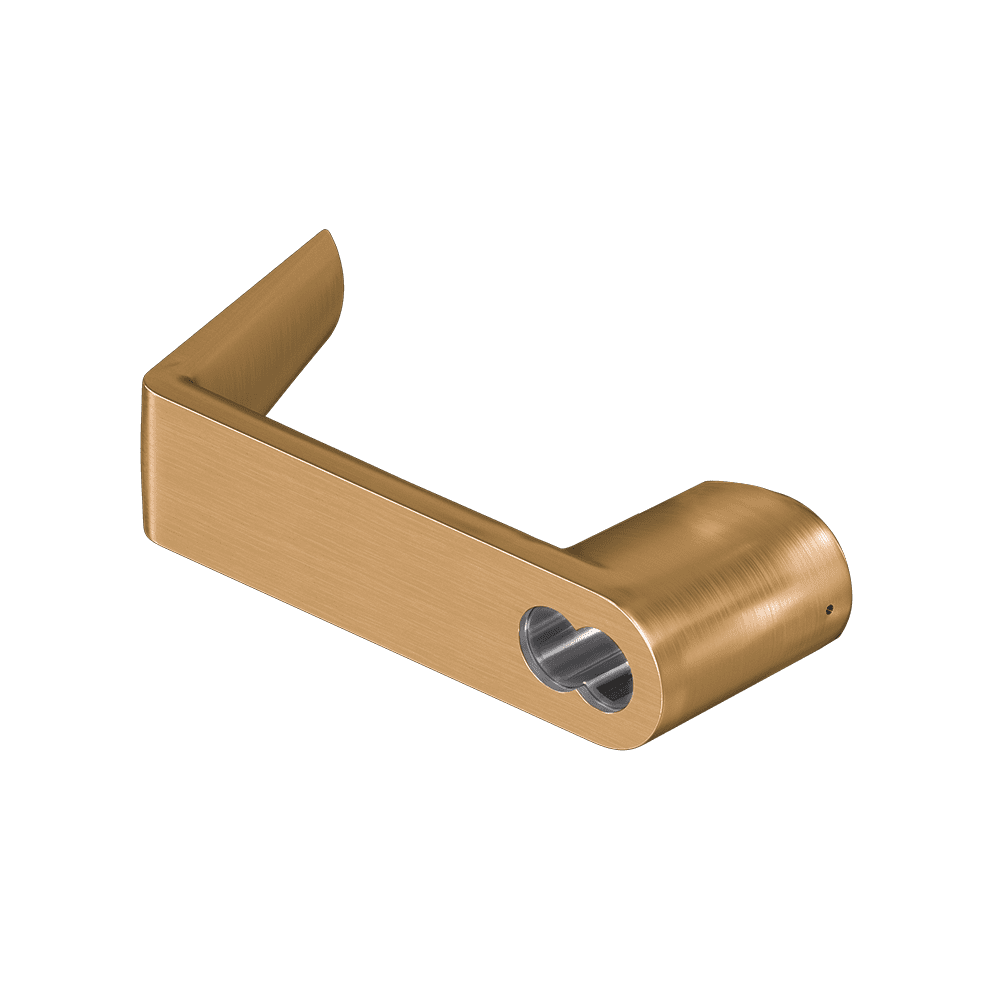

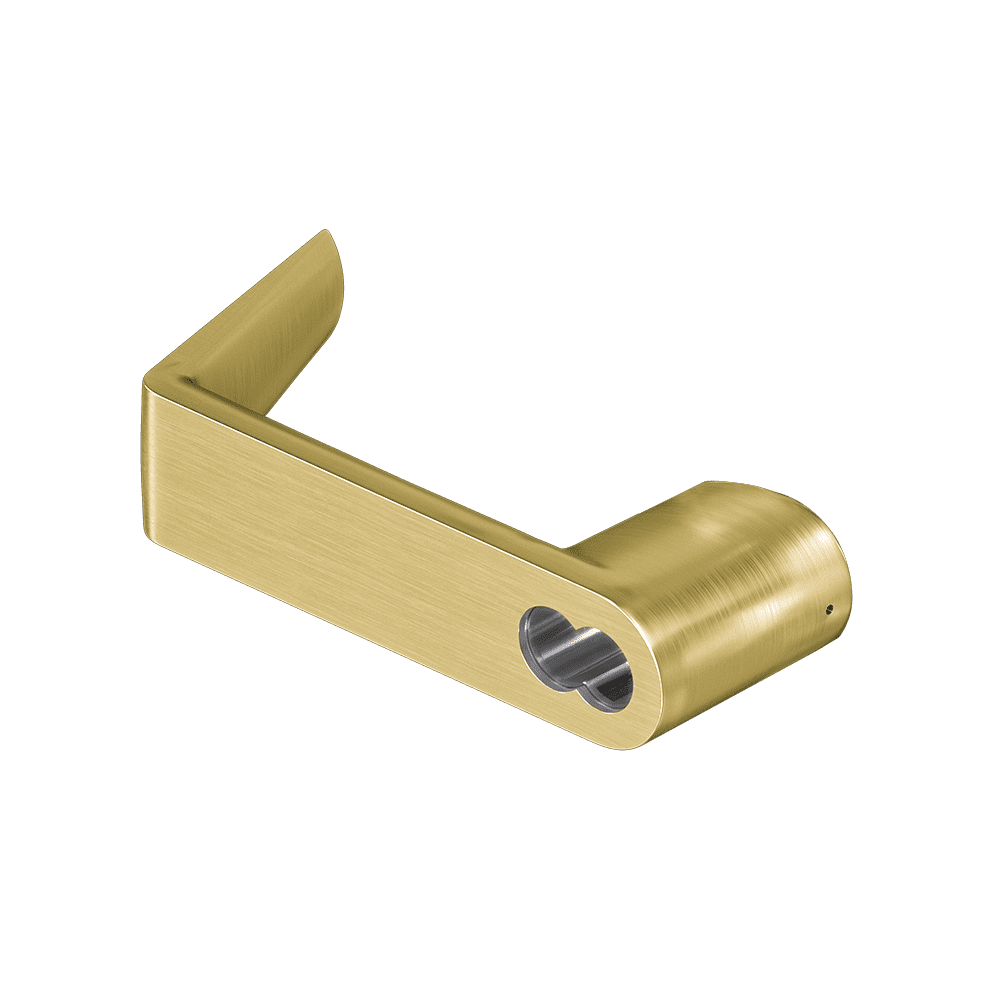

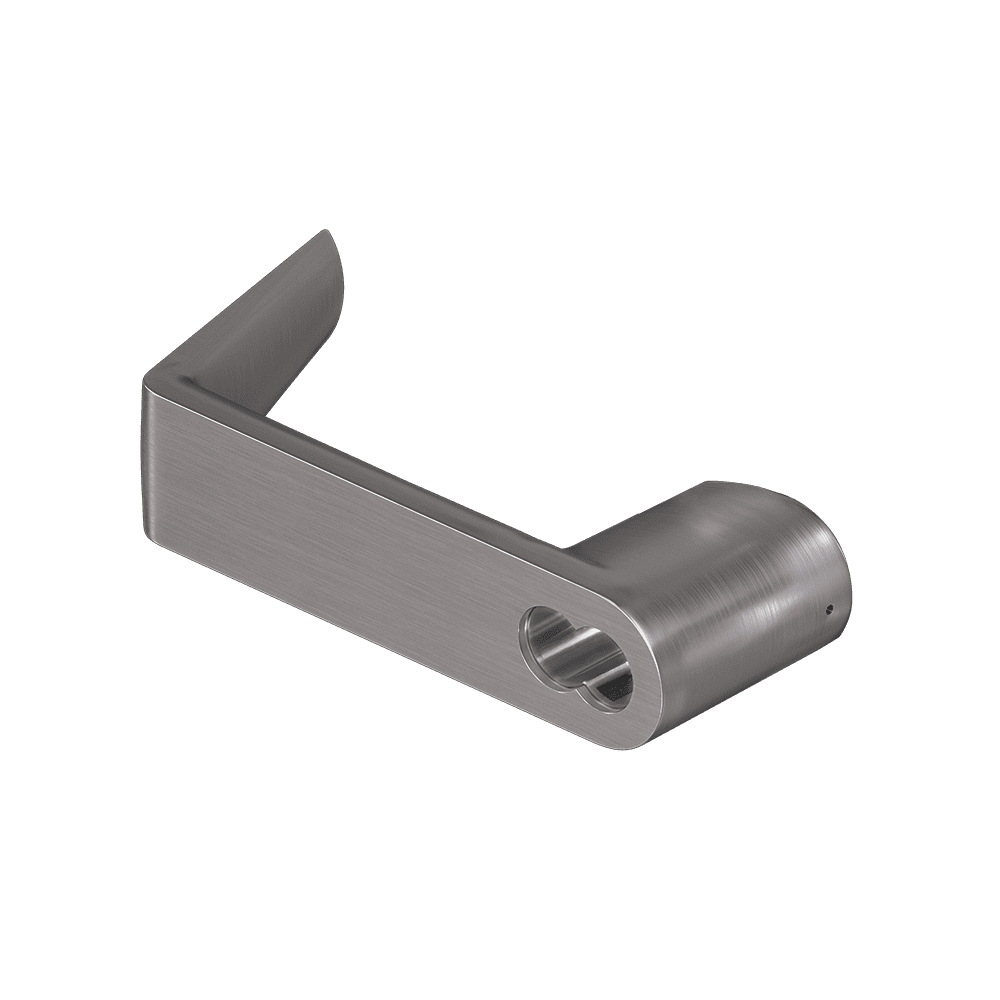

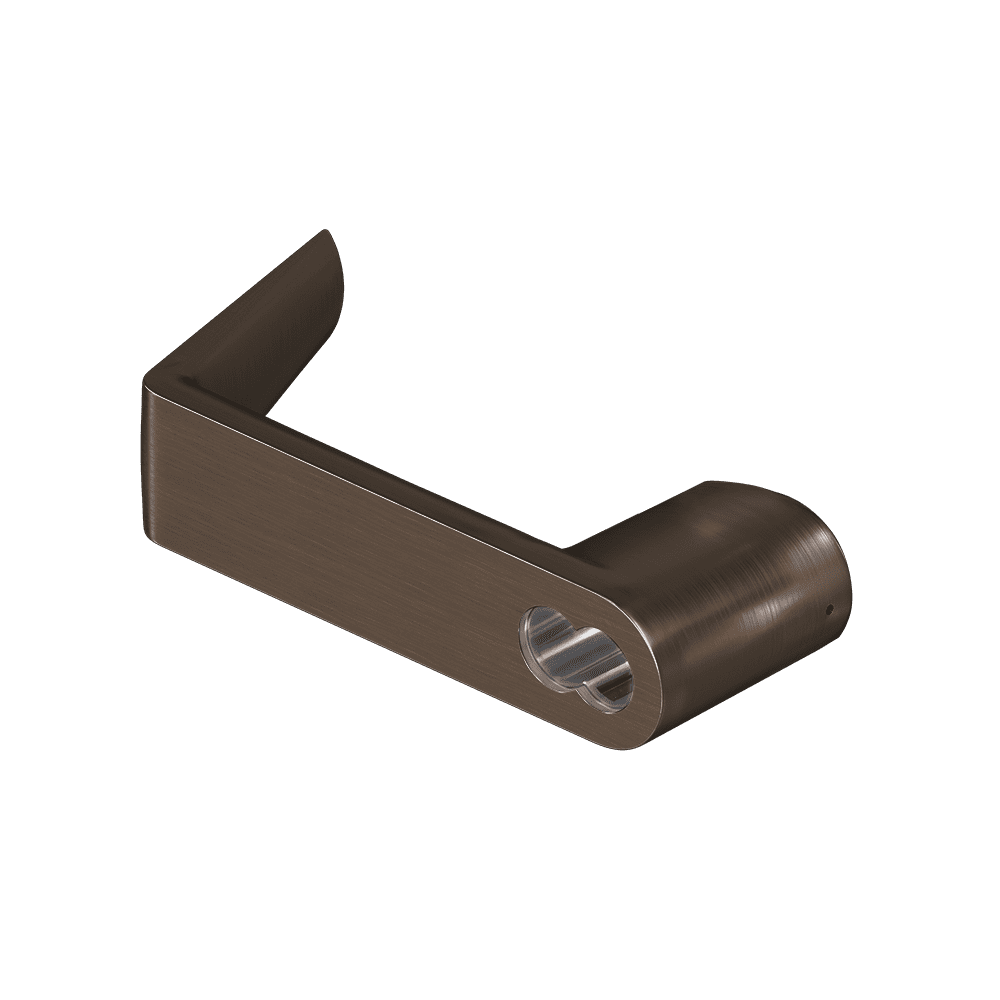

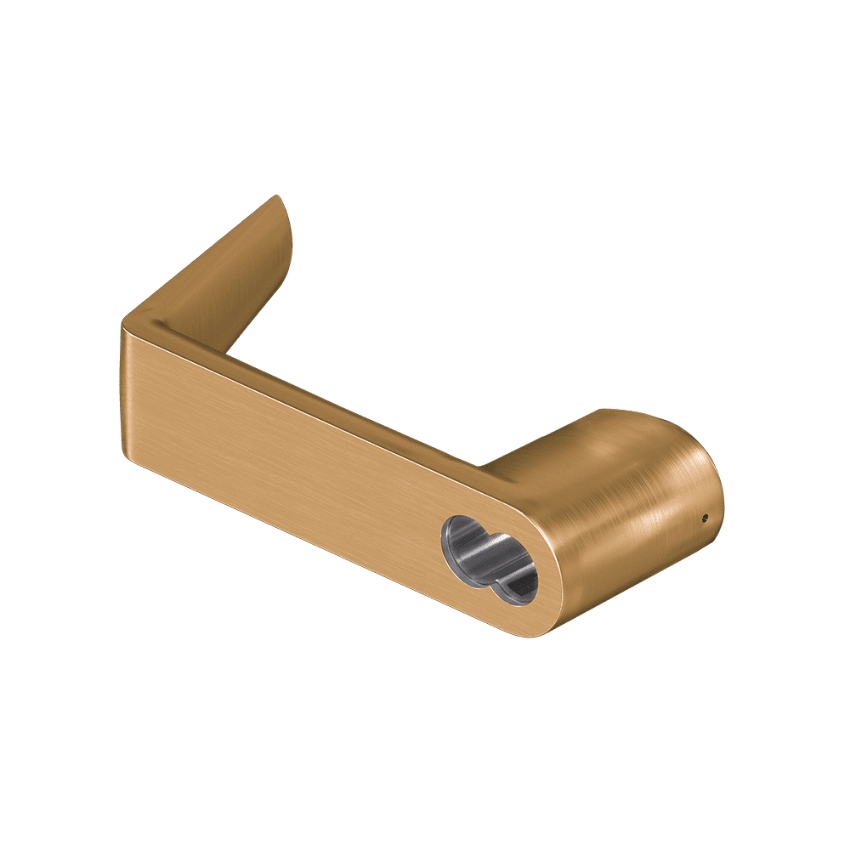

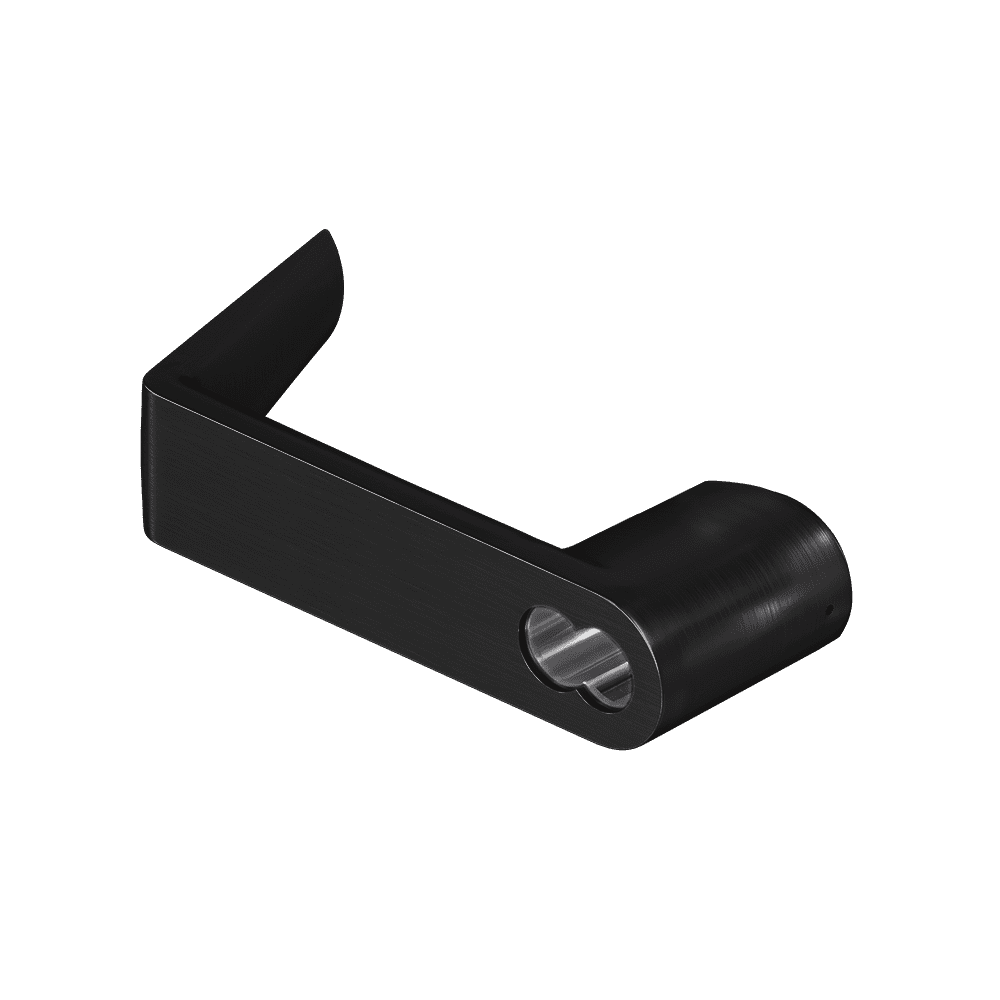

The 03-237-RHO is compatible with Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series, as confirmed on the SecurityParts.com product page. Per the FAQ: "This premium OEM component features Schlage's universal architectural trim engineering, enabling it to fit seamlessly onto AD Series, CO Series, ALX Series, and ND Series chassis configurations." Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). All finishes are currently not available. Finish must be specified at time of order. Contact SecurityParts.com for current availability.
