The Schlage 03-244-ATH is the OEM Athens Lever designed for Sargent conventional 6-pin Key-in-Lever (KIL) cylinder applications, for the Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series cylindrical locks, documented in five official Schlage Service Manuals including the NDE Series. Per the SecurityParts.com product page: "It is a genuine OEM Athens-style exterior lever less cylinder designed for compatible Schlage commercial locks using a Sargent Conventional Key-in-Lever (KIL) cylinder." Standard non-tactile Athens lever. Supplied less cylinder. Non-handed. In stock.

Three Legacy Part Numbers Replaced by the 03-244-ATH

The 03-244-ATH replaces three legacy part numbers, as confirmed on the SecurityParts.com product page under "Original Part#."

• 03-044-ATH: Original part number for cylindrical lock outside trim applications using the Athens Sargent KIL lever.
• 09-344-ATH: Original part number for mortise lock trim applications. The 09 prefix in the legacy Schlage system identified mortise trim levers.
• 03-344-ATH: Original part number for exit device outside trim applications.

All three installation types are served by the 03-244-ATH as the current OEM part number. Any maintenance record or specification referencing these three legacy numbers maps to the 03-244-ATH for current ordering.

Standard vs Tactile: 03-244-ATH vs 03-244-8AT

The 03-244-ATH is the standard non-tactile Athens Sargent KIL lever. The 03-244-8AT is the tactile version with knurled tactile grooves on the handle for ADA hazardous area identification. Both accept a Sargent conventional 6-pin KIL cylinder and ship less cylinder. Three key differences distinguish them. First, the handle surface: the 03-244-ATH is smooth, the 03-244-8AT has knurled grooves. Second, the NDE Series coverage: the 03-244-ATH includes NDE (5 Service Manuals), while the 03-244-8AT does not (4 Service Manuals). Third, availability: the 03-244-ATH is confirmed In Stock. When replacing a standard Athens Sargent KIL lever, confirm the original did not carry the tactile designation before ordering the 03-244-ATH.

Series Compatibility and Finishes

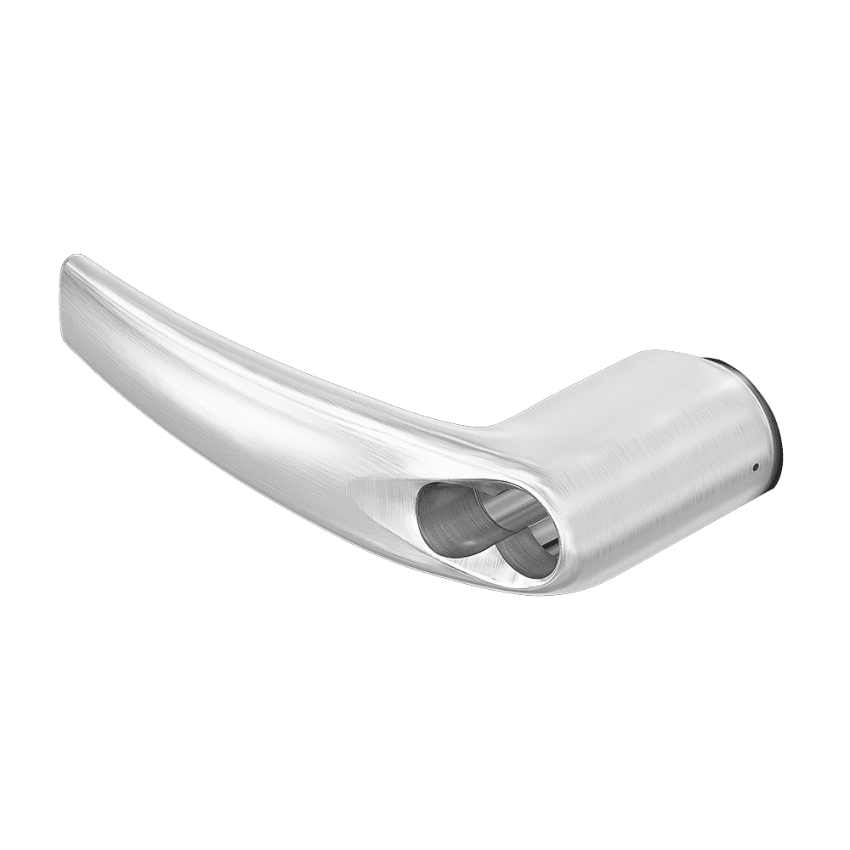

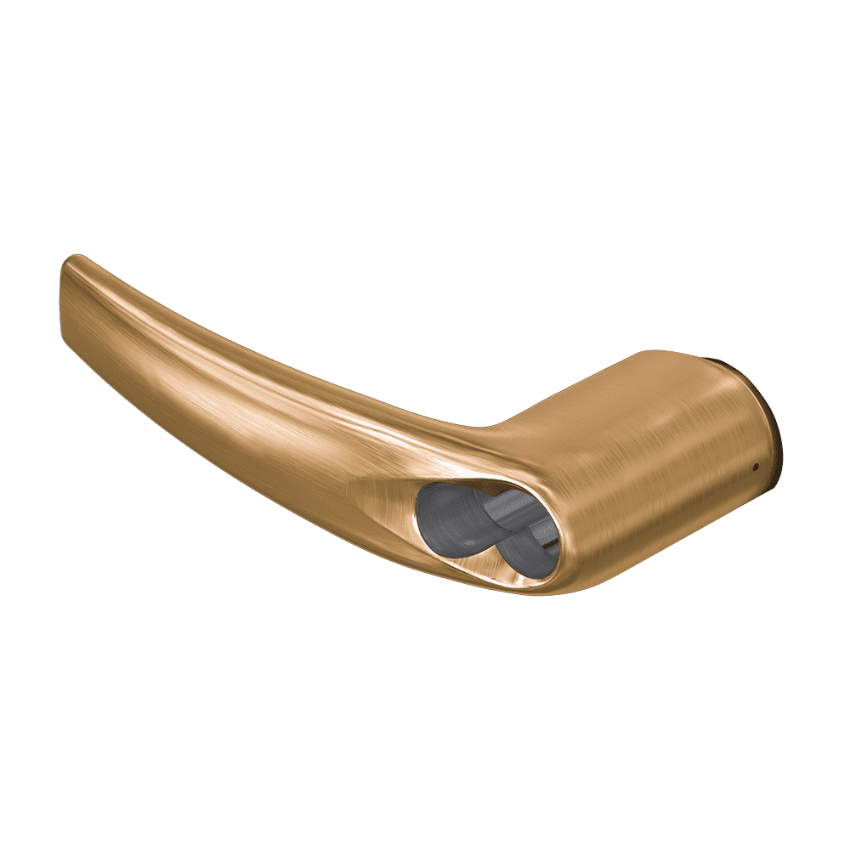

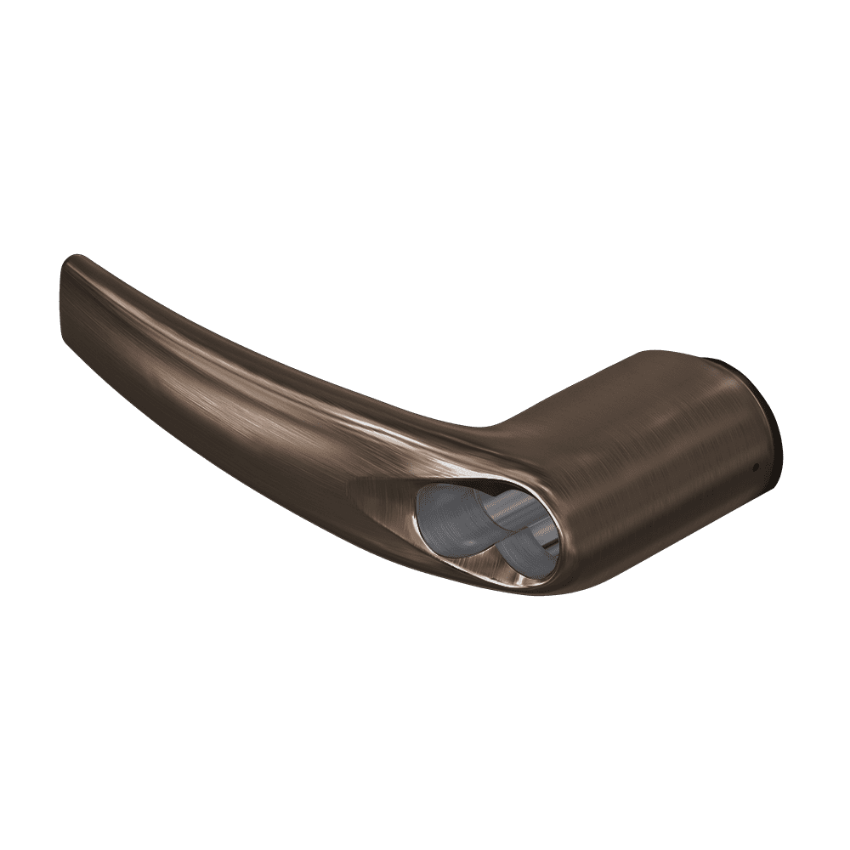

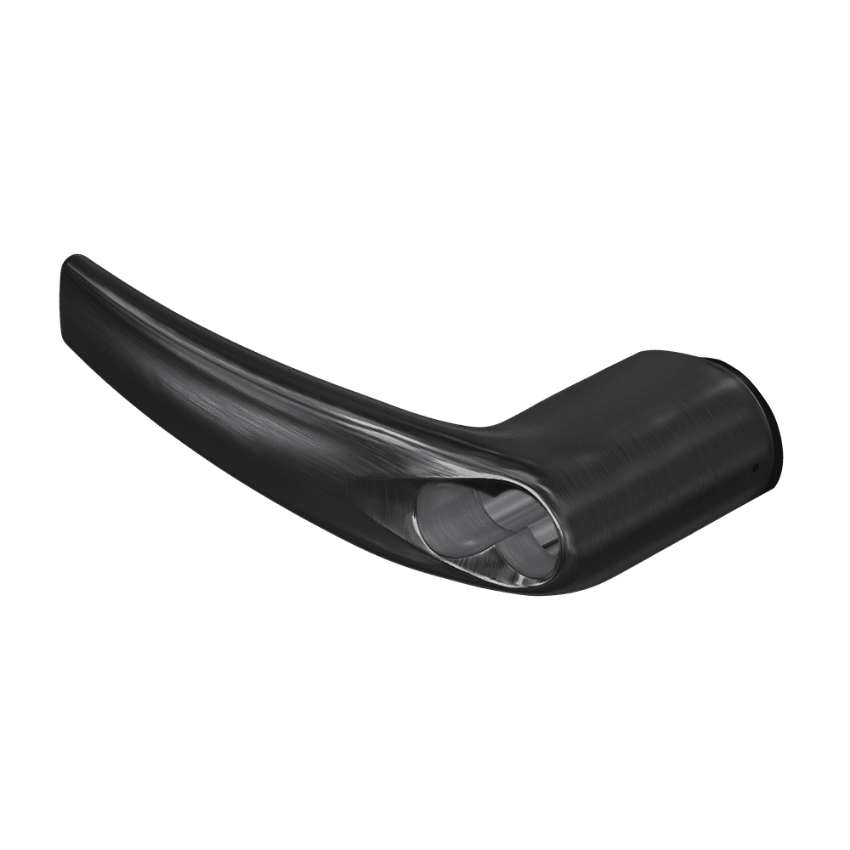

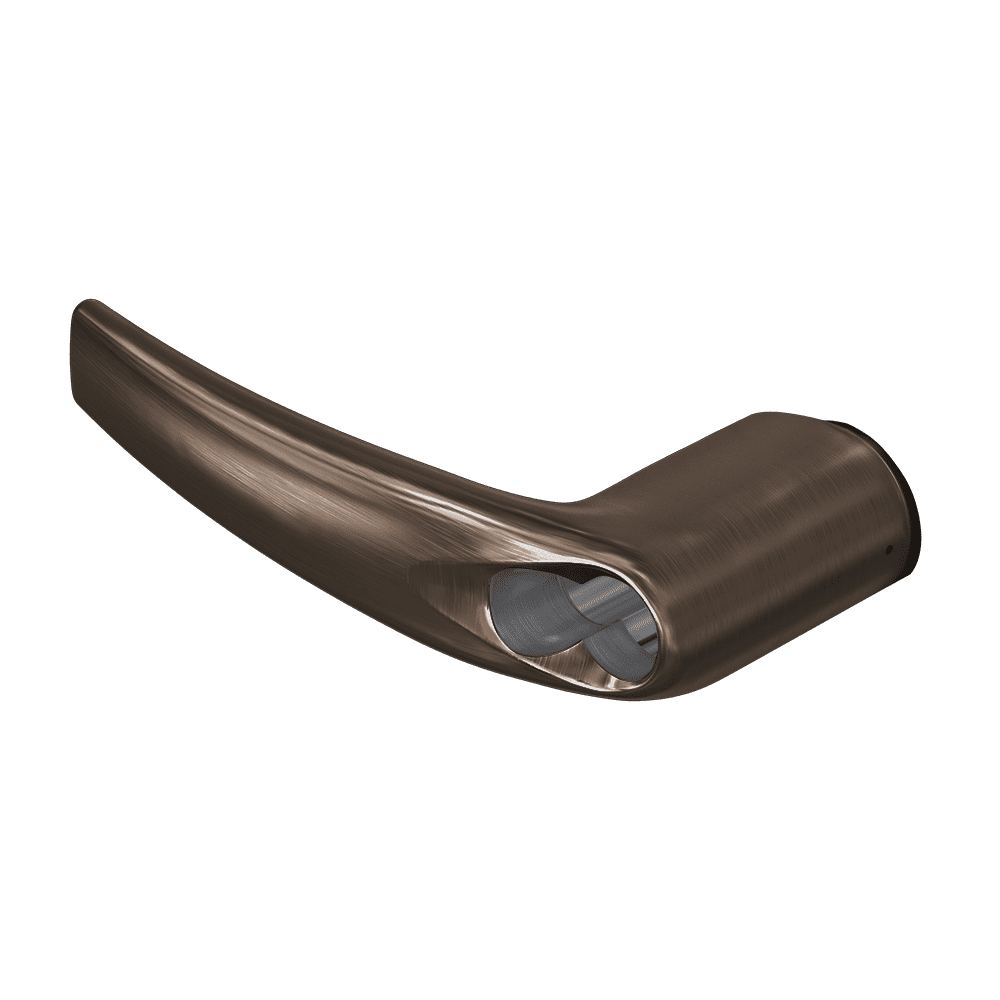

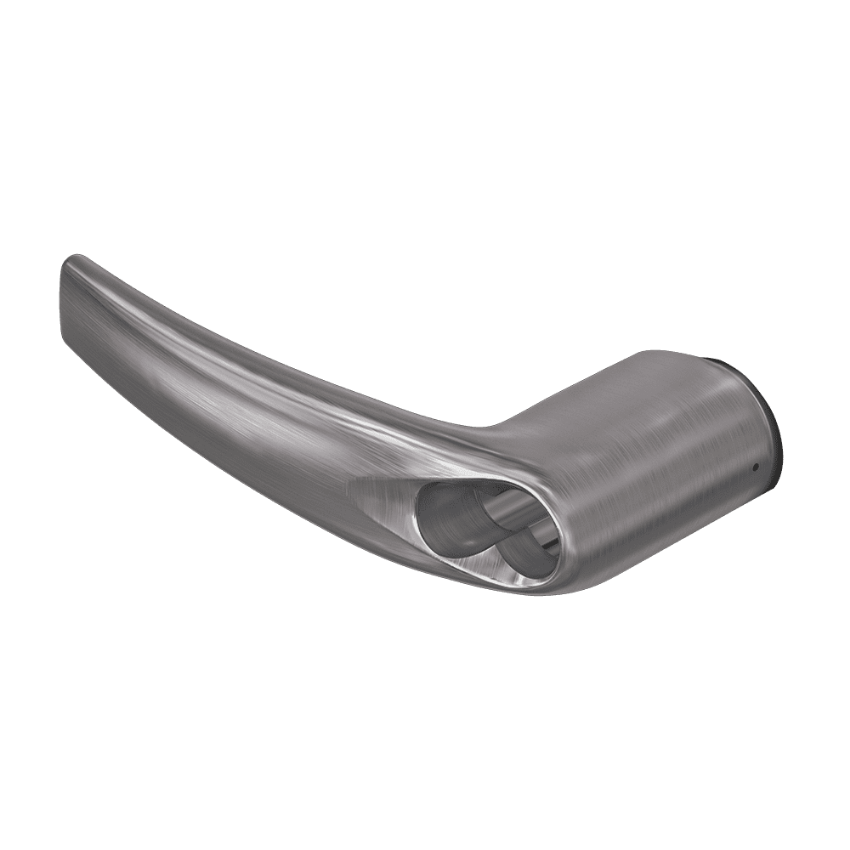

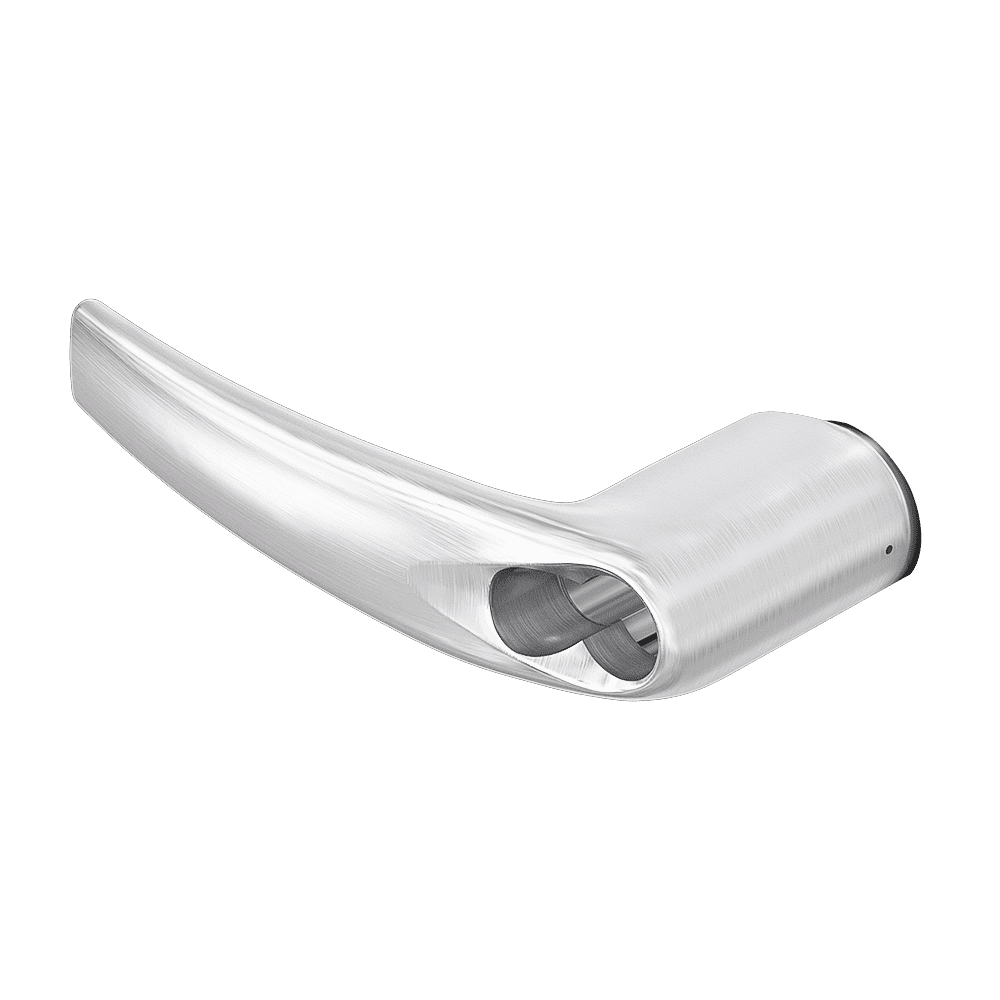

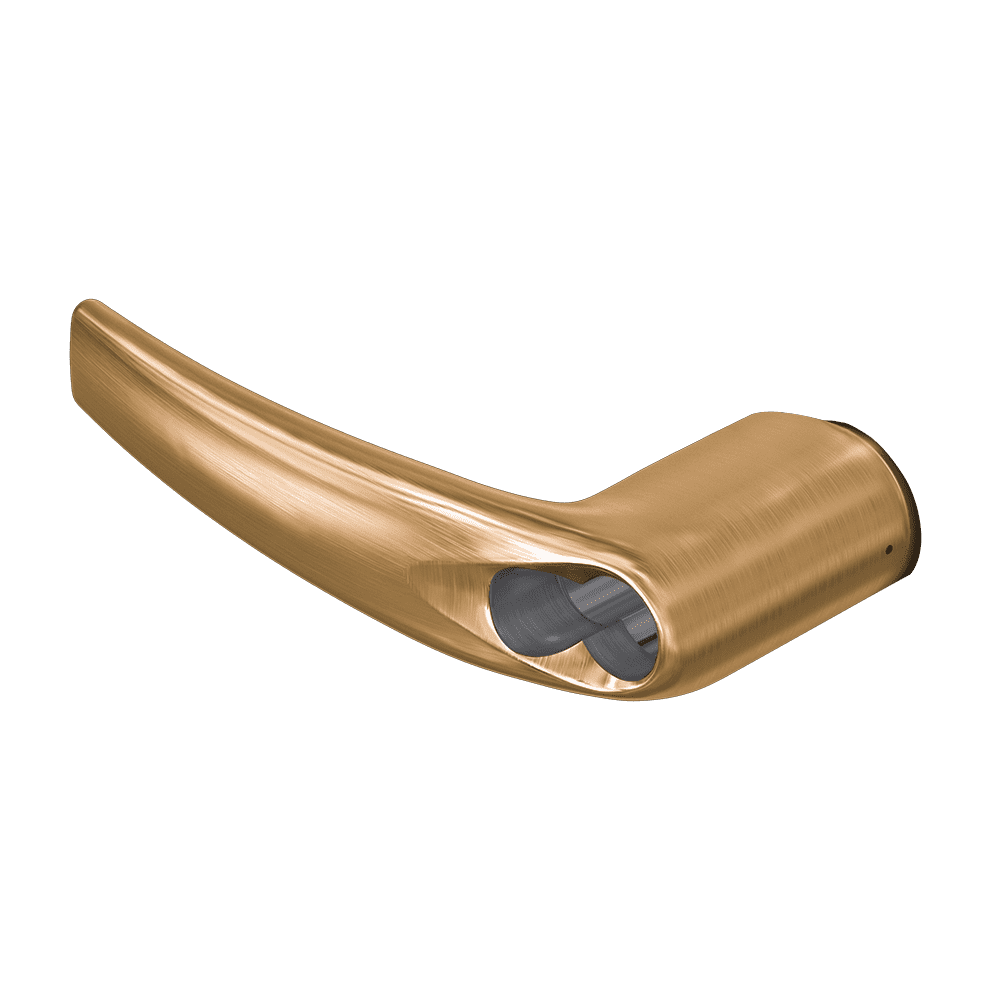

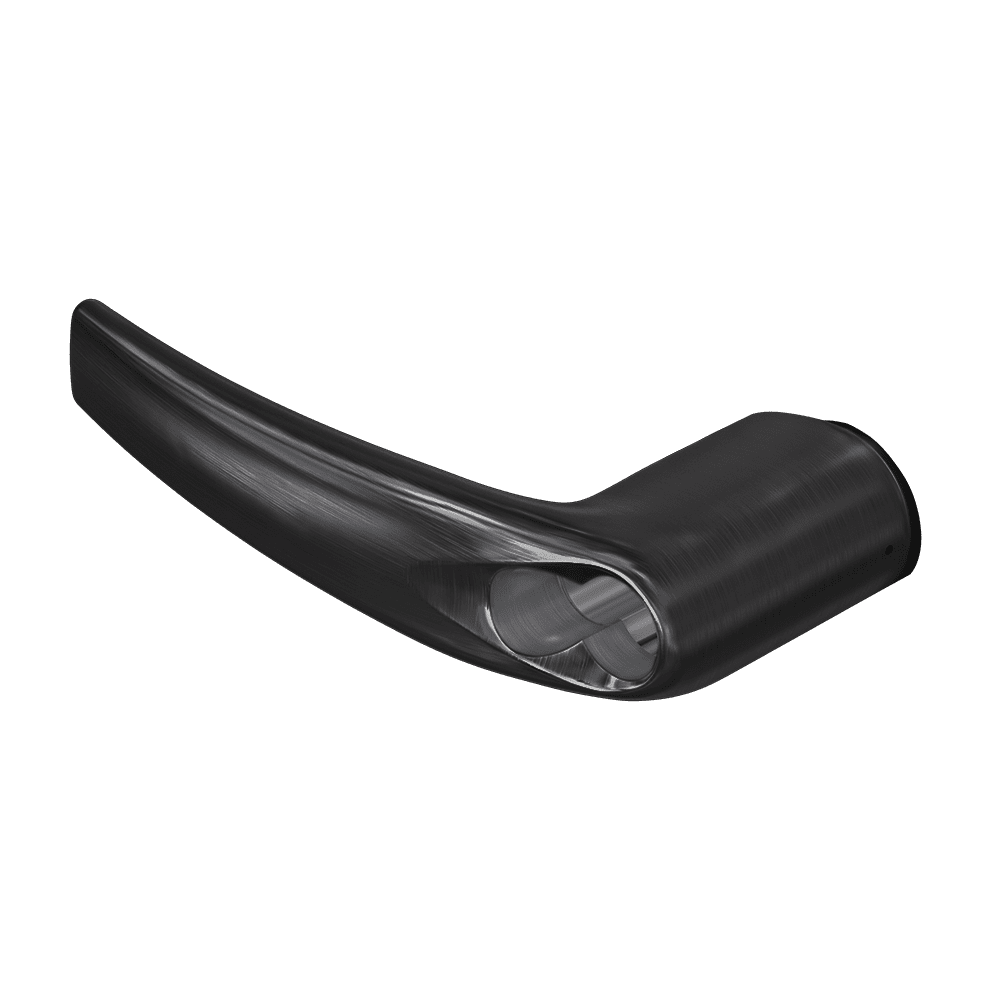

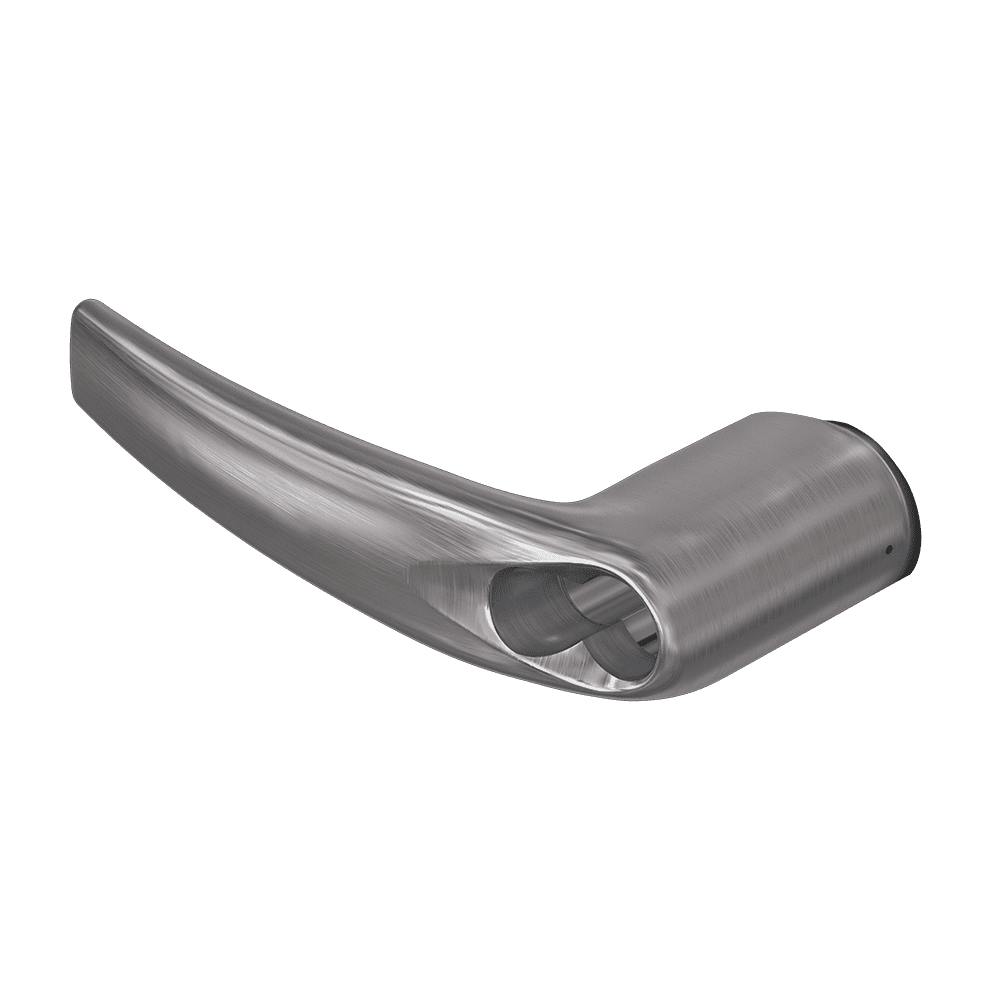

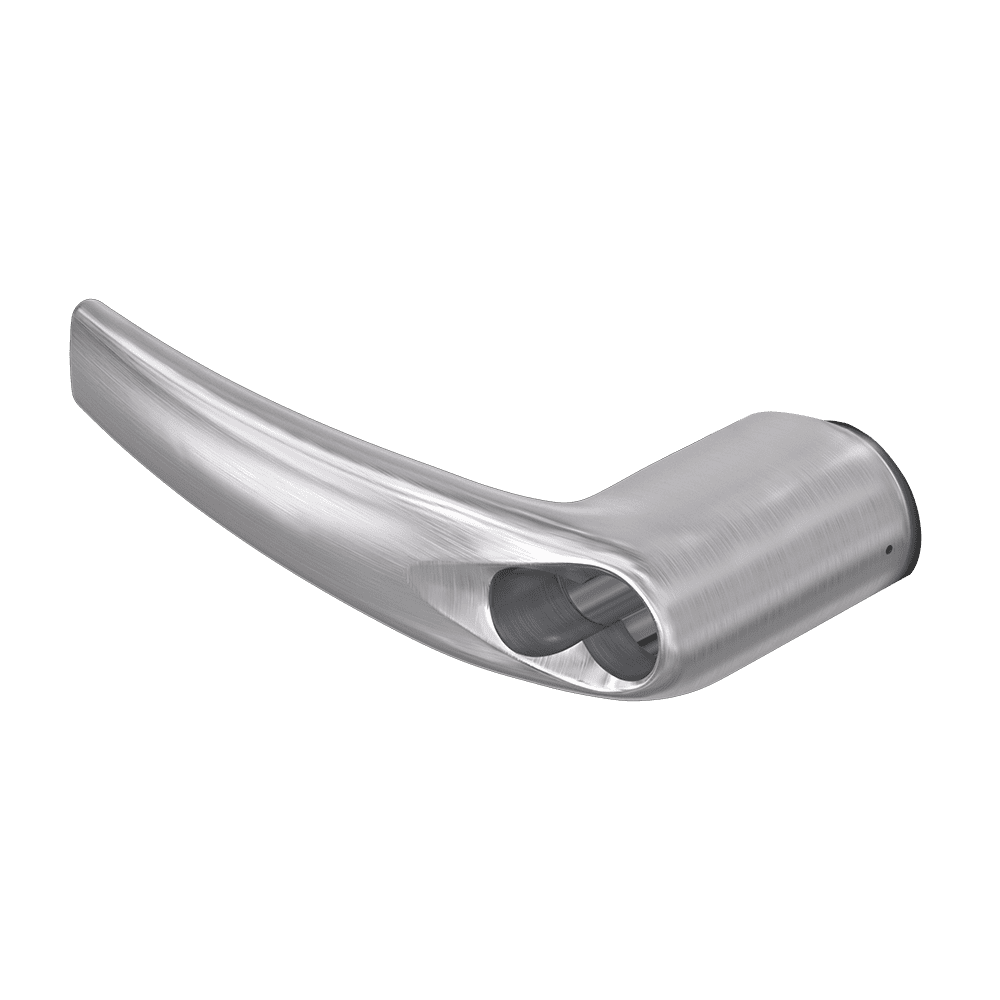

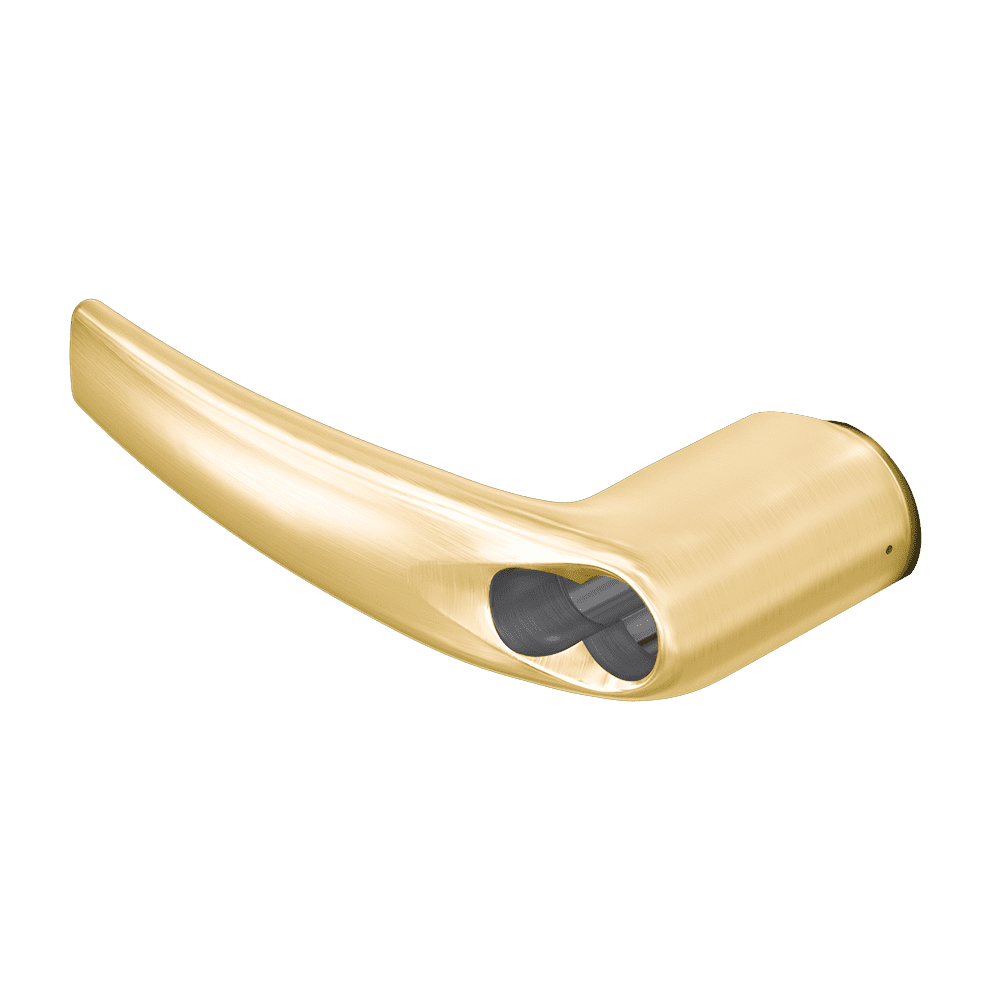

The 03-244-ATH is compatible with AD Series, CO Series, ALX Series, ND Series, and NDE Series locks configured for Sargent conventional 6-pin KIL cylinders, as confirmed on the SecurityParts.com product page. Per the FAQ: "It is designed to accept a 6-pin Sargent Key-in-Lever (KIL) cylinder." Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). All finishes are currently not available. Finish must be specified at time of order. Contact SecurityParts.com for current finish availability. The Sargent conventional 6-pin KIL cylinder is not included.
