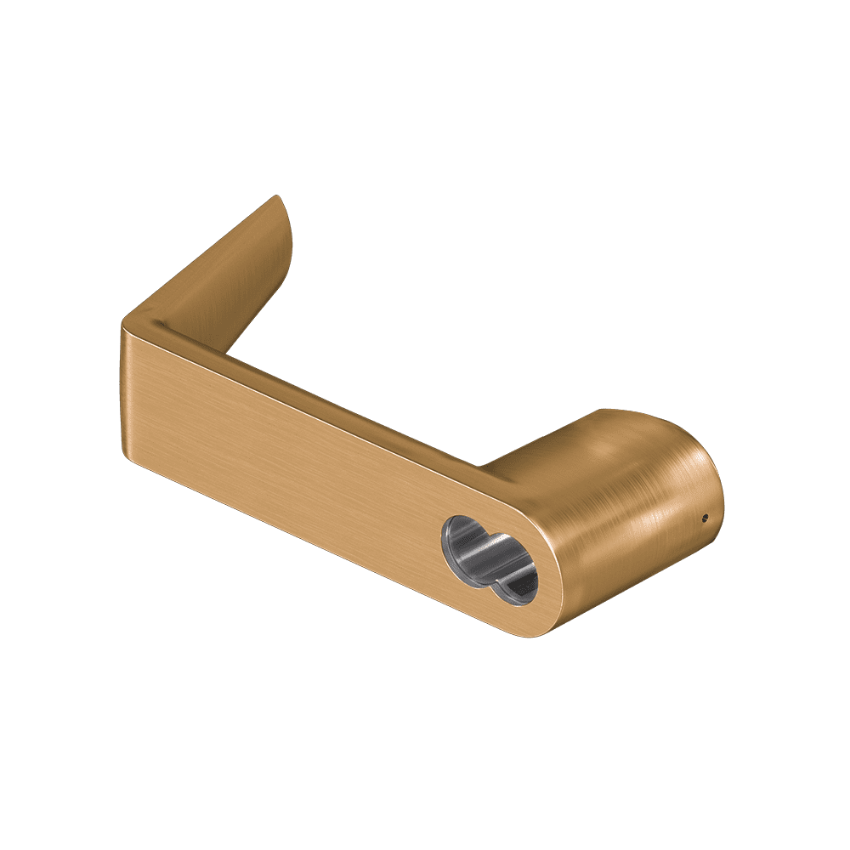

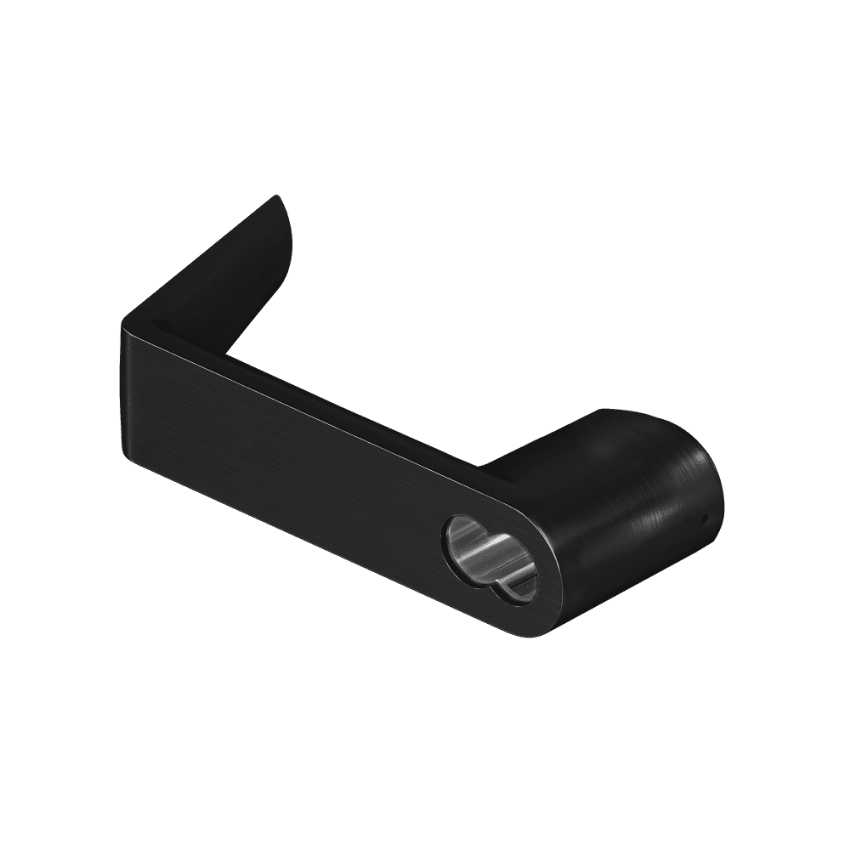

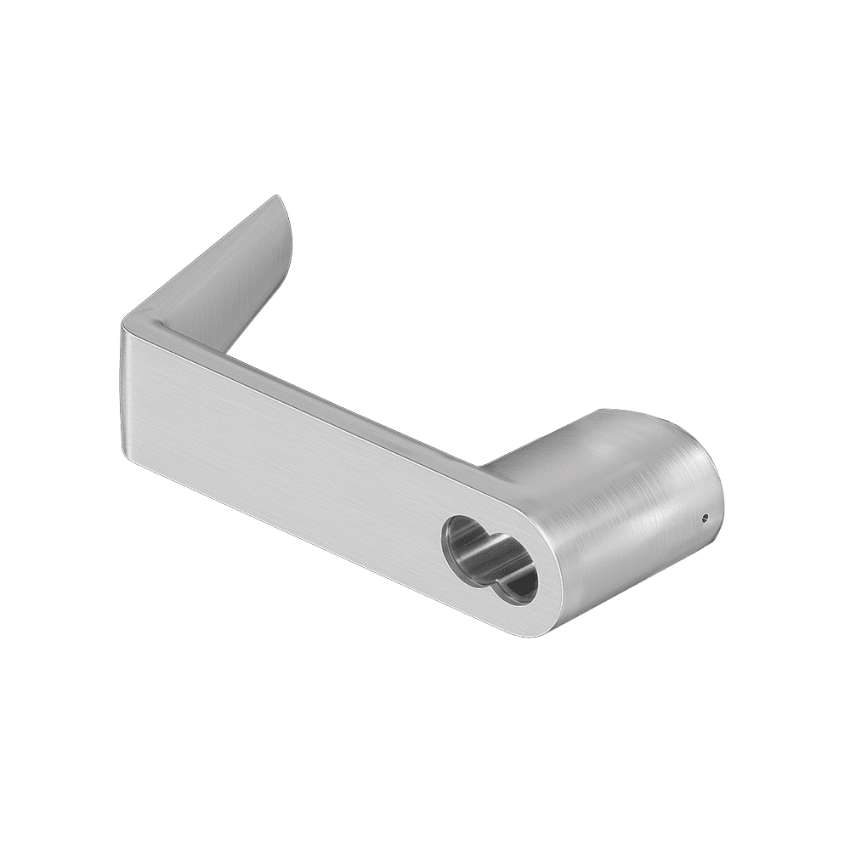

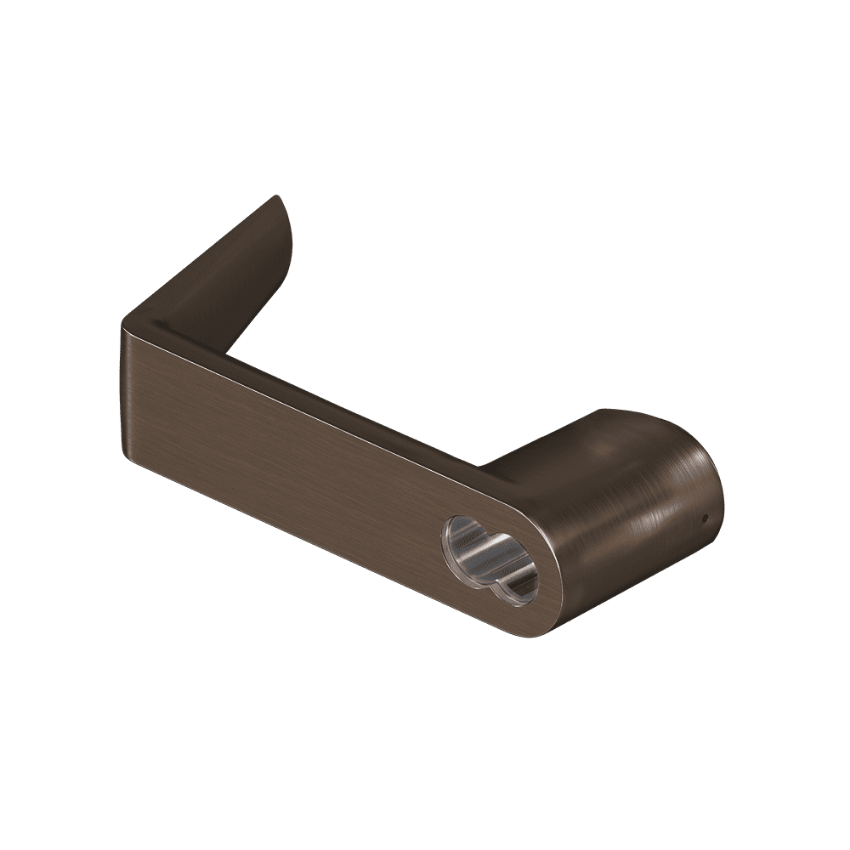

The Schlage 03-244-RHO is the OEM Rhodes Lever designed for Sargent conventional 6-pin Key-in-Lever (KIL) cylinder applications, for the Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series cylindrical locks, documented in five official Schlage Service Manuals including the NDE Series. Per the SecurityParts.com product page: "It is a genuine OEM Rhodes-style exterior lever less cylinder designed for compatible Schlage commercial locks using a Sargent Conventional Key-in-Lever (KIL) cylinder." Standard non-tactile Rhodes lever. Supplied less cylinder. Non-handed. In stock.

Three Legacy Part Numbers Replaced by the 03-244-RHO

The 03-244-RHO replaces three legacy part numbers, as confirmed on the SecurityParts.com product page under "Original Part#."

• 03-044-RHO: Original part number for cylindrical lock outside trim applications using the Rhodes Sargent KIL lever.
• 09-344-RHO: Original part number for mortise lock trim applications. The 09 prefix in the legacy Schlage system identified mortise trim levers.
• 03-344-RHO: Original part number for exit device outside trim applications.

All three installation types are served by the 03-244-RHO as the current OEM part number. Any maintenance record or specification referencing these three legacy numbers maps to the 03-244-RHO for current ordering.

Standard vs Tactile: 03-244-RHO vs 03-244-8RO

The 03-244-RHO is the standard non-tactile Rhodes Sargent KIL lever. The 03-244-8RO is the tactile version with knurled tactile grooves on the handle for ADA hazardous area identification. Both accept a Sargent conventional 6-pin KIL cylinder and ship less cylinder. Key differences: the 03-244-RHO has a smooth handle surface and is documented in five Service Manuals including NDE Series, while the 03-244-8RO has knurled grooves and is documented in four Service Manuals without NDE. The 03-244-RHO is confirmed In Stock. When replacing a standard Rhodes Sargent KIL lever, confirm the original did not specify the tactile designation before ordering.

Sargent KIL Format and Series Compatibility

Per the SecurityParts.com FAQ: "It is designed for a 6-pin Sargent Key-in-Lever (KIL) cylinder." The primary function is "Accommodates a Sargent conventional cylinder core for manual latch retraction." The lever bore is prepared for a Sargent conventional 6-pin KIL cylinder, which is distinct from standard Schlage KIL prep (03-231 prefix) and all interchangeable core formats. A compatible Sargent conventional 6-pin KIL cylinder must be sourced separately. The 03-244-RHO is compatible with AD Series, CO Series, ALX Series, ND Series, and NDE Series. Ten finishes are listed: 605, 606, 612, 613, 619, 622, 625, 626, 626AM, and 643E. All finishes are currently not available. Finish must be specified at time of order. Contact SecurityParts.com for current finish availability.

SecurityParts stocks OEM Schlage ND Series and ALX Series lever components. Free shipping on orders over $300.
