The Schlage 03-244-SPA is the OEM Sparta Lever designed for Sargent conventional 6-pin Key-in-Lever (KIL) cylinder applications, for the Schlage AD Series, CO Series, ALX Series, and ND Series cylindrical locks. Per the SecurityParts.com product page: "It is a genuine OEM Sparta-style exterior lever less cylinder designed for Schlage commercial electronic and mechanical locksets utilizing a Sargent Conventional Key-in-Lever (KIL) cylinder." Standard non-tactile Sparta lever. Supplied less cylinder. Non-handed. Original Part# 03-044-SPA. In stock.

Legacy Part Number and Ordering Note

The 03-244-SPA lists one original part number: 03-044-SPA, as confirmed on the SecurityParts.com product page. This single legacy number covers cylindrical lock outside trim applications. The 03-244-ATH (Athens) and 03-244-RHO (Rhodes) standard Sargent KIL levers each carry three legacy numbers covering cylindrical, mortise, and exit device applications separately. The 03-244-SPA page confirms only one legacy reference. When sourcing a replacement for a Sparta Sargent KIL lever from a mortise lock or exit device application, contact SecurityParts.com to confirm the current part number for those specific installation types.

Standard vs Tactile: 03-244-SPA vs 03-244-8SP

The 03-244-SPA is the standard non-tactile Sparta Sargent KIL lever. The 03-244-8SP is the tactile version with knurled tactile grooves on the handle for ADA hazardous area identification. Both accept a Sargent conventional 6-pin KIL cylinder and ship less cylinder. The 03-244-8SP is documented in five Service Manuals including NDE Series. The 03-244-SPA is documented for AD, CO, ALX, and ND Series. When replacing a standard Sparta Sargent KIL lever, confirm the original did not specify the tactile designation before ordering the 03-244-SPA.

NDE Series Coverage Note

The formal compatibility section on the SecurityParts.com product page lists AD Series, CO Series, ALX Series, and ND Series for the 03-244-SPA. The NDE Series is not included. This differs from the 03-244-ATH and 03-244-RHO standard Sargent KIL levers, both of which include NDE Series in their five-series compatibility. When a Sargent KIL configured NDE exit device outside trim requires a Sparta lever, confirm the correct specification before ordering the 03-244-SPA.

Series Compatibility and Finishes

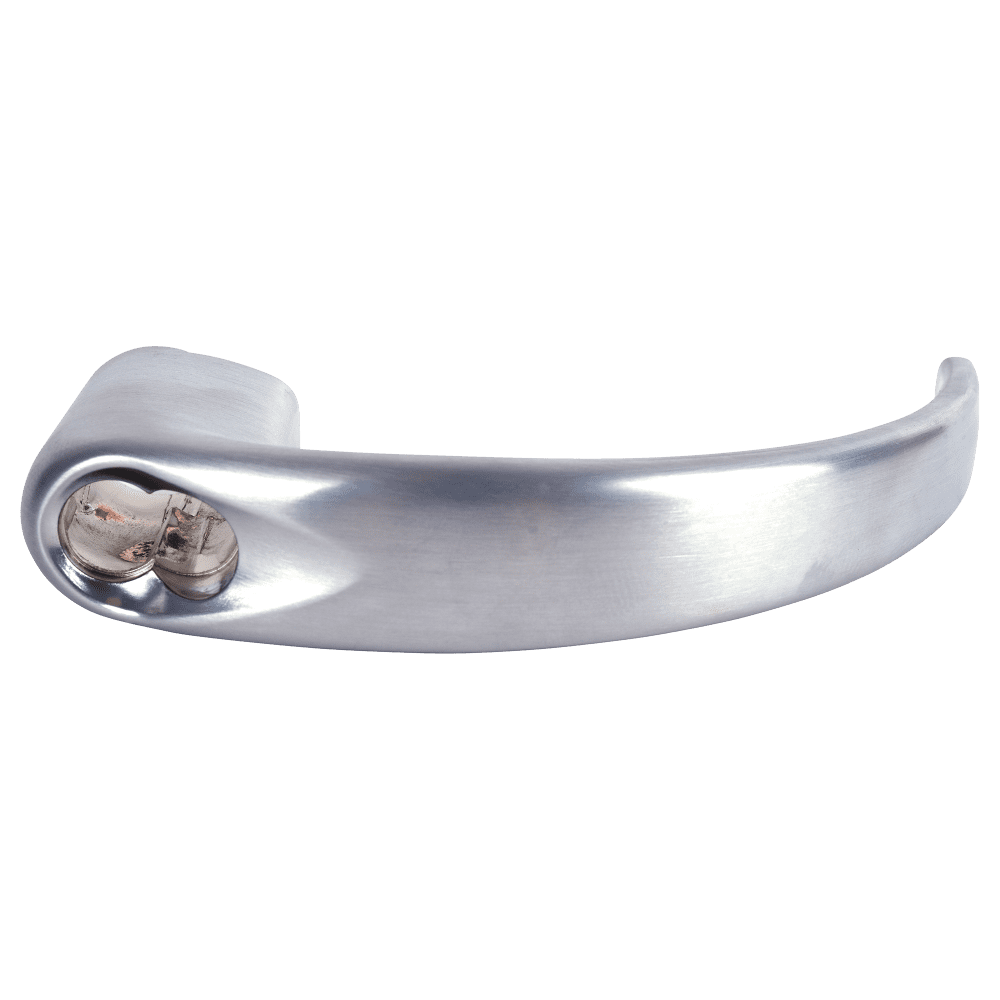

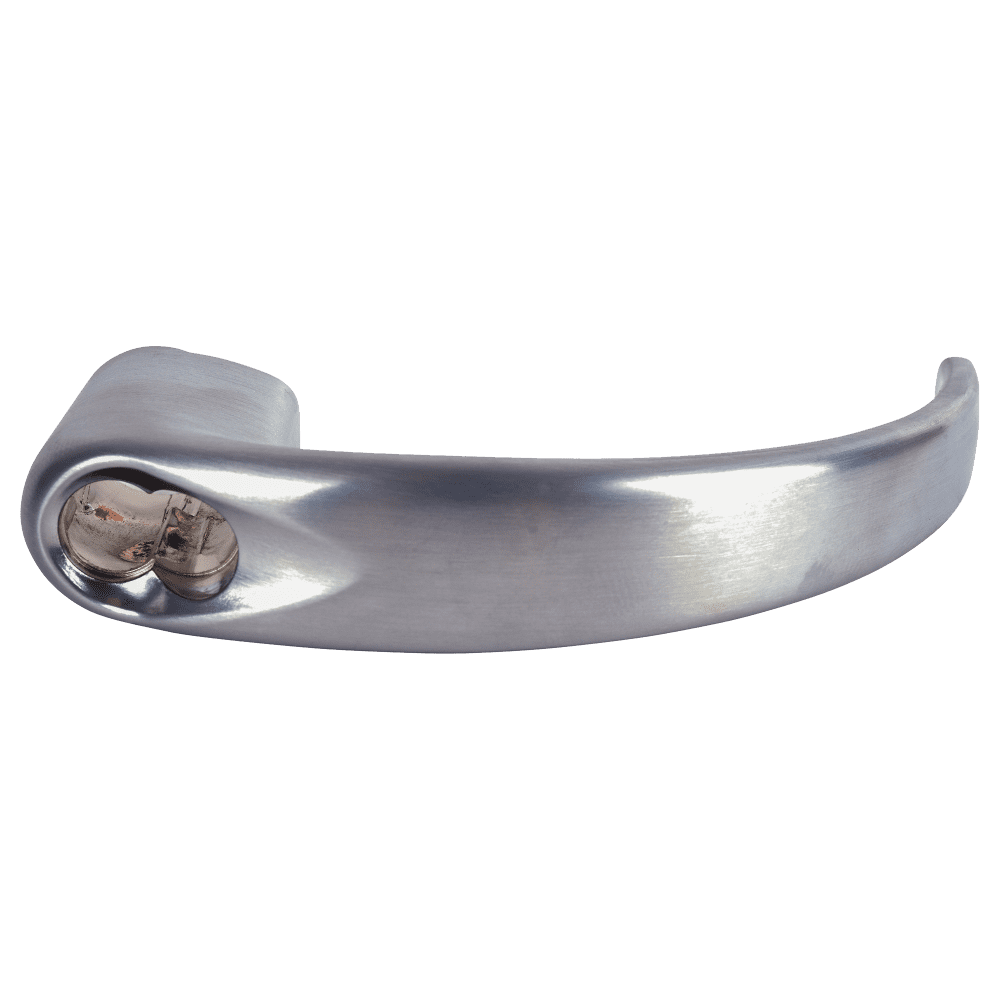

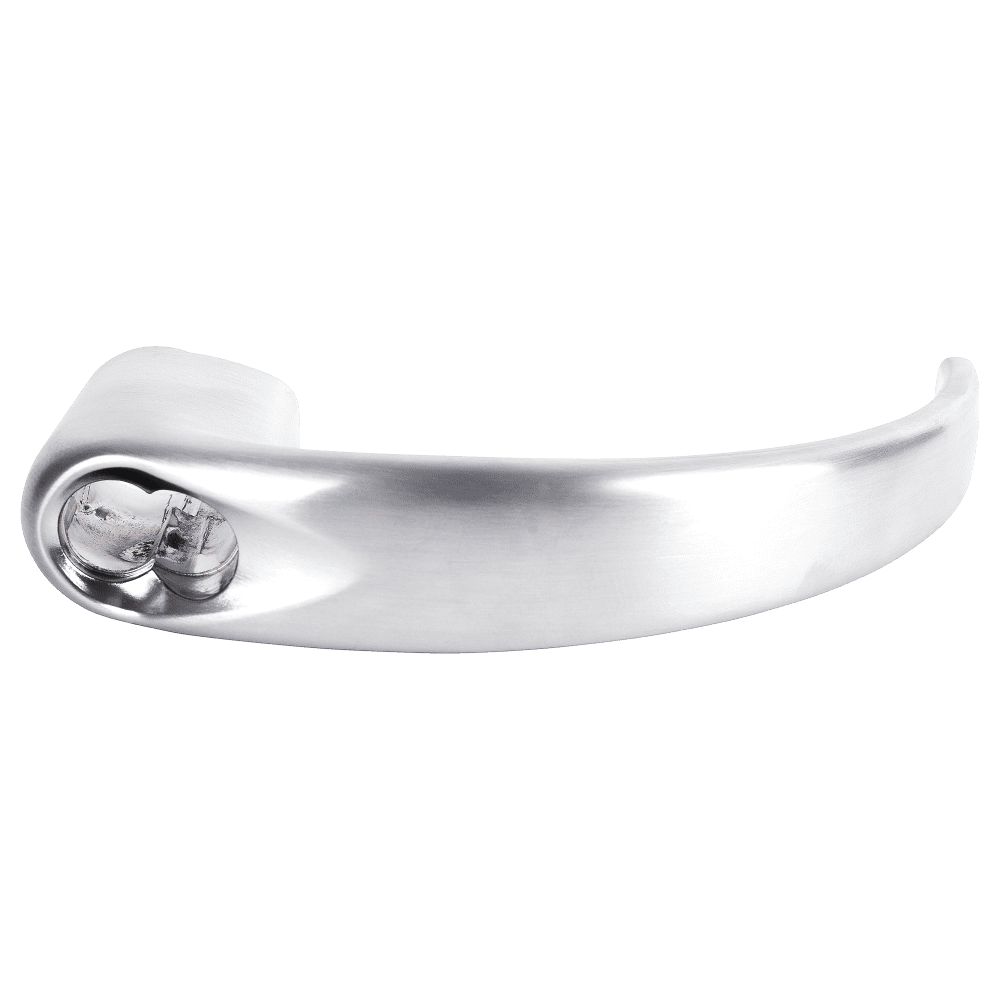

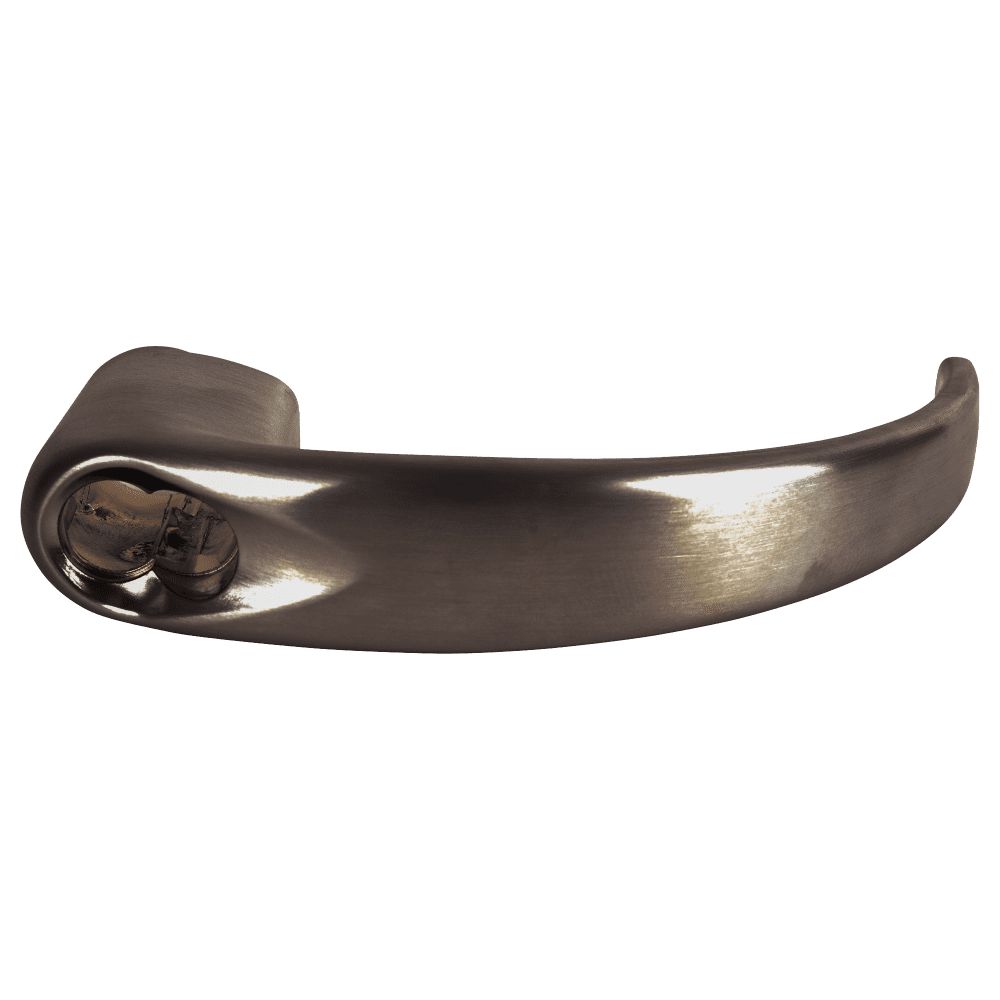

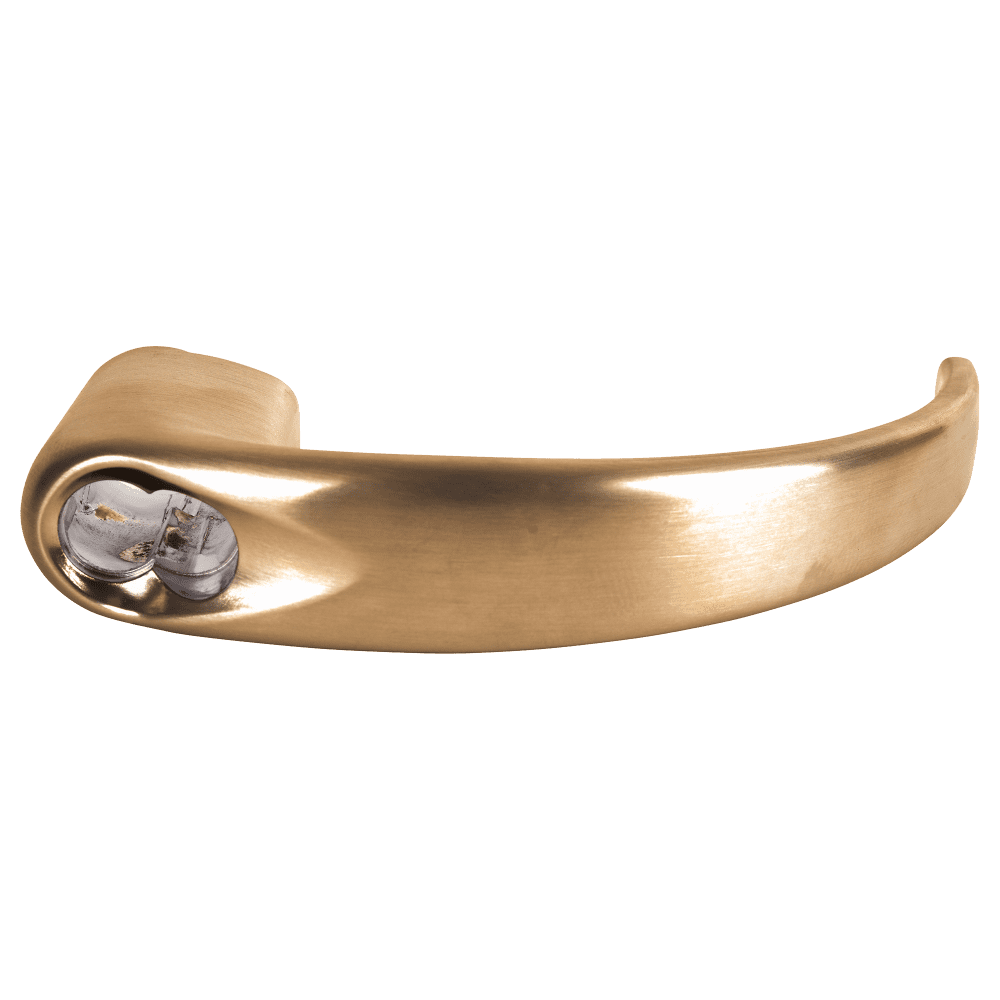

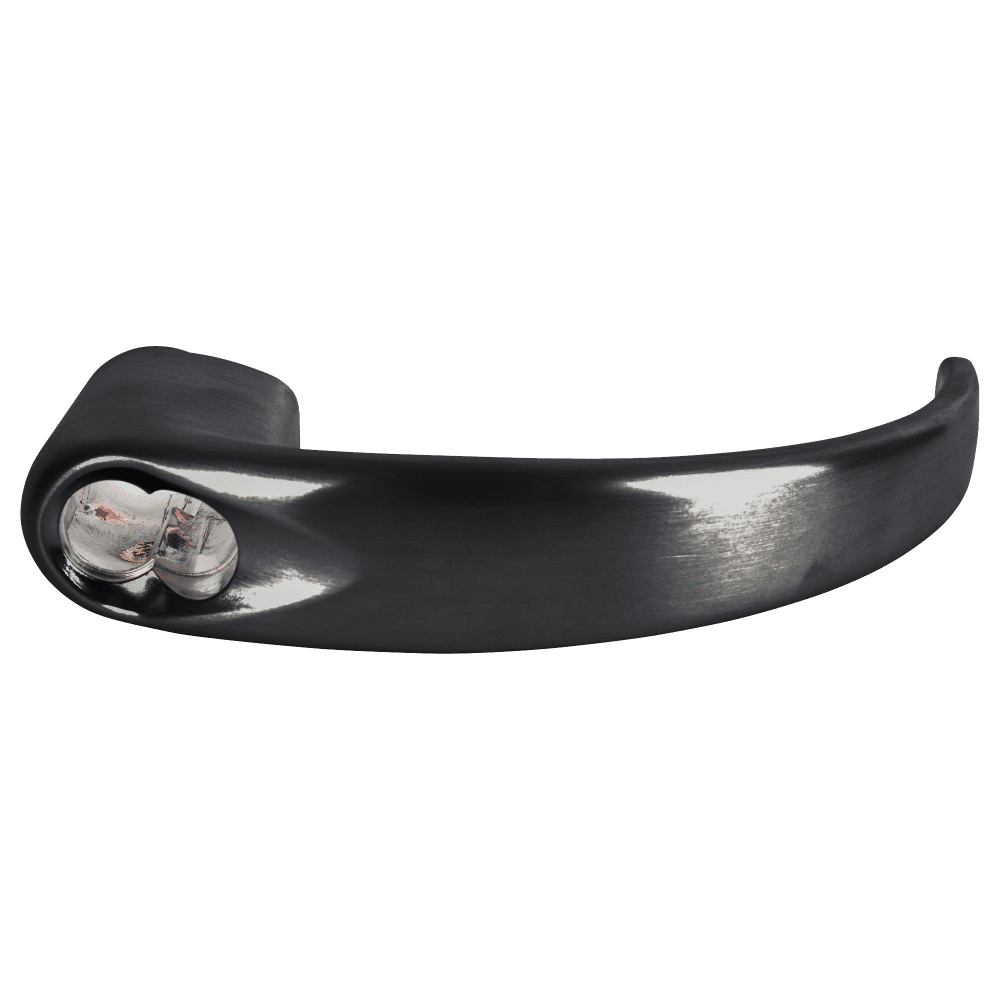

The 03-244-SPA is compatible with AD Series, CO Series, ALX Series, and ND Series locks configured for Sargent conventional 6-pin KIL cylinders. Per the FAQ: "It is a genuine OEM Sparta-style replacement lever for Schlage commercial locksets using a 6-pin Sargent Key-in-Lever (KIL) configuration." Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). All finishes are currently not available. Finish must be specified at time of order. Contact SecurityParts.com for current finish availability. The Sargent conventional 6-pin KIL cylinder is not included.
