The Schlage 03-244-TLR is the OEM Tubular Lever designed for Sargent conventional 6-pin Key-in-Lever (KIL) cylinder applications, for the Schlage AD Series, CO Series, ALX Series, and ND Series cylindrical locks. Per the SecurityParts.com product page: "It is a genuine OEM Tubular-style exterior lever less cylinder designed for Schlage commercial electronic and mechanical locksets utilizing a Sargent Conventional Key-in-Lever (KIL) cylinder." Standard non-tactile Tubular lever with round cylindrical handle. Supplied less cylinder. Non-handed. Original Part# 03-044-TLR. In stock.

Tubular Profile in the Sargent KIL Format

The 03-244-TLR uses the Tubular lever profile in the 03-244 Sargent 6-pin KIL format. The primary function is confirmed as "Accommodates a Sargent conventional cylinder core for manual latch retraction." The Tubular lever maintains a uniform round cylindrical cross-section from hub to handle tip, which is visually distinct from the Athens, Rhodes, Sparta, and Omega designs in the Schlage ND and ALX Series catalog. Per the FAQ: "It is a genuine OEM tubular outside lever prepared for a 6-pin Sargent Key-in-Lever (KIL) cylinder." A compatible Sargent conventional 6-pin KIL cylinder must be sourced separately. The cylinder is not included.

Standard vs Tactile: 03-244-TLR vs 03-244-8TR

The 03-244-TLR is the standard non-tactile Tubular Sargent KIL lever. The 03-244-8TR is the tactile version with knurled tactile grooves on the round handle for ADA hazardous area identification. Both accept a Sargent conventional 6-pin KIL cylinder and ship less cylinder. The 03-244-8TR is documented in two Service Manuals (ALX and ND only). The 03-244-TLR covers AD, CO, ALX, and ND Series per the product page. When replacing a standard Tubular Sargent KIL lever, confirm the original did not specify the tactile designation before ordering the 03-244-TLR.

Comparison With Other Standard 03-244 Sargent KIL Levers

Within the standard non-tactile 03-244 Sargent KIL lever family, the 03-244-ATH (Athens) and 03-244-RHO (Rhodes) are each documented with three legacy part numbers covering cylindrical, mortise, and exit device applications, and both include NDE Series compatibility. The 03-244-TLR and the 03-244-SPA (Sparta) each list one legacy number and cover four series without NDE. When NDE Series coverage or mortise and exit device legacy number documentation are required for a Sargent KIL lever, the 03-244-ATH or 03-244-RHO provide those. The 03-244-TLR is the correct selection when the Tubular profile is the facility standard for AD, CO, ALX, or ND Series Sargent KIL installations.

Finishes and Ordering

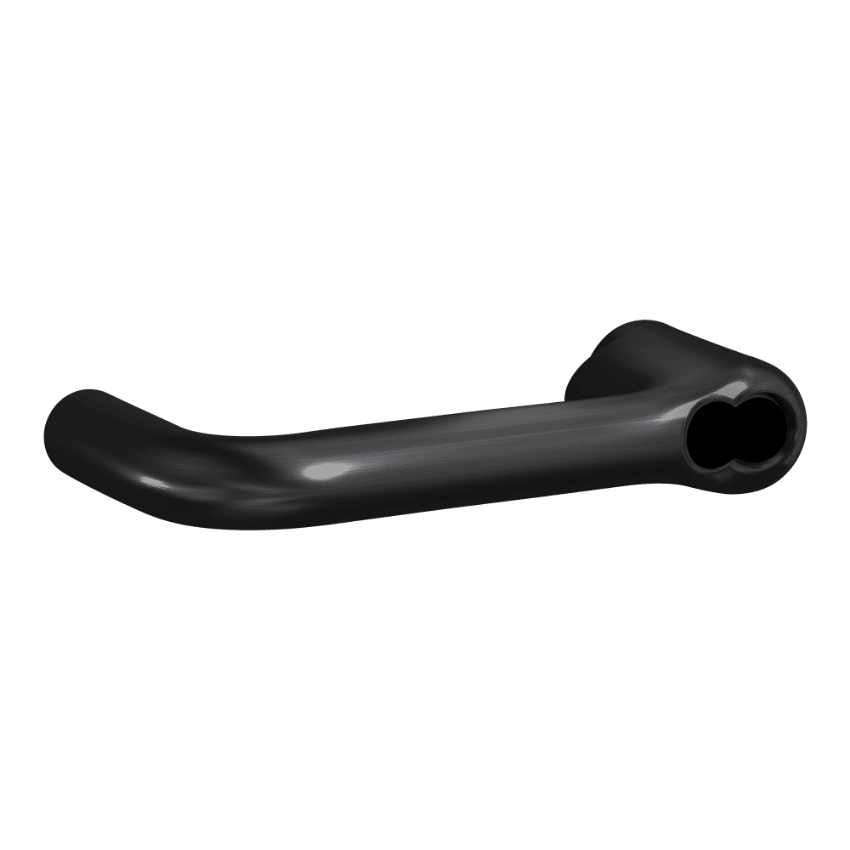

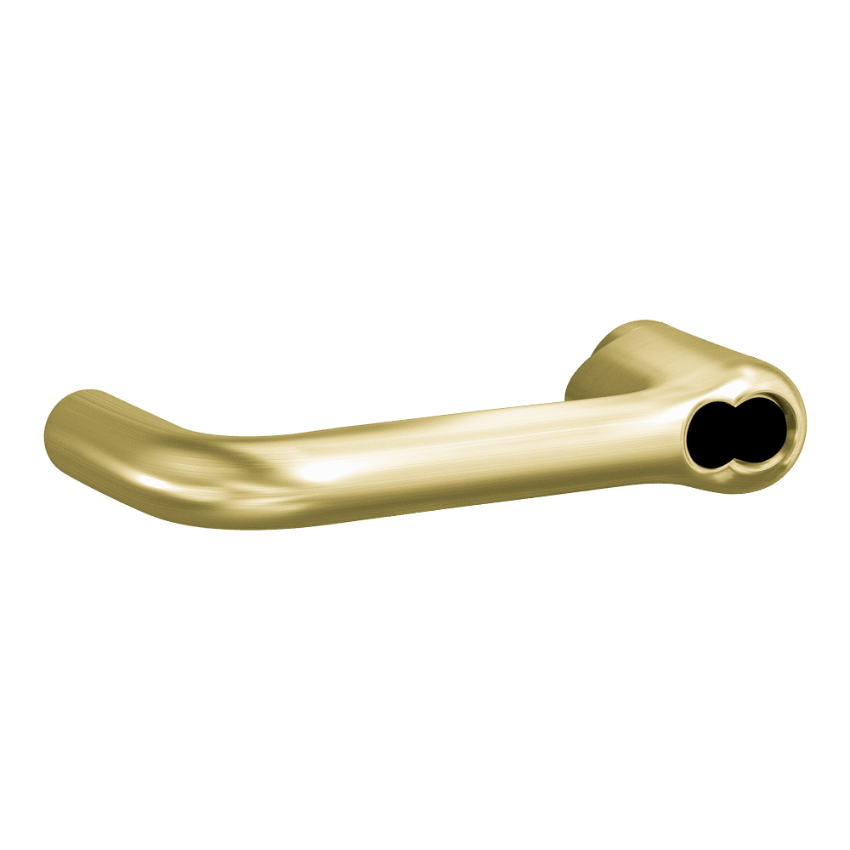

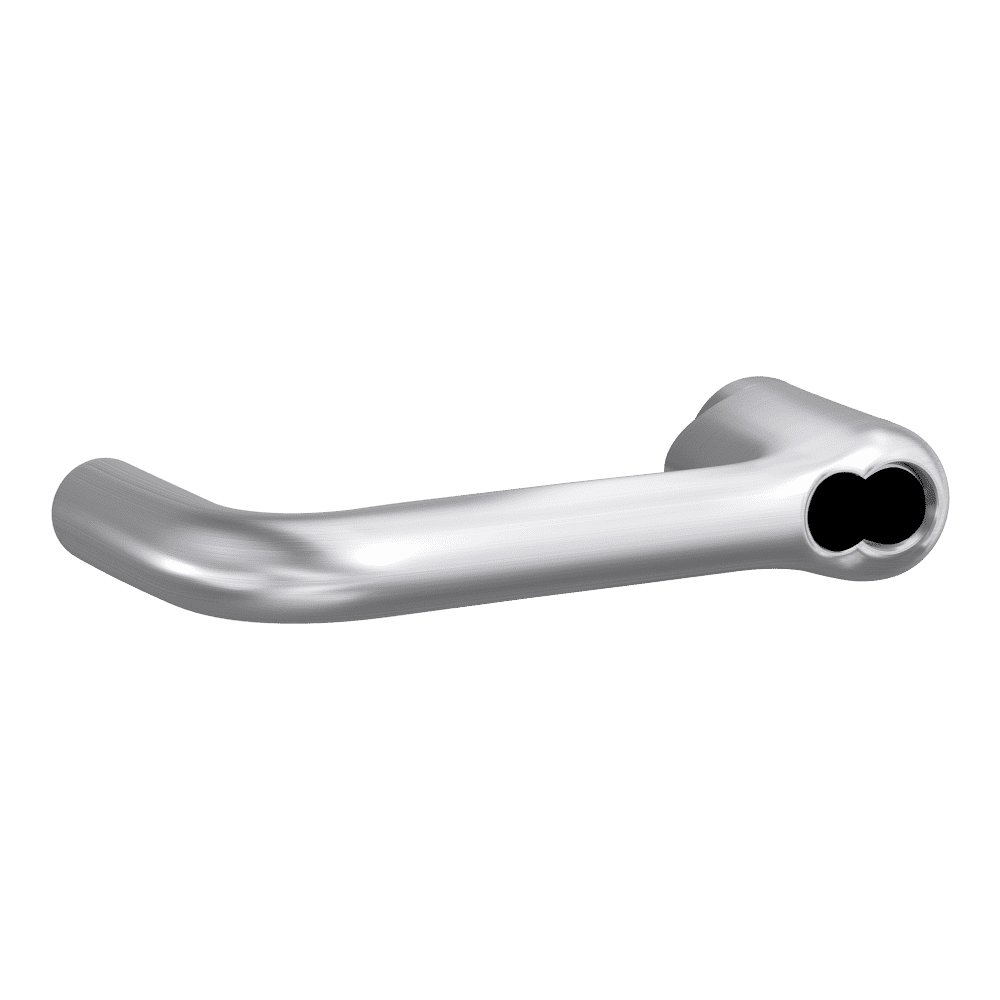

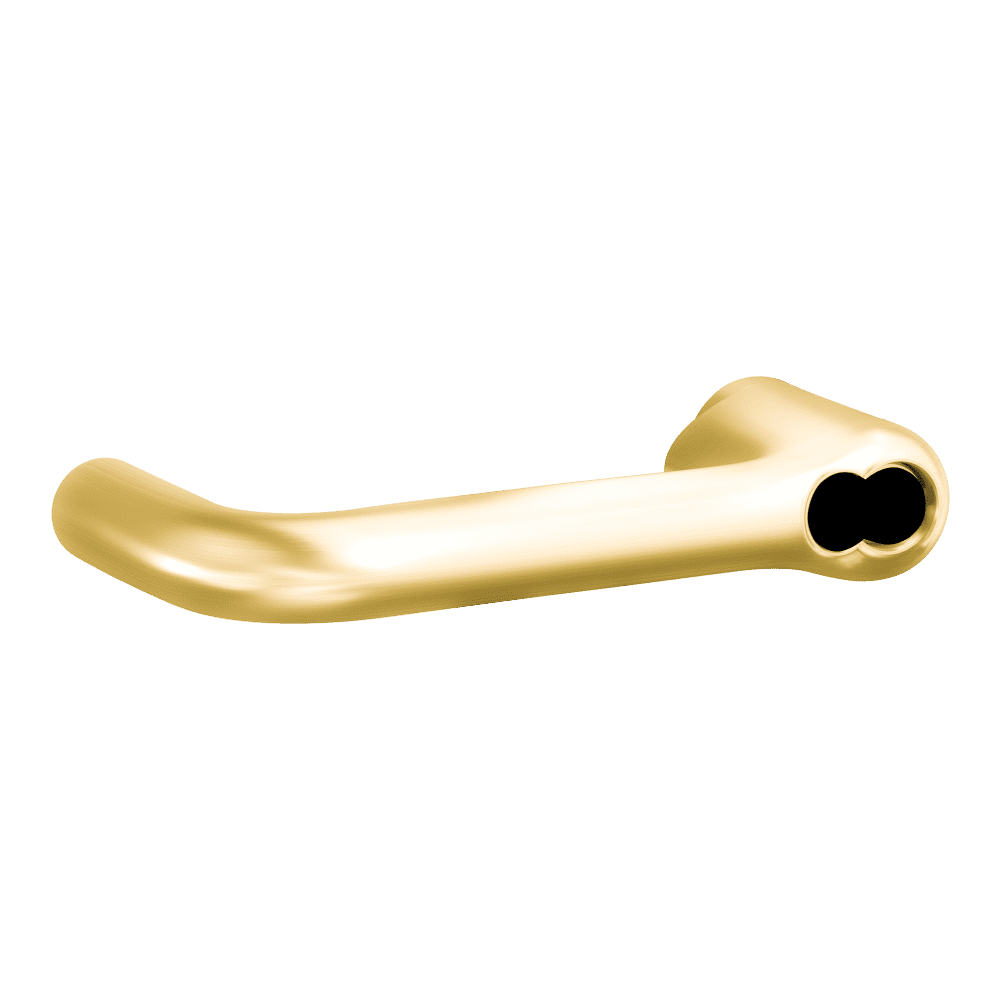

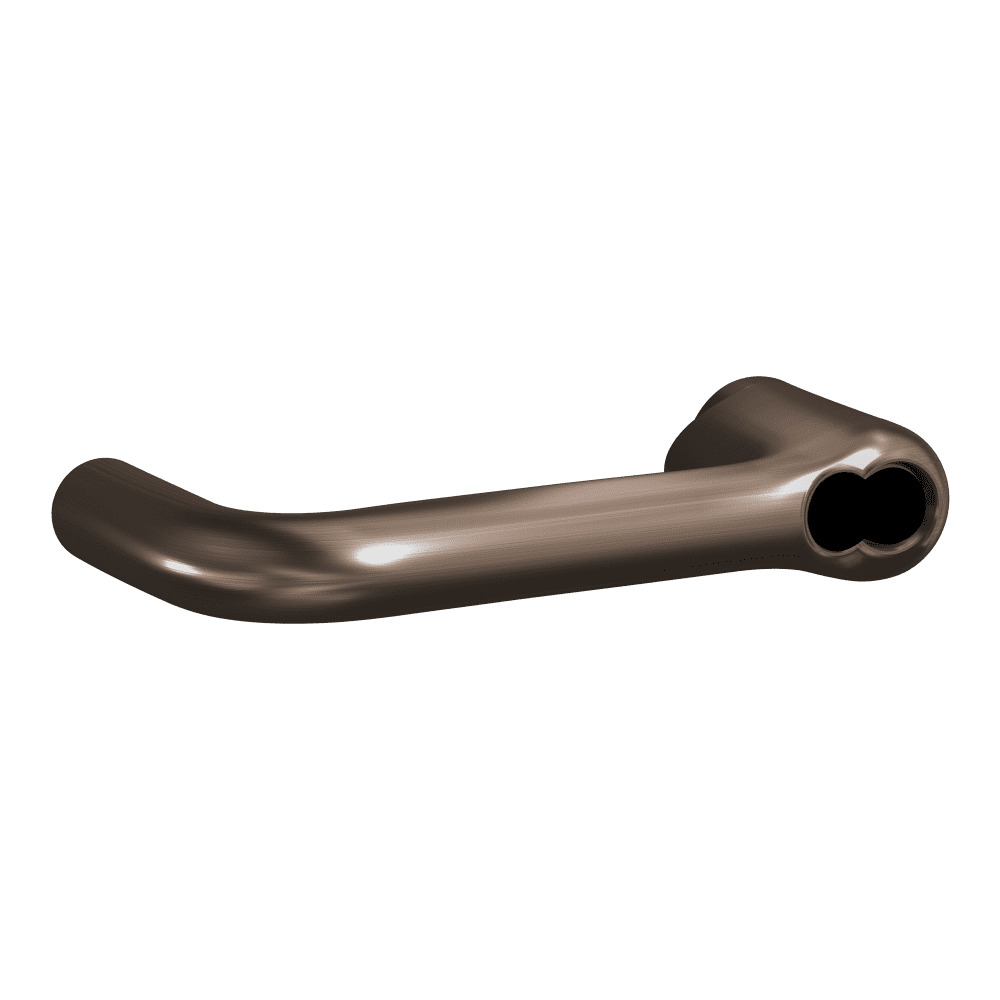

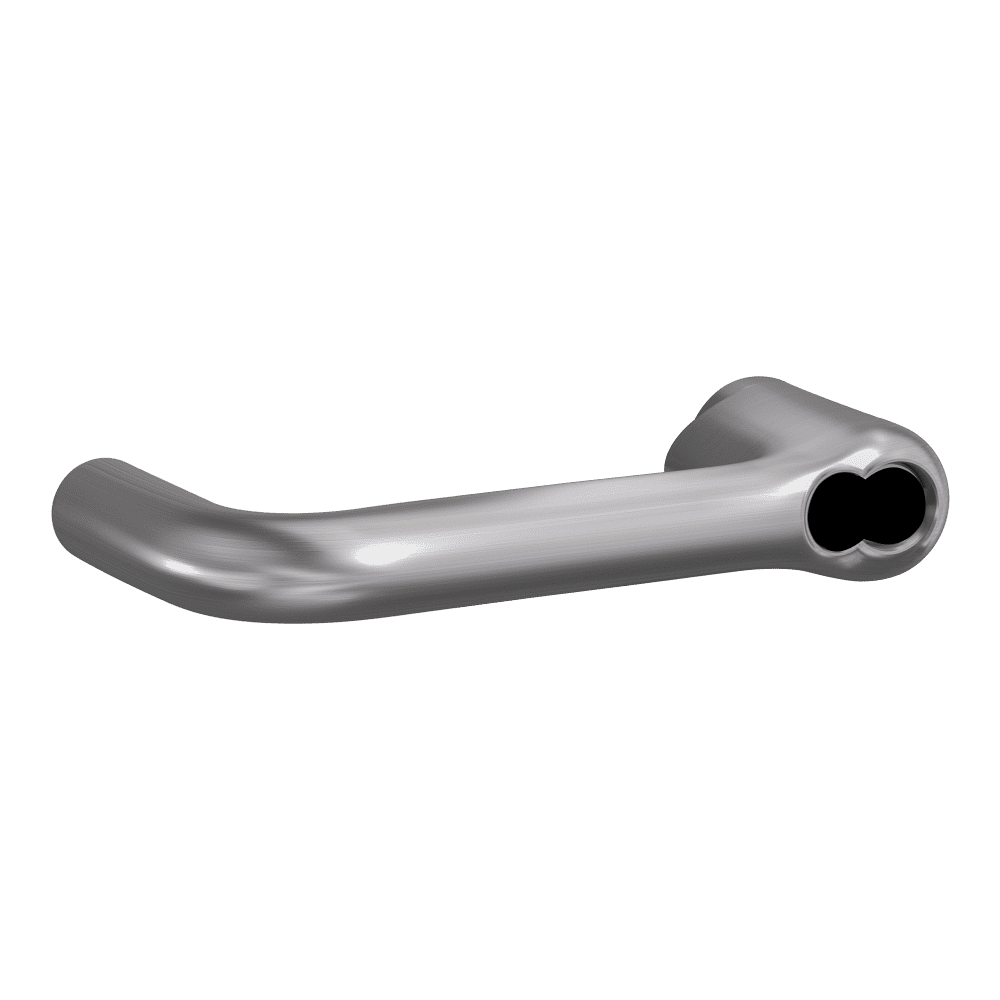

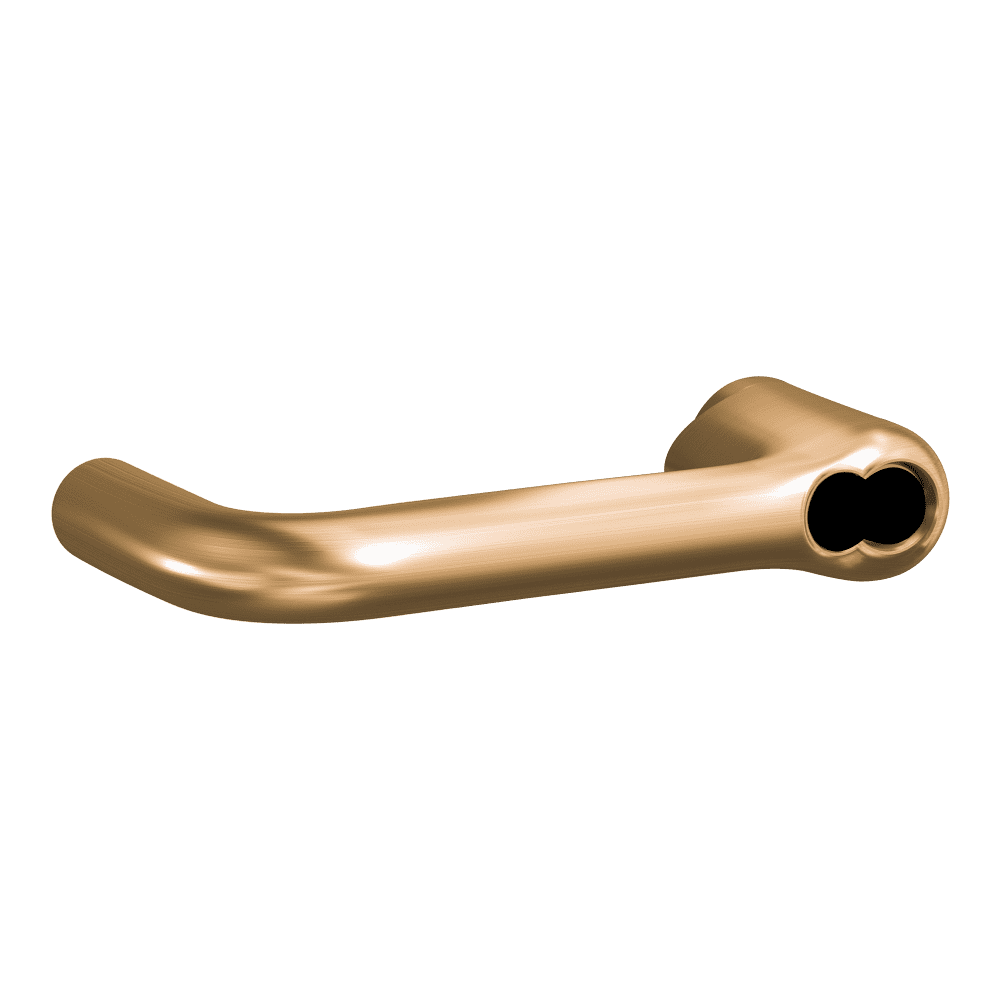

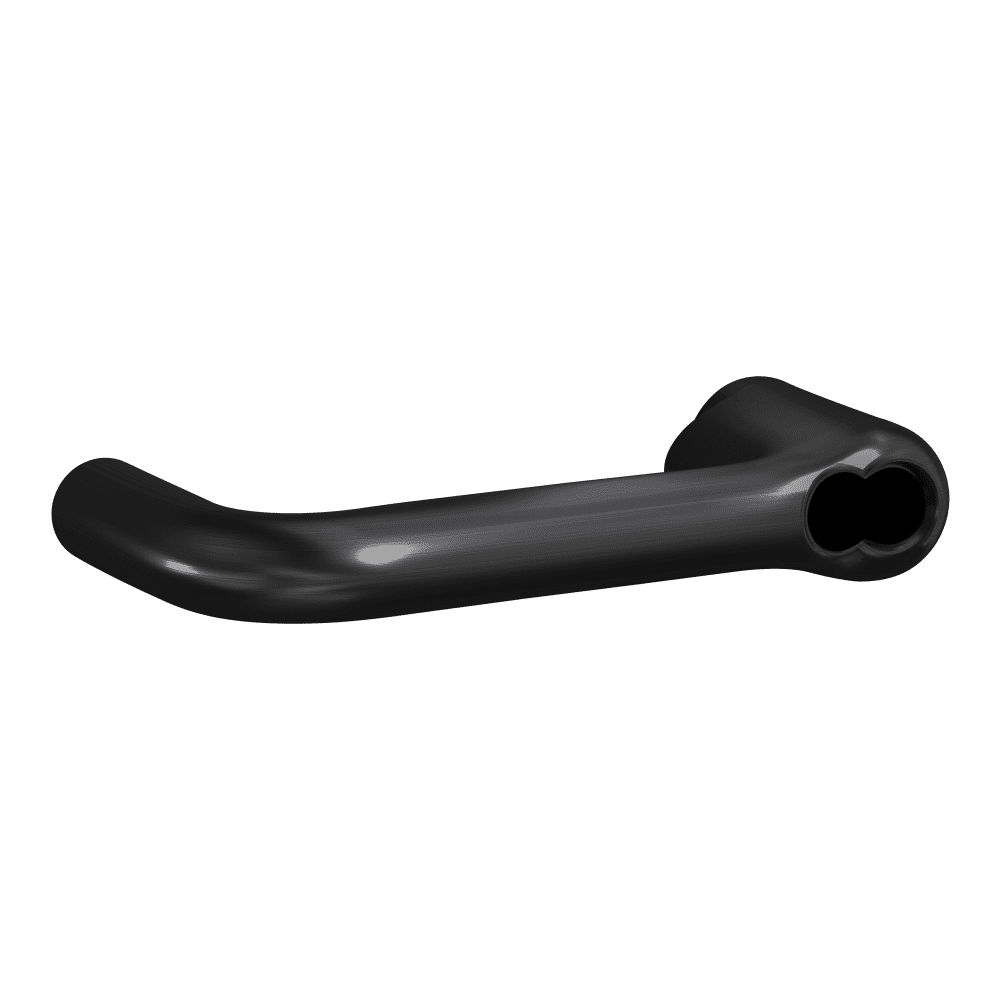

Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). All finishes are currently not available. Finish must be specified at time of order. Contact SecurityParts.com for current finish availability. The Sargent conventional 6-pin KIL cylinder is not included and must be ordered separately.

SecurityParts stocks OEM Schlage ND Series and ALX Series lever components. Free shipping on orders over $300.
