The Schlage 03-255-SPA is the OEM Sparta Lever factory prepared for Yale 6-pin Full-Size Interchangeable Core (FSIC / J-YA6), for the Schlage AD Series, CO Series, ALX Series, ND Series, and NDE Series cylindrical locks, documented in five official Schlage Service Manuals including the NDE Series. Per the SecurityParts.com product page: "The Schlage 03-255-SPA is a genuine OEM Sparta-style exterior replacement lever, less core, designed for compatible Schlage mechanical and electronic locksets configured for a Yale full-size interchangeable core (FSIC)." Supplied less core. Standard non-tactile Sparta lever. Non-handed. In stock.

Two Legacy Part Numbers Replaced by the 03-255-SPA

The 03-255-SPA supersedes two legacy part numbers, as confirmed on the SecurityParts.com product page under "Original Part#."

• 09-355-SPA: Original part number covering both cylindrical lock and mortise lock outside trim applications using the Sparta Yale 6-pin FSIC lever.
• 03-355-SPA: Original part number for exit device outside trim applications.

Any maintenance record or specification referencing 09-355-SPA (cylindrical or mortise) or 03-355-SPA (exit device) maps to the 03-255-SPA as the current OEM replacement.

03-255-SPA vs 03-255-ATH and 03-255-RHO: Sparta Profile in the Yale FSIC Family

The 03-255-SPA, 03-255-ATH (Athens Lever), and 03-255-RHO (Rhodes Lever) are all standard non-tactile levers in the 03-255 Yale 6-pin FSIC J-YA6 format. All three are In Stock at the same price, ship less core, and are documented in five Service Manuals including NDE Series. The only difference is the lever profile design. The 03-255-SPA uses the Sparta design. When a building uses Sparta levers as its established standard and the installed core is a Yale 6-pin FSIC (J-YA6), the 03-255-SPA is the correct replacement. Per the SecurityParts.com product page: "This premium OEM component features Schlage's universal architectural trim engineering, enabling it to fit seamlessly onto AD Series, CO Series, ALX Series, and ND Series chassis configurations."

Yale FSIC Core Requirement and Unique Lever Milling

The 03-255-SPA lever housing is uniquely prepared for the Yale full-size interchangeable core physical dimensions. Standard Schlage security cores will not seat in this lever. The Yale 6-pin FSIC (J-YA6) core must be sourced separately and installed in the field. The 03-255 format is distinct from the 03-232 Schlage FSIC format, the 03-235 Corbin Russwin FSIC format, and the 03-236 Yale 7-pin FSIC format. Confirm the installed core type before ordering.

Five-Series Coverage and Finishes

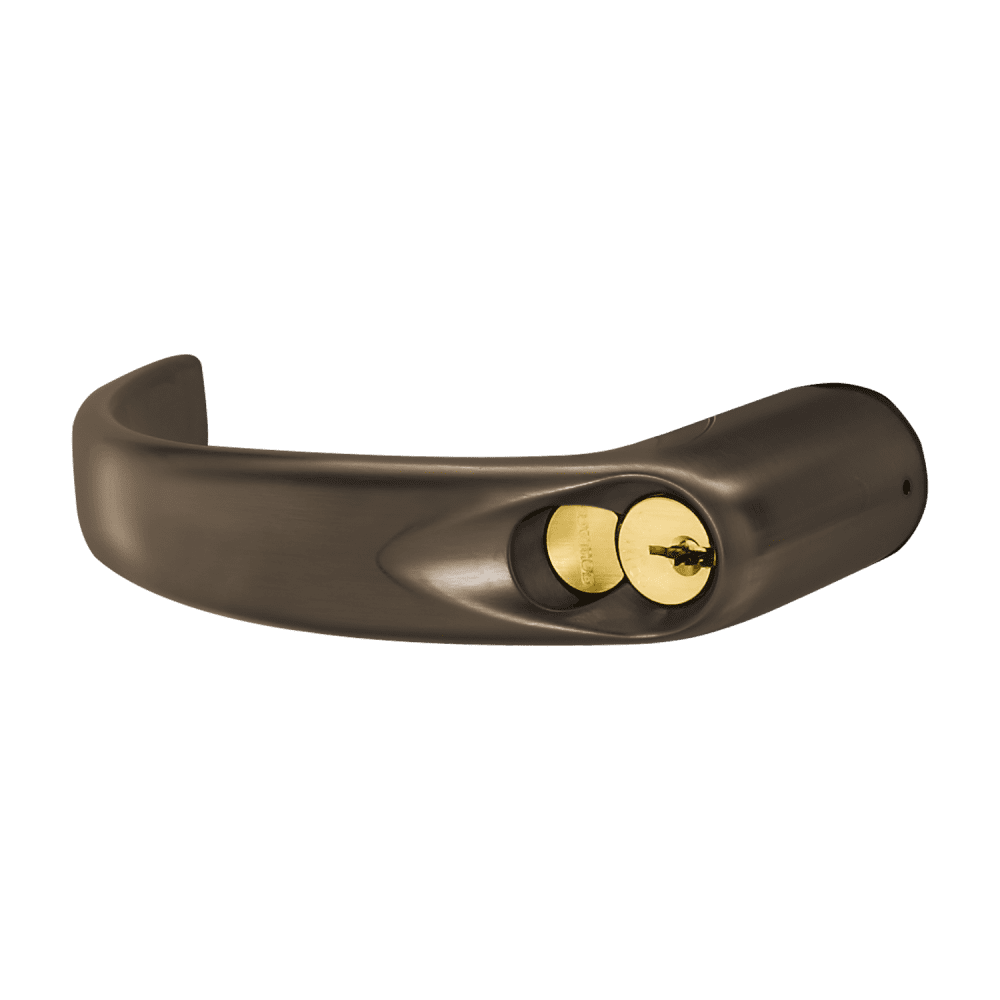

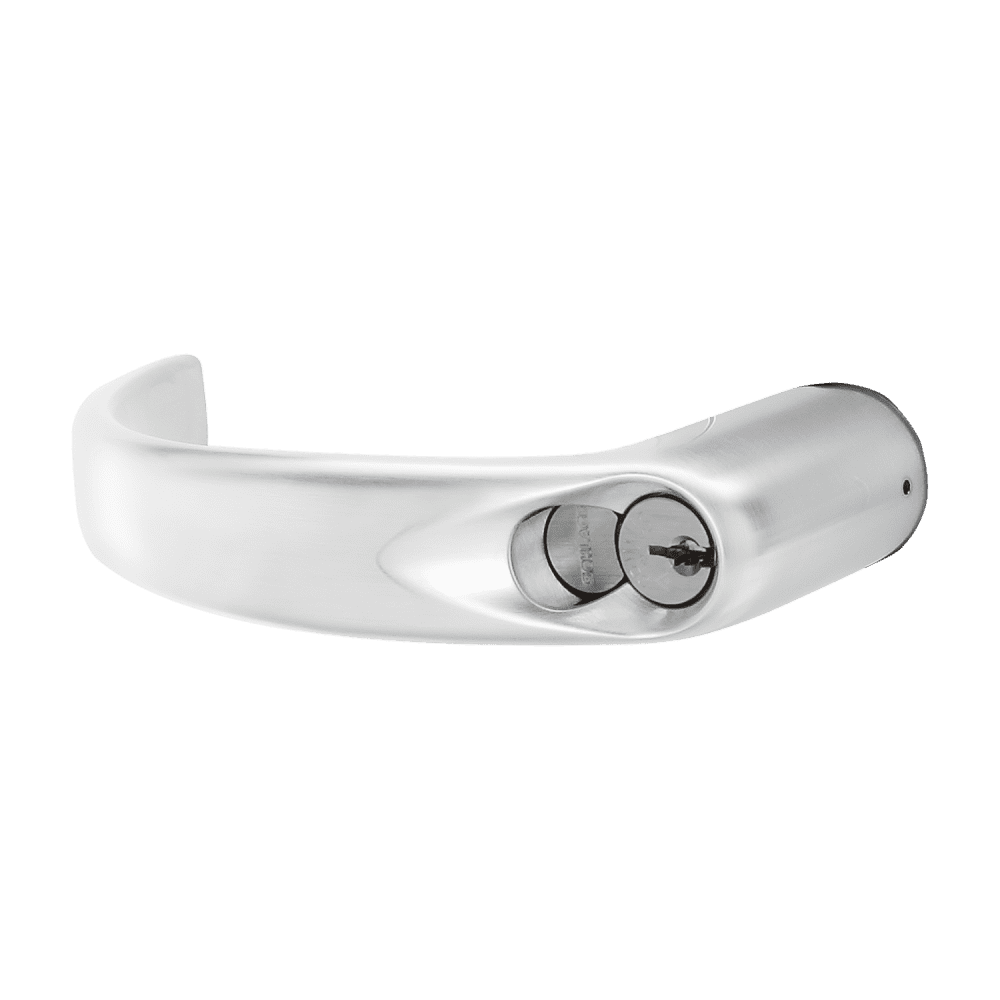

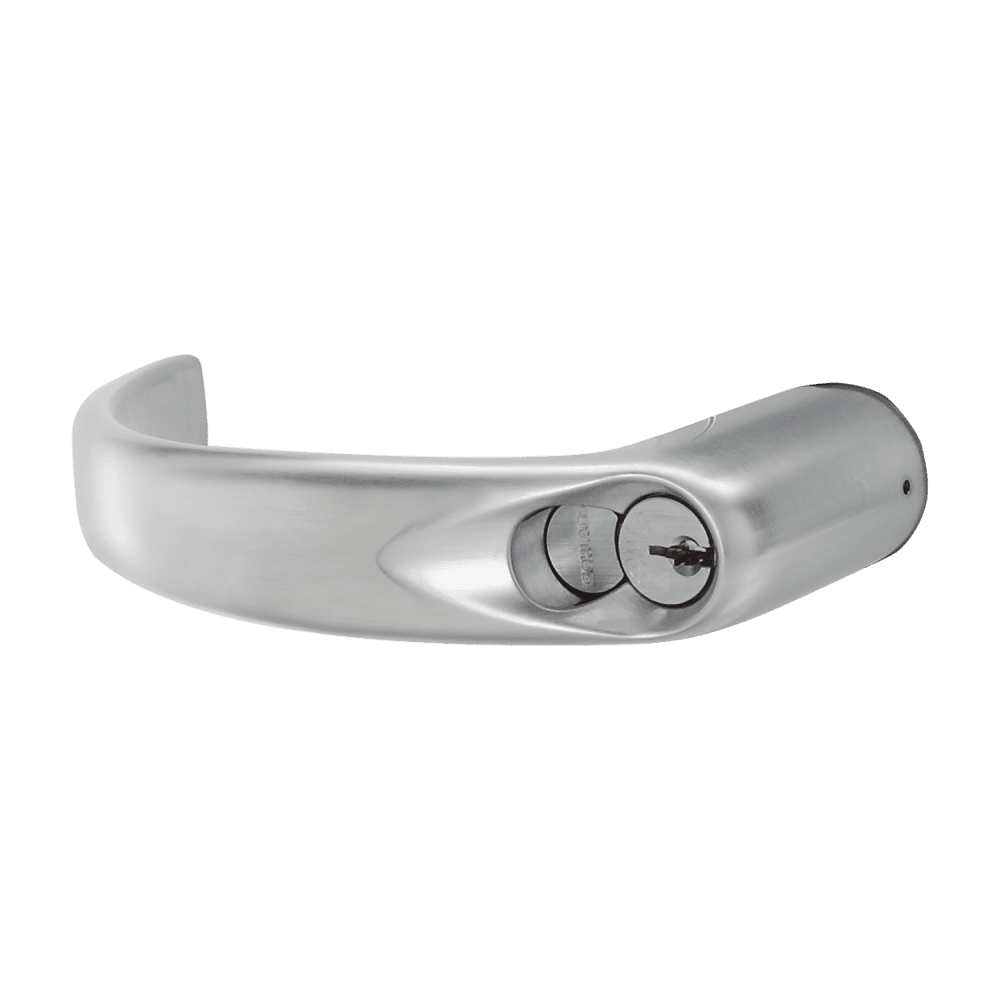

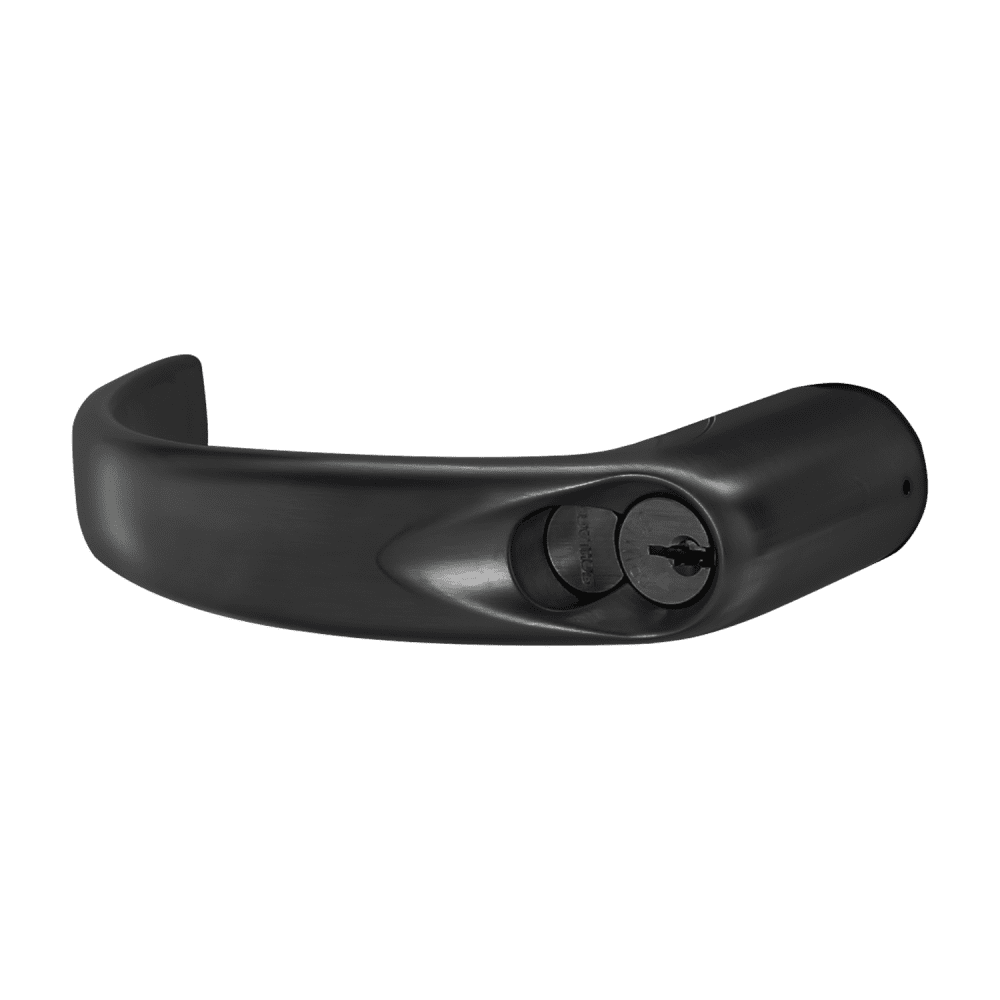

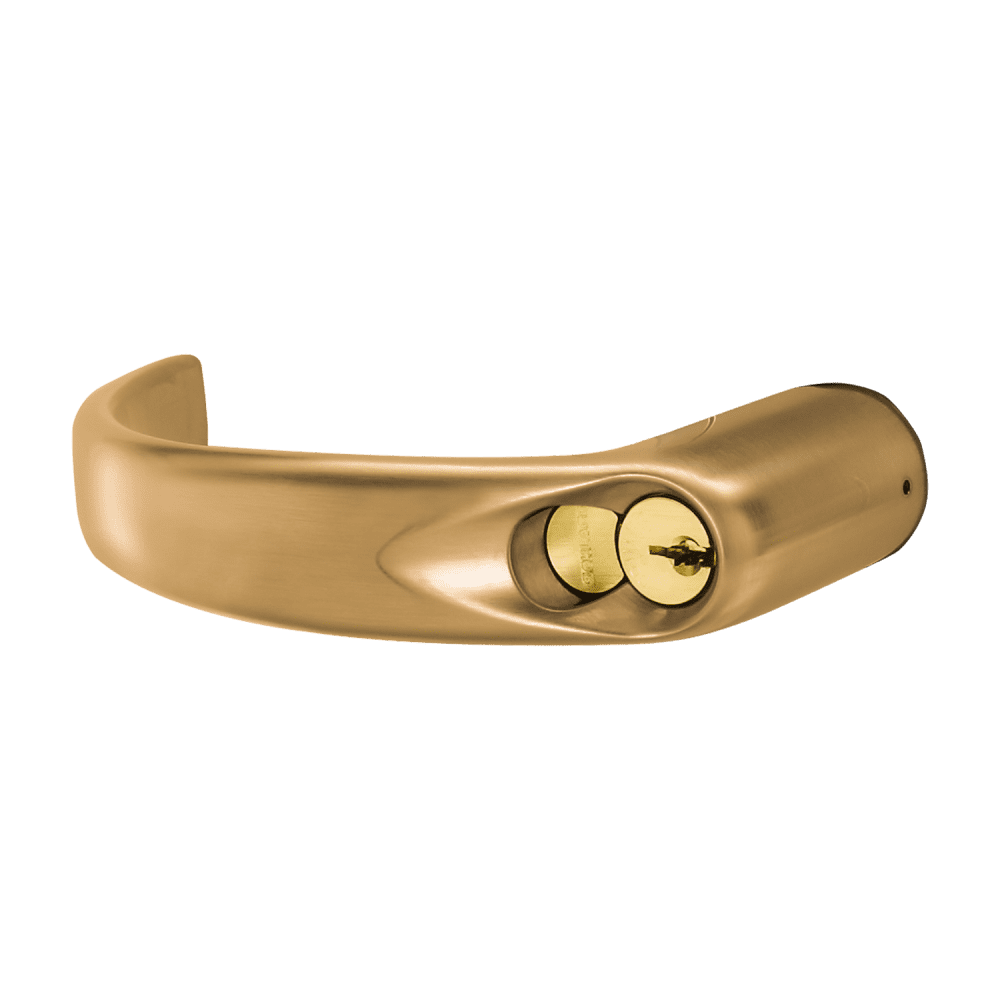

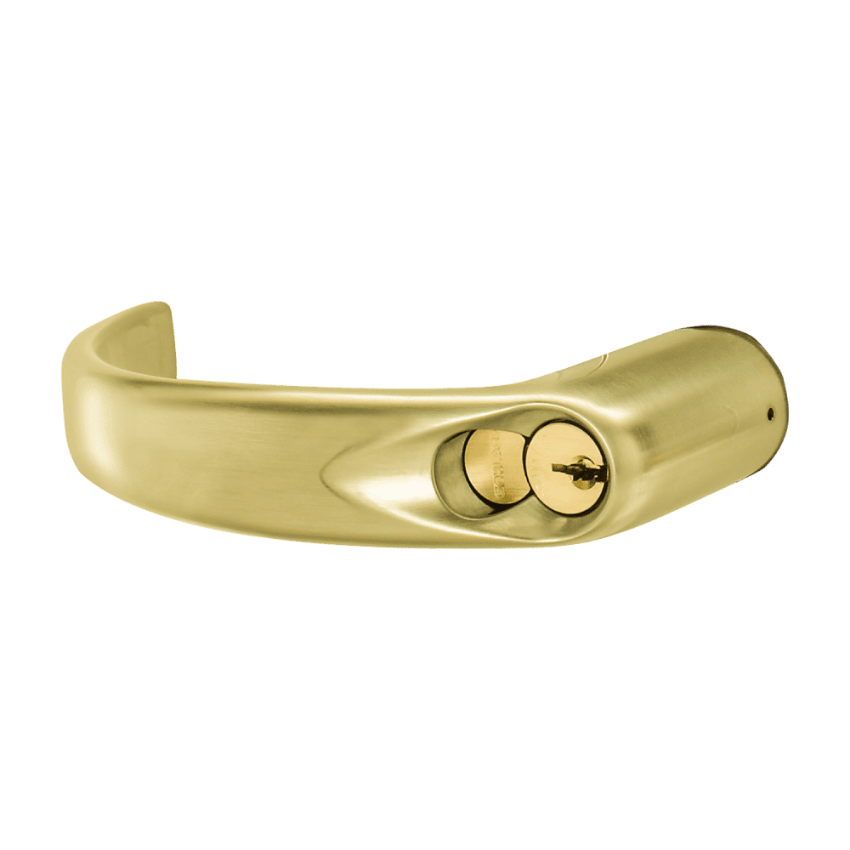

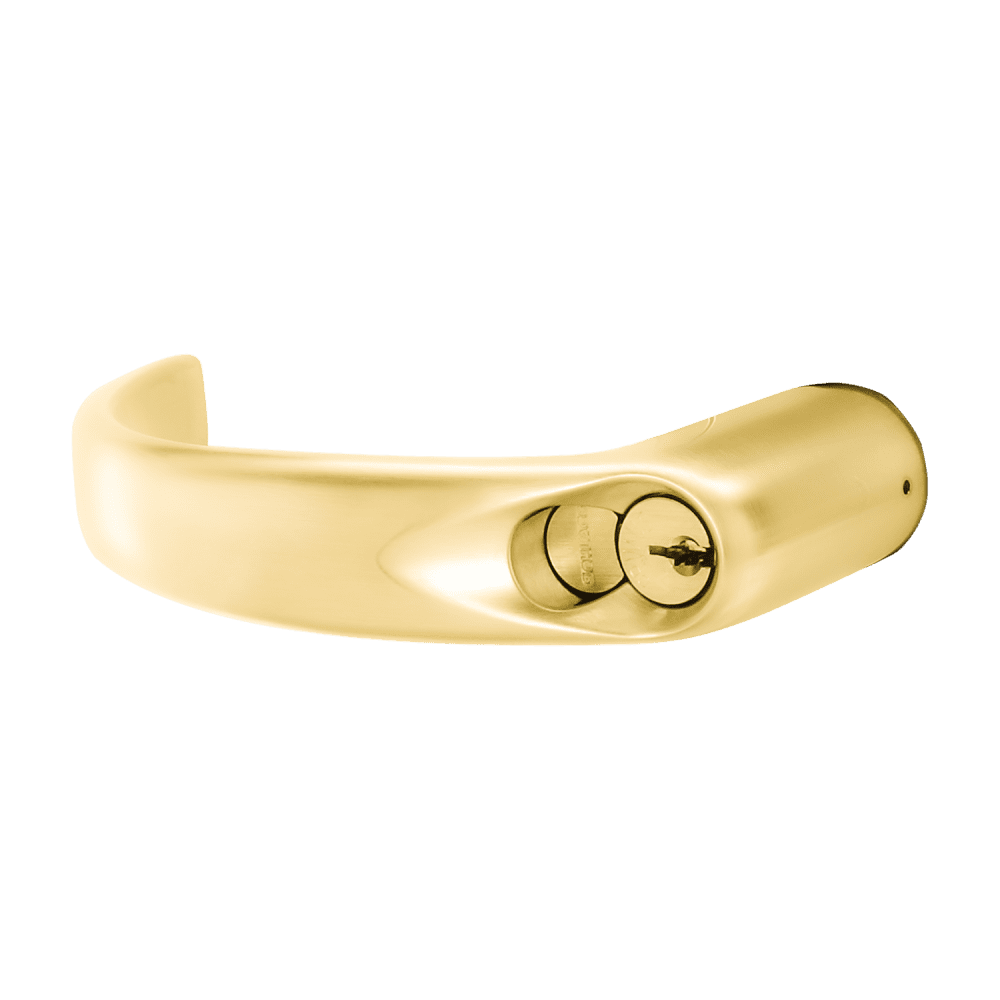

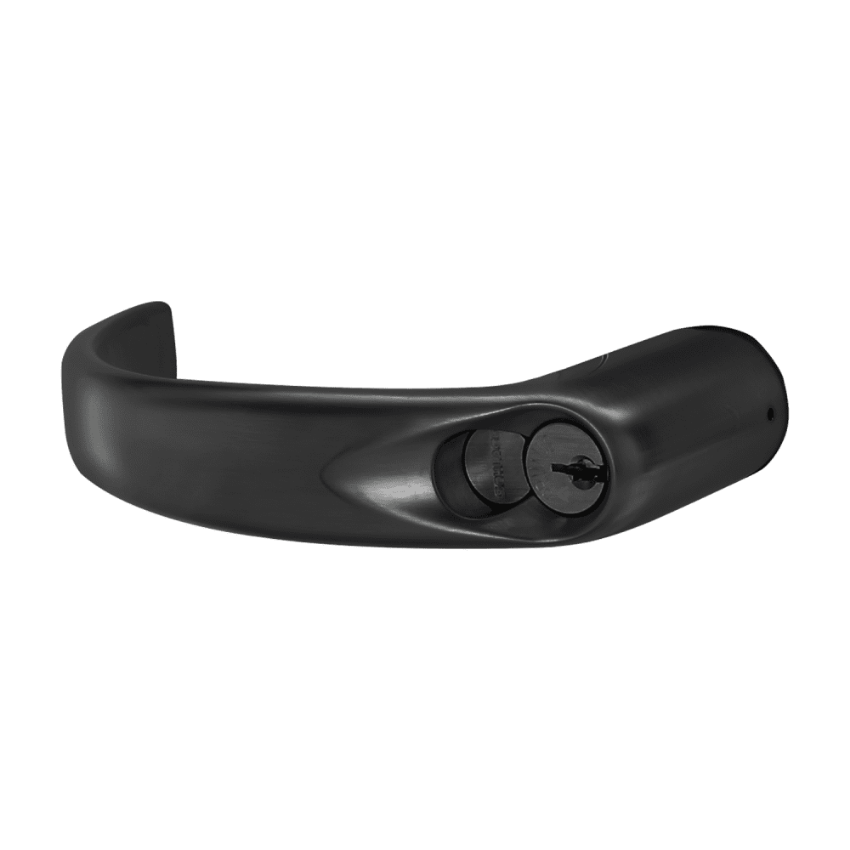

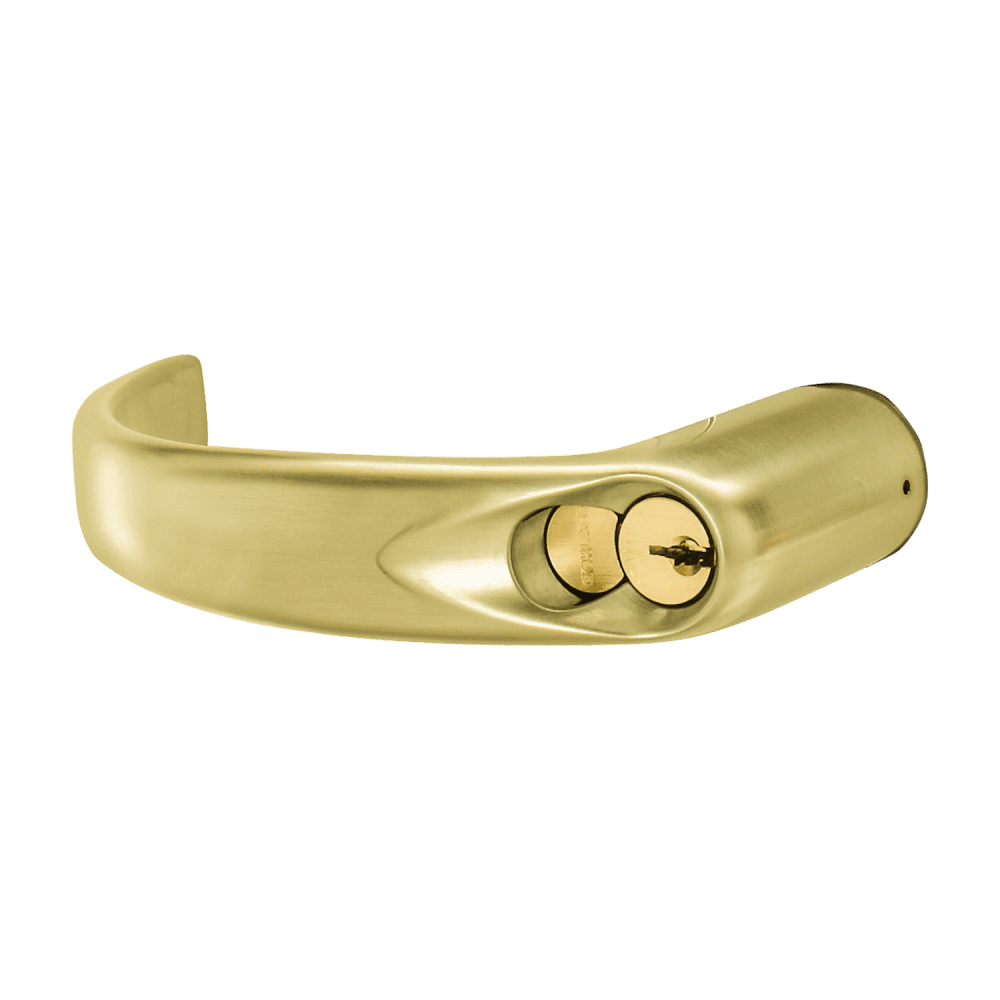

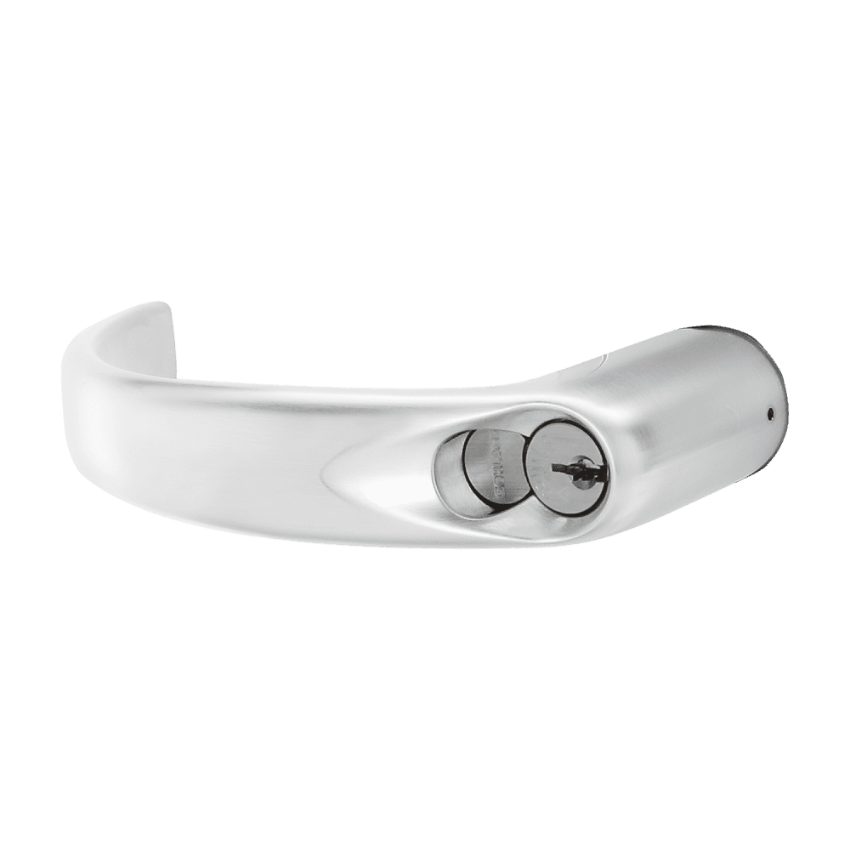

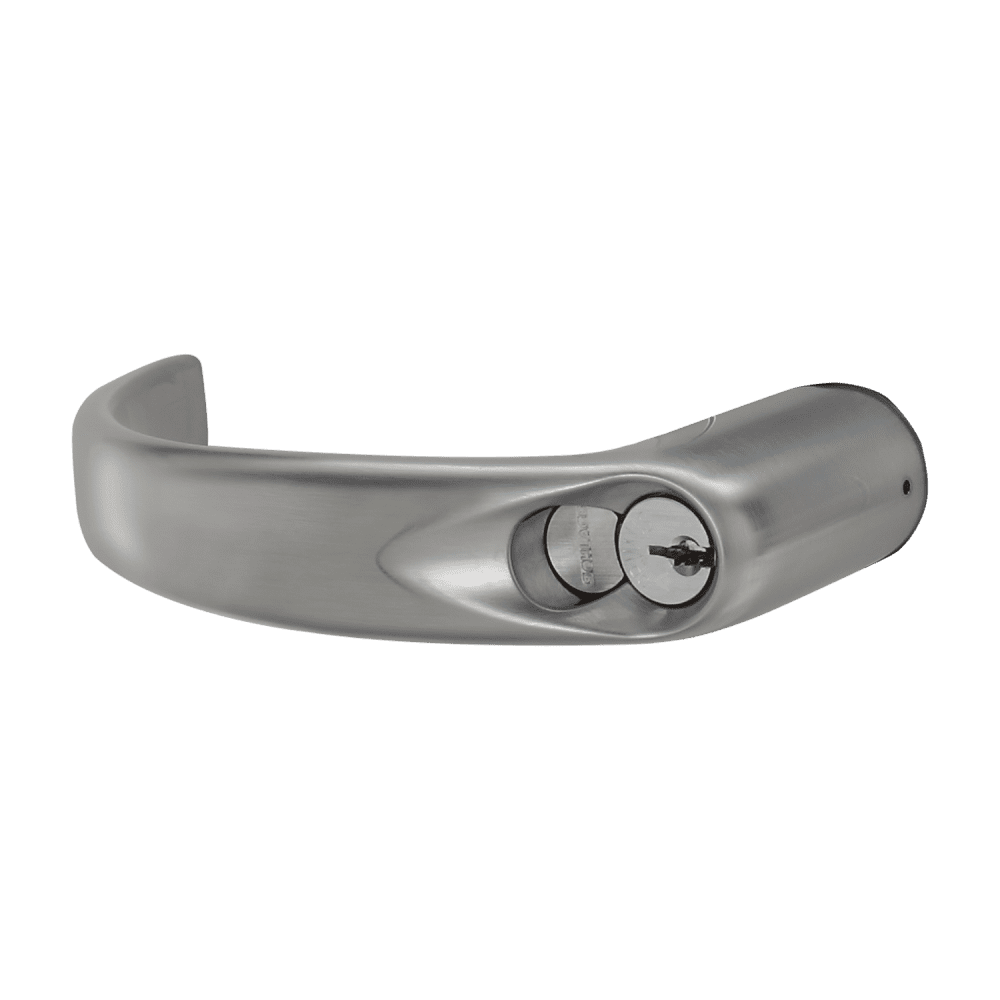

The 03-255-SPA is compatible with AD Series, CO Series, ALX Series, ND Series, and NDE Series. Ten finishes are listed: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). All finishes are currently not available. Finish must be specified at time of order. Contact SecurityParts.com for current finish availability. The Yale 6-pin FSIC core is not included.

SecurityParts stocks OEM Schlage ND Series and ALX Series lever components. Free shipping on orders over $300.
