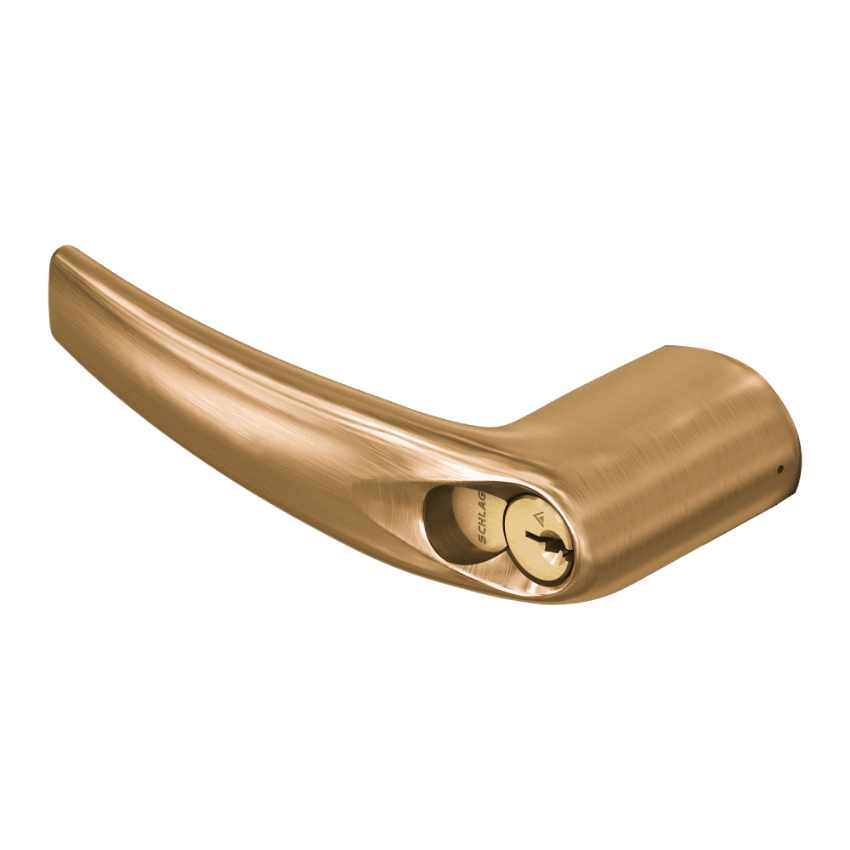

schlage 03-266-8at 612 satin bronze athens tactile lever
schlage 03-266-8at 613 oil rubbed bronze athens tactile lever
schlage 03-266-8at 643e aged bronze athens tactile lever

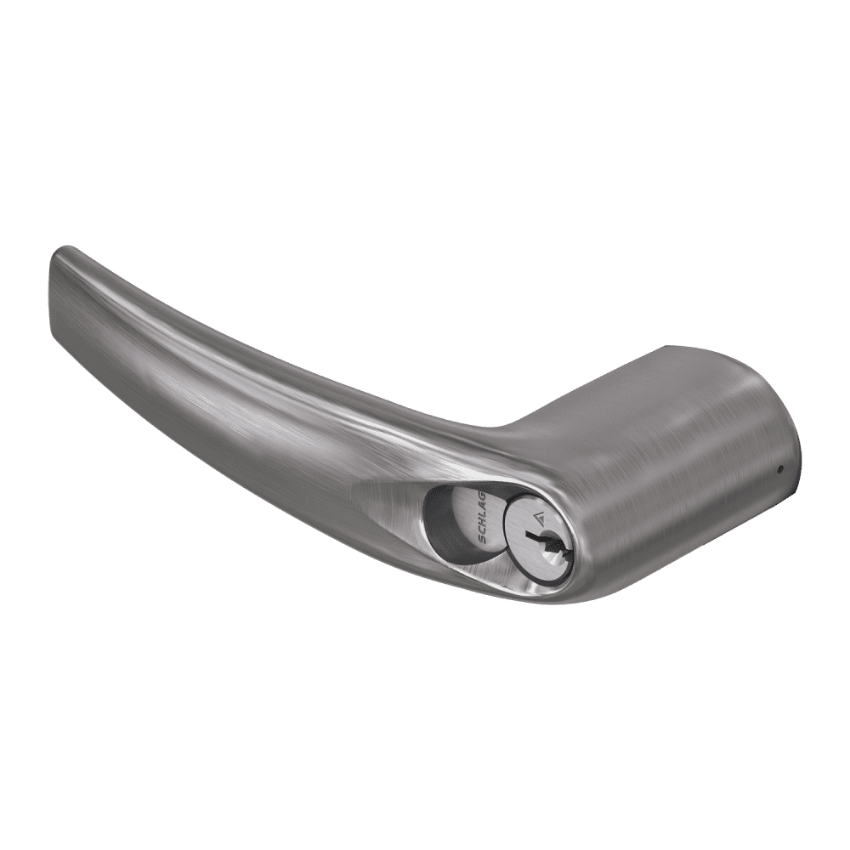

schlage 03-266-8at 619 satin nickel athens tactile lever
schlage 03-266-8at 622 matte black athens tactile lever
schlage 03-266-8at 625 bright chrome athens tactile lever
Dynamic Image
schlage 03-266-8at 626 satin chrome athens tactile lever
schlage 03-266-8at 605 bright brass athens tactile lever

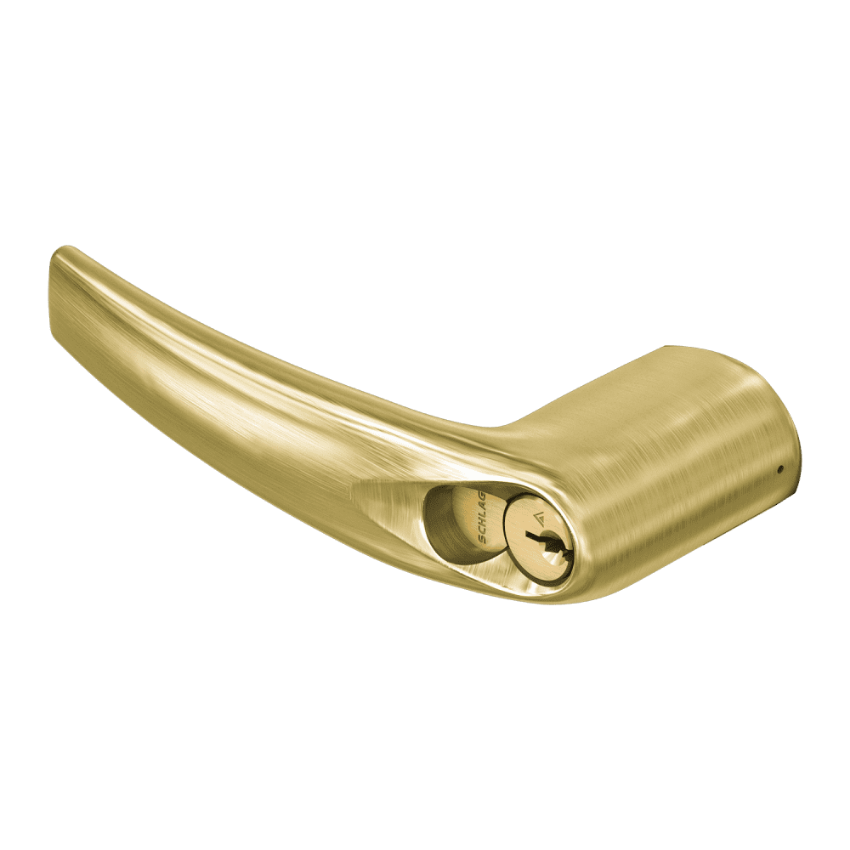

schlage 03-266-8at 606 satin brass athens tactile lever
schlage 03-266-8at 612 satin bronze athens tactile lever

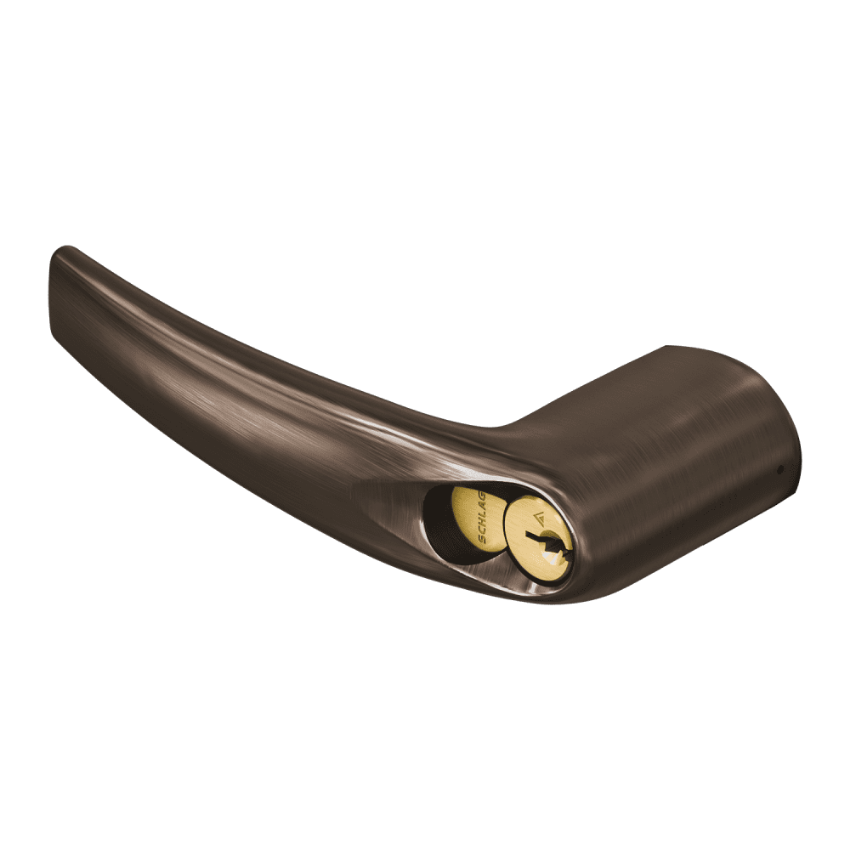

schlage 03-266-8at 613 oil rubbed bronze athens tactile lever
schlage 03-266-8at 643e aged bronze athens tactile lever
schlage 03-266-8at 619 satin nickel athens tactile lever

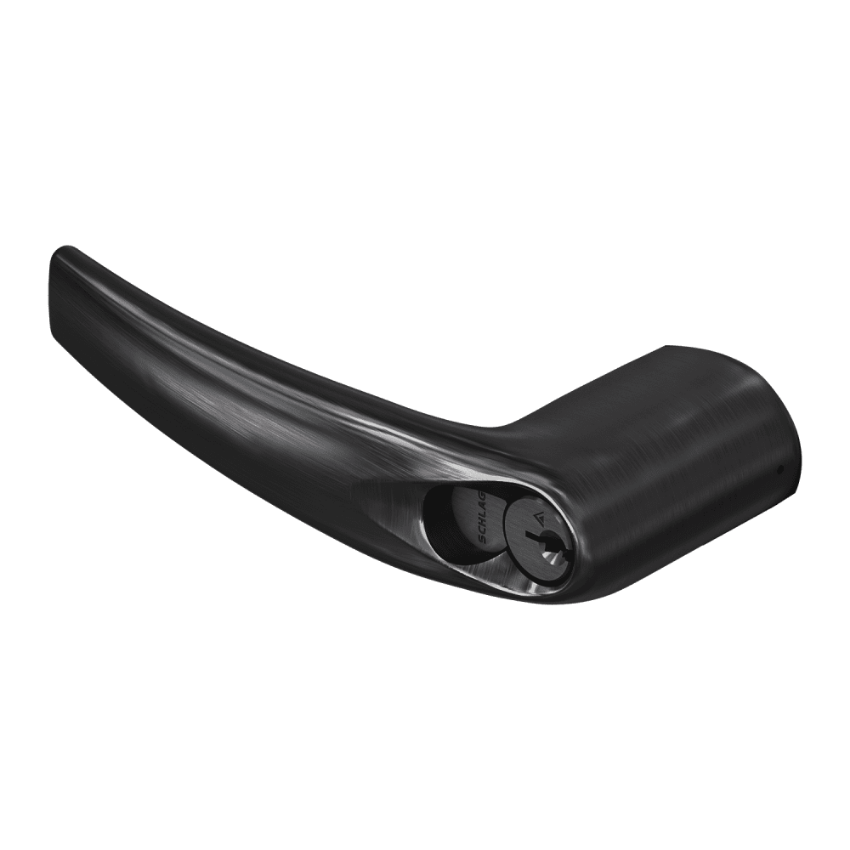

schlage 03-266-8at 622 matte black athens tactile lever
schlage 03-266-8at 625 bright chrome athens tactile lever

Schlage

SKU: 03-266-8AT

Schlage 03-266-8AT Athens Tactile Lever Corbin Russwin LFIC J-CO6

Available (3 - 4 Weeks)

Schlage 03-266-8AT (Original Part# 03-066-8AT) is a genuine OEM tactile Athens-style exterior lever less core designed for compatible Schlage commercial locks using a Corbin Russwin LFIC J-CO6 (6-pin) interchangeable core.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available

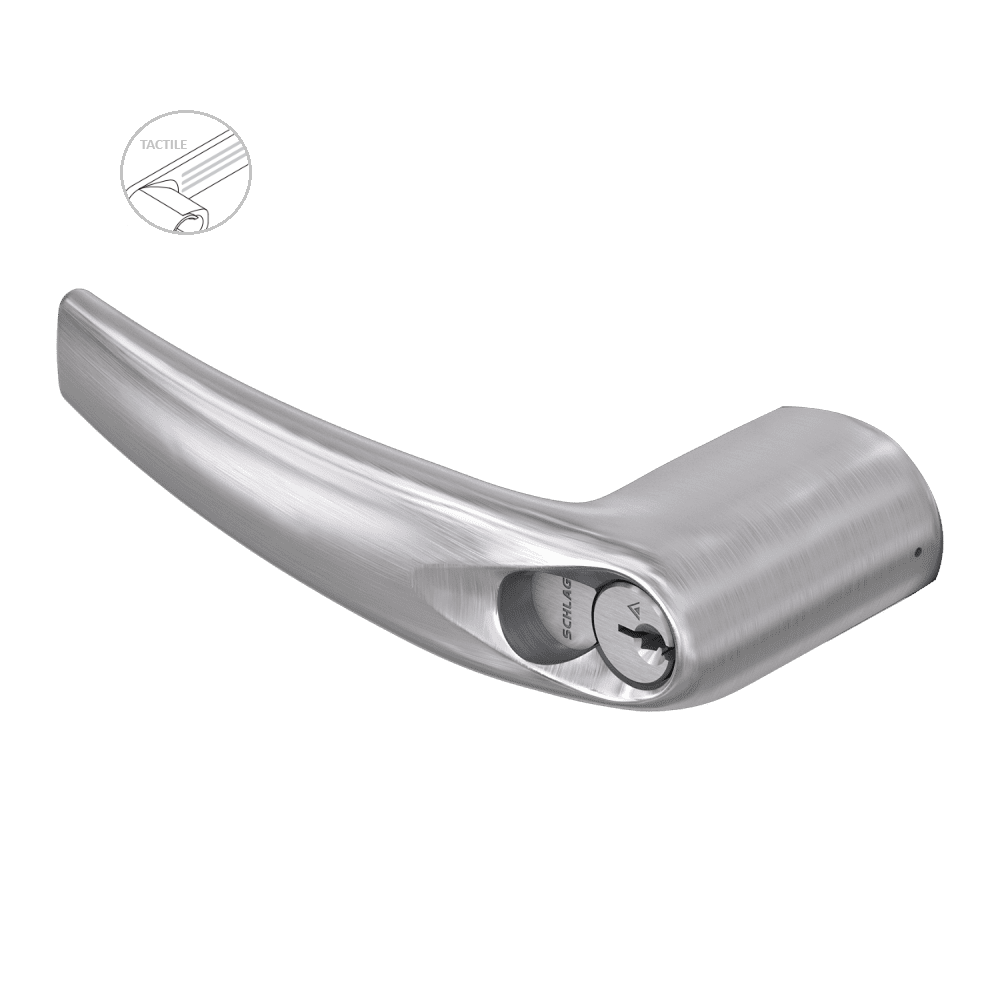

  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available

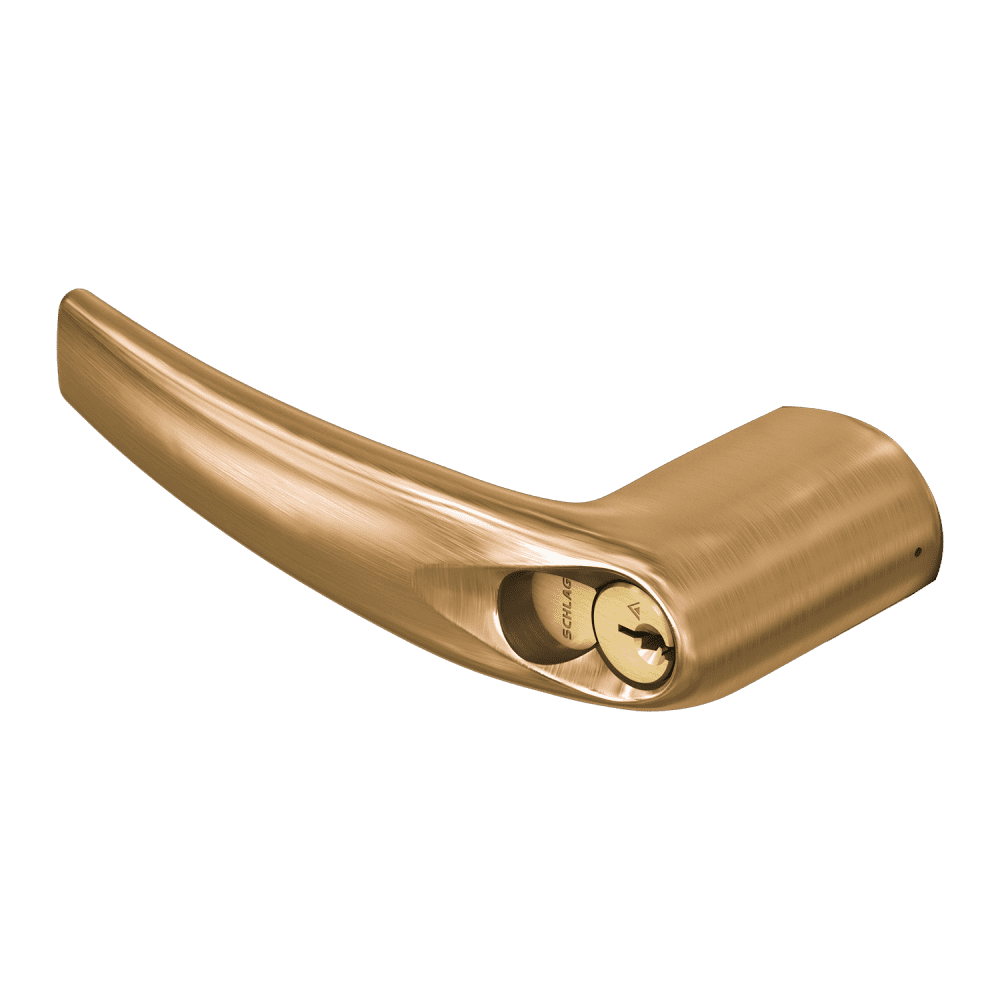

  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available

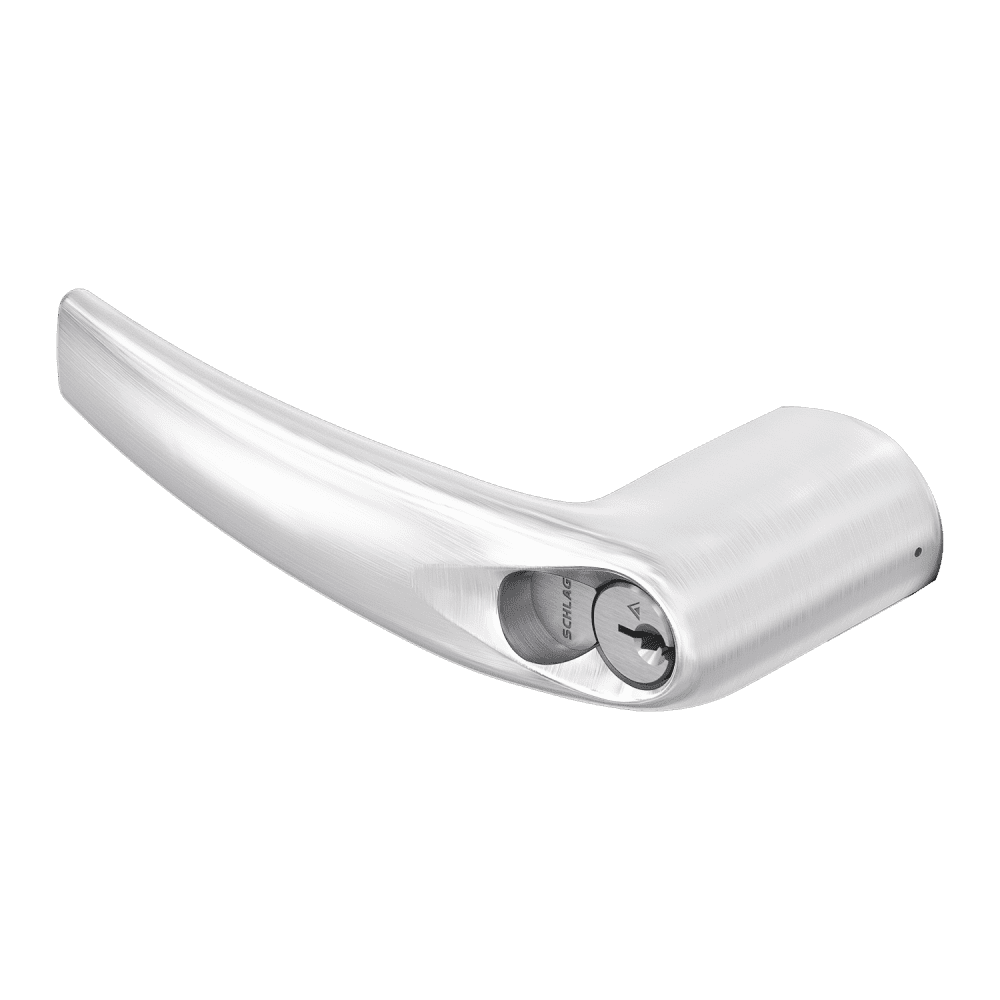

  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available

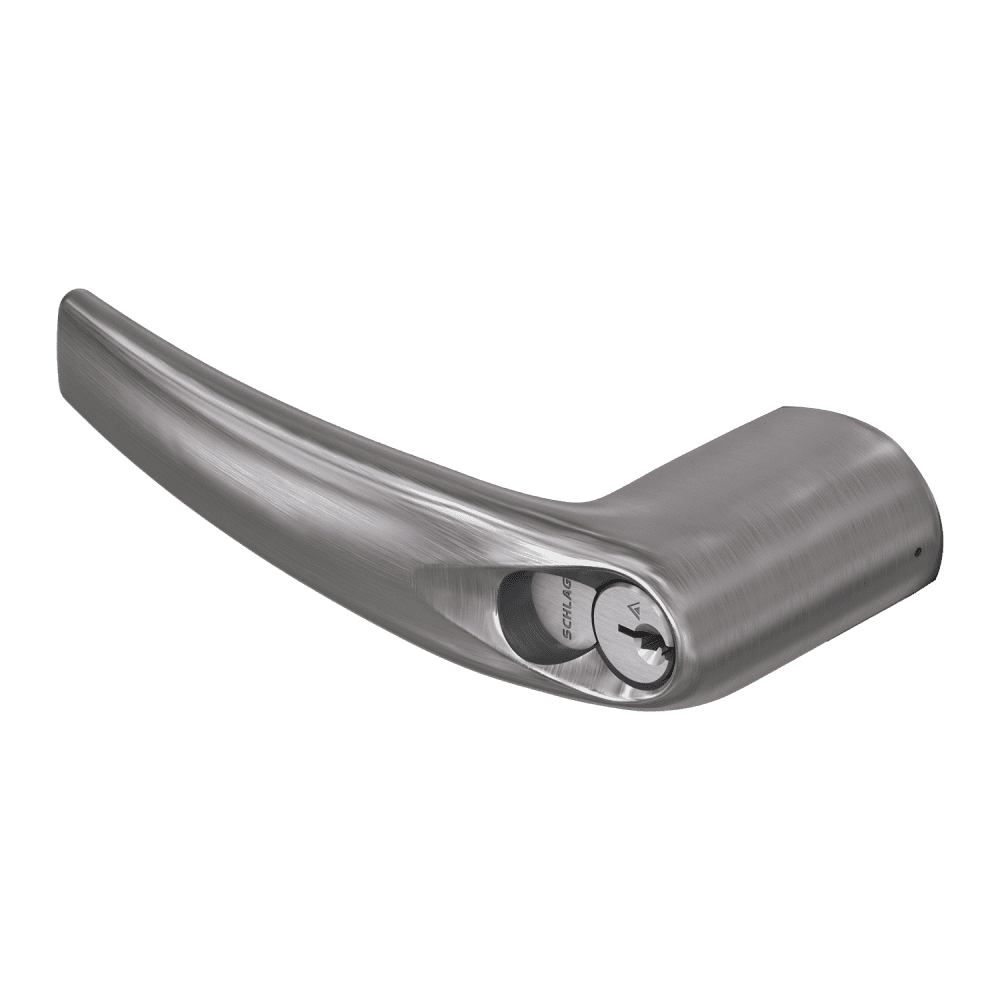

  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available

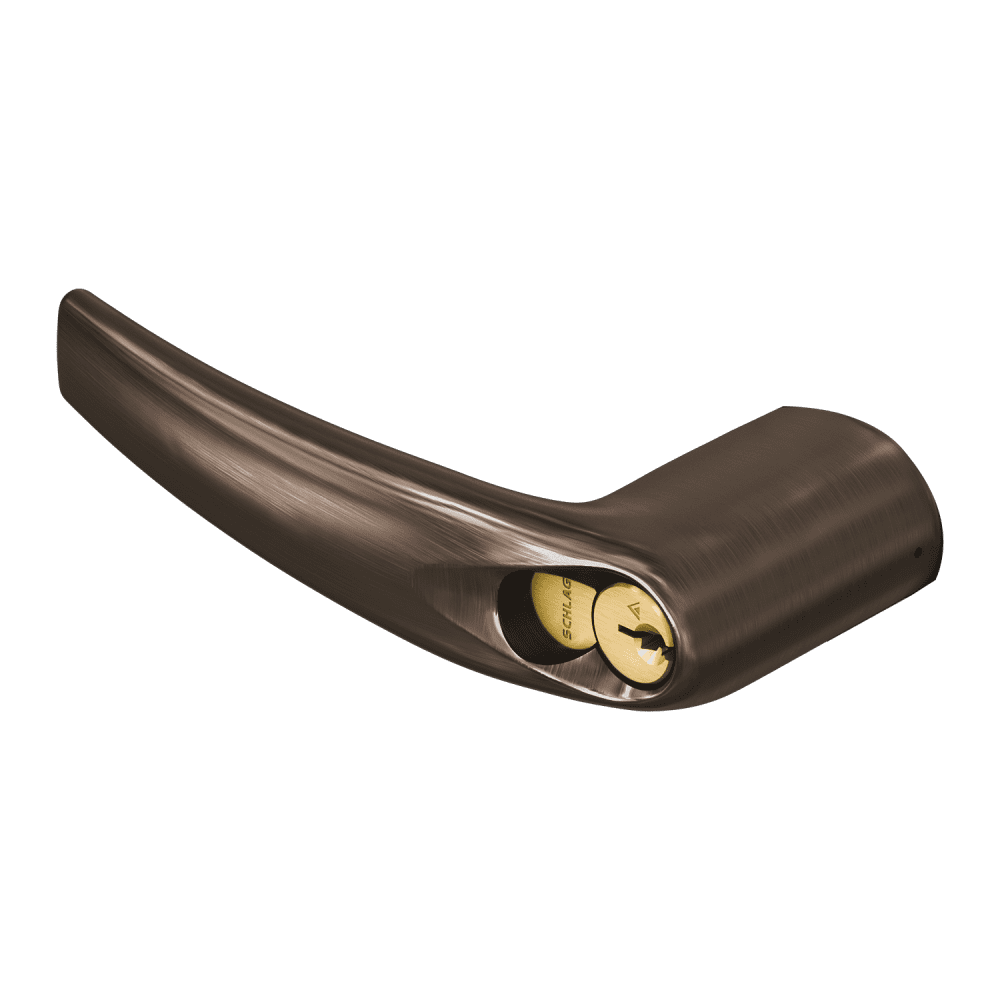

  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available

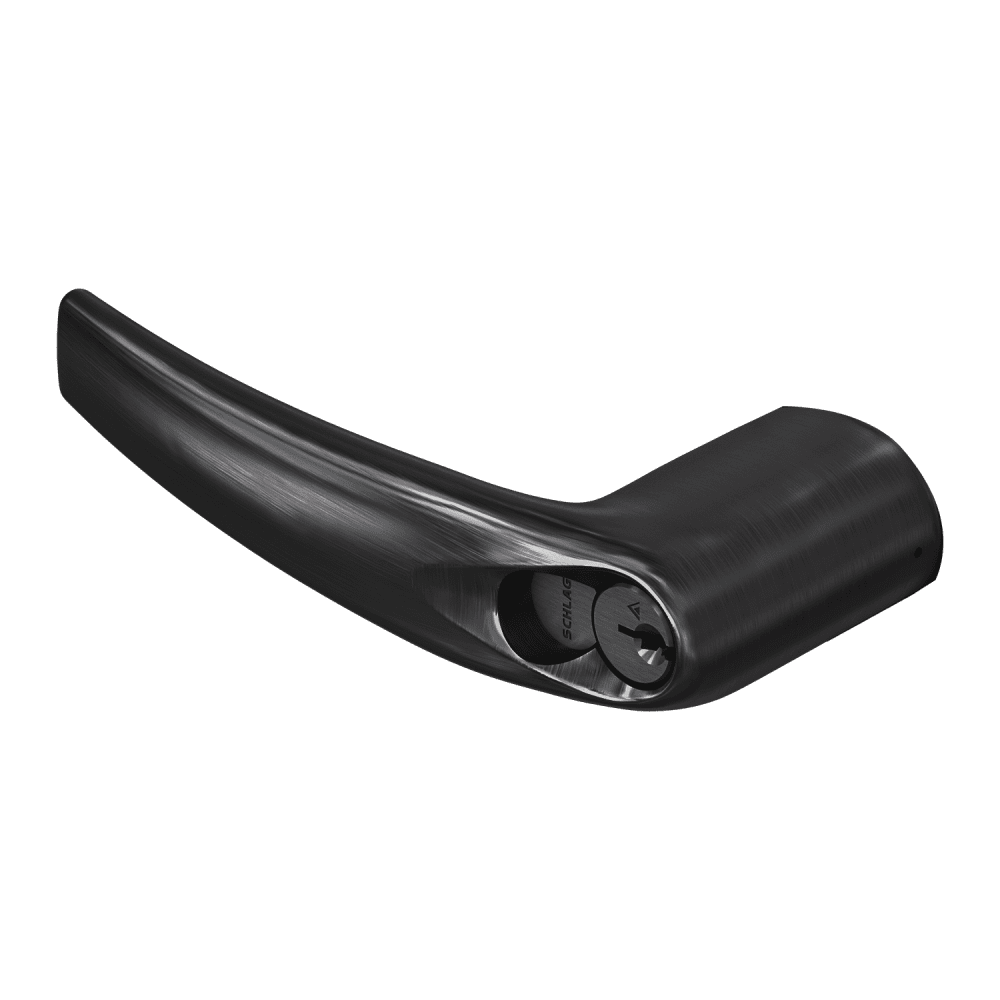

  • 622 / US19 - Matte Black
    622 / US19 - Matte Black
    Not available

The Schlage 03-266-8AT is the OEM Athens Tactile Lever designed for Corbin Russwin Full-Size Interchangeable Core (FSIC/LFIC) J-CO6 6-pin cores, for the Schlage AD Series, CO Series, ALX Series, and ND Series cylindrical locks, documented in four official Schlage Service Manuals: ALX, ND, AD, and CO Series. Per the SecurityParts.com product page: "The lever is supplied less core, allowing installation with a compatible Corbin Russwin J-CO6 6-pin LFIC." Tactile Athens lever. Non-handed. Original Part# 03-066-8AT. Available (3-4 weeks).



What the 03-266 Corbin Russwin LFIC J-CO6 Format Means

The 03-266 prefix identifies levers with factory preparation for the Corbin Russwin Large Format Interchangeable Core (LFIC) in the J-CO6 (6-pin) configuration. Per the SecurityParts.com product page: "Accommodates Corbin Russwin 6-pin LFIC (J-CO6) core for manual latch retraction with built-in tactile safety grip." The product type is confirmed as "Full Size Interchangeable Core (FSIC / LFIC) Lever Trim (Less Core)."

The 03-266 format is distinct from the 03-235 Corbin Russwin FSIC J-CO7 family. Both are Corbin Russwin interchangeable core formats but they differ in pin count. The 03-235 lever family accepts the J-CO7 (7-pin) Corbin Russwin core. The 03-266 lever family accepts the J-CO6 (6-pin) Corbin Russwin core. These two core formats are not interchangeable. Confirm the pin count of the installed Corbin Russwin core before selecting between the 03-235 and 03-266 lever families.



Athens Tactile Profile and Legacy Part Number

The 03-266-8AT uses the Athens lever profile with a tactile surface. Per the SecurityParts.com product page, the lever is classified as "Heavy-duty commercial exterior replacement tactile lever." The tactile surface provides safety feedback by touch for hazardous area door identification at outside trim positions where the tactile designation is specified alongside the Corbin Russwin J-CO6 LFIC core requirement. The legacy part number is 03-066-8AT, as confirmed on the SecurityParts.com product page under "Original Part#." A compatible Corbin Russwin J-CO6 6-pin LFIC core must be sourced separately. The core is not included.



Series Compatibility and Finishes

The 03-266-8AT is compatible with AD Series, CO Series, ALX Series, and ND Series locks configured for Corbin Russwin LFIC J-CO6 cores. The NDE Series is not listed in the formal compatibility section. Finishes must be specified at time of order. Contact SecurityParts.com for current finish availability on this item.

SecurityParts stocks OEM Schlage ND Series and ALX Series lever components. Free shipping on orders over $300.

$492.00
$300.12
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 03-266-8AT?
It is a genuine OEM Athens-style tactile exterior lever for compatible Schlage electronic locksets.
Does this lever include the interchangeable core?
No. This lever is supplied less core. The Corbin Russwin FSIC core must be purchased separately.
What core does this lever accept?
It is designed for a Corbin Russwin FSIC J-CO6 full-size interchangeable core.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
