SKU: 09-506 01

Schlage 09-506 01 Outside Lever Assembly For L Series

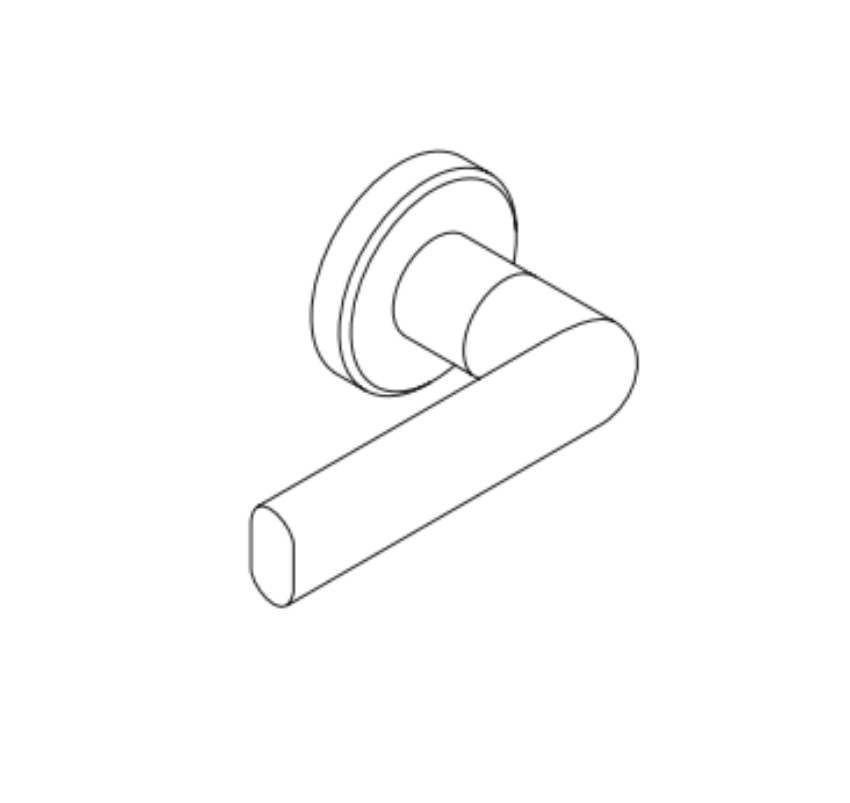

Schlage 09-506 01 Outside Lever Assembly for L Series mortise lock
Picture of 09-506 01 Outside Lever Assembly For L Series
Picture of 09-506 01 Outside Lever Assembly For L Series
Dynamic Image
Schlage 09-506 01 Outside Lever Assembly for L Series mortise lock
Picture of 09-506 01 Outside Lever Assembly For L Series
Picture of 09-506 01 Outside Lever Assembly For L Series

Schlage

SKU: 09-506 01

Schlage 09-506 01 Outside Lever Assembly For L Series

In stock

The Schlage 09-506 01 Outside Lever Assembly is a genuine OEM replacement outside trim assembly for Schlage L Series mortise locks.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 609 / US5 Antique Brass
    609 / US5 Antique Brass
    Not available
*

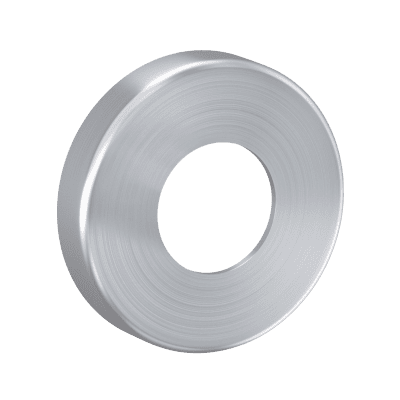

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

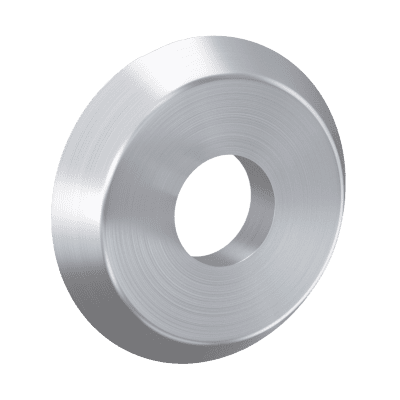

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available

The Schlage 09-506 01 Outside Lever Assembly is a genuine OEM replacement trim assembly designed for Schlage L Series Grade 1 mortise locks. It is used when replacing worn, damaged, or missing outside trim while maintaining the original appearance and operation of the lock.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever

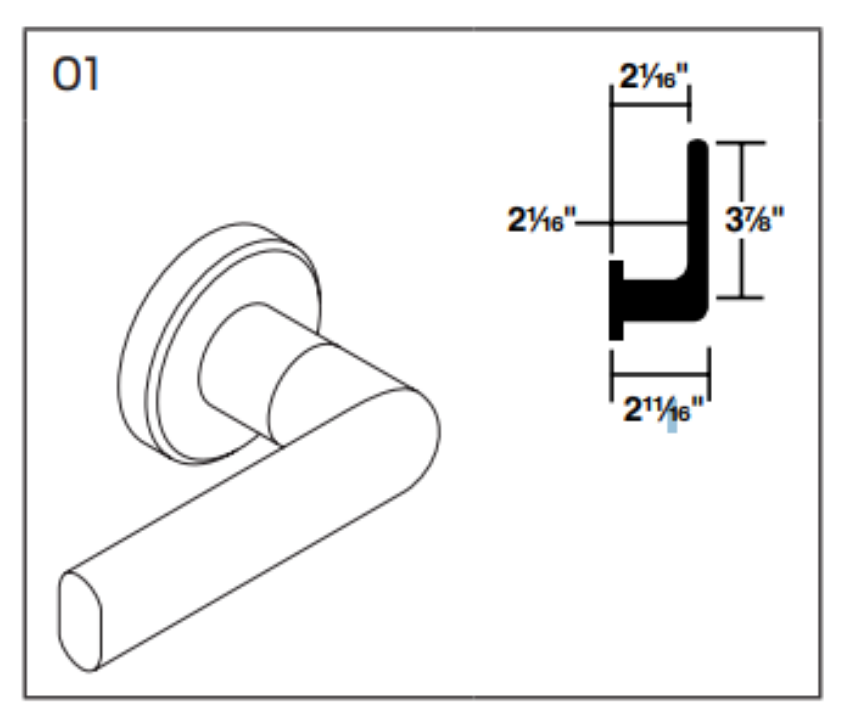

Lever Design: 01
Product Series: L/LE Series

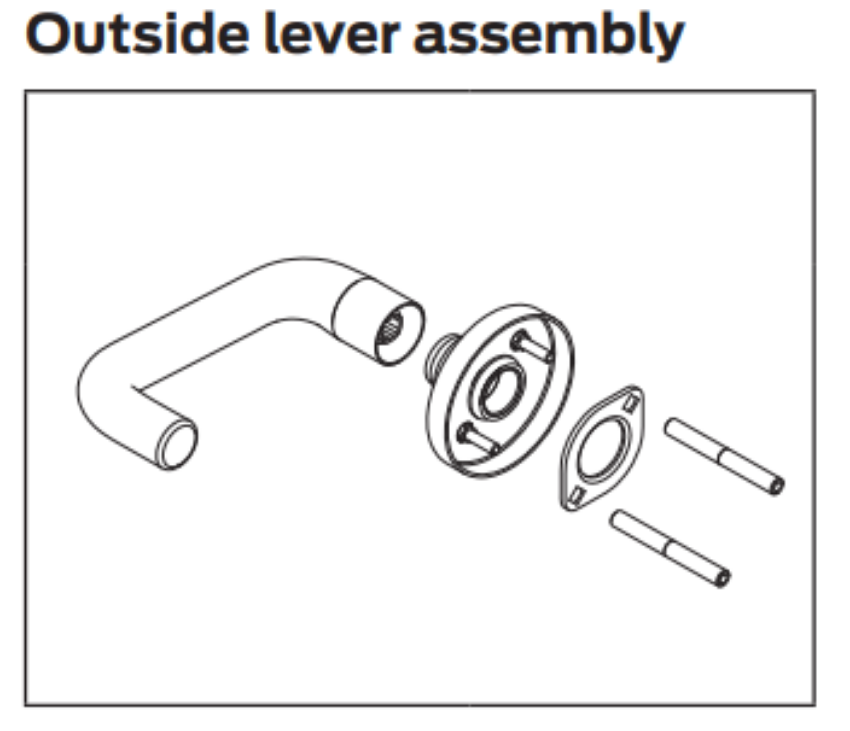

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$235.00
$143.35
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 01?
It is a genuine OEM outside lever and rose assembly for Schlage L Series mortise locks using the 01 lever design.
Which Schlage lock series is this part compatible with?
It is designed for Schlage L Series commercial mortise locks.
Does the Schlage 09-506 01 Outside Lever Assembly replace only the exterior trim?
Yes. The 09-506 01 is an outside lever assembly intended to replace the exterior lever and rose assembly on compatible Schlage L Series mortise locks.
Does this part include the mortise lock case or cylinder?
No. The 09-506 01 Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
