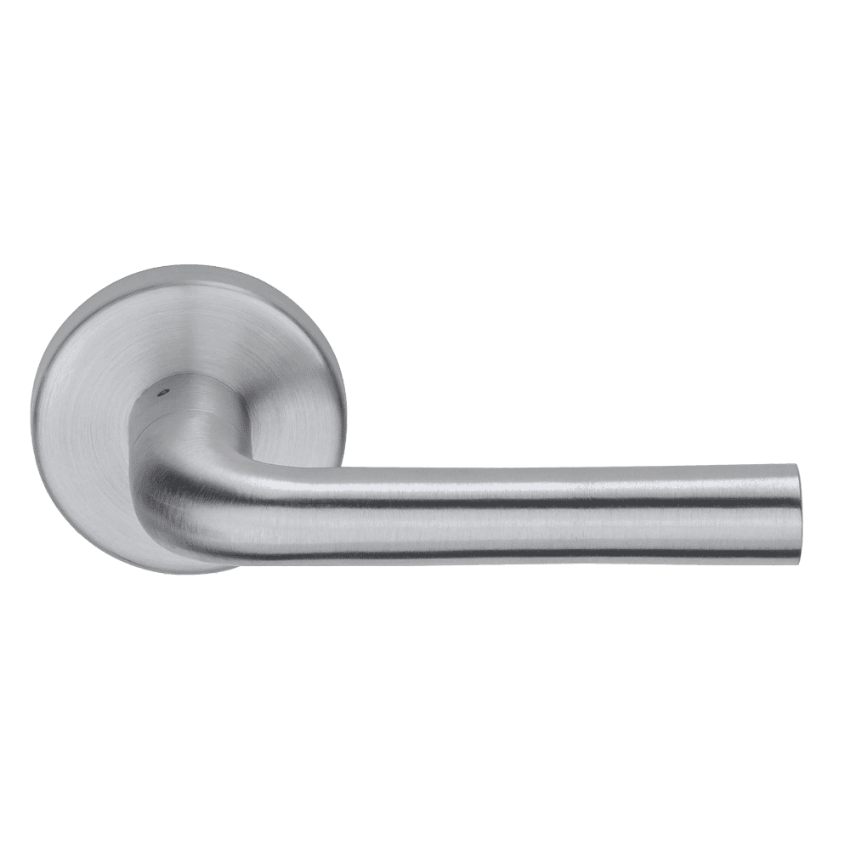

Schlage 09-506-02 619 Satin Nickel outside lever assembly for L Series
Dynamic Image
Schlage 09-506-02 626 Satin Chrome outside lever assembly for L Series
Picture of 09-506 02 Outside Lever Assembly For L Series
Picture of 09-506 02 Outside Lever Assembly For L Series
Schlage 09-506-02 619 Satin Nickel outside lever assembly for L Series

Schlage

SKU: 09-506 02

Schlage 09-506 02 Outside Lever Assembly For L Series

Available (3 - 4 Weeks)

The Schlage 09-506-02 Outside Lever Assembly is an OEM replacement outside lever trim for Schlage L Series mortise locks.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 / US19 - Matte Black
    622 / US19 - Matte Black
    Not available
*

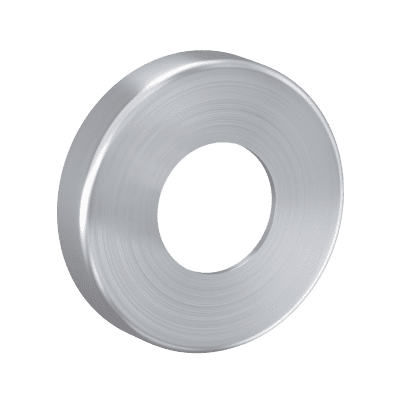

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

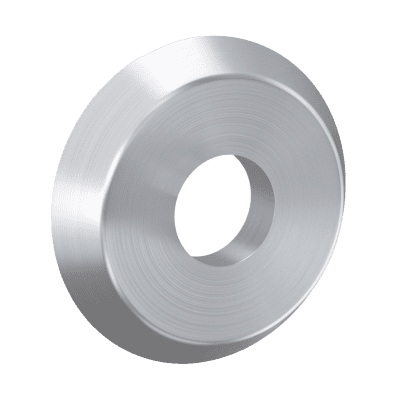

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available

The Schlage 09-506-02 Outside Lever Assembly is a genuine OEM replacement component designed for Schlage L Series commercial mortise locks. This outside lever assembly replaces a damaged or worn exterior lever to restore proper operation and maintain the lock's original appearance. It is intended for use when servicing compatible L Series lock trim and helps ensure reliable exterior access while preserving factory fit and function.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever
Lever Design: 02
Product Series: L/LE Series

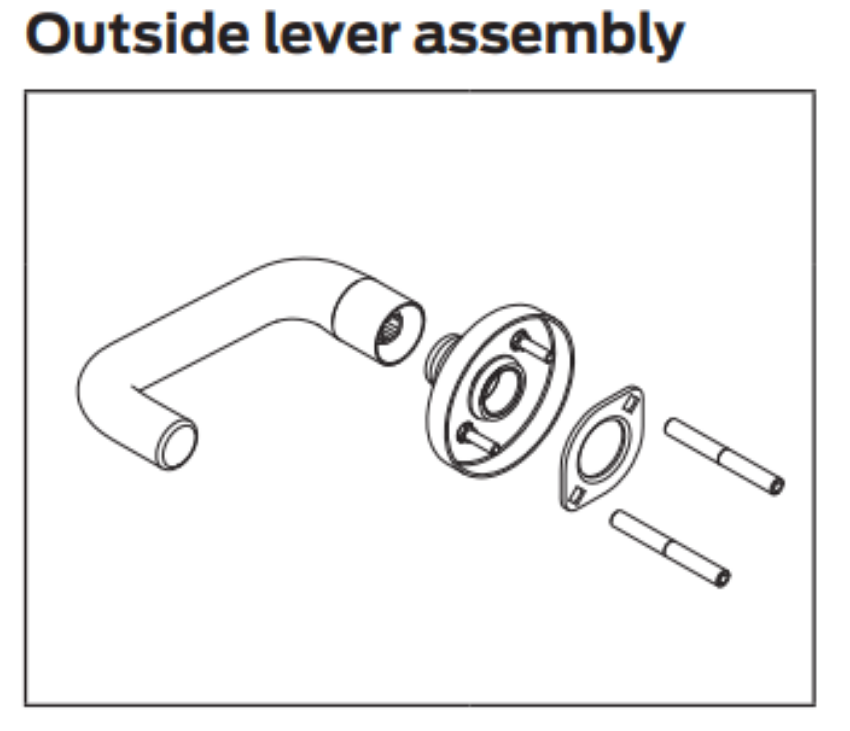

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$235.00
$143.35
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506-02?
The Schlage 09-506-02 is a genuine OEM outside lever assembly for compatible Schlage L Series mortise locks.
What does this assembly replace?
It replaces the exterior lever assembly when the original component is worn, damaged, or requires replacement.
Which locks is this part compatible with?
It is compatible with Schlage L Series mortise locks using the 02 lever design.
Does this part include the mortise lock case or cylinder?
No. The 09-506 02 Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.

Replace a worn exterior lever with the genuine Schlage 09-506-02 Outside Lever Assembly for compatible L Series mortise locks using the 02 lever design.
