Schlage

SKU: 09-506 03

Schlage 09-506 03 Outside Lever Assembly For L Series

Available (3 - 4 Weeks)

The Schlage 09-506 03 Outside Lever Assembly is an OEM exterior trim assembly featuring the 03 lever design for Schlage L Series mortise locks.
*

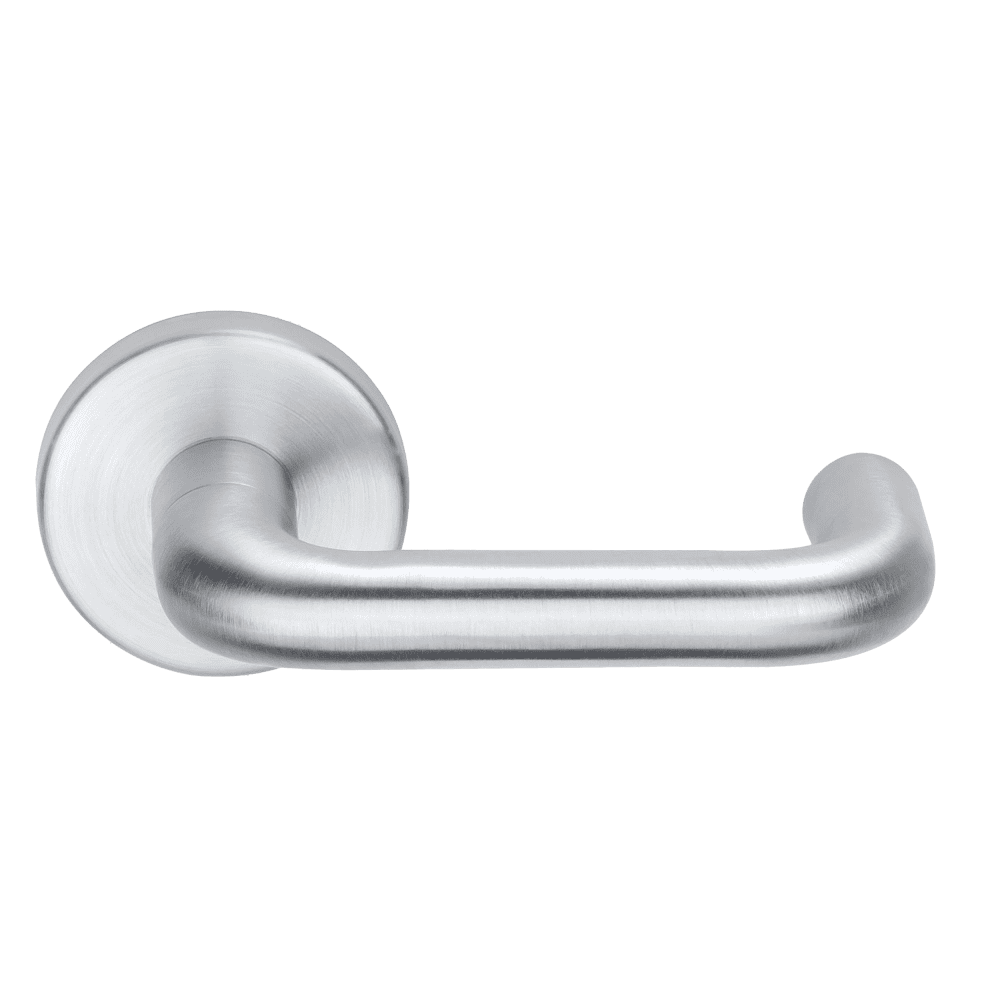

  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available

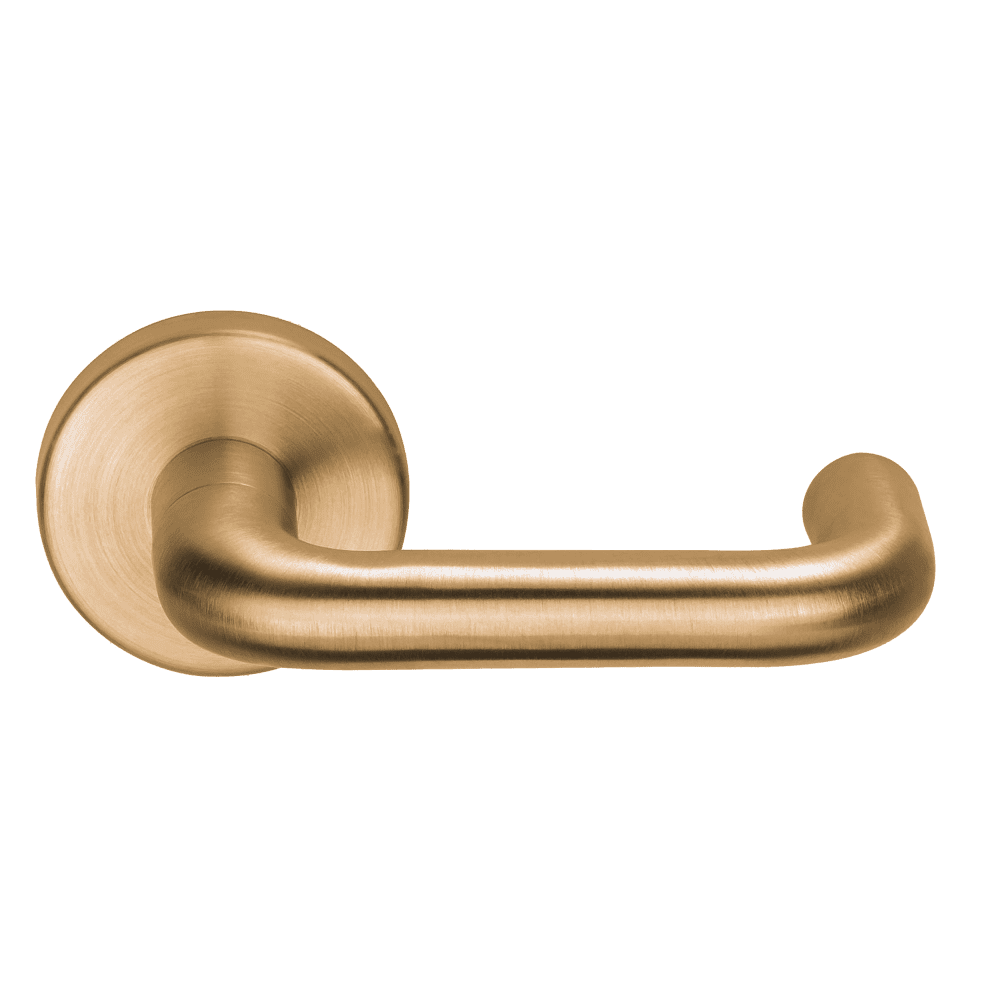

  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available

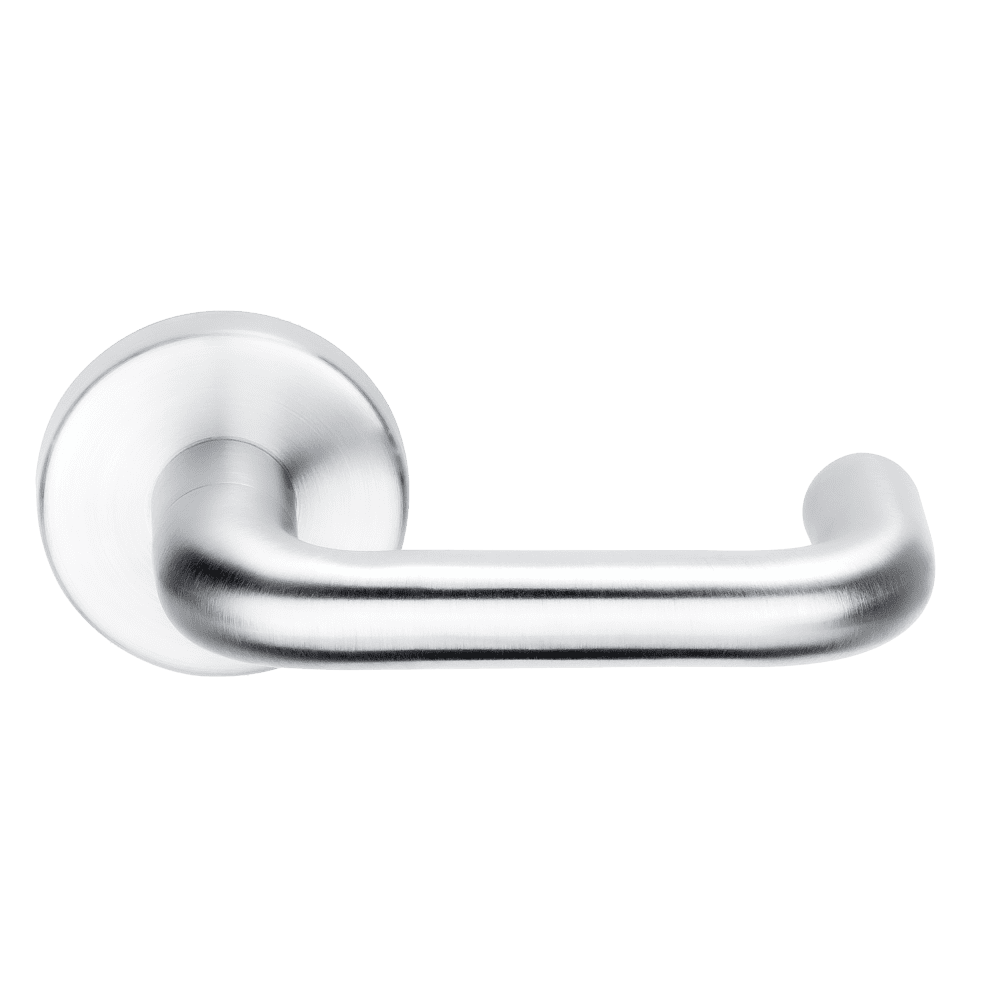

  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available

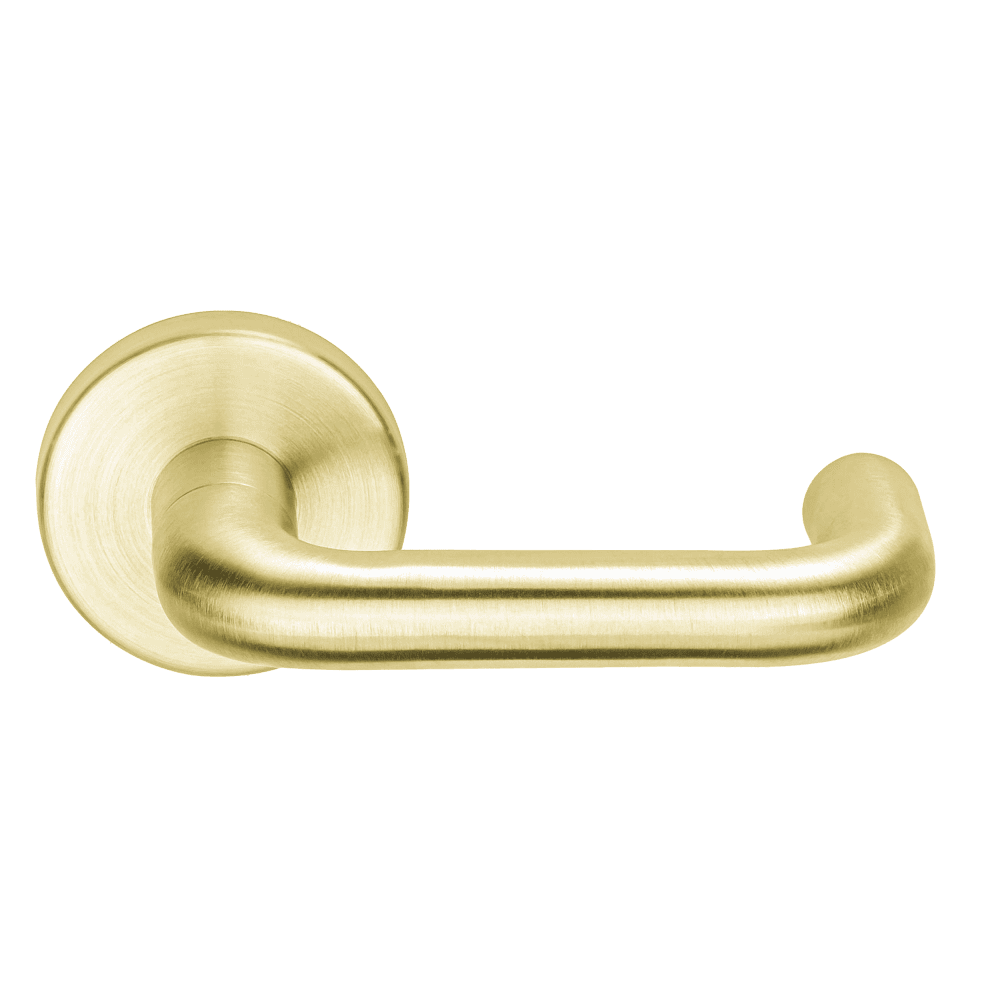

  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available

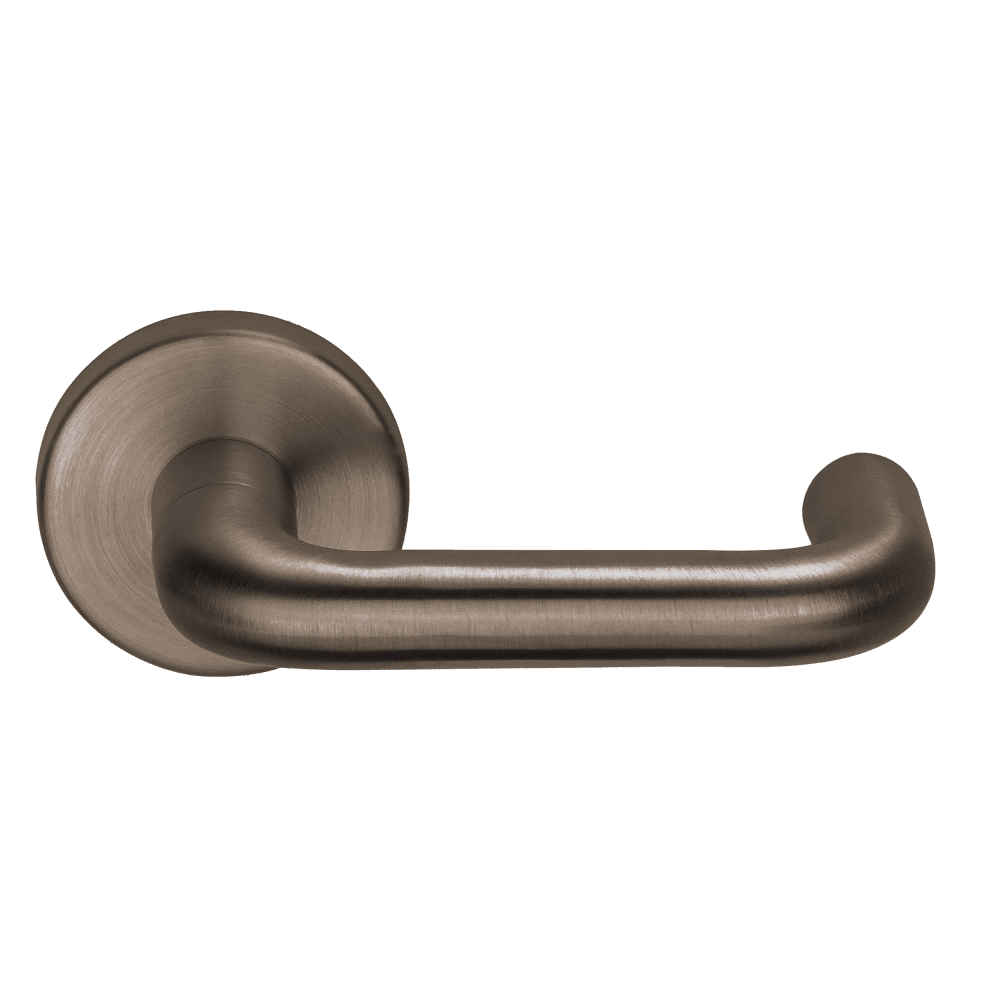

  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available

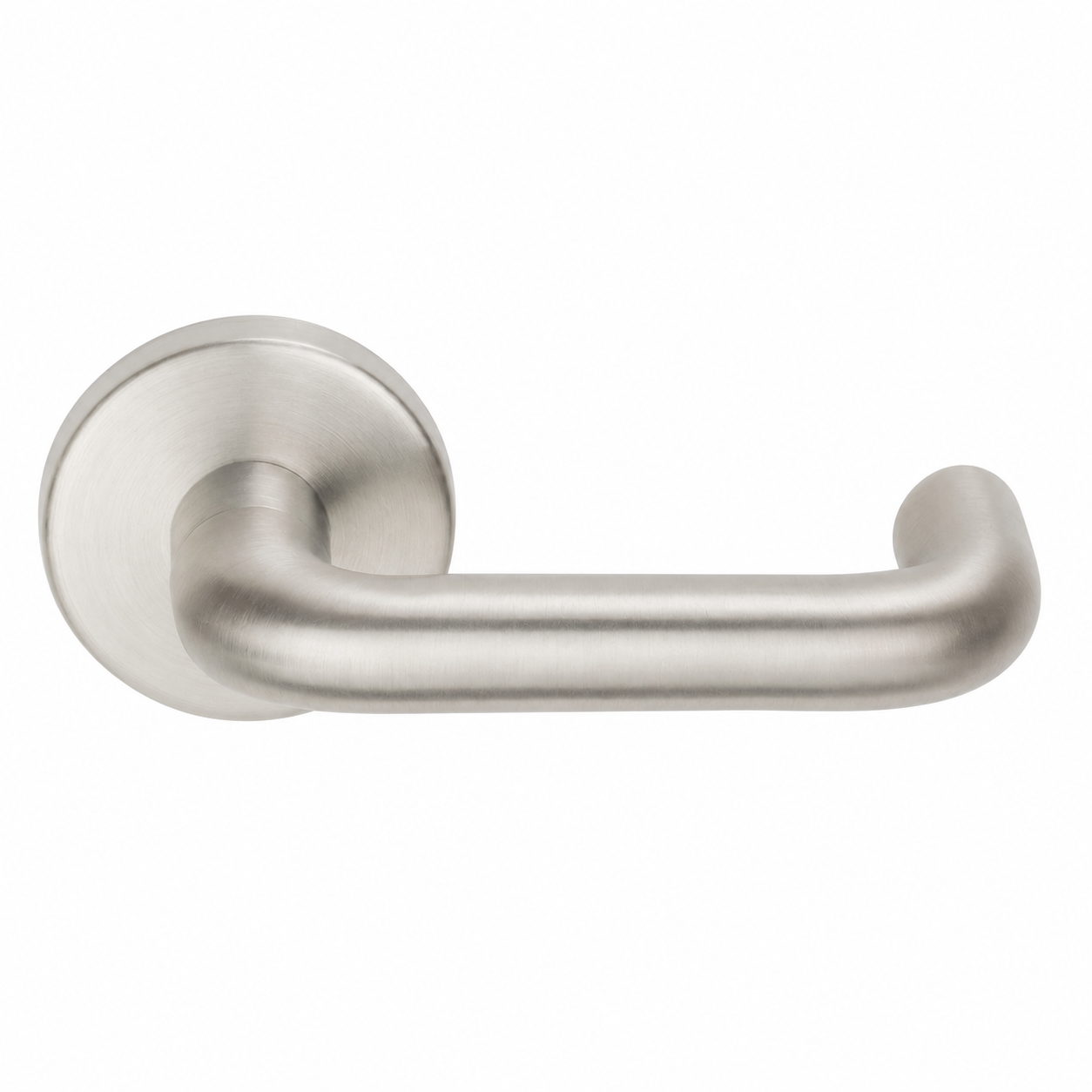

  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available

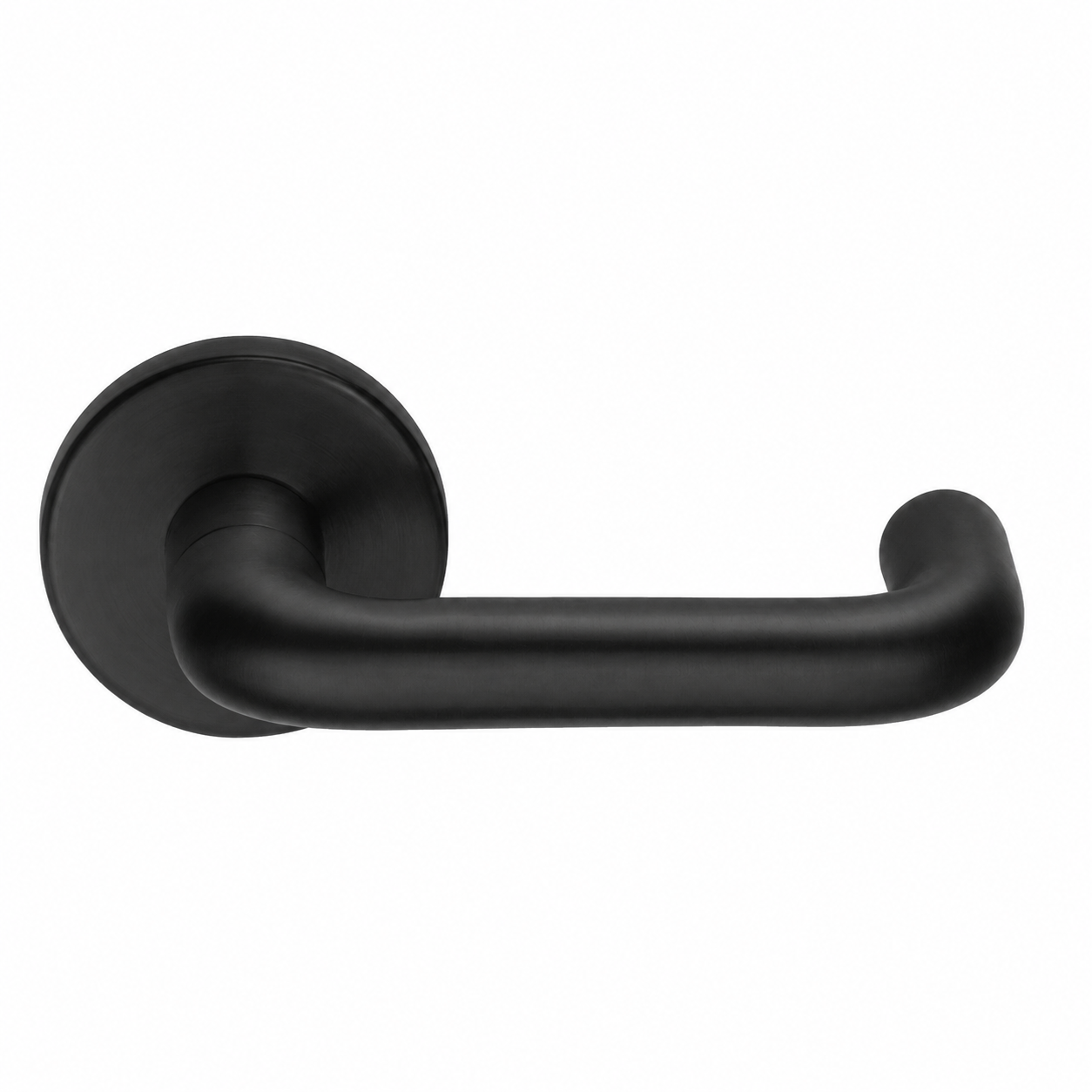

  • 622 / US19 - Matte Black
    622 / US19 - Matte Black
    Not available
*

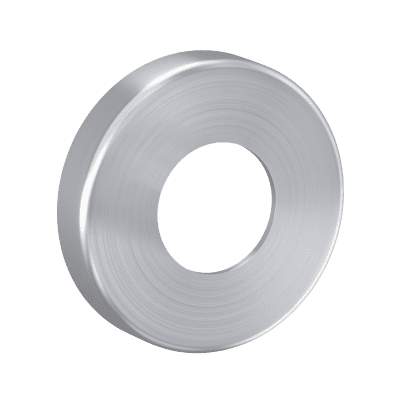

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

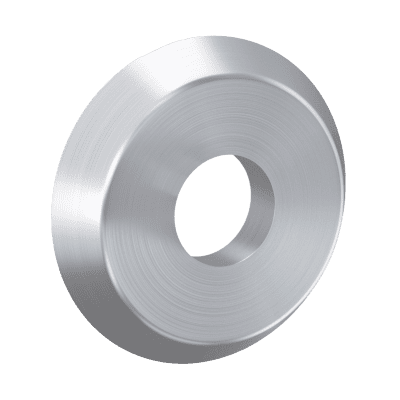

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available

The Schlage 09-506 03 Outside Lever Assembly is a genuine OEM replacement exterior lever assembly designed for Schlage L Series mortise locks. It replaces worn or damaged exterior trim while maintaining the original appearance and operation of compatible L Series locksets.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever

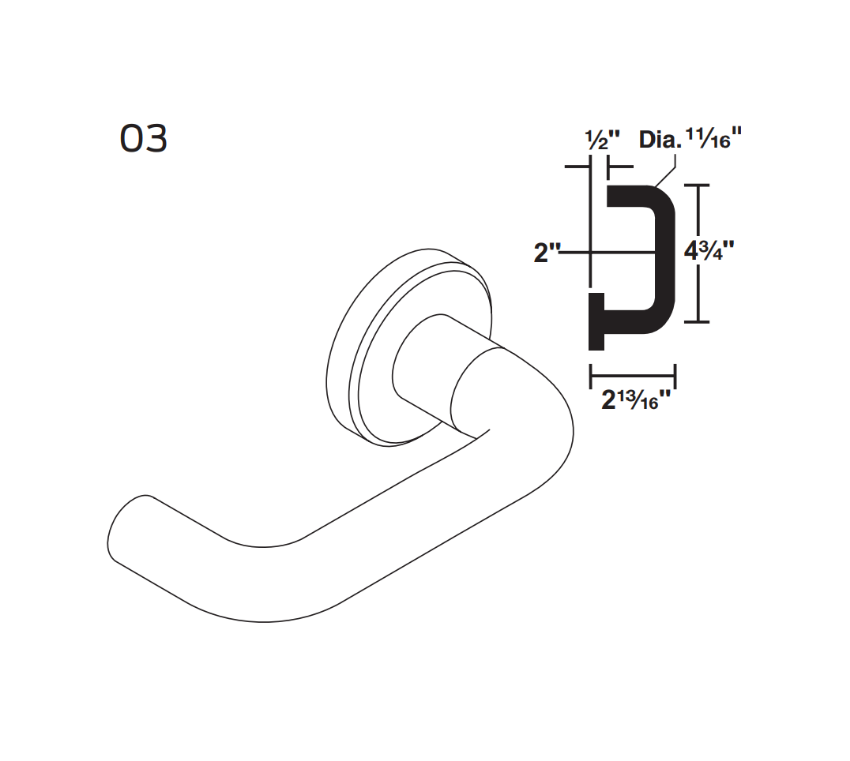

Lever Design: 03
Product Series: L/LE Series

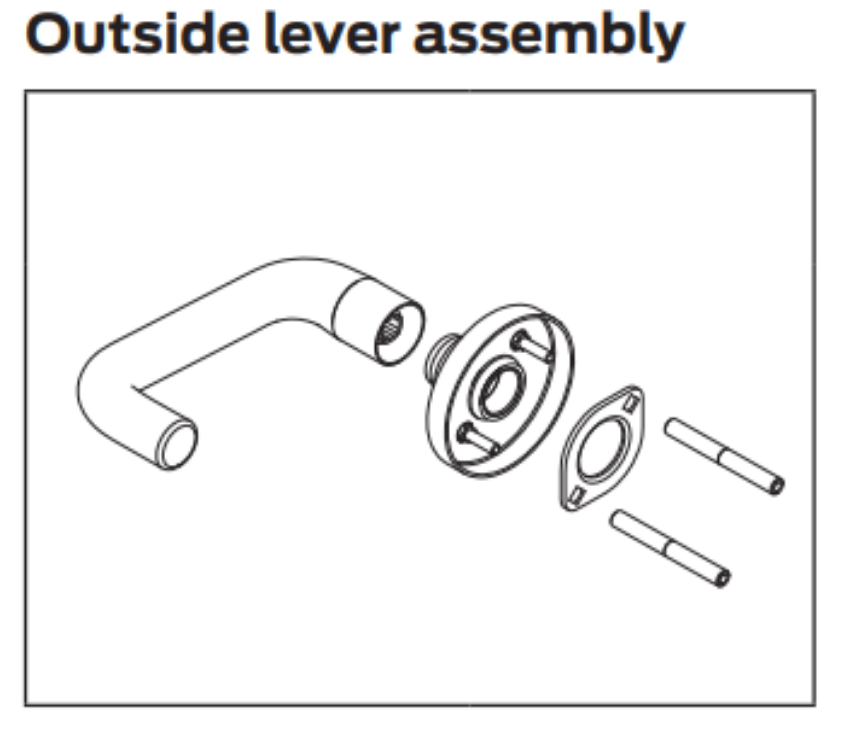

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$235.00
$143.35
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 03?
It is a genuine OEM outside lever assembly featuring the Schlage 03 lever design for L Series mortise locks.
Which Schlage lock series is this part designed for?
It is designed for compatible Schlage L Series mortise locksets.
Which rose styles are available with this assembly?
The assembly is available with A, B, or C rose configurations.
Does this part include the mortise lock case or cylinder?
No. The 09-506 03 Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
