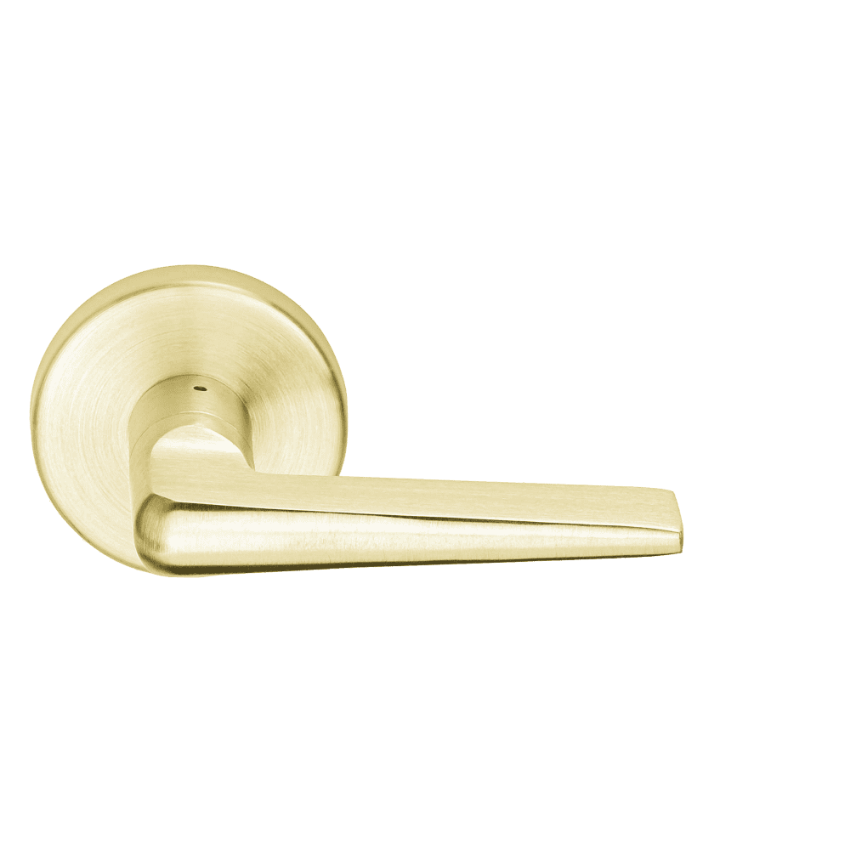

Schlage 09-506 05 Outside Lever Assembly 605 Bright Brass for L Series

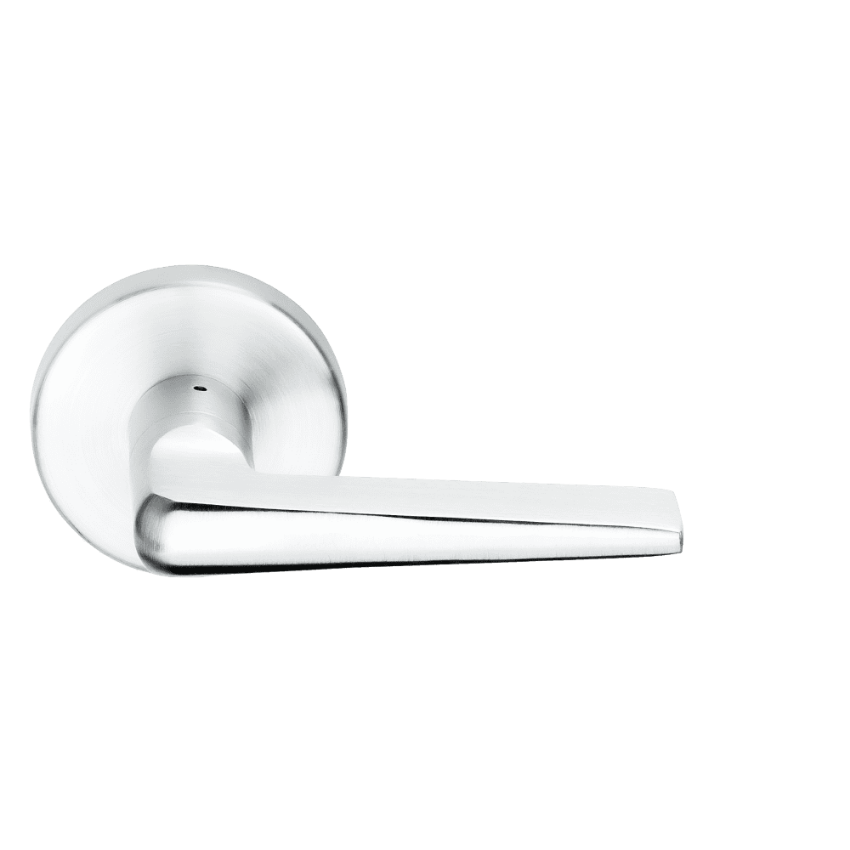

Schlage 09-506 05 Outside Lever Assembly 625 Bright Chrome for L Series

Schlage

SKU: 09-506 05

Schlage 09-506 05 Outside Lever Assembly For L Series

Available (3 - 4 Weeks)

The Schlage 09-506 05 Outside Lever Assembly is an OEM replacement outside trim component featuring the 05 lever design for Schlage L Series mortise locks using A, B, or C roses.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
*

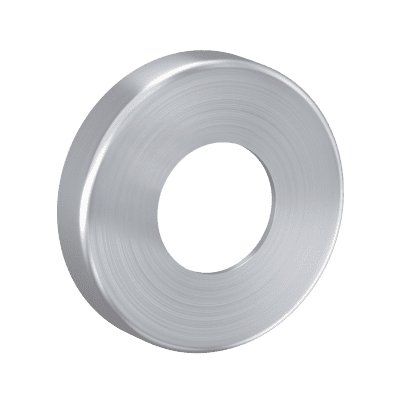

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

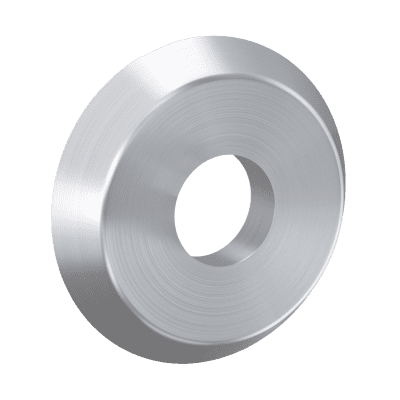

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available

The Schlage 09-506 05 Outside Lever Assembly is a genuine OEM replacement outside lever assembly designed for Schlage L Series commercial mortise locks. It provides the exterior operating lever using the Schlage 05 lever design and is intended for installations utilizing A, B, or C roses. This replacement assembly restores the appearance and functionality of worn or damaged exterior trim while maintaining compatibility with the original lock configuration.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever

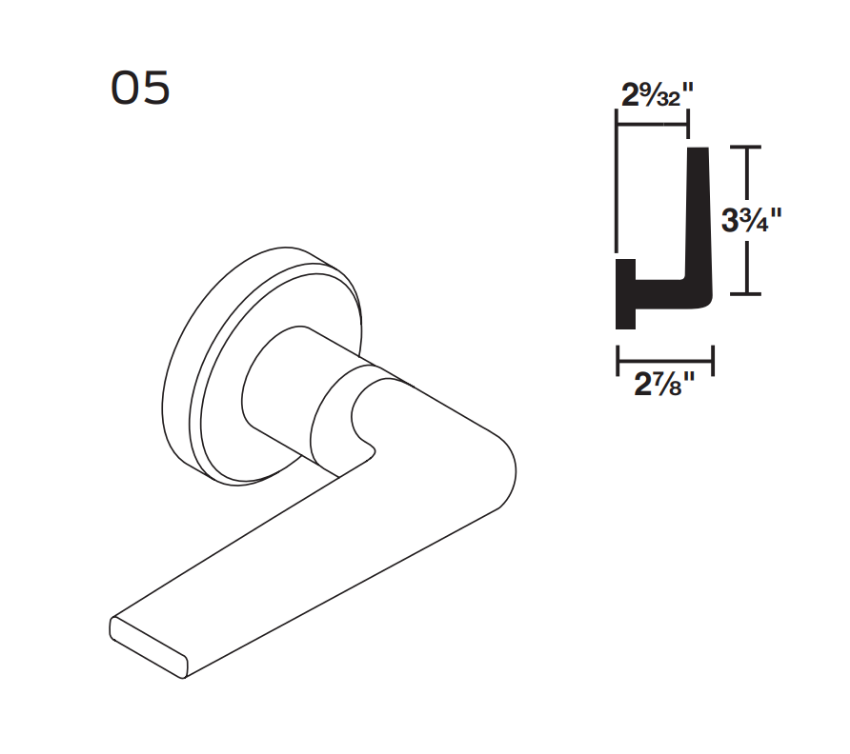

Lever Design: 05
Product Series: L/LE Series

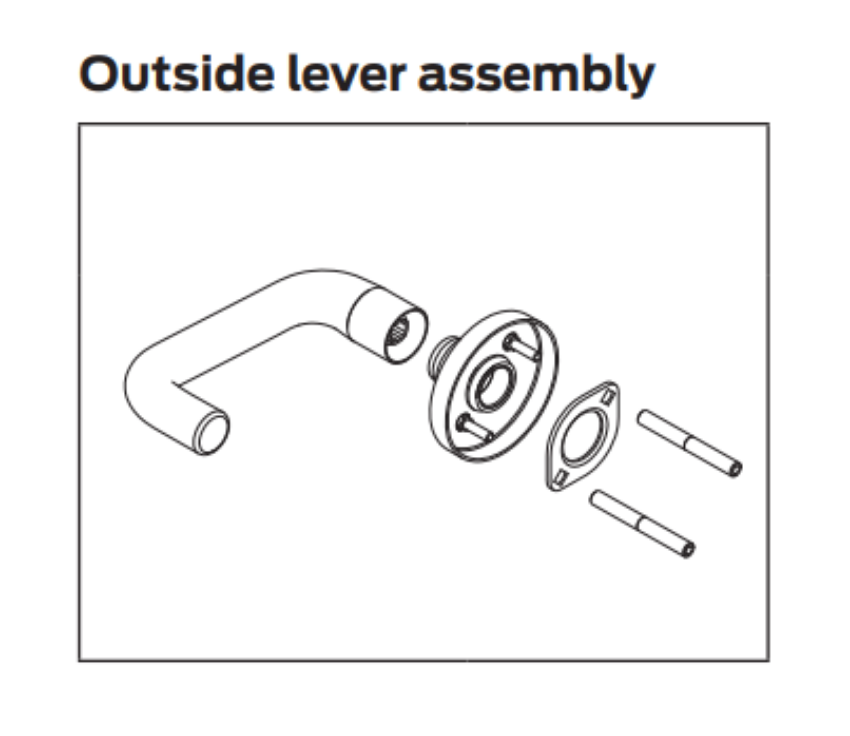

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$235.00
$143.35
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 05?
It is a genuine OEM outside lever assembly for Schlage L Series commercial mortise locks featuring the 05 lever design.
Which Schlage locks is this part compatible with?
It is designed for Schlage L Series mortise locks that use A, B, or C rose configurations.
Which lever design does this assembly feature?
This assembly features the Schlage 05 lever design.
What is the primary purpose of the Schlage 09-506 05 Outside Lever Assembly?
It replaces the exterior operating lever on compatible Schlage L Series commercial mortise locks.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
