Picture of Schlage

SKU: 09-506 17

Schlage 09-506 17 Outside Lever Assembly For L Series

Schlage 09-506 17 Outside Lever Assembly 626 Satin Chrome
Picture of 09-506 17 Outside Lever Assembly For L Series
Picture of 09-506 17 Outside Lever Assembly For L Series
Dynamic Image

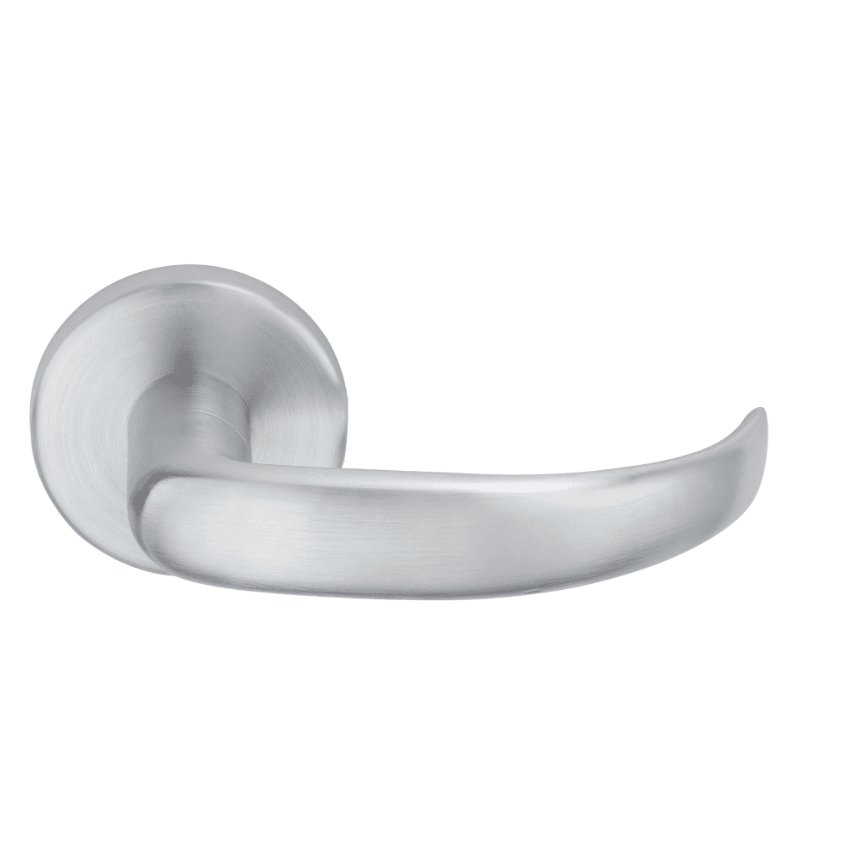

Schlage 09-506 17 Outside Lever Assembly 626 Satin Chrome
Picture of 09-506 17 Outside Lever Assembly For L Series
Picture of 09-506 17 Outside Lever Assembly For L Series

Schlage

SKU: 09-506 17

Schlage 09-506 17 Outside Lever Assembly For L Series

In stock

The Schlage 09-506 17 Outside Lever Assembly is a genuine OEM replacement outside lever trim for Schlage L Series mortise locks.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
*

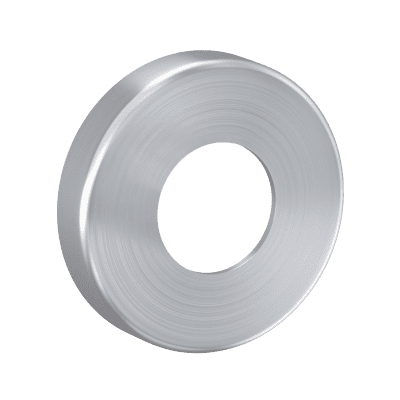

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

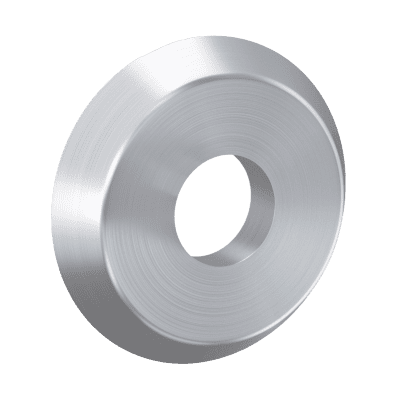

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available

The Schlage 09-506 17 Outside Lever Assembly is a genuine OEM replacement exterior lever assembly designed for Schlage L Series commercial mortise locksets. It replaces a damaged, worn, or missing outside lever assembly to restore proper operation and maintain the original appearance of the lock.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever

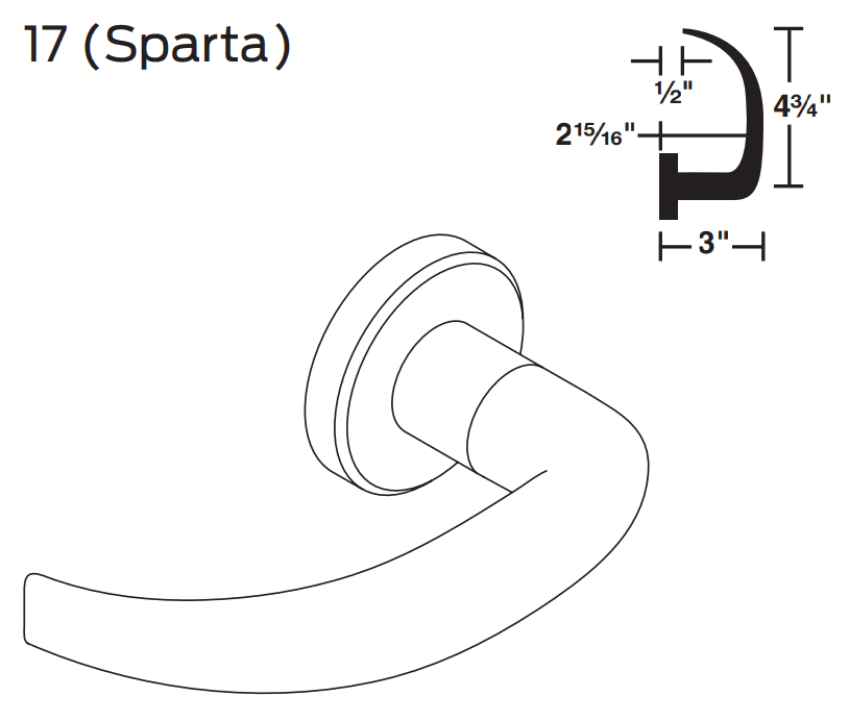

Lever Design: 17
Product Series: L/LE Series

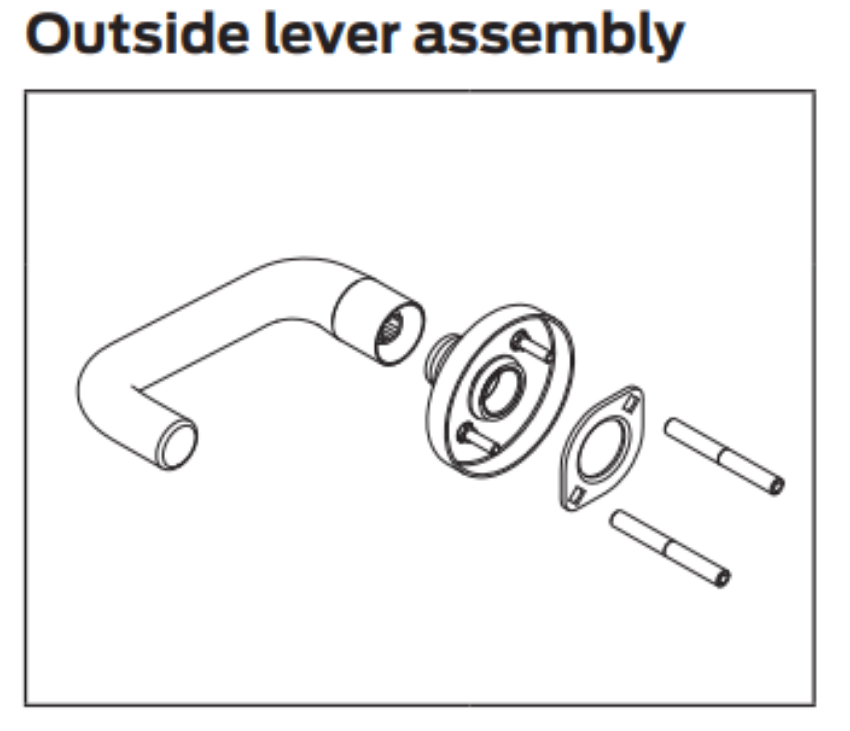

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$235.00
$143.35
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 17?
The Schlage 09-506 17 is a genuine OEM outside lever assembly for Schlage L Series commercial mortise locks.
Which lock series is this lever compatible with?
It is designed for Schlage L Series mortise locksets.
Can this assembly replace a damaged exterior lever?
Yes. It is intended to replace a worn or damaged outside lever assembly on compatible locks.
Does this part include the mortise lock case or cylinder?
No. The 09-506 17 Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
