Schlage

SKU: 09-506 M62

Schlage 09-506 M62 Outside Lever Assembly For L Series

Available (3 - 4 Weeks)

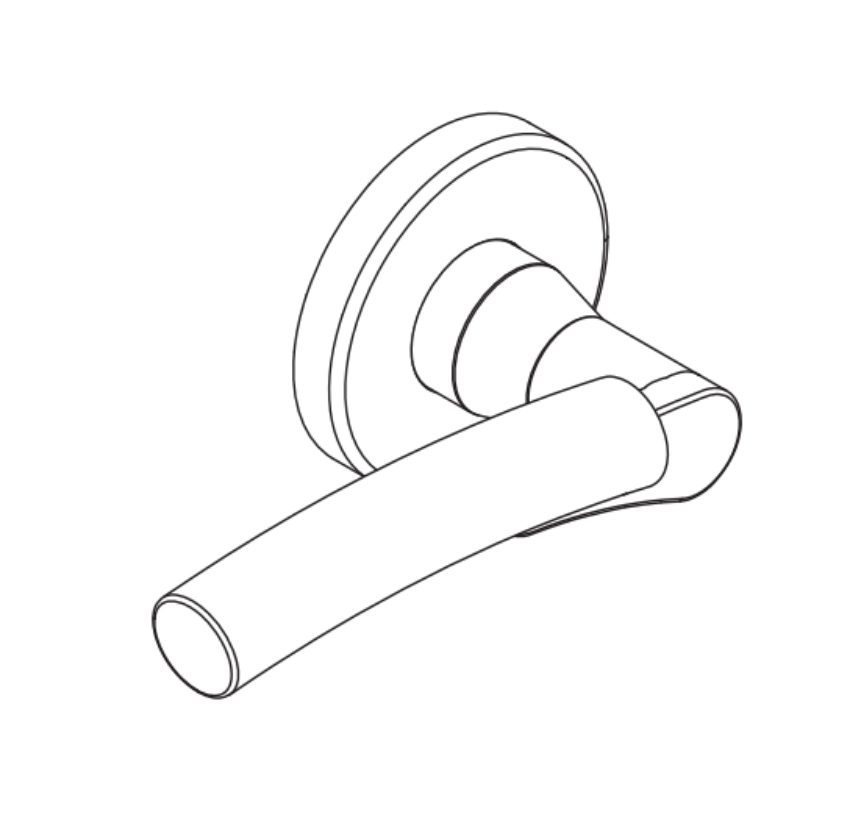

The Schlage 09-506 M62 Outside Lever Assembly is a genuine OEM replacement outside lever assembly for Schlage L Series mortise locks, featuring the M62 lever design for commercial applications.
*
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
*

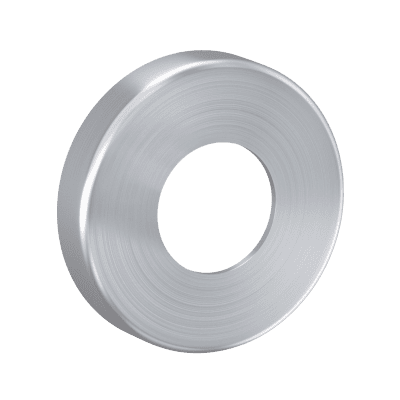

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

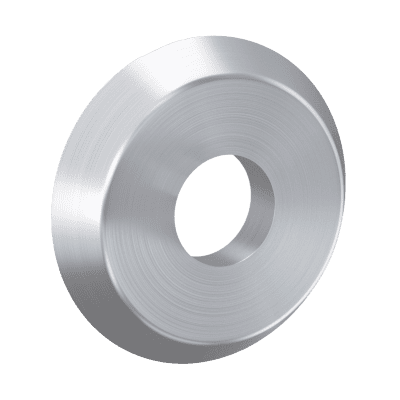

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available
*
  • LH - Left Hand
    LH - Left Hand
    Not available

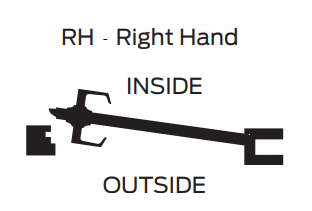

  • RH - Right Hand
    RH - Right Hand
    Not available

The Schlage 09-506 M62 Outside Lever Assembly is a genuine OEM replacement outside lever assembly designed for Schlage L Series Grade 1 mortise locks. It replaces the exterior lever assembly on compatible L Series locksets while maintaining the original M62 lever design and factory performance.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever
Lever Design: M62
Product Series: L/LE Series

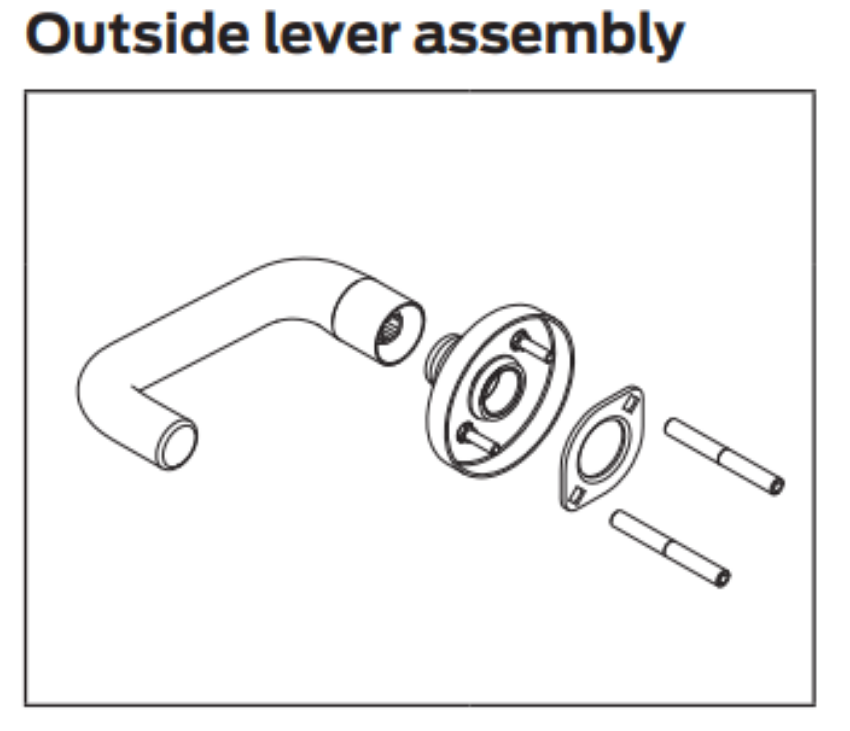

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$250.00
$152.50
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 M62?
The Schlage 09-506 M62 is a genuine OEM outside lever assembly for Schlage L Series Grade 1 mortise locks.
Which lock series is this lever compatible with?
It is compatible with Schlage L Series Grade 1 mortise locks.

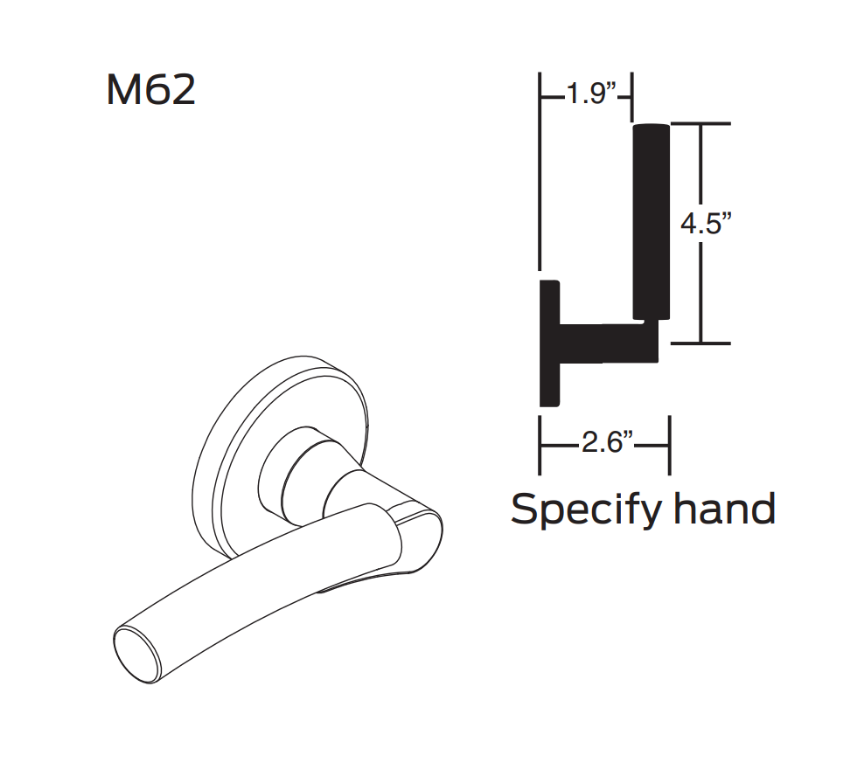

Does the M62 lever require handing?
Yes. The M62 lever design requires the handing to be specified when ordering.
Does this part include the mortise lock case or cylinder?
No. The 09-506 M62 Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
