Schlage 09-506 M63 Outside Lever Assembly For L Series

Schlage 09-506 M63 Outside Lever Assembly for L Series
Picture of 09-506 M63 Outside Lever Assembly For L Series
Picture of 09-506 M63 Outside Lever Assembly For L Series
Dynamic Image

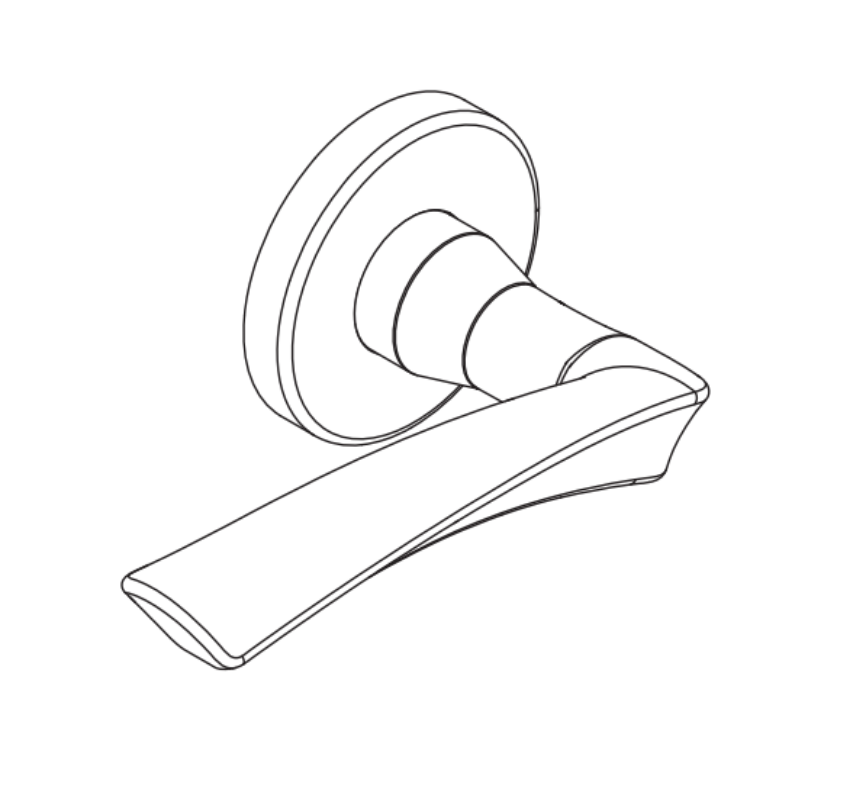

Schlage 09-506 M63 Outside Lever Assembly for L Series
Picture of 09-506 M63 Outside Lever Assembly For L Series
Picture of 09-506 M63 Outside Lever Assembly For L Series

Schlage

SKU: 09-506 M63

Schlage 09-506 M63 Outside Lever Assembly For L Series

Available (3 - 4 Weeks)

The Schlage 09-506 M63 Outside Lever Assembly is a genuine OEM replacement exterior lever assembly for Schlage L Series mortise locks featuring the M63 lever design.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 609 / US5 Antique Brass
    609 / US5 Antique Brass
    Not available
*

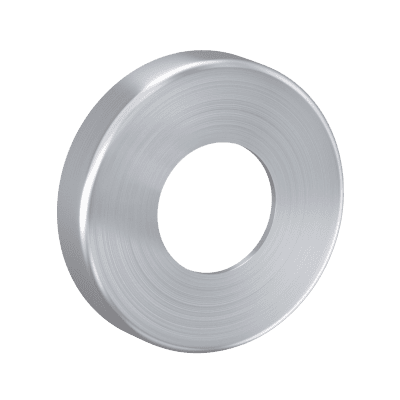

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

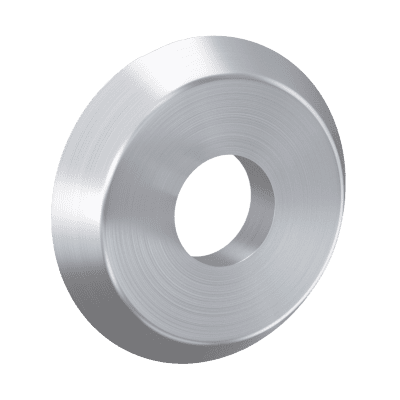

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available
*
  • LH - Left Hand
    LH - Left Hand
    Not available

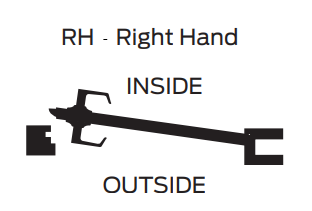

  • RH - Right Hand
    RH - Right Hand
    Not available

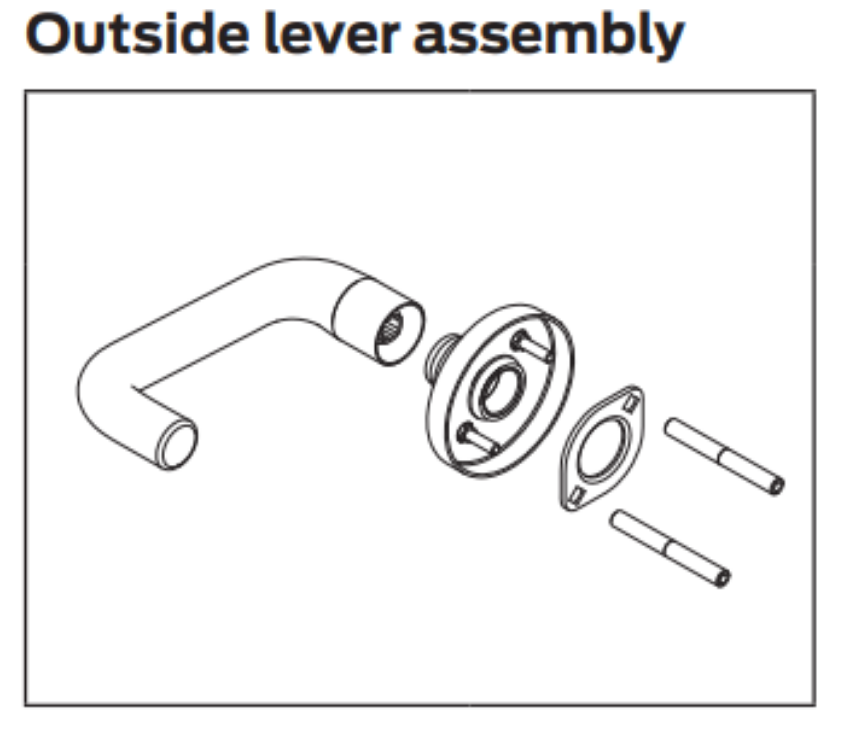

The Schlage 09-506 M63 Outside Lever Assembly is an OEM replacement outside lever assembly designed for Schlage L Series Grade 1 mortise locks. It provides the exterior operating lever using the M63 decorative lever design and is intended for replacement of worn or damaged outside trim or for configuring new L Series locksets.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever

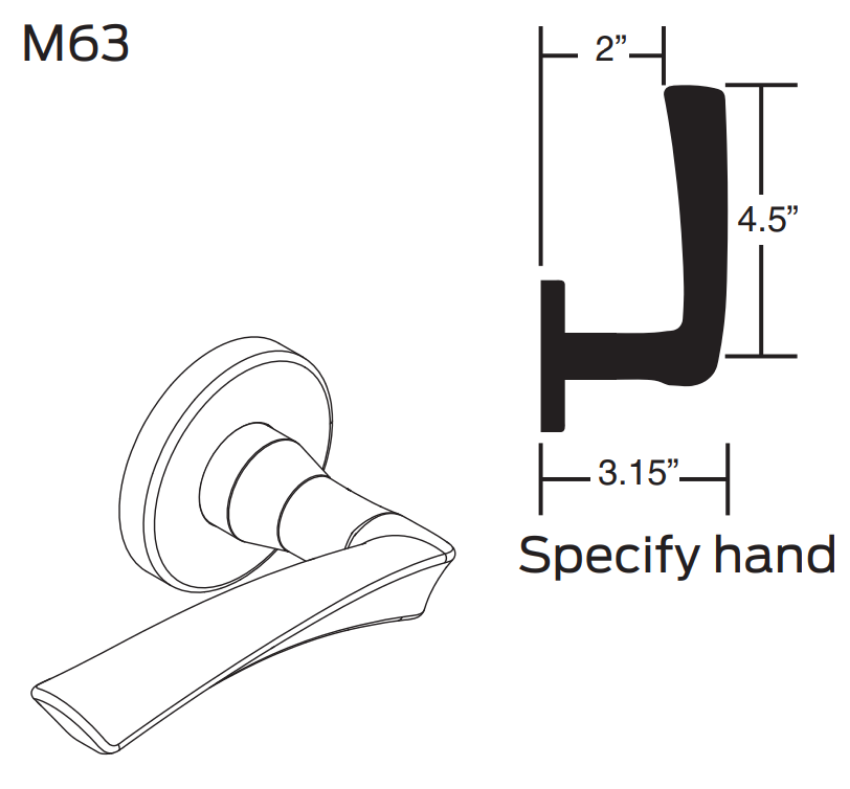

Lever Design: M63
Product Series: L/LE Series
Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$250.00
$152.50
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 M63 used for?
It is an OEM outside lever assembly used on compatible Schlage L Series mortise locks.
Which Schlage lock series is this lever compatible with?
It is compatible with Schlage L series mortise locks.
What lever style does this assembly include?
This assembly includes the M63 lever design.
Does this part include the mortise lock case or cylinder?
No. The 09-506 M63 Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
