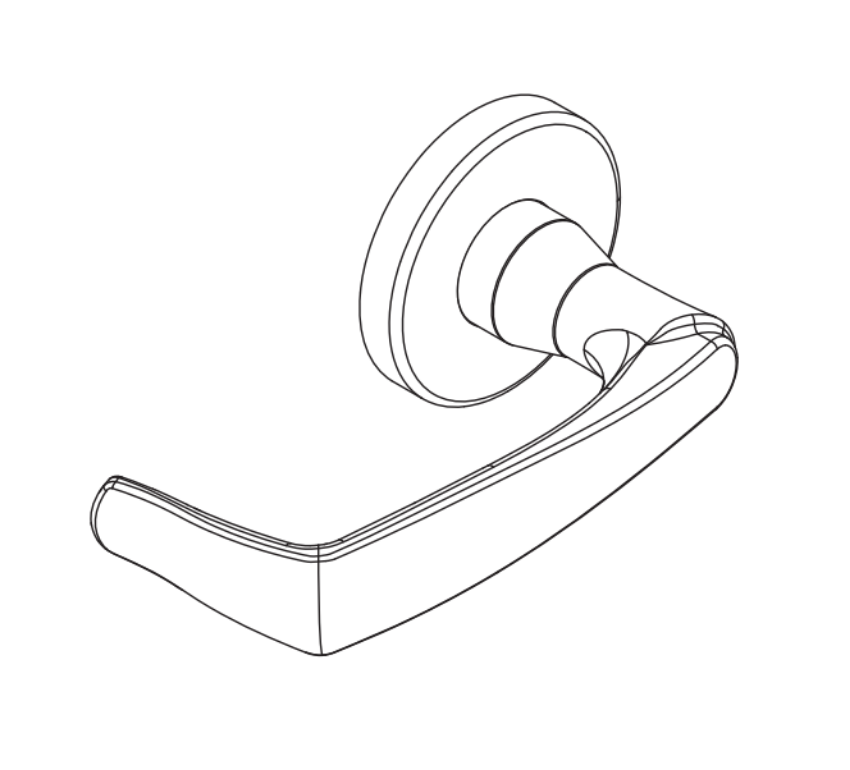

Schlage 09-506 M83 Outside Lever Assembly For L Series

Schlage 09-506 M83 Outside Lever Assembly for L Series
Picture of 09-506 M83 Outside Lever Assembly For L Series
Picture of 09-506 M83 Outside Lever Assembly For L Series
Dynamic Image
Schlage 09-506 M83 Outside Lever Assembly for L Series
Picture of 09-506 M83 Outside Lever Assembly For L Series
Picture of 09-506 M83 Outside Lever Assembly For L Series

Schlage

SKU: 09-506 M83

Schlage 09-506 M83 Outside Lever Assembly For L Series

Available (3 - 4 Weeks)

The Schlage 09-506 M83 Outside Lever Assembly is a genuine OEM replacement trim assembly for Schlage L Series mortise locks, featuring the M83 decorative lever design for exterior applications.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 609 / US5 Antique Brass
    609 / US5 Antique Brass
    Not available
*

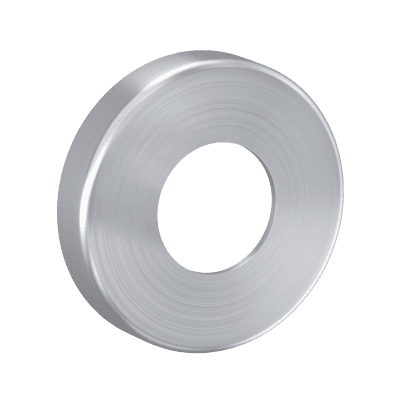

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

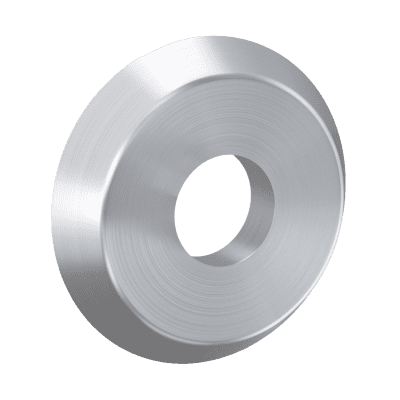

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available

The Schlage 09-506 M83 Outside Lever Assembly is a genuine OEM replacement outside lever assembly designed for Schlage L Series Grade 1 mortise locks. It is intended to restore the appearance and operation of compatible L Series locks while maintaining original factory specifications.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506
Product Type: Outside Lever

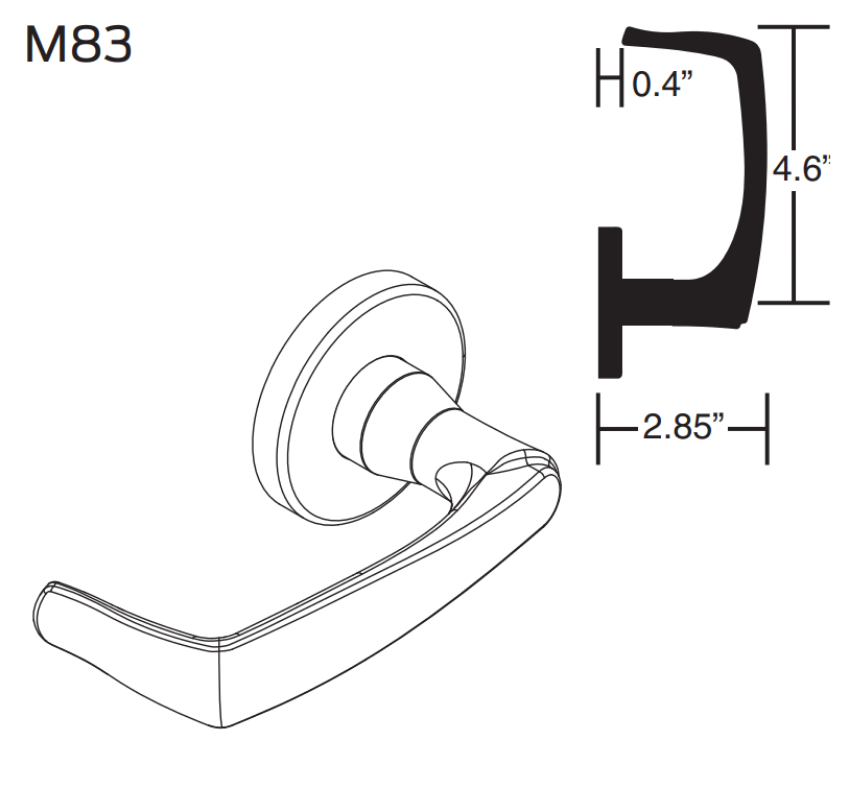

Lever Design: M83
Product Series: L/LE Series

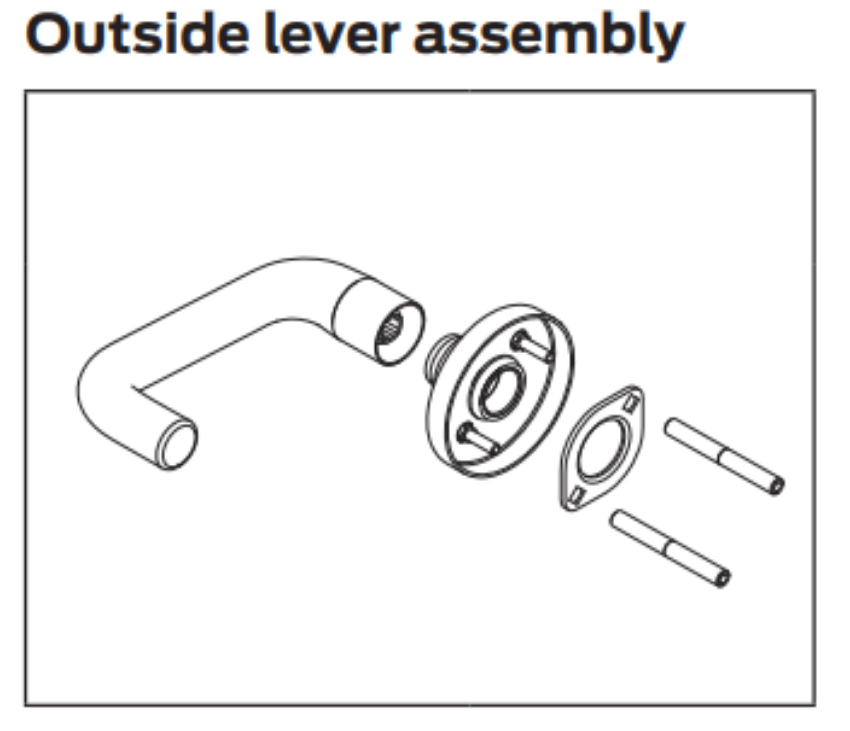

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$250.00
$152.50
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 M83 Outside Lever Assembly?
The Schlage 09-506 M83 is a genuine OEM outside lever assembly designed for Schlage L Series mortise locks and features the M82 decorative lever design.
Which lock series is this lever compatible with?
It is compatible with Schlage L Series mortise locks.
What lever style does this assembly include?
This assembly includes the M83 lever design.
Does this part include the mortise lock case or cylinder?
No. The 09-506 M83 Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
