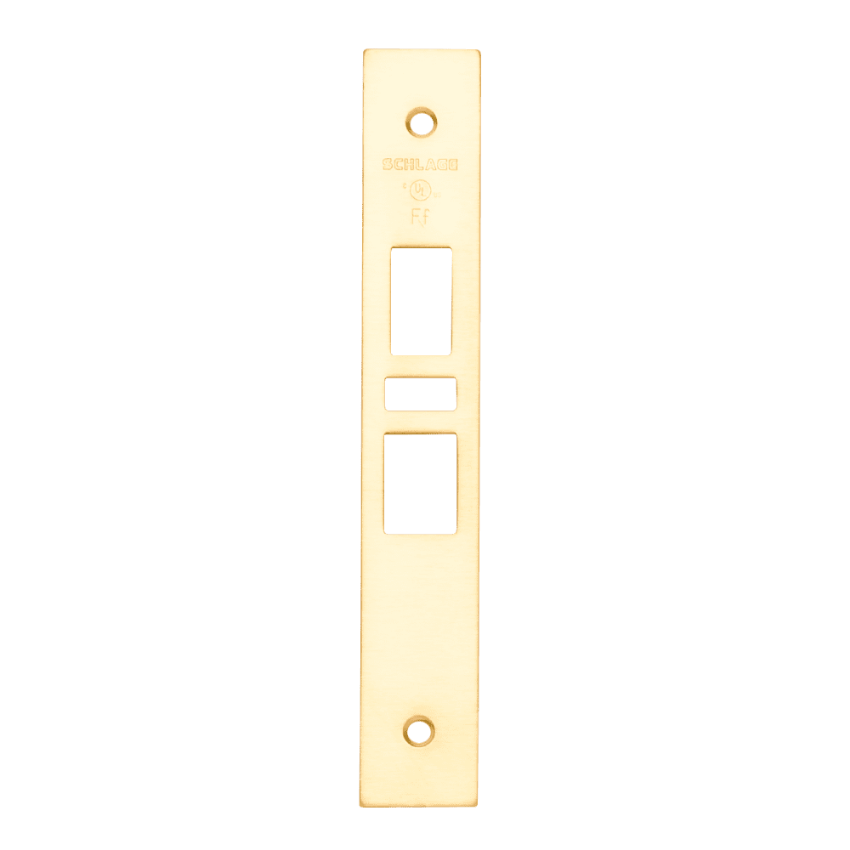

Schlage 09-666 armor front in 605 bright brass finish
Schlage 09-666 armor front in 606 satin brass finish
Schlage 09-666 armor front in 609 antique brass finish

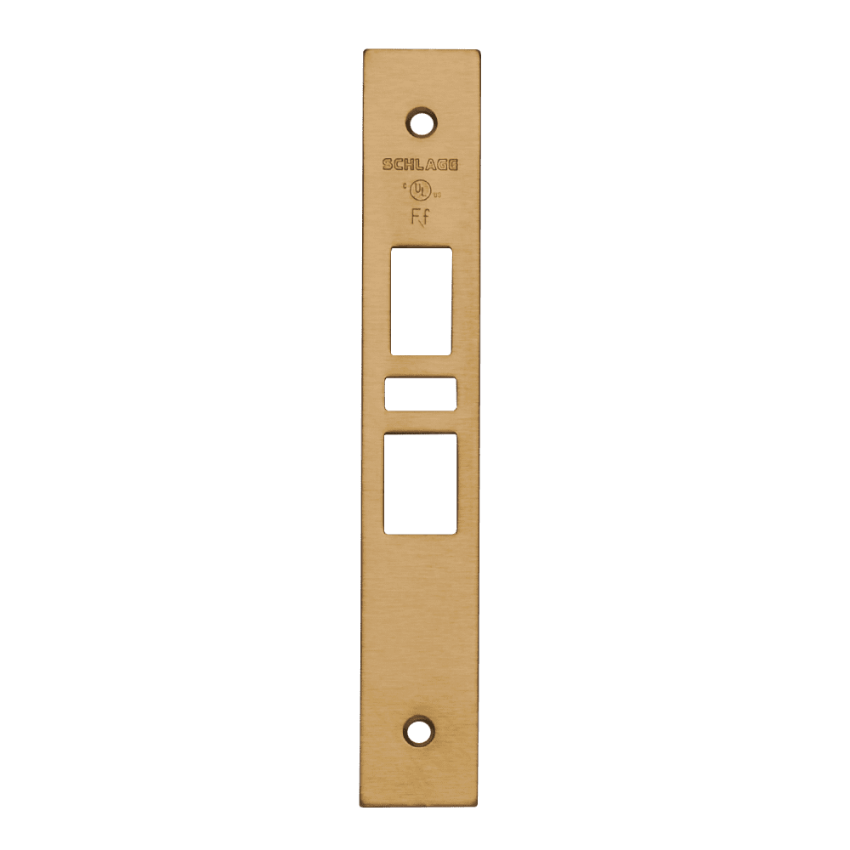

Schlage 09-666 armor front in 612 satin bronze finish

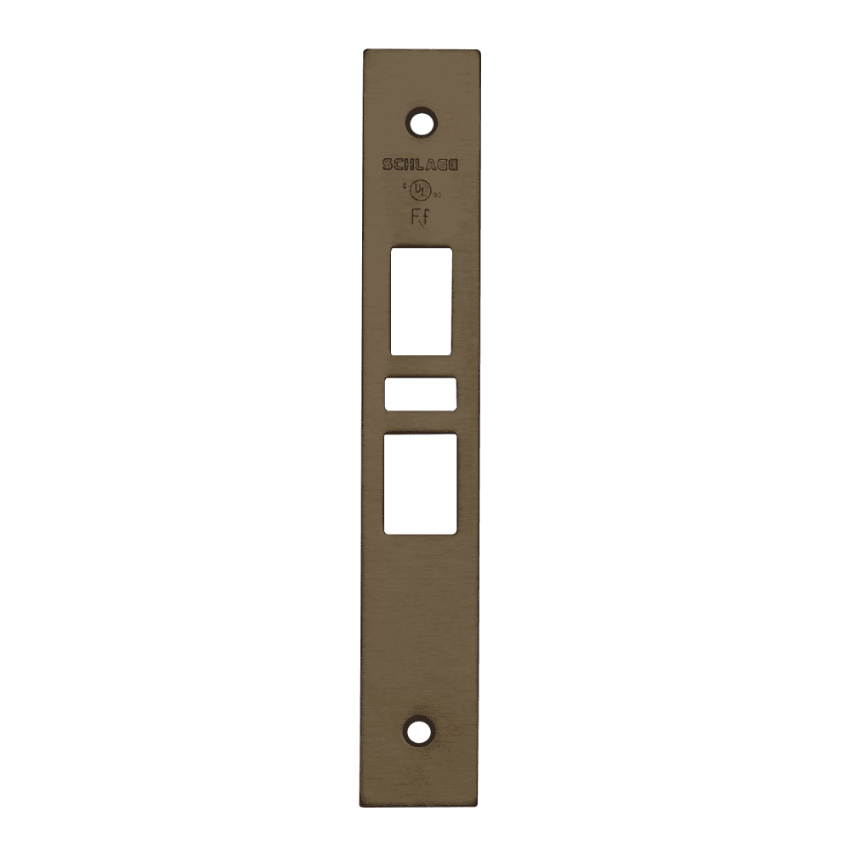

Schlage 09-666 armor front in 613 oil rubbed bronze finish
Schlage 09-666 armor front in 643E aged bronze finish
Schlage 09-666 armor front in 619 satin nickel finish

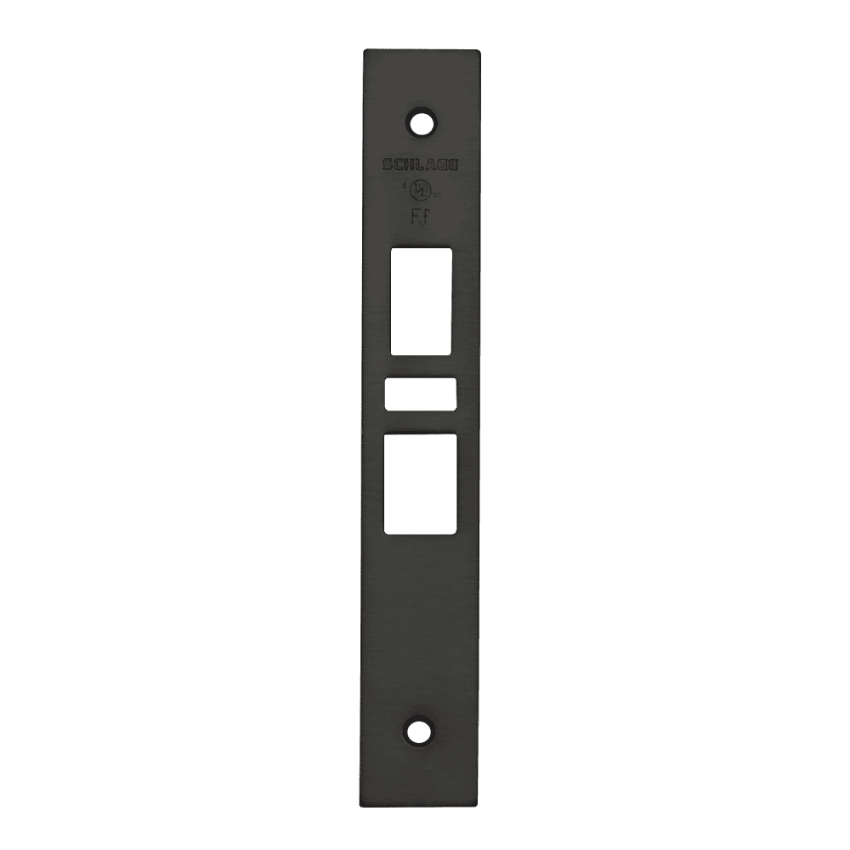

Schlage 09-666 armor front in 622 matte black finish
Schlage 09-666 armor front in 625 bright chrome finish
Schlage 09-666 armor front in 629 bright stainless steel finish
schlage-09-666-armor-front-630-satin-stainless-steel
Dynamic Image
Schlage 09-666 armor front in 626 satin chrome finish
Schlage 09-666 armor front in 605 bright brass finish
Schlage 09-666 armor front in 606 satin brass finish
Schlage 09-666 armor front in 609 antique brass finish
Schlage 09-666 armor front in 612 satin bronze finish
Schlage 09-666 armor front in 613 oil rubbed bronze finish
Schlage 09-666 armor front in 643E aged bronze finish
Schlage 09-666 armor front in 619 satin nickel finish
Schlage 09-666 armor front in 622 matte black finish
Schlage 09-666 armor front in 625 bright chrome finish
Schlage 09-666 armor front in 629 bright stainless steel finish
schlage-09-666-armor-front-630-satin-stainless-steel

Schlage

SKU: 09-666

Schlage 09-666 Latch x Auxiliary Latch x Deadbolt Armor Front

In stock

Schlage 09-666 is an OEM replacement armor front for compatible AD, CO, L and LV Series mortise locks with latch, auxiliary latch, deadbolt, and door position sensor configurations.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available

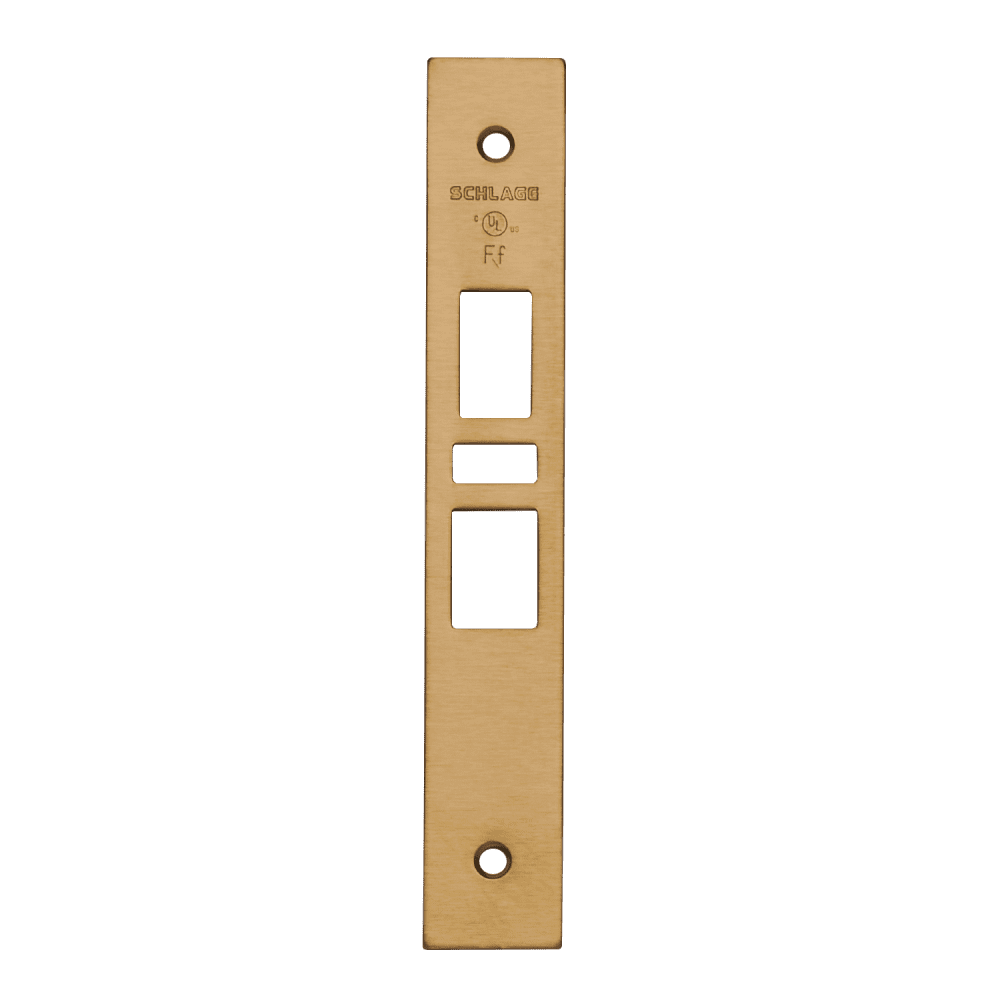

  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available

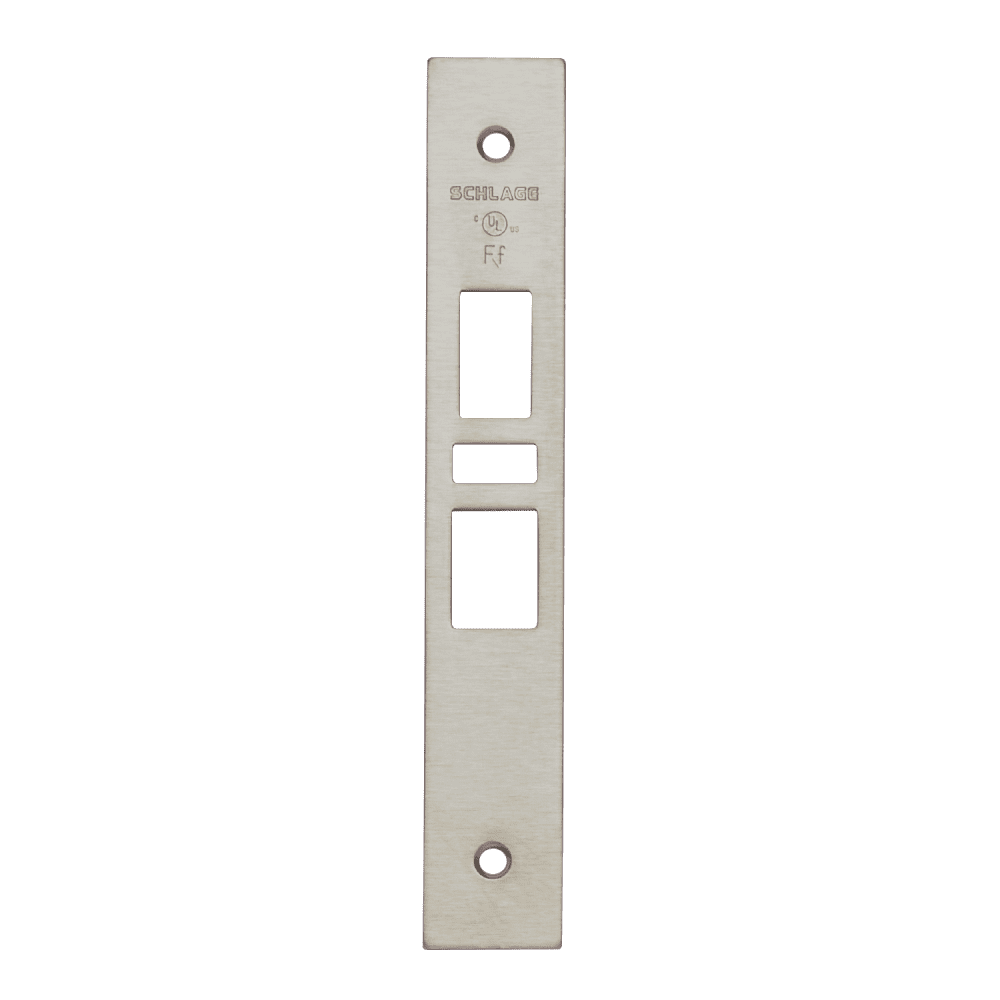

  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available

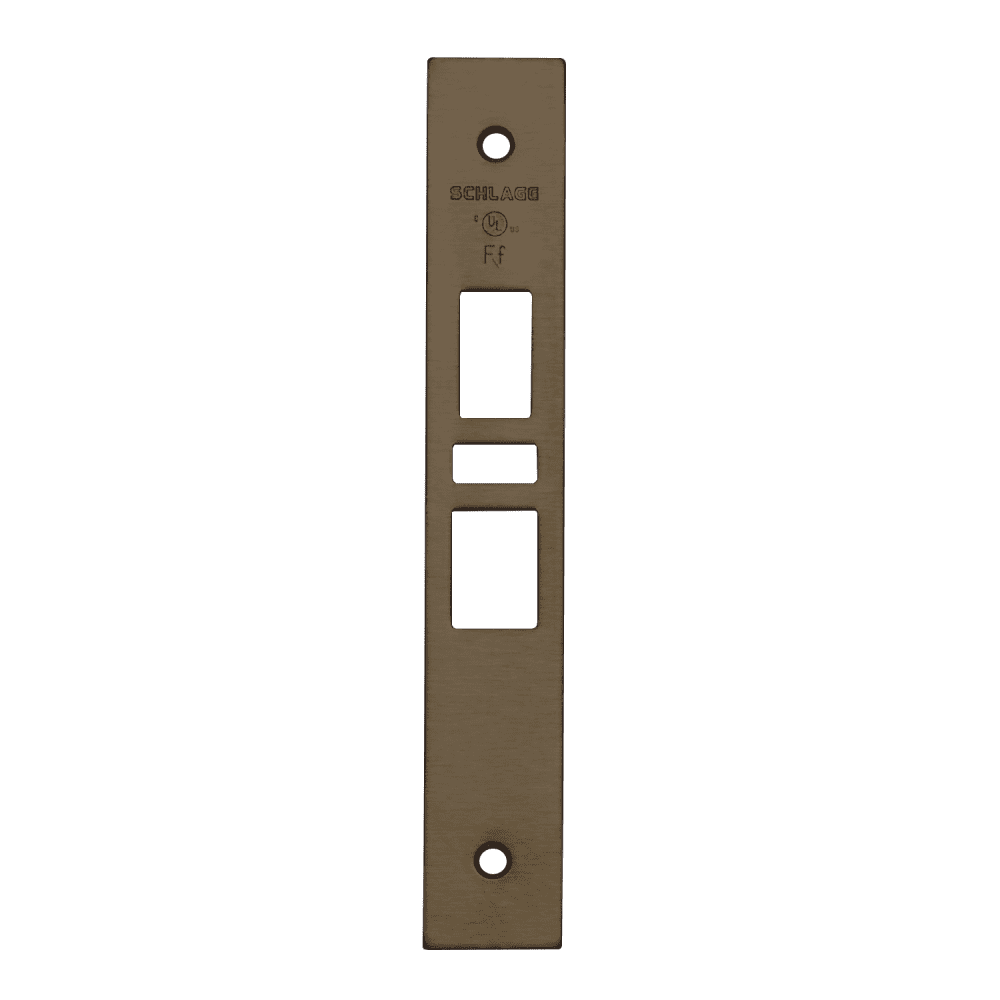

  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available

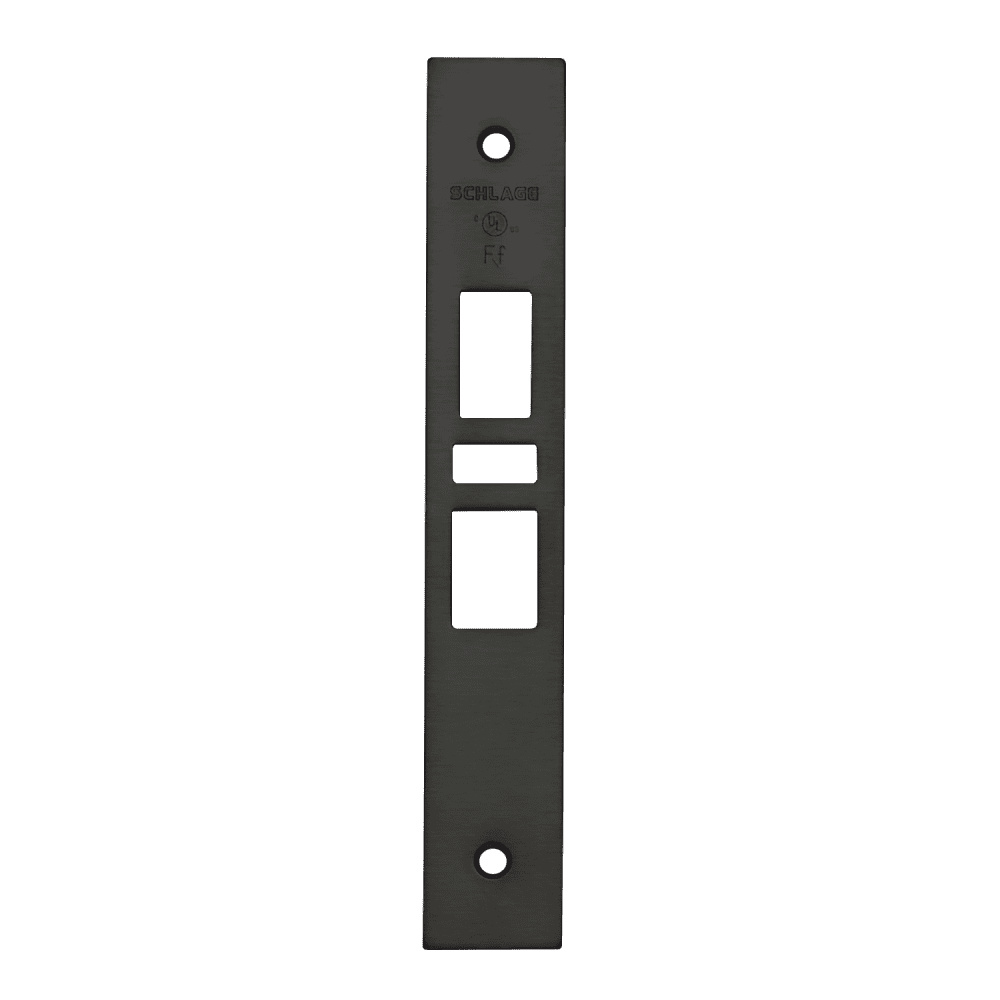

  • 622 / US19 - Matte Black
    622 / US19 - Matte Black
    Not available

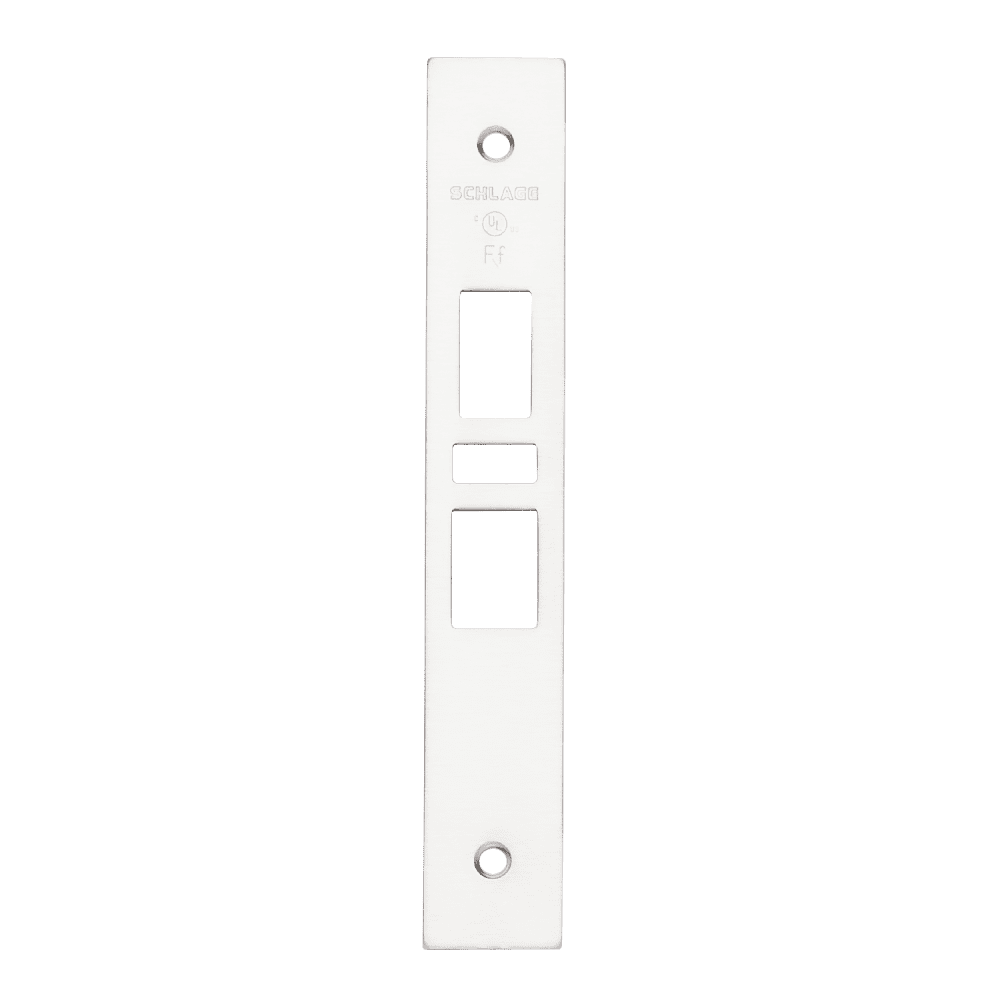

  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available

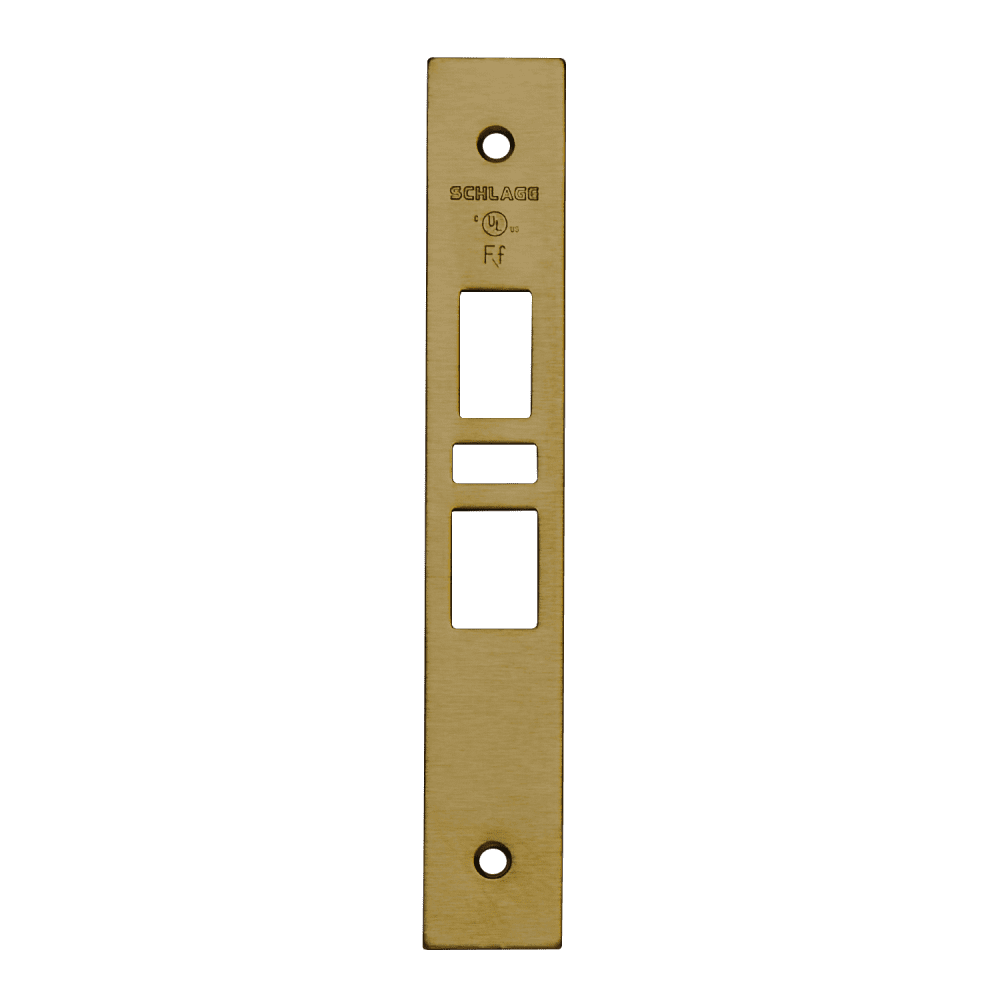

  • 609 / US5 - Antique Brass
    609 / US5 - Antique Brass
    Not available

Schlage 09-666 is an armor front for compatible Schlage AD, CO, L and LV Series mortise lock configurations. It is designed for lock cases with a latch, auxiliary latch, and deadbolt and is specified for doors over 1-3/4 inches thick. The 09-666 designed for AD and CO Series mortise device exterior configurations and specified L Series functions equipped with a door position sensor. This OEM replacement component provides the required armor front configuration for servicing compatible commercial mortise locks.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-666
Product Type: Latch x Auxiliary Latch Armor Front
Product Series: L Series, AD Series, CO Series
Door Thickness: Over 1-3/4"
Primary Function: Provides the armor front for the latch and auxiliary latch assembly
Application: Exterior mortise device configurations
OEM Part: Yes

Compatibility

  • L Series
  • CO-200-MD Keypad Only, Exterior
  • CO-200/250-MD, All Models Except Keypad Only, Exterior
  • AD-200/250-MD, Exterior
  • AD-300-MD, Exterior
  • AD-400-MD, Exterior
$61.00
$37.21
minus minus

Catalogs

Frequently Asked Questions

What is the function of the Schlage 09-666 armor front?
It provides the armor front configuration for compatible mortise lock cases with a latch, auxiliary latch, and deadbolt.
What door thickness is the Schlage 09-666 armor front specified for?
It is specified for doors over 1-3/4 inches thick.
Which Schlage product series are compatible with the 09-666 armor front?
The Schlage 09-666 is specified for compatible L Series, LV Series, AD Series, and CO Series lock configurations.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.

Models that Use this Part

Trim Assembly

Trim Assembly

Schlage L9412 Exit lock with deadbolt

Trim Assembly

Trim Assembly

Schlage L9453 Entrance/office lock with deadbolt

Trim Assembly

Trim Assembly

Schlage L9458 Classroom security lock with deadbolt and auxiliary latch

Trim Assembly

Trim Assembly

Schlage L9480 Storeroom lock with deadbolt

Trim Assembly

Trim Assembly

Schlage L9482 Institutional lock with deadbolt

Trim Assembly

Trim Assembly

Schlage L9485 Faculty restroom/hotel lock with deadbolt

Trim Assembly

Trim Assembly

Schlage L9485 x XL11-557 Prison function lock

Trim Assembly

Trim Assembly

Schlage L9486 Faculty restroom/hotel lock with chevron indicator

Trim Assembly

Trim Assembly

Schlage L9493 EL/EU Electrically locking/unlocking both levers, outside cylinder, inside thumbturn with deadbolt

Trim Assembly

Trim Assembly

Schlage L9494 EL/EU Electrically locking/unlocking outside lever, double cylinder with deadbolt

Trim Assembly

Trim Assembly

Schlage L9495 EL/EU Electrically locking/unlocking both levers, double cylinder with deadbolt
