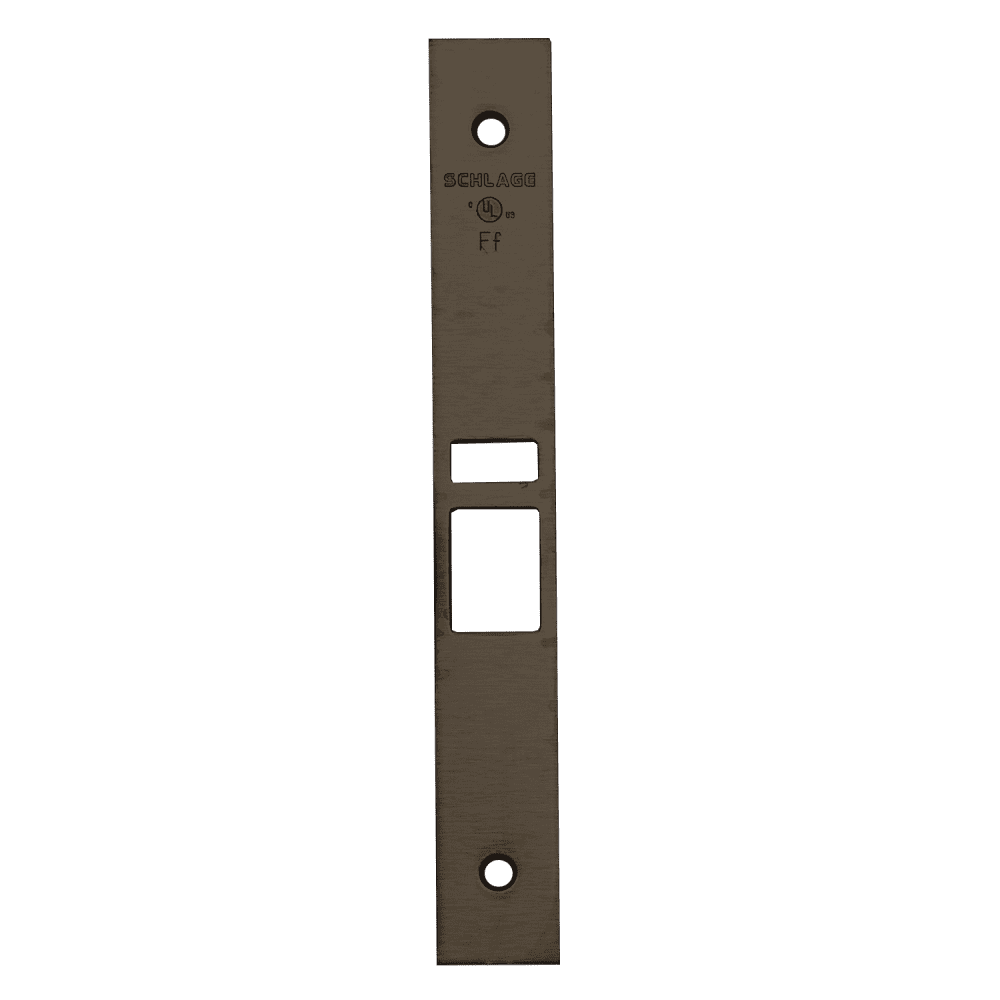

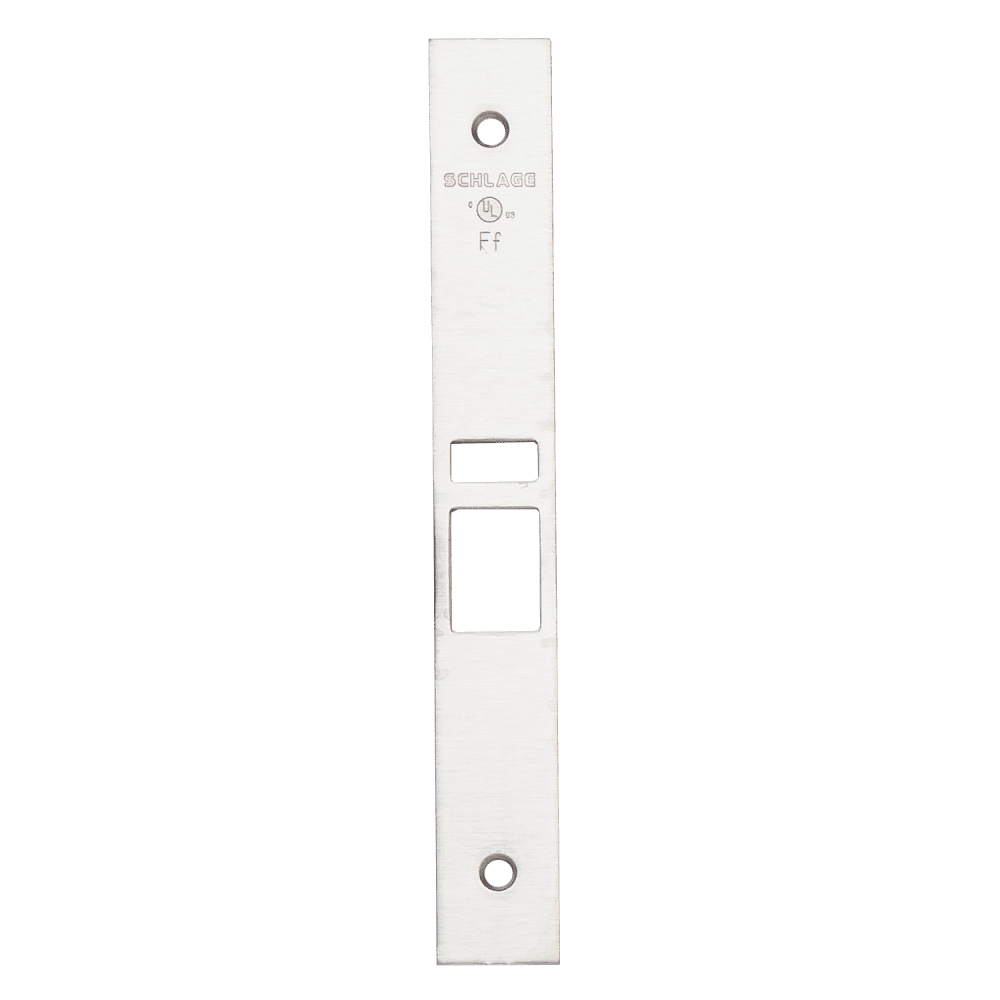

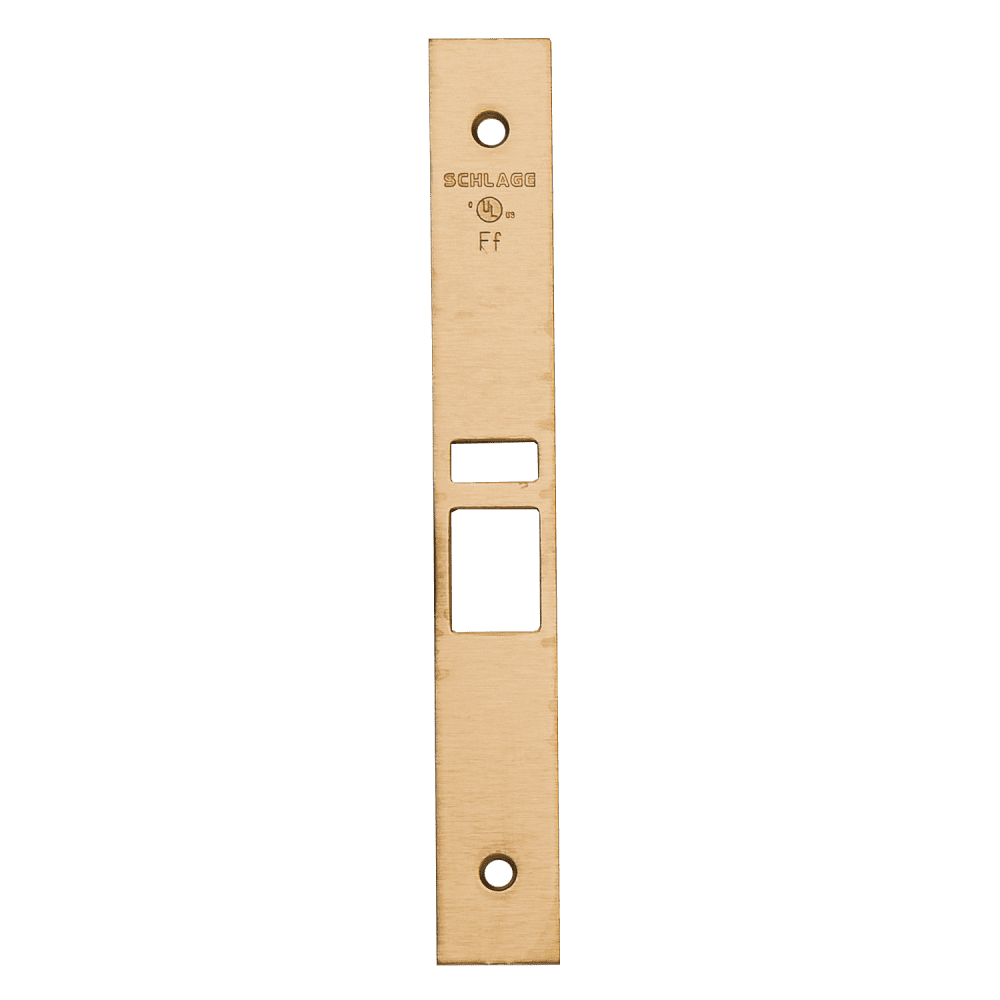

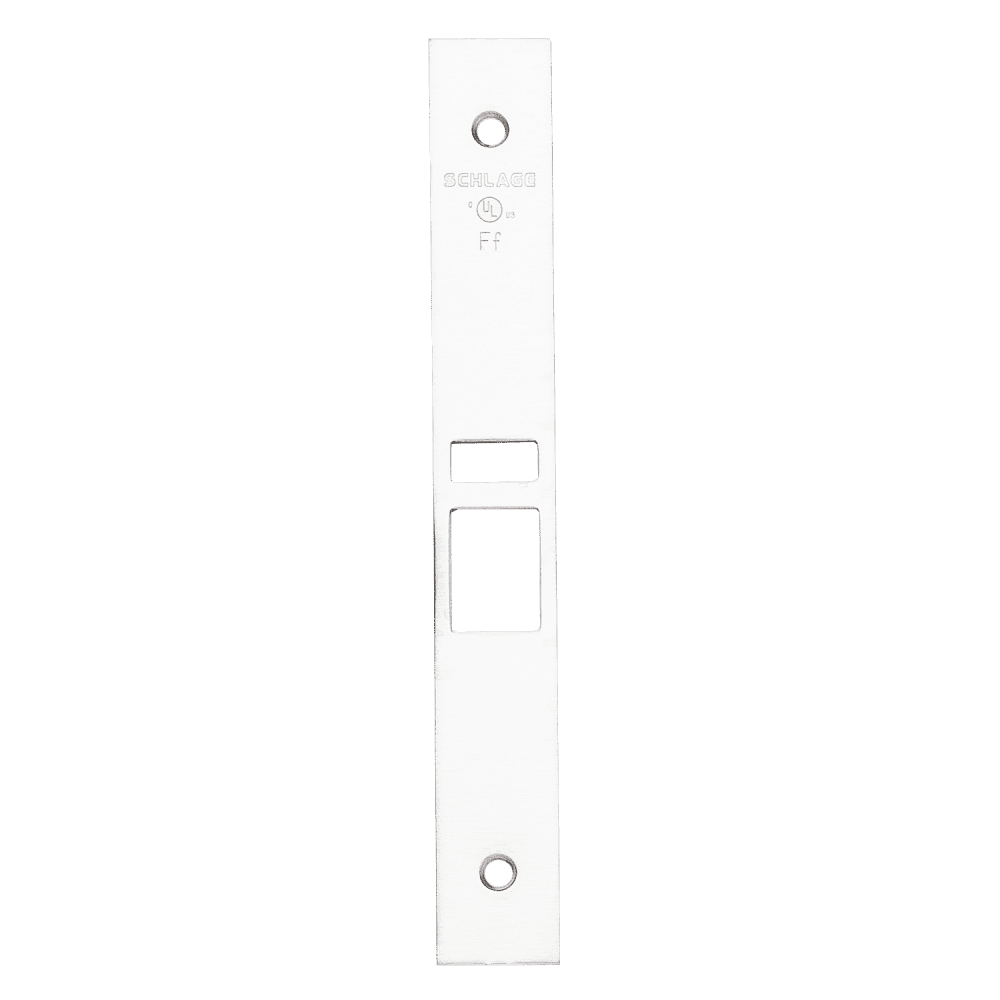

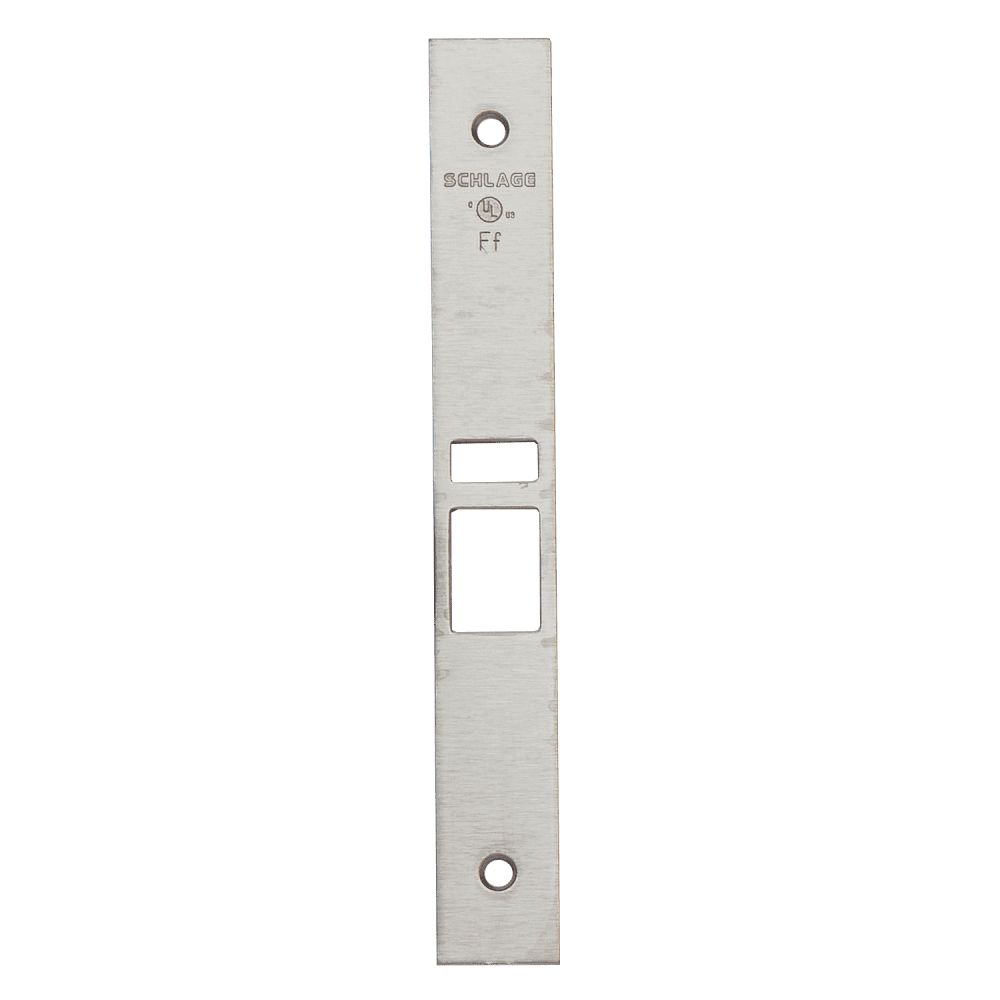

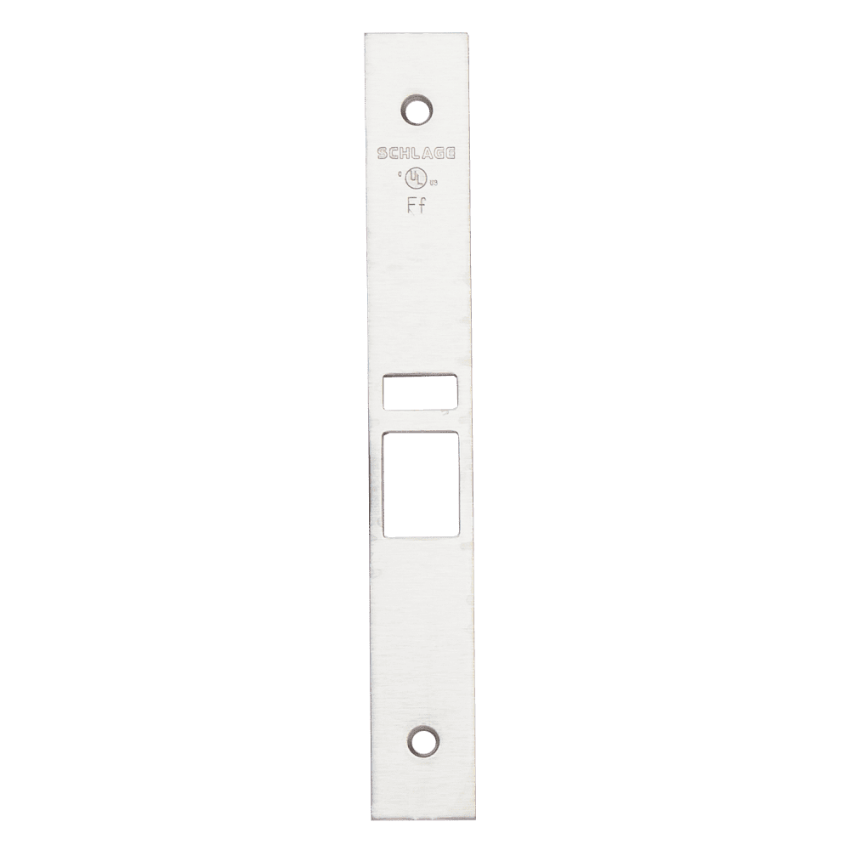

The Schlage 09-669 is the OEM Latch x Auxiliary Latch Armor Front for the AD Series, CO Series, and L Series mortise lock, Grade 1, BAA Qualified. It is the armor front configured for doors under 1-3/4 inches thick, covering L9025, L9026, L9050, L9056, L9060, L9066, L9070, L9071, L9080, L9082, L9091, L9092, L9093, and L9095 functions, without Door Position Sensor. Finish must be specified. In stock.

Two critical specifications define this armor front. First, it is for doors under 1-3/4 inches - not for 1-3/4 inch standard doors. Second, it does not include the Door Position Sensor (DPS) opening. If the installed door is standard 1-3/4 inch thickness, or if the DPS option is installed, a different armor front part number applies. Confirm both door thickness and DPS configuration before ordering.

What the Armor Front Does on a Schlage L Series Mortise Lock

The armor front is the metal plate mounted on the door edge face, covering the mortise lock body's door edge exposure. It provides three functions simultaneously. It gives the installation a clean, finished appearance on the door edge. It provides the openings through which the main latch bolt and auxiliary latch project to engage the strike. And it reinforces the door edge against physical attacks.

The "Latch x Auxiliary Latch" designation in the 09-669 product name identifies the two openings in this specific armor front. The main latch bolt opening allows the spring-loaded latch to project into the strike when the door closes. The auxiliary latch opening (also called the dead latch, anti-shim bolt, or guard bolt opening) allows the smaller rectangular auxiliary latch to project alongside the main latch. The auxiliary latch is the component that triggers deadlocking when the door closes - when the auxiliary latch is depressed by the strike frame, it activates the deadlocking plunger that prevents the main latch from being retracted by shimming, loiding, or credit card attacks. The armor front must have both openings in the correct size and position for the lock to function.

Schlage 09-669: Under 1-3/4 Inch Door Specification

Standard commercial hollow metal doors are 1-3/4 inches thick. The standard L9000 Series armor front is sized and configured for 1-3/4 inch installations. The 09-669 is the alternate armor front for doors that fall under that threshold - older commercial buildings with lighter gauge door construction, interior hollow metal doors with thinner profiles, and wood doors thinner than the commercial standard. These installations require an armor front with different geometry or mounting positions to fit correctly against the thinner door edge face.

Using the wrong armor front (standard 1-3/4 inch) on an under 1-3/4 inch door results in an armor front that sits proud of the door face or leaves a visible gap between the plate and the door edge surface. Either condition is both a security concern and an aesthetic failure.

Schlage Auxiliary Latch Armor: Without Door Position Sensor Distinction

Several L9000 Series functions in the 09-669 compatibility list are electrified (L9091, L9092, L9093, L9095). Electrified functions can be optionally fitted with a Door Position Sensor (DPS). The DPS monitors whether the door is physically in the closed position, providing a monitoring output to the access control system separate from the latch or deadbolt status. When DPS is installed, the armor front requires an additional opening for the DPS sensor.

The 09-669 does not have this DPS opening. It covers non-DPS installations of all compatible electrified and mechanical functions. If the installation includes DPS monitoring, a different armor front part number is required.

Schlage L Series Mortise Lock Parts: BAA Qualification and Function Coverage

The 09-669 is confirmed BAA Qualified (Buy American Act) per Barzel Lock's official product data. Federal government and federally-funded facility projects requiring BAA-compliant door hardware can specify the 09-669 without additional qualification.

The 14-function compatibility range (L9025 through L9095) spans the complete L9000 mechanical and electrified catalog, covering passage, entrance/office, apartment entrance, store lock, classroom, classroom security, storeroom, and electrified variants. One armor front part number covers all these functions in the under 1-3/4 inch door, no-DPS configuration.

SecurityParts stocks OEM Schlage L Series armor fronts and mortise lock parts. Free shipping on orders over $450.
