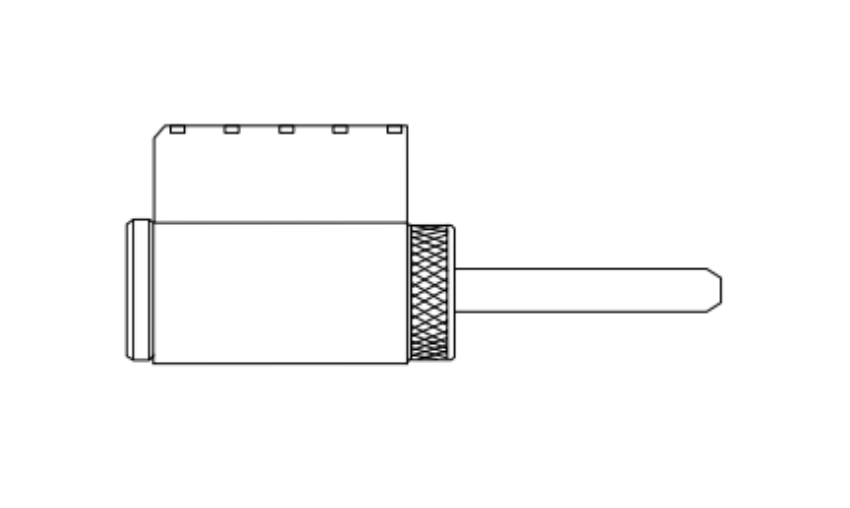

The Schlage 24-139 is the OEM conventional cylinder designed to replace the factory-installed Corbin Russwin cylinder in CL3400, CL3500, CL3600, and CL3800 lever locks, documented in the Schlage Key Systems Cylinders and Keys Catalog and the Allegion Competitive Cylinder Compatibility Sheet (document 115550). It is a standard 6-pin pin tumbler cylindrical lock cylinder engineered to match the physical dimensions, plug diameter, cam geometry, and face profile of the Corbin Russwin CL Series cylinder housing - allowing a Schlage cylinder to function in a Corbin Russwin lock body. Finish and keyway must be specified at time of order. Available in C Keyway (Standard) and C123 Keyway.

This is the base conventional format. If higher security is required - Primus sidebar, Primus UL437, or SL 7-pin format - the upgrade cylinders 20-739 (Primus), 20-539 (Primus UL437), and 91-027 (SL) use the same housing geometry for the CL3400/CL3600 series.

Why Schlage Makes a Cylinder for Corbin Russwin Locks

Large commercial facilities - universities, hospital systems, school districts, government campuses - often have mixed-brand hardware across their buildings. Different wing renovations, different construction contracts, and different eras of specification result in a building that has Schlage locks in one corridor and Corbin Russwin locks in another. Managing two separate master key systems on the same campus is expensive and operationally complicated. One system doubles the number of keys, master key records, and rekeying procedures staff have to manage.

The solution is a cross-brand cylinder. The Schlage 24-139 has the physical profile to seat correctly in a Corbin Russwin CL3400 or CL3600 lock housing while operating on the Schlage key system. Once installed, the Corbin Russwin lock opens with the same Schlage key that opens every other Schlage-keyed lock in the facility. The hardware brand stays Corbin Russwin - the key system becomes unified under Schlage.

Schlage CL3400 and CL3600 Parts: Which Locks This Cylinder Fits

The Corbin Russwin CL Series is a family of Grade 1 cylindrical lever locks. The CL3400 and CL3600 are lever function variants in this series. Per the Allegion Competitive Cylinder Compatibility Sheet, the 24-139 covers four CL Series designations: CL3400, CL3500, CL3600, and CL3800. All four accept the same Schlage 24-139 cylinder geometry.

The CL3300 and CLX3300 are a related but different format - those use the Schlage 24-022, not the 24-139. Confirm the full CL series number on the installed lock before ordering.

Schlage Conventional Cylinder: Keyway Options and Upgrade Path

The 24-139 is available in two keyway configurations on this page:

C Keyway (Standard) is the open Schlage Classic keyway, widely available and compatible with existing Classic Obverse Schlage master key systems. This is the correct option for facilities already running a Classic keyway Schlage system and wanting the Corbin Russwin CL locks to join that system.

C123 Keyway is a specific Schlage Classic keyway designation that may be specified for particular key control requirements. Confirm the existing Schlage keyway in use at the facility before specifying this option, as keyways must match across the master key system.

If the installation requires higher physical security than conventional 6-pin offers, the upgrade cylinders in the same CL3400/CL3600 geometry are:

• 20-739 = Primus (sidebar + geographic exclusivity)
• 20-739-XP = Primus XP (enhanced sidebar + geographic exclusivity)
• 20-539 = Primus UL437 (highest security level, UL listed)
• 91-027 = SL format (7-pin sidebar, Everest 29 R keyway)

All four share the same housing geometry as the 24-139 conventional, making it possible to upgrade security without changing the lock body.
