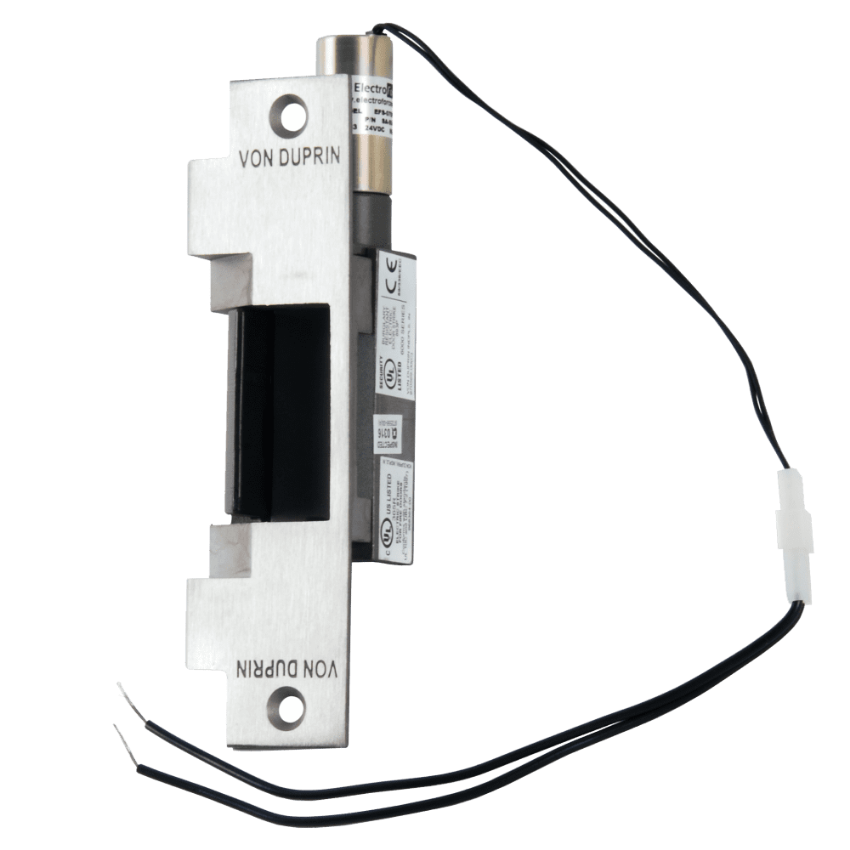

The Von Duprin 6212 is a 6200 Series electric strike designed for single doors using mortise locks without a deadbolt or cylindrical locks. It fits a modified ANSI 115.2 cutout and is designed to replace the Von Duprin 3146. The strike has a 3/4-inch latchbolt throw and a 6-3/8-inch faceplate.

We are your trusted source for genuinement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: 6212
Product Name: Electric Strike for 6200 Series
Latchbolt Throw: 3/4 in.
Faceplate Length: 6-3/8" x 1-1/4"
Frame Types: Hollow Metal or Aluminum
Door Thickness: 1-3/4 in.
Retrofit: Von Duprin 3146
Standard Power: 24 VDC
Available Voltage Options: 12 VDC and 16 VDC
Backbox Depth: 1-21/32"
Power Failure Modes: Fail-secure standard; fail-safe (optional)
Used For: Mortise without deadbolt; cylindrical
Fire Rated: Yes
Primary Function: Provides electric release of a door latch for controlled access
Application:  Commercial access control for cylindrical locks or mortise locks without deadbolts
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)
