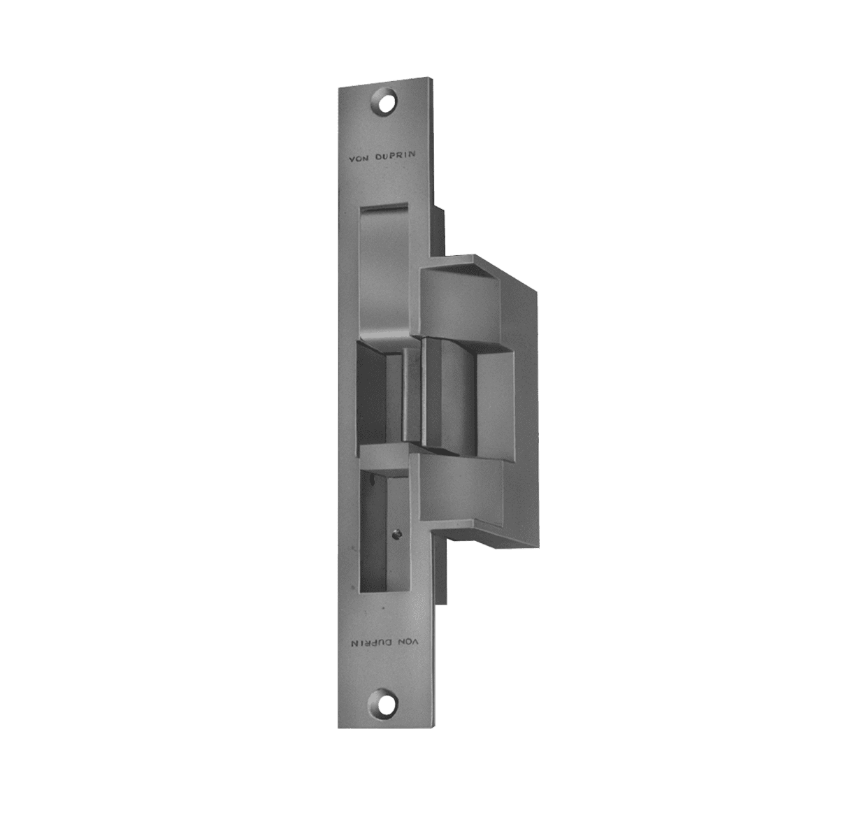

The Von Duprin 6216 is a 6200 Series heavy-duty electric strike designed specifically for mortise locks with a deadbolt up to 1 inch. It uses a 3/4-inch latch throw and is intended for applications requiring an electric strike at the door frame. The 6200 Series features stainless steel construction, an integrated faceplate, and two-piece plug connectors for installation and servicing.

We are your trusted source for genuine OEM replacement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: 6216
Product Name: Electric Strike for 6200 Series
Configuration: Mortise with deadbolt, single door
Latchbolt Throw: 3/4 in.
Faceplate Length: 9" x 1-3/8"
Frame Types: Hollow Metal, Aluminum, or Wood frames
Standard Power: 24 VDC
Available Voltage Options: 12 VDC and 16 VDC
Backbox Depth: 2-7/8"
Retrofit: FA 310-3-1
Power Failure Modes: Fail-secure standard; fail-safe (optional)
Used For: Single-door applications using mortise locks with a 1" deadbolt
Fire Rated: Yes
Primary Function: Provides electrically controlled release for a mortise lock with a deadbolt
Application: Commercial door applications using mortise locks with a deadbolt
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)
