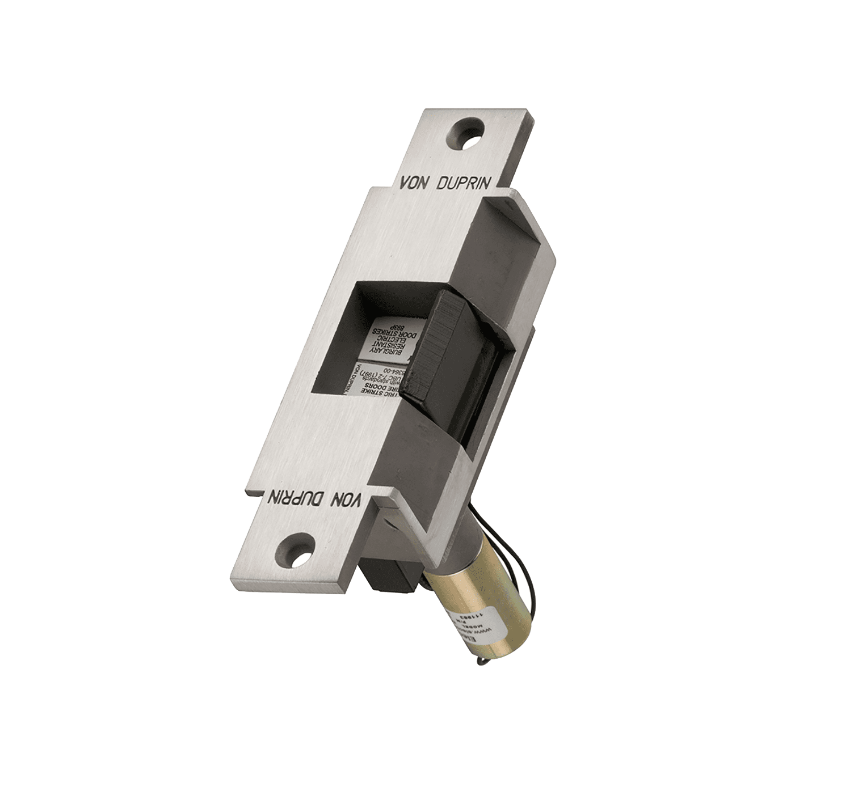

The Von Duprin 6223 is a 6200 Series electric strike designed for double-door applications with closed-back construction. It is intended for use with mortise locks without deadbolts or cylindrical locks. The 6223 is available in fail-safe and fail-secure configurations and supports 12VDC or 24VDC electrical configurations through the applicable box assembly.

We are your trusted source for genuine OEM replacement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: 6223
Product Name: Electric Strike for 6200 Series
Latchbolt Throw: 3/4"
Faceplate Length: 6" x 1-1/4"
Backbox Depth: 4-1/2"
Lockset Type: Mortise without deadbolt or cylindrical
Door Configuration: Double door (Closed-Back)
Door Thickness: 1-3/4"
Door and Frame Type: Hollow Metal, Aluminum, or Wood Frame
Fire Rated: Yes
Retrofit: Von Duprin 3091 and 3092
Standard Power: 24 VDC
Available Voltage Options: 12 VDC and 16 VDC
Power Failure Modes: Fail-secure (Standard) fail-safe (Optional)
Primary Function: Provides electric release for compatible mortise or cylindrical locksets
Application: Commercial access control for cylindrical locks or mortise locks without deadbolts
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)
