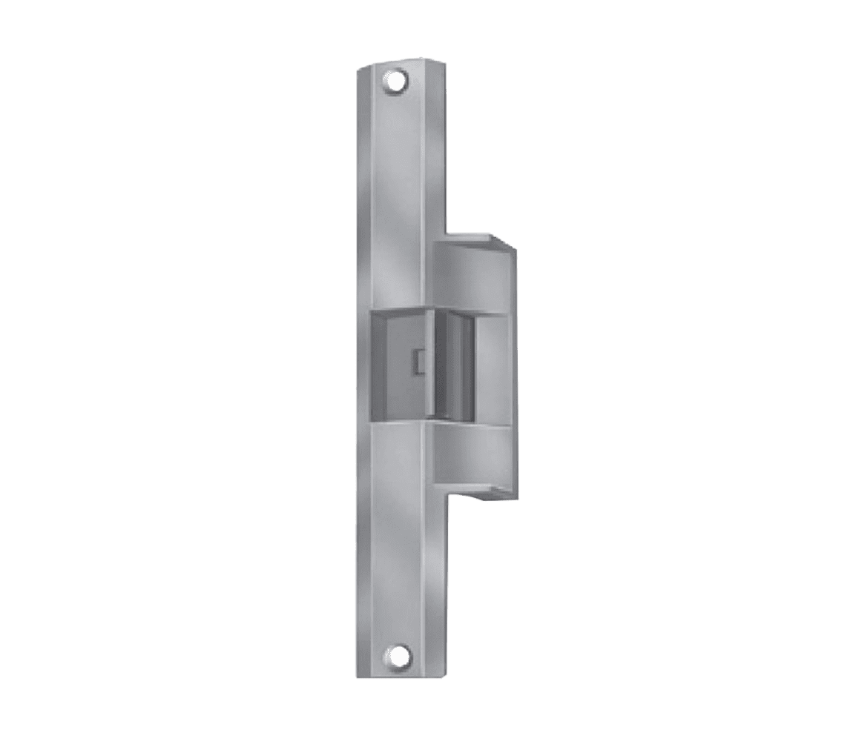

The Von Duprin 6224AL is a closed-back electric strike for mortise locks without deadbolts or cylindrical locks used on 1-3/4" or 2-1/4" thick aluminum double-door applications. It accepts a 3/4" latchbolt throw and is designed as a retrofit for FA 310-2RF. The 6224AL is part of the Von Duprin 6200 Series and provides an electric release solution for compatible commercial door applications. Its 9" faceplate and 1-5/8" backbox depth are designed for the specified installation configuration.

We are your trusted source for genuine OEM replacement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: 6224AL
Product Name: Electric Strike for 6200 Series
Latchbolt Throw: 3/4"
Faceplate Length: 9" x 1-3/8"
Backbox Depth: 1-5/8"
Lockset Type: Mortise without deadbolt or cylindrical
Door Configuration: Double door
Door Thickness: 1-3/4" or 2-1/4"
Door and Frame Type: Aluminum door
Fire Rated: Yes
Retrofit: FA 310-2RF
Standard Power: 24 VDC
Available Voltage Options: 12 VDC and 16 VDC
Power Failure Modes: Fail-secure (Standard) fail-safe (Optional)
Primary Function: Provides electric release for compatible mortise or cylindrical locksets.
Application: Commercial access control for cylindrical locks or mortise locks without deadbolts
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)
