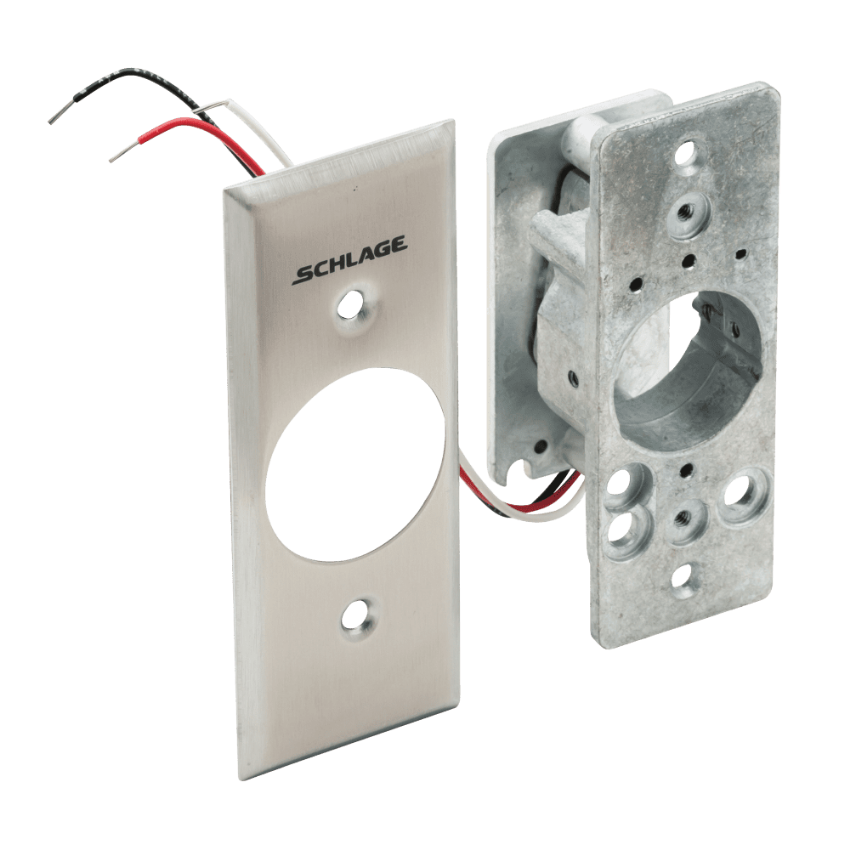

Schlage 653-04-NS narrow stile keyswitch

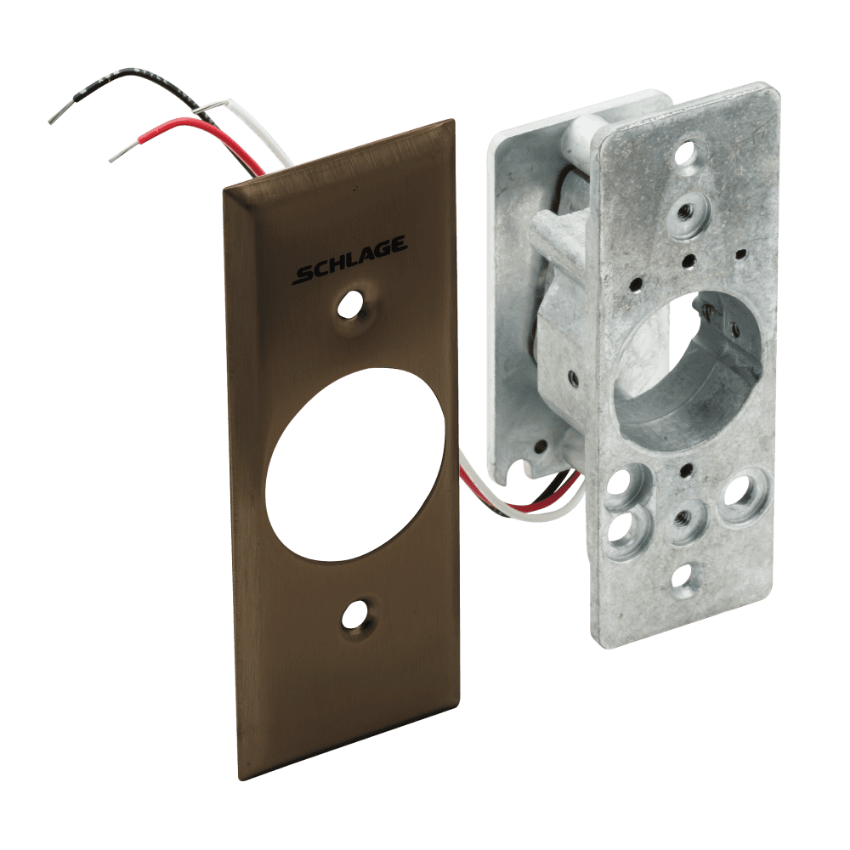

Schlage 653-04-NS Oil Rubbed Bronze narrow stile keyswitch
Schlage 653-04-NS Satin Chrome narrow stile keyswitch
Schlage 653-04-NS Bright Chrome narrow stile keyswitch

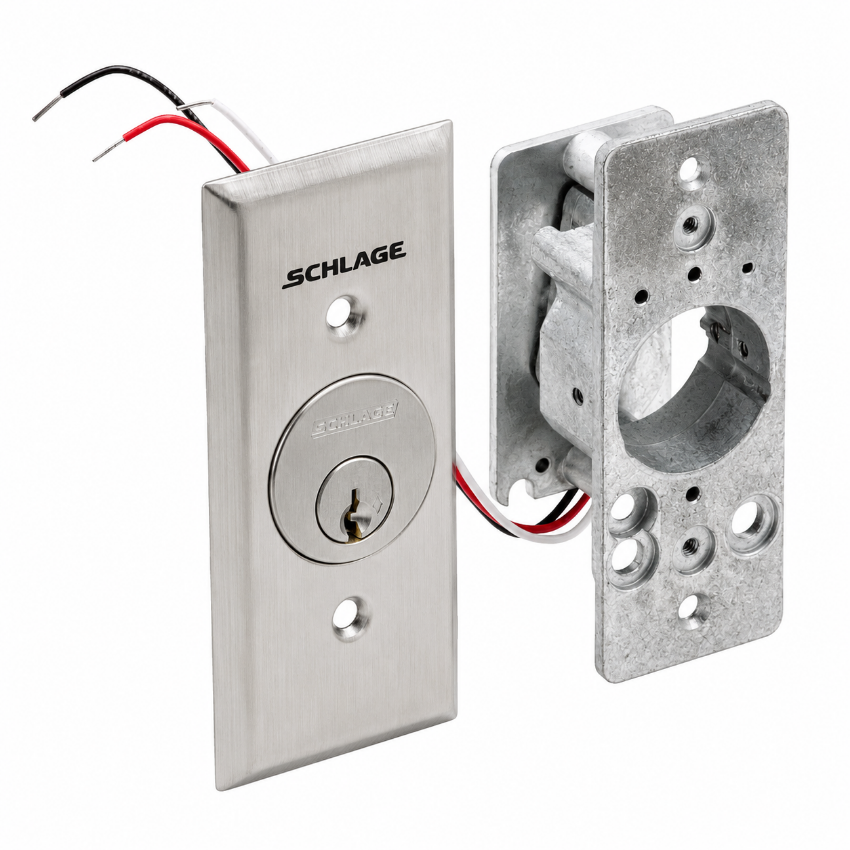

Schlage 653-04-NS SPDT maintained keyswitch with cylinder
Schlage 653-04-NS SPDT maintained keyswitch with red and green LEDs
Schlage 653-04-NS SPDT maintained keyswitch with anti-tamper switch
Dynamic Image
Schlage 653-04-NS narrow stile keyswitch
Schlage 653-04-NS Oil Rubbed Bronze narrow stile keyswitch
Schlage 653-04-NS Satin Chrome narrow stile keyswitch
Schlage 653-04-NS Bright Chrome narrow stile keyswitch
Schlage 653-04-NS SPDT maintained keyswitch with cylinder
Schlage 653-04-NS SPDT maintained keyswitch with red and green LEDs
Schlage 653-04-NS SPDT maintained keyswitch with anti-tamper switch

Schlage

SKU: 653-04-NS

Schlage 653-04-NS SPDT Maintained Keyswitch, Narrow Stile

Available (3 - 4 Weeks)

Schlage 653-04-NS is a 650 Series Narrow Stile SPDT maintained single-direction keyswitch with a stainless steel faceplate, designed for electronic access control applications requiring maintained key-operated switching.
*

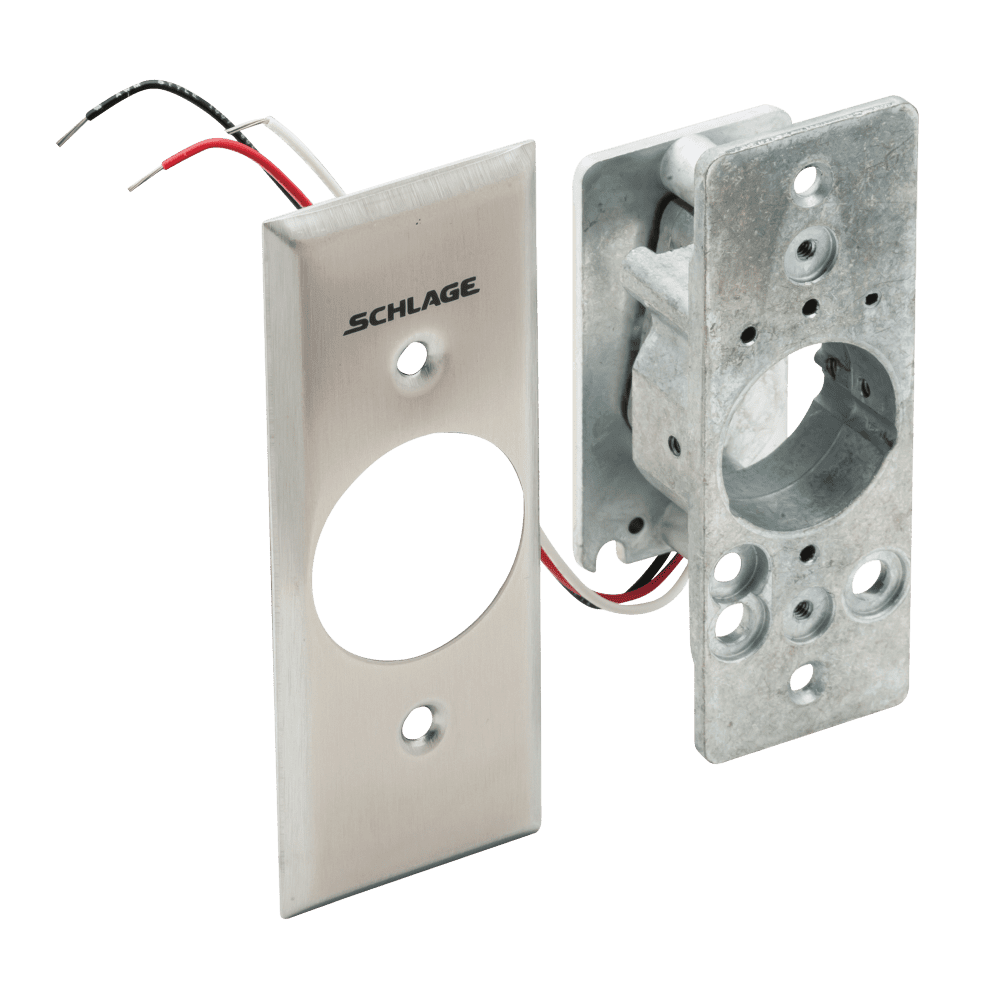

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

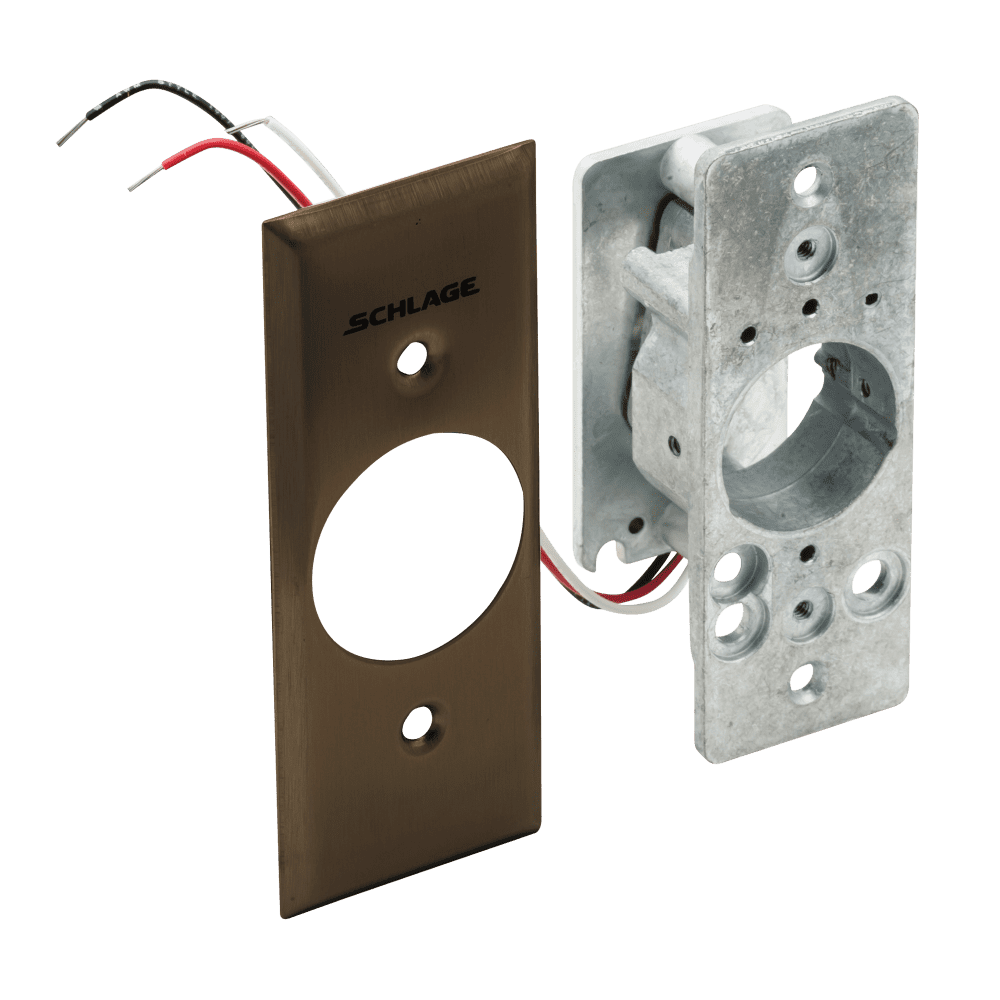

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

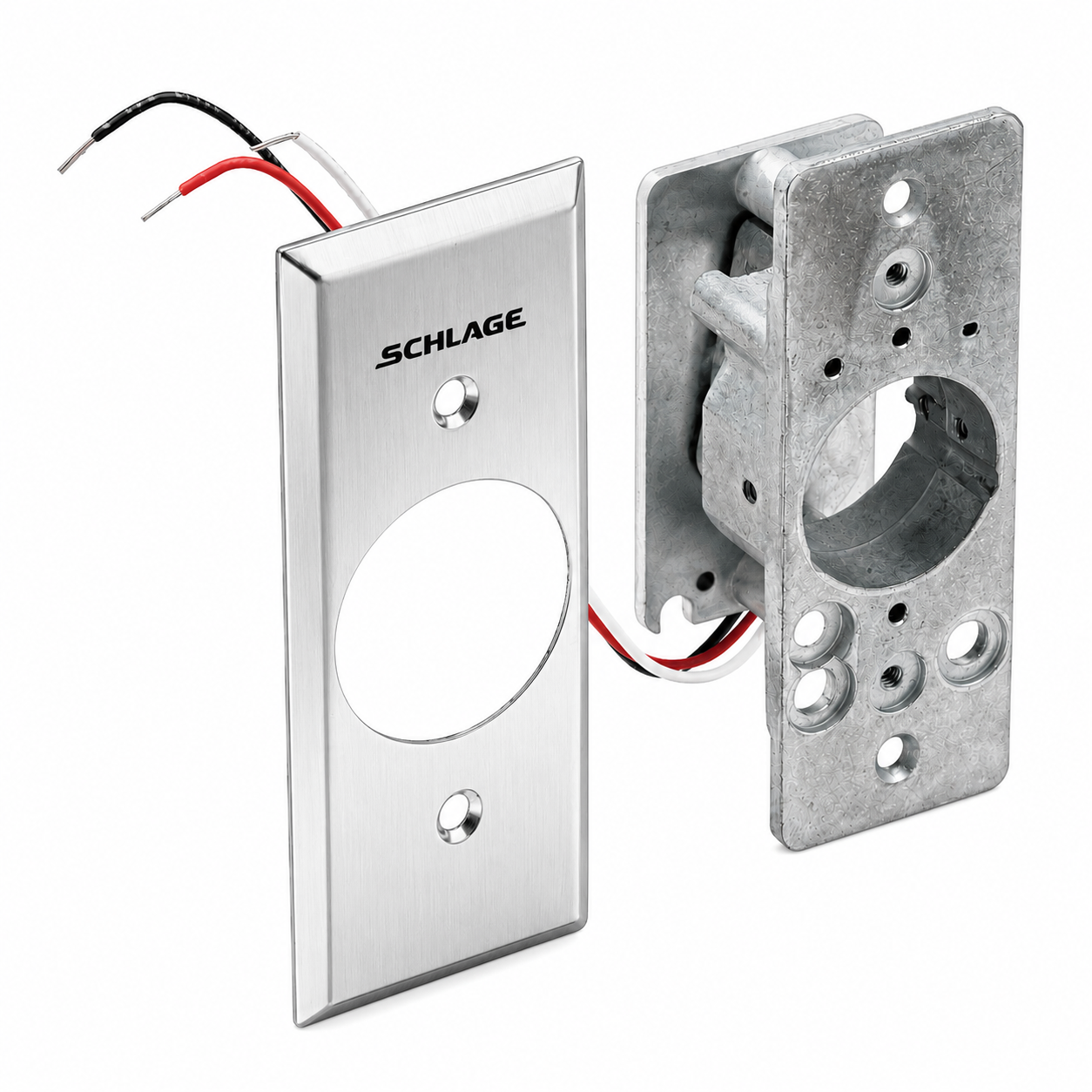

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-04-NS is a 650 Series Narrow Stile SPDT maintained single-direction keyswitch for commercial electronic access control applications. The keyswitch uses Schlage's magnetic spring design to provide maintained key-switch operation and can be configured for clockwise or counterclockwise operation.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-04-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Maintained Keyswitch, Narrow Stile
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 1-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow Stile SPDT maintained single-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$406.00
$284.20
minus minus

Catalogs

Frequently Asked Questions

What is Schlage 653-04-NS?
It is a 650 Series SPDT maintained single-direction keyswitch with the NS narrow stile stainless steel plate option.
What does the NS option mean?
NS specifies a narrow stile stainless steel plate measuring 1-3/4" x 4-1/2".
What cylinders can be used with the 653-04-NS?
It operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinders having a straight-type cam.
Does the 653-04-NS include a cylinder?
The standard keyswitch is shipped without a cylinder.
Is Schlage 653-04-NS an OEM replacement part?
Yes. Schlage 653-04-NS is an OEM Schlage part.
