Schlage

SKU: 653-0404-NS

Schlage 653-0404-NS SPDT Maintained Bi-Directional Keyswitch

Available (3 - 4 Weeks)

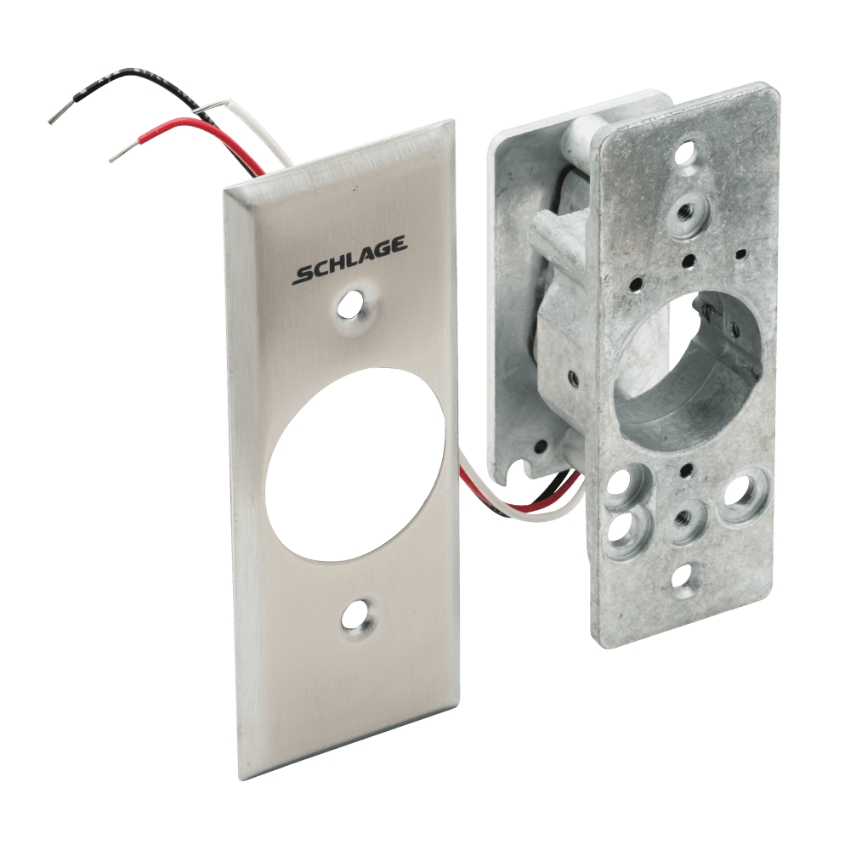

The Schlage 653-0404-NS is an SPDT maintained bi-directional keyswitch with a Narrow Stile (NS) stainless steel plate for commercial electronic access control applications.
*

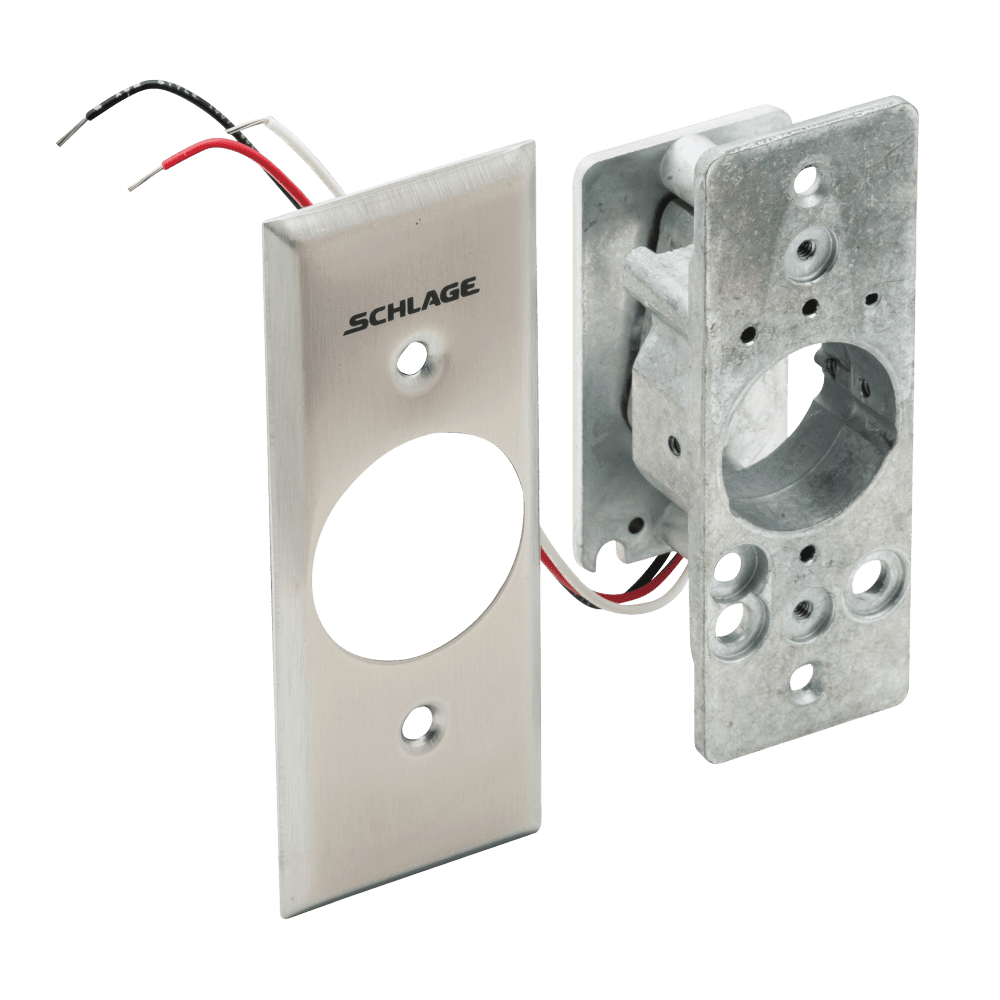

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

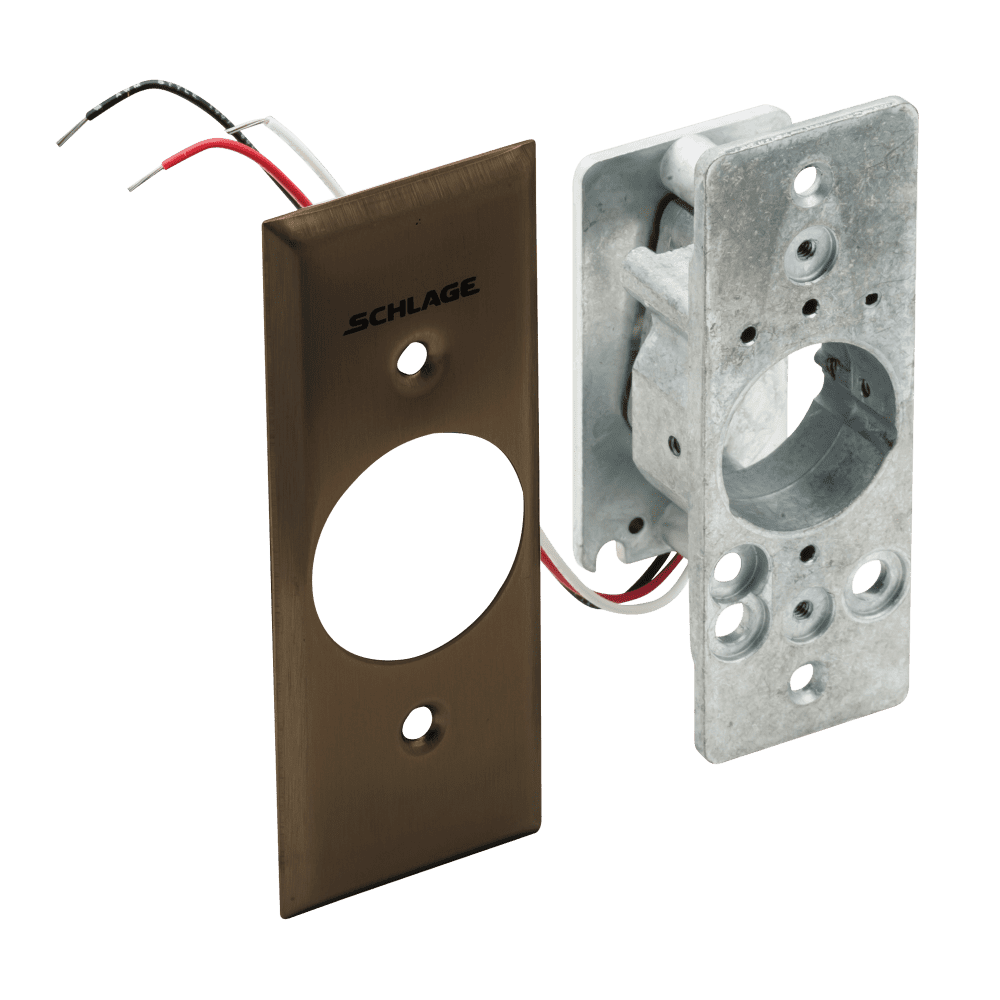

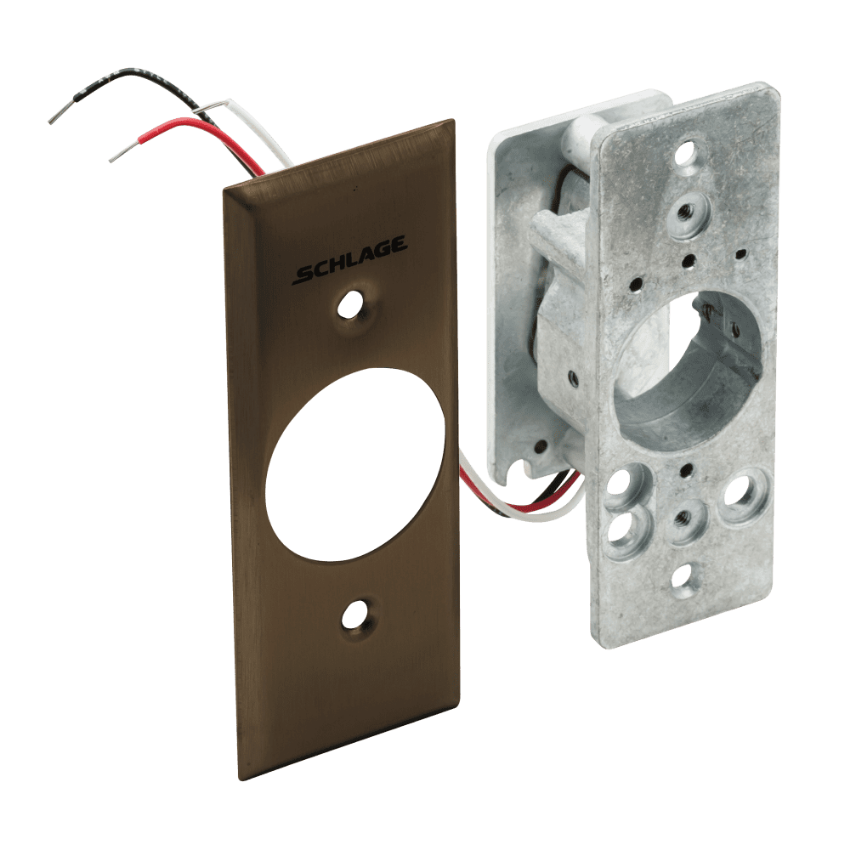

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

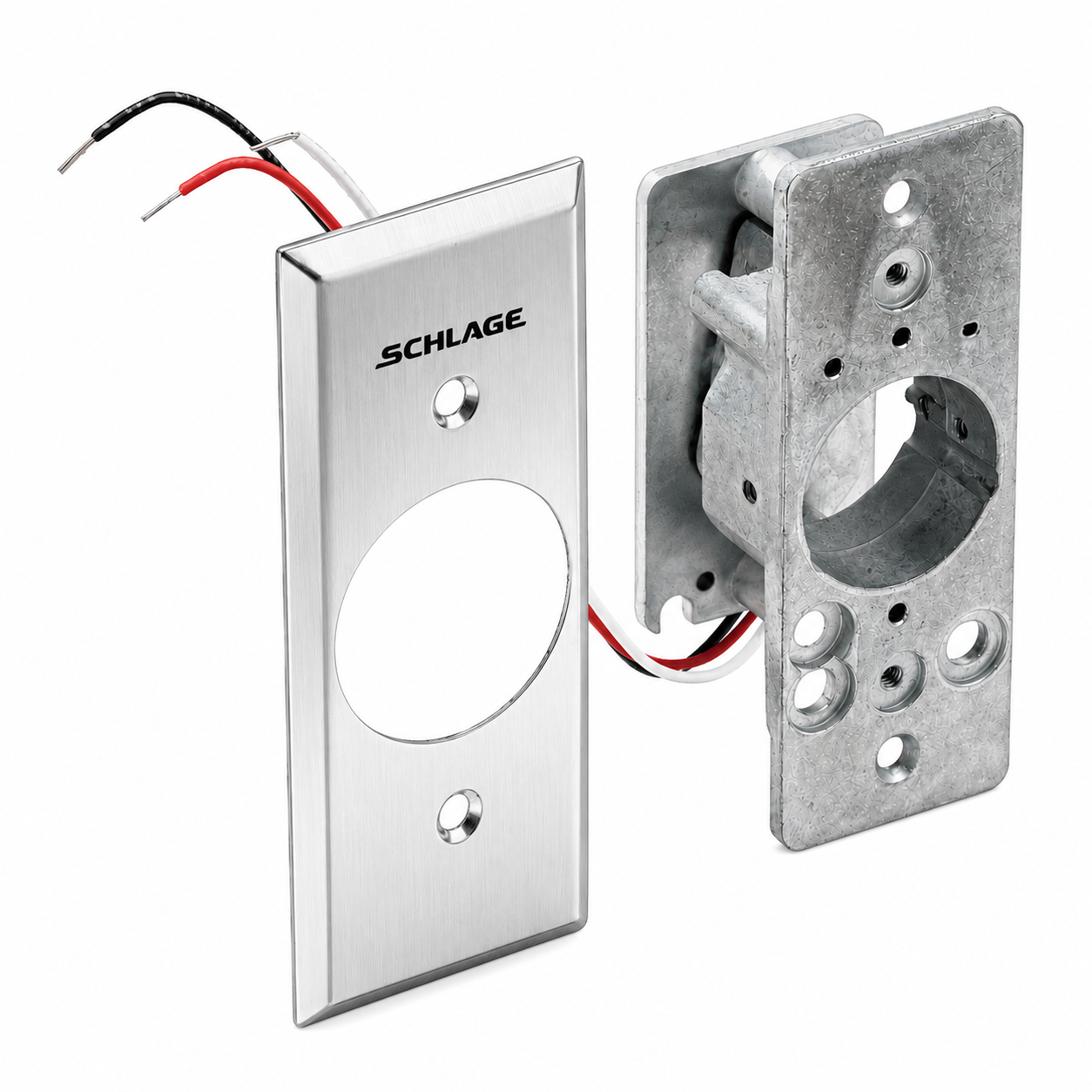

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-0404-NS is a 650 Series SPDT maintained bi-directional keyswitch configured for maintained switching in both key-turn directions. The 653-0404 configuration is specified as CCW-SPDT-CW, maintained/maintained, providing SPDT switching in both key-turn directions.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-0404-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Maintained Bi-Directional Keyswitch, Narrow Stile
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 1-3/4" x 4-1/2"
Faceplate Type: Narrow Stile
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow stile SPDT maintained bi-directional switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-0404-NS?
The Schlage 653-0404-NS is a 650 Series SPDT maintained bi-directional keyswitch with a Narrow Stile configuration.
What switch configuration does the Schlage 653-0404-NS have?
The 653-0404 configuration is specified as (2) SPDT maintained bi-direction, with CCW-SPDT-CW, maintained/maintained operation.
Is the Schlage 653-0404-NS a maintained keyswitch?
Yes. The Schlage 653-0404-NS is an SPDT maintained keyswitch with maintained switching in both key-turn directions.
What does NS mean on the Schlage 653-0404-NS?
NS means Narrow Stile and refers to the 1-3/4" x 4-1/2" stainless steel faceplate configuration.
Is the Schlage 653-0404-NS an OEM replacement part?
Yes. The Schlage 653-0404-NS is an OEM Schlage replacement part.
