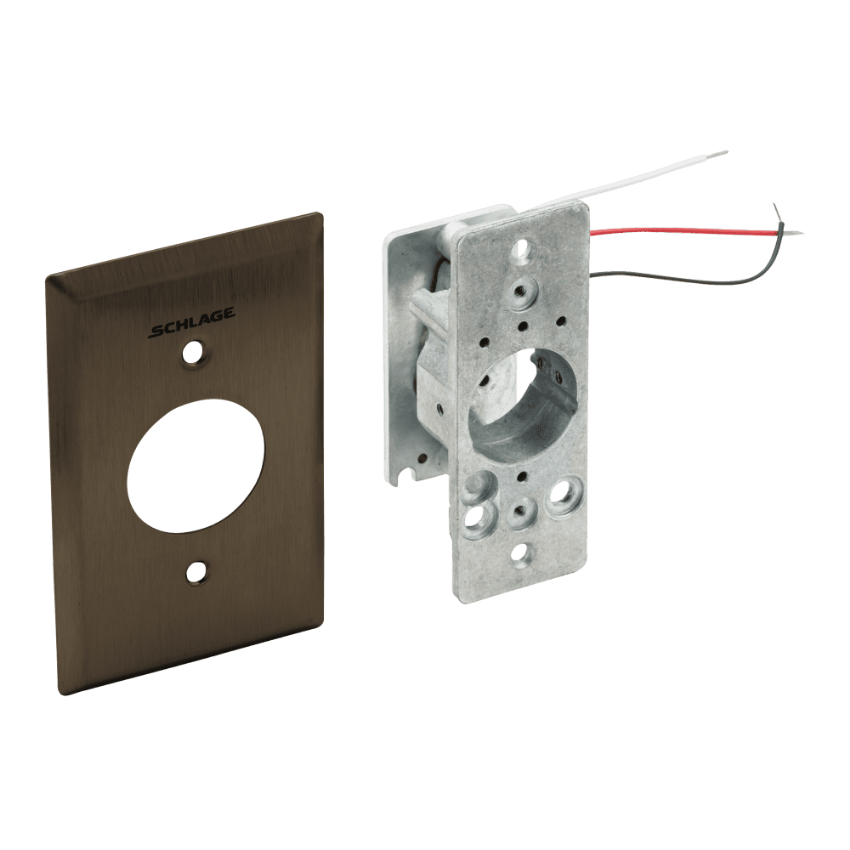

Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch SF-613 Oil Rubbed Bronze

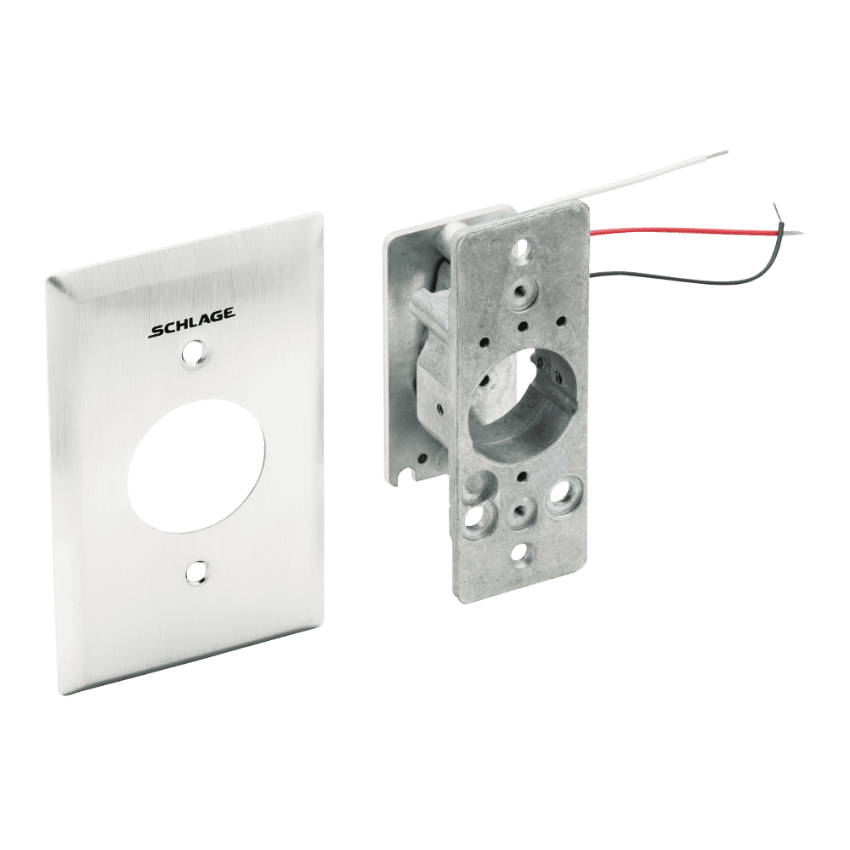

Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch SF-625 Bright Chrome
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch SF-626 Satin Chrome

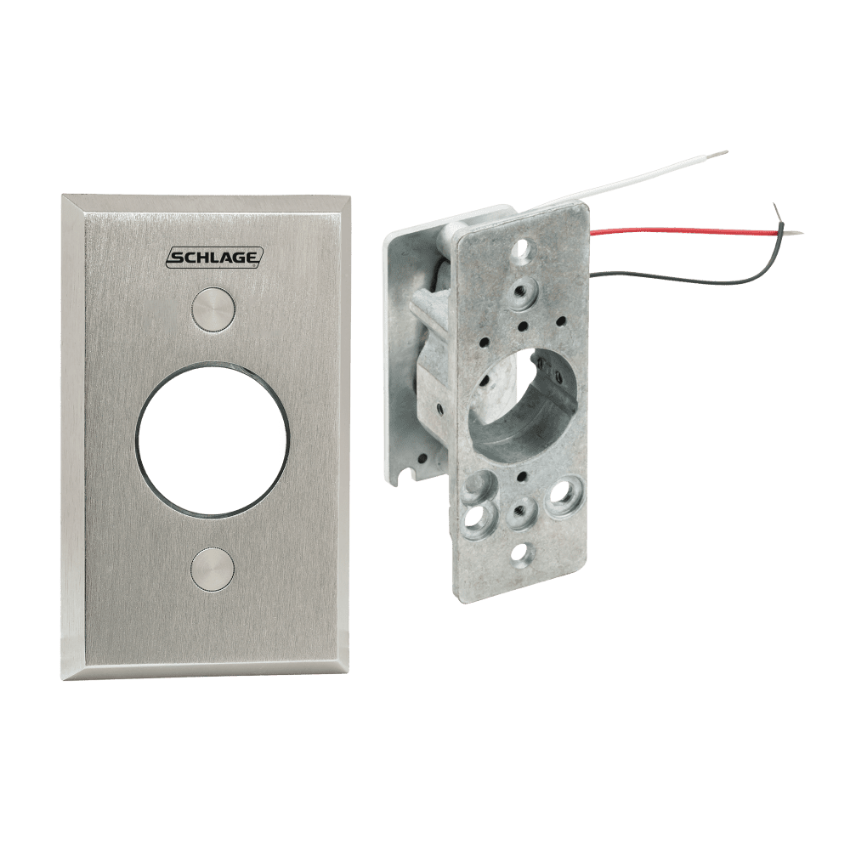

Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch ATS Anti-Tamper Switch

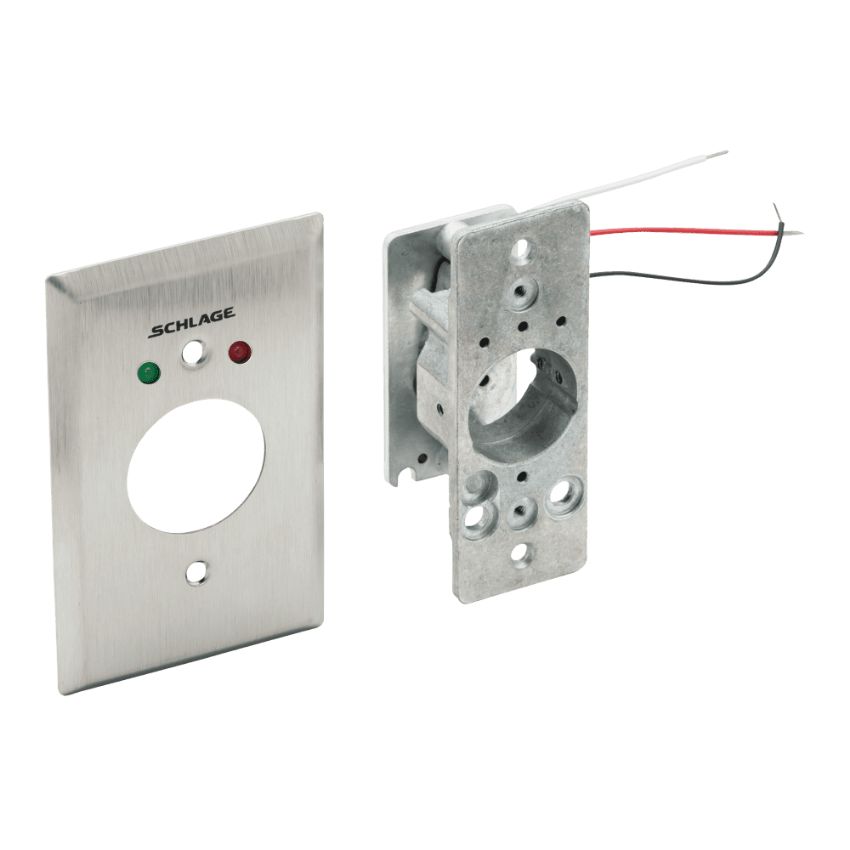

Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch with L2 LEDs

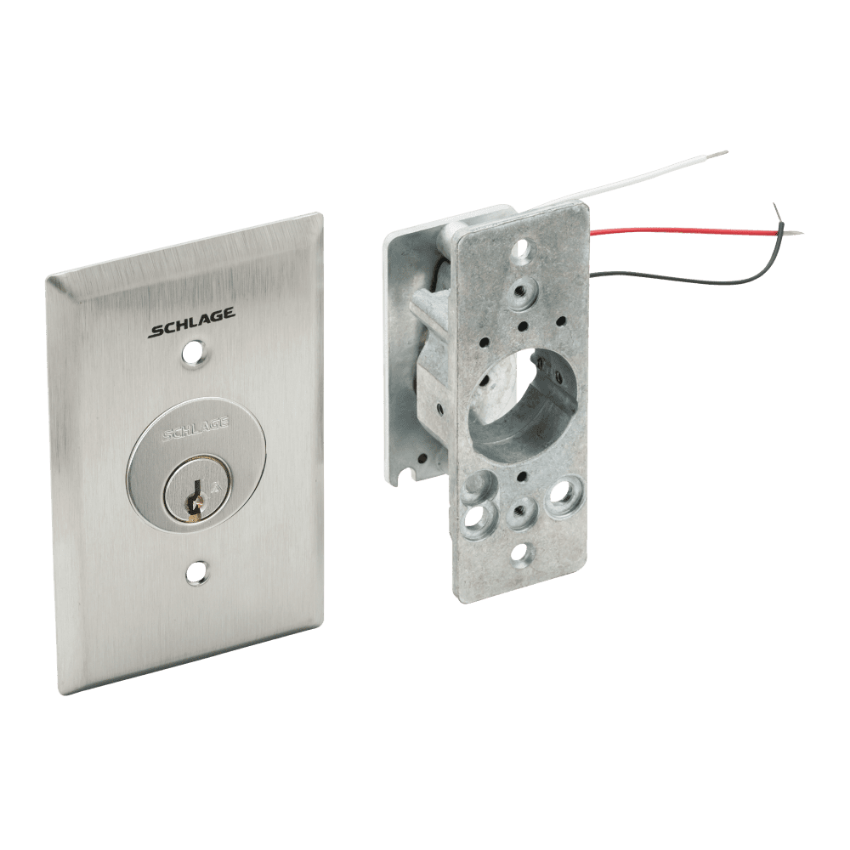

Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch with Cylinder
Dynamic Image
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch SF-613 Oil Rubbed Bronze
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch SF-625 Bright Chrome
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch SF-626 Satin Chrome
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch ATS Anti-Tamper Switch
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch with L2 LEDs
Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch with Cylinder

Schlage

SKU: 653-0404

Schlage 653-0404 SPDT Maintained Bi-Directional Keyswitch

In stock

Schlage 653-0404 is a 650 Series SPDT maintained bi-directional keyswitch with two SPDT maintained switch configurations for electronic access control applications.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

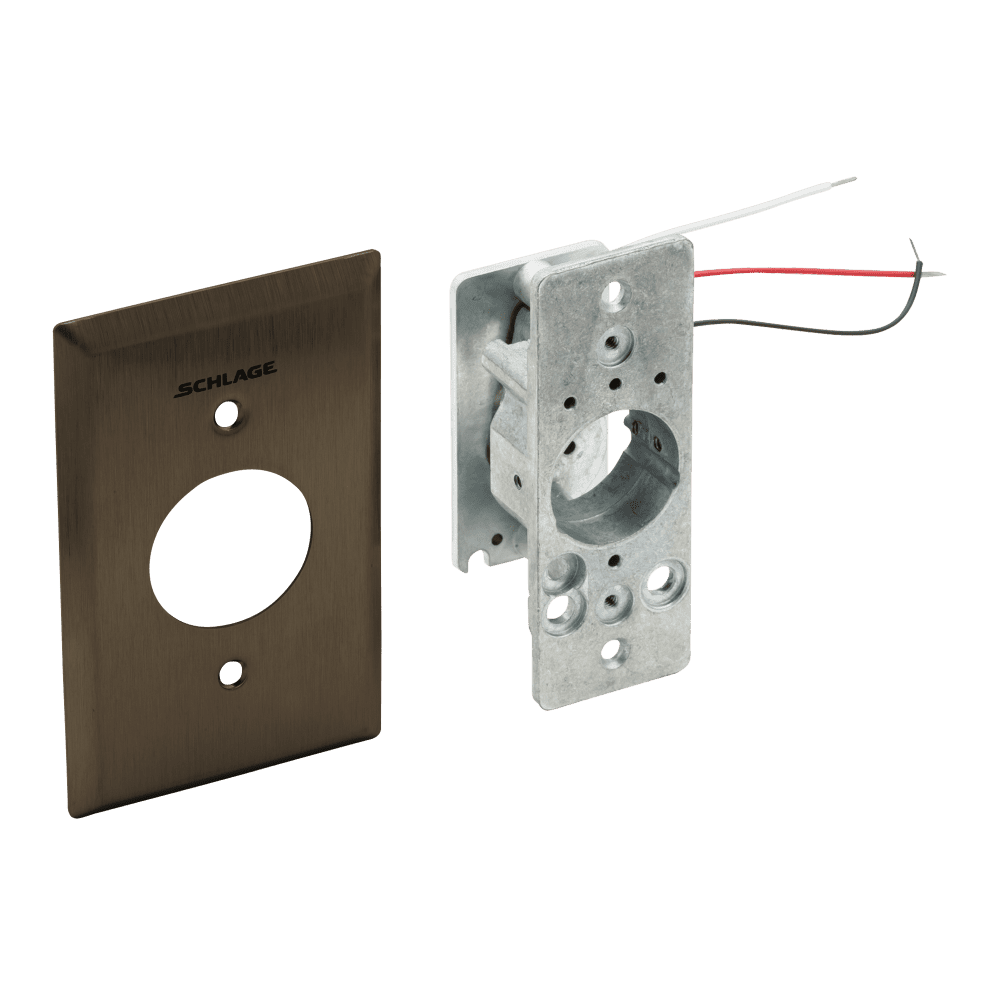

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

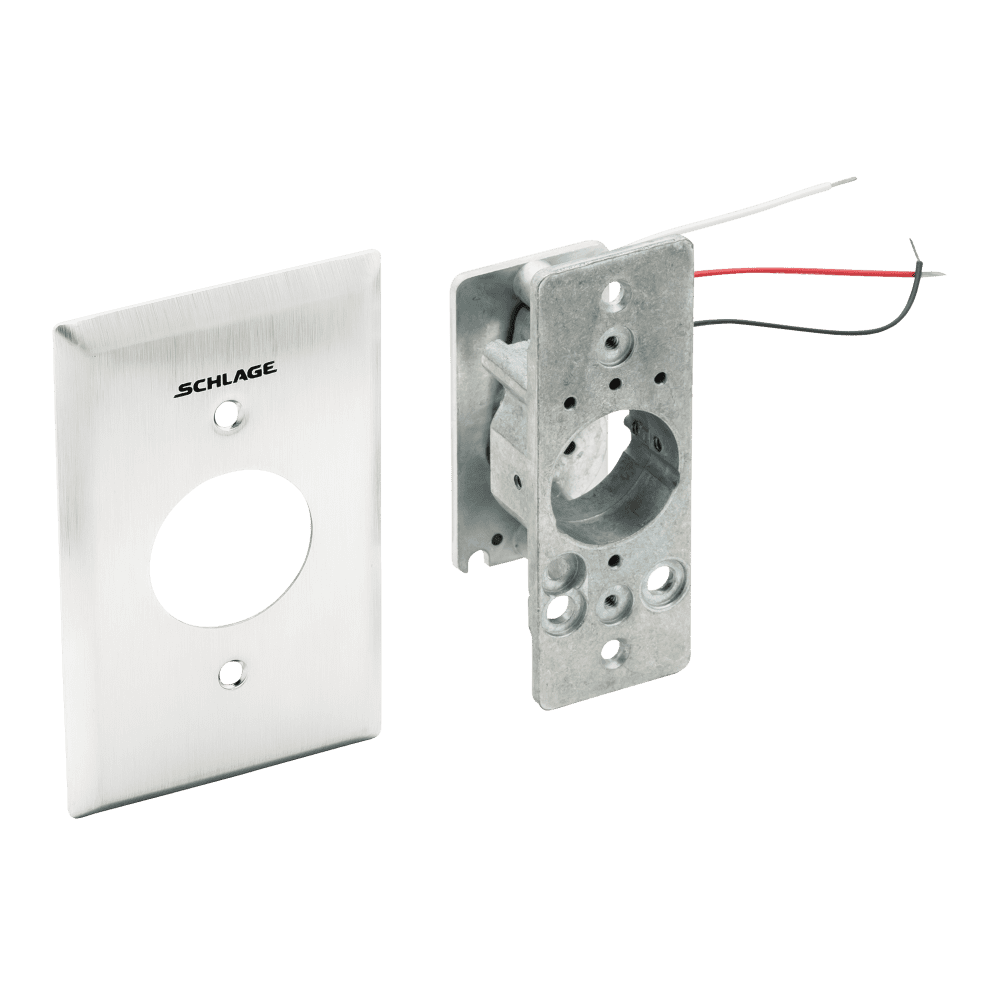

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

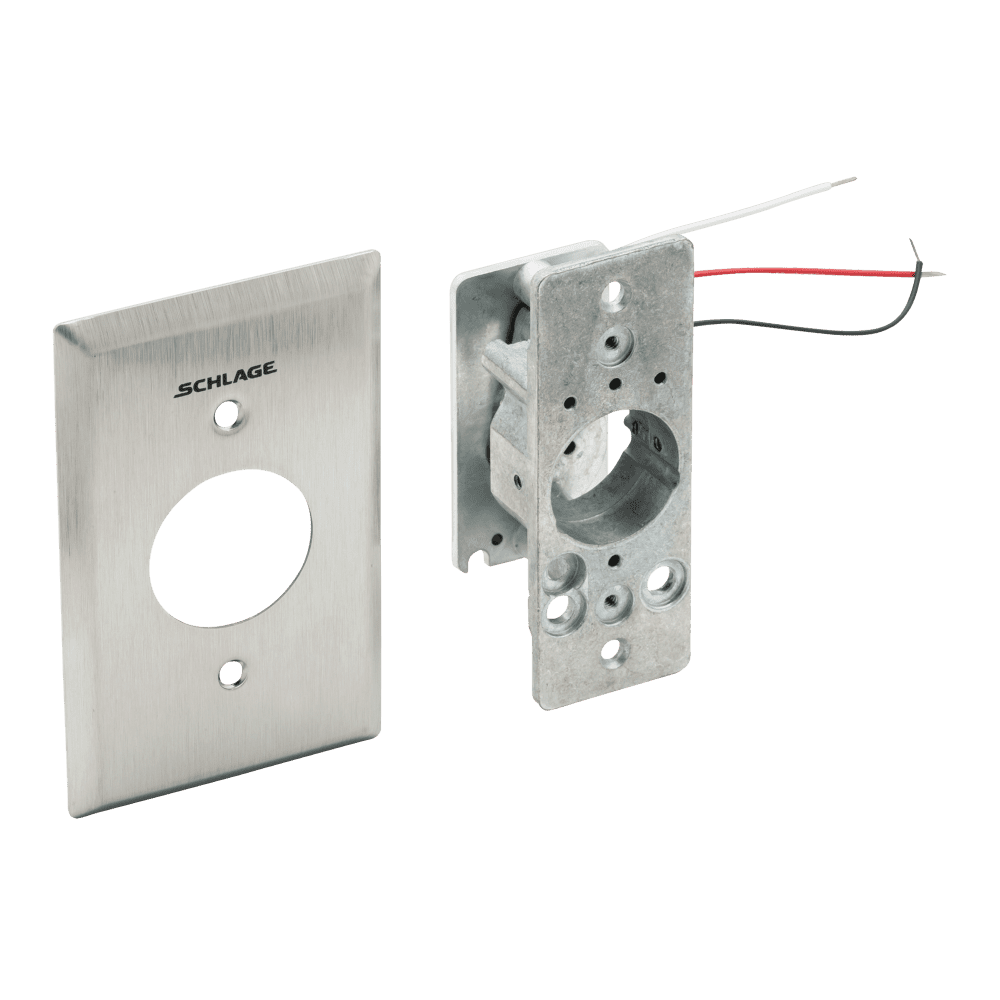

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

The Schlage 653-0404 is a 650 Series keyswitch configured with two SPDT switches for maintained operation in both directions. Schlage identifies this configuration as CCW-SPDT-CW, maintained/maintained, allowing the key to activate a maintained switch function in either direction.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-0404
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Maintained Bi-Directional Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: SPDT maintained bi-directional switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-0404?
The Schlage 653-0404 is a 650 Series keyswitch configured with two SPDT maintained switches for bi-directional operation.
Is the Schlage 653-0404 a maintained keyswitch?
Yes. Schlage specifies the 653-0404 as a maintained keyswitch with SPDT operation in both directions.
Is the Schlage 653-0404 a bi-directional keyswitch?
Yes. Schlage identifies the 653-0404 as a (2) SPDT maintained bi-directional keyswitch, with maintained operation in both directions.
What cylinders are compatible with the Schlage 653-0404?
The 650 Series operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinders with a straight-type cam.
Is the Schlage 653-0404 an OEM replacement part?
Yes. The Schlage 653-0404 is an OEM Schlage replacement part.
