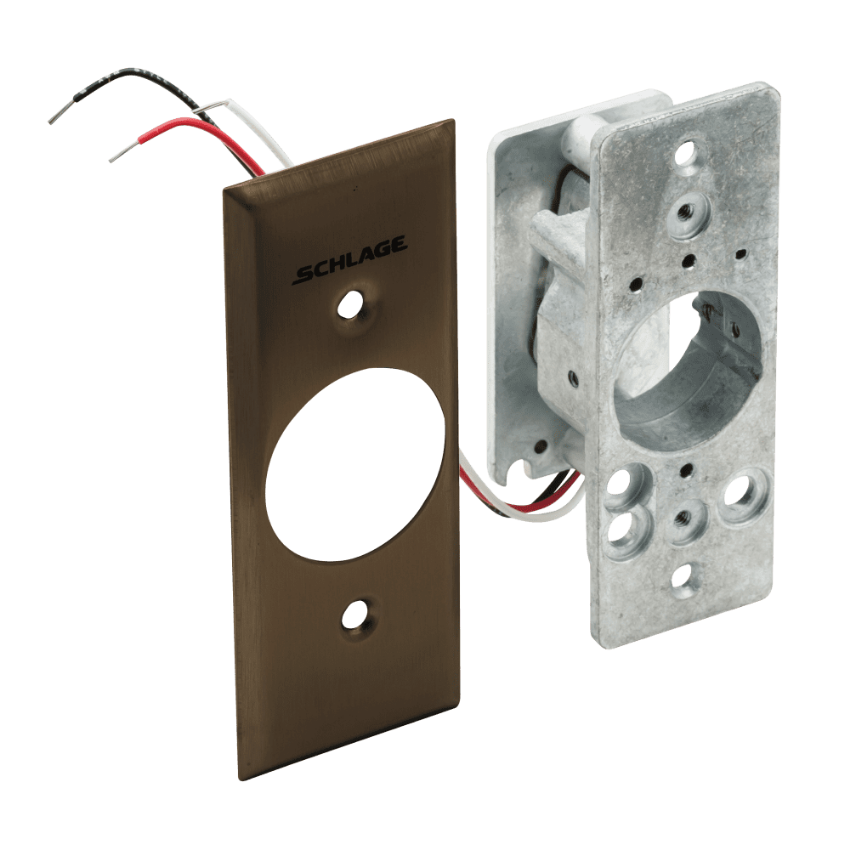

Schlage 653-0405-NS SPDT Maintained/Momentary Keyswitch, Narrow Stile Oil Rubbed Bronze
Schlage 653-0405-NS SPDT Maintained/Momentary Keyswitch, Narrow Stile Satin Chrome
Schlage 653-0405-NS SPDT Maintained/Momentary Keyswitch, Narrow Stile Bright Chrome

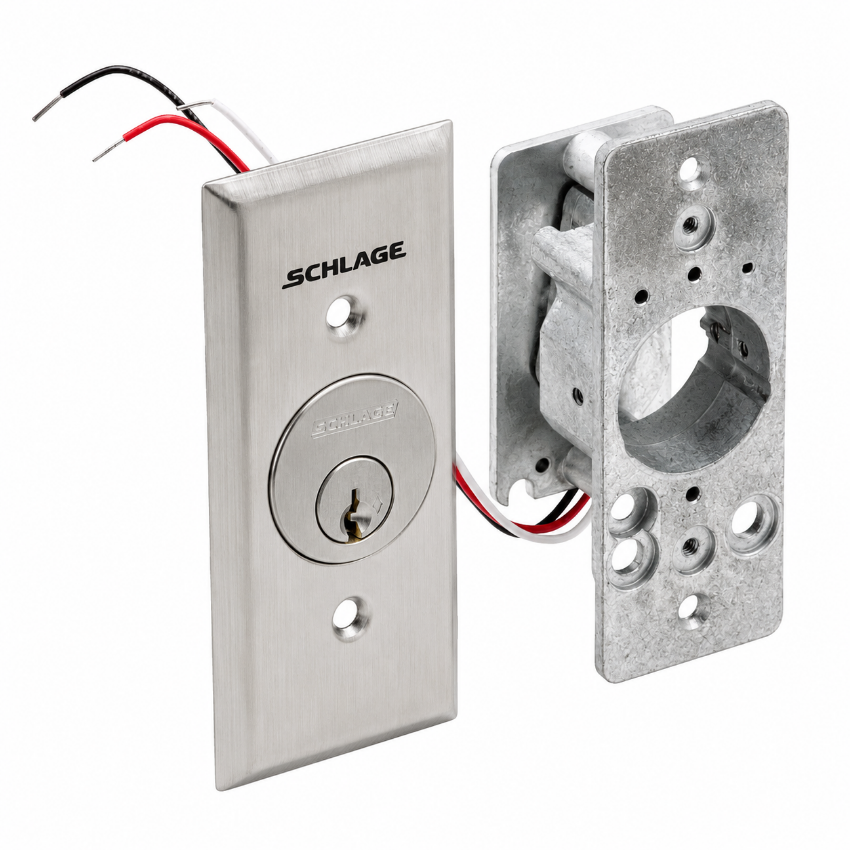

Schlage 653-0405-NS SPDT Maintained/Momentary Keyswitch, Narrow Stile with Cylinder
Schlage 653-0405-NS SPDT Maintained/Momentary Keyswitch, Narrow Stile with Red and Green LEDs

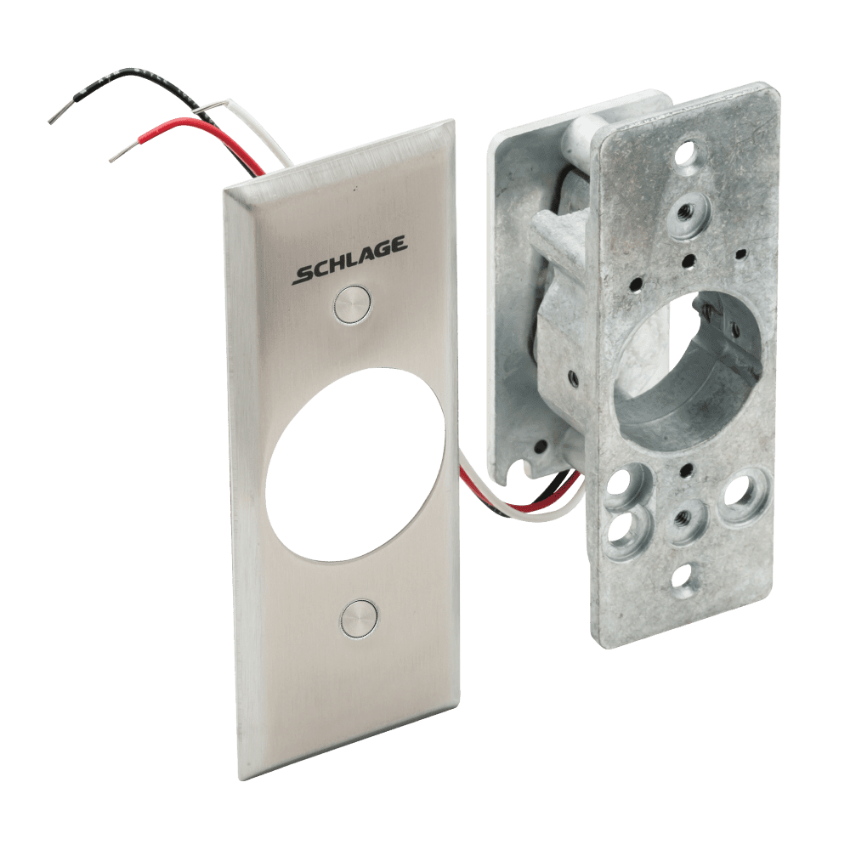

Schlage 653-0405-NS SPDT Maintained/Momentary Keyswitch, Narrow Stile with Anti-Tamper Switch

Schlage

SKU: 653-0405-NS

Schlage 653-0405-NS SPDT Maintained/Momentary Keyswitch

Available (3 - 4 Weeks)

The Schlage 653-0405-NS is an SPDT maintained/momentary keyswitch with a narrow-stile stainless steel faceplate, designed for 650 Series access control and electronic switching applications.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

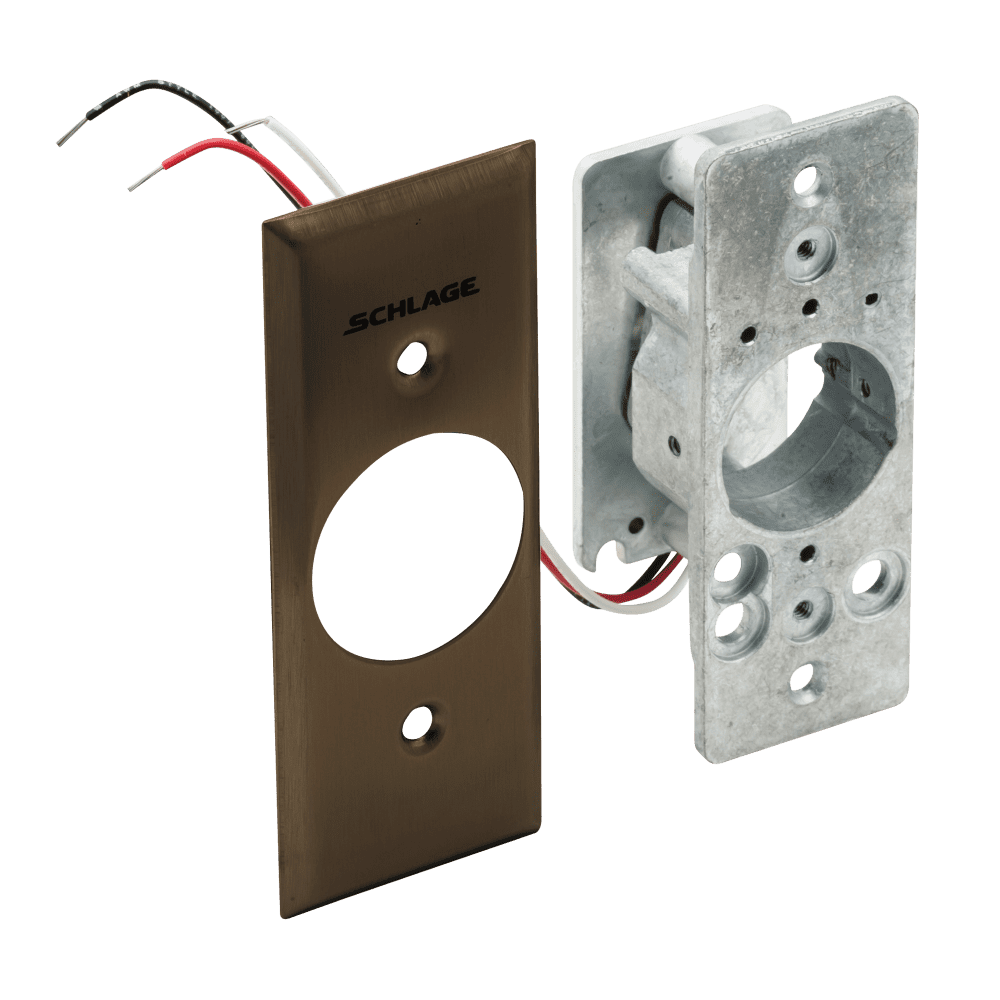

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

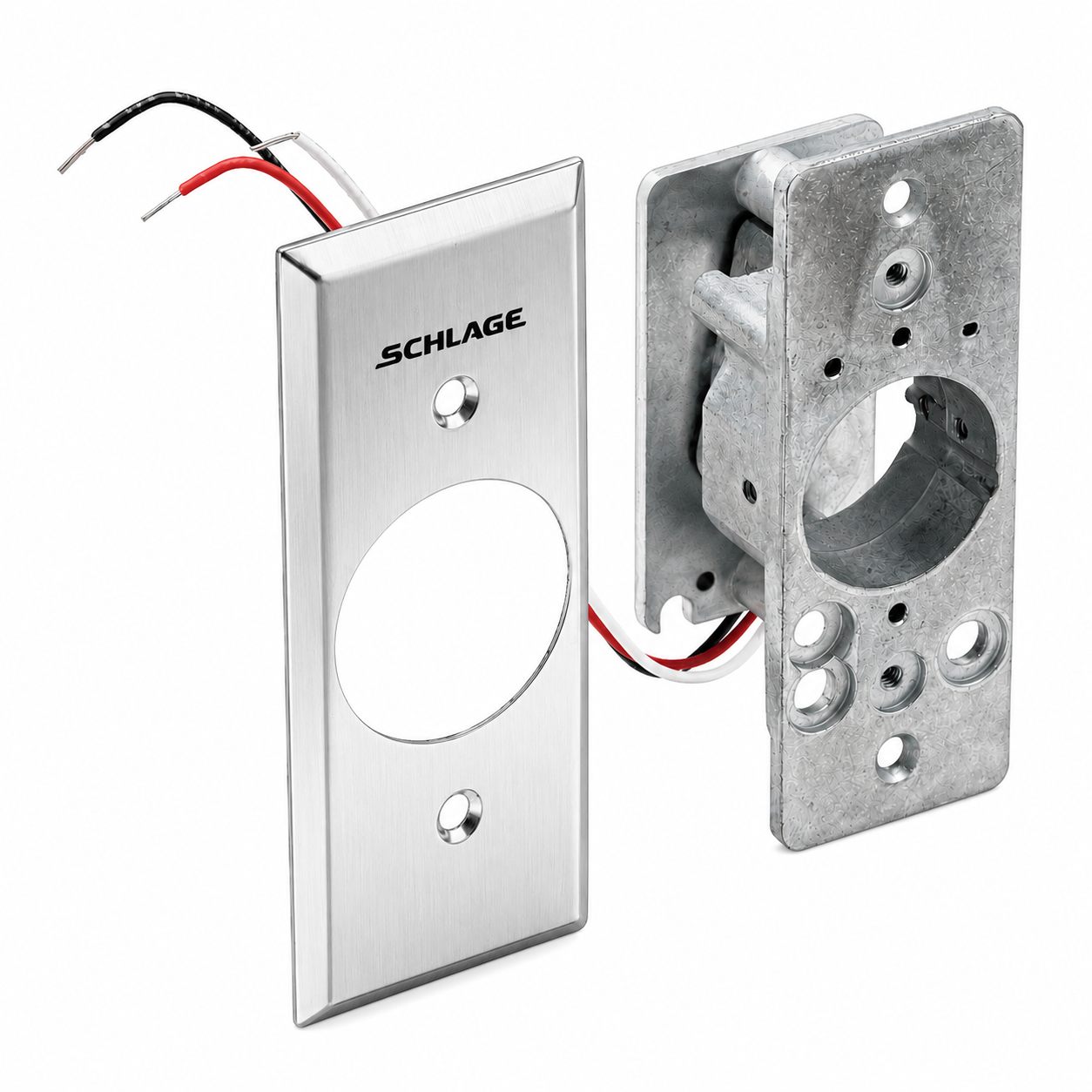

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

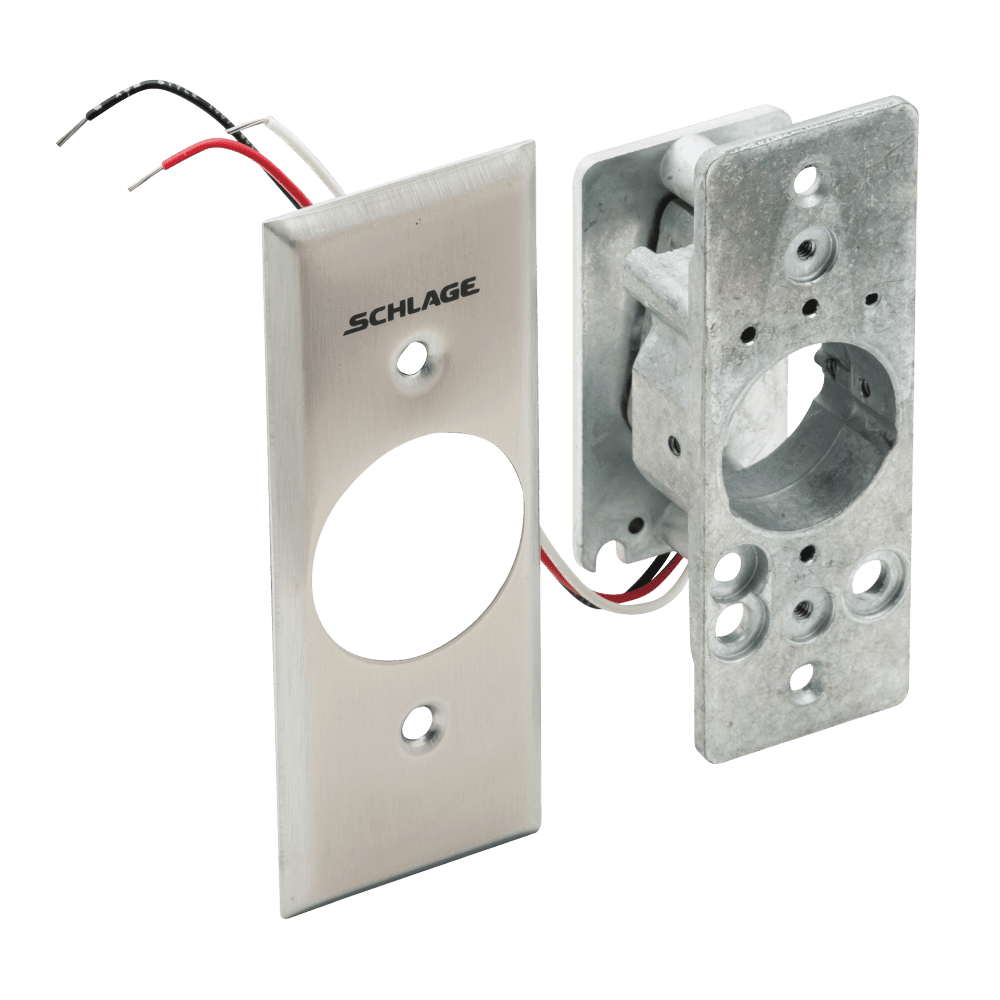

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-0405-NS is a 650 Series keyswitch configured for maintained switching in one direction and momentary switching in the opposite direction. This part is used where a key-operated SPDT maintained/momentary switching function is required.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-0405-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Maintained/Momentary Keyswitch, Narrow Stile
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 1-3/4" x 4-1/2"
Faceplate Type: Narrow Stile
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow stile SPDT maintained/momentary switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-0405-NS?
The Schlage 653-0405-NS is a 650 Series SPDT keyswitch configured for maintained action in one direction and momentary action in the other.
Is the 653-0405-NS maintained or momentary?
It is both. The Schlage 653-0405-NS is configured as SPDT maintained in one direction and SPDT momentary in the other.
What does NS mean on Schlage 653-0405-NS?
NS means narrow stile and a stainless steel plate measuring 1-3/4" x 4-1/2".
What cylinders are compatible with the 653-0405-NS?
The 650 Series operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders having a straight-type cam.
Is the Schlage 653-0405-NS an OEM replacement part?
Yes. The Schlage 653-0405-NS is an OEM Schlage replacement part.
