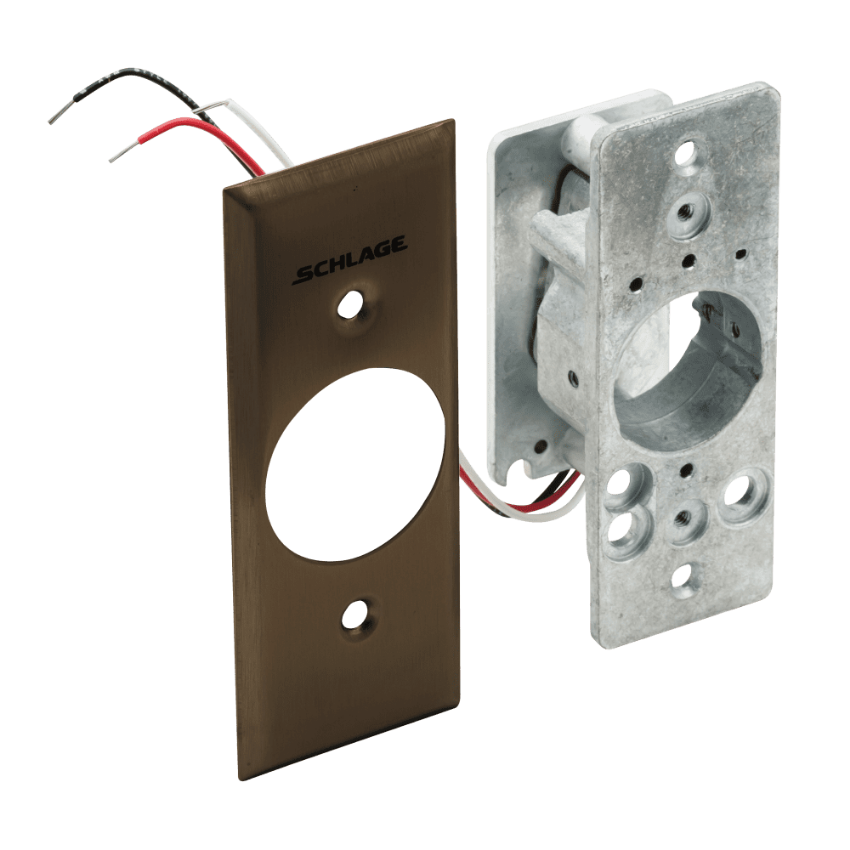

Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile Oil Rubbed Bronze
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile Satin Chrome
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile Bright Chrome

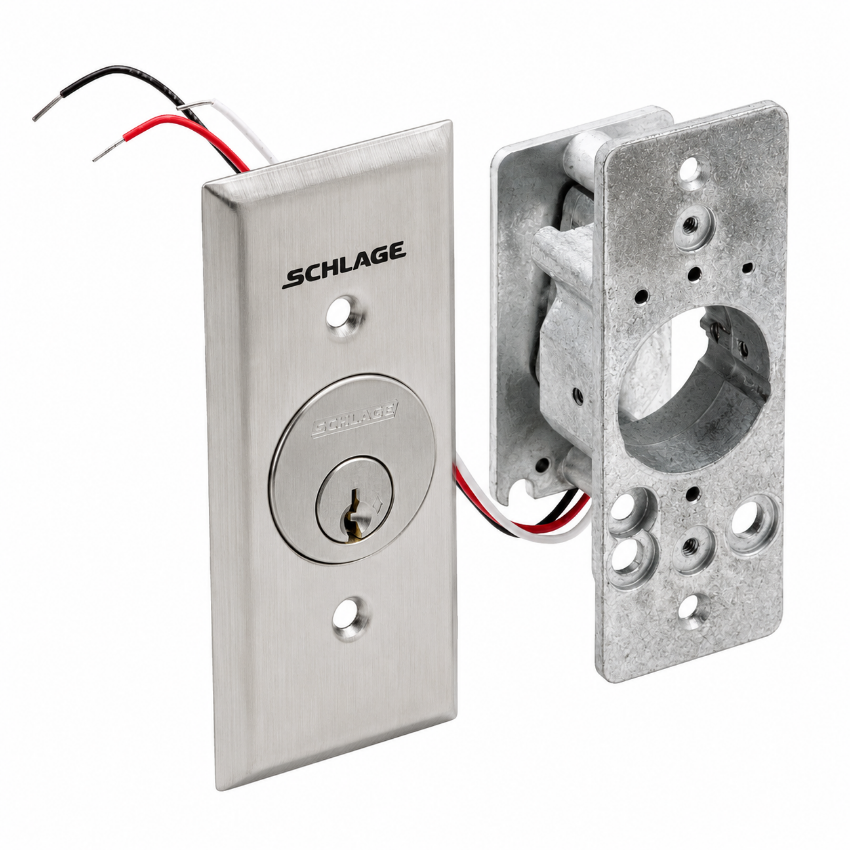

Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile with Cylinder

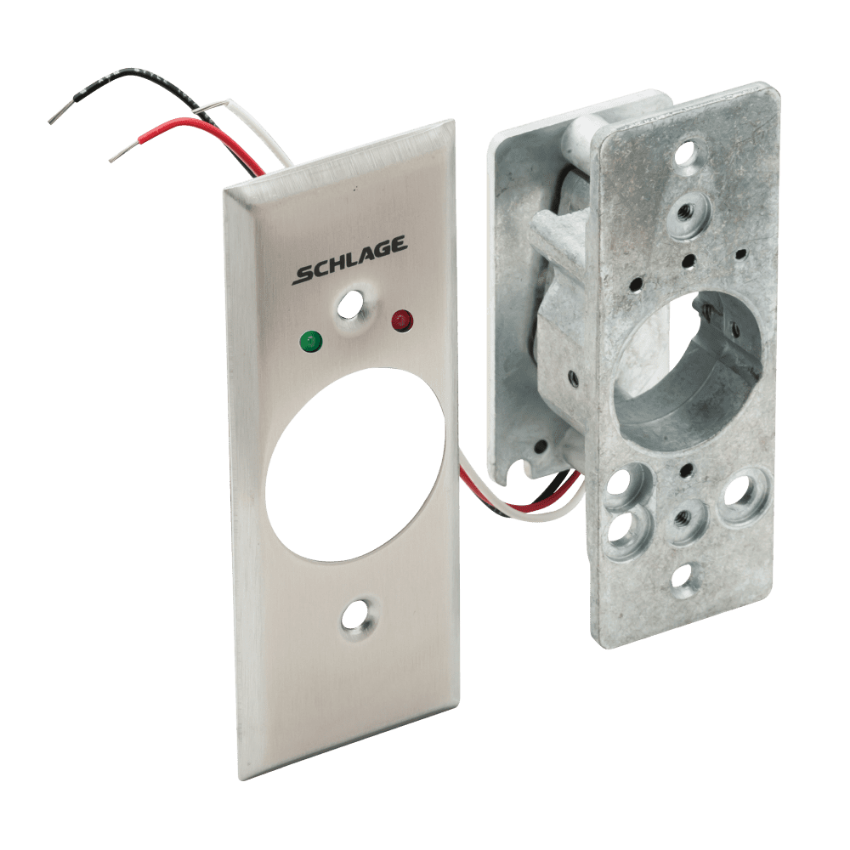

Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile with Red and Green LEDs
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile with Anti-Tamper Switch
Dynamic Image
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile Oil Rubbed Bronze
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile Satin Chrome
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile Bright Chrome
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile with Cylinder
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile with Red and Green LEDs
Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile with Anti-Tamper Switch

Schlage

SKU: 653-041-NS

Schlage 653-041-NS SPDT Maintained Keyswitch, Narrow Stile

In stock

The Schlage 653-041-NS is a 650 Series narrow stile SPDT maintained keyswitch with a key-removal function in one position, designed for commercial access control and door hardware applications.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

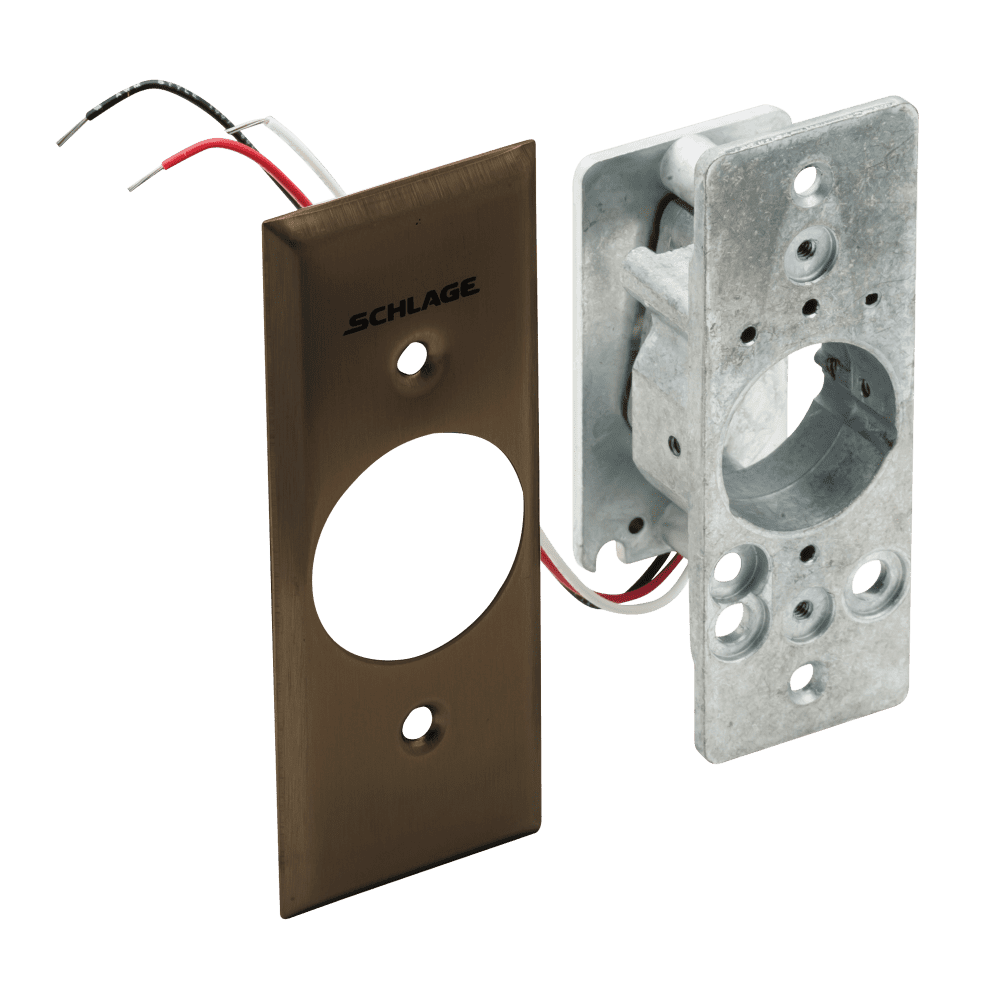

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

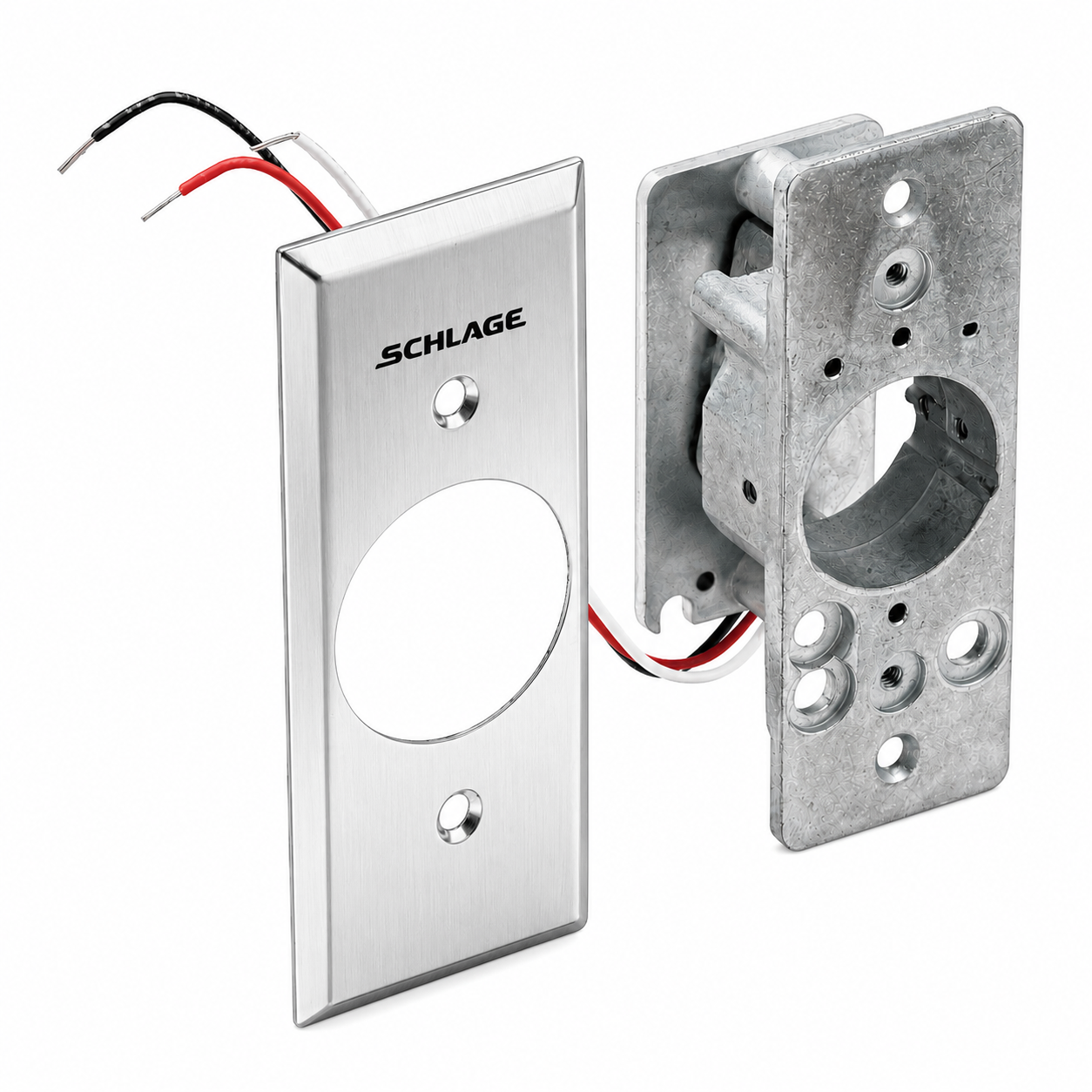

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

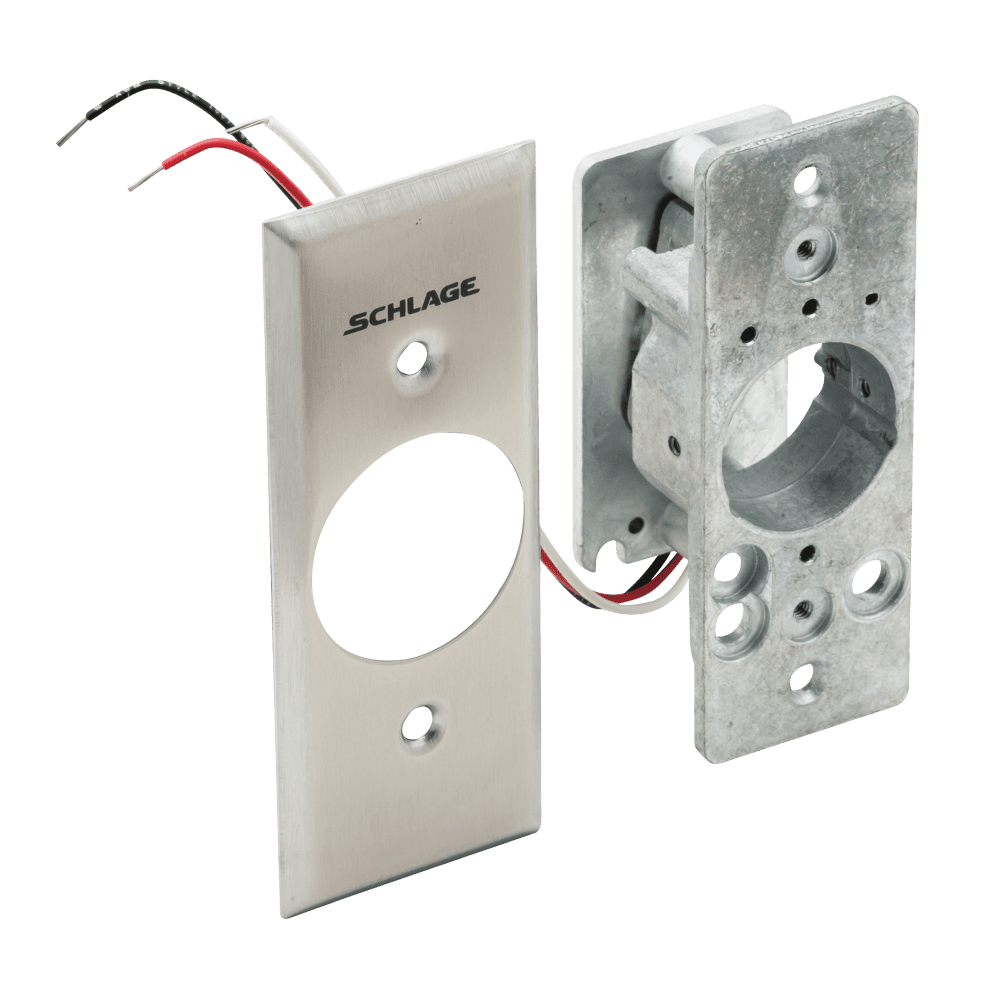

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

The Schlage 653-041-NS is a 650 Series keyswitch configured as an narrow stile SPDT maintained function with key removal in one position. It is designed for maintained operation, with stop pins used for the key-remove function. The 650 Series keyswitch operates with compatible mortise cylinders having a straight type cam and uses magnetic spring technology to configure maintained or momentary action.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-041-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Maintained Keyswitch, Narrow Stile
Key Function: Key remove one position
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 1-3/4" x 4-1/2"
Faceplate Type: Narrow Stile
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow stile SPDT maintained switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$406.00
$284.20
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-041-NS?
The Schlage 653-041-NS is a 650 Series SPDT maintained x key remove one position with a narrow stile configuration.
Is the Schlage 653-041-NS a maintained keyswitch?
Yes. The Schlage 653-041-NS is an SPDT maintained keyswitch with the key removable in one position.
What does NS mean on the Schlage 653-041-NS?
NS means Narrow Stile and refers to the 1-3/4" x 4-1/2" stainless steel faceplate configuration.
What type of cylinder is used with the Schlage 653-041-NS?
The 650 Series operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinders with a straight-type cam.
Is the Schlage 653-041-NS an OEM replacement part?
Yes. The Schlage 653-041-NS is an OEM Schlage replacement part.
