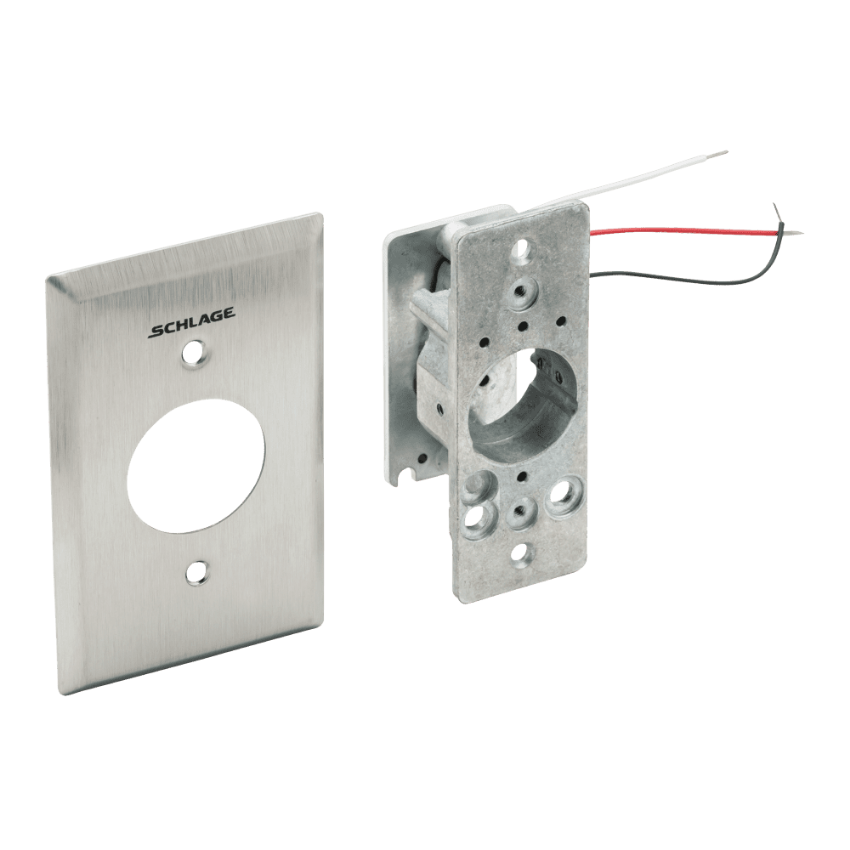

Schlage 653-041 SPDT Maintained Keyswitch

Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch

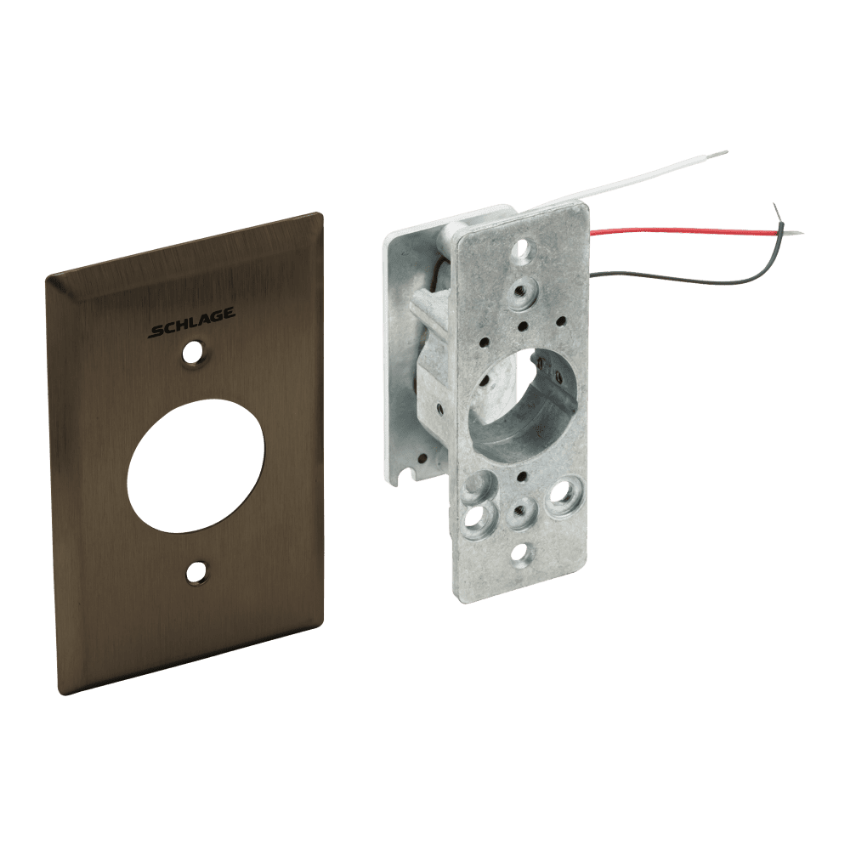

Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch SF-613 Oil Rubbed Bronze

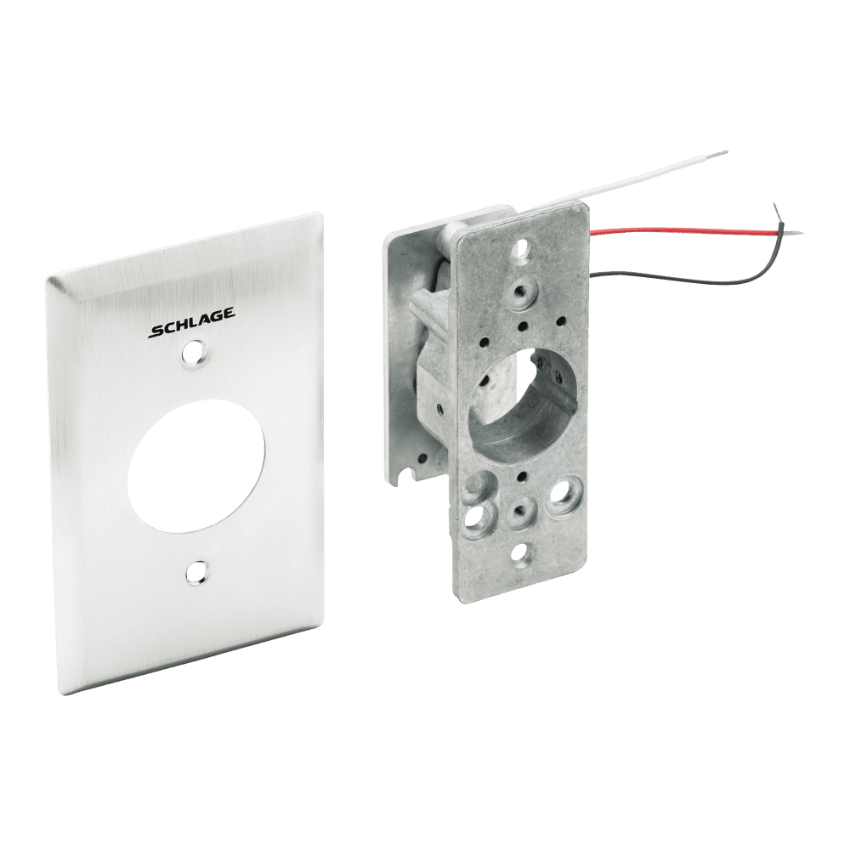

Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch SF-625 Bright Chrome
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch SF-626 Satin Chrome

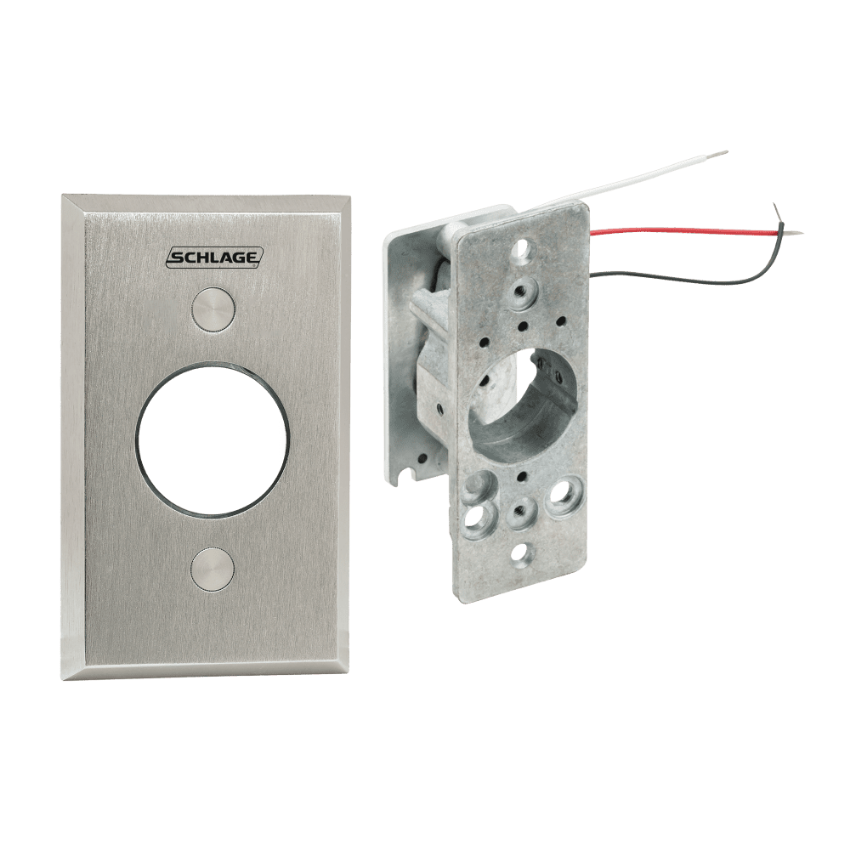

Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch ATS Anti-Tamper Switch
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch with L2 LEDs

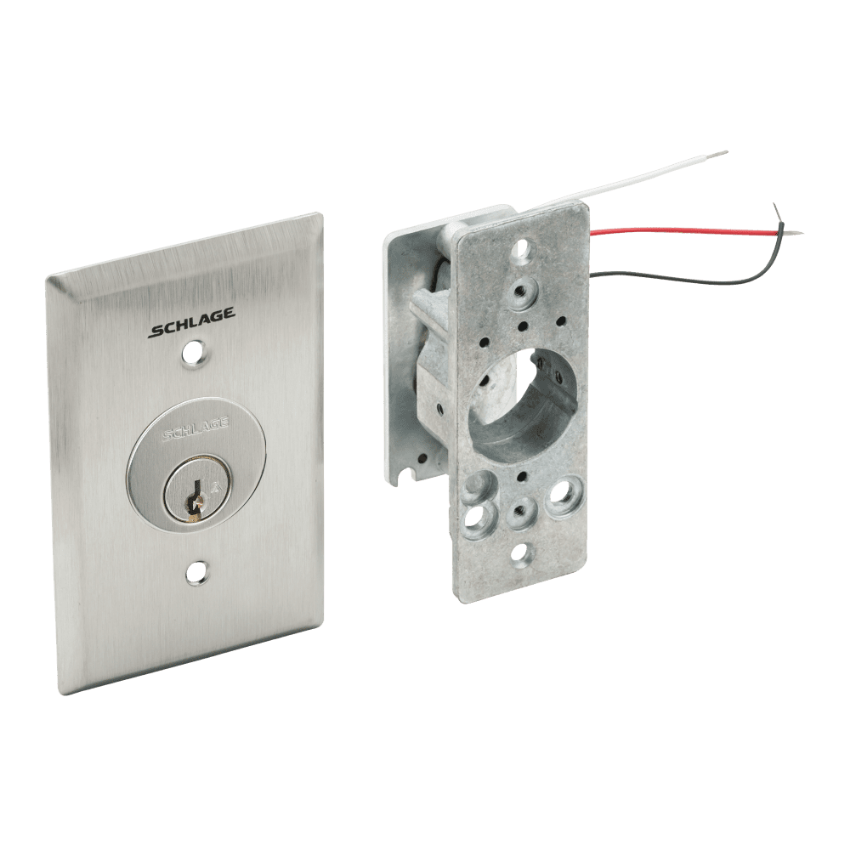

Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch with Cylinder
Dynamic Image
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch SF-613 Oil Rubbed Bronze
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch SF-625 Bright Chrome
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch SF-626 Satin Chrome
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch ATS Anti-Tamper Switch
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch with L2 LEDs
Schlage 653-041 SPDT Maintained Key Remove One Position Keyswitch with Cylinder

Schlage

SKU: 653-041

Schlage 653-041 SPDT Maintained Keyswitch

In stock

The Schlage 653-041 is a 650 Series SPDT maintained keyswitch with a key-removal function in one position, designed for commercial access control and door hardware applications.
*

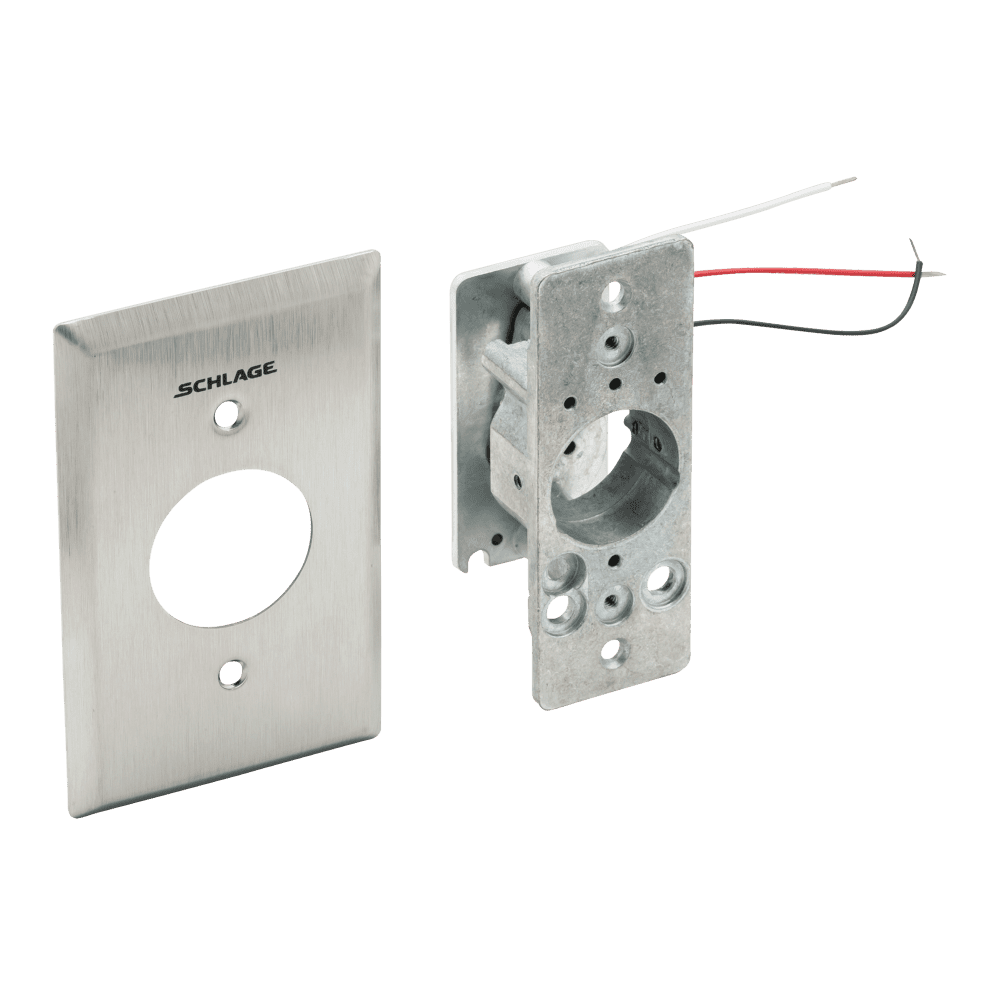

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

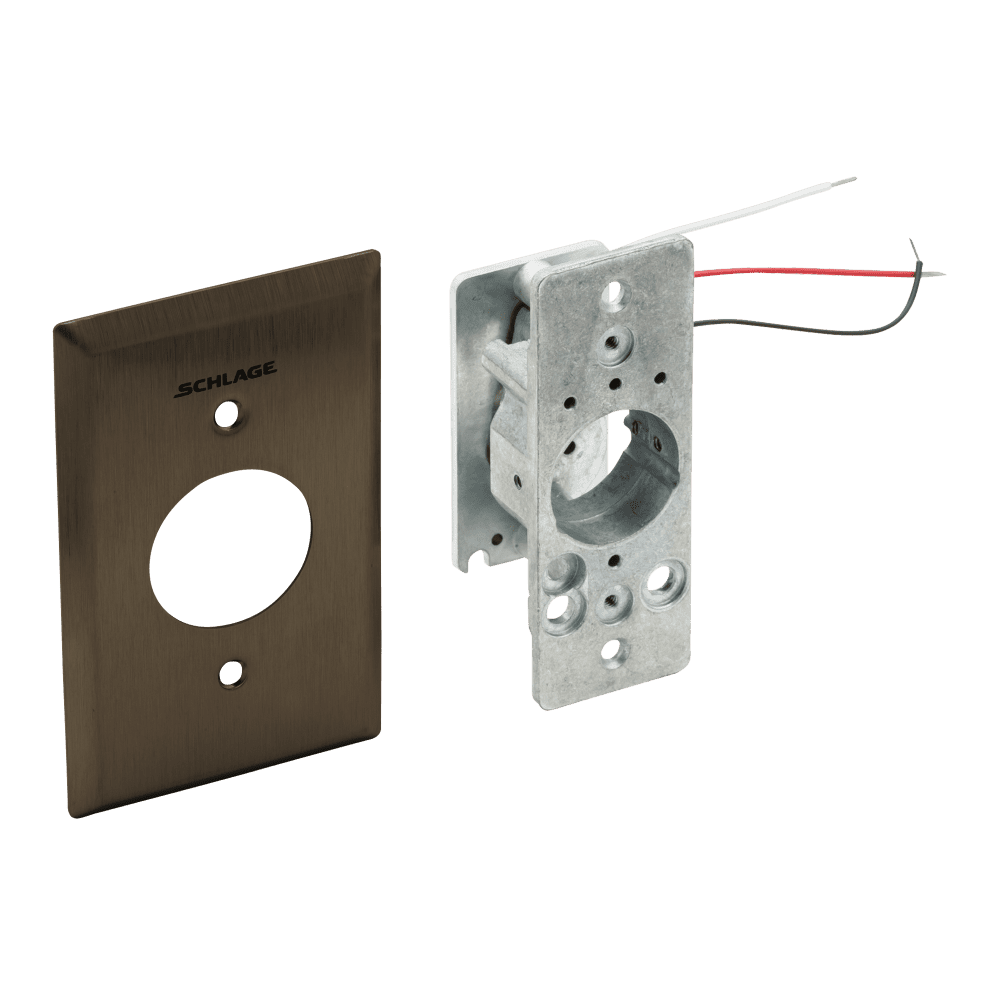

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

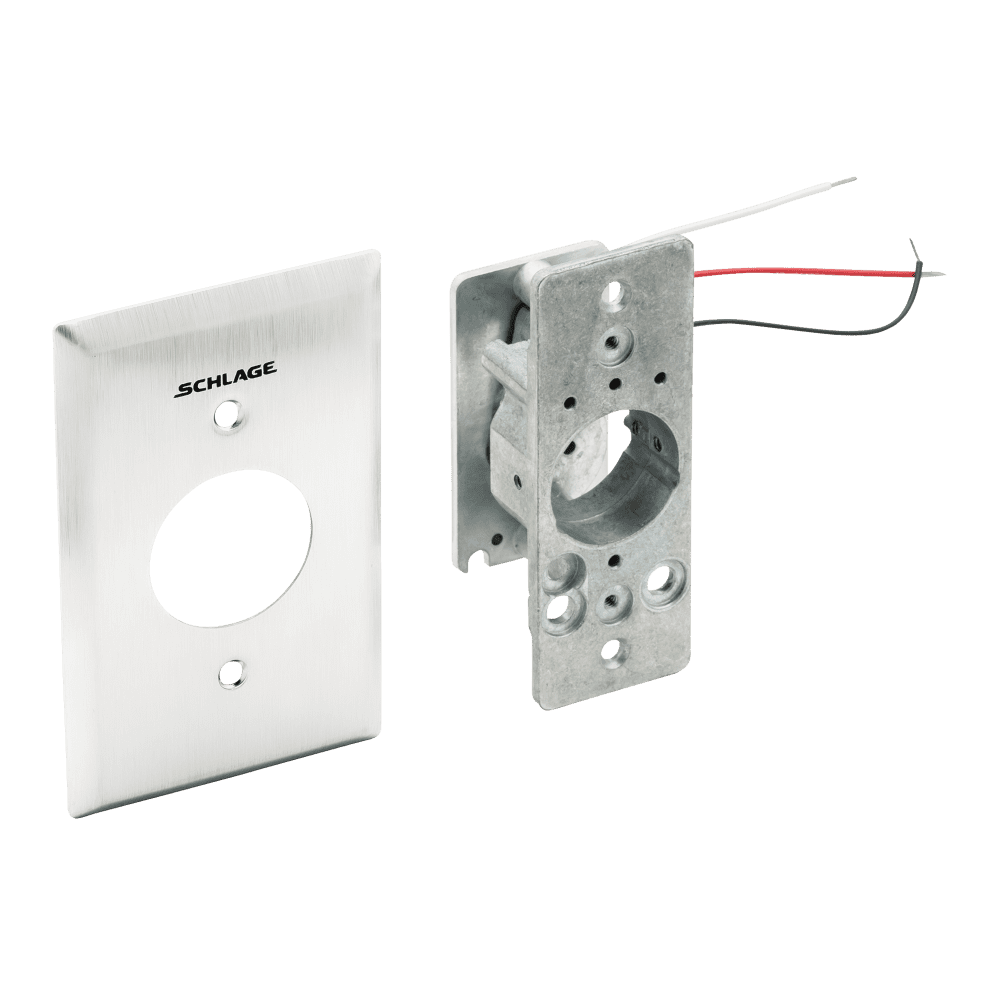

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

The Schlage 653-041 is a 650 Series keyswitch configured as an SPDT maintained function with key removal in one position. It is designed for maintained operation, with stop pins used for the key-remove function. The 650 Series keyswitch operates with compatible mortise cylinders having a straight type cam and uses magnetic spring technology to configure maintained or momentary action.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-041
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Maintained Keyswitch
Key Function: Key remove one position
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: SPDT maintained switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$406.00
$284.20
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-041?
The Schlage 653-041 is a 650 Series SPDT maintained keyswitch with key removal in one position.
What type of switch is the Schlage 653-041?
The 653-041 uses an SPDT switch configuration with maintained action.
What does “key remove one position” mean on the 653-041?
It means the keyswitch is configured so the key can be removed in one position.
What cylinder does the Schlage 653-041 use?
The 650 Series operates with a 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinder having a straight type cam.
Is the Schlage 653-041 an OEM replacement part?
Yes. The Schlage 653-041 is an OEM Schlage replacement part.
