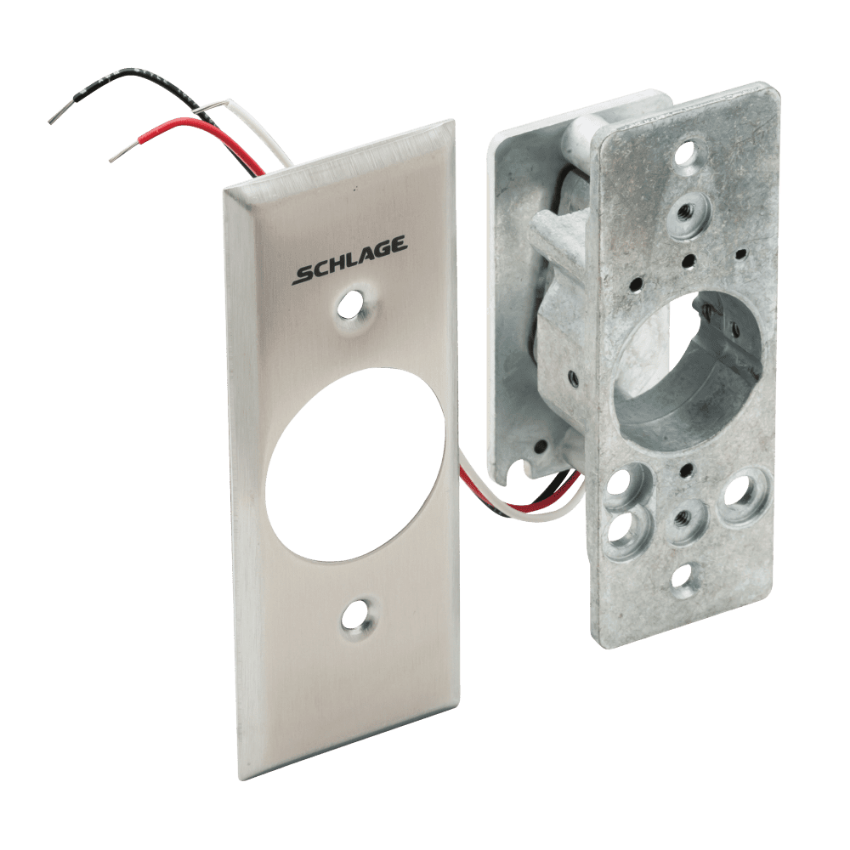

Schlage 653-05-NS narrow stile keyswitch

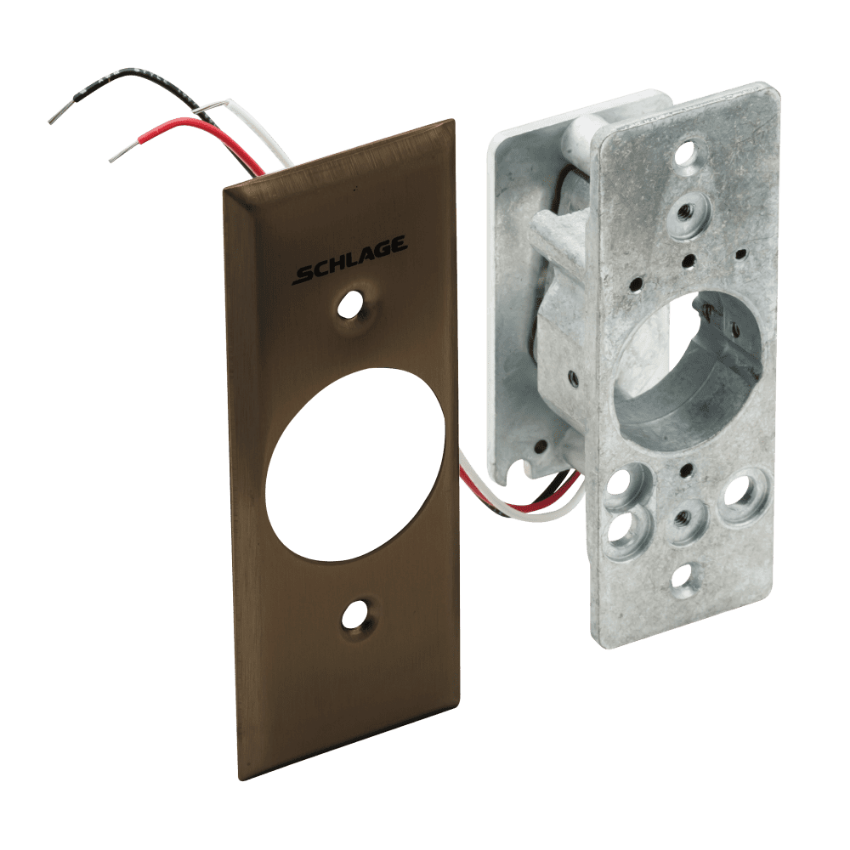

Schlage 653-05-NS Oil Rubbed Bronze narrow stile keyswitch
Schlage 653-05-NS Satin Chrome narrow stile keyswitch
Schlage 653-05-NS Bright Chrome narrow stile keyswitch

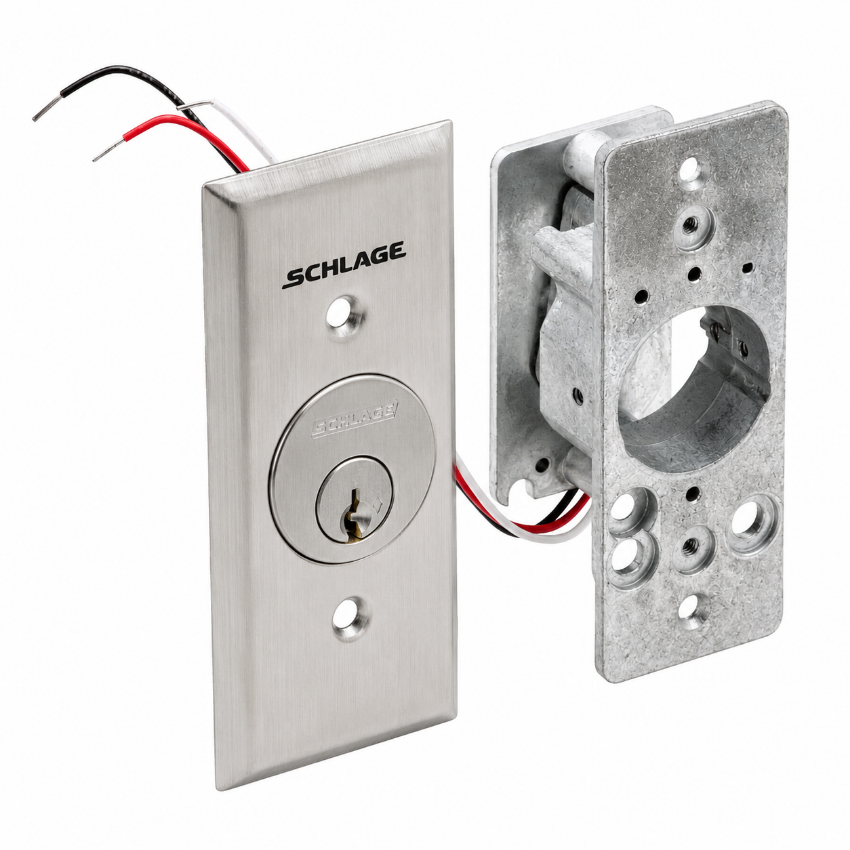

Schlage 653-05-NS SPDT momentary keyswitch with cylinder
Schlage 653-05-NS SPDT momentary keyswitch with red and green LEDs
Schlage 653-04-NS SPDT momentary keyswitch with anti-tamper switch
Dynamic Image
Schlage 653-05-NS narrow stile keyswitch
Schlage 653-05-NS Oil Rubbed Bronze narrow stile keyswitch
Schlage 653-05-NS Satin Chrome narrow stile keyswitch
Schlage 653-05-NS Bright Chrome narrow stile keyswitch
Schlage 653-05-NS SPDT momentary keyswitch with cylinder
Schlage 653-05-NS SPDT momentary keyswitch with red and green LEDs
Schlage 653-04-NS SPDT momentary keyswitch with anti-tamper switch

Schlage

SKU: 653-05-NS

Schlage 653-05-NS SPDT Momentary Keyswitch, Narrow Stile

In stock

Schlage 653-05-NS is an SPDT momentary keyswitch with a narrow stile stainless steel plate, designed for 650 Series electronic access control applications.
*

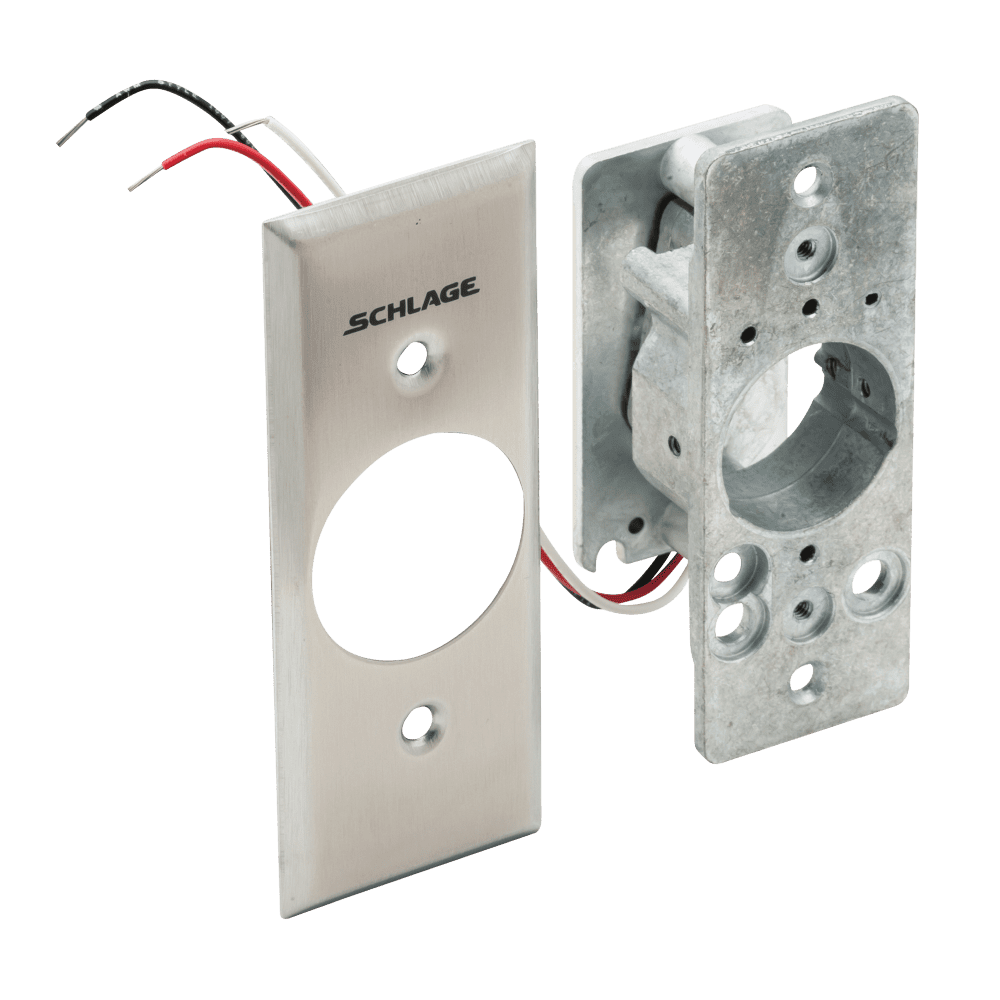

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

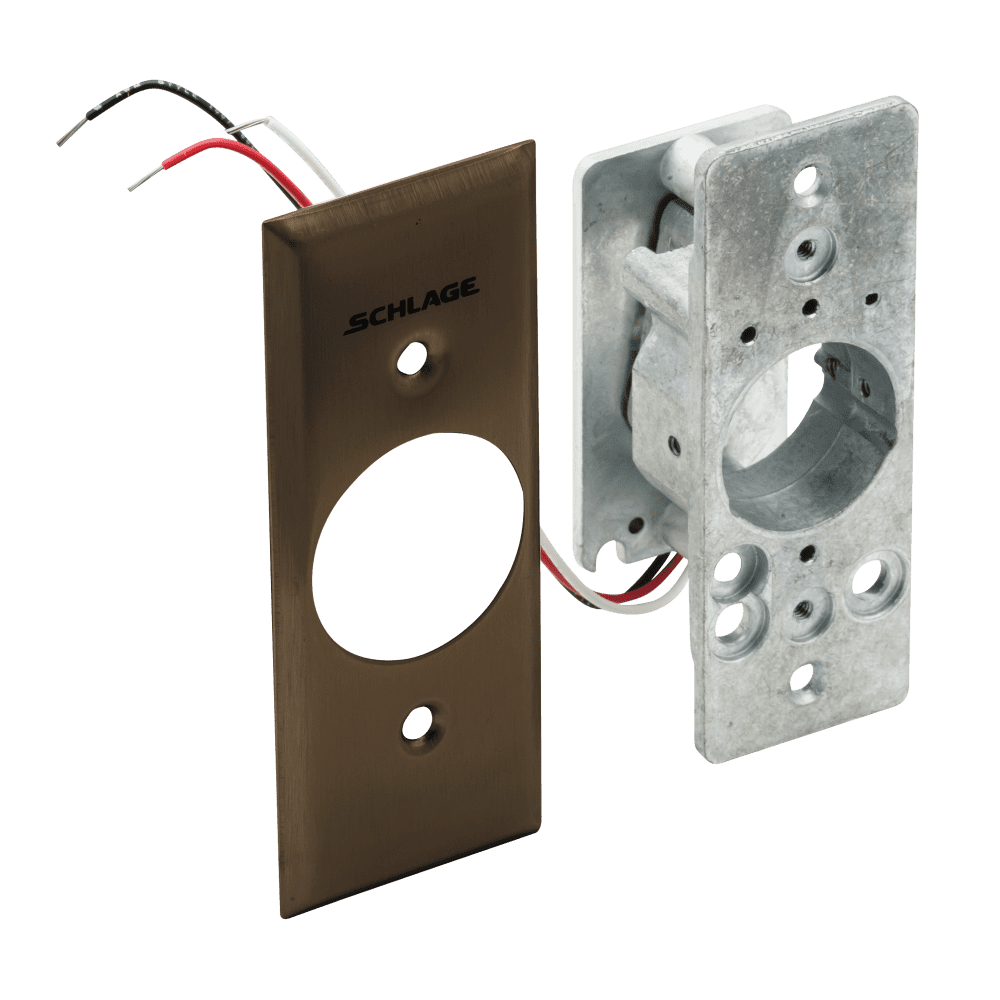

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

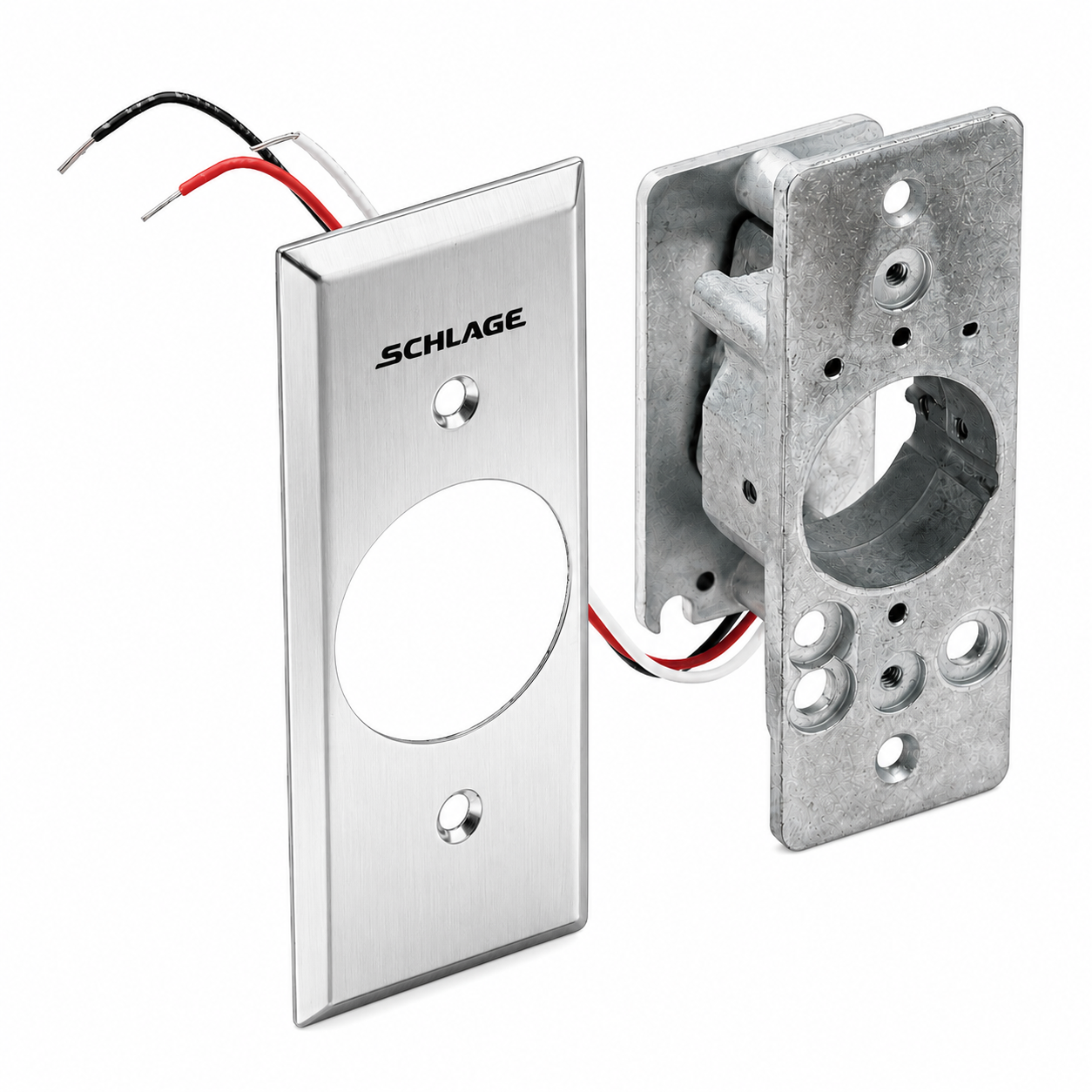

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-05-NS is a 650 Series SPDT momentary single-direction keyswitch configured with the narrow stile stainless steel plate option. The keyswitch provides momentary switching operation for access control applications and is designed to accept compatible Schlage mortise cylinders with a straight-type cam.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-05-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Momentary Keyswitch, Narrow Stile
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 1-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow Stile SPDT momentary single-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$406.00
$284.20
minus minus

Catalogs

Frequently Asked Questions

What is Schlage 653-05-NS?
It is a 650 Series SPDT momentary single-direction keyswitch with a narrow stile stainless steel plate.
What type of switch contacts does the 653-05-NS use?
The standard 650 Series keyswitch uses narrow stile SPDT contacts rated at 5 amps at 30 VDC.
What cylinders can the 653-05-NS use?
The 650 Series accepts 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders with a straight-type cam.
Does the 653-05-NS include a cylinder?
The standard keyswitch is shipped without a cylinder.
Is Schlage 653-05-NS an OEM replacement part?
Yes. Schlage 653-05-NS is an OEM Schlage part.
